◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11584 - FRR MIDDLE EAST SPACE CAB ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-30 - GEAR SHIFTER AND QUADRANT BOX ▶
2-30 — GEAR SHIFTER AND QUADRANT BOX (#153056) — 105 parça

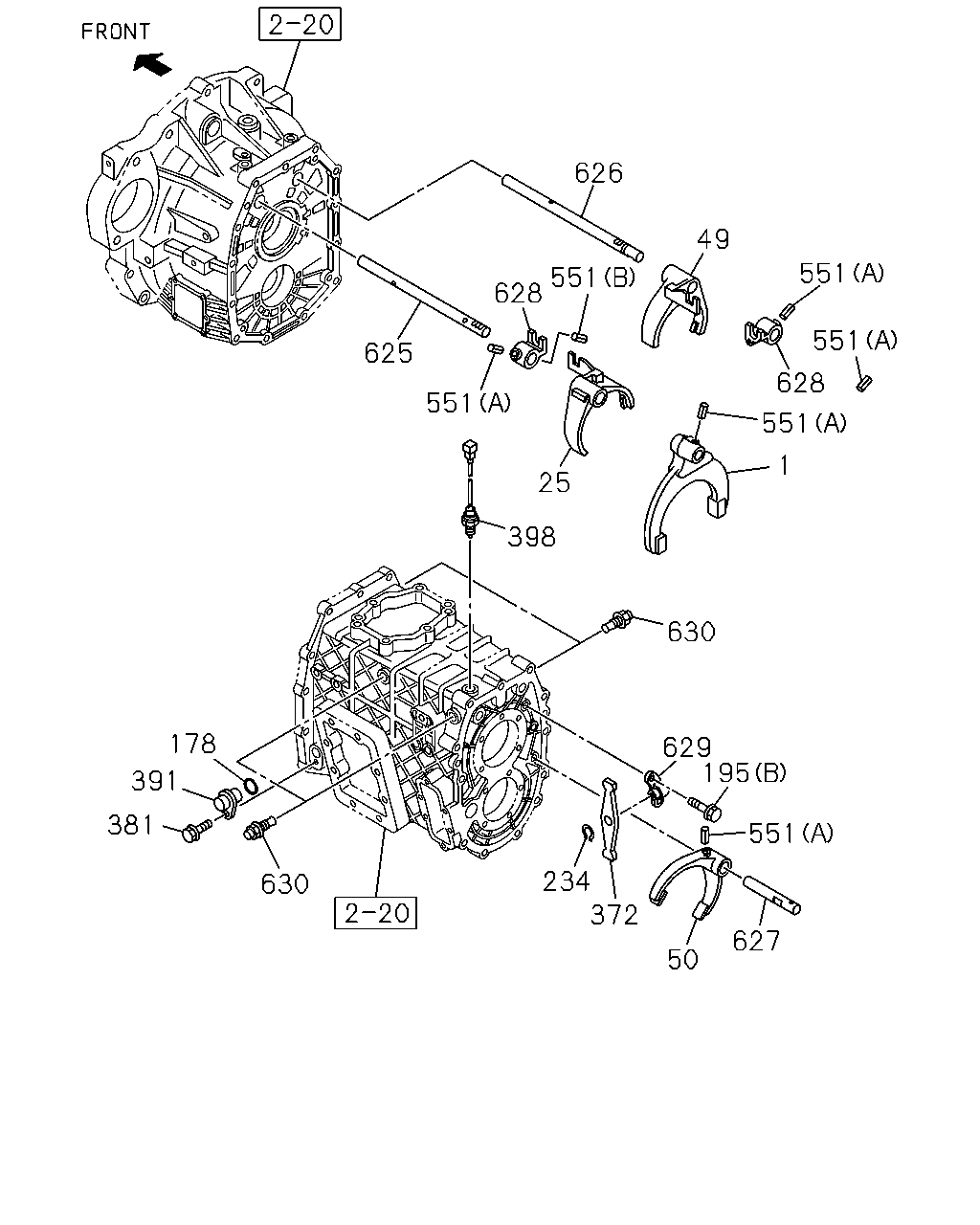

çizim 458024
626 49 551 551 551 628 551 630 398 551 625 628 25 178 391 381 630 234 372 50 627 551 195 629 1
BalonParca AdiParca NoAdetTipApplied Date
1 ARM; SHIFT,1ST & REV 8-97255-351-1 01 1 1412-
25 ARM; SHIFT,2ND & 3RD 8-97362-737-1 01 1 1412-
49 ARM; SHIFT,4TH & 5TH 8-97362-738-1 01 1 1412-
50 ARM; SHIFT,6TH 8-97241-324-1 01 1 1412-
178 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). 		9-09567-113-0 01 1 1412-
195 BOLT
(A) M10X20 FLANGE 		0-28751-020-0 02 1 1412-
195 BOLT
(B) M10X28 FLANGE REAMER 		8-97365-375-0 02 1 1412-
234 RING; SNAP
ID=16.5 		0-91800-618-0 01 1 1412-
372 LEVER; RELAY,6TH 8-97241-342-0 01 1 1412-
381 BOLT
M6X16 FLANGE 		0-28650-616-0 01 1 1412-
391 PLUG; SW HOLE 8-97300-273-1 01 1 1412-
398 SWITCH; REV LAMP 8-98242-173-1 01 1 1412-
551 PIN; SPRING
(C) L=25 OD=5 		1-09748-032-0 01 1 1412-
551 PIN; SPRING
(A) L=32 		8-97011-596-2 05 1 1412-
551 PIN; SPRING
(B) L=20 		8-97241-340-0 01 1 1412-
625 ROD; GEAR SHIFT,LOW,REV,2ND & 3RD 8-97362-735-0 01 1 1412-
626 ROD; GEAR SHIFT,4TH,5TH & 6TH 8-98107-548-0 01 1 1412-
627 ROD; GEAR SHIFT,6TH SUB 8-98119-293-0 01 1 1412-
628 BLOCK; SHIFT,LOW,REV & 6TH 8-97241-327-1 02 1 1412-
629 BRIDGE; LEVER 8-97241-345-1 01 1 1412-
630 DETENT ASM 8-98019-536-0 04 1 1412-

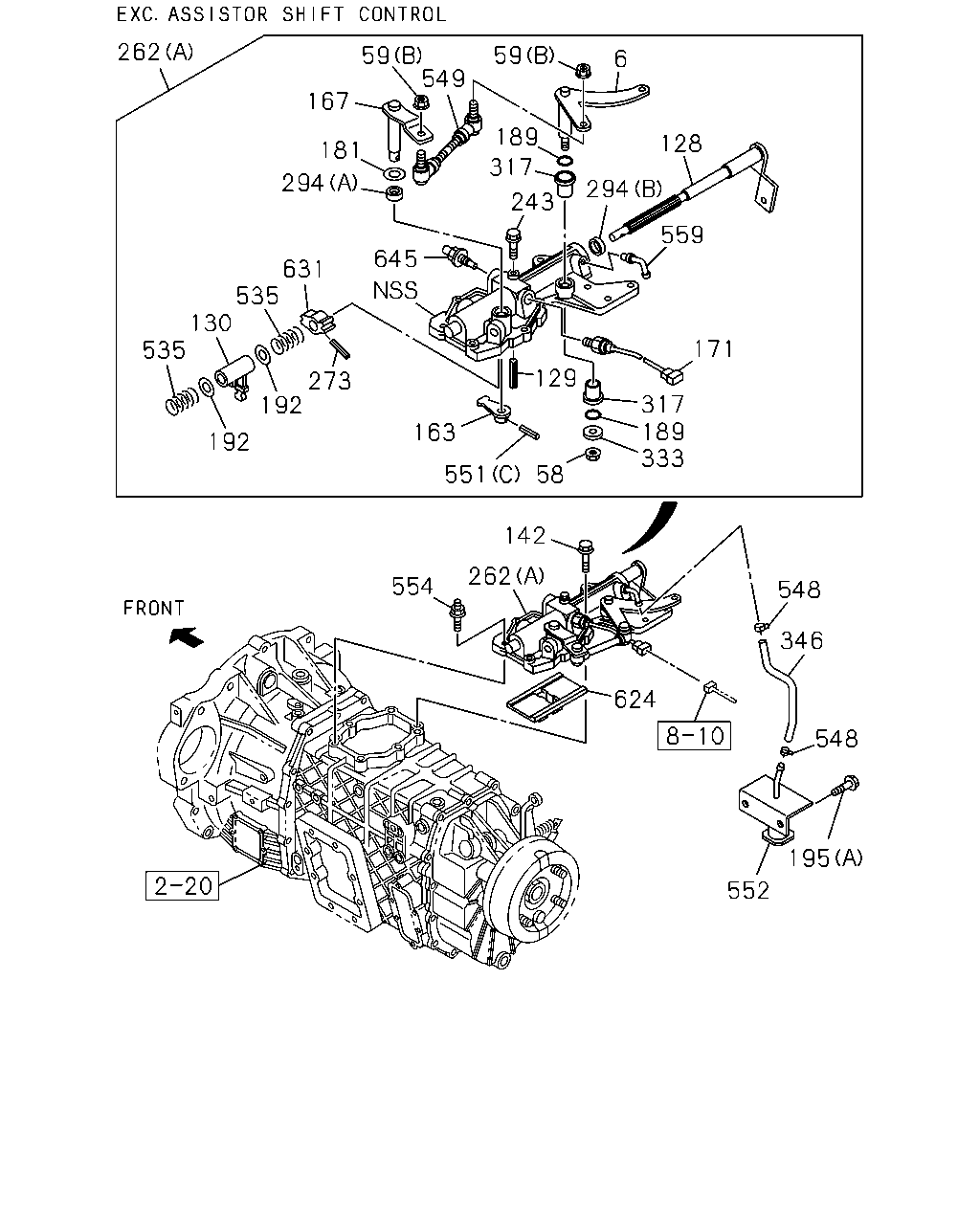

çizim 459130
262 59 167 181 294 631 535 130 535 192 192 273 645 59 189 317 243 294 128 559 171 317 189 333 129 58 551 163 142 262 554 548 346 548 624 195 552 6 549
BalonParca AdiParca NoAdetTipApplied Date
6 LEVER; RELAY 8-98014-157-1 01 1 1412-
58 NUT
M10 FLANGE 		0-91180-110-0 01 1 1412-
59 NUT
(B) M8 FLANGE 		0-91180-108-0 02 1 1412-
59 NUT
ASSISTOR SHIFT CONTROL<WX8> (A) M12 		0-91110-512-0 01 1 1412-
128 LEVER; SHIFT,EXTERNAL
EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98170-720-0 01 1 1412-1506
128 LEVER; SHIFT,EXTERNAL
EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98315-829-0 01 1 1507-
129 PIN; SPR,SHIFT
L=30 OD=4 		1-09748-031-0 01 1 1412-
130 LEVER; SHIFT,INTERNAL 8-97306-647-0 01 1 1412-
142 BOLT; QUAD BOX
M8X22 FLANGE 		8-97365-376-0 04 1 1412-
163 LEVER; SELECT,INTERNAL 8-97305-663-0 01 1 1412-
167 LEVER; SELECT,EXTERNAL 8-98021-489-0 01 1 1412-
171 SWITCH; NEUTRAL 8-98242-172-1 01 1 1412-1509
171 SWITCH; NEUTRAL 8-98324-878-0 01 1 1510-
181 WASHER; PL,SELECT LEVER 8-97367-327-0 01 1 1412-
189 GASKET; SELECT LEVER,CONT BOX 1-09623-594-0 02 1 1412-
192 WASHER; PL 8-97305-661-0 02 1 1412-
195 BOLT
(A) M10X20 FLANGE 		0-28751-020-0 02 1 1412-
195 BOLT
(B) M10X28 FLANGE REAMER 		8-97365-375-0 02 1 1412-
243 BOLT; COVER
M6X12 FLANGE 		1-33739-842-0 01 1 1412-
262 BOX ASM; SHIFT CONT
ASSISTOR SHIFT CONTROL<WX8> (B) 		8-98240-997-1 01 1 1412-1507
262 BOX ASM; SHIFT CONT
ASSISTOR SHIFT CONTROL<WX8> (B) 		8-98305-482-1 01 1 1508-
262 BOX ASM; SHIFT CONT
EXC. ASSISTOR SHIFT CONTROL<WX8> (A) 		8-98240-990-1 01 1 1412-1506
262 BOX ASM; SHIFT CONT
EXC. ASSISTOR SHIFT CONTROL<WX8> (A) 		8-98315-825-1 01 1 1507-
273 PIN; SPR,STOPPER
D=4.2 L=25 		8-97103-142-0 01 1 1412-
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (A) 		8-97305-662-0 01 1 1412-
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (B) 		8-97363-225-0 01 1 1412-
317 BUSHING; LEVER 1-09330-119-0 02 1 1412-
333 WASHER; PL,LEVER
ID=10.5 		0-91610-710-0 01 1 1412-
346 HOSE; AIR 8-98132-721-0 01 1 1412-
535 SPRING; LEVER 8-97385-713-0 02 1 1412-
548 CLIP; HOSE
ID=8 		8-94107-762-0 02 1 1412-
549 ROD; LINK 8-98023-095-0 01 1 1412-
551 PIN; SPRING
(C) L=25 OD=5 		1-09748-032-0 01 1 1412-
551 PIN; SPRING
(A) L=32 		8-97011-596-2 05 1 1412-
551 PIN; SPRING
(B) L=20 		8-97241-340-0 01 1 1412-
552 BRACKET 8-98132-718-0 01 1 1412-
554 STUD; CONT BOX
M8X15,M8X25 L=49 		8-97365-378-0 02 1 1412-
559 PIPE; BREATHER 8-97358-318-0 01 1 1412-
624 PLATE; INTER LOCK 8-97241-317-3 01 1 1412-
631 STOPPER; SPRING 8-98014-158-0 01 1 1412-
645 DETENT ASM 8-98019-536-0 01 1 1412-

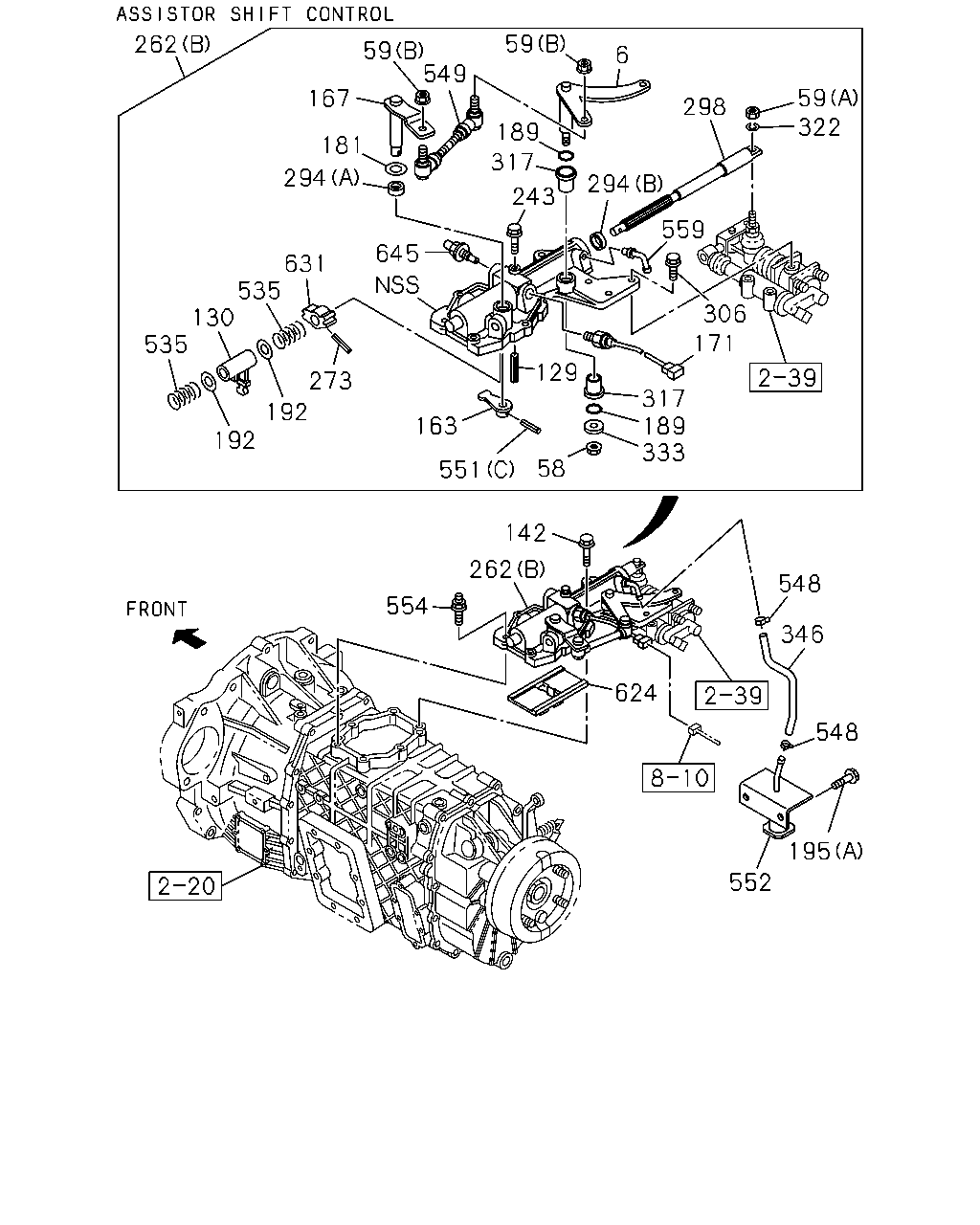

çizim 459498
552 548 346 548 142 262 554 624 333 58 189 317 171 306 129 551 163 273 192 192 535 130 535 631 645 243 294 317 189 6 59 298 322 59 59 167 549 181 294 559 195 262
BalonParca AdiParca NoAdetTipApplied Date
6 LEVER; RELAY 8-98014-157-1 01 1 1412-
58 NUT
M10 FLANGE 		0-91180-110-0 01 1 1412-
59 NUT
(B) M8 FLANGE 		0-91180-108-0 02 1 1412-
59 NUT
ASSISTOR SHIFT CONTROL<WX8> (A) M12 		0-91110-512-0 01 1 1412-
129 PIN; SPR,SHIFT
L=30 OD=4 		1-09748-031-0 01 1 1412-
130 LEVER; SHIFT,INTERNAL 8-97306-647-0 01 1 1412-
142 BOLT; QUAD BOX
M8X22 FLANGE 		8-97365-376-0 04 1 1412-
163 LEVER; SELECT,INTERNAL 8-97305-663-0 01 1 1412-
167 LEVER; SELECT,EXTERNAL 8-98021-489-0 01 1 1412-
171 SWITCH; NEUTRAL 8-98242-172-1 01 1 1412-1509
171 SWITCH; NEUTRAL 8-98324-878-0 01 1 1510-
181 WASHER; PL,SELECT LEVER 8-97367-327-0 01 1 1412-
189 GASKET; SELECT LEVER,CONT BOX 1-09623-594-0 02 1 1412-
192 WASHER; PL 8-97305-661-0 02 1 1412-
195 BOLT
(A) M10X20 FLANGE 		0-28751-020-0 02 1 1412-
195 BOLT
(B) M10X28 FLANGE REAMER 		8-97365-375-0 02 1 1412-
243 BOLT; COVER
M6X12 FLANGE 		1-33739-842-0 01 1 1412-
262 BOX ASM; SHIFT CONT
ASSISTOR SHIFT CONTROL<WX8> (B) 		8-98240-997-1 01 1 1412-1507
262 BOX ASM; SHIFT CONT
ASSISTOR SHIFT CONTROL<WX8> (B) 		8-98305-482-1 01 1 1508-
262 BOX ASM; SHIFT CONT
EXC. ASSISTOR SHIFT CONTROL<WX8> (A) 		8-98240-990-1 01 1 1412-1506
262 BOX ASM; SHIFT CONT
EXC. ASSISTOR SHIFT CONTROL<WX8> (A) 		8-98315-825-1 01 1 1507-
273 PIN; SPR,STOPPER
D=4.2 L=25 		8-97103-142-0 01 1 1412-
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (A) 		8-97305-662-0 01 1 1412-
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (B) 		8-97363-225-0 01 1 1412-
298 SHAFT; SHIFT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		8-98097-117-0 01 1 1412-1507
298 SHAFT; SHIFT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		8-98305-343-0 01 1 1508-
306 BOLT; SHIFT ASSISTOR
ASSISTOR SHIFT CONTROL<WX8> M10X50 FLANGE 		0-28051-050-0 03 1 1412-
317 BUSHING; LEVER 1-09330-119-0 02 1 1412-
322 WASHER; LK
ASSISTOR SHIFT CONTROL<WX8> 		8-98031-750-0 01 1 1412-
333 WASHER; PL,LEVER
ID=10.5 		0-91610-710-0 01 1 1412-
346 HOSE; AIR 8-98132-721-0 01 1 1412-
535 SPRING; LEVER 8-97385-713-0 02 1 1412-
548 CLIP; HOSE
ID=8 		8-94107-762-0 02 1 1412-
549 ROD; LINK 8-98023-095-0 01 1 1412-
551 PIN; SPRING
(C) L=25 OD=5 		1-09748-032-0 01 1 1412-
551 PIN; SPRING
(A) L=32 		8-97011-596-2 05 1 1412-
551 PIN; SPRING
(B) L=20 		8-97241-340-0 01 1 1412-
552 BRACKET 8-98132-718-0 01 1 1412-
554 STUD; CONT BOX
M8X15,M8X25 L=49 		8-97365-378-0 02 1 1412-
559 PIPE; BREATHER 8-97358-318-0 01 1 1412-
624 PLATE; INTER LOCK 8-97241-317-3 01 1 1412-
631 STOPPER; SPRING 8-98014-158-0 01 1 1412-
645 DETENT ASM 8-98019-536-0 01 1 1412-
