2-05 — CLUTCH PIPING (#153049) — 32 parça
çizim 458437
106 104 50 184 28 16 28 207 16 28
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; FLEX HOSE
(B) ID=18 L=28 		1-09701-067-0 01 1 1412-
16 CLIP; FLEX HOSE
(A) ID=10 & 12 		1-09709-278-1 01 1 1412-
28 CLIP; OIL PIPE
(B) ID=6.35 		1-09701-247-1 01 1 1412-
28 CLIP; OIL PIPE
(A) ID=6.35 & 10.0 		1-09709-274-1 03 1 1412-
28 CLIP; OIL PIPE
(C) 		8-98012-254-1 04 1 1412-
50 NUT; UNION
(B) M12 		0-91111-512-0 01 1 1412-
50 NUT; UNION
(B) M12 		0-91111-512-0 01 1 1412-
50 NUT; UNION
EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M12 		9-09840-280-0 01 1 1412-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
(A) L=2683 		8-98162-742-1 01 1 1412-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
(B) L=1519 		8-98217-131-0 01 1 1412-
106 UNION; OIL PIPE
(A) M12 2WAY 		1-09654-059-2 01 1 1412-
106 UNION; OIL PIPE
H.S.A SYSTEM<6EP> (B) M12 3WAY 		8-98051-113-0 01 1 1412-
184 UNION; FLEX HOSE
EXC. H.S.A SYSTEM<6EP> 		8-98150-865-0 01 1 1412-
207 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1412-

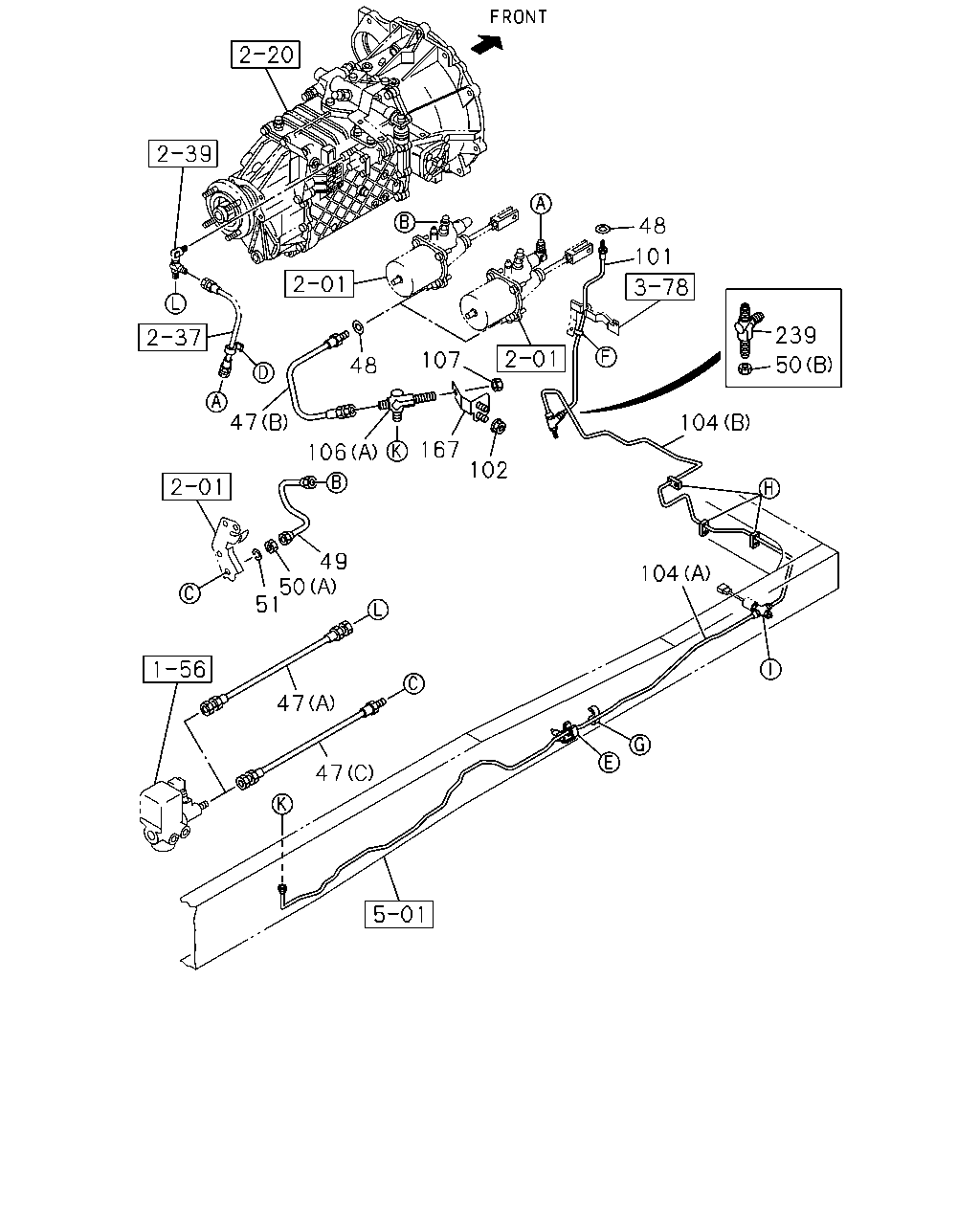

çizim 458546
48 47 106 167 107 102 104 104 239 50 48 101 50 51 47 47 49
BalonParca AdiParca NoAdetTipApplied Date
47 HOSE; FLEX,CLU CONT
(B) L=440 		8-98072-346-0 01 1 1412-
47 HOSE; FLEX,CLU CONT
ASSISTOR SHIFT CONTROL<WX8> (A) L=720 		1-09363-970-0 01 1 1412-
47 HOSE; FLEX,CLU CONT
EXC. ASSISTOR SHIFT CONTROL<WX8> (C) L=720 		1-09363-801-0 01 1 1412-
48 GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0 		9-09571-410-0 02 1 1412-
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
EXC. ASSISTOR SHIFT CONTROL<WX8> L=207 		1-49124-782-0 01 1 1412-
50 NUT; UNION
(B) M12 		0-91111-512-0 01 1 1412-
50 NUT; UNION
(B) M12 		0-91111-512-0 01 1 1412-
50 NUT; UNION
EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M12 		9-09840-280-0 01 1 1412-
51 WASHER; LK
EXC. ASSISTOR SHIFT CONTROL<WX8> ID=12.2 		0-91510-512-0 01 1 1412-
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
L=510 		8-98059-811-0 01 1 1412-
102 NUT; FLEX HOSE,CLU CONT
M10 FLANGE 		0-91180-210-0 02 1 1412-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
(A) L=2683 		8-98162-742-1 01 1 1412-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
(B) L=1519 		8-98217-131-0 01 1 1412-
106 UNION; OIL PIPE
(A) M12 2WAY 		1-09654-059-2 01 1 1412-
106 UNION; OIL PIPE
H.S.A SYSTEM<6EP> (B) M12 3WAY 		8-98051-113-0 01 1 1412-
107 NUT; UNION,OIL PIPE
M12 		0-91111-512-0 01 1 1412-
167 BRACKET; UNION 8-98086-811-1 01 1 1412-
239 UNION; CLU HOSE
M12 2WAY 		1-09654-059-2 01 1 1412-
