7-43 — SUN VISOR AND ASSIST GRIP (#15304) — 101 parça

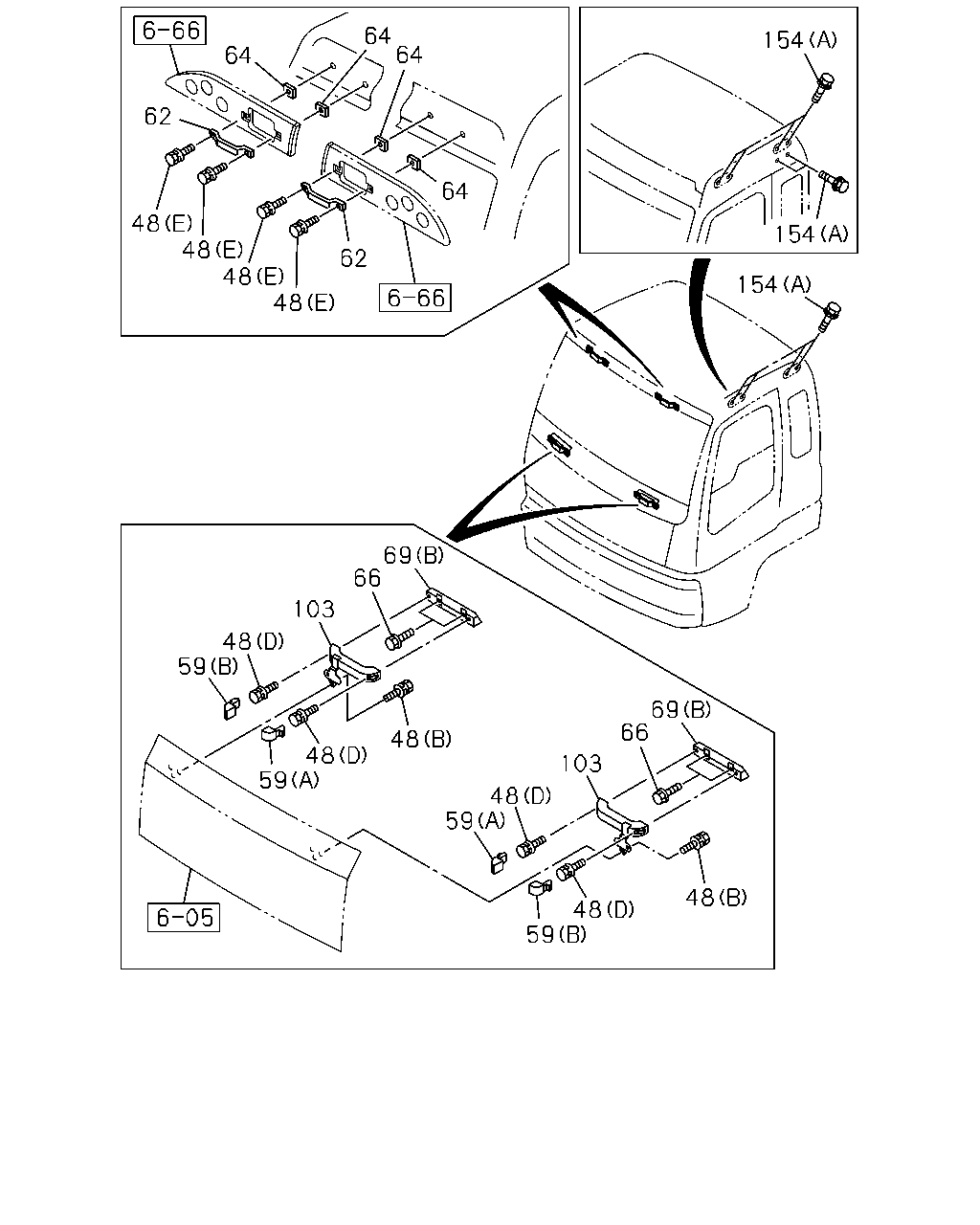

çizim 92899
62 64 64 64 64 62 48 48 48 48 154 154 154 69 66 103 48 59 59 48 48 69 66 103 48 59 59 48 48
BalonParca AdiParca NoAdetTipApplied Date
48 BOLT; ASSIST GRIP
(A) M6X12 W/LK&PL WASHER 		1-09980-611-0 04 1 0710-
48 BOLT; ASSIST GRIP
(E) M6X33.5 W/LK&PL WASHER 		1-09980-613-1 04 1 0710-
48 BOLT; ASSIST GRIP
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 0710-
48 BOLT; ASSIST GRIP
(C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0710-0904
48 BOLT; ASSIST GRIP
(C) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905-
48 BOLT; ASSIST GRIP
(D) M8X30 W/LK&PL WASHER 		8-94279-210-0 04 1 0710-
59 COVER; ASSIST GRIP
(B) OUTER 		1-71998-789-2 02 1 0710-
59 COVER; ASSIST GRIP
(A) INNER 		1-71998-790-2 02 1 0710-
59 COVER; ASSIST GRIP
(C) 		1-73617-565-0 02 1 0710-
62 GRIP; ASSIST,ROOF PANEL 1-71907-492-0 02 1 0710-0907
62 GRIP; ASSIST,ROOF PANEL 8-97630-819-0 02 1 0908-
64 SHEET; ASSIST GRIP
25X25 		8-94272-533-0 04 1 0710-
66 BOLT; ASSIST GRIP BRKT
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 04 1 0710-
69 BRACKET; ASSIST GRIP
(B) 		1-65570-242-0 01 1 0710-
69 BRACKET; ASSIST GRIP
(B) 		1-65570-243-0 01 1 0710-
69 BRACKET; ASSIST GRIP
(A) 		1-73618-178-2 01 1 0710-
103 GRIP; ASSIST,FRT PNL 1-71998-939-3 01 1 0710-
103 GRIP; ASSIST,FRT PNL 1-71998-940-3 01 1 0710-
154 BOLT; SUPPORT
HIGH ROOF<S2F> GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER 		1-79198-003-2 08 1 0710-
154 BOLT; SUPPORT
LOW ROOF<6XQ> EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER 		1-79198-003-2 08 1 0710-
154 BOLT; SUPPORT
HIGH ROOF<S2F> EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER 		1-79198-003-2 12 1 0710-
154 BOLT; SUPPORT
GRIP OUT SIDE<W52> LOW ROOF<6XQ> (A) M8X15 W/PL WASHER 		1-79198-003-2 04 1 0710-
154 BOLT; SUPPORT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 18 1 0710-

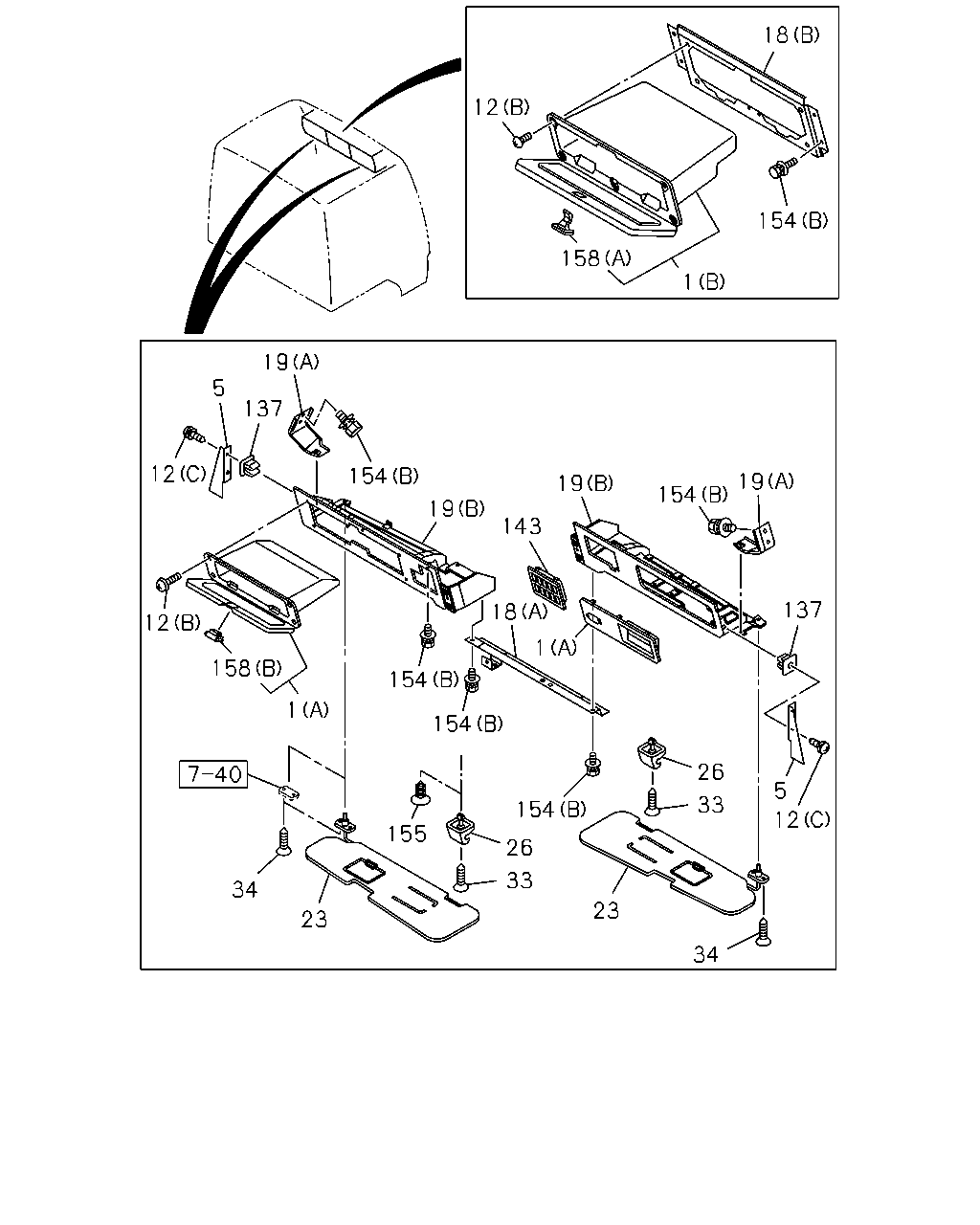

çizim 106787
12 158 1 154 18 19 5 137 12 154 19 143 19 154 19 137 18 1 12 158 1 154 154 34 23 155 33 26 154 23 34 12 33 26 5
BalonParca AdiParca NoAdetTipApplied Date
1 BOARD; HEADER SHELF
HIGH ROOF<S2F> (C) 		1-72447-886-7 01 1 0710-
1 BOARD; HEADER SHELF
(A) 		1-72447-761-6 01 1 0710-
1 BOARD; HEADER SHELF
(A) 		1-72447-876-4 01 1 0710-
1 BOARD; HEADER SHELF
(B) 		1-72447-968-0 01 1 0710-
5 BRACKET; HEADER SHELF FRAME
HIGH ROOF<S2F> 		1-72447-932-0 01 1 0710-
5 BRACKET; HEADER SHELF FRAME
HIGH ROOF<S2F> 		1-72447-933-0 01 1 0710-
12 SCREW; HEADER SHELF
HIGH ROOF<S2F> (C) M5X20 		5-09981-059-0 04 1 0710-
12 SCREW; HEADER SHELF
HIGH ROOF<S2F> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 07 1 0710-
12 SCREW; HEADER SHELF
(B) M6X24 W/LK&PL WASHER 		8-94279-404-0 08 1 0710-
18 SUPPORT; HEADER SHELF CENTER
(B) 		1-72447-824-2 01 1 0710-
18 SUPPORT; HEADER SHELF CENTER
(A) 		1-72447-877-2 01 1 0710-0909
18 SUPPORT; HEADER SHELF CENTER
(A) 		8-98118-217-1 01 1 0910-
19 SUPPORT ASM; HEADER SHELF
(B) 		1-72447-878-4 01 1 0710-
19 SUPPORT ASM; HEADER SHELF
(B) 		1-72447-879-7 01 1 0710-
19 SUPPORT ASM; HEADER SHELF
(A) 		1-72448-323-1 01 1 0710-
19 SUPPORT ASM; HEADER SHELF
(A) 		1-72448-324-1 01 1 0710-
23 SUN VISOR
SUN VISOR PASSENGER<D20> 		1-73138-157-1 01 1 0710-
23 SUN VISOR 1-73138-162-0 01 1 0710-
26 HOLDER; SUN VISOR 1-73137-175-0 01 1 0710-
26 HOLDER; SUN VISOR
SUN VISOR PASSENGER<D20> 		1-73137-175-0 01 1 0710-
33 SCREW; HOLDER,SUN VISOR
M4X20 TAPPING OVAL-HEAD 		0-70540-420-0 01 1 0710-
33 SCREW; HOLDER,SUN VISOR
SUN VISOR PASSENGER<D20> M4X20 TAPPING OVAL-HEAD 		0-70540-420-0 01 1 0710-
34 SCREW; SUN VISOR
M6X25 		1-09981-441-0 04 1 0710-
137 GROMMET; SCREW,HEADER SHELF
HIGH ROOF<S2F> D=8.6X7.7 L=7.5 		8-94279-078-0 04 1 0710-
143 BEZEL 1-72447-768-2 01 1 0710-
154 BOLT; SUPPORT
HIGH ROOF<S2F> GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER 		1-79198-003-2 08 1 0710-
154 BOLT; SUPPORT
LOW ROOF<6XQ> EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER 		1-79198-003-2 08 1 0710-
154 BOLT; SUPPORT
HIGH ROOF<S2F> EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER 		1-79198-003-2 12 1 0710-
154 BOLT; SUPPORT
GRIP OUT SIDE<W52> LOW ROOF<6XQ> (A) M8X15 W/PL WASHER 		1-79198-003-2 04 1 0710-
154 BOLT; SUPPORT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 18 1 0710-
155 FASTENER; HOLDER
EXC. SUN VISOR PASSENGER<D20> 		1-09983-181-0 01 1 0710-
158 LOCK; HEADER SHELF
(B) 		1-72448-376-0 01 1 0710-
158 LOCK; HEADER SHELF
(A) 		1-72538-312-0 01 1 0710-

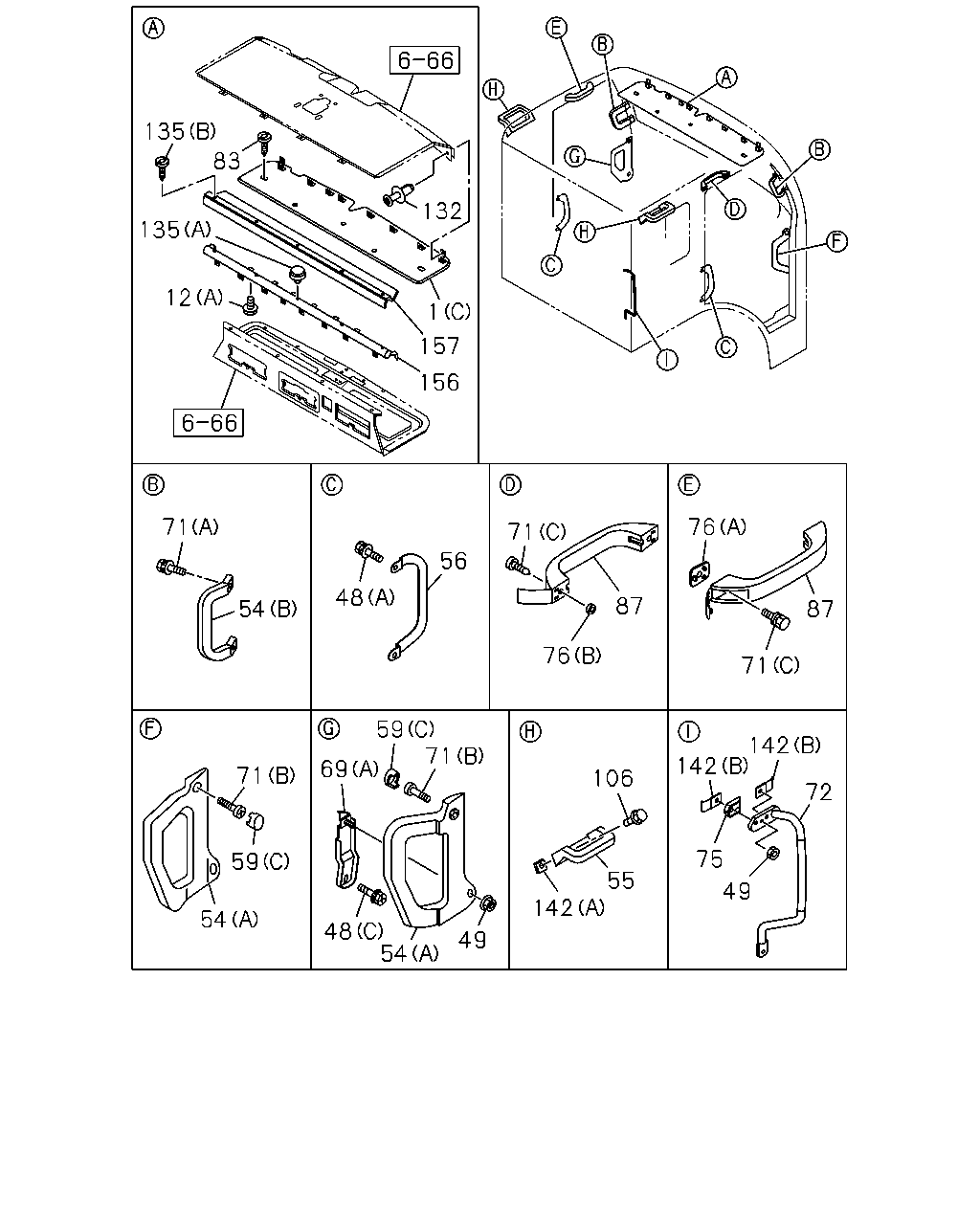

çizim 106800
135 83 135 132 1 157 156 12 71 54 48 56 71 76 87 76 87 71 71 59 54 59 69 71 48 54 49 142 55 106 75 49 72 142 142
BalonParca AdiParca NoAdetTipApplied Date
1 BOARD; HEADER SHELF
HIGH ROOF<S2F> (C) 		1-72447-886-7 01 1 0710-
1 BOARD; HEADER SHELF
(A) 		1-72447-761-6 01 1 0710-
1 BOARD; HEADER SHELF
(A) 		1-72447-876-4 01 1 0710-
1 BOARD; HEADER SHELF
(B) 		1-72447-968-0 01 1 0710-
12 SCREW; HEADER SHELF
HIGH ROOF<S2F> (C) M5X20 		5-09981-059-0 04 1 0710-
12 SCREW; HEADER SHELF
HIGH ROOF<S2F> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 07 1 0710-
12 SCREW; HEADER SHELF
(B) M6X24 W/LK&PL WASHER 		8-94279-404-0 08 1 0710-
48 BOLT; ASSIST GRIP
(A) M6X12 W/LK&PL WASHER 		1-09980-611-0 04 1 0710-
48 BOLT; ASSIST GRIP
(E) M6X33.5 W/LK&PL WASHER 		1-09980-613-1 04 1 0710-
48 BOLT; ASSIST GRIP
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 0710-
48 BOLT; ASSIST GRIP
(C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0710-0904
48 BOLT; ASSIST GRIP
(C) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905-
48 BOLT; ASSIST GRIP
(D) M8X30 W/LK&PL WASHER 		8-94279-210-0 04 1 0710-
49 NUT; ASSIST GRIP
GRIP OUT SIDE<W52> M8 FLANGE 		1-09984-126-0 01 1 0710-0808
49 NUT; ASSIST GRIP
M6 FLANGE 		0-91180-106-0 01 1 0710-
54 GRIP; ASSIST,QUARTER SIDE
(B) 		1-73618-185-1 02 1 0710-
54 GRIP; ASSIST,QUARTER SIDE
(A) 		1-73617-563-1 01 1 0710-
54 GRIP; ASSIST,QUARTER SIDE
(A) 		1-73617-564-1 01 1 0710-
55 GRIP; ASSIST,CAB SIDE UPR
GRIP OUT SIDE<W52> 		1-73618-169-1 02 1 0710-
56 GRIP; ASSIST,SIDE SILL 1-73617-570-0 02 1 0710-0804
56 GRIP; ASSIST,SIDE SILL 8-98081-700-0 02 1 0805-
59 COVER; ASSIST GRIP
(B) OUTER 		1-71998-789-2 02 1 0710-
59 COVER; ASSIST GRIP
(A) INNER 		1-71998-790-2 02 1 0710-
59 COVER; ASSIST GRIP
(C) 		1-73617-565-0 02 1 0710-
69 BRACKET; ASSIST GRIP
(B) 		1-65570-242-0 01 1 0710-
69 BRACKET; ASSIST GRIP
(B) 		1-65570-243-0 01 1 0710-
69 BRACKET; ASSIST GRIP
(A) 		1-73618-178-2 01 1 0710-
71 SCREW
(C) M6X30 W/LK WASHER 		5-09981-064-0 04 1 0710-
71 SCREW
(A) M6X34 W/LK&PL WASHER 		8-94279-411-0 04 1 0710-
71 SCREW
(B) M6X20 W/LK&PL WASHER 		1-09981-073-0 03 1 0710-
72 GRIP; ASSIST,CAB ENTRY,BACK
GRIP OUT SIDE<W52> 		1-71907-544-0 01 1 0710-1006
72 GRIP; ASSIST,CAB ENTRY,BACK
GRIP OUT SIDE<W52> 		1-71907-540-0 01 1 1007-
75 SHEET; ASSIST GRIP,CAB ENTRY
GRIP OUT SIDE<W52> 		1-71997-548-0 01 1 0710-
76 SPACER; ASSIST GRIP
LOW ROOF<6XQ> (B) OD=13 T=4.5 		8-94230-464-1 02 1 0710-
76 SPACER; ASSIST GRIP
LOW ROOF<6XQ> (A) 		1-73618-180-0 02 1 0710-
83 PLUG
D6X23 LIGHT GRAY 		1-73318-629-0 03 1 0710-
87 GRIP; ASSIST,CANT RAIL SIDE
DARK GRAY 		8-97098-476-2 02 1 0710-
106 SCREW; ASSIST GRIP
GRIP OUT SIDE<W52> M8X30 W/LK&PL WASHER 		8-94279-210-0 04 1 0710-
132 FASTENER; BOARD,HEADER SHELF
HIGH ROOF<S2F> D8X13.5 		1-09987-276-0 08 1 0710-
135 CLIP; HEADER SHELF
HIGH ROOF<S2F> (A) D8X13.5 		1-09987-248-1 01 1 0710-
135 CLIP; HEADER SHELF
HIGH ROOF<S2F> (B) D6X23 LIGHT GRAY 		1-73318-629-0 05 1 0710-
142 SEAL; ASSIST GRIP
GRIP OUT SIDE<W52> (B) 		1-71997-691-1 02 1 0710-
142 SEAL; ASSIST GRIP
GRIP OUT SIDE<W52> (A) 25X25 		8-94272-533-0 04 1 0710-
156 PIPE; HEADER SHELF
HIGH ROOF<S2F> 		1-72447-864-2 01 1 0710-
157 FINISHER; PIPE
HIGH ROOF<S2F> 		1-72447-885-5 01 1 0710-
