Isuzu WW
▶
TRUCKS
▶
FRR
▶
11584 - FRR MIDDLE EAST SPACE CAB
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-31 - AIR DUCT
▶
1-31 — AIR DUCT
(#153039) — 67 parça
◀

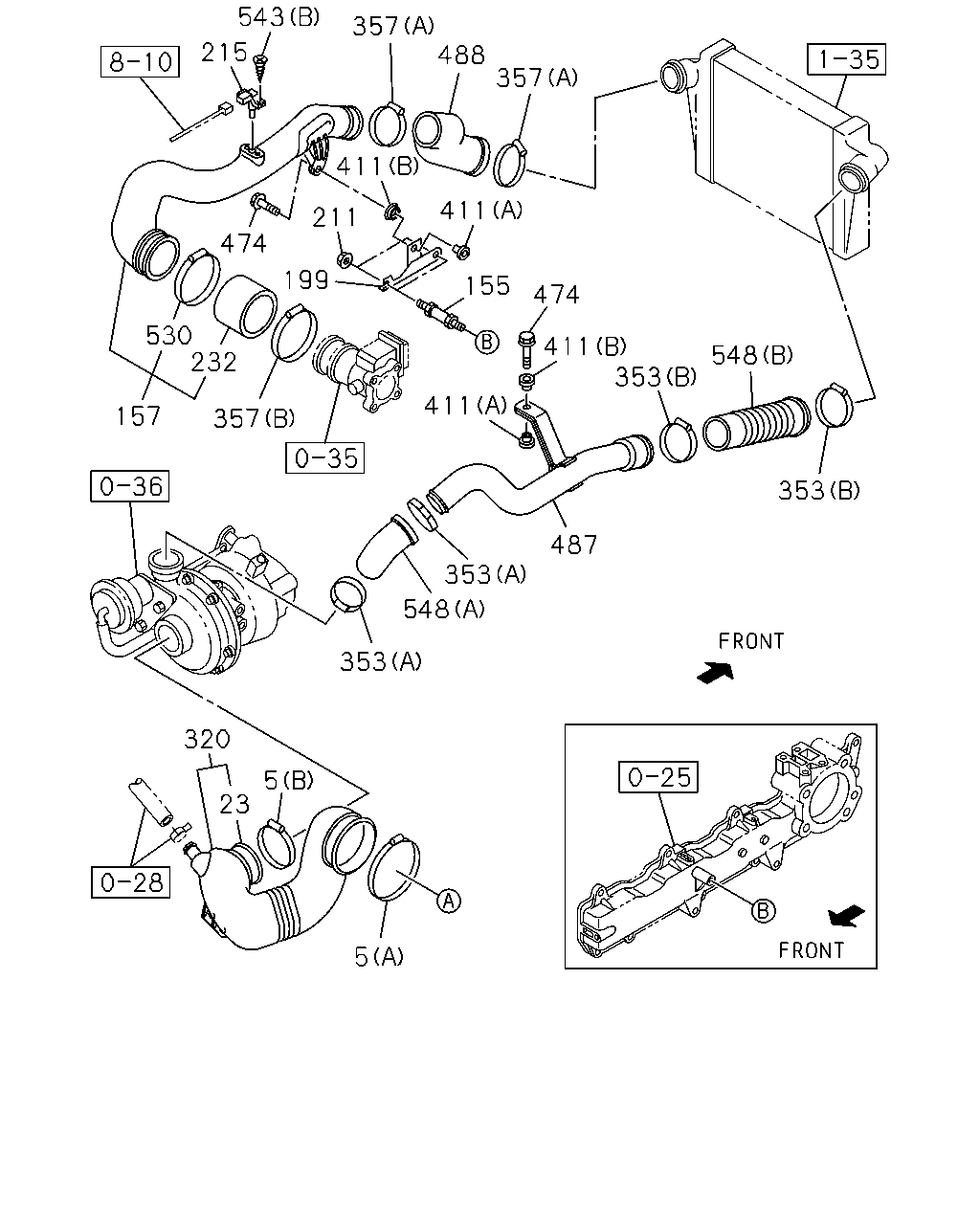

[131A] PIPING (31 parça)
[131A] DUCT FIXING (36 parça)
▶
543
215
357
357
488
411
411
474
211
155
411
474
353
548
353
487
530
357
232
157
411
353
548
353
320
23
5
5
199
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
5
CLIP; AIR DUCT
KD PREPARATORY PACK<6HF> (B) ID=55-75
8-98133-349-0
01
1
1412-
5
CLIP; AIR DUCT
KD PREPARATORY PACK<6HF> (A) ID=110-130
8-98133-359-0
01
1
1412-
5
CLIP; AIR DUCT
EXC. KD PREPARATORY PACK<6HF> (A) ID=104-142
1-09707-139-0
01
1
1412-
5
CLIP; AIR DUCT
EXC. KD PREPARATORY PACK<6HF> (B) ID=75
8-98206-613-0
01
1
1412-
23
CLIP; HOSE
ID=87-116
1-09707-144-0
01
1
1412-
155
BOLT; BRKT
M10X17,M10X30 L=105
8-97233-428-0
02
1
1412-
157
PIPE; AIR
8-98010-719-3
01
1
1412-
199
BRACKET; PIPE
8-97385-293-1
01
1
1412-
211
NUT; BRKT
M10 FLANGE
0-91180-210-0
02
1
1412-
215
SENSOR; MAP
8-98009-418-0
01
1
1412-
232
HOSE; CONN
8-98067-929-0
01
1
1412-
320
HOSE; CONN,ACL
8-98073-539-3
01
1
1412-
353
CLIP; RUBBER HOSE
(A) ID=60-65
8-98096-418-0
02
1
1412-
353
CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> (B) ID=55-75
8-98133-349-0
02
1
1412-
353
CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> (B) ID=58-79
1-09707-136-0
02
1
1412-
357
CLIP; RUBBER HOSE
(C) ID=24
8-98025-921-0
02
1
1412-
357
CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> (A) ID=55-75
8-98133-349-0
02
1
1412-
357
CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> (B) ID=75-95
8-98133-357-0
01
1
1412-
357
CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> (A) ID=58-79
1-09707-136-0
02
1
1412-
357
CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> (B) ID=77-99
1-09707-141-0
01
1
1412-
411
RUBBER; CUSHION
(A) OD=32
8-94395-766-0
02
1
1412-
411
RUBBER; CUSHION
(B) OD=23
8-97105-689-6
02
1
1412-
474
BOLT; PIPE
M8X40 FLANGE
0-28650-840-0
02
1
1412-
487
PIPE; TURBO TO CHARGE AIR COOLER
8-98073-592-0
01
1
1412-
488
HOSE; RUBBER,PIPE
8-98010-723-0
01
1
1412-
530
CLAMP; AIR DUCT
ID=75-95
8-98133-357-0
01
1
1412-
543
SCREW; SENSOR
(A) M5X14 W/LK WASHER
0-36220-514-0
01
1
1412-
543
SCREW; SENSOR
(B) M4X12 W/LK&PL WASHER
0-36230-412-0
02
1
1412-
543
SCREW; SENSOR
(B) M4X12 W/LK&PL WASHER
0-36230-412-0
02
1
1412-
548
HOSE; RUBBER,TURBO TO INL PIPE
(A)
8-98181-971-1
01
1
1412-
548
HOSE; RUBBER,TURBO TO INL PIPE
(B)
8-98181-972-1
01
1
1412-
357
379
357
225
210
209
296
564
368
480
543
543
316
252
71
49
242
58
26
560
450
48
58
245
242
61
58
56
56
49
242
58
56
56
49
49
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
26
DUCT; AIR INT
8-98010-361-2
01
1
1412-
48
BOLT; AIR DUCT
M10X60
1-09030-044-1
02
1
1412-
49
NUT; AIR DUCT
(B) M8 FLANGE
1-09984-122-0
01
1
1412-
49
NUT; AIR DUCT
(A) M8 FLANGE
1-09984-126-0
01
1
1412-
49
NUT; AIR DUCT
(C) M8 FLANGE
8-94279-517-0
02
1
1412-
56
WASHER; LK,AIR INT DUCT
(A) ID=8.2
1-09985-177-0
02
1
1412-
56
WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22
1-09985-188-0
02
1
1412-
58
SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5
1-14119-267-0
04
1
1412-
58
SUPPORT; AIR INL DUCT
(B)
8-98125-944-1
01
1
1412-
61
BOLT; BRKT,AIR DUCT
M8X25 FLANGE
8-98074-570-0
02
1
1412-
71
CLIP; AIR DUCT
ID=120-140
8-98133-367-0
01
1
1412-
209
BRACKET; ACL
8-98010-343-4
01
1
1412-
210
BOLT; ACL BRKT
M10X25 FLANGE
0-28651-025-0
04
1
1412-
225
GASKET; AIR PIPE
ID=24.4
1-09623-057-0
01
1
1412-
225
GASKET; AIR PIPE
ID=24.4
1-09623-057-0
01
1
1412-
242
BRACKET; AIR DUCT
(B)
8-98019-301-3
01
1
1412-
242
BRACKET; AIR DUCT
(C)
8-98019-302-1
01
1
1412-
242
BRACKET; AIR DUCT
(A)
8-98019-303-1
01
1
1412-
245
PIECE; DIST,AIR DUCT
1-79998-228-0
02
1
1412-
252
DUCT; AIR INT
8-98010-639-1
01
1
1412-
296
NUT; ACL
M8 FLANGE
0-91180-108-0
04
1
1412-
316
RUBBER; CUSHION,DUCT
8-98152-269-0
01
1
1412-
357
CLIP; RUBBER HOSE
(C) ID=24
8-98025-921-0
02
1
1412-
357
CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> (A) ID=55-75
8-98133-349-0
02
1
1412-
357
CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> (B) ID=75-95
8-98133-357-0
01
1
1412-
357
CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> (A) ID=58-79
1-09707-136-0
02
1
1412-
357
CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> (B) ID=77-99
1-09707-141-0
01
1
1412-
368
SENSOR; TEMP
8-98065-377-0
01
1
1412-
379
HOSE; RUBBER
8-98075-713-1
01
1
1412-
450
CLAMP; HOSE
9-09915-504-1
01
1
1412-
480
ADAPTER
8-98086-417-0
01
1
1412-
543
SCREW; SENSOR
(A) M5X14 W/LK WASHER
0-36220-514-0
01
1
1412-
543
SCREW; SENSOR
(B) M4X12 W/LK&PL WASHER
0-36230-412-0
02
1
1412-
543
SCREW; SENSOR
(B) M4X12 W/LK&PL WASHER
0-36230-412-0
02
1
1412-
560
FILTER; VERTICAL DUCT
8-98061-675-0
01
1
1412-
564
GASKET; ADAPTER
8-98071-416-0
01
1
1412-
