◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11139 - FSR-R(EU)EU4 EXC.SPA ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-90 - RADIO AND TV ▶
8-90 — RADIO AND TV (#15285) — 21 parça

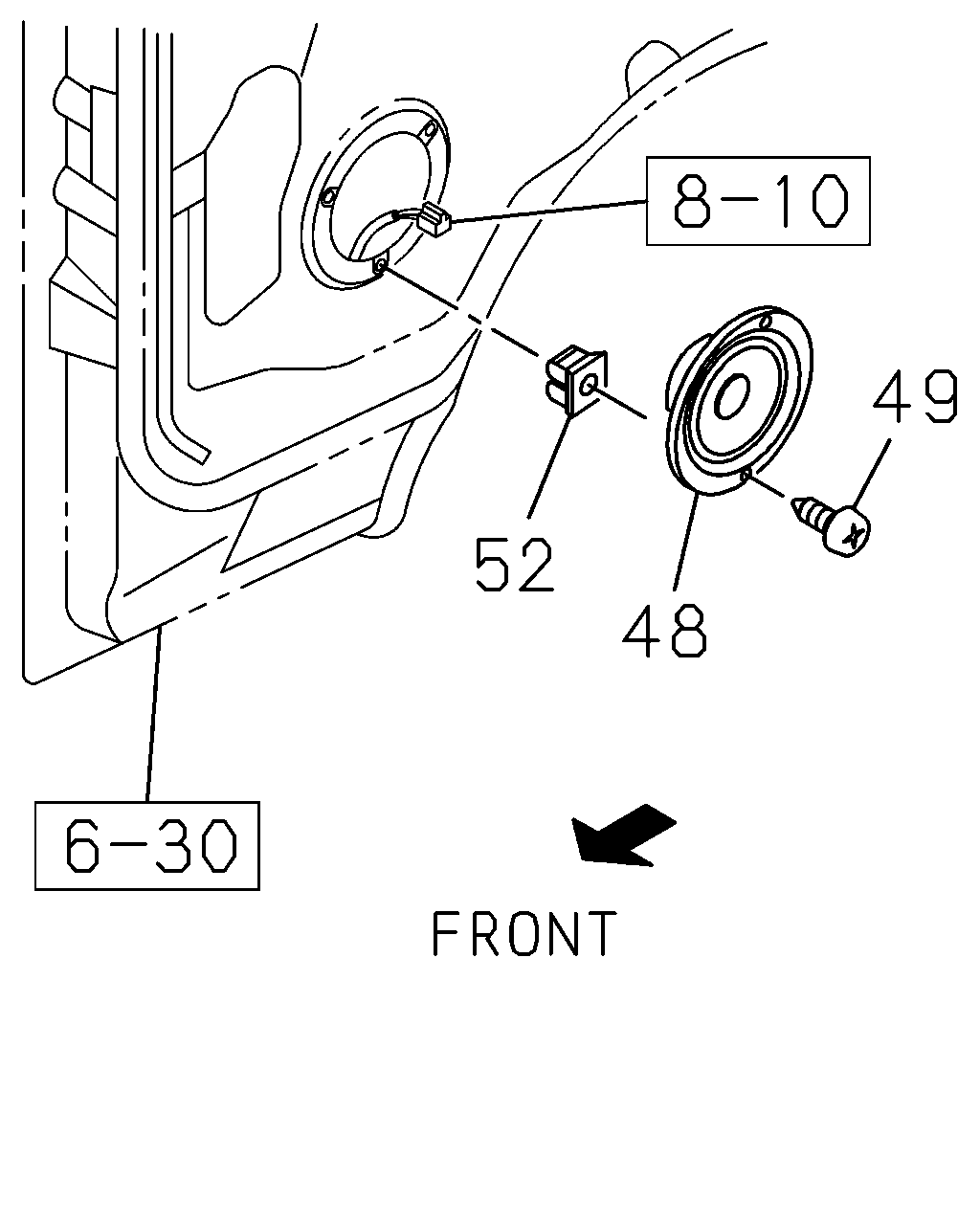

çizim 108165
49 52 48
BalonParca AdiParca NoAdetTipApplied Date
48 SPEAKER; AUDIO 8-97317-001-1 02 1 0803-
49 SCREW; SPEAKER
M5X14 TAPPING W/TORQUES 		8-98061-856-0 06 1 0803-
52 GROMMET; SCREW,SPEAKER
D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 0803-

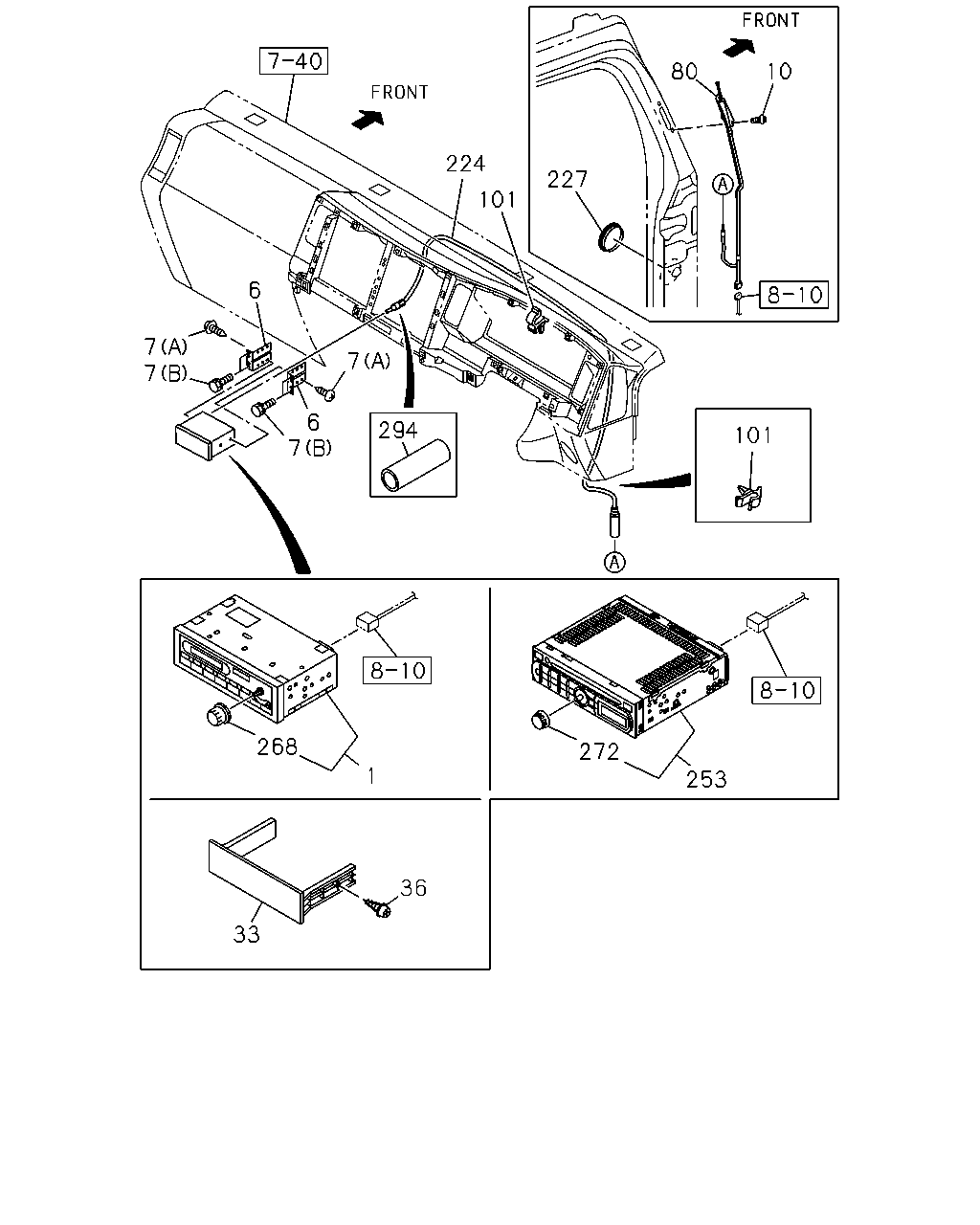

çizim 108188
80 10 224 227 101 6 7 7 7 6 7 294 101 268 272 1 253 36 33
BalonParca AdiParca NoAdetTipApplied Date
1 RADIO
RADIO AM/FM<U69> 		8-98032-643-0 01 1 0803-
6 BRACKET; RADIO TO PANEL 8-97585-617-0 02 1 0803-
7 SCREW; RADIO
RADIO AM/FM STEREO CD<UT3>,RADIO AM/FM<U69> (A) M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 04 1 0803-
7 SCREW; RADIO
(B) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 02 1 0803-
10 SCREW; ANTENNA CABLE
M5X11 		1-09981-536-1 02 1 0803-
33 COVER; RADIO
EXC. RADIO AM/FM STEREO CD<UT3>,RADIO AM/FM<U69> BLACK 		8-97407-896-1 01 1 0803-
36 SCREW; COVER
EXC. RADIO AM/FM STEREO CD<UT3>,RADIO AM/FM<U69> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0803-
80 ANTENNA 8-98074-576-1 01 1 0803-0904
80 ANTENNA 8-98139-014-0 01 1 0905-
101 CLIP; FEEDER TO BRKT
ID=4.8 		8-94128-483-0 03 1 0803-
224 CABLE; EXT,FEEDER 8-98063-002-1 01 1 0803-
227 PROTECTOR; EDGE 8-98053-117-0 01 1 0803-0904
253 DECK ASM; RADIO & CD
RADIO AM/FM STEREO CD<UT3> TUNER BAND LATIN AMERICA<7DM> 		8-98112-329-0 01 1 0911-
253 DECK ASM; RADIO & CD
RADIO AM/FM STEREO CD<UT3> 		8-98017-752-0 01 1 0803-0910
253 DECK ASM; RADIO & CD
RADIO AM/FM STEREO CD<UT3> EXC. TUNER BAND LATIN AMERICA<7DM> 		8-98017-752-0 01 1 0911-
268 KNOB; VOL
RADIO AM/FM<U69> CLARION 		8-97375-820-0 01 1 0803-
272 KNOB; AUDIO CONTROL
RADIO AM/FM STEREO CD<UT3> CLARION 		8-98048-329-0 01 1 0803-
294 CAP; ANTENNA CABLE
EXC. RADIO AM/FM STEREO CD<UT3>,RADIO AM/FM<U69> 		8-98095-617-1 01 1 0803-
