◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11139 - FSR-R(EU)EU4 EXC.SPA ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-27 - SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM ▶
8-27 — SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM (#15273) — 10 parça

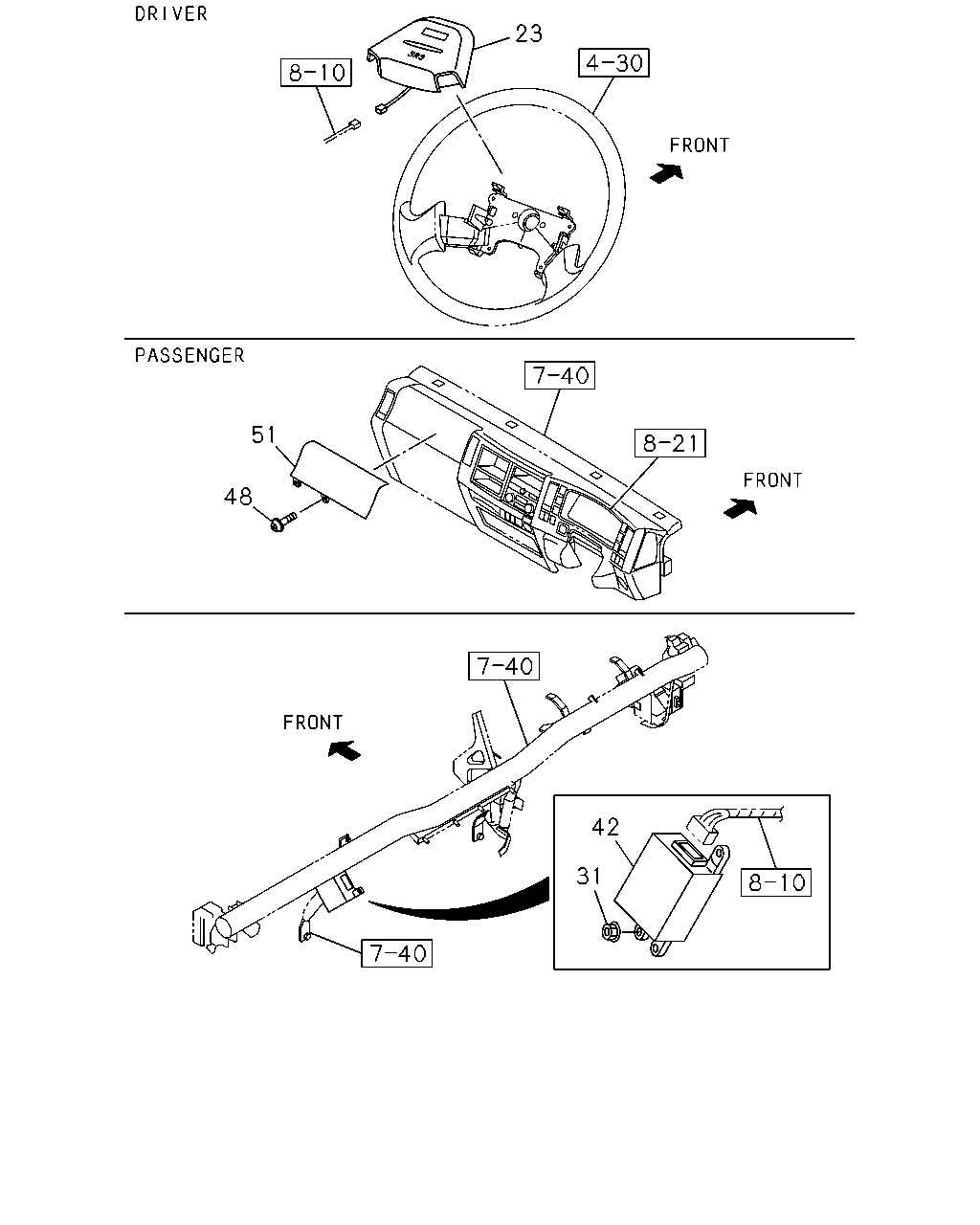

çizim 108104
23 51 48 42 31
BalonParca AdiParca NoAdetTipApplied Date
23 AIR BAG UNIT
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) DARK GRAY 		8-97407-721-1 01 1 0803-1004
23 AIR BAG UNIT
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) DARK GRAY 		8-97418-100-0 01 1 1005-1210
23 AIR BAG UNIT
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) DARK GRAY 		8-97423-999-1 01 1 1211-
31 NUT
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) M6 FLANGE 		0-91180-106-0 03 1 0803-
42 CONTROL UNIT; SRS
AIR BAG DRIVER(AJ3) 		8-98094-569-0 01 1 0803-0903
42 CONTROL UNIT; SRS
AIR BAG DRIVER(AJ3) 		8-98120-070-2 01 1 0904-
42 CONTROL UNIT; SRS
AIR BAG DRIVER & PASSENGER(AK5) 		8-98094-570-0 01 1 0803-0903
42 CONTROL UNIT; SRS
AIR BAG DRIVER & PASSENGER(AK5) 		8-98120-071-2 01 1 0904-
48 BOLT; INST PNL
AIR BAG DRIVER & PASSENGER(AK5) M6X16 W/LK&PL WASHER 		0-52010-616-0 02 1 0803-
51 AIR BAG ASM; P/S
AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97405-266-4 01 1 0803-
