Isuzu WW
▶
TRUCKS
▶
FSR
▶
11139 - FSR-R(EU)EU4 EXC.SPA
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-25 - SWITCH AND RELAY; INSTRUMENT PANEL
▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL
(#15271) — 71 parça
◀

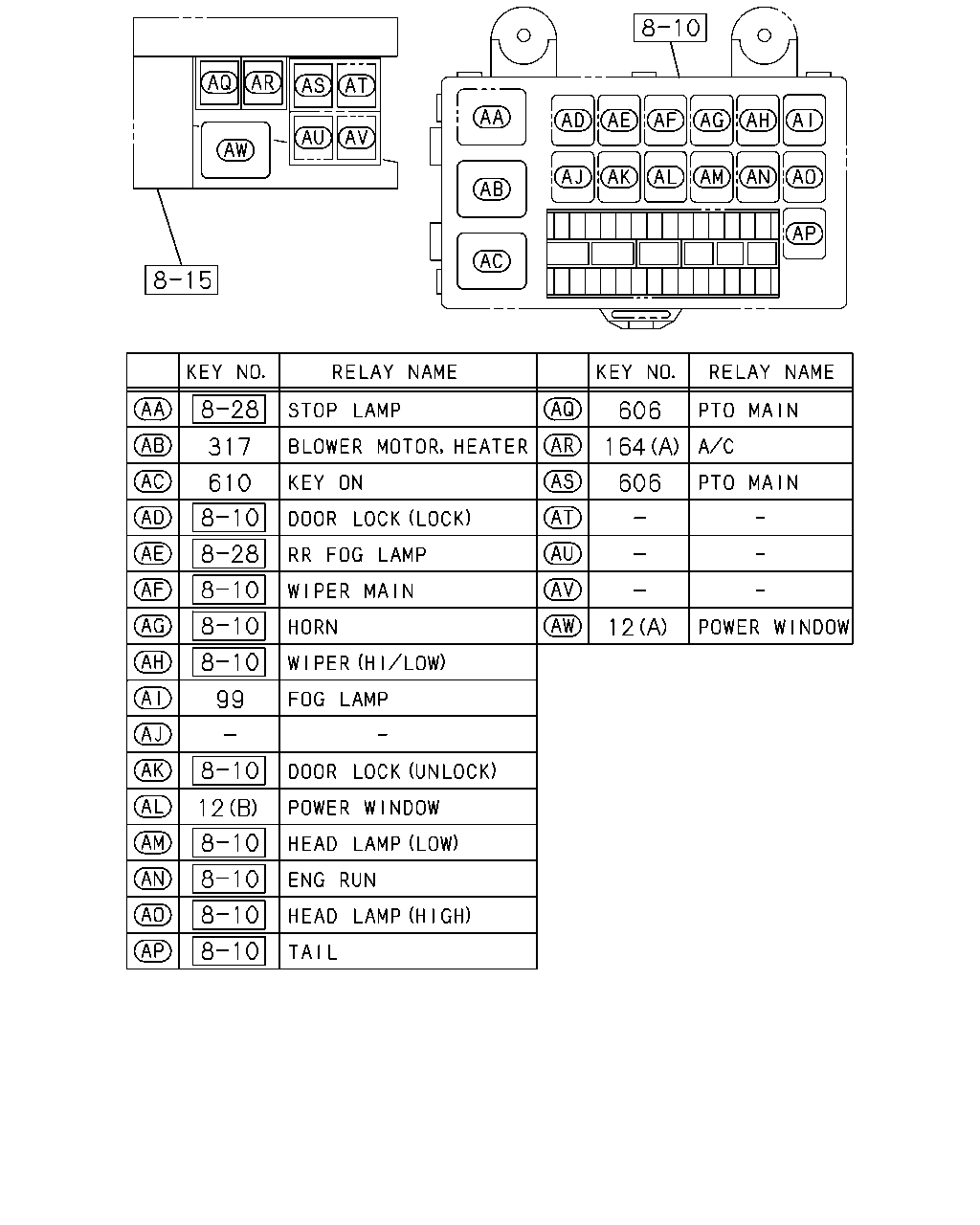

[825A] RELAY;CAB HARNESS (10 parça)
[825A] SWITCH NO.2 (28 parça)

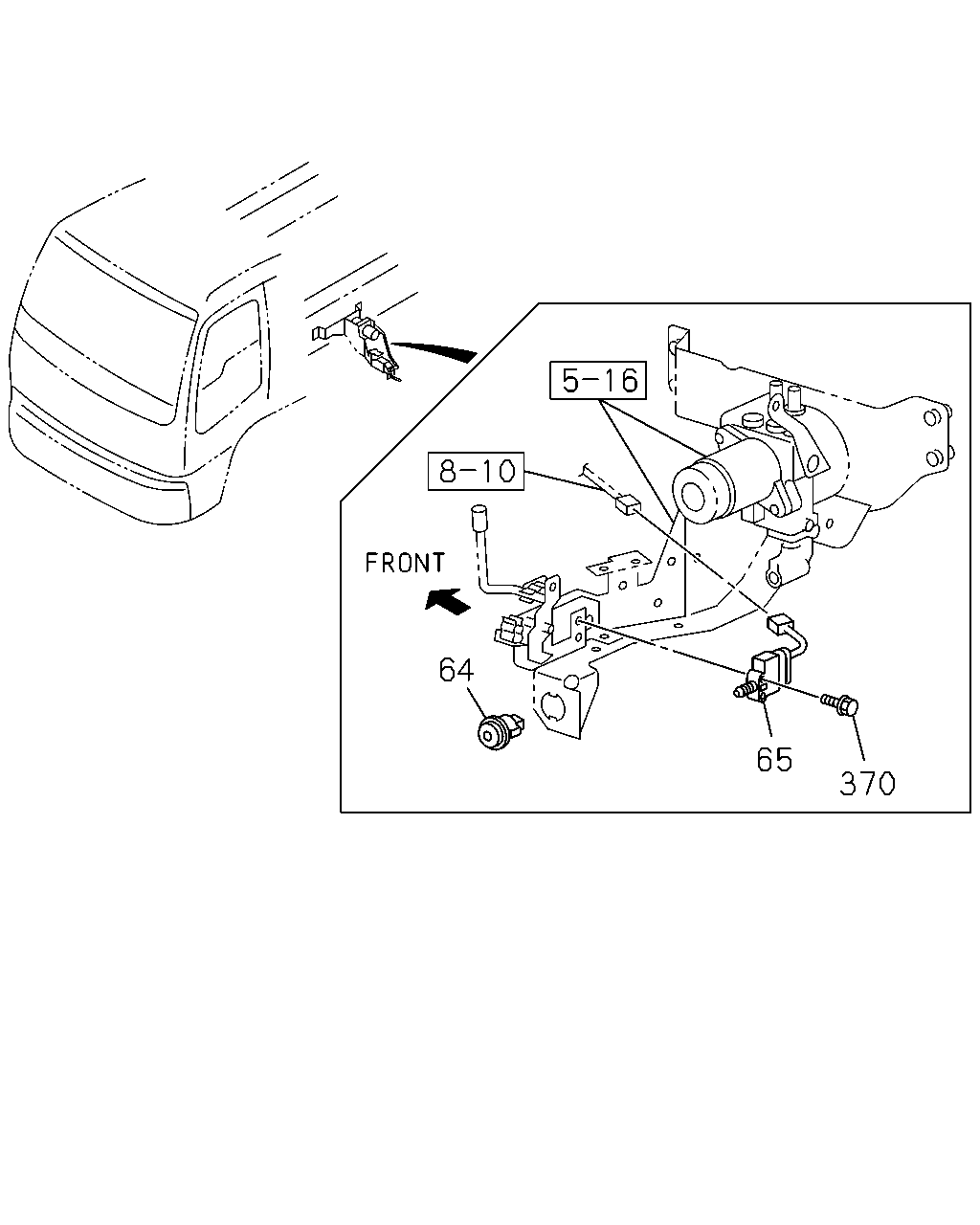

[825A] CAB TILT SWITCH (3 parça)
[825A] RELAY;FRAME HARNESS (2 parça)
[825A] SWITCH NO.3 AND OTHER PARTS (5 parça)

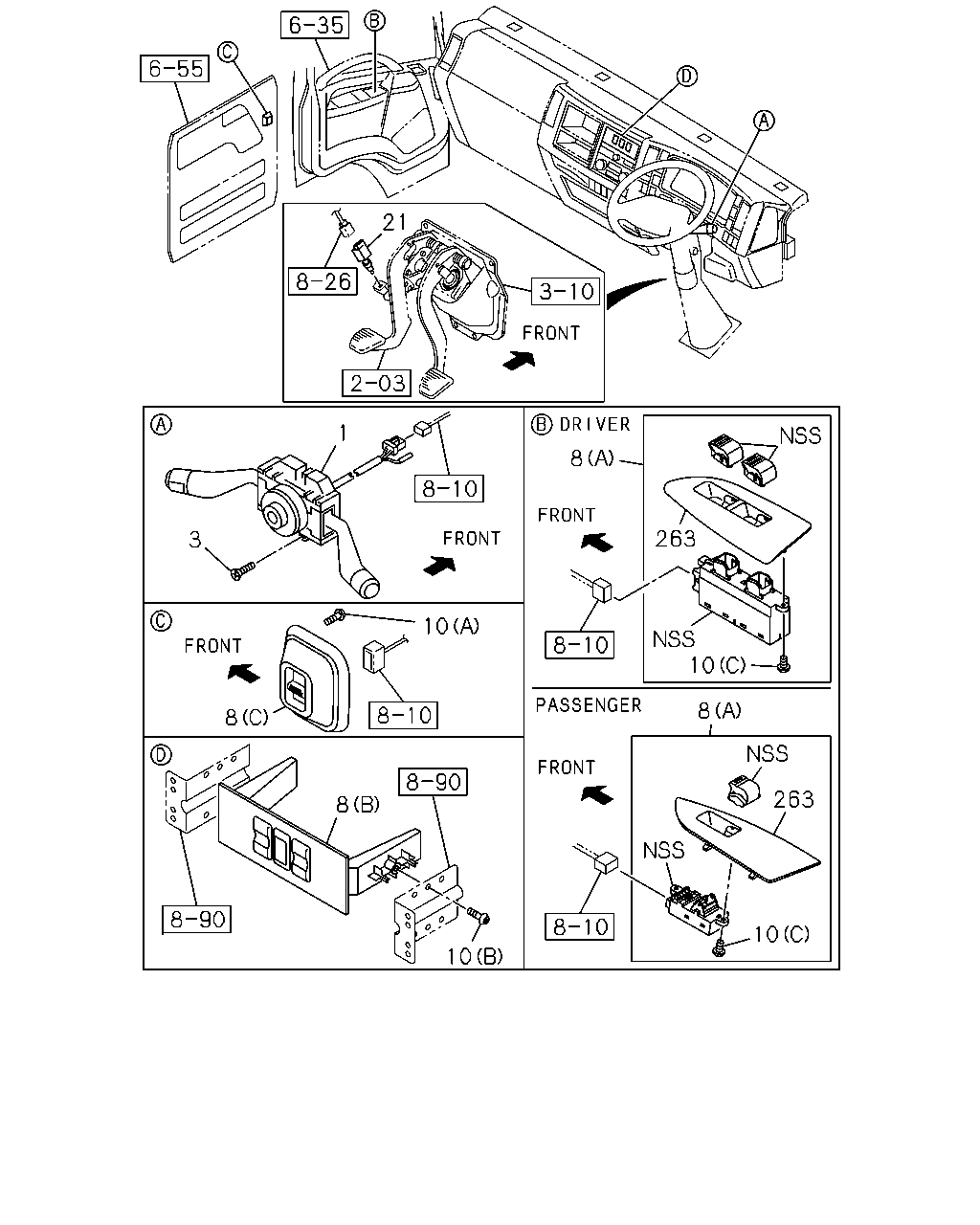

[825A] SWITCH NO.1 (23 parça)
▶
606
317
164
610
606
12
99
12
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
12
RELAY; POWER WINDOW
(B) 24V 10A PANASONIC
8-97173-035-1
01
1
0803-
12
RELAY; POWER WINDOW
(A) 24V 12.5A PANASONIC
8-97262-933-0
01
1
0803-
99
RELAY; FOG LAMP
FOG LAMP<T96> 24V 10A PANASONIC
8-97173-035-1
01
1
0803-
164
RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60) (A) 24V 10A PANASONIC
8-97173-035-1
01
1
0803-
164
RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60) (B) 24V 12.5A PANASONIC
8-97262-933-0
01
1
0803-
317
RELAY; BLOWER MOTOR,HTR
24V 12.5A PANASONIC
8-97262-933-0
01
1
0803-0806
317
RELAY; BLOWER MOTOR,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A PANASONIC
8-97262-933-0
01
1
0807-
606
RELAY; PTO MAIN
TRANSMISSION SIDE PTO WO/LEVER(SH5) 24V 10A PANASONIC
8-97173-035-1
01
1
0803-
606
RELAY; PTO MAIN
TRANSMISSION SIDE PTO WO/LEVER(SH5) 24V 10A PANASONIC
8-97173-035-1
01
1
0803-
610
RELAY; KEY ON
24V 12.5A PANASONIC
8-97262-933-0
01
1
0803-

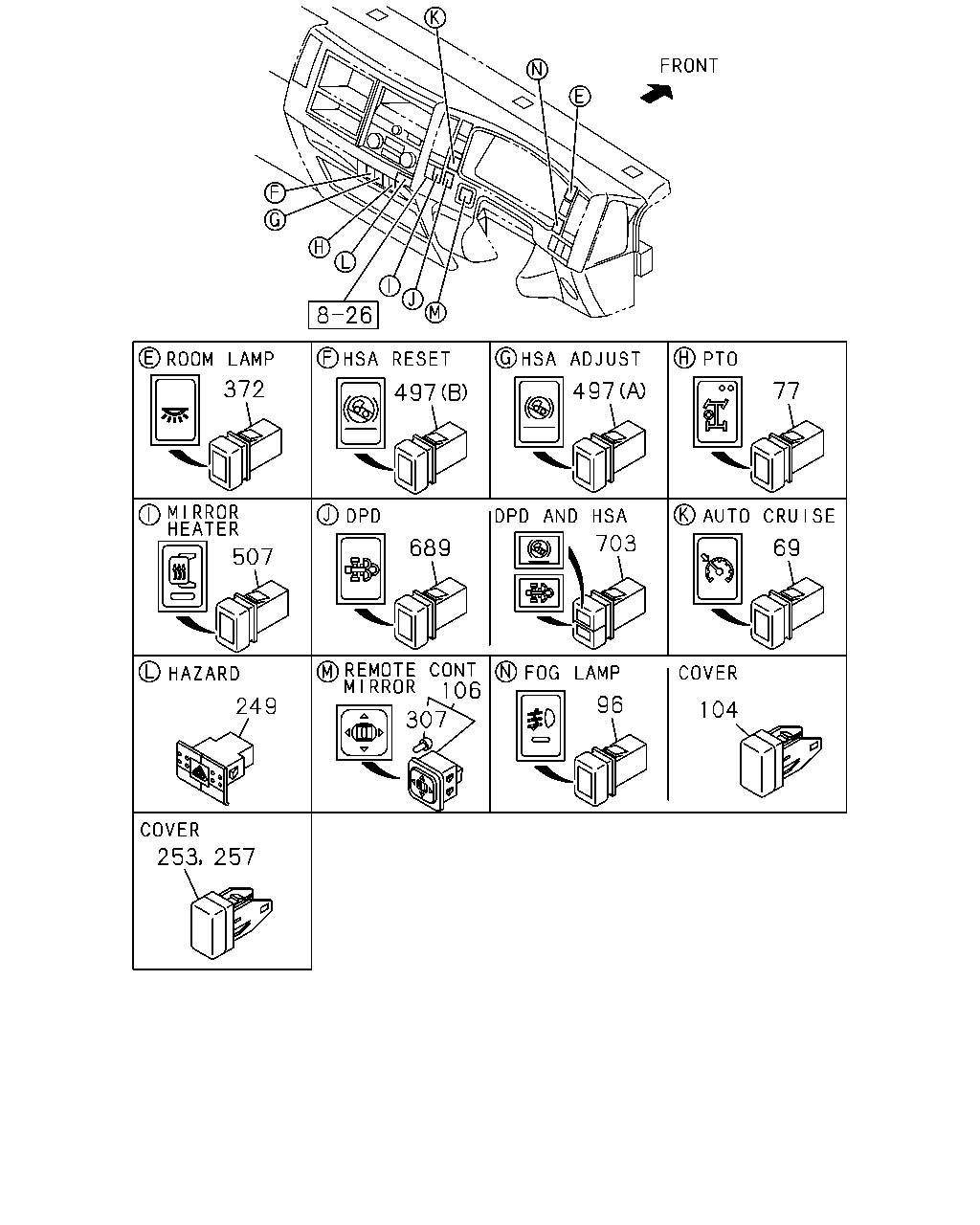

372
497
77
497
703
689
69
507
106
96
249
104
307
253
257
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
69
SWITCH; AUTO CRUISE
AUTO CRUISE<K30>
8-98011-344-1
01
1
0803-
77
SWITCH; PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5)
8-97615-488-2
01
1
0803-
96
SWITCH; FOG LAMP
FOG LAMP<T96>
8-97387-031-4
01
1
0803-
104
COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP<T96>
8-98025-954-1
01
1
0803-
106
SWITCH; REMOTE CONT MIRROR
8-97173-294-1
01
1
0803-
249
SWITCH; HAZARD
8-97386-922-1
01
1
0803-
253
COVER; SW HOLE
8-98025-954-1
02
1
0803-
253
COVER; SW HOLE
EXC. AUTO CRUISE<K30>
8-98025-954-1
01
1
0803-
253
COVER; SW HOLE
8-98025-954-1
01
1
0803-
257
COVER; HOLE,SW
8-98025-954-1
03
1
0803-
257
COVER; HOLE,SW
8-98025-954-1
01
1
0803-0805
257
COVER; HOLE,SW
EXC. FLUORESCENT LAMP<6UC>
8-98025-954-1
01
1
0803-0805
257
COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP>
8-98025-954-1
01
1
0803-0805
257
COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP>
8-98025-954-1
01
1
0803-0805
257
COVER; HOLE,SW
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)
8-98025-954-1
01
1
0803-0805
257
COVER; HOLE,SW
8-98025-954-1
01
1
0806-
257
COVER; HOLE,SW
EXC. FLUORESCENT LAMP<6UC>
8-98025-954-1
01
1
0806-
257
COVER; HOLE,SW
8-98025-954-1
01
1
0806-
257
COVER; HOLE,SW
8-98025-954-1
01
1
0806-
257
COVER; HOLE,SW
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)
8-98025-954-1
01
1
0806-
307
BULB ASM; SW
24V
8-98226-896-0
01
1
0803-
372
SWITCH; ROOM LAMP
FLUORESCENT LAMP<6UC>
8-97386-917-2
01
1
0803-
497
SWITCH; HSA
H.S.A SYSTEM<6EP> (A)
8-97386-967-2
01
1
0803-0805
497
SWITCH; HSA
H.S.A SYSTEM<6EP> (B)
8-97386-985-1
01
1
0803-0805
507
SWITCH; MIRROR HEATER
8-97386-924-3
01
1
0803-
689
SWITCH; DPD
EXC. H.S.A SYSTEM<6EP>
8-97386-921-2
01
1
0803-0805
689
SWITCH; DPD
8-97386-921-2
01
1
0806-
703
SWITCH; DPD & HSA
H.S.A SYSTEM<6EP>
8-98011-346-1
01
1
0803-0805
64
65
370
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
64
SWITCH; CAB TILT MAIN
1-82380-173-2
01
1
0803-
65
SWITCH; CAB TILT LK
STAMP NO
1-82380-172-1
01
1
0803-
370
BOLT; SW
M6X30 FLANGE
0-28650-630-0
02
1
0803-
164
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
164
RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60) (A) 24V 10A PANASONIC
8-97173-035-1
01
1
0803-
164
RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60) (B) 24V 12.5A PANASONIC
8-97262-933-0
01
1
0803-

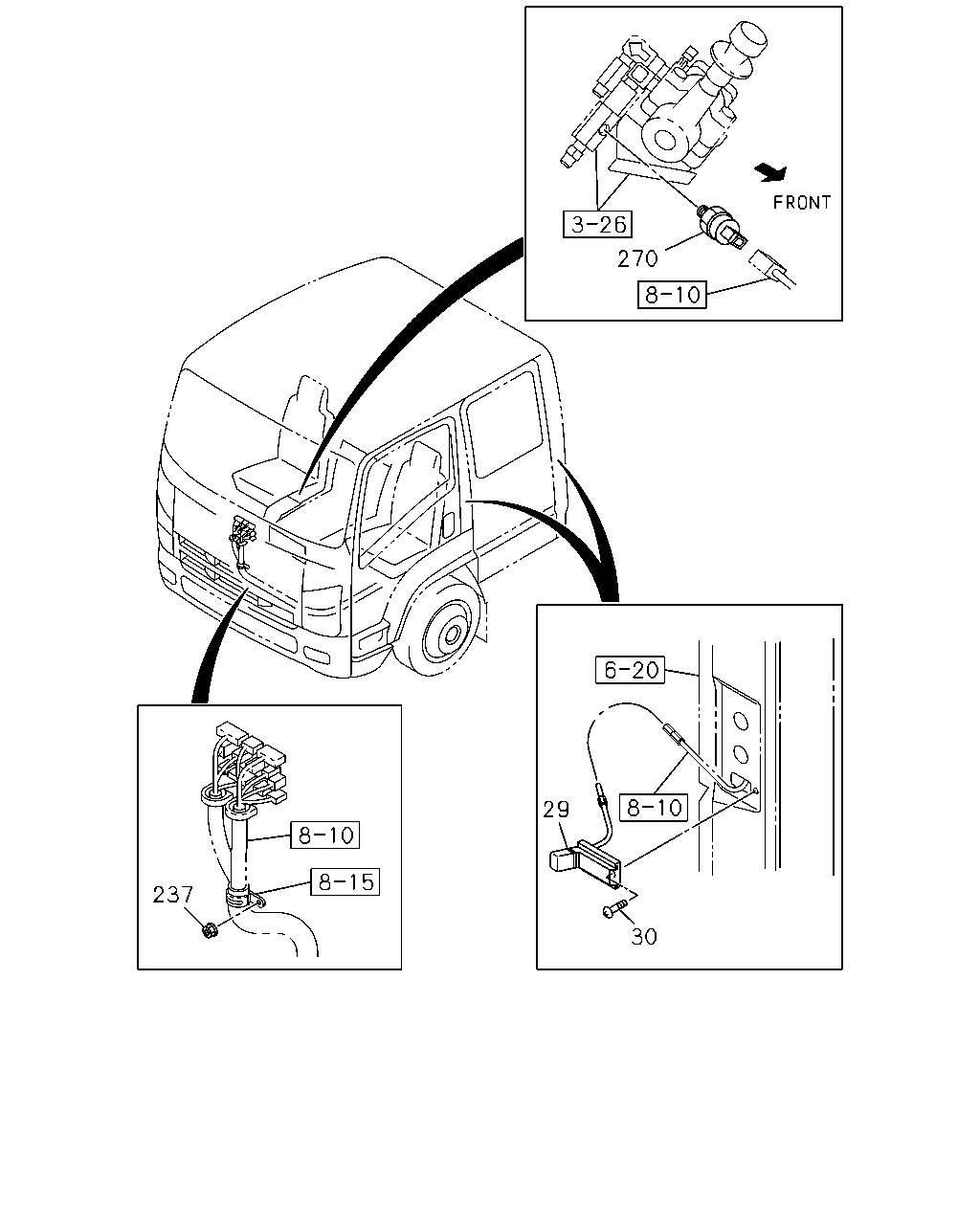

270
29
237
30
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
29
SWITCH; DOOR
FRONT
8-97855-032-3
02
1
0803-
29
SWITCH; DOOR
REAR
8-98054-195-0
02
1
0803-
30
SCREW; DOOR SW
M5X11
1-09981-536-1
04
1
0803-
237
NUT
M8 FLANGE
0-91180-108-0
01
1
0803-
270
SWITCH; PRESS,WHEEL PARKING
STAMP 2.0
8-98010-856-1
01
1
0803-
21
1
8
263
3
10
10
8
8
263
8
10
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SWITCH; COMB
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) AUTO CRUISE<K30>
8-98042-673-1
01
1
0803-0905
1
SWITCH; COMB
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) AUTO CRUISE<K30>
8-98146-625-0
01
1
0906-1210
1
SWITCH; COMB
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) AUTO CRUISE<K30>
8-98217-829-0
01
1
1211-1310
1
SWITCH; COMB
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) AUTO CRUISE<K30>
8-98243-711-0
01
1
1311-
1
SWITCH; COMB
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) EXC. AUTO CRUISE<K30>
8-98064-765-1
01
1
0803-0905
1
SWITCH; COMB
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) EXC. AUTO CRUISE<K30>
8-98146-623-0
01
1
0906-1210
1
SWITCH; COMB
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) EXC. AUTO CRUISE<K30>
8-98217-827-0
01
1
1211-1310
1
SWITCH; COMB
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) EXC. AUTO CRUISE<K30>
8-98243-710-0
01
1
1311-
3
SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES
8-98061-743-0
02
1
0803-
8
SWITCH; POWER WINDOW
(B)
8-97386-987-1
01
1
0803-
8
SWITCH; POWER WINDOW
(A) PASSENGER
8-97387-034-2
01
1
0803-
8
SWITCH; POWER WINDOW
(C) REAR
8-97387-035-0
02
1
0803-
8
SWITCH; POWER WINDOW
(A) DRIVER
8-98003-785-1
01
1
0803-0809
8
SWITCH; POWER WINDOW
(A) DRIVER
8-98129-844-0
01
1
0810-1001
8
SWITCH; POWER WINDOW
(A) DRIVER
8-98159-543-0
01
1
1002-
10
SCREW; POWER WINDOW SW
(C)
8-98153-865-0
03
1
0803-
10
SCREW; POWER WINDOW SW
(B) M5X10 TAPPING
0-71240-510-0
02
1
0803-0904
10
SCREW; POWER WINDOW SW
(B) T25 L=10 HEXALOBULAR
8-98058-632-0
02
1
0905-
10
SCREW; POWER WINDOW SW
(A) M4X14 TAPPING
0-74360-414-0
04
1
0803-
21
SWITCH; CLU
TRANSMISSION SIDE PTO WO/LEVER(SH5)
8-94337-761-0
01
1
0803-
21
SWITCH; CLU
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)
8-97358-248-0
01
1
0803-
263
COVER; SW
DRIVER
8-98153-836-0
01
1
0803-
263
COVER; SW
PASSENGER
8-98153-841-0
01
1
0803-
