◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 10633 - FVZ-RHD ▶ 9 - Tools ▶ 9-01 - TOOLS ▶
9-01 — TOOLS (#1527) — 66 parça

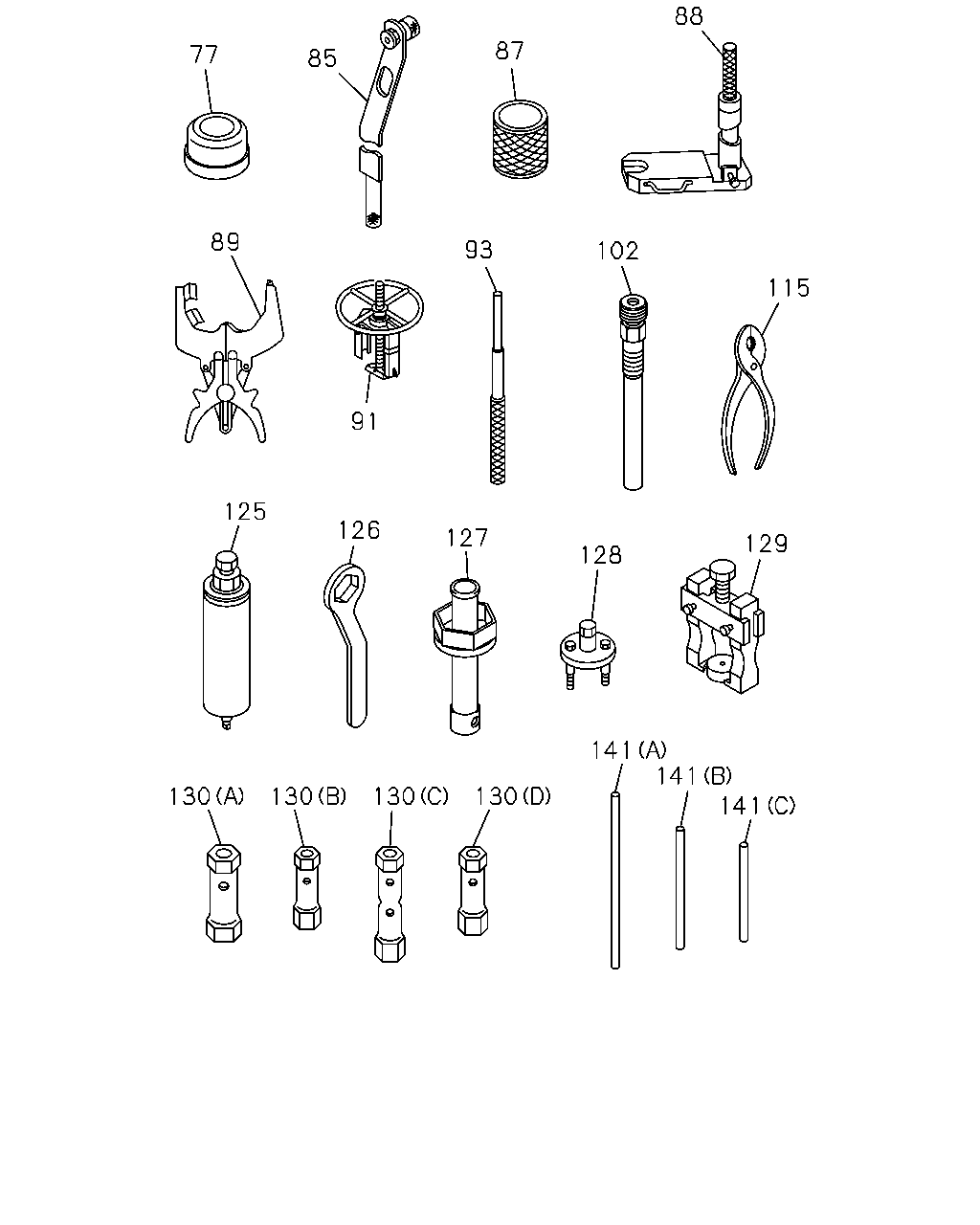

çizim 94165
77 85 87 88 115 102 93 89 91 125 126 127 128 129 141 141 141 130 130 130 130
BalonParca AdiParca NoAdetTipApplied Date
77 TOOL; SETTING,CYL LINER 1-85221-070-0 01 1 9203-
85 REPLACER ASM; VALVE SPR 1-85235-007-0 01 1 9203-
87 TOOL; PISTON 1-85221-007-0 01 1 9203-
88 TOOL; CONNROD BUSHING 1-85220-036-0 01 1 9203-
89 TOOL; PISTON RING 1-85221-029-0 01 1 9203-
91 REPLACER ASM; CYL LINER 1-85231-027-0 01 1 9203-
93 SETTING KIT; VALVE GUIDE
L=260 		9-85231-202-0 01 1 9203-
102 ADAPTER; COMP GAGE 5-85317-001-0 01 1 9203-
115 PLIER 5-85171-001-0 01 1 9203-
125 PULLER ASM; KING PIN
L=450 		1-85210-009-0 01 1 9203-
126 WRENCH; FRT HUB BRG NUT
L=350 B=75 		1-85110-002-0 01 1 9203-
127 WRENCH ASM; HUB BRG NUT
L=400 B=105 		9-85113-509-0 01 1 9203-
128 PULLER ASM; STRG WHEEL 9-85210-099-0 01 1 9203-
129 PULLER ASM; PITMAN ARM 1-85210-011-0 01 1 9203-
130 WRENCH; BOX
(A) B=46 & 54 L=165 		9-85112-320-0 01 1 9203-
130 WRENCH; BOX
(B) B=32 & 41 L=150 		9-85112-322-0 01 1 9203-
130 WRENCH; BOX
(C) B=36 & 41 L=200 		9-85112-330-0 01 1 9203-
130 WRENCH; BOX
(D) B=41 & 46 L=165 		9-85113-401-0 01 1 9203-
141 HANDLE; WRENCH
(A) OD=25 L=480 		1-85116-011-0 01 1 9203-
141 HANDLE; WRENCH
(B) L=400 		9-85114-306-0 01 1 9203-
141 HANDLE; WRENCH
(C) L=300 		9-85114-307-0 01 1 9203-
çizim 94974
157 160 166 167 172 171 170 169 173 180
BalonParca AdiParca NoAdetTipApplied Date
157 REPLACER KIT; RETURN SPR 1-85237-002-0 01 1 9203-
160 REMOVER; NEEDLE BRG
L=220 		1-85238-001-0 01 1 9203-
166 ALIGNER; CLU RELEASE LEVER
L=480 		1-85253-011-0 01 1 9405-
167 ALIGNER; CLU PILOT
L=300 		1-85253-018-0 01 1 9203-9404
167 ALIGNER; CLU PILOT
L=190 		1-85253-022-0 01 1 9405-
169 BRACKET; SPLINE YOKE 9-85221-243-1 01 1 9203-
170 HANDLE; TURNING,FINAL 9-85251-121-0 01 1 9405-
171 PULLER ASM; PINION BRG 9-85210-172-0 01 1 9203-
172 PULLER ASM; BRG DIFF PILOT 9-85210-173-0 01 1 9203-
173 WRENCH; COUPLING DRIVER 9-85111-942-0 01 1 9203-9404
180 PULLER; FRT & RR HUB 1-85210-002-0 01 1 9203-
çizim 95011
1 9 12 13 17 29 29 29 23 22 21 20 19 47 52 57 62 70
BalonParca AdiParca NoAdetTipApplied Date
1 HANDLE; SPARE TIRE CARRIER 9-23110-018-0 01 1 9203-
9 WRENCH; WHEEL PIN
B=33X30 L=450 		1-85111-033-1 01 1 9203-
12 HANDLE; WRENCH,WHEEL PIN
OD=25 L=480 		1-85116-011-0 01 1 9203-
13 WRENCH; MONKEY 1-85117-003-1 01 1 9203-9304
13 WRENCH; MONKEY
L=255 		1-85117-002-1 01 1 9305-
17 HAMMER 9-85121-406-0 01 1 9203-
19 WRENCH; 7X8
7X8 		9-09592-107-0 01 1 9203-9505
19 WRENCH; 7X8
8X10 		9-99592-108-0 01 1 9506-
20 WRENCH; 10X12
10X12 		9-09592-110-0 01 1 9203-
21 WRENCH; 14X17
14X17 		9-09592-114-0 01 1 9203-
22 WRENCH; 19X22
19X22 		9-99592-119-0 01 1 9203-
23 WRENCH; 24X27
24X27 		9-09592-124-0 01 1 9203-
29 DRIVER; SCREW
(A) <+> L=190 		9-09595-522-0 01 1 9203-
29 DRIVER; SCREW
(A) <-> L=190 		9-09595-726-0 01 1 9203-9505
29 DRIVER; SCREW
(C) <+>,<-> L=160 		8-94242-798-1 01 1 9506-
29 DRIVER; SCREW
(B) <-> L=320 		9-09595-729-0 01 1 9203-9505
29 DRIVER; SCREW
(B) <-> L=285 		1-85151-004-0 01 1 9506-
47 WRENCH ASM; UNIVERSAL,INJ PUMP 9-85113-901-0 01 1 9203-
52 REMOVER; WATER PUMP 1-85210-047-0 01 1 9203-
57 TOOL; SETTING CRANK GEAR
ID=144.5 		1-85221-072-0 01 1 9203-
62 TOOL ASM; SETTING WEAR RING 1-85221-079-0 01 1 9203-
70 TOOL; SETTING,OIL SEAL 1-85220-025-1 01 1 9203-
çizim 95708
186 193 208 230 237 232 268 209 271 274
BalonParca AdiParca NoAdetTipApplied Date
186 ADJUSTER; BRAKE 1-47165-066-0 01 1 9203-
193 JACK ASM
10TON 		1-85510-013-1 01 1 9203-
208 HANDLE; JACK
L=680 		1-85515-004-0 01 1 9203-9405
208 HANDLE; JACK
L=600 		1-85515-008-0 01 1 9406-
209 CLIP; JACK HANDLE
ID=12 		1-73638-008-2 02 1 9203-
230 PUMP; GREASE 1-85556-007-2 01 1 9203-
232 HOSE; AIR,AIR CHARGE
TIRE INFLATOR DEVICE<SG4> 		1-09360-245-1 01 1 9203-
237 BAG; TOOL 8-94367-102-0 01 1 9203-9509
237 BAG; TOOL 8-97130-902-0 01 1 9510-
268 SCREW; CLIP
M6X16 TAPPING 		9-07066-616-0 02 1 9203-
271 CLIP; TIRE HANGER
ID=14 		1-73638-009-2 02 1 9203-
274 SCREW; CLIP
M6X16 TAPPING 		9-07066-616-0 02 1 9203-
