8-15 — FIXING PARTS; WIRING HARNESS (#15268) — 404 parça

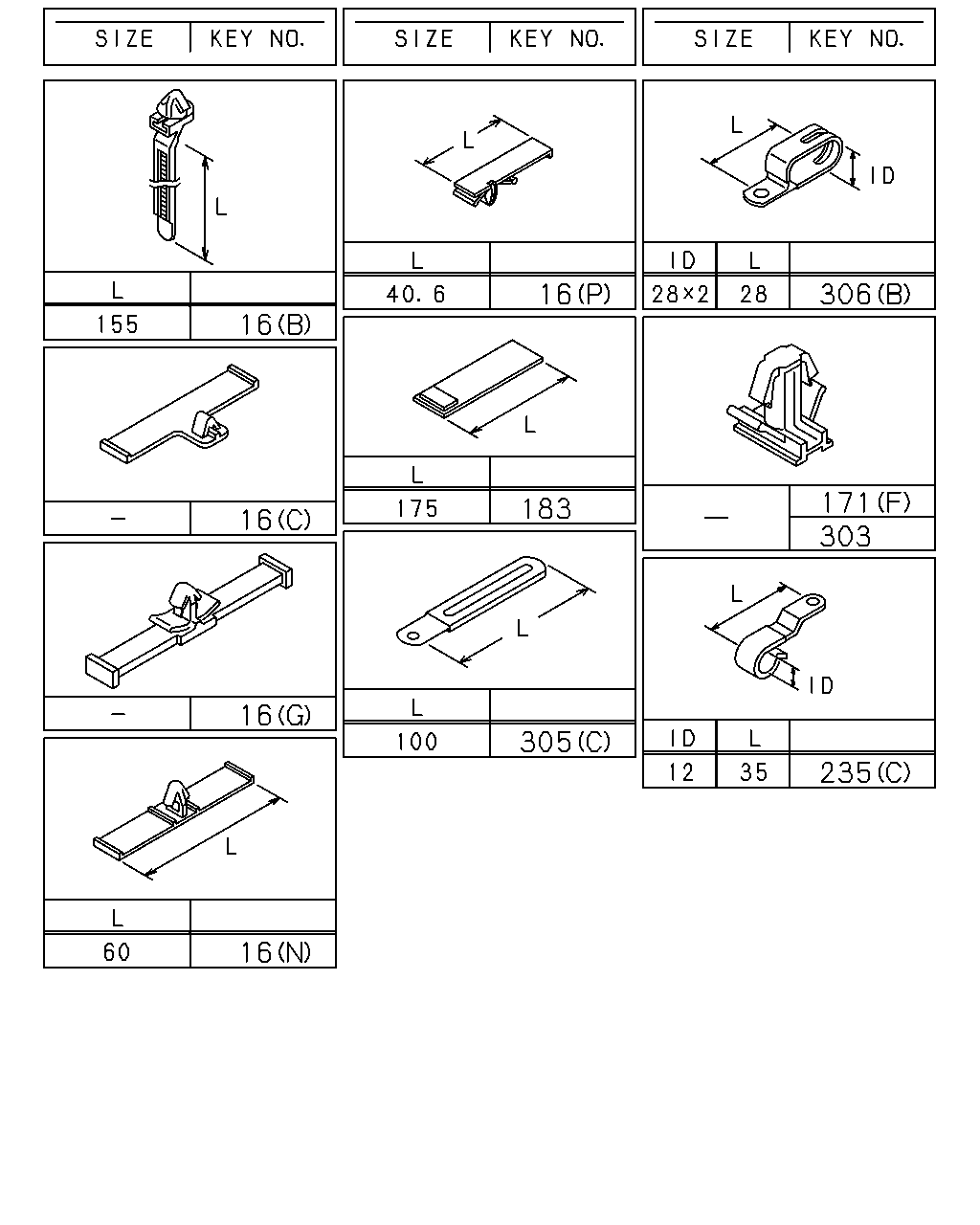

çizim 107218
16 306 16 171 303 183 16 16 305 235 16
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(O) ID=11 L=16 		0-95235-025-0 04 1 0803-
16 CLIP; HARNESS
(Q) ID=11 L=60 		0-95235-096-0 01 1 0803-0807
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 01 1 0803-0901
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 03 1 0803-0901
16 CLIP; HARNESS
(M) ID=11X2 L=16 		1-09700-734-0 01 1 0803-
16 CLIP; HARNESS
(F) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0803-
16 CLIP; HARNESS
(J) ID=10 & 10 		1-09709-277-1 03 1 0803-0911
16 CLIP; HARNESS
(J) ID=10 & 10 		1-09709-277-1 04 1 0912-
16 CLIP; HARNESS
(I) ID=5-12 L=18 		1-09709-287-0 01 1 0803-
16 CLIP; HARNESS
(H) ID=13-18 L=18 		1-09709-291-0 01 1 0803-0901
16 CLIP; HARNESS
(L) ID=5-12 L=14.5 		1-09987-221-0 01 1 0803-
16 CLIP; HARNESS
(E) L=250 		5-09707-030-1 02 1 0803-
16 CLIP; HARNESS
(K) L=140 		5-09707-031-1 01 1 0803-
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 0803-
16 CLIP; HARNESS
(G) L=60 		8-94449-165-0 02 1 0803-
16 CLIP; HARNESS
(N) L=60 		8-97063-335-0 02 1 0803-
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 0803-
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 0803-
16 CLIP; HARNESS
(P) L=40.6 		8-97229-357-0 02 1 0803-
16 CLIP; HARNESS
(P) L=40.6 		8-97229-357-0 02 1 0803-
16 CLIP; HARNESS
EXC. H.S.A SYSTEM<6EP> (R) OD=9 H=6 		1-09709-178-0 01 1 0804-0805
16 CLIP; HARNESS
(R) OD=9 H=6 		1-09709-178-0 01 1 0806-
171 CLIP; STARTER HARNESS
MLD6W M/T(Y2C) (A) ID=11 L=28 		0-95235-055-0 01 1 0807-
171 CLIP; STARTER HARNESS
MLD6W M/T(Y2C) (B) ID=16 L=28 		0-95235-556-0 01 1 0807-
171 CLIP; STARTER HARNESS
MLD6W M/T(Y2C) (C) OD=9 H=6 		1-09709-178-0 02 1 0807-
171 CLIP; STARTER HARNESS
MLD6W M/T(Y2C) (D) ID=13-18 L=14.5 		1-09709-290-0 01 1 0807-
171 CLIP; STARTER HARNESS
MLD6W M/T(Y2C) (E) ID=5-12 L=14.5 		1-09987-221-0 01 1 0807-
171 CLIP; STARTER HARNESS
MLD6W M/T(Y2C) (F) OD=8.95 H=6.25 		8-97375-754-0 01 1 0807-0809
183 CLIP; CONNECTOR
L=175 		1-09707-178-0 01 1 0803-0803
235 CLIP; HARNESS,SPD SENSOR,SSPS
(B) OD=9 H=6 		1-09709-178-0 01 1 0803-
235 CLIP; HARNESS,SPD SENSOR,SSPS
(A) ID=13-18 L=14.5 		1-09709-290-0 01 1 0803-
235 CLIP; HARNESS,SPD SENSOR,SSPS
MLD6W M/T(Y2C) (C) ID=12 L=35 		5-09700-206-0 01 1 0807-
303 CLIP; HARNESS POWER TILT RELAY
OD=8.95 H=6.25 		8-97375-754-0 01 1 0803-
305 CLIP; ENG HARNESS
(J) ID=16 L=28 		0-95235-556-0 02 1 0803-
305 CLIP; ENG HARNESS
(I) ID=16 L=40 		0-95235-576-0 01 1 0803-
305 CLIP; ENG HARNESS
(D) ID=24 L=32 		1-09700-766-1 01 1 0803-
305 CLIP; ENG HARNESS
(A) ID=25 L=60 		1-09701-041-1 01 1 0803-
305 CLIP; ENG HARNESS
(F) ID=19 H=33 L=45 		1-09701-045-0 01 1 0803-
305 CLIP; ENG HARNESS
(E) OD=9 H=6 		1-09709-178-0 01 1 0803-
305 CLIP; ENG HARNESS
(H) ID=11 L=45 		8-94296-897-1 01 1 0803-
305 CLIP; ENG HARNESS
(C) L=100 		8-94443-021-1 01 1 0803-
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-97367-985-1 01 1 0803-
305 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONTROL(C60) (G) ID=21 L=47.5 		8-94178-108-0 01 1 0803-
306 CLIP; HARNESS,ELEC GOV
(A) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0803-
306 CLIP; HARNESS,ELEC GOV
(B) ID=28X2 L=28 		1-09701-302-0 02 1 0803-

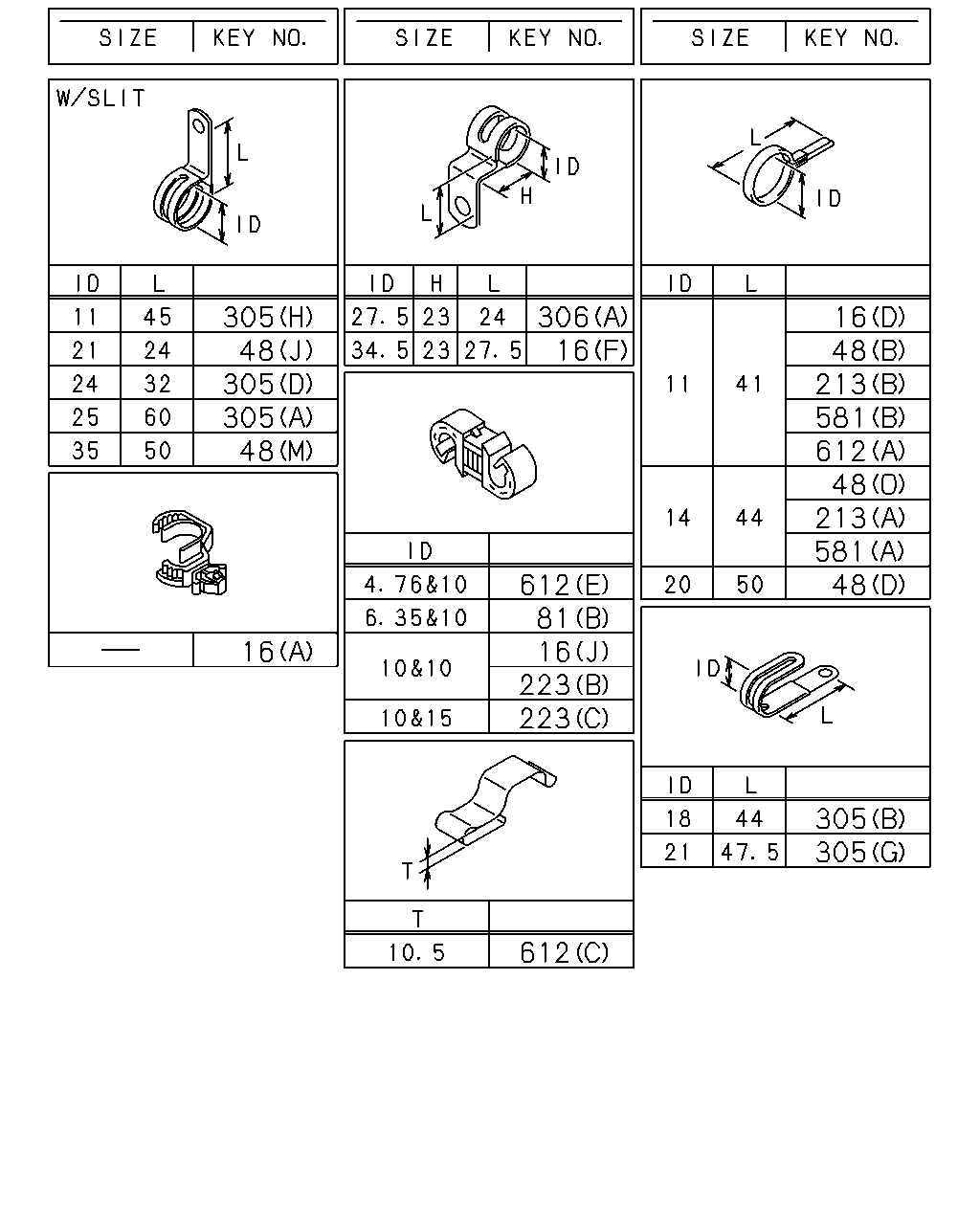

çizim 107402
305 48 305 305 48 306 16 16 48 213 581 612 48 213 581 48 612 81 16 223 223 16 305 305 612
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(O) ID=11 L=16 		0-95235-025-0 04 1 0803-
16 CLIP; HARNESS
(Q) ID=11 L=60 		0-95235-096-0 01 1 0803-0807
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 01 1 0803-0901
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 03 1 0803-0901
16 CLIP; HARNESS
(M) ID=11X2 L=16 		1-09700-734-0 01 1 0803-
16 CLIP; HARNESS
(F) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0803-
16 CLIP; HARNESS
(J) ID=10 & 10 		1-09709-277-1 03 1 0803-0911
16 CLIP; HARNESS
(J) ID=10 & 10 		1-09709-277-1 04 1 0912-
16 CLIP; HARNESS
(I) ID=5-12 L=18 		1-09709-287-0 01 1 0803-
16 CLIP; HARNESS
(H) ID=13-18 L=18 		1-09709-291-0 01 1 0803-0901
16 CLIP; HARNESS
(L) ID=5-12 L=14.5 		1-09987-221-0 01 1 0803-
16 CLIP; HARNESS
(E) L=250 		5-09707-030-1 02 1 0803-
16 CLIP; HARNESS
(K) L=140 		5-09707-031-1 01 1 0803-
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 0803-
16 CLIP; HARNESS
(G) L=60 		8-94449-165-0 02 1 0803-
16 CLIP; HARNESS
(N) L=60 		8-97063-335-0 02 1 0803-
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 0803-
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 0803-
16 CLIP; HARNESS
(P) L=40.6 		8-97229-357-0 02 1 0803-
16 CLIP; HARNESS
(P) L=40.6 		8-97229-357-0 02 1 0803-
16 CLIP; HARNESS
EXC. H.S.A SYSTEM<6EP> (R) OD=9 H=6 		1-09709-178-0 01 1 0804-0805
16 CLIP; HARNESS
(R) OD=9 H=6 		1-09709-178-0 01 1 0806-
48 CLIP; FRAME HARNESS
(O) ID=14 L=44 		9-09917-427-0 03 1 1008-
48 CLIP; FRAME HARNESS
(G) ID=16 L=28 		0-95235-556-0 01 1 0803-
48 CLIP; FRAME HARNESS
(G) ID=16 L=28 		0-95235-556-0 02 1 0803-0908
48 CLIP; FRAME HARNESS
(N) ID=11 L=20 		0-95235-035-0 02 1 0909-
48 CLIP; FRAME HARNESS
(I) ID=19 L=28 		0-95235-856-0 02 1 0803-
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0803-0901
48 CLIP; FRAME HARNESS
(M) ID=35 L=50 		1-09701-214-0 01 1 0803-
48 CLIP; FRAME HARNESS
(K) L=600 		1-09707-107-1 01 1 0803-0901
48 CLIP; FRAME HARNESS
(E) L=350 		1-09707-183-0 01 1 0803-
48 CLIP; FRAME HARNESS
(C) OD=9 H=9.5 		1-09709-179-0 01 1 0803-
48 CLIP; FRAME HARNESS
(L) ID=5-12 L=14.5 		1-09987-221-0 02 1 0803-0901
48 CLIP; FRAME HARNESS
(H) ID=17.5X2 L=25 		5-09700-358-0 01 1 0803-
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 04 1 0803-0901
48 CLIP; FRAME HARNESS
(F) L=140 		5-09707-031-1 02 1 0803-0901
48 CLIP; FRAME HARNESS
(J) ID=21 L=24 		8-94176-807-1 03 1 0803-
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 02 1 0803-1201
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 01 1 1202-
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 18 1 0803-1007
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 15 1 1008-
81 CLIP; HARNESS
H.S.A SYSTEM<6EP> (A) L=180 		1-09707-162-1 01 1 0803-0805
81 CLIP; HARNESS
H.S.A SYSTEM<6EP> (C) OD=9 H=6 		1-09709-178-0 01 1 0803-0805
81 CLIP; HARNESS
(C) OD=9 H=6 		1-09709-178-0 01 1 1011-
81 CLIP; HARNESS
(B) ID=6.35 & 10.0 		1-09709-274-1 02 1 0803-
213 CLIP; END CROSS HARNESS
(A) ID=14 L=44 		9-09917-427-0 03 1 0803-0901
213 CLIP; END CROSS HARNESS
(A) ID=14 L=44 		9-09917-427-0 07 1 0902-
213 CLIP; END CROSS HARNESS
(A) ID=14 L=44 		9-09917-427-0 06 1 0803-0901
213 CLIP; END CROSS HARNESS
(B) ID=11 L=41 		1-09700-403-0 02 1 0902-
223 CLIP; AIR TANK HARNESS
(A) OD=9 H=6 		1-09709-178-0 03 1 0803-
223 CLIP; AIR TANK HARNESS
(B) ID=10 & 10 		1-09709-277-1 03 1 0803-
223 CLIP; AIR TANK HARNESS
(C) ID=10 & 15 		1-09709-279-1 01 1 0803-
223 CLIP; AIR TANK HARNESS
(D) ID=5-12 L=14.5 		1-09987-221-0 01 1 0803-
305 CLIP; ENG HARNESS
(J) ID=16 L=28 		0-95235-556-0 02 1 0803-
305 CLIP; ENG HARNESS
(I) ID=16 L=40 		0-95235-576-0 01 1 0803-
305 CLIP; ENG HARNESS
(D) ID=24 L=32 		1-09700-766-1 01 1 0803-
305 CLIP; ENG HARNESS
(A) ID=25 L=60 		1-09701-041-1 01 1 0803-
305 CLIP; ENG HARNESS
(F) ID=19 H=33 L=45 		1-09701-045-0 01 1 0803-
305 CLIP; ENG HARNESS
(E) OD=9 H=6 		1-09709-178-0 01 1 0803-
305 CLIP; ENG HARNESS
(H) ID=11 L=45 		8-94296-897-1 01 1 0803-
305 CLIP; ENG HARNESS
(C) L=100 		8-94443-021-1 01 1 0803-
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-97367-985-1 01 1 0803-
305 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONTROL(C60) (G) ID=21 L=47.5 		8-94178-108-0 01 1 0803-
306 CLIP; HARNESS,ELEC GOV
(A) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0803-
306 CLIP; HARNESS,ELEC GOV
(B) ID=28X2 L=28 		1-09701-302-0 02 1 0803-
581 CLIP; HARNESS,REAR SUSP
(A) ID=14 L=44 		9-09917-427-0 03 1 0803-0908
581 CLIP; HARNESS,REAR SUSP
(B) ID=11 L=41 		1-09700-403-0 03 1 0909-0910
581 CLIP; HARNESS,REAR SUSP
(B) ID=11 L=41 		1-09700-403-0 02 1 0911-
612 CLIP; HARNESS DPD
(C) T=9 & 10.5 		8-97371-949-0 03 1 0803-0804
612 CLIP; HARNESS DPD
(A) ID=11 L=41 		1-09700-403-0 01 1 0803-
612 CLIP; HARNESS DPD
(E) ID=4.76 & 10.0 		1-09709-305-0 03 1 0803-
612 CLIP; HARNESS DPD
(D) L=135 		1-09987-143-1 01 1 0803-
612 CLIP; HARNESS DPD
(B) L=250 		5-09707-030-1 01 1 0803-

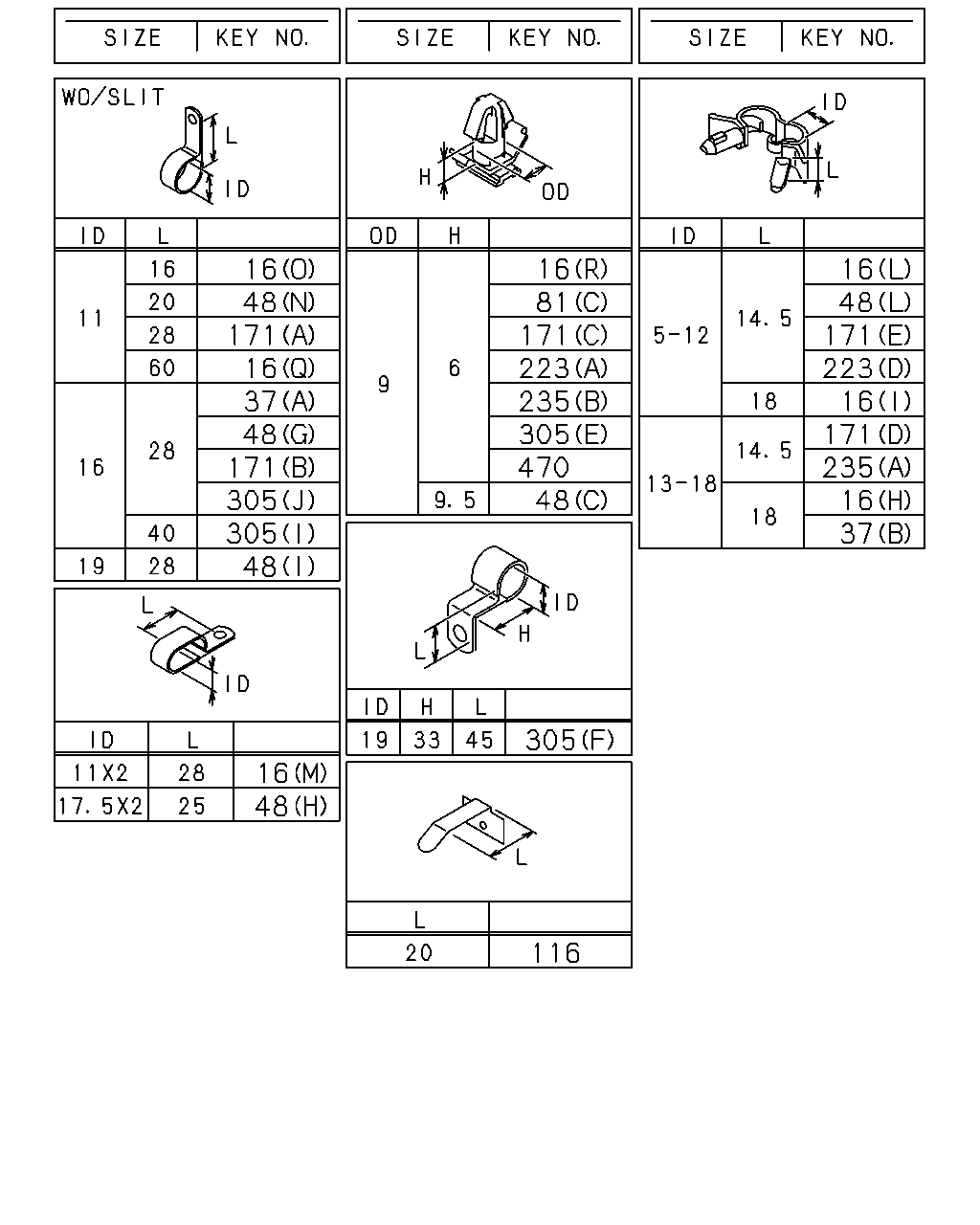

çizim 107607
16 48 171 16 37 48 171 305 305 48 16 81 171 223 235 305 470 48 16 48 171 223 16 171 235 16 37 305 16 48 116
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(O) ID=11 L=16 		0-95235-025-0 04 1 0803-
16 CLIP; HARNESS
(Q) ID=11 L=60 		0-95235-096-0 01 1 0803-0807
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 01 1 0803-0901
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 03 1 0803-0901
16 CLIP; HARNESS
(M) ID=11X2 L=16 		1-09700-734-0 01 1 0803-
16 CLIP; HARNESS
(F) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0803-
16 CLIP; HARNESS
(J) ID=10 & 10 		1-09709-277-1 03 1 0803-0911
16 CLIP; HARNESS
(J) ID=10 & 10 		1-09709-277-1 04 1 0912-
16 CLIP; HARNESS
(I) ID=5-12 L=18 		1-09709-287-0 01 1 0803-
16 CLIP; HARNESS
(H) ID=13-18 L=18 		1-09709-291-0 01 1 0803-0901
16 CLIP; HARNESS
(L) ID=5-12 L=14.5 		1-09987-221-0 01 1 0803-
16 CLIP; HARNESS
(E) L=250 		5-09707-030-1 02 1 0803-
16 CLIP; HARNESS
(K) L=140 		5-09707-031-1 01 1 0803-
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 0803-
16 CLIP; HARNESS
(G) L=60 		8-94449-165-0 02 1 0803-
16 CLIP; HARNESS
(N) L=60 		8-97063-335-0 02 1 0803-
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 0803-
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 0803-
16 CLIP; HARNESS
(P) L=40.6 		8-97229-357-0 02 1 0803-
16 CLIP; HARNESS
(P) L=40.6 		8-97229-357-0 02 1 0803-
16 CLIP; HARNESS
EXC. H.S.A SYSTEM<6EP> (R) OD=9 H=6 		1-09709-178-0 01 1 0804-0805
16 CLIP; HARNESS
(R) OD=9 H=6 		1-09709-178-0 01 1 0806-
37 CLIP; HARNESS,POWER TILT
(A) ID=16 L=28 		0-95235-556-0 01 1 0803-
37 CLIP; HARNESS,POWER TILT
(B) ID=13-18 L=18 		1-09709-291-0 02 1 0803-
37 CLIP; HARNESS,POWER TILT
(C) L=250 		5-09707-030-1 01 1 0803-
48 CLIP; FRAME HARNESS
(O) ID=14 L=44 		9-09917-427-0 03 1 1008-
48 CLIP; FRAME HARNESS
(G) ID=16 L=28 		0-95235-556-0 01 1 0803-
48 CLIP; FRAME HARNESS
(G) ID=16 L=28 		0-95235-556-0 02 1 0803-0908
48 CLIP; FRAME HARNESS
(N) ID=11 L=20 		0-95235-035-0 02 1 0909-
48 CLIP; FRAME HARNESS
(I) ID=19 L=28 		0-95235-856-0 02 1 0803-
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0803-0901
48 CLIP; FRAME HARNESS
(M) ID=35 L=50 		1-09701-214-0 01 1 0803-
48 CLIP; FRAME HARNESS
(K) L=600 		1-09707-107-1 01 1 0803-0901
48 CLIP; FRAME HARNESS
(E) L=350 		1-09707-183-0 01 1 0803-
48 CLIP; FRAME HARNESS
(C) OD=9 H=9.5 		1-09709-179-0 01 1 0803-
48 CLIP; FRAME HARNESS
(L) ID=5-12 L=14.5 		1-09987-221-0 02 1 0803-0901
48 CLIP; FRAME HARNESS
(H) ID=17.5X2 L=25 		5-09700-358-0 01 1 0803-
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 04 1 0803-0901
48 CLIP; FRAME HARNESS
(F) L=140 		5-09707-031-1 02 1 0803-0901
48 CLIP; FRAME HARNESS
(J) ID=21 L=24 		8-94176-807-1 03 1 0803-
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 02 1 0803-1201
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 01 1 1202-
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 18 1 0803-1007
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 15 1 1008-
81 CLIP; HARNESS
H.S.A SYSTEM<6EP> (A) L=180 		1-09707-162-1 01 1 0803-0805
81 CLIP; HARNESS
H.S.A SYSTEM<6EP> (C) OD=9 H=6 		1-09709-178-0 01 1 0803-0805
81 CLIP; HARNESS
(C) OD=9 H=6 		1-09709-178-0 01 1 1011-
81 CLIP; HARNESS
(B) ID=6.35 & 10.0 		1-09709-274-1 02 1 0803-
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 02 1 1202-
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 04 1 0803-
171 CLIP; STARTER HARNESS
MLD6W M/T(Y2C) (A) ID=11 L=28 		0-95235-055-0 01 1 0807-
171 CLIP; STARTER HARNESS
MLD6W M/T(Y2C) (B) ID=16 L=28 		0-95235-556-0 01 1 0807-
171 CLIP; STARTER HARNESS
MLD6W M/T(Y2C) (C) OD=9 H=6 		1-09709-178-0 02 1 0807-
171 CLIP; STARTER HARNESS
MLD6W M/T(Y2C) (D) ID=13-18 L=14.5 		1-09709-290-0 01 1 0807-
171 CLIP; STARTER HARNESS
MLD6W M/T(Y2C) (E) ID=5-12 L=14.5 		1-09987-221-0 01 1 0807-
171 CLIP; STARTER HARNESS
MLD6W M/T(Y2C) (F) OD=8.95 H=6.25 		8-97375-754-0 01 1 0807-0809
223 CLIP; AIR TANK HARNESS
(A) OD=9 H=6 		1-09709-178-0 03 1 0803-
223 CLIP; AIR TANK HARNESS
(B) ID=10 & 10 		1-09709-277-1 03 1 0803-
223 CLIP; AIR TANK HARNESS
(C) ID=10 & 15 		1-09709-279-1 01 1 0803-
223 CLIP; AIR TANK HARNESS
(D) ID=5-12 L=14.5 		1-09987-221-0 01 1 0803-
235 CLIP; HARNESS,SPD SENSOR,SSPS
(B) OD=9 H=6 		1-09709-178-0 01 1 0803-
235 CLIP; HARNESS,SPD SENSOR,SSPS
(A) ID=13-18 L=14.5 		1-09709-290-0 01 1 0803-
235 CLIP; HARNESS,SPD SENSOR,SSPS
MLD6W M/T(Y2C) (C) ID=12 L=35 		5-09700-206-0 01 1 0807-
305 CLIP; ENG HARNESS
(J) ID=16 L=28 		0-95235-556-0 02 1 0803-
305 CLIP; ENG HARNESS
(I) ID=16 L=40 		0-95235-576-0 01 1 0803-
305 CLIP; ENG HARNESS
(D) ID=24 L=32 		1-09700-766-1 01 1 0803-
305 CLIP; ENG HARNESS
(A) ID=25 L=60 		1-09701-041-1 01 1 0803-
305 CLIP; ENG HARNESS
(F) ID=19 H=33 L=45 		1-09701-045-0 01 1 0803-
305 CLIP; ENG HARNESS
(E) OD=9 H=6 		1-09709-178-0 01 1 0803-
305 CLIP; ENG HARNESS
(H) ID=11 L=45 		8-94296-897-1 01 1 0803-
305 CLIP; ENG HARNESS
(C) L=100 		8-94443-021-1 01 1 0803-
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-97367-985-1 01 1 0803-
305 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONTROL(C60) (G) ID=21 L=47.5 		8-94178-108-0 01 1 0803-
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 		1-09709-178-0 01 1 0803-0901

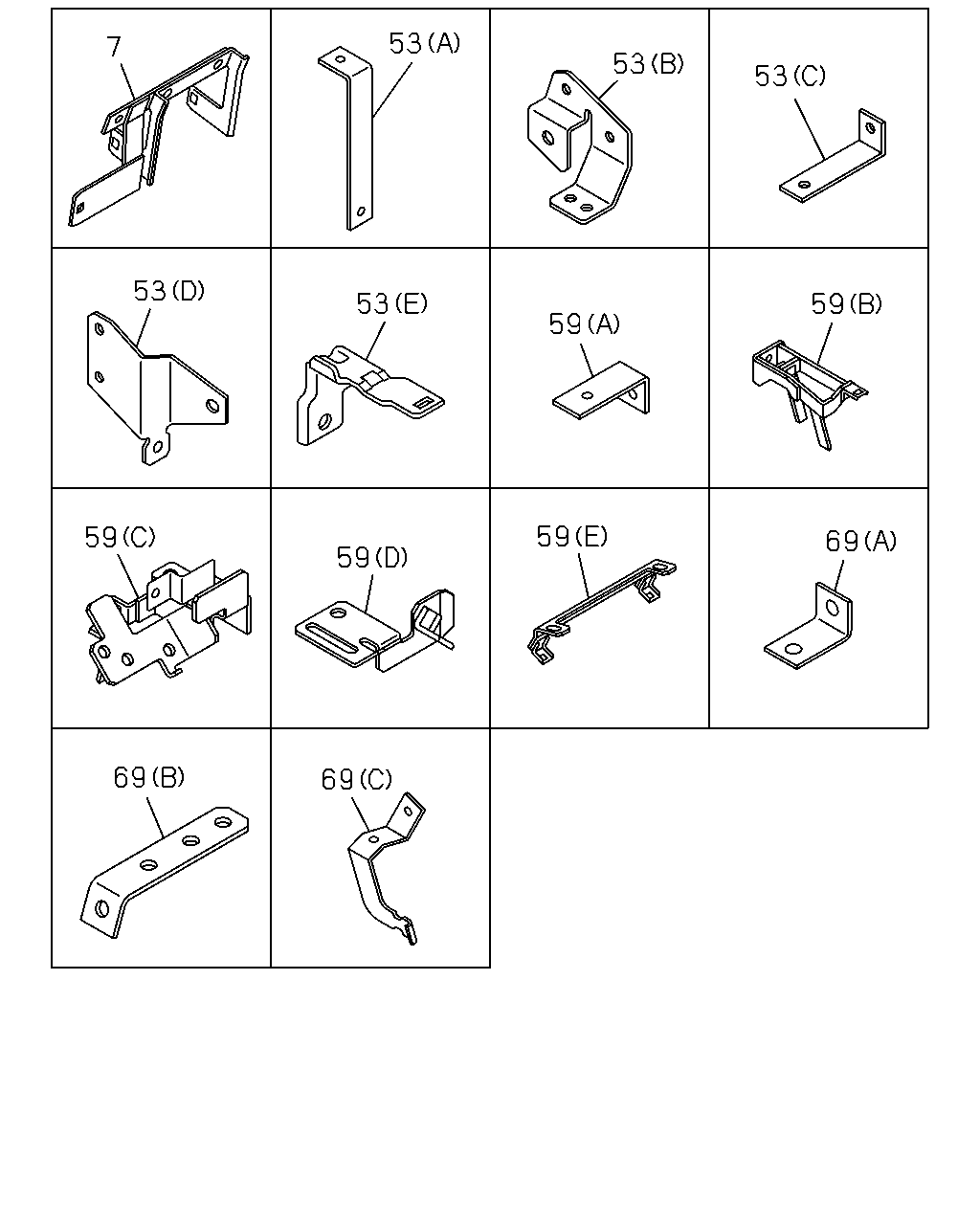

çizim 107610
53 7 53 53 53 53 59 59 59 59 69 59 69 69
BalonParca AdiParca NoAdetTipApplied Date
7 BRACKET; CONNECTOR 8-98049-798-1 01 1 0803-
53 BRACKET; HARNESS
(C) L=95 		1-82699-085-0 01 1 0803-
53 BRACKET; HARNESS
(D) 		8-98047-890-0 01 1 0803-
53 BRACKET; HARNESS
(D) 		8-98047-891-0 01 1 0803-
53 BRACKET; HARNESS
(E) 		8-98052-458-0 01 1 0803-
53 BRACKET; HARNESS
(A) L=145 		1-47475-655-0 02 1 0803-
53 BRACKET; HARNESS
(A) L=145 		1-47475-655-0 02 1 0803-
53 BRACKET; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (B) 		8-98084-590-0 01 1 0803-
59 BRACKET; FRAME HARNESS
(A) L=75 		1-47478-323-0 01 1 0803-
59 BRACKET; FRAME HARNESS
(D) 		8-97616-305-0 01 1 0803-
59 BRACKET; FRAME HARNESS
(E) 		8-97619-533-0 01 1 0803-
59 BRACKET; FRAME HARNESS
(C) 		8-97619-534-0 01 1 0803-
59 BRACKET; FRAME HARNESS
(B) 		8-97609-264-2 01 1 0803-0803
59 BRACKET; FRAME HARNESS
MZX6P M/T(RSW) (B) 		8-97609-264-2 01 1 0804-
59 BRACKET; FRAME HARNESS
MLD6W M/T(Y2C) (B) 		8-97627-325-0 01 1 0807-
69 BRACKET; CLIP
(C) 		8-97616-357-3 01 1 0803-
69 BRACKET; CLIP
(A) L=55 		1-47475-304-0 01 1 0803-0803
69 BRACKET; CLIP
(B) 		1-82698-167-0 01 1 0804-

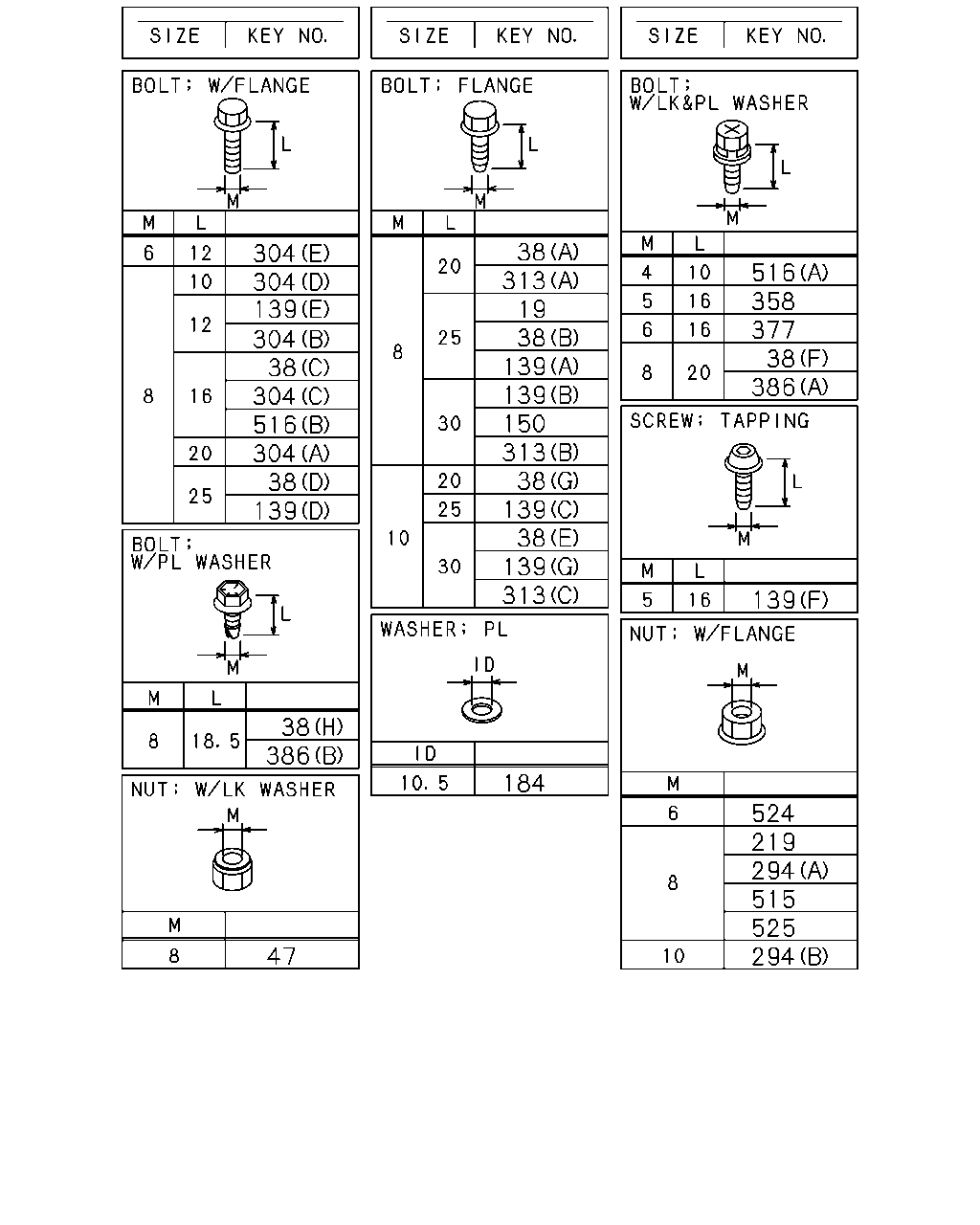

çizim 107977
304 304 139 304 38 304 516 304 38 139 38 386 47 184 313 139 38 139 38 313 150 139 139 38 19 313 38 516 358 377 38 386 139 524 219 294 515 525 294
BalonParca AdiParca NoAdetTipApplied Date
19 BOLT; PROTECTOR
M8X25 FLANGE 		0-28650-825-0 02 1 0803-0807
38 BOLT; CLIP,HARNESS
(C) M8X16 FLANGE 		0-28050-816-0 03 1 0803-
38 BOLT; CLIP,HARNESS
(D) M8X25 FLANGE 		0-28050-825-0 02 1 0803-
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0803-
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0803-
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 03 1 0803-
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 05 1 0803-
38 BOLT; CLIP,HARNESS
(E) M10X30 FLANGE 		0-28651-030-0 01 1 0803-
38 BOLT; CLIP,HARNESS
(F) M8X20 W/LK&PL WASHER 		8-97086-825-0 03 1 0803-1201
38 BOLT; CLIP,HARNESS
(H) M8X18.5 W/PL WASHER 		8-98141-255-0 03 1 1202-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0803-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0803-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0803-
38 BOLT; CLIP,HARNESS
MLD6W M/T(Y2C) (G) M10X20 FLANGE 		0-28751-020-0 01 1 0807-
47 NUT; GEN TERMINAL
M8 W/LK WASHER 		8-94279-050-0 01 1 1409-
139 BOLT; BRKT
(E) M8X12 FLANGE 		0-28050-812-0 01 1 0803-
139 BOLT; BRKT
(D) M8X25 FLANGE 		0-28050-825-0 02 1 0803-
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0803-
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 03 1 0803-0812
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0901-
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0901-
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0901-
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 04 1 0803-
139 BOLT; BRKT
(C) M10X25 FLANGE 		0-28651-025-0 02 1 0803-
139 BOLT; BRKT
(G) M10X30 FLANGE 		0-28651-030-0 02 1 0803-
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0803-0812
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0803-0812
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0803-0901
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0803-0901
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0803-0901
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0902-
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0902-
139 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (F) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0803-
150 BOLT; CLIP
M8X30 FLANGE 		0-28650-830-0 01 1 0803-
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 0806-
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 0803-
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 0803-
219 NUT
M8 FLANGE 		0-91180-108-0 05 1 0803-0804
219 NUT
M8 FLANGE 		0-91180-108-0 04 1 0805-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 06 1 0803-1107
294 NUT
(A) M8 FLANGE 		0-91180-108-0 05 1 1108-
294 NUT
(B) M10 FLANGE 		0-91180-210-0 01 1 0803-0811
294 NUT
(B) M10 FLANGE 		0-91180-210-0 02 1 0812-
294 NUT
(B) M10 FLANGE 		0-91180-210-0 03 1 0803-0811
294 NUT
(B) M10 FLANGE 		0-91180-210-0 01 1 0812-
294 NUT
(B) M10 FLANGE 		0-91180-210-0 01 1 0812-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0803-0901
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0803-0901
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0902-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0902-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0803-0804
294 NUT
(A) M8 FLANGE 		0-91180-108-0 03 1 0805-0812
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0901-0901
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0901-0901
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0901-0901
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0902-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0902-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0902-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 03 1 0803-0804
294 NUT
(A) M8 FLANGE 		0-91180-108-0 03 1 0803-0804
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0805-0812
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0805-0812
304 BOLT; ENG HARNESS CLIP
(E) M6X12 FLANGE 		0-28050-612-0 01 1 0803-
304 BOLT; ENG HARNESS CLIP
(D) M8X10 FLANGE 		0-28050-810-0 01 1 0803-1010
304 BOLT; ENG HARNESS CLIP
(B) M8X12 FLANGE 		0-28050-812-0 03 1 0803-
304 BOLT; ENG HARNESS CLIP
(C) M8X16 FLANGE 		0-28050-816-0 02 1 0803-
304 BOLT; ENG HARNESS CLIP
(A) M8X20 FLANGE 		0-28050-820-0 01 1 0803-
313 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0803-
313 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0803-
313 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0803-
313 BOLT; BRKT
(C) M10X30 FLANGE 		0-28651-030-0 01 1 0803-
358 BOLT; EARTH
M5X16 W/LK&PL WASHER 		8-94198-538-0 01 1 0803-
377 BOLT; CAB EARTH
M6X16 W/LK&PL WASHER 		8-97086-823-0 02 1 0803-
386 BOLT; GRAND HARNESS
(A) M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 0803-1202
386 BOLT; GRAND HARNESS
(B) M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1203-
515 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0803-
516 BOLT; HARNESS
(A) M4X10 W/LK&PL WASHER 		0-36230-410-0 01 1 0803-
516 BOLT; HARNESS
MLD6W M/T(Y2C) (B) M8X16 FLANGE 		0-28050-816-0 02 1 0807-
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 04 1 0803-
525 NUT; CLIP
T=8.0 M8 FLANGE 		0-91180-108-0 02 1 0803-
525 NUT; CLIP
T=8.0 M8 FLANGE 		0-91180-108-0 01 1 0803-
525 NUT; CLIP
T=8.0 M8 FLANGE 		0-91180-108-0 01 1 0803-
525 NUT; CLIP
T=8.5 M8 FLANGE 		5-09440-010-0 01 1 0803-

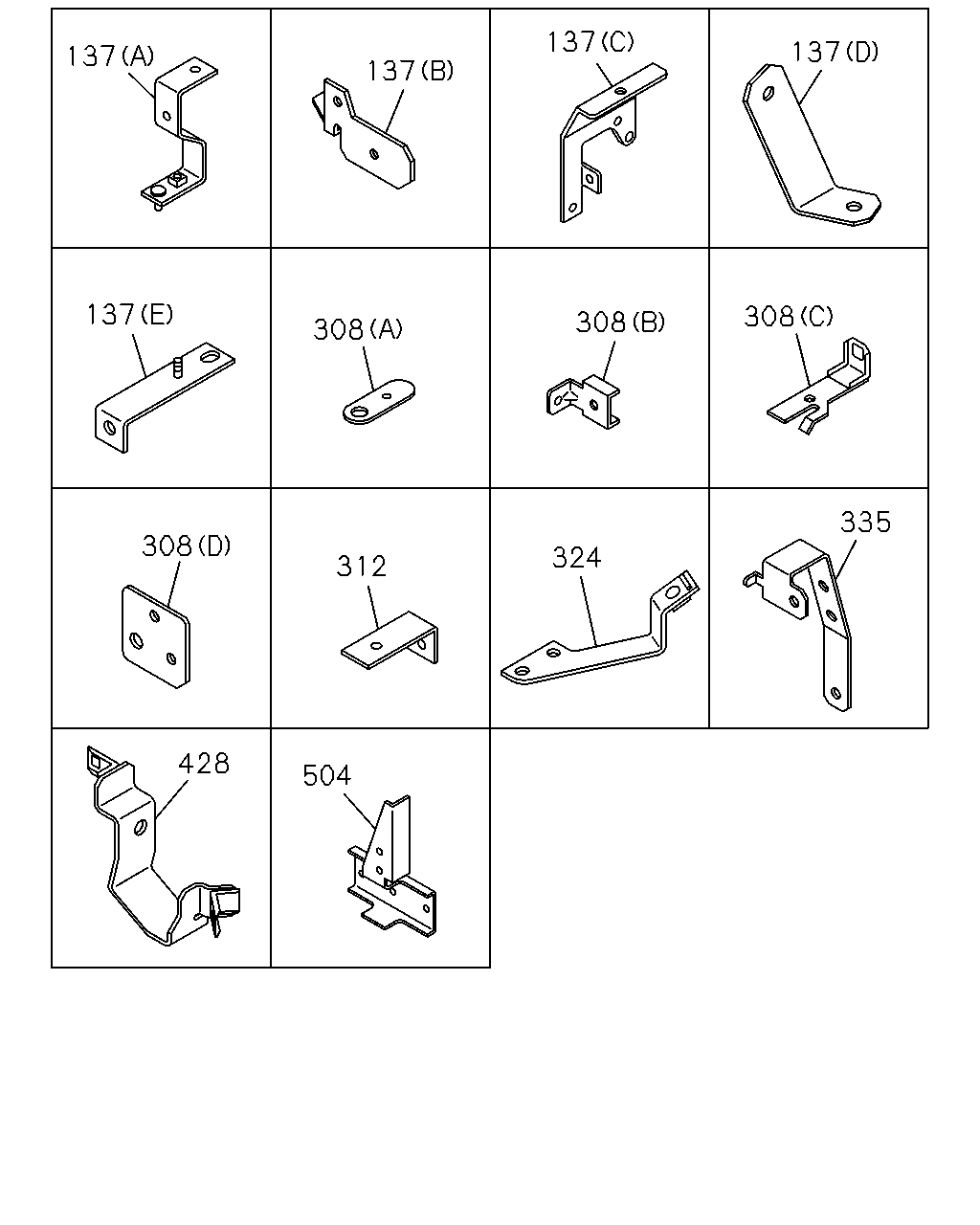

çizim 108045
137 137 137 137 137 308 308 308 335 308 324 312 428 504
BalonParca AdiParca NoAdetTipApplied Date
137 BRACKET; HARNESS CLAMP
(D) 		8-97614-728-1 01 1 0803-
137 BRACKET; HARNESS CLAMP
(C) 		8-97618-098-2 01 1 0803-
137 BRACKET; HARNESS CLAMP
(E) 		8-97624-013-0 01 1 0803-
137 BRACKET; HARNESS CLAMP
(B) 		8-98059-231-1 01 1 0803-
137 BRACKET; HARNESS CLAMP
(A) 		8-98065-904-0 01 1 0803-
308 BRACKET; CLIP,ENG HARNESS
(A) 		8-97601-310-0 03 1 0803-1010
308 BRACKET; CLIP,ENG HARNESS
(A) 		8-97601-310-0 02 1 1011-
308 BRACKET; CLIP,ENG HARNESS
(B) 		8-97614-078-0 01 1 0803-
308 BRACKET; CLIP,ENG HARNESS
(C) 		8-98021-291-2 01 1 0803-
308 BRACKET; CLIP,ENG HARNESS
(D) 		8-98021-692-1 01 1 0803-
312 BRACKET; CLIP HARNESS
L=55 		1-47475-304-0 01 1 0803-
324 BRACKET; CLIP 8-98051-648-1 01 1 0803-
324 BRACKET; CLIP 8-98051-649-1 01 1 0803-
335 BRACKET; CONNECTOR 8-97619-097-1 01 1 0803-
428 BRACKET 8-98090-952-0 01 1 0803-
504 PROTECTOR; HARNESS 8-98042-155-0 01 1 0803-0807

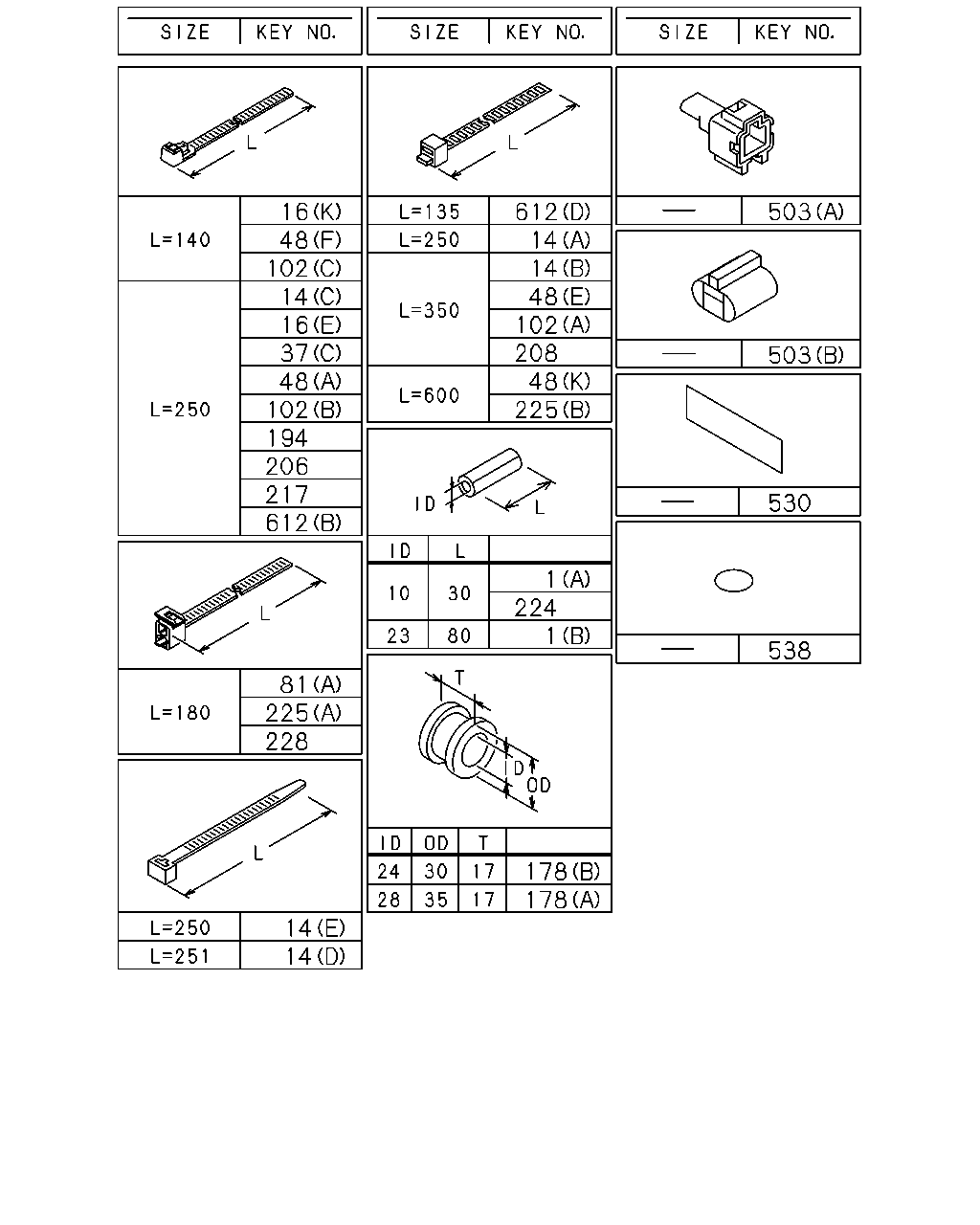

çizim 108122
16 48 102 14 16 37 48 102 194 206 217 612 81 225 228 14 14 612 14 14 48 102 208 48 225 1 224 1 178 178 503 503 530 538
BalonParca AdiParca NoAdetTipApplied Date
1 SLEEVE; RUBBER
(B) ID=23 OD=27 L=80 		8-97608-976-0 06 1 0803-
1 SLEEVE; RUBBER
(A) ID=10 OD=14 L=30 		9-09956-682-0 03 1 0803-
14 CLIP; BAND,HARNESS
(D) L=251 		8-97619-917-0 01 1 0910-
14 CLIP; BAND,HARNESS
(A) L=250 		1-09707-126-0 02 1 0803-
14 CLIP; BAND,HARNESS
(B) L=350 		1-09707-183-0 01 1 0803-
14 CLIP; BAND,HARNESS
(C) L=250 		5-09707-030-1 15 1 0803-0812
14 CLIP; BAND,HARNESS
(C) L=250 		5-09707-030-1 30 1 0901-
14 CLIP; BAND,HARNESS
(C) L=250 		5-09707-030-1 14 1 0803-0909
14 CLIP; BAND,HARNESS
(C) L=250 		5-09707-030-1 13 1 0910-1205
14 CLIP; BAND,HARNESS
(E) L=250 		8-98216-430-0 13 1 1206-
16 CLIP; HARNESS
(O) ID=11 L=16 		0-95235-025-0 04 1 0803-
16 CLIP; HARNESS
(Q) ID=11 L=60 		0-95235-096-0 01 1 0803-0807
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 01 1 0803-0901
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 03 1 0803-0901
16 CLIP; HARNESS
(M) ID=11X2 L=16 		1-09700-734-0 01 1 0803-
16 CLIP; HARNESS
(F) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0803-
16 CLIP; HARNESS
(J) ID=10 & 10 		1-09709-277-1 03 1 0803-0911
16 CLIP; HARNESS
(J) ID=10 & 10 		1-09709-277-1 04 1 0912-
16 CLIP; HARNESS
(I) ID=5-12 L=18 		1-09709-287-0 01 1 0803-
16 CLIP; HARNESS
(H) ID=13-18 L=18 		1-09709-291-0 01 1 0803-0901
16 CLIP; HARNESS
(L) ID=5-12 L=14.5 		1-09987-221-0 01 1 0803-
16 CLIP; HARNESS
(E) L=250 		5-09707-030-1 02 1 0803-
16 CLIP; HARNESS
(K) L=140 		5-09707-031-1 01 1 0803-
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 0803-
16 CLIP; HARNESS
(G) L=60 		8-94449-165-0 02 1 0803-
16 CLIP; HARNESS
(N) L=60 		8-97063-335-0 02 1 0803-
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 0803-
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 0803-
16 CLIP; HARNESS
(P) L=40.6 		8-97229-357-0 02 1 0803-
16 CLIP; HARNESS
(P) L=40.6 		8-97229-357-0 02 1 0803-
16 CLIP; HARNESS
EXC. H.S.A SYSTEM<6EP> (R) OD=9 H=6 		1-09709-178-0 01 1 0804-0805
16 CLIP; HARNESS
(R) OD=9 H=6 		1-09709-178-0 01 1 0806-
37 CLIP; HARNESS,POWER TILT
(A) ID=16 L=28 		0-95235-556-0 01 1 0803-
37 CLIP; HARNESS,POWER TILT
(B) ID=13-18 L=18 		1-09709-291-0 02 1 0803-
37 CLIP; HARNESS,POWER TILT
(C) L=250 		5-09707-030-1 01 1 0803-
48 CLIP; FRAME HARNESS
(O) ID=14 L=44 		9-09917-427-0 03 1 1008-
48 CLIP; FRAME HARNESS
(G) ID=16 L=28 		0-95235-556-0 01 1 0803-
48 CLIP; FRAME HARNESS
(G) ID=16 L=28 		0-95235-556-0 02 1 0803-0908
48 CLIP; FRAME HARNESS
(N) ID=11 L=20 		0-95235-035-0 02 1 0909-
48 CLIP; FRAME HARNESS
(I) ID=19 L=28 		0-95235-856-0 02 1 0803-
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0803-0901
48 CLIP; FRAME HARNESS
(M) ID=35 L=50 		1-09701-214-0 01 1 0803-
48 CLIP; FRAME HARNESS
(K) L=600 		1-09707-107-1 01 1 0803-0901
48 CLIP; FRAME HARNESS
(E) L=350 		1-09707-183-0 01 1 0803-
48 CLIP; FRAME HARNESS
(C) OD=9 H=9.5 		1-09709-179-0 01 1 0803-
48 CLIP; FRAME HARNESS
(L) ID=5-12 L=14.5 		1-09987-221-0 02 1 0803-0901
48 CLIP; FRAME HARNESS
(H) ID=17.5X2 L=25 		5-09700-358-0 01 1 0803-
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 04 1 0803-0901
48 CLIP; FRAME HARNESS
(F) L=140 		5-09707-031-1 02 1 0803-0901
48 CLIP; FRAME HARNESS
(J) ID=21 L=24 		8-94176-807-1 03 1 0803-
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 02 1 0803-1201
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 01 1 1202-
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 18 1 0803-1007
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 15 1 1008-
81 CLIP; HARNESS
H.S.A SYSTEM<6EP> (A) L=180 		1-09707-162-1 01 1 0803-0805
81 CLIP; HARNESS
H.S.A SYSTEM<6EP> (C) OD=9 H=6 		1-09709-178-0 01 1 0803-0805
81 CLIP; HARNESS
(C) OD=9 H=6 		1-09709-178-0 01 1 1011-
81 CLIP; HARNESS
(B) ID=6.35 & 10.0 		1-09709-274-1 02 1 0803-
102 CLIP; BAND
(A) L=350 		1-09707-183-0 01 1 0803-0911
102 CLIP; BAND
(B) L=250 		5-09707-030-1 02 1 0803-0901
102 CLIP; BAND
(C) L=140 		5-09707-031-1 01 1 0803-0811
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 02 1 0803-0811
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 02 1 0812-
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 02 1 0812-
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 02 1 0812-
178 GROMMET; HARNESS
(B) ID=24 OD=30 T=17 		9-09956-092-1 01 1 0803-
178 GROMMET; HARNESS
(B) ID=24 OD=30 T=17 		9-09956-092-1 01 1 0803-
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 04 1 0803-0804
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 01 1 0805-0806
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 04 1 0807-0811
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 03 1 0805-0806
194 CLIP; BAND
L=250 		5-09707-030-1 01 1 0803-
194 CLIP; BAND
L=250 		5-09707-030-1 02 1 0803-
206 CLIP; FUEL TANK HARNESS
L=250 		5-09707-030-1 02 1 0803-0901
206 CLIP; FUEL TANK HARNESS
L=250 		5-09707-030-1 03 1 0902-
208 CLIP; HARNESS,MAG VLV
L=350 		1-09707-183-0 01 1 0803-
217 CLIP; RR BODY HARNESS
L=250 		5-09707-030-1 02 1 1101-
217 CLIP; RR BODY HARNESS
EXC. REVERSING WARNING BUZZER<YM9> L=250 		5-09707-030-1 01 1 0812-
217 CLIP; RR BODY HARNESS
L=250 		5-09707-030-1 02 1 0803-0901
224 SLEEVE; RUBBER,HARNESS
ID=10 OD=14 L=30 		9-09956-682-0 01 1 0803-0803
225 CLIP; AIR TANK HARNESS
(B) L=600 		1-09707-107-1 02 1 0803-0901
225 CLIP; AIR TANK HARNESS
(A) L=180 		1-09707-162-1 01 1 0803-
228 CLIP; COOLER HARNESS
L=180 		1-09707-162-1 01 1 0803-0807
503 CONNECTOR
EXC. H.S.A SYSTEM<6EP> (A) 		1-82691-191-0 01 1 0804-0805
503 CONNECTOR
(A) 		1-82691-191-0 01 1 0806-
503 CONNECTOR
HEATER & DEFROSTER(C41) (B) 		1-82690-668-0 01 1 0803-
530 SEAL; HARNESS
180X40 		1-72498-019-1 14 1 0803-1305
530 SEAL; HARNESS
180X40 		1-72498-019-1 23 1 1306-
530 SEAL; HARNESS
100X40 		1-72498-022-1 06 1 0803-1305
538 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 01 1 0803-
612 CLIP; HARNESS DPD
(C) T=9 & 10.5 		8-97371-949-0 03 1 0803-0804
612 CLIP; HARNESS DPD
(A) ID=11 L=41 		1-09700-403-0 01 1 0803-
612 CLIP; HARNESS DPD
(E) ID=4.76 & 10.0 		1-09709-305-0 03 1 0803-
612 CLIP; HARNESS DPD
(D) L=135 		1-09987-143-1 01 1 0803-
612 CLIP; HARNESS DPD
(B) L=250 		5-09707-030-1 01 1 0803-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
