Isuzu WW
▶
TRUCKS
▶
FSR
▶
11139 - FSR-R(EU)EU4 EXC.SPA
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-70 - SEPARATER AND BED
▶

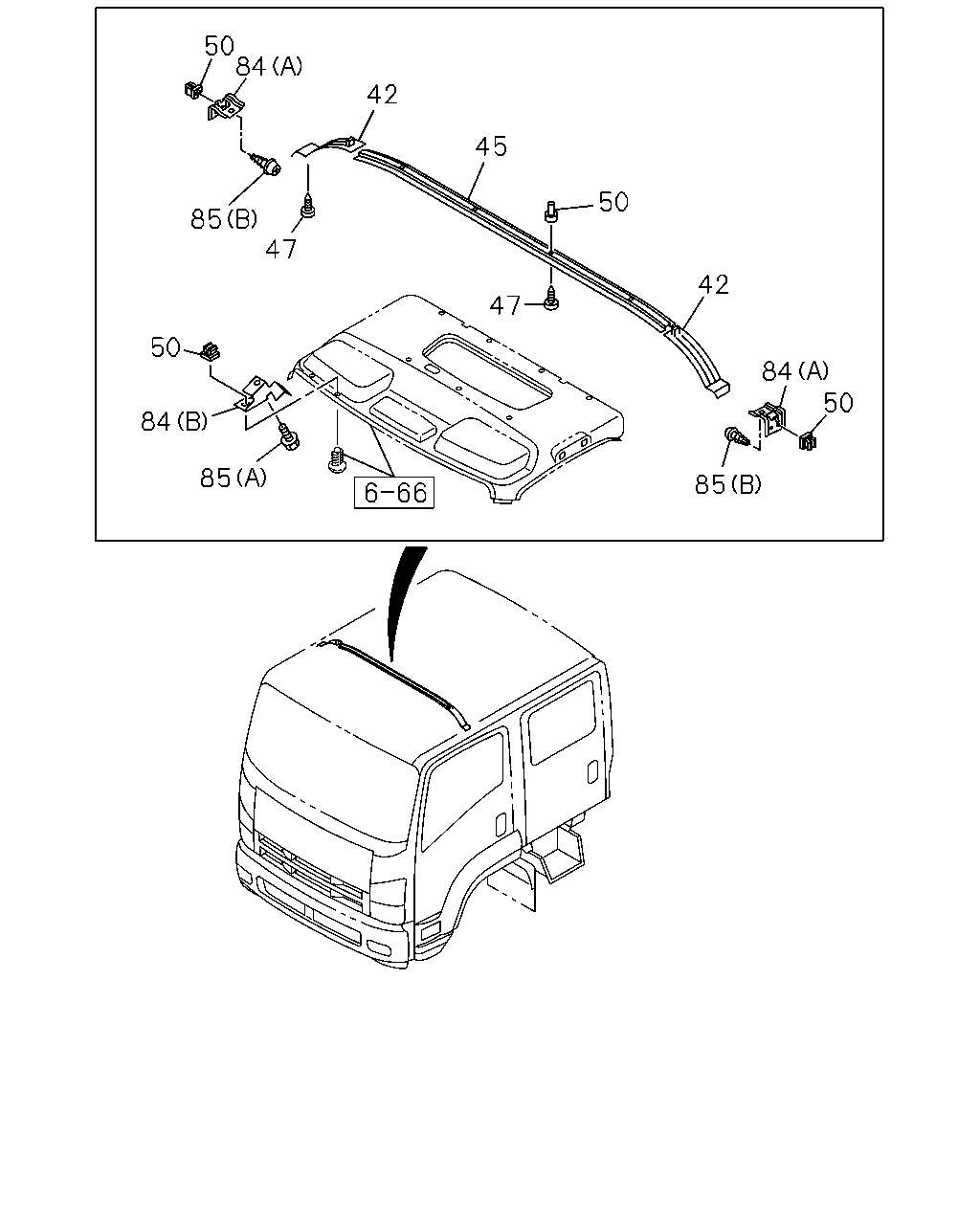

7-70 — SEPARATER AND BED
(#15263) — 11 parça
50
84
42
45
50
85
47
42
47
50
84
50
84
85
85
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
42
STOPPER; CURTAIN RAIL
DARK GRAY
8-97407-499-2
01
1
0803-
42
STOPPER; CURTAIN RAIL
DARK GRAY
8-97407-972-2
01
1
0803-
45
RAIL; CURTAIN,FRT
DARK GRAY
8-97407-485-0
01
1
0803-
47
SCREW; CURTAIN RAIL
M5X20
5-09981-059-0
06
1
0803-
50
GROMMET; SCREW,CURTAIN RAIL
D=8.6X7.7 L=7.5
8-94279-078-0
02
1
0803-
50
GROMMET; SCREW,CURTAIN RAIL
D=8.6X7.7 L=7.5
8-94279-078-0
06
1
0803-
84
BRACKET; CURTAIN RAIL
EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (B)
8-98049-290-1
01
1
0803-
84
BRACKET; CURTAIN RAIL
(A)
8-98042-152-0
02
1
0803-
85
SCREW; BRKT
(B) M5X20
5-09981-059-0
02
1
0803-
85
SCREW; BRKT
EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) BOLT M6X12 FLANGE
0-28450-612-0
01
1
0803-0810
85
SCREW; BRKT
EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) BOLT M6X12 FLANGE
8-97108-669-0
01
1
0811-
