◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11139 - FSR-R(EU)EU4 EXC.SPA ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#15262) — 28 parça

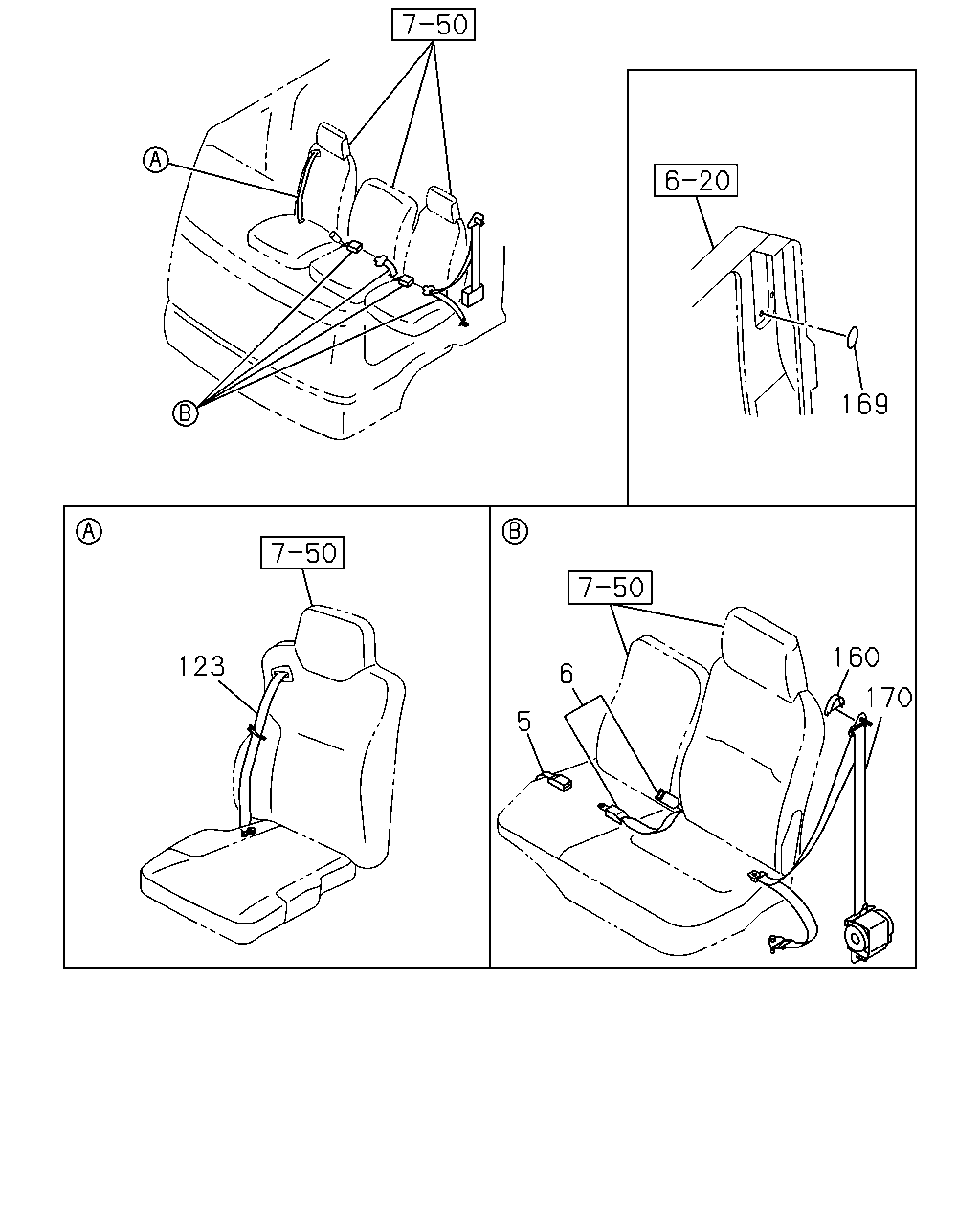

çizim 107603
169 160 123 6 170 5
BalonParca AdiParca NoAdetTipApplied Date
5 BELT; CENTER SEAT,BUCKLE SIDE
GRAY 		8-97407-377-1 01 1 0803-
6 BELT; CENTER SEAT,TONGUE SIDE
GRAY 		8-97409-768-3 01 1 0803-1209
6 BELT; CENTER SEAT,TONGUE SIDE
GRAY 		8-97423-515-1 01 1 1210-
123 BELT ASM; SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-971-0 01 1 0803-
123 BELT ASM; SEAT
EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-969-0 01 1 0803-
160 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 01 1 0803-
160 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 02 1 0803-
169 SEAL
BODY COLOR ARC WHITE(729) OD=36 		8-94271-620-1 02 1 0803-0905
169 SEAL
BODY COLOR ARC WHITE(729),BODY COLOR POLAR WHITE(982) OD=36 		8-94271-620-1 02 1 0906-
169 SEAL
BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0803-0905
169 SEAL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BO DY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0906-
170 BELT; PASSENGER SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97407-771-5 01 1 0803-1209
170 BELT; PASSENGER SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97423-521-2 01 1 1210-1407
170 BELT; PASSENGER SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97428-394-0 01 1 1408-
170 BELT; PASSENGER SEAT,TONGUE SIDE
EXC. AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97407-770-4 01 1 0803-1209
170 BELT; PASSENGER SEAT,TONGUE SIDE
EXC. AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97423-516-1 01 1 1210-1407
170 BELT; PASSENGER SEAT,TONGUE SIDE
EXC. AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97428-435-0 01 1 1408-
çizim 108177
160 18 19 160 20 20 18 19 21 12 21 12
BalonParca AdiParca NoAdetTipApplied Date
12 SCREW; RETRACTOR COVER,SEAT BELT
M4X14 TAPPING 		0-74360-414-0 04 1 0803-
18 BELT; SEAT,RR
GRAY 		8-97405-185-8 02 1 0803-
19 BELT; RR SEAT,BUCKLE SIDE
GRAY 		8-97407-379-0 02 1 0803-
20 BELT; RR SEAT CTR,TONGUE SIDE
GRAY 		8-97409-770-2 01 1 0803-1209
20 BELT; RR SEAT CTR,TONGUE SIDE
GRAY 		8-97423-709-1 01 1 1210-
20 BELT; RR SEAT CTR,TONGUE SIDE
GRAY 		8-97409-771-2 01 1 0803-1209
20 BELT; RR SEAT CTR,TONGUE SIDE
GRAY 		8-97423-710-1 01 1 1210-
21 BELT; RR SEAT CTR,BUCKLE SIDE
GRAY 		8-97407-380-0 01 1 0803-
21 BELT; RR SEAT CTR,BUCKLE SIDE
GRAY 		8-97407-381-1 01 1 0803-
160 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 01 1 0803-
160 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 02 1 0803-
