Isuzu WW
▶
TRUCKS
▶
FSR
▶
11139 - FSR-R(EU)EU4 EXC.SPA
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶

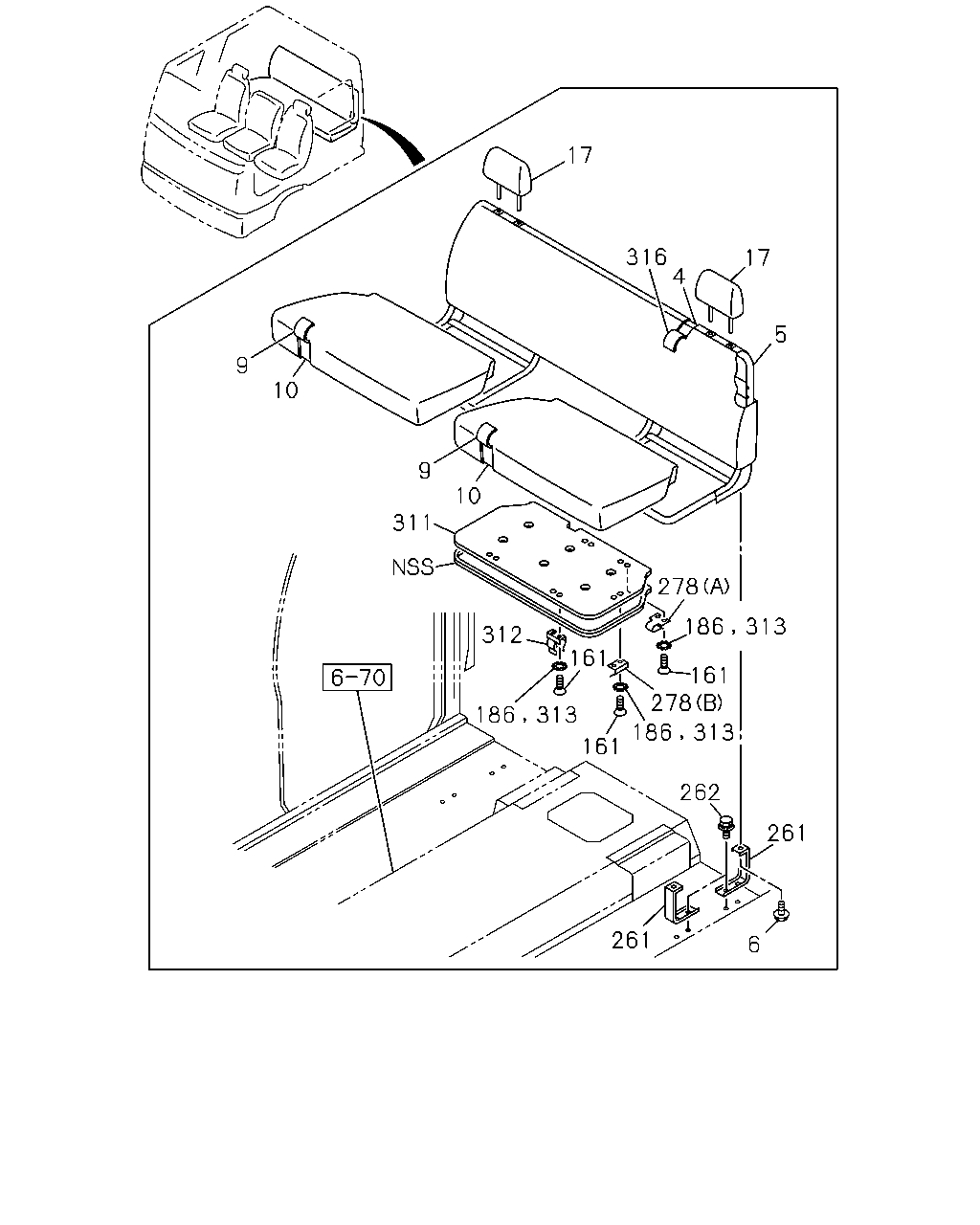

7-55 - REAR SEAT
▶
7-55 — REAR SEAT
(#15261) — 20 parça
17
316
4
17
5
9
10
9
10
311
278
186
312
161
161
278
186
186
161
262
261
261
6
313
313
313
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
PAD; RR,SEAT BACK
8-98055-738-0
01
1
0803-
5
FRAME ASM; RR SEAT BACK
8-98055-732-0
01
1
0803-
6
BOLT; RR SEAT
M8X20 FLANGE
0-28450-820-0
08
1
0803-
9
COVER ASM; TRIM,RR,CUSHION
DARK GRAY
8-97414-104-0
02
1
0803-1009
9
COVER ASM; TRIM,RR,CUSHION
DARK GRAY
8-97421-442-0
02
1
1010-
10
PAD; CUSHION,RR SEAT
8-98057-048-0
02
1
0803-
17
REST; HD,RR SEAT
DARK GRAY
8-97409-448-1
02
1
0903-1009
17
REST; HD,RR SEAT
DARK GRAY
8-97421-366-0
02
1
1010-
161
SCREW; RR SEAT BRKT
M6X16 CK-HEAD
9-03090-616-0
20
1
0803-
186
WASHER; LK,RR SEAT BRKT
ID=6.4 TOOTH LK COUNTERSUNK
9-09152-706-0
10
1
0803-
261
STAND; RR SEAT
1-75558-285-2
04
1
0803-
262
BOLT; STAND TO FLOOR
M8X20 FLANGE
0-28450-820-0
08
1
0803-
278
BRACKET; RR SEAT CUSHION
(A)
9-61407-082-0
04
1
0803-
278
BRACKET; RR SEAT CUSHION
(B)
9-61407-083-0
02
1
0803-
311
PAN ASM; SEAT CUSH,RR SEAT
8-98057-046-0
01
1
0803-
311
PAN ASM; SEAT CUSH,RR SEAT
8-98057-047-0
01
1
0803-
312
BRACKET; STOPPER,RR SEAT
8-94276-841-1
04
1
0803-
313
WASHER; LK,BRKT PAN
ID=6.4 TOOTH LK COUNTERSUNK
9-09152-706-0
10
1
0803-
316
COVER ASM; TRIM,RR SEAT
DARK GRAY
8-97414-108-1
01
1
0803-1009
316
COVER ASM; TRIM,RR SEAT
DARK GRAY
8-97421-446-0
01
1
1010-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
