Isuzu WW
▶
TRUCKS
▶
FSR
▶
11139 - FSR-R(EU)EU4 EXC.SPA
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-76 - FLOOR EQUIPMENT AND SEALING
▶

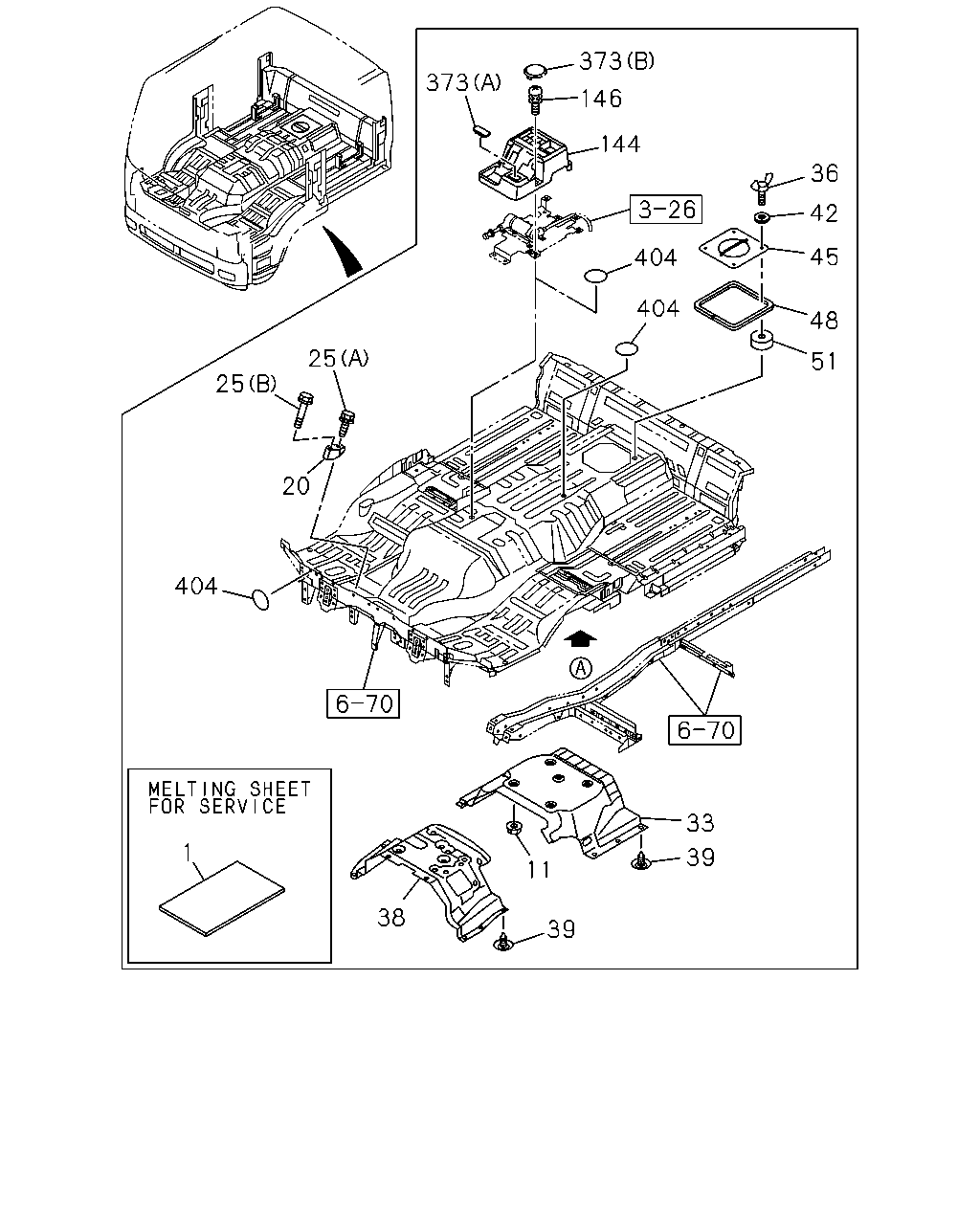

6-76 — FLOOR EQUIPMENT AND SEALING
(#15247) — 25 parça
◀
[676A] NO.1 (23 parça)
[676A] NO.2 (2 parça)
▶
373
373
146
144
36
42
45
404
404
48
25
51
25
20
404
33
1
39
11
38
39
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SHEET; MELTING,FLOOR
NON ASBESTOS 1000X600 T=1.5; PARTS ONLY
8-94262-093-0
AR
1
0803-
11
NUT; HEAT INSULATOR
ID=6 OD=25
8-94468-316-0
05
1
0803-1308
11
NUT; HEAT INSULATOR
ID=6 OD=25
8-94468-316-0
01
1
1309-
20
REST; FOOT
1-73907-176-1
01
1
0803-
25
SCREW; FOOT REST
(A) M6X19.5 W/LK&PL WASHER
8-94279-201-0
01
1
0803-
25
SCREW; FOOT REST
(B) M6X47
8-94407-876-1
01
1
0803-
33
INSULATOR; HEAT,RR
8-97607-711-2
01
1
0803-1101
33
INSULATOR; HEAT,RR
8-98164-660-0
01
1
1102-1308
33
INSULATOR; HEAT,RR
8-98248-307-0
01
1
1309-
36
BOLT; WING,COVER
9-61405-010-0
04
1
0803-
38
INSULATOR; ENG COVER
8-97586-183-5
01
1
0803-1308
38
INSULATOR; ENG COVER
8-98240-138-1
01
1
1309-
39
CLIP; INSULATOR,COVER
ID=6.2 L=11.4
8-97808-623-0
18
1
0803-
42
WASHER; PL,COVER
ID=10.5
0-91610-510-0
04
1
0803-
45
COVER; CENTER,CHECK HOLE
1-65380-056-0
01
1
0803-
48
SEAL; CHECK HOLE LID,CENTER
1-65380-091-0
01
1
0803-
51
SEAL; LID,CHECK HOLE
1-65380-121-0
04
1
0803-
144
COVER; HAND BRK VLV
GRAY
8-97414-752-0
01
1
0803-
146
BOLT; COVER BRKT
M6X16
0-38050-616-0
04
1
0803-
373
COVER; HOLE
(B) GRAY
8-97407-951-0
04
1
0803-
373
COVER; HOLE
(A) GRAY
8-97409-339-0
01
1
0803-
404
SEAL; FLOOR,HOLE
OD=25 BLACK
1-76798-019-0
02
1
0803-
404
SEAL; FLOOR,HOLE
OD=25 BLACK
1-76798-019-0
39
1
0803-
370
370
370
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
370
SEAL; LOCATION HOLE
OD=30 T=1.0
8-98051-161-0
08
1
0803-1211
370
SEAL; LOCATION HOLE
OD=30 T=0.8
8-98230-420-0
08
1
1212-
