◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11139 - FSR-R(EU)EU4 EXC.SPA ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#15245) — 90 parça

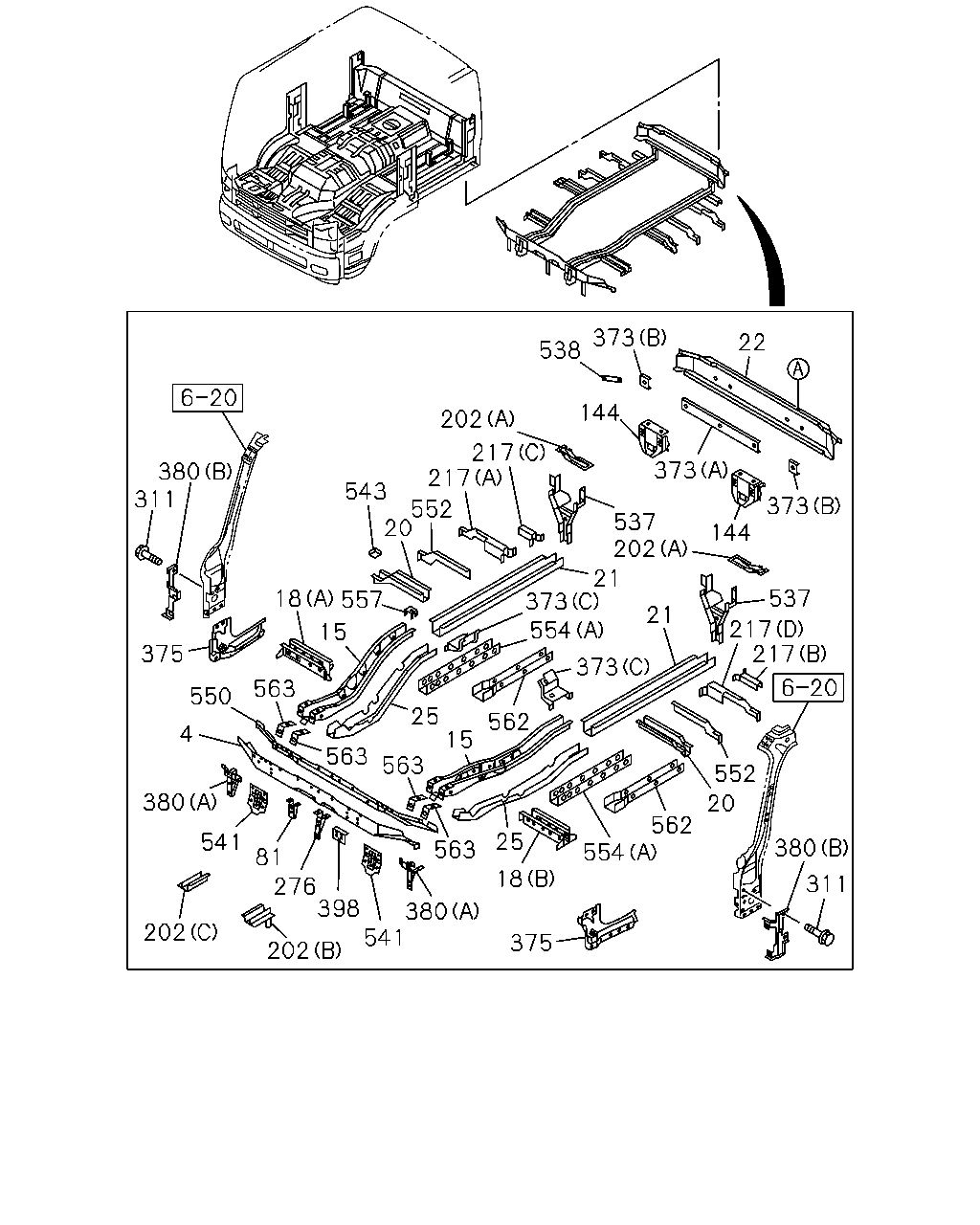

çizim 107921
373 22 538 144 202 217 217 373 380 311 543 373 552 20 537 202 144 21 373 554 537 18 21 217 217 15 375 373 563 550 25 15 562 4 563 563 552 380 20 562 25 541 380 563 554 81 18 311 276 398 380 541 202 375 202 557
BalonParca AdiParca NoAdetTipApplied Date
4 FRAME; FLOOR,FRT 8-98073-692-1 01 1 0803-
15 FRAME; UNDER 8-97584-388-9 01 1 0803-
15 FRAME; UNDER 8-97584-412-7 01 1 0803-
18 FRAME; FLOOR,CENTER SIDE
(B) 		8-97584-420-4 01 1 0803-
18 FRAME; FLOOR,CENTER SIDE
(A) 		8-97610-539-2 01 1 0803-
20 FRAME; FLOOR SIDE,REAR 8-98057-164-1 01 1 0803-
20 FRAME; FLOOR SIDE,REAR 8-98057-167-1 01 1 0803-
21 FRAME; FLOOR CENTER 8-97410-938-2 01 1 0803-
21 FRAME; FLOOR CENTER 8-97410-950-3 01 1 0803-
22 FRAME; FLOOR REAR 8-97410-959-1 01 1 0803-
25 REINFORCEMENT; FRAME FLOOR,FRT 8-97610-225-4 01 1 0803-
25 REINFORCEMENT; FRAME FLOOR,FRT 8-97610-226-4 01 1 0803-
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 0803-
144 BRACKET; MTG,RR 8-97584-432-6 01 1 0803-
144 BRACKET; MTG,RR 8-97589-666-6 01 1 0803-
202 PANEL; CENTER MTG REINF
(A) 		8-97584-426-0 02 1 0803-
202 PANEL; CENTER MTG REINF
(B) 		8-97607-514-0 01 1 0803-
202 PANEL; CENTER MTG REINF
(C) 		8-97607-515-0 01 1 0803-
217 PANEL; SEAT STAND
(C) 		8-97410-945-1 01 1 0803-
217 PANEL; SEAT STAND
(B) 		8-97410-956-1 01 1 0803-
217 PANEL; SEAT STAND
(A) 		8-98057-178-1 01 1 0803-
217 PANEL; SEAT STAND
(D) 		8-98057-196-1 01 1 0803-
276 BRACKET; RAD GRILLE 8-97589-596-3 01 1 0803-
311 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 04 1 0803-
373 REINFORCEMENT; SEAT BELT
(C) 		8-97410-943-0 01 1 0803-
373 REINFORCEMENT; SEAT BELT
(C) 		8-97410-954-0 01 1 0803-
373 REINFORCEMENT; SEAT BELT
(A) 		8-97410-963-1 01 1 0803-
373 REINFORCEMENT; SEAT BELT
(B) 		8-97410-965-0 02 1 0803-
375 CLOSING; PILLAR 8-98044-897-3 01 1 0803-
375 CLOSING; PILLAR 8-98044-898-3 01 1 0803-
380 BRACKET; HEAD LAMP
(A) 		8-97584-460-2 01 1 0803-
380 BRACKET; HEAD LAMP
(A) 		8-97589-506-2 01 1 0803-
380 BRACKET; HEAD LAMP
(B) 		8-98032-614-1 01 1 0803-
380 BRACKET; HEAD LAMP
(B) 		8-98032-615-1 01 1 0803-
398 BRACKET; PIPE SUPPORT 8-97589-681-3 01 1 0803-
537 SUPPORT ASM; MTG RR 8-97410-940-1 01 1 0803-
537 SUPPORT ASM; MTG RR 8-97410-951-1 01 1 0803-
538 REINFORCEMENT ASM; AIR INT DUCT 8-97613-311-0 01 1 0803-
541 REINFORCEMENT; MTG,FRT 8-98067-903-0 02 1 0803-
543 GUSSET; RR PILLAR,LWR 8-98024-396-0 01 1 0803-
543 GUSSET; RR PILLAR,LWR 8-98035-734-0 01 1 0803-
550 CLOSING ASM; MTG,FRT 8-97584-458-4 01 1 0803-
552 PANEL; STEP RR 8-98057-170-0 01 1 0803-
552 PANEL; STEP RR 8-98057-171-0 01 1 0803-
554 REINFORCEMENT; FLOOR CENTER
(B) 		8-97584-351-2 01 1 0803-
554 REINFORCEMENT; FLOOR CENTER
(A) 		8-97610-063-2 01 1 0803-
554 REINFORCEMENT; FLOOR CENTER
(A) 		8-97610-064-2 01 1 0803-
557 PATCH; SEAT 8-98074-333-0 01 1 0803-
562 REINFORCEMENT; FLOOR 8-97410-939-3 02 1 0803-
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 0803-

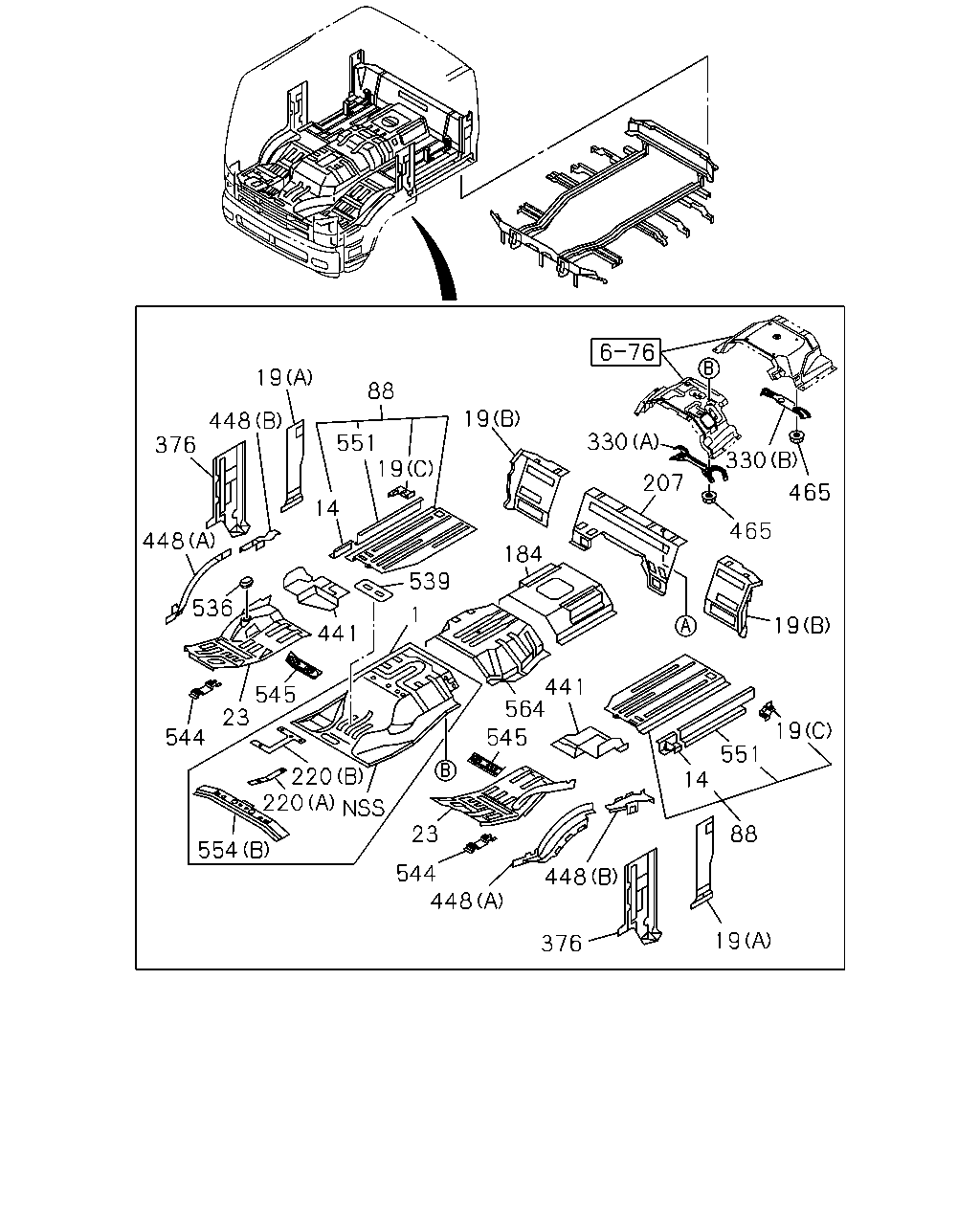

çizim 107923
330 330 465 465 19 207 19 88 551 19 14 19 448 376 448 536 441 539 184 1 545 23 544 554 220 220 564 441 545 23 544 448 448 14 551 19 88 19 376
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; FLOOR 8-97410-865-7 01 1 0803-
14 PANEL; FLOOR SIDE,FRT 8-98010-047-0 01 1 0803-
14 PANEL; FLOOR SIDE,FRT 8-98010-048-0 01 1 0803-
19 PANEL; FLOOR SIDE,REAR
(C) 		8-98010-051-1 01 1 0803-
19 PANEL; FLOOR SIDE,REAR
(C) 		8-98010-052-1 01 1 0803-
19 PANEL; FLOOR SIDE,REAR
(A) 		8-98079-963-1 01 1 0803-
19 PANEL; FLOOR SIDE,REAR
(A) 		8-98079-964-1 01 1 0803-
19 PANEL; FLOOR SIDE,REAR
(B) 		8-98084-841-1 01 1 0803-
19 PANEL; FLOOR SIDE,REAR
(B) 		8-98084-842-1 01 1 0803-
23 PANEL; FLOOR,SIDE 8-98216-751-0 01 1 0803-
23 PANEL; FLOOR,SIDE 8-97410-882-4 01 1 0803-
88 BOARD ASM; FLOOR 8-98085-409-1 01 1 0803-
88 BOARD ASM; FLOOR 8-98085-410-1 01 1 0803-
184 HOOD ASM; ENG RR 8-97410-869-1 01 1 0803-
207 PANEL; FLOOR,RR CTR 8-97410-927-3 01 1 0803-
220 PATCH
(A) 		8-97589-603-3 01 1 0803-
220 PATCH
(B) 		8-97589-627-2 01 1 0803-
330 REINFORCEMENT; FLOOR
(A) 		8-98248-128-0 01 1 1309-
330 REINFORCEMENT; FLOOR
(B) 		8-98248-129-0 01 1 1309-
376 CLOSING; PILLAR,LWR 8-97612-016-5 01 1 0803-
376 CLOSING; PILLAR,LWR 8-98088-029-3 01 1 0803-
441 PANEL; EXTENSION,FLOOR SIDE 8-97410-911-2 01 1 0803-
441 PANEL; EXTENSION,FLOOR SIDE 8-98050-317-2 01 1 0803-
448 CLOSING; ROCKER
(A) 		8-97610-658-1 01 1 0803-
448 CLOSING; ROCKER
(A) 		8-97610-659-1 01 1 0803-
448 CLOSING; ROCKER
(B) 		8-97611-856-0 01 1 0803-
448 CLOSING; ROCKER
(B) 		8-97611-857-0 01 1 0803-
465 NUT; REINFORCEMENT
M6 FLANGE 		0-91180-106-0 04 1 1309-
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 0803-
539 PATCH ASM; SAFTY HOOK
KD PREPARATORY PACK VAR.4<7TV> 		8-98131-661-0 01 1 0809-
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 0803-
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 0803-
545 BRACKET; SEAT FRT 8-97584-373-1 01 1 0803-
545 BRACKET; SEAT FRT 8-98050-186-0 01 1 0803-
551 PANEL; FLOOR SIDE,CTR 8-98010-049-2 01 1 0803-
551 PANEL; FLOOR SIDE,CTR 8-98010-050-2 01 1 0803-
554 REINFORCEMENT; FLOOR CENTER
(B) 		8-97584-351-2 01 1 0803-
554 REINFORCEMENT; FLOOR CENTER
(A) 		8-97610-063-2 01 1 0803-
554 REINFORCEMENT; FLOOR CENTER
(A) 		8-97610-064-2 01 1 0803-
564 PANEL; ENG HOOD EXT FRT 8-97610-271-1 01 1 0803-
