◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11139 - FSR-R(EU)EU4 EXC.SPA ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-60 - ROOF PANEL ▶
6-60 — ROOF PANEL (#15243) — 14 parça

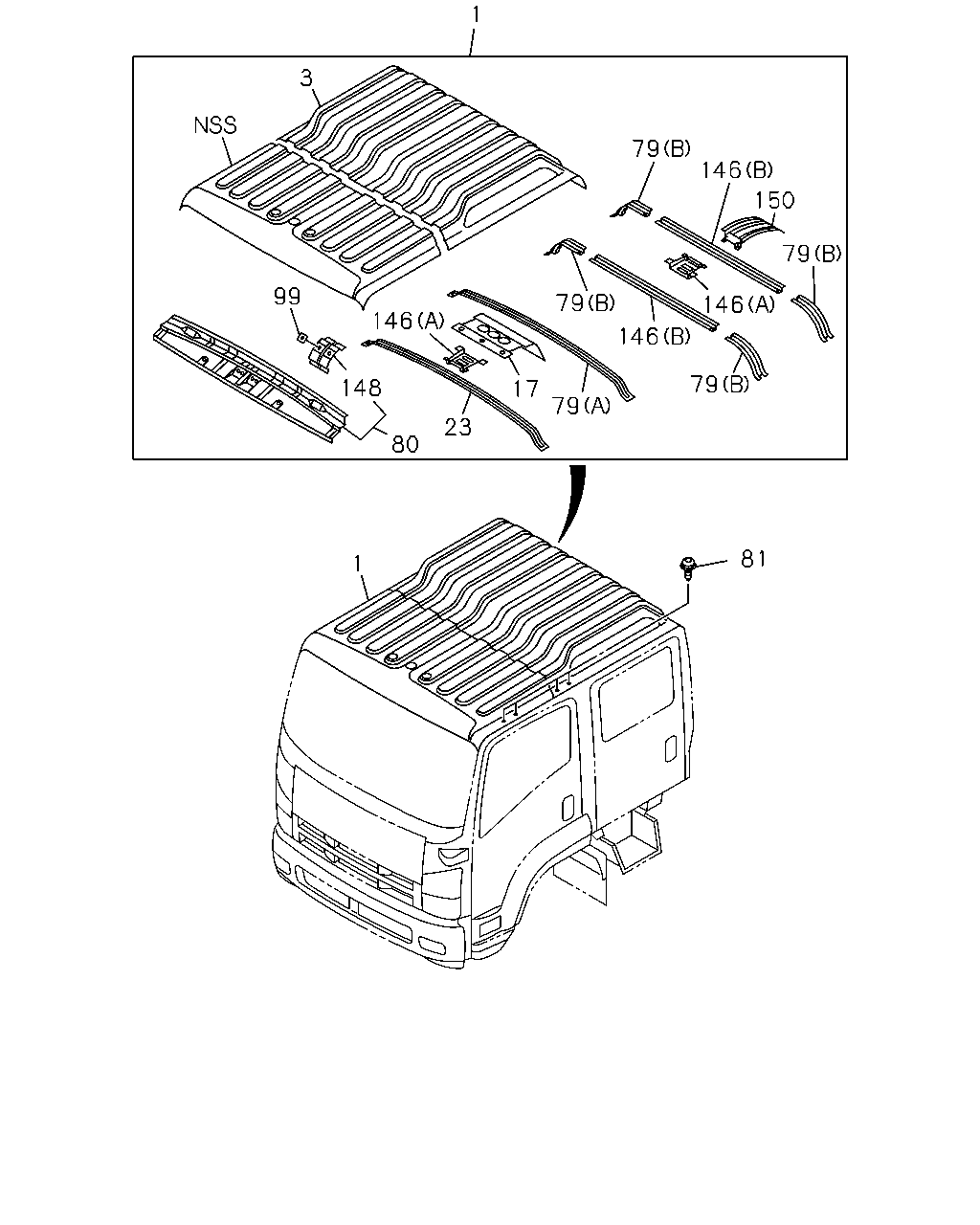

çizim 108174
1 3 79 146 150 79 99 79 146 146 146 79 148 17 79 23 80 81 1
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; ROOF 8-97587-641-7 01 1 0803-
3 PANEL; ROOF,RR 8-97411-040-1 01 1 0803-
17 REINFORCEMENT; ROOF PNL CENTER 8-97584-203-5 01 1 0803-
23 REINFORCEMENT; ROOF PANEL,FRT 8-98019-310-0 01 1 0803-
79 REINFORCEMENT; ROOF PANEL,RR
(A) 		8-97584-199-1 01 1 0803-
79 REINFORCEMENT; ROOF PANEL,RR
(B) 		8-98008-023-0 04 1 0803-
80 PANEL; HEADER,ROOF 8-97584-191-4 01 1 0803-
81 BOLT; ROOF
M8X15.5 HEXALOBULAR 		8-98028-744-0 08 1 0803-0910
81 BOLT; ROOF
M8X15.5 HEXALOBULAR 		8-98141-874-0 08 1 0911-
99 SEAL; BODY,METAL
30X30 ID=20 T=0.7 		1-61281-380-2 02 1 0803-
146 REINFORCEMENT; ROOM LAMP
(B) 		8-98010-736-1 02 1 0803-
146 REINFORCEMENT; ROOM LAMP
(A) 		8-98075-827-0 02 1 0803-
148 REINFORCEMENT; MIRROR 8-97411-015-1 01 1 0803-
150 REINFORCEMENT; ROOF BACK 8-98085-374-0 01 1 0803-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
