◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11627 - FRR LHD EUROPE EURO6 SPACECAB EVSC ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-45 - HEATER PIPING ▶
8-45 — HEATER PIPING (#152333) — 9 parça

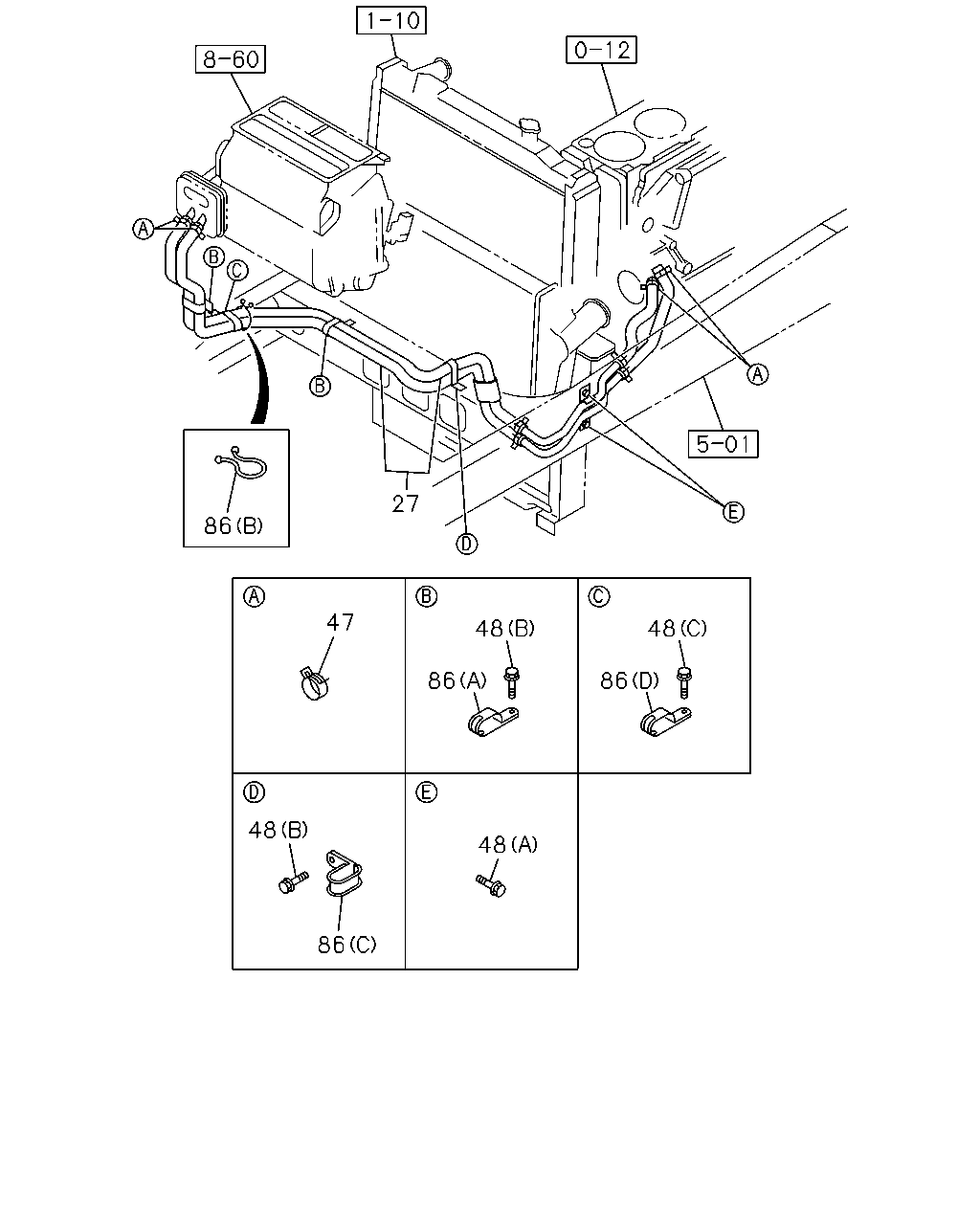

çizim 455794
48 48 47 27 48 48 86 86 86 86
BalonParca AdiParca NoAdetTipApplied Date
27 HOSE; WATER,HTR UNIT TO WATER PIPE 8-98204-961-1 01 1 1411-
47 CLAMP; WATER HOSE,HTR
ID=22 		8-97359-141-0 04 1 1411-
48 BOLT; CLIP FIX
(C) M8X16 FLANGE 		0-28050-816-0 01 1 1411-
48 BOLT; CLIP FIX
(B) M8X25 FLANGE 		0-28650-825-0 03 1 1411-
48 BOLT; CLIP FIX
(A) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 1411-
86 CLIP; HTR HOSE
(A) ID=24X2 L=25 		1-09700-710-0 02 1 1411-
86 CLIP; HTR HOSE
(D) WO/SCREW 		1-09701-143-1 01 1 1411-
86 CLIP; HTR HOSE
(C) B=14 		8-98029-678-0 01 1 1411-
86 CLIP; HTR HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=44 		8-94463-508-0 01 1 1411-
