◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11627 - FRR LHD EUROPE EURO6 SPACECAB EVSC ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#152329) — 156 parça

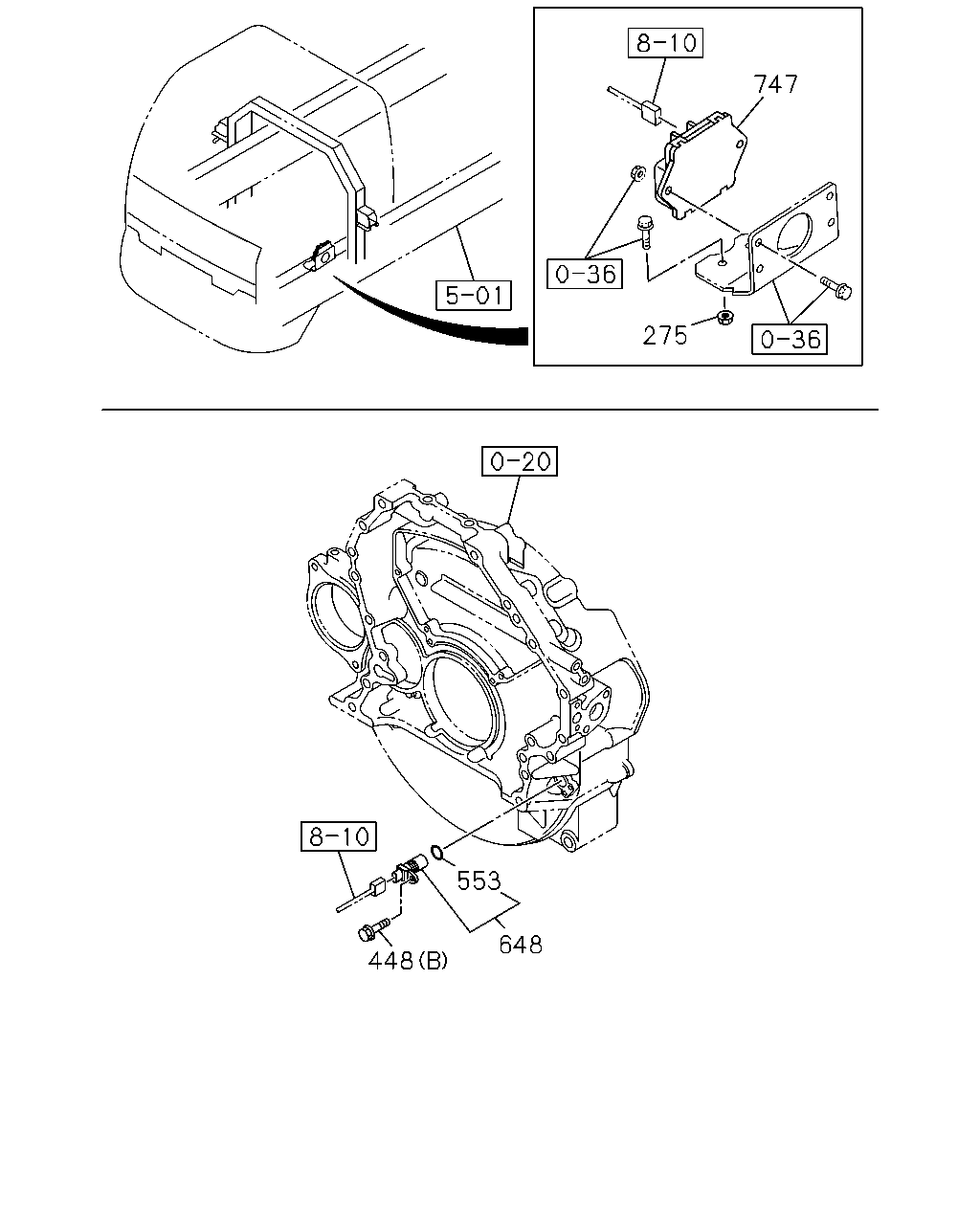

çizim 455388
747 275 553 648 448
BalonParca AdiParca NoAdetTipApplied Date
275 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1411-
448 BOLT; SENSOR
(A) M6X18 W/PL WASHER 		8-97105-796-1 02 1 1411-
448 BOLT; SENSOR
(B) M6X16 FLANGE 		0-28050-616-0 01 1 1411-
553 GASKET
ID=14.2 OD=18.8 		8-97369-404-0 01 1 1411-
648 SENSOR; CRANK ANGLE 8-97606-943-0 01 1 1411-
747 CONTROL UNIT; TURBOCHARGER 8-98133-124-1 01 1 1411-

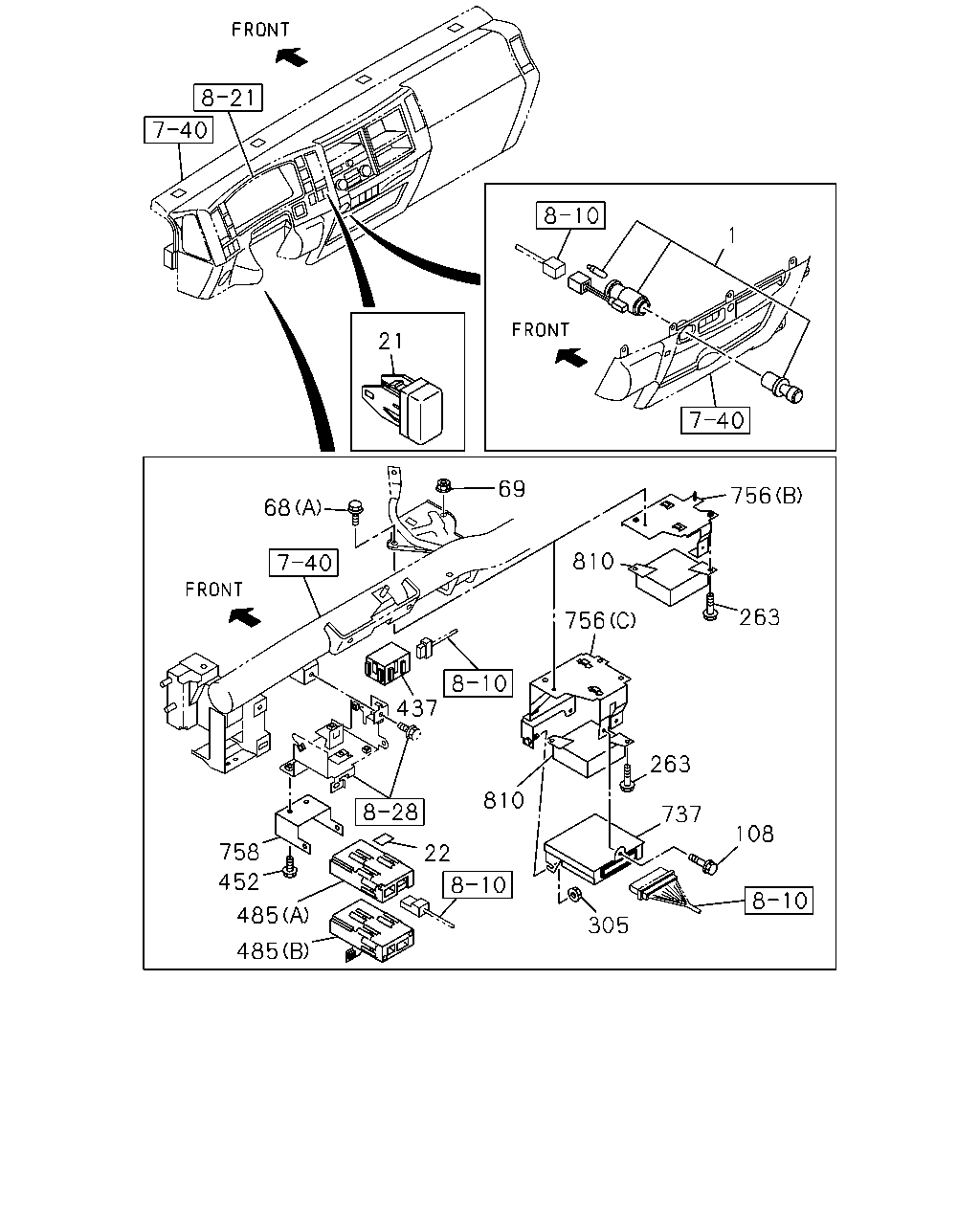

çizim 455797
21 68 437 810 263 756 263 756 810 69 22 758 452 485 305 737 108 1 485
BalonParca AdiParca NoAdetTipApplied Date
1 LIGHTER; CIGAR 8-98142-962-0 01 1 1411-
21 COVER; HOLE 8-98025-954-1 01 1 1411-
22 SEAL; TAPE 8-98166-639-0 02 1 1411-
68 BOLT; BRKT
(A) M6X16 FLANGE 		0-28650-616-0 01 1 1411-
68 BOLT; BRKT
(C) M8X20 FLANGE 		0-28650-820-0 01 1 1411-
68 BOLT; BRKT
(B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 1411-
68 BOLT; BRKT
(D) M6X27 W/PL WASHER 		8-98131-461-0 05 1 1411-
69 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 1411-
108 BOLT; TRANS CONT MODULE
TRANSMISSION CONTROL-SMOOTHER(8GF) M6X16 FLANGE 		0-28650-616-0 02 1 1411-
263 BOLT; CONT UNIT
M6X16 FLANGE 		0-28650-616-0 02 1 1411-1505
263 BOLT; CONT UNIT
M6X16 FLANGE 		0-28650-616-0 02 1 1506-
263 BOLT; CONT UNIT
M6X16 FLANGE 		0-28650-616-0 02 1 1506-
305 NUT; CONT UNIT
TRANSMISSION CONTROL-SMOOTHER(8GF) M6 FLANGE 		0-91180-106-0 01 1 1411-
437 CONVERTER; DC
KOITO 		8-97359-129-0 01 1 1411-
452 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 02 1 1411-1511
452 BOLT; BRKT
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9>,TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> M6X16 FLANGE 		0-28650-616-0 02 1 1512-
485 CONTROL UNIT; SPEED SENSOR
(B) 		1-80190-059-1 01 1 1411-1511
485 CONTROL UNIT; SPEED SENSOR
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		1-80190-059-1 01 1 1512-
485 CONTROL UNIT; SPEED SENSOR
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9>,TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		1-80190-059-1 01 1 1512-
485 CONTROL UNIT; SPEED SENSOR
(A) 		1-80190-061-0 01 1 1411-1511
485 CONTROL UNIT; SPEED SENSOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> (A) 		1-80190-061-0 01 1 1512-
485 CONTROL UNIT; SPEED SENSOR
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		1-80190-061-0 01 1 1512-
737 CONTROL UNIT; TRANSMISSION
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98289-520-1 01 1 1411-
756 BRACKET; ECU,BCM
TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98256-139-1 01 1 1411-
756 BRACKET; ECU,BCM
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98256-138-1 01 1 1411-
756 BRACKET; ECU,BCM
(A) 		8-98052-797-3 01 1 1411-
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR 8-98048-743-1 01 1 1411-1511
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9>,TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> 		8-98048-743-1 01 1 1512-
810 CONTROL UNIT; ISS 8-98253-225-4 01 1 1411-1411
810 CONTROL UNIT; ISS 8-98300-408-0 01 1 1412-1412

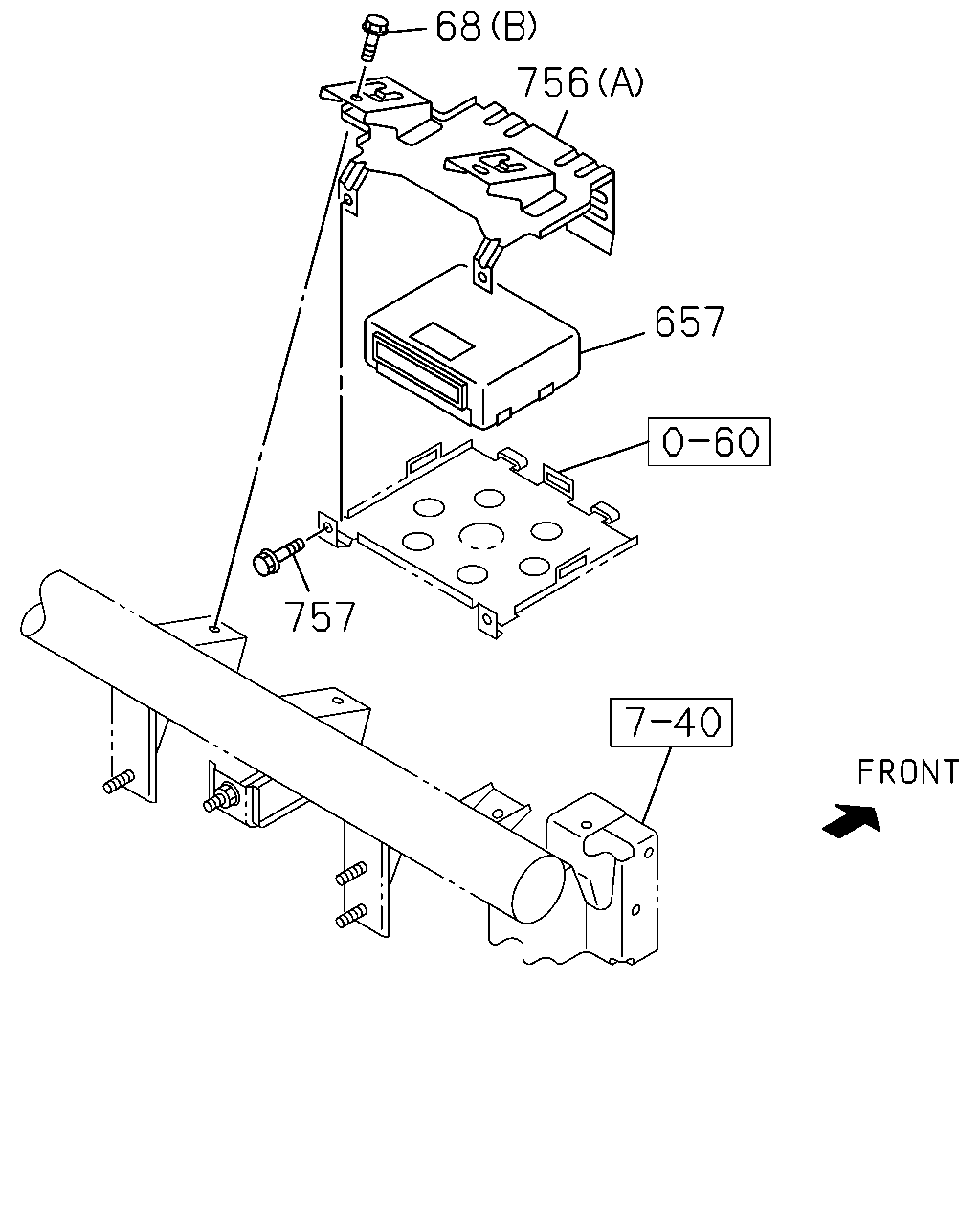

çizim 455813
68 757 756 657
BalonParca AdiParca NoAdetTipApplied Date
68 BOLT; BRKT
(A) M6X16 FLANGE 		0-28650-616-0 01 1 1411-
68 BOLT; BRKT
(C) M8X20 FLANGE 		0-28650-820-0 01 1 1411-
68 BOLT; BRKT
(B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 1411-
68 BOLT; BRKT
(D) M6X27 W/PL WASHER 		8-98131-461-0 05 1 1411-
657 CONTROL UNIT; MIMAMORI 8-98290-407-0 01 1 1411-
756 BRACKET; ECU,BCM
TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98256-139-1 01 1 1411-
756 BRACKET; ECU,BCM
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98256-138-1 01 1 1411-
756 BRACKET; ECU,BCM
(A) 		8-98052-797-3 01 1 1411-
757 BOLT; BRKT,BCM
M6X16 FLANGE 		0-28650-616-0 02 1 1411-

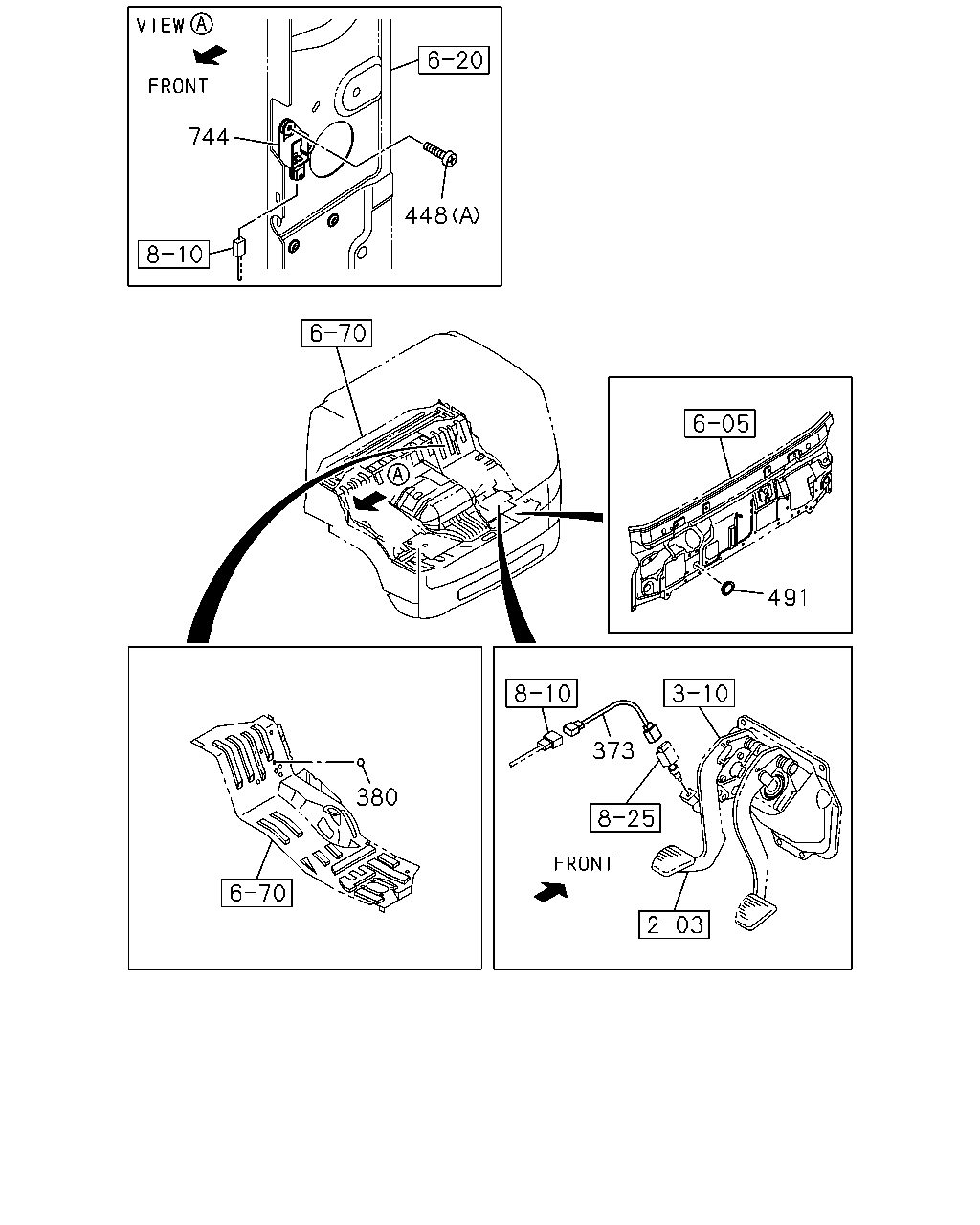

çizim 455814
744 448 491 373 380
BalonParca AdiParca NoAdetTipApplied Date
373 HARNESS; CLU SWITCH
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98110-720-0 01 1 1411-
380 SEAL
OD=25 BLACK 		1-76798-019-0 01 1 1411-
448 BOLT; SENSOR
(A) M6X18 W/PL WASHER 		8-97105-796-1 02 1 1411-
448 BOLT; SENSOR
(B) M6X16 FLANGE 		0-28050-616-0 01 1 1411-
491 PLUG; HOLE,CONT UNIT
OD=60 		8-98054-651-0 01 1 1411-
744 SENSOR; AIR BAG 8-98190-212-0 01 1 1411-

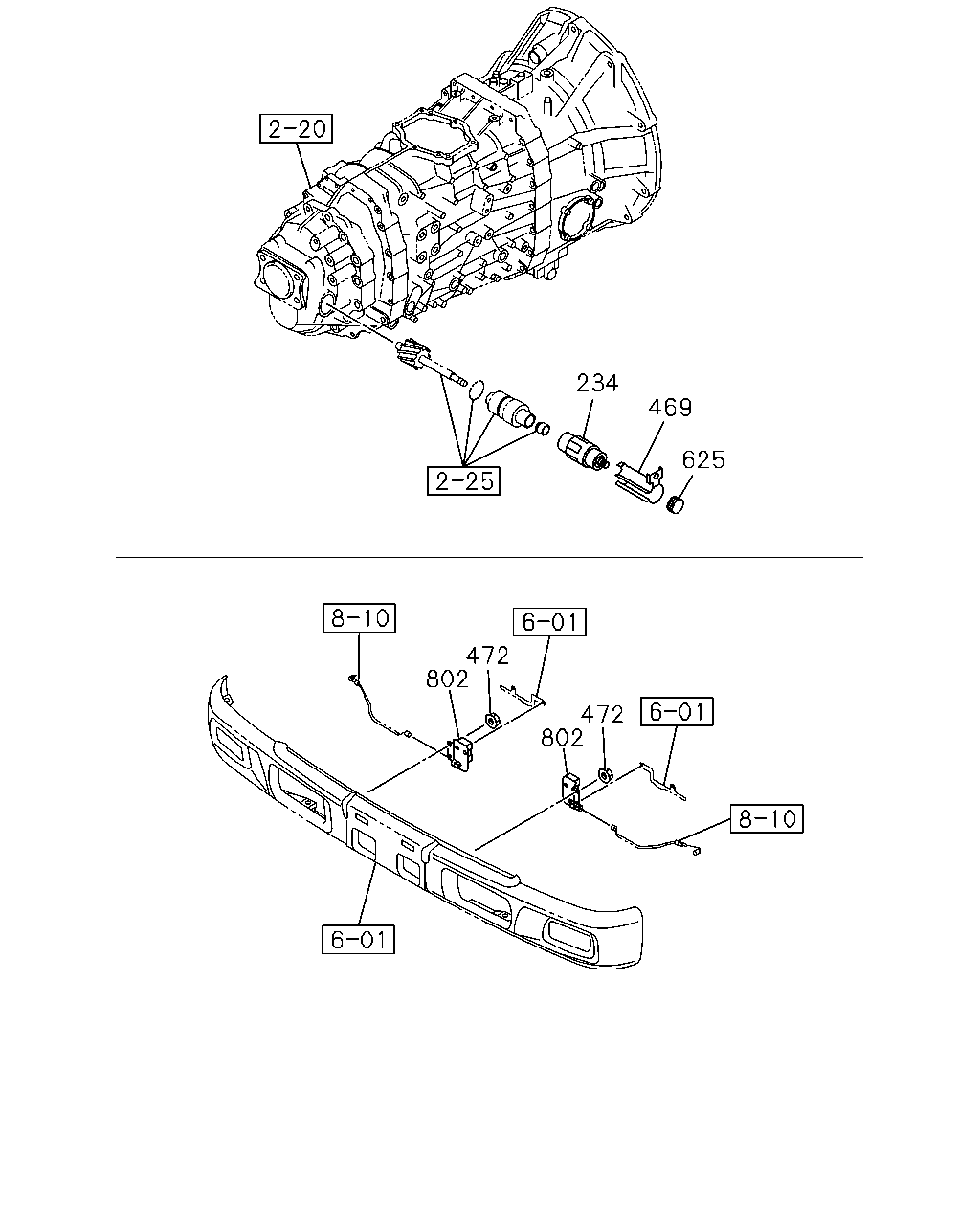

çizim 455815
234 625 469 472 802 472 802
BalonParca AdiParca NoAdetTipApplied Date
234 SENSOR; VEHICLE SPD
25 PULSE ALUMINUM 		8-97328-058-1 01 1 1411-1511
234 SENSOR; VEHICLE SPD
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 25 PULSE ALUMINUM 		8-97328-058-1 01 1 1512-
234 SENSOR; VEHICLE SPD
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9>,TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> TRANSMISSION CONTROL-SMOOTHER(8GF) 25 PULSE ALUMINUM 		8-97328-058-1 01 1 1512-
469 PROTECTOR; SPEED SENSOR 8-98119-901-0 01 1 1411-1511
469 PROTECTOR; SPEED SENSOR
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98119-901-0 01 1 1512-
469 PROTECTOR; SPEED SENSOR
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9>,TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98119-901-0 01 1 1512-
472 NUT; RESISTOR
M6 FLANGE 		0-91180-106-0 04 1 1411-
625 CAP; SPEED SENSOR
TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-83129-133-0 01 1 1411-
802 RESISTOR; DAYTIME RUNNING LP 8-98225-337-1 02 1 1411-

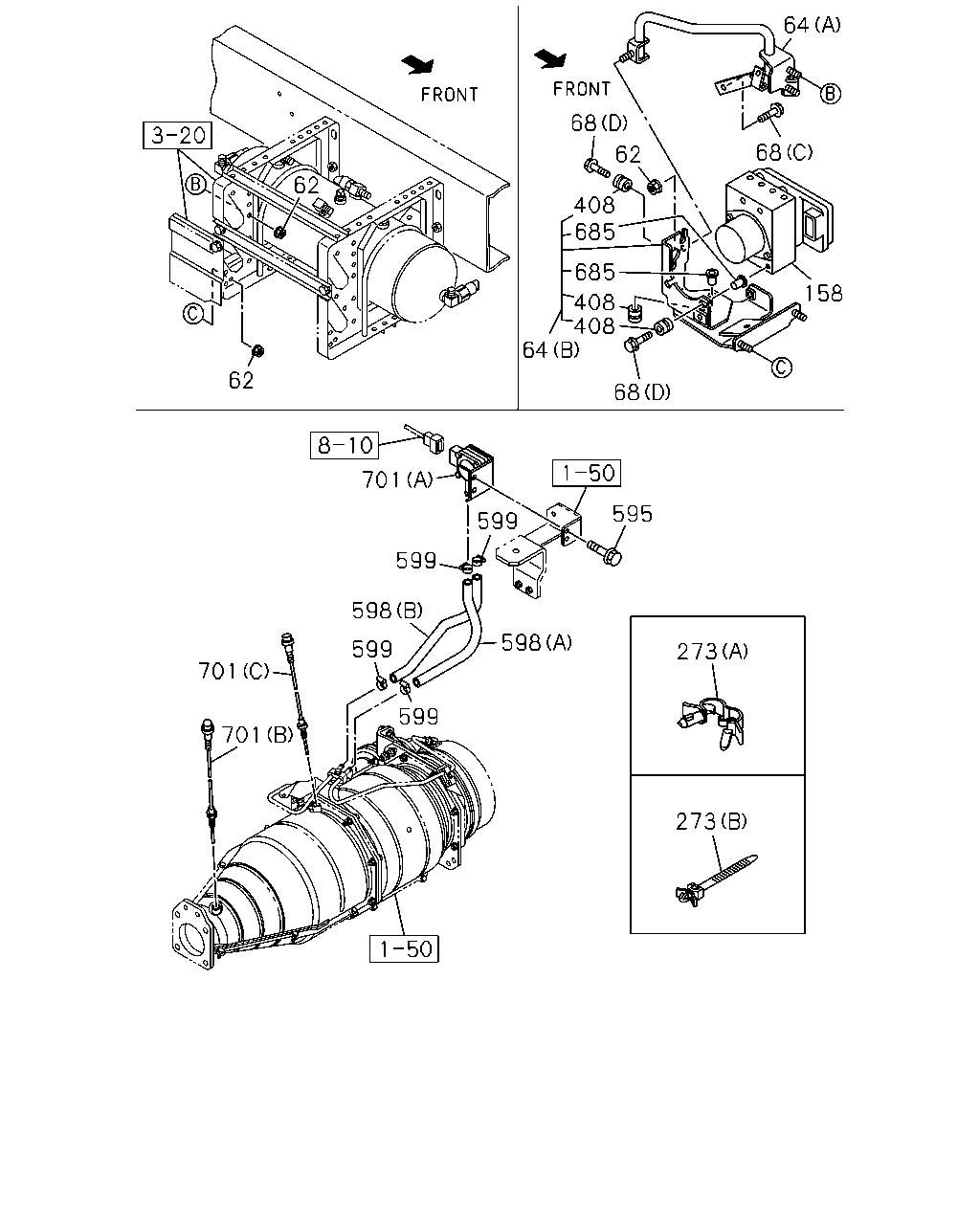

çizim 455820
408 62 68 685 408 408 685 68 64 68 64 158 595 273 273 598 599 599 598 701 599 599 701 701 62 62
BalonParca AdiParca NoAdetTipApplied Date
62 NUT; BRKT
M8 FLANGE 		0-91180-108-0 05 1 1411-
64 BRACKET; CONTROLLER
(A) 		8-98282-105-0 01 1 1411-
64 BRACKET; CONTROLLER
(B) 		8-98282-106-0 01 1 1411-
68 BOLT; BRKT
(A) M6X16 FLANGE 		0-28650-616-0 01 1 1411-
68 BOLT; BRKT
(C) M8X20 FLANGE 		0-28650-820-0 01 1 1411-
68 BOLT; BRKT
(B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 1411-
68 BOLT; BRKT
(D) M6X27 W/PL WASHER 		8-98131-461-0 05 1 1411-
158 CONTROLLER; ABS
WHEEL BASE 3400MM(34W) H.S.A SYSTEM<6EP> 		8-98327-770-0 01 1 1512-
158 CONTROLLER; ABS
WHEEL BASE 3400MM(34W) EXC. H.S.A SYSTEM<6EP> 		8-98327-771-0 01 1 1512-
158 CONTROLLER; ABS
WHEEL BASE 4900MM(49W) H.S.A SYSTEM<6EP> 		8-98301-638-0 01 1 1501-1501
158 CONTROLLER; ABS
WHEEL BASE 4900MM(49W) H.S.A SYSTEM<6EP> 		8-98306-177-0 01 1 1501-1507
158 CONTROLLER; ABS
WHEEL BASE 4900MM(49W) H.S.A SYSTEM<6EP> 		8-98327-758-0 01 1 1508-
158 CONTROLLER; ABS
WHEEL BASE 4900MM(49W) EXC. H.S.A SYSTEM<6EP> 		8-98301-640-0 01 1 1501-1501
158 CONTROLLER; ABS
WHEEL BASE 4900MM(49W) EXC. H.S.A SYSTEM<6EP> 		8-98306-179-0 01 1 1501-1507
158 CONTROLLER; ABS
WHEEL BASE 4900MM(49W) EXC. H.S.A SYSTEM<6EP> 		8-98327-760-0 01 1 1508-
158 CONTROLLER; ABS
WHEEL BASE 5300MM(53W) H.S.A SYSTEM<6EP> 		8-98301-634-0 01 1 1501-1501
158 CONTROLLER; ABS
WHEEL BASE 5300MM(53W) H.S.A SYSTEM<6EP> 		8-98306-173-0 01 1 1501-1507
158 CONTROLLER; ABS
WHEEL BASE 5300MM(53W) H.S.A SYSTEM<6EP> 		8-98327-754-0 01 1 1508-
158 CONTROLLER; ABS
WHEEL BASE 5300MM(53W) EXC. H.S.A SYSTEM<6EP> 		8-98301-636-0 01 1 1501-1501
158 CONTROLLER; ABS
WHEEL BASE 5300MM(53W) EXC. H.S.A SYSTEM<6EP> 		8-98306-175-0 01 1 1501-1507
158 CONTROLLER; ABS
WHEEL BASE 5300MM(53W) EXC. H.S.A SYSTEM<6EP> 		8-98327-756-0 01 1 1508-
158 CONTROLLER; ABS
WHEEL BASE 4000MM(40W) H.S.A SYSTEM<6EP> 		8-98286-219-0 01 1 1411-1412
158 CONTROLLER; ABS
WHEEL BASE 4000MM(40W) H.S.A SYSTEM<6EP> 		8-98301-646-0 01 1 1501-1501
158 CONTROLLER; ABS
WHEEL BASE 4000MM(40W) H.S.A SYSTEM<6EP> 		8-98306-185-0 01 1 1501-1507
158 CONTROLLER; ABS
WHEEL BASE 4000MM(40W) H.S.A SYSTEM<6EP> 		8-98327-766-0 01 1 1508-
158 CONTROLLER; ABS
WHEEL BASE 4000MM(40W) EXC. H.S.A SYSTEM<6EP> 		8-98286-221-0 01 1 1411-1412
158 CONTROLLER; ABS
WHEEL BASE 4000MM(40W) EXC. H.S.A SYSTEM<6EP> 		8-98301-648-0 01 1 1501-1501
158 CONTROLLER; ABS
WHEEL BASE 4000MM(40W) EXC. H.S.A SYSTEM<6EP> 		8-98306-187-0 01 1 1501-1507
158 CONTROLLER; ABS
WHEEL BASE 4000MM(40W) EXC. H.S.A SYSTEM<6EP> 		8-98327-768-0 01 1 1508-
158 CONTROLLER; ABS
WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W) H.S.A SYSTEM<6EP> 		8-98286-223-0 01 1 1411-1412
158 CONTROLLER; ABS
WHEEL BASE 4600MM(46W) H.S.A SYSTEM<6EP> 		8-98301-642-0 01 1 1501-1501
158 CONTROLLER; ABS
WHEEL BASE 4600MM(46W) H.S.A SYSTEM<6EP> 		8-98306-181-0 01 1 1501-1507
158 CONTROLLER; ABS
WHEEL BASE 4600MM(46W) H.S.A SYSTEM<6EP> 		8-98327-762-0 01 1 1508-
158 CONTROLLER; ABS
WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W) EXC. H.S.A SYSTEM<6EP> 		8-98286-225-0 01 1 1411-1412
158 CONTROLLER; ABS
WHEEL BASE 4600MM(46W) EXC. H.S.A SYSTEM<6EP> 		8-98301-644-0 01 1 1501-1501
158 CONTROLLER; ABS
WHEEL BASE 4600MM(46W) EXC. H.S.A SYSTEM<6EP> 		8-98306-183-0 01 1 1501-1507
158 CONTROLLER; ABS
WHEEL BASE 4600MM(46W) EXC. H.S.A SYSTEM<6EP> 		8-98327-764-0 01 1 1508-
273 CLIP; HARNESS
(B) L=112 		8-94232-618-0 02 1 1411-
273 CLIP; HARNESS
(A) ID=7 L=7.5 		8-97369-561-0 01 1 1411-
408 RUBBER; CUSHION 8-98130-133-0 05 1 1411-
595 BOLT; SENSOR
M8X20 FLANGE 		0-28650-820-0 02 1 1411-
598 HOSE; RUBBER,SENSOR
(B) 		8-98138-715-0 01 1 1411-
598 HOSE; RUBBER,SENSOR
(A) 		8-98138-716-0 01 1 1411-
599 CLIP; HOSE
ID=13 		8-97329-627-0 04 1 1411-
685 SPACER; BRKT 8-98130-134-0 05 1 1411-
701 SENSOR; DPD
(A) 		8-97360-368-2 01 1 1411-
701 SENSOR; DPD
(B) 		8-98004-329-0 01 1 1411-
701 SENSOR; DPD
(C) 		8-98004-330-0 01 1 1411-
çizim 484527
273 273 598 595 599 599 598 599 599 701 701 701 62 64 68 408 408 685 685 408 62 68 64 68 158 62
BalonParca AdiParca NoAdetTipApplied Date
62 NUT; BRKT
M8 FLANGE 		0-91180-108-0 05 1 1411-
64 BRACKET; CONTROLLER
(A) 		8-98282-105-0 01 1 1411-
64 BRACKET; CONTROLLER
(B) 		8-98282-106-0 01 1 1411-
68 BOLT; BRKT
(A) M6X16 FLANGE 		0-28650-616-0 01 1 1411-
68 BOLT; BRKT
(C) M8X20 FLANGE 		0-28650-820-0 01 1 1411-
68 BOLT; BRKT
(B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 1411-
68 BOLT; BRKT
(D) M6X27 W/PL WASHER 		8-98131-461-0 05 1 1411-
158 CONTROLLER; ABS
WHEEL BASE 3400MM(34W) H.S.A SYSTEM<6EP> 		8-98327-770-0 01 1 1512-
158 CONTROLLER; ABS
WHEEL BASE 3400MM(34W) EXC. H.S.A SYSTEM<6EP> 		8-98327-771-0 01 1 1512-
158 CONTROLLER; ABS
WHEEL BASE 4900MM(49W) H.S.A SYSTEM<6EP> 		8-98301-638-0 01 1 1501-1501
158 CONTROLLER; ABS
WHEEL BASE 4900MM(49W) H.S.A SYSTEM<6EP> 		8-98306-177-0 01 1 1501-1507
158 CONTROLLER; ABS
WHEEL BASE 4900MM(49W) H.S.A SYSTEM<6EP> 		8-98327-758-0 01 1 1508-
158 CONTROLLER; ABS
WHEEL BASE 4900MM(49W) EXC. H.S.A SYSTEM<6EP> 		8-98301-640-0 01 1 1501-1501
158 CONTROLLER; ABS
WHEEL BASE 4900MM(49W) EXC. H.S.A SYSTEM<6EP> 		8-98306-179-0 01 1 1501-1507
158 CONTROLLER; ABS
WHEEL BASE 4900MM(49W) EXC. H.S.A SYSTEM<6EP> 		8-98327-760-0 01 1 1508-
158 CONTROLLER; ABS
WHEEL BASE 5300MM(53W) H.S.A SYSTEM<6EP> 		8-98301-634-0 01 1 1501-1501
158 CONTROLLER; ABS
WHEEL BASE 5300MM(53W) H.S.A SYSTEM<6EP> 		8-98306-173-0 01 1 1501-1507
158 CONTROLLER; ABS
WHEEL BASE 5300MM(53W) H.S.A SYSTEM<6EP> 		8-98327-754-0 01 1 1508-
158 CONTROLLER; ABS
WHEEL BASE 5300MM(53W) EXC. H.S.A SYSTEM<6EP> 		8-98301-636-0 01 1 1501-1501
158 CONTROLLER; ABS
WHEEL BASE 5300MM(53W) EXC. H.S.A SYSTEM<6EP> 		8-98306-175-0 01 1 1501-1507
158 CONTROLLER; ABS
WHEEL BASE 5300MM(53W) EXC. H.S.A SYSTEM<6EP> 		8-98327-756-0 01 1 1508-
158 CONTROLLER; ABS
WHEEL BASE 4000MM(40W) H.S.A SYSTEM<6EP> 		8-98286-219-0 01 1 1411-1412
158 CONTROLLER; ABS
WHEEL BASE 4000MM(40W) H.S.A SYSTEM<6EP> 		8-98301-646-0 01 1 1501-1501
158 CONTROLLER; ABS
WHEEL BASE 4000MM(40W) H.S.A SYSTEM<6EP> 		8-98306-185-0 01 1 1501-1507
158 CONTROLLER; ABS
WHEEL BASE 4000MM(40W) H.S.A SYSTEM<6EP> 		8-98327-766-0 01 1 1508-
158 CONTROLLER; ABS
WHEEL BASE 4000MM(40W) EXC. H.S.A SYSTEM<6EP> 		8-98286-221-0 01 1 1411-1412
158 CONTROLLER; ABS
WHEEL BASE 4000MM(40W) EXC. H.S.A SYSTEM<6EP> 		8-98301-648-0 01 1 1501-1501
158 CONTROLLER; ABS
WHEEL BASE 4000MM(40W) EXC. H.S.A SYSTEM<6EP> 		8-98306-187-0 01 1 1501-1507
158 CONTROLLER; ABS
WHEEL BASE 4000MM(40W) EXC. H.S.A SYSTEM<6EP> 		8-98327-768-0 01 1 1508-
158 CONTROLLER; ABS
WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W) H.S.A SYSTEM<6EP> 		8-98286-223-0 01 1 1411-1412
158 CONTROLLER; ABS
WHEEL BASE 4600MM(46W) H.S.A SYSTEM<6EP> 		8-98301-642-0 01 1 1501-1501
158 CONTROLLER; ABS
WHEEL BASE 4600MM(46W) H.S.A SYSTEM<6EP> 		8-98306-181-0 01 1 1501-1507
158 CONTROLLER; ABS
WHEEL BASE 4600MM(46W) H.S.A SYSTEM<6EP> 		8-98327-762-0 01 1 1508-
158 CONTROLLER; ABS
WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W) EXC. H.S.A SYSTEM<6EP> 		8-98286-225-0 01 1 1411-1412
158 CONTROLLER; ABS
WHEEL BASE 4600MM(46W) EXC. H.S.A SYSTEM<6EP> 		8-98301-644-0 01 1 1501-1501
158 CONTROLLER; ABS
WHEEL BASE 4600MM(46W) EXC. H.S.A SYSTEM<6EP> 		8-98306-183-0 01 1 1501-1507
158 CONTROLLER; ABS
WHEEL BASE 4600MM(46W) EXC. H.S.A SYSTEM<6EP> 		8-98327-764-0 01 1 1508-
273 CLIP; HARNESS
(B) L=112 		8-94232-618-0 02 1 1411-
273 CLIP; HARNESS
(A) ID=7 L=7.5 		8-97369-561-0 01 1 1411-
408 RUBBER; CUSHION 8-98130-133-0 05 1 1411-
595 BOLT; SENSOR
M8X20 FLANGE 		0-28650-820-0 02 1 1411-
598 HOSE; RUBBER,SENSOR
(B) 		8-98138-715-0 01 1 1411-
598 HOSE; RUBBER,SENSOR
(A) 		8-98138-716-0 01 1 1411-
599 CLIP; HOSE
ID=13 		8-97329-627-0 04 1 1411-
685 SPACER; BRKT 8-98130-134-0 05 1 1411-
701 SENSOR; DPD
(A) 		8-97360-368-2 01 1 1411-
701 SENSOR; DPD
(B) 		8-98004-329-0 01 1 1411-
701 SENSOR; DPD
(C) 		8-98004-330-0 01 1 1411-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
