◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11627 - FRR LHD EUROPE EURO6 SPACECAB EVSC ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#152327) — 27 parça

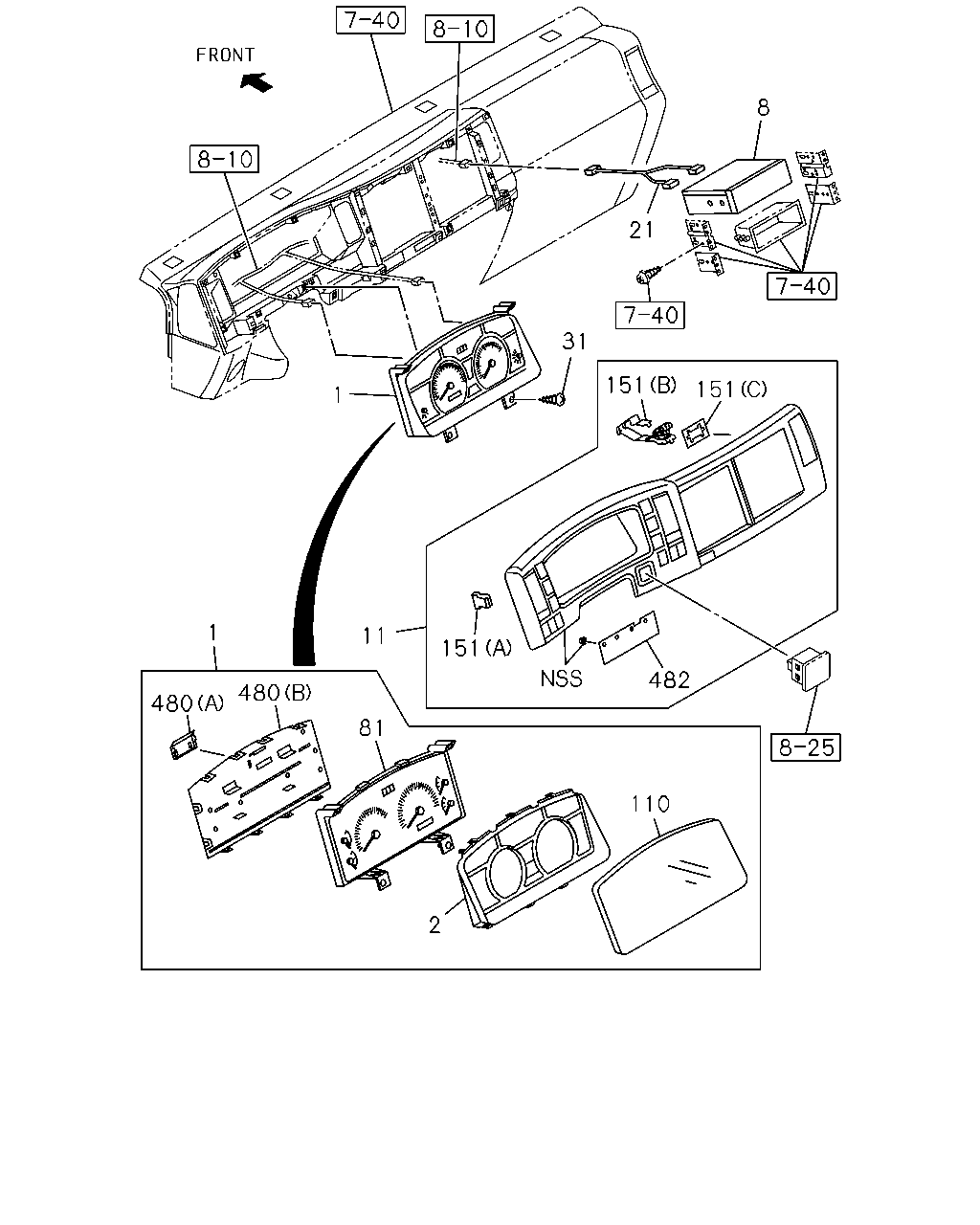

çizim 455861
21 8 31 1 151 151 11 151 482 110 2 81 480 1 480
BalonParca AdiParca NoAdetTipApplied Date
1 METER COMPL; CLUSTER
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98249-853-2 01 1 1411-
1 METER COMPL; CLUSTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98249-852-2 01 1 1411-
2 PANEL; CLUSTER 8-98054-432-0 01 1 1411-
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> 		8-98204-004-0 01 1 1512-
11 CLUSTER ASM; METER
TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> DARK GRAY 		8-97418-531-1 01 1 1512-
11 CLUSTER ASM; METER
DARK GRAY 		8-97418-534-1 01 1 1411-1511
11 CLUSTER ASM; METER
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> DARK GRAY 		8-97418-534-1 01 1 1512-
21 HARNESS; TACHOGRAPH
TRANSMISSION CONTROL-SMOOTHER(8GF) TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> 		8-98203-748-0 01 1 1512-
21 HARNESS; TACHOGRAPH
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> 		8-98203-747-0 01 1 1512-
21 HARNESS; TACHOGRAPH
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98135-337-0 01 1 1411-1511
21 HARNESS; TACHOGRAPH
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98135-337-0 01 1 1512-
21 HARNESS; TACHOGRAPH
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98099-111-0 01 1 1411-1511
21 HARNESS; TACHOGRAPH
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98099-111-0 01 1 1512-
31 SCREW; METER,INST PANEL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1411-
81 METER SUB ASM
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98269-205-0 01 1 1411-
81 METER SUB ASM
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98269-204-0 01 1 1411-
110 GLASS; CLUSTER METER 8-98054-642-0 01 1 1411-
151 CLIP; METER CLUSTER
(A) 		8-98021-271-0 12 1 1411-1511
151 CLIP; METER CLUSTER
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9>,TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> (A) 		8-98021-271-0 12 1 1512-
151 CLIP; METER CLUSTER
(B) 		8-98152-030-0 01 1 1411-1511
151 CLIP; METER CLUSTER
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9>,TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> (B) 		8-98152-030-0 01 1 1512-
151 CLIP; METER CLUSTER
(C) 		8-98152-031-0 01 1 1411-1511
151 CLIP; METER CLUSTER
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9>,TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> (C) 		8-98152-031-0 01 1 1512-
480 COVER; METER
(A) BLACK DOT MATRIX FOR FPC PROTECTION 		8-98054-881-0 01 1 1411-
480 COVER; METER
(B) 		8-98151-362-0 01 1 1411-
482 SEAL; CLUSTER METER 8-98116-843-0 01 1 1411-1511
482 SEAL; CLUSTER METER
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9>,TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> 		8-98116-843-0 01 1 1512-
