◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11627 - FRR LHD EUROPE EURO6 SPACECAB EVSC ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#152324) — 358 parça

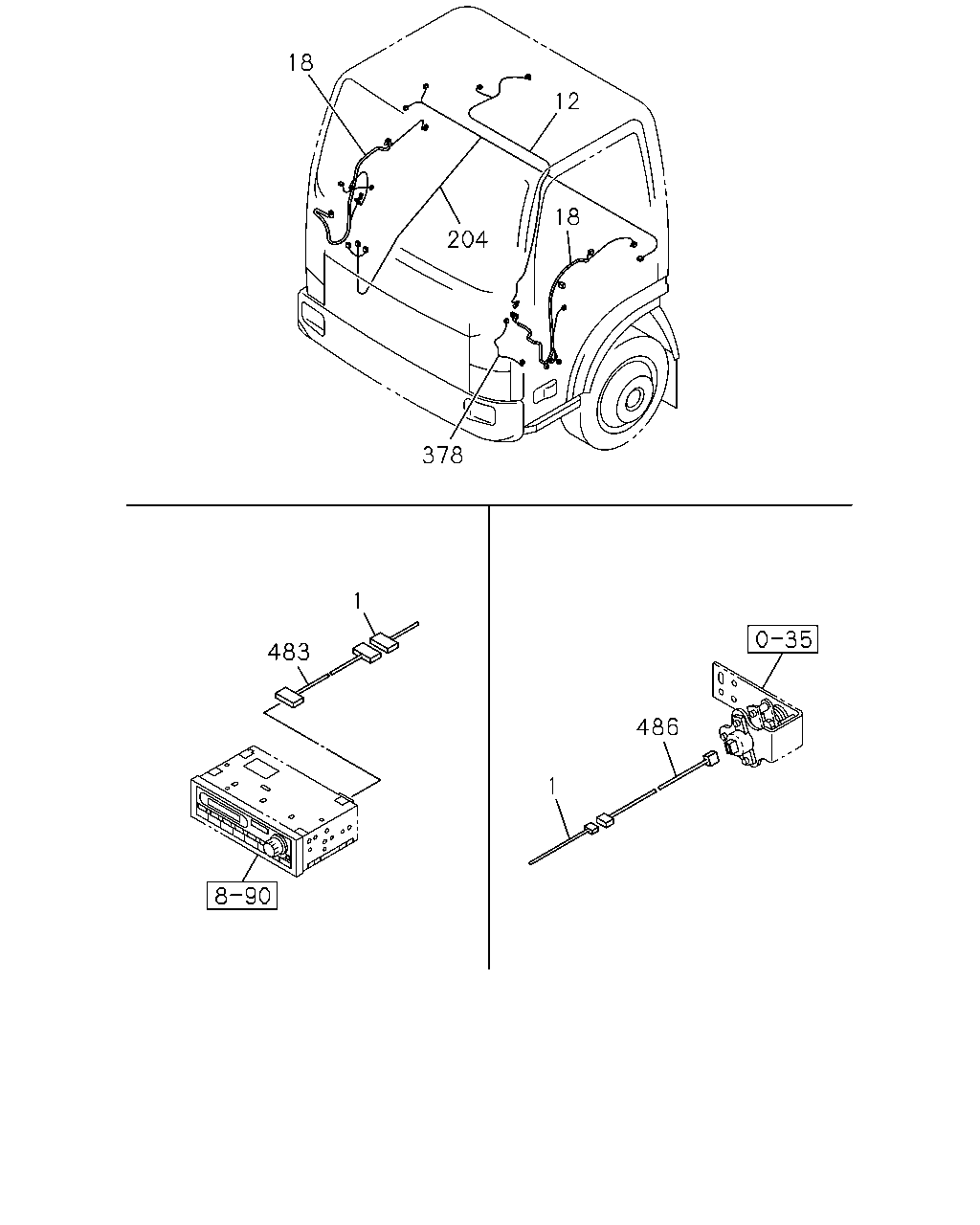

çizim 455476
486 1 1 483 378 204 12 18 18
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98269-238-5 01 1 1411-
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98269-236-5 01 1 1411-
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98269-239-5 01 1 1411-
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98269-237-5 01 1 1411-
12 HARNESS; ROOF
FLUORESCENT LAMP<6UC> 		8-98282-201-0 01 1 1411-
12 HARNESS; ROOF
EXC. FLUORESCENT LAMP<6UC> 		8-98282-202-0 01 1 1411-
18 HARNESS; DOOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98080-127-3 01 1 1411-
18 HARNESS; DOOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98080-128-3 01 1 1411-
18 HARNESS; DOOR
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98178-803-0 01 1 1411-
18 HARNESS; DOOR
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98178-804-0 01 1 1411-
204 HARNESS; CABLE,FLOOR
AIR BAG DRIVER(AJ3) AIR SUSP DRIVER SEAT<A56> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98269-277-0 01 1 1411-
204 HARNESS; CABLE,FLOOR
AIR BAG DRIVER(AJ3) AIR SUSP DRIVER SEAT<A56> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98269-281-0 01 1 1411-
204 HARNESS; CABLE,FLOOR
AIR BAG DRIVER(AJ3) DRIVER ISRINGHAUSEN SEAT<SJA> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98269-275-0 01 1 1411-
204 HARNESS; CABLE,FLOOR
AIR BAG DRIVER(AJ3) DRIVER ISRINGHAUSEN SEAT<SJA> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98269-279-0 01 1 1411-
204 HARNESS; CABLE,FLOOR
AIR BAG DRIVER & PASSENGER(AK5) AIR SUSP DRIVER SEAT<A56> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98269-276-0 01 1 1411-
204 HARNESS; CABLE,FLOOR
AIR BAG DRIVER & PASSENGER(AK5) AIR SUSP DRIVER SEAT<A56> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98269-280-0 01 1 1411-
204 HARNESS; CABLE,FLOOR
AIR BAG DRIVER & PASSENGER(AK5) DRIVER ISRINGHAUSEN SEAT<SJA> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98269-274-0 01 1 1411-
204 HARNESS; CABLE,FLOOR
AIR BAG DRIVER & PASSENGER(AK5) DRIVER ISRINGHAUSEN SEAT<SJA> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98269-278-0 01 1 1411-
378 HARNESS; EXT,MIRROR
MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. ISRAEL COUNTRY(CV4) 		8-98125-654-0 02 1 1512-
378 HARNESS; EXT,MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. ISRAEL COUNTRY(CV4) 		8-98125-653-0 02 1 1512-
483 HARNESS; EXT,RADIO 8-98116-875-0 01 1 1411-
486 HARNESS; ALL SPEED ACCEL
TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. DUMP CONTROL LEVER<RC4> 		1-82675-898-0 01 1 1411-

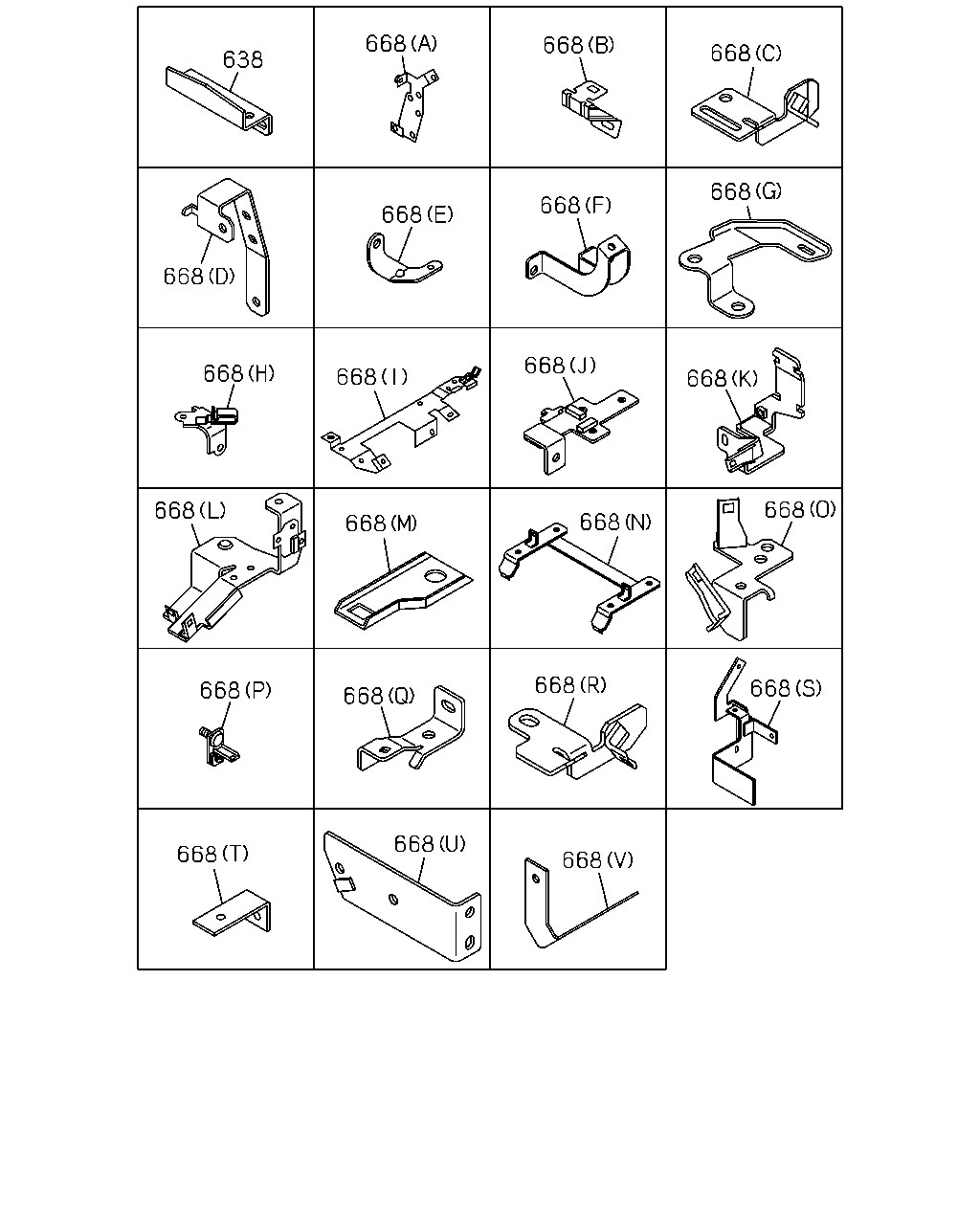

çizim 455497
638 668 668 668 668 668 668 668 668 668 668 668 668 668 668 668 668 668 668 668 668 668 668
BalonParca AdiParca NoAdetTipApplied Date
638 BRACKET; SPD SENSOR 8-98012-580-1 02 1 1411-
668 BRACKET; HARNESS
DIFF LOCK<C3N> (T) L=55 		1-47475-304-0 01 1 1512-
668 BRACKET; HARNESS
DIFF LOCK<C3N> (U) 		8-98216-631-0 01 1 1512-
668 BRACKET; HARNESS
DIFF LOCK<C3N> (V) 		8-98216-632-0 01 1 1512-
668 BRACKET; HARNESS
DIFF LOCK<C3N> (S) 		8-98216-633-0 01 1 1512-
668 BRACKET; HARNESS
(M) 		1-82698-569-0 01 1 1411-
668 BRACKET; HARNESS
(C) 		8-97616-305-0 01 1 1411-1502
668 BRACKET; HARNESS
(R) 		8-98254-592-0 01 1 1503-
668 BRACKET; HARNESS
(D) 		8-97619-097-1 01 1 1411-
668 BRACKET; HARNESS
(N) 		8-98047-276-1 01 1 1411-
668 BRACKET; HARNESS
(O) 		8-98168-184-0 01 1 1411-
668 BRACKET; HARNESS
(P) 		8-98171-607-0 02 1 1411-
668 BRACKET; HARNESS
(K) 		8-98207-041-0 01 1 1411-
668 BRACKET; HARNESS
(J) 		8-98207-042-0 01 1 1411-
668 BRACKET; HARNESS
(L) 		8-98235-073-0 01 1 1411-
668 BRACKET; HARNESS
(F) 		8-98011-484-0 01 1 1411-
668 BRACKET; HARNESS
(A) 		8-98024-765-0 01 1 1411-
668 BRACKET; HARNESS
(H) 		8-98061-780-0 01 1 1411-
668 BRACKET; HARNESS
(I) 		8-98200-797-3 01 1 1411-
668 BRACKET; HARNESS
(Q) 		8-98240-490-0 01 1 1411-
668 BRACKET; HARNESS
(G) 		8-98240-491-0 01 1 1411-
668 BRACKET; HARNESS
(E) 		8-98273-295-0 01 1 1411-
668 BRACKET; HARNESS
(B) 		8-98111-712-1 01 1 1411-

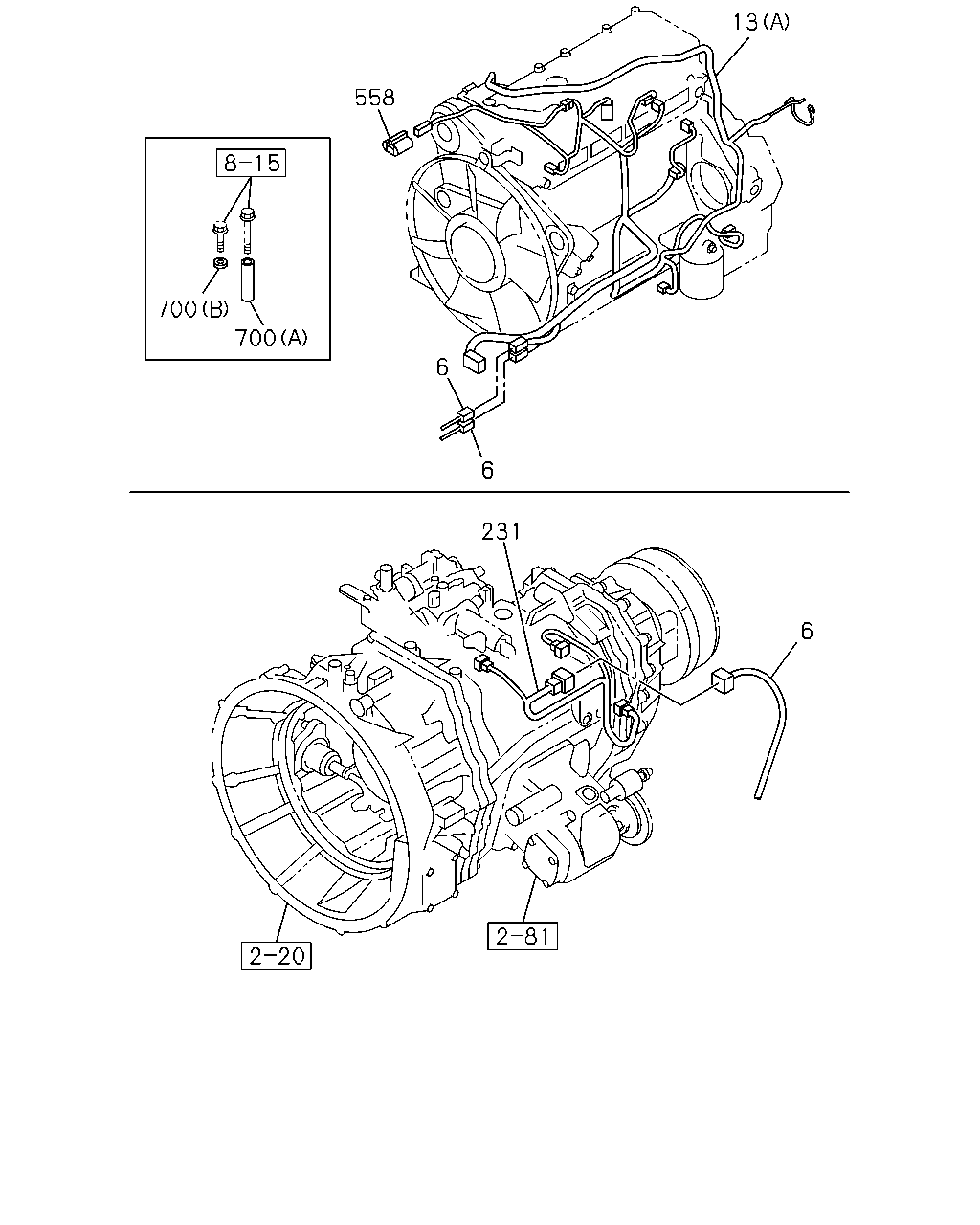

çizim 455528
13 558 6 6 700 700 231 6
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
WHEEL BASE 3400MM(34W) DIFF LOCK<C3N> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98268-578-2 01 1 1512-
6 HARNESS; FRAME
WHEEL BASE 3400MM(34W) DIFF LOCK<C3N> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98268-576-2 01 1 1512-
6 HARNESS; FRAME
WHEEL BASE 3400MM(34W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. DIFF LOCK<C3N> 		8-98268-575-2 01 1 1512-
6 HARNESS; FRAME
WHEEL BASE 3400MM(34W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DIFF LOCK<C3N> 		8-98268-577-2 01 1 1512-
6 HARNESS; FRAME
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98268-579-2 01 1 1411-
6 HARNESS; FRAME
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98268-580-2 01 1 1411-
13 HARNESS; ENG
(B) 		8-98203-297-0 01 1 1411-
13 HARNESS; ENG
(A) 		8-98274-085-0 01 1 1411-1501
13 HARNESS; ENG
(A) 		8-98308-974-0 01 1 1502-
231 HARNESS; TRANS
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97620-317-3 01 1 1411-
231 HARNESS; TRANS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98151-320-1 01 1 1411-
558 CONNECTOR; HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) 		1-82690-668-0 01 1 1411-
700 TUBE; DISTANCE
(B) ID=9 OD=18 T=5 		9-14149-173-0 01 1 1411-
700 TUBE; DISTANCE
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) L=51 		1-11369-157-0 02 1 1411-
çizim 455529
535 441 638
BalonParca AdiParca NoAdetTipApplied Date
441 HARNESS; CABLE,SPEED SENSOR 8-98061-652-0 01 1 1411-
535 BOLT; BRKT FIX
(C) M8X25 FLANGE 		0-28650-825-0 01 1 1411-
535 BOLT; BRKT FIX
(B) M10X30 FLANGE 		0-28651-030-0 01 1 1411-
535 BOLT; BRKT FIX
(A) M8X10 W/LK WASHER 		8-98029-928-0 02 1 1411-
638 BRACKET; SPD SENSOR 8-98012-580-1 02 1 1411-

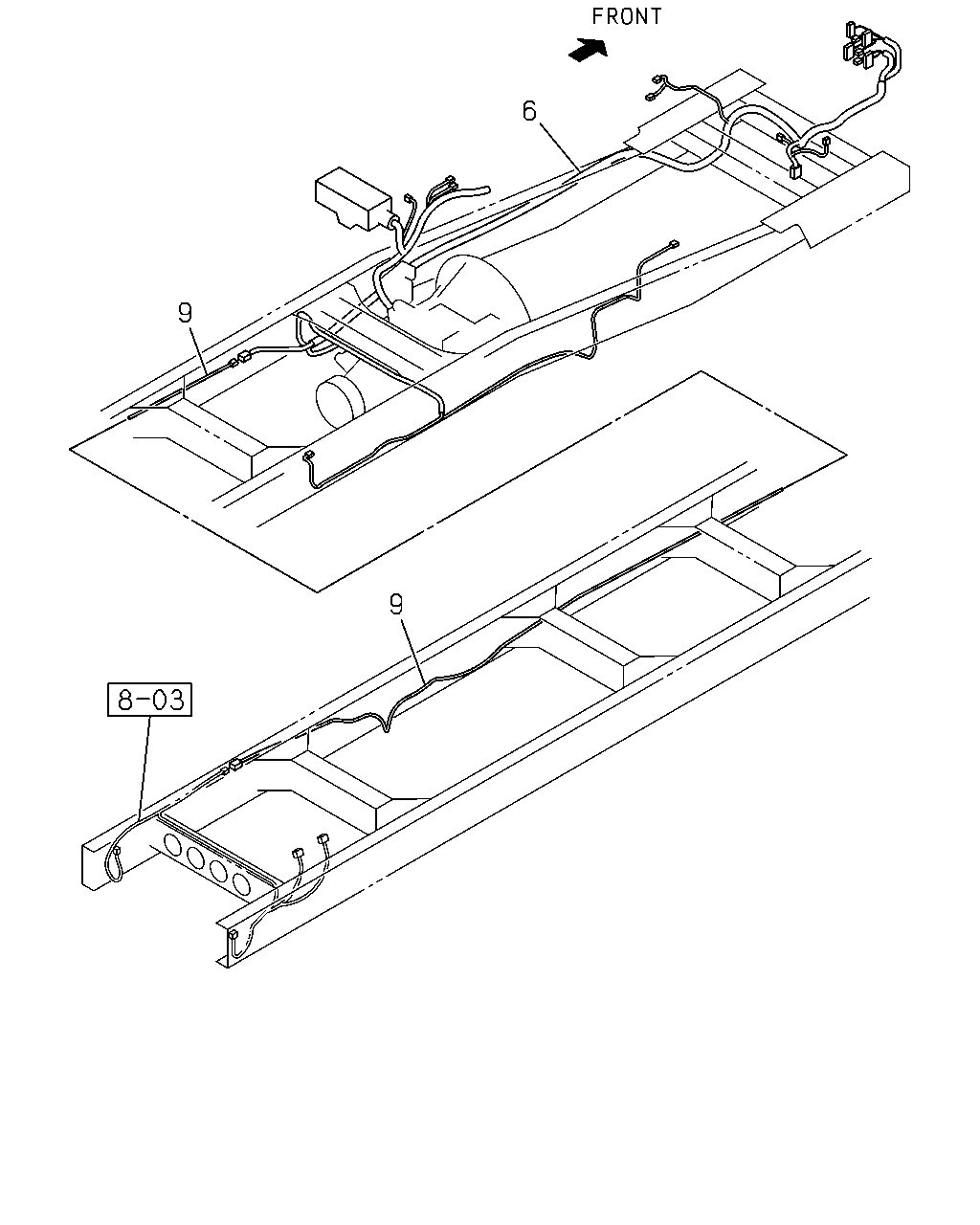

çizim 455562
6 9 9
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
WHEEL BASE 3400MM(34W) DIFF LOCK<C3N> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98268-578-2 01 1 1512-
6 HARNESS; FRAME
WHEEL BASE 3400MM(34W) DIFF LOCK<C3N> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98268-576-2 01 1 1512-
6 HARNESS; FRAME
WHEEL BASE 3400MM(34W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. DIFF LOCK<C3N> 		8-98268-575-2 01 1 1512-
6 HARNESS; FRAME
WHEEL BASE 3400MM(34W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DIFF LOCK<C3N> 		8-98268-577-2 01 1 1512-
6 HARNESS; FRAME
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98268-579-2 01 1 1411-
6 HARNESS; FRAME
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98268-580-2 01 1 1411-
9 HARNESS; FRAME,RR
WHEEL BASE 4000MM(40W) DIFF LOCK<C3N> 		8-98268-625-0 01 1 1512-
9 HARNESS; FRAME,RR
WHEEL BASE 4600MM(46W) DIFF LOCK<C3N> 		8-98268-627-0 01 1 1512-
9 HARNESS; FRAME,RR
WHEEL BASE 4900MM(49W) DIFF LOCK<C3N> 		8-98268-629-0 01 1 1512-
9 HARNESS; FRAME,RR
WHEEL BASE 4000MM(40W) 		8-98268-626-0 01 1 1411-1511
9 HARNESS; FRAME,RR
WHEEL BASE 4000MM(40W) EXC. DIFF LOCK<C3N> 		8-98268-626-0 01 1 1512-
9 HARNESS; FRAME,RR
WHEEL BASE 4600MM(46W) 		8-98268-628-0 01 1 1411-1511
9 HARNESS; FRAME,RR
WHEEL BASE 4600MM(46W) EXC. DIFF LOCK<C3N> 		8-98268-628-0 01 1 1512-
9 HARNESS; FRAME,RR
WHEEL BASE 4900MM(49W) 		8-98268-630-0 01 1 1411-1511
9 HARNESS; FRAME,RR
WHEEL BASE 4900MM(49W) EXC. DIFF LOCK<C3N> 		8-98268-630-0 01 1 1512-
9 HARNESS; FRAME,RR
WHEEL BASE 5300MM(53W) 		8-98268-632-0 01 1 1411-

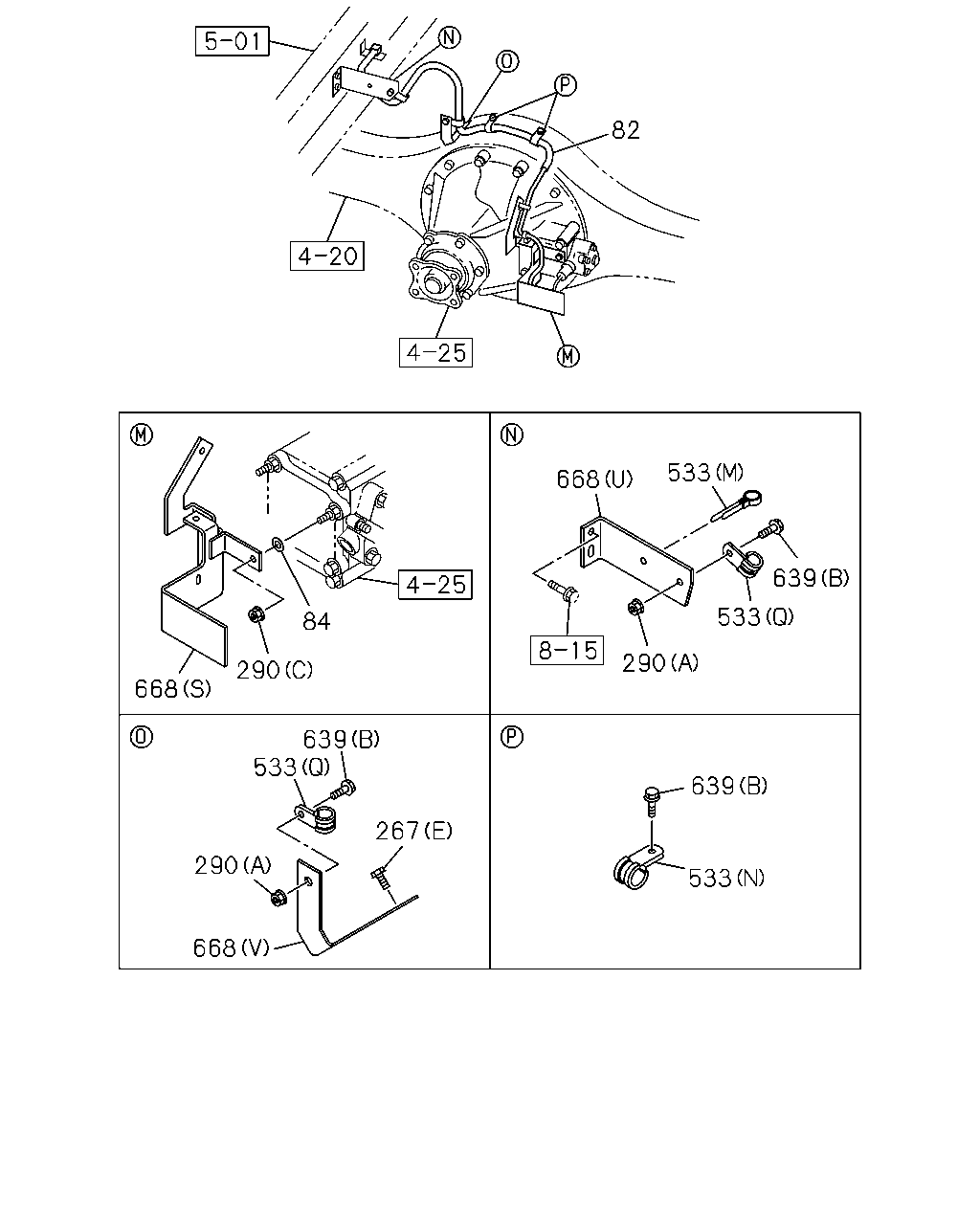

çizim 455786
668 290 84 639 533 290 267 668 668 533 639 533 290 639 533 82
BalonParca AdiParca NoAdetTipApplied Date
82 HARNESS; DIFF LOCK
DIFF LOCK<C3N> 		8-98215-660-0 01 1 1512-
84 WASHER; LK
DIFF LOCK<C3N> ID=6.4 		0-91614-506-0 03 1 1512-
267 BOLT; BRKT
DIFF LOCK<C3N> (E) M8X10 W/LK WASHER 		8-98029-928-0 02 1 1512-
267 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1411-
267 BOLT; BRKT
(D) M8X25 FLANGE 		0-28650-825-0 01 1 1411-
267 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1411-1511
267 BOLT; BRKT
DIFF LOCK<C3N> (B) M8X30 FLANGE 		0-28650-830-0 03 1 1512-
267 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1512-
267 BOLT; BRKT
(C) M10X25 FLANGE 		0-28651-025-0 02 1 1411-
290 NUT; BRKT
DIFF LOCK<C3N> (C) M6 FLANGE 		0-91180-106-0 03 1 1512-
290 NUT; BRKT
DIFF LOCK<C3N> (A) M8 FLANGE 		0-91180-108-0 03 1 1512-
290 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 01 1 1411-
290 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 06 1 1411-
290 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 04 1 1411-
533 CLIP
DIFF LOCK<C3N> (A) ID=11 L=41 		1-09700-403-0 06 1 1512-
533 CLIP
DIFF LOCK<C3N> (N) ID=14.5 L=20 		1-09701-012-0 02 1 1512-
533 CLIP
DIFF LOCK<C3N> (O) ID=4.8 		1-09701-218-0 01 1 1512-
533 CLIP
DIFF LOCK<C3N> (P) OD=8.95 H=6.25 		8-97375-754-0 01 1 1512-
533 CLIP
DIFF LOCK<C3N> (Q) ID=21 L=24 		8-98019-191-0 02 1 1512-
533 CLIP
WHEEL BASE 3400MM(34W) (M) ID=14 L=44 		9-09917-427-0 08 1 1512-
533 CLIP
WHEEL BASE 4000MM(40W) (M) ID=14 L=44 		9-09917-427-0 11 1 1411-
533 CLIP
(A) ID=11 L=41 		1-09700-403-0 01 1 1411-
533 CLIP
(L) OD=9 H=9.5 		1-09709-179-0 01 1 1411-
533 CLIP
(M) ID=14 L=44 		9-09917-427-0 01 1 1411-1511
533 CLIP
DIFF LOCK<C3N> (M) ID=14 L=44 		9-09917-427-0 01 1 1512-
533 CLIP
(M) ID=14 L=44 		9-09917-427-0 01 1 1512-
533 CLIP
PTO CONTROL<SV6> (D) L=350 		1-09707-183-0 01 1 1411-
533 CLIP
TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=35 L=50 		1-09701-214-0 01 1 1411-
533 CLIP
(I) ID=16 H=60 L=32.5 		1-09700-214-0 01 1 1411-
533 CLIP
(J) L=250 		1-09707-126-0 02 1 1411-
533 CLIP
(E) OD=9 H=6 		1-09709-178-0 02 1 1411-
533 CLIP
(F) ID=10 & 10 		1-09709-277-1 01 1 1411-
533 CLIP
(H) ID=5-12 L=18 		1-09709-287-0 02 1 1411-
533 CLIP
(K) L=250 		5-09707-030-1 03 1 1411-
533 CLIP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (G) ID=32 L=50 		1-09701-055-1 01 1 1411-
533 CLIP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) OD=9 H=6 		1-09709-178-0 01 1 1411-
533 CLIP
WHEEL BASE 4600MM(46W) (M) ID=14 L=44 		9-09917-427-0 15 1 1411-
533 CLIP
WHEEL BASE 4900MM(49W) (M) ID=14 L=44 		9-09917-427-0 16 1 1411-
533 CLIP
WHEEL BASE 5300MM(53W) (M) ID=14 L=44 		9-09917-427-0 18 1 1411-
533 CLIP
(D) L=350 		1-09707-183-0 02 1 1411-
533 CLIP
(B) L=112 		8-94232-618-0 04 1 1411-
639 BOLT; CLIP
DIFF LOCK<C3N> (B) M8X16 FLANGE 		0-28050-816-0 02 1 1512-
639 BOLT; CLIP
DIFF LOCK<C3N> (C) M8X25 FLANGE 		0-28650-825-0 02 1 1512-
639 BOLT; CLIP
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1411-
668 BRACKET; HARNESS
DIFF LOCK<C3N> (T) L=55 		1-47475-304-0 01 1 1512-
668 BRACKET; HARNESS
DIFF LOCK<C3N> (U) 		8-98216-631-0 01 1 1512-
668 BRACKET; HARNESS
DIFF LOCK<C3N> (V) 		8-98216-632-0 01 1 1512-
668 BRACKET; HARNESS
DIFF LOCK<C3N> (S) 		8-98216-633-0 01 1 1512-
668 BRACKET; HARNESS
(M) 		1-82698-569-0 01 1 1411-
668 BRACKET; HARNESS
(C) 		8-97616-305-0 01 1 1411-1502
668 BRACKET; HARNESS
(R) 		8-98254-592-0 01 1 1503-
668 BRACKET; HARNESS
(D) 		8-97619-097-1 01 1 1411-
668 BRACKET; HARNESS
(N) 		8-98047-276-1 01 1 1411-
668 BRACKET; HARNESS
(O) 		8-98168-184-0 01 1 1411-
668 BRACKET; HARNESS
(P) 		8-98171-607-0 02 1 1411-
668 BRACKET; HARNESS
(K) 		8-98207-041-0 01 1 1411-
668 BRACKET; HARNESS
(J) 		8-98207-042-0 01 1 1411-
668 BRACKET; HARNESS
(L) 		8-98235-073-0 01 1 1411-
668 BRACKET; HARNESS
(F) 		8-98011-484-0 01 1 1411-
668 BRACKET; HARNESS
(A) 		8-98024-765-0 01 1 1411-
668 BRACKET; HARNESS
(H) 		8-98061-780-0 01 1 1411-
668 BRACKET; HARNESS
(I) 		8-98200-797-3 01 1 1411-
668 BRACKET; HARNESS
(Q) 		8-98240-490-0 01 1 1411-
668 BRACKET; HARNESS
(G) 		8-98240-491-0 01 1 1411-
668 BRACKET; HARNESS
(E) 		8-98273-295-0 01 1 1411-
668 BRACKET; HARNESS
(B) 		8-98111-712-1 01 1 1411-

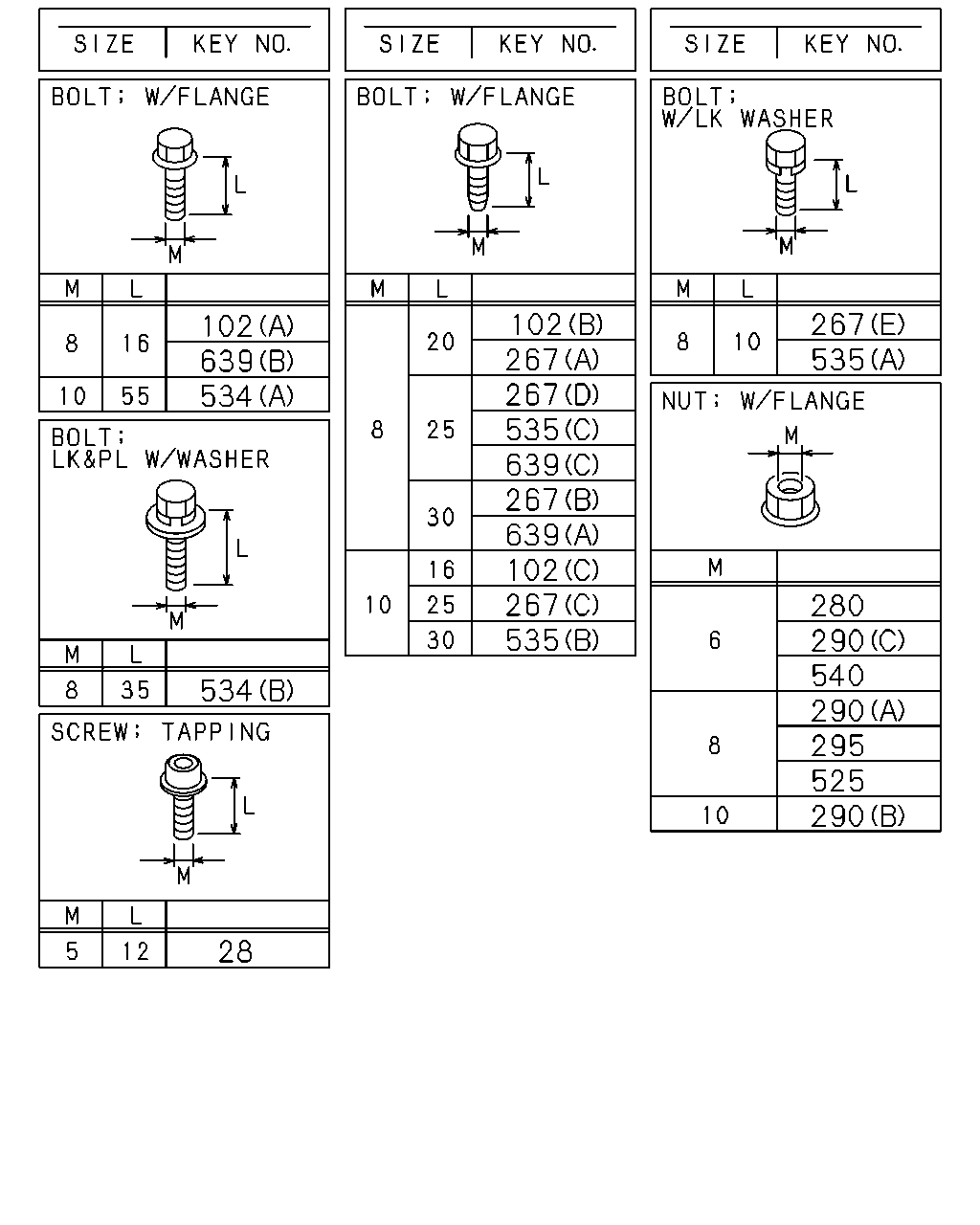

çizim 455790
102 534 639 102 535 267 102 639 267 639 535 267 267 534 28 267 280 540 535 290 290 295 525 290
BalonParca AdiParca NoAdetTipApplied Date
28 SCREW; FUSE BOX
T25 M5X12 TAPPING HEXALOBULAR 		8-98081-722-0 01 1 1411-
102 BOLT; BRKT,HARNESS CONNECTOR
(A) M8X16 FLANGE 		0-28050-816-0 03 1 1411-
102 BOLT; BRKT,HARNESS CONNECTOR
(C) M10X16 FLANGE 		0-28151-016-0 03 1 1411-
102 BOLT; BRKT,HARNESS CONNECTOR
(B) M8X20 FLANGE 		0-28650-820-0 01 1 1411-
267 BOLT; BRKT
DIFF LOCK<C3N> (E) M8X10 W/LK WASHER 		8-98029-928-0 02 1 1512-
267 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1411-
267 BOLT; BRKT
(D) M8X25 FLANGE 		0-28650-825-0 01 1 1411-
267 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1411-1511
267 BOLT; BRKT
DIFF LOCK<C3N> (B) M8X30 FLANGE 		0-28650-830-0 03 1 1512-
267 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1512-
267 BOLT; BRKT
(C) M10X25 FLANGE 		0-28651-025-0 02 1 1411-
280 NUT; BOX ASM FIX
M6 FLANGE 		0-91180-106-0 04 1 1411-
290 NUT; BRKT
DIFF LOCK<C3N> (C) M6 FLANGE 		0-91180-106-0 03 1 1512-
290 NUT; BRKT
DIFF LOCK<C3N> (A) M8 FLANGE 		0-91180-108-0 03 1 1512-
290 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 01 1 1411-
290 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 06 1 1411-
290 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 04 1 1411-
295 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1411-
525 NUT; CLIP
DIFF LOCK<C3N> M8 FLANGE 		0-91180-108-0 02 1 1512-
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1411-
534 BOLT
(B) M8X35 W/LK&PL WASHER 		1-09030-073-0 03 1 1411-
534 BOLT
(A) M10X55 FLANGE 		8-97365-449-0 03 1 1411-
535 BOLT; BRKT FIX
(C) M8X25 FLANGE 		0-28650-825-0 01 1 1411-
535 BOLT; BRKT FIX
(B) M10X30 FLANGE 		0-28651-030-0 01 1 1411-
535 BOLT; BRKT FIX
(A) M8X10 W/LK WASHER 		8-98029-928-0 02 1 1411-
540 NUT; BRKT FIX
M6 FLANGE 		0-91180-106-0 03 1 1411-
639 BOLT; CLIP
DIFF LOCK<C3N> (B) M8X16 FLANGE 		0-28050-816-0 02 1 1512-
639 BOLT; CLIP
DIFF LOCK<C3N> (C) M8X25 FLANGE 		0-28650-825-0 02 1 1512-
639 BOLT; CLIP
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1411-

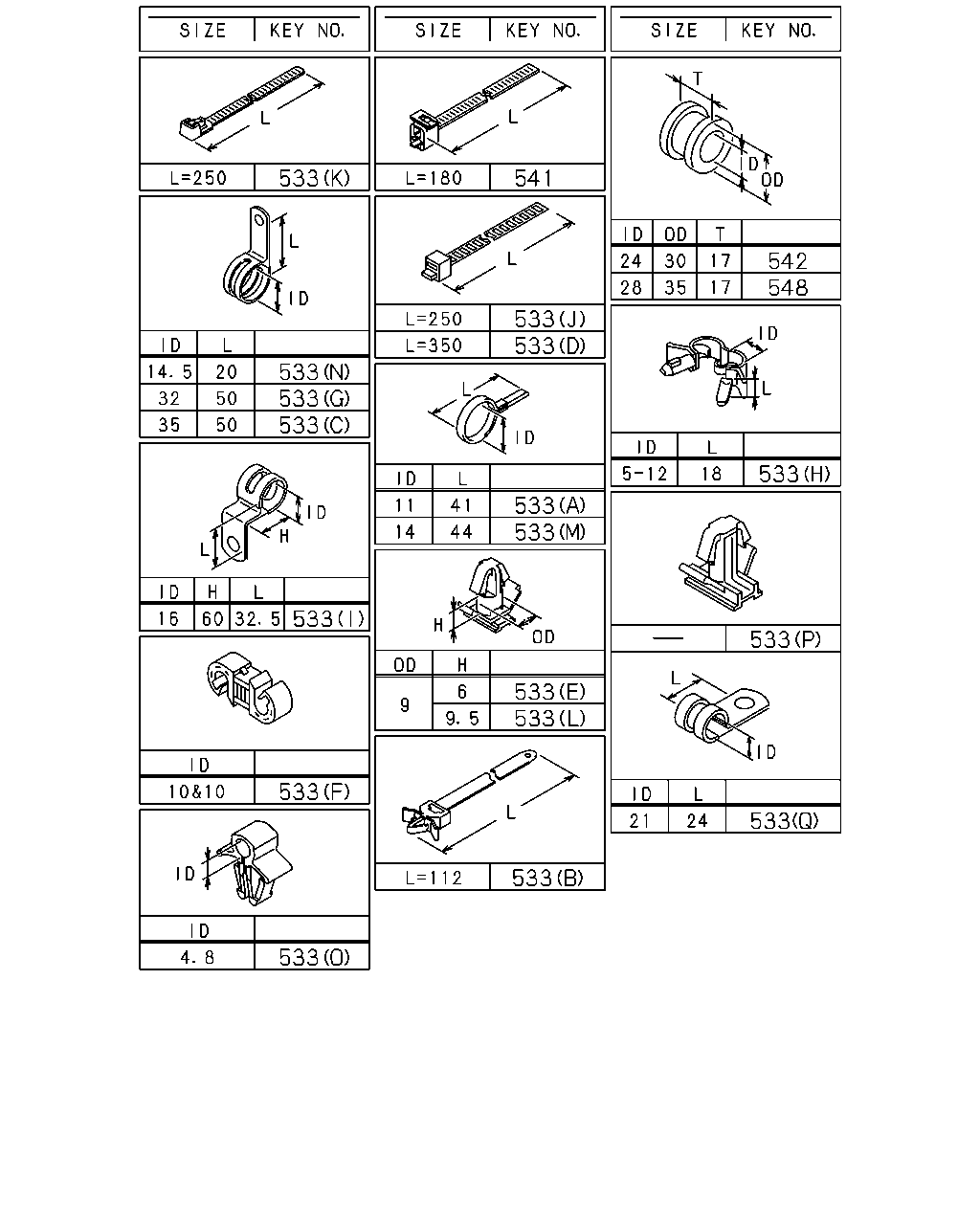

çizim 455795
533 533 533 533 533 533 533 533 533 533 533 533 533 533 541 548 542 533 533 533
BalonParca AdiParca NoAdetTipApplied Date
533 CLIP
DIFF LOCK<C3N> (A) ID=11 L=41 		1-09700-403-0 06 1 1512-
533 CLIP
DIFF LOCK<C3N> (N) ID=14.5 L=20 		1-09701-012-0 02 1 1512-
533 CLIP
DIFF LOCK<C3N> (O) ID=4.8 		1-09701-218-0 01 1 1512-
533 CLIP
DIFF LOCK<C3N> (P) OD=8.95 H=6.25 		8-97375-754-0 01 1 1512-
533 CLIP
DIFF LOCK<C3N> (Q) ID=21 L=24 		8-98019-191-0 02 1 1512-
533 CLIP
WHEEL BASE 3400MM(34W) (M) ID=14 L=44 		9-09917-427-0 08 1 1512-
533 CLIP
WHEEL BASE 4000MM(40W) (M) ID=14 L=44 		9-09917-427-0 11 1 1411-
533 CLIP
(A) ID=11 L=41 		1-09700-403-0 01 1 1411-
533 CLIP
(L) OD=9 H=9.5 		1-09709-179-0 01 1 1411-
533 CLIP
(M) ID=14 L=44 		9-09917-427-0 01 1 1411-1511
533 CLIP
DIFF LOCK<C3N> (M) ID=14 L=44 		9-09917-427-0 01 1 1512-
533 CLIP
(M) ID=14 L=44 		9-09917-427-0 01 1 1512-
533 CLIP
PTO CONTROL<SV6> (D) L=350 		1-09707-183-0 01 1 1411-
533 CLIP
TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=35 L=50 		1-09701-214-0 01 1 1411-
533 CLIP
(I) ID=16 H=60 L=32.5 		1-09700-214-0 01 1 1411-
533 CLIP
(J) L=250 		1-09707-126-0 02 1 1411-
533 CLIP
(E) OD=9 H=6 		1-09709-178-0 02 1 1411-
533 CLIP
(F) ID=10 & 10 		1-09709-277-1 01 1 1411-
533 CLIP
(H) ID=5-12 L=18 		1-09709-287-0 02 1 1411-
533 CLIP
(K) L=250 		5-09707-030-1 03 1 1411-
533 CLIP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (G) ID=32 L=50 		1-09701-055-1 01 1 1411-
533 CLIP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) OD=9 H=6 		1-09709-178-0 01 1 1411-
533 CLIP
WHEEL BASE 4600MM(46W) (M) ID=14 L=44 		9-09917-427-0 15 1 1411-
533 CLIP
WHEEL BASE 4900MM(49W) (M) ID=14 L=44 		9-09917-427-0 16 1 1411-
533 CLIP
WHEEL BASE 5300MM(53W) (M) ID=14 L=44 		9-09917-427-0 18 1 1411-
533 CLIP
(D) L=350 		1-09707-183-0 02 1 1411-
533 CLIP
(B) L=112 		8-94232-618-0 04 1 1411-
541 CLIP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=180 		1-09707-162-1 01 1 1411-
542 GROMMET; HARNESS
ID=24 OD=30 T=17 		9-09956-092-1 02 1 1411-
548 GROMMET
ID=28 OD=35 T=17 		9-09956-256-2 03 1 1411-
çizim 455803
479 479 558
BalonParca AdiParca NoAdetTipApplied Date
479 CAP; CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		1-82691-191-0 01 1 1411-
479 CAP; CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		1-82690-667-0 01 1 1411-
558 CONNECTOR; HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) 		1-82690-668-0 01 1 1411-

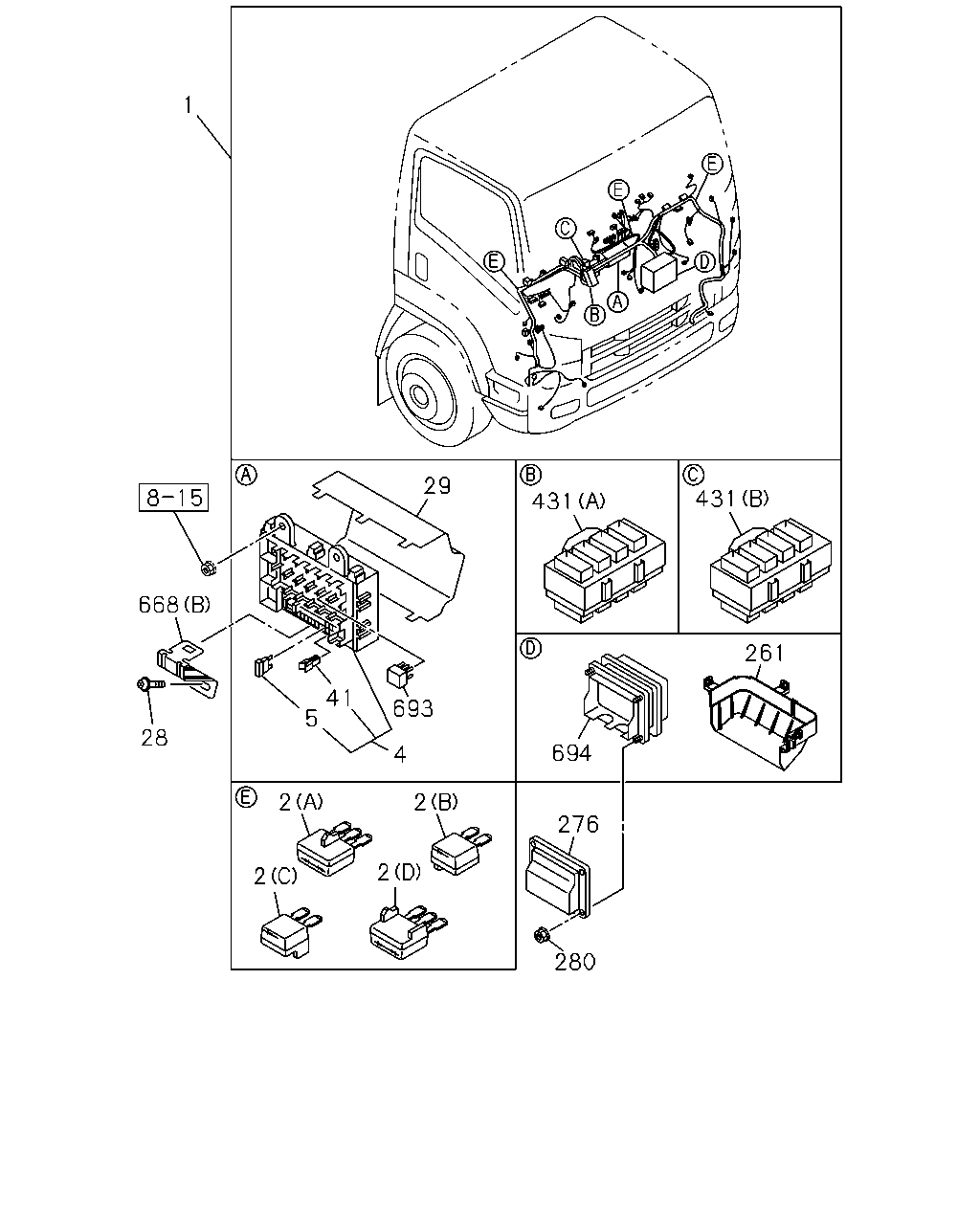

çizim 455841
1 668 28 41 5 693 4 2 694 276 280 2 2 2 29 431 431 261
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98269-238-5 01 1 1411-
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98269-236-5 01 1 1411-
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98269-239-5 01 1 1411-
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98269-237-5 01 1 1411-
2 DIODE; CABLE HARNESS
(D) BLACK 3P-1.5A 		8-94416-438-1 01 1 1411-
2 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 04 1 1411-1505
2 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 05 1 1506-
2 DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A 		8-94422-640-1 01 1 1411-
2 DIODE; CABLE HARNESS
(C) 2P 		8-98223-969-0 01 1 1411-
4 BOX ASM; FUSE,HARNESS 8-98065-666-0 01 1 1411-
5 FUSE; FACIA HARNESS
10A RED 		8-98054-257-0 AR 1 1411-
5 FUSE; FACIA HARNESS
15A BLUE 		8-98054-258-0 AR 1 1411-
5 FUSE; FACIA HARNESS
20A YELLOW 		8-98054-259-0 AR 1 1411-
5 FUSE; FACIA HARNESS
25A WHITE 		8-98062-982-0 AR 1 1411-
28 SCREW; FUSE BOX
T25 M5X12 TAPPING HEXALOBULAR 		8-98081-722-0 01 1 1411-
29 COVER; FUSE BOX 8-98056-968-0 01 1 1411-
41 PULLER; FUSE 8-98054-260-0 01 1 1411-
261 COVER; CONNECTOR BOX 8-98065-986-1 01 1 1411-
276 COVER; BOX,FRAME HARNESS 8-98034-039-1 01 1 1411-
280 NUT; BOX ASM FIX
M6 FLANGE 		0-91180-106-0 04 1 1411-
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 1411-
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1411-
668 BRACKET; HARNESS
DIFF LOCK<C3N> (T) L=55 		1-47475-304-0 01 1 1512-
668 BRACKET; HARNESS
DIFF LOCK<C3N> (U) 		8-98216-631-0 01 1 1512-
668 BRACKET; HARNESS
DIFF LOCK<C3N> (V) 		8-98216-632-0 01 1 1512-
668 BRACKET; HARNESS
DIFF LOCK<C3N> (S) 		8-98216-633-0 01 1 1512-
668 BRACKET; HARNESS
(M) 		1-82698-569-0 01 1 1411-
668 BRACKET; HARNESS
(C) 		8-97616-305-0 01 1 1411-1502
668 BRACKET; HARNESS
(R) 		8-98254-592-0 01 1 1503-
668 BRACKET; HARNESS
(D) 		8-97619-097-1 01 1 1411-
668 BRACKET; HARNESS
(N) 		8-98047-276-1 01 1 1411-
668 BRACKET; HARNESS
(O) 		8-98168-184-0 01 1 1411-
668 BRACKET; HARNESS
(P) 		8-98171-607-0 02 1 1411-
668 BRACKET; HARNESS
(K) 		8-98207-041-0 01 1 1411-
668 BRACKET; HARNESS
(J) 		8-98207-042-0 01 1 1411-
668 BRACKET; HARNESS
(L) 		8-98235-073-0 01 1 1411-
668 BRACKET; HARNESS
(F) 		8-98011-484-0 01 1 1411-
668 BRACKET; HARNESS
(A) 		8-98024-765-0 01 1 1411-
668 BRACKET; HARNESS
(H) 		8-98061-780-0 01 1 1411-
668 BRACKET; HARNESS
(I) 		8-98200-797-3 01 1 1411-
668 BRACKET; HARNESS
(Q) 		8-98240-490-0 01 1 1411-
668 BRACKET; HARNESS
(G) 		8-98240-491-0 01 1 1411-
668 BRACKET; HARNESS
(E) 		8-98273-295-0 01 1 1411-
668 BRACKET; HARNESS
(B) 		8-98111-712-1 01 1 1411-
693 RELAY; FUSE BOX
24V 10A PANASONIC 		8-97173-035-1 AR 1 1411-
694 BOX ASM; CONNECTOR 8-98057-771-0 01 1 1411-

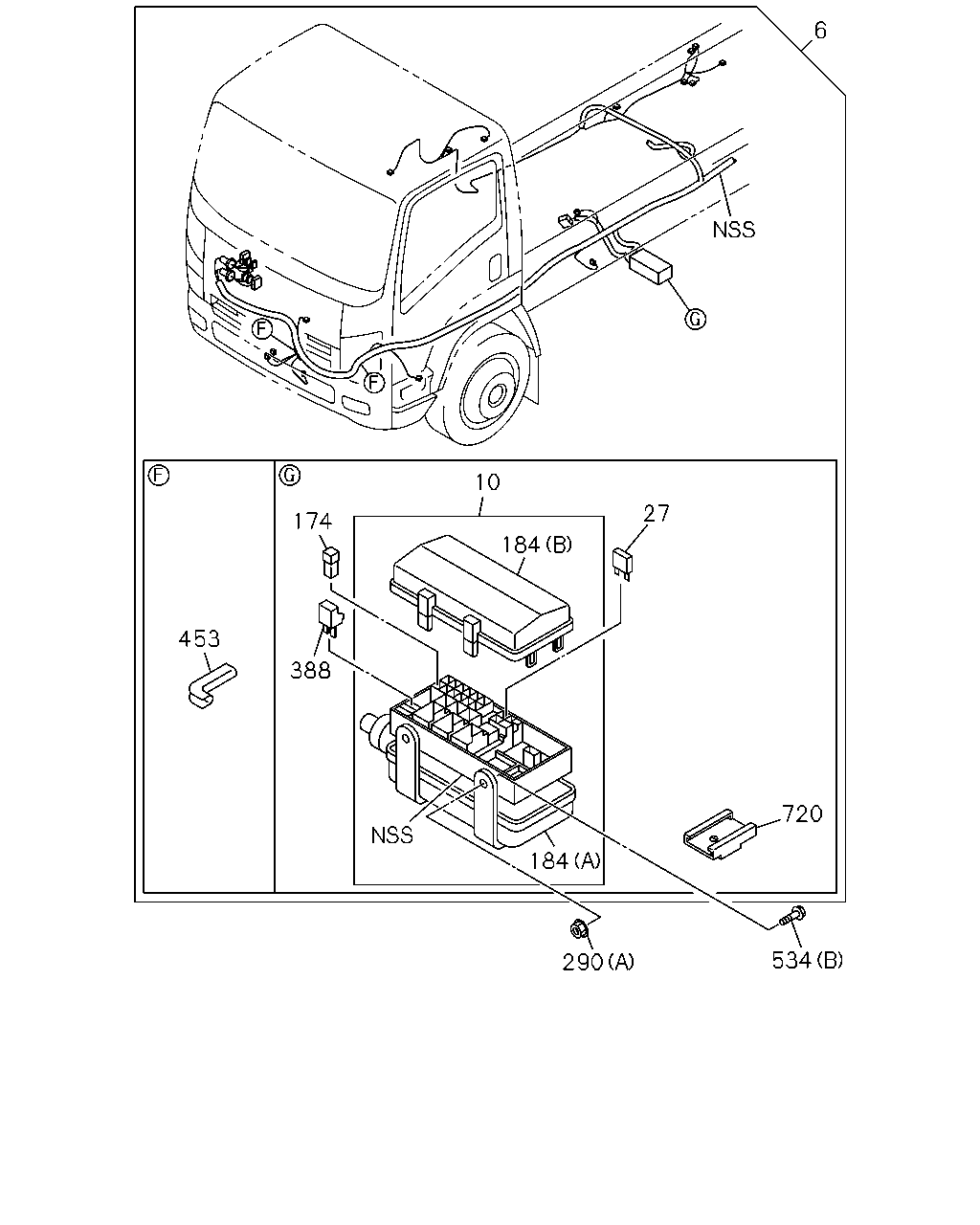

çizim 455849
6 10 174 453 388 184 720 290 534 184 27
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
WHEEL BASE 3400MM(34W) DIFF LOCK<C3N> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98268-578-2 01 1 1512-
6 HARNESS; FRAME
WHEEL BASE 3400MM(34W) DIFF LOCK<C3N> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98268-576-2 01 1 1512-
6 HARNESS; FRAME
WHEEL BASE 3400MM(34W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. DIFF LOCK<C3N> 		8-98268-575-2 01 1 1512-
6 HARNESS; FRAME
WHEEL BASE 3400MM(34W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DIFF LOCK<C3N> 		8-98268-577-2 01 1 1512-
6 HARNESS; FRAME
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98268-579-2 01 1 1411-
6 HARNESS; FRAME
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98268-580-2 01 1 1411-
10 BOX; FUSE,HARNESS 8-98030-762-0 01 1 1411-
27 FUSE UNIT
10A RED 		8-98054-257-0 01 1 1411-
27 FUSE UNIT
15A BLUE 		8-98054-258-0 01 1 1411-
27 FUSE UNIT
20A YELLOW 		8-98054-259-0 01 1 1411-
174 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 01 1 1411-
174 FUSE; SLOW BLOW
30A PINK 		8-98079-191-0 02 1 1411-
174 FUSE; SLOW BLOW
40A GREEN 		8-98079-192-0 02 1 1411-
174 FUSE; SLOW BLOW
50A RED 		8-98079-193-0 03 1 1411-
174 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 02 1 1411-
184 COVER; RELAY & FUSE BOX
(A) 		8-98030-766-0 01 1 1411-
184 COVER; RELAY & FUSE BOX
(B) 		8-98030-767-1 01 1 1411-
290 NUT; BRKT
DIFF LOCK<C3N> (C) M6 FLANGE 		0-91180-106-0 03 1 1512-
290 NUT; BRKT
DIFF LOCK<C3N> (A) M8 FLANGE 		0-91180-108-0 03 1 1512-
290 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 01 1 1411-
290 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 06 1 1411-
290 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 04 1 1411-
388 DIODE; RELAY BOX
BLACK 2P-1.5A 		8-94422-639-1 01 1 1411-
453 PROTECTOR; HARNESS 1-82699-709-0 02 1 1411-
534 BOLT
(B) M8X35 W/LK&PL WASHER 		1-09030-073-0 03 1 1411-
534 BOLT
(A) M10X55 FLANGE 		8-97365-449-0 03 1 1411-
720 ATTACHMENT; CONNECTOR 1-82699-688-0 03 1 1411-

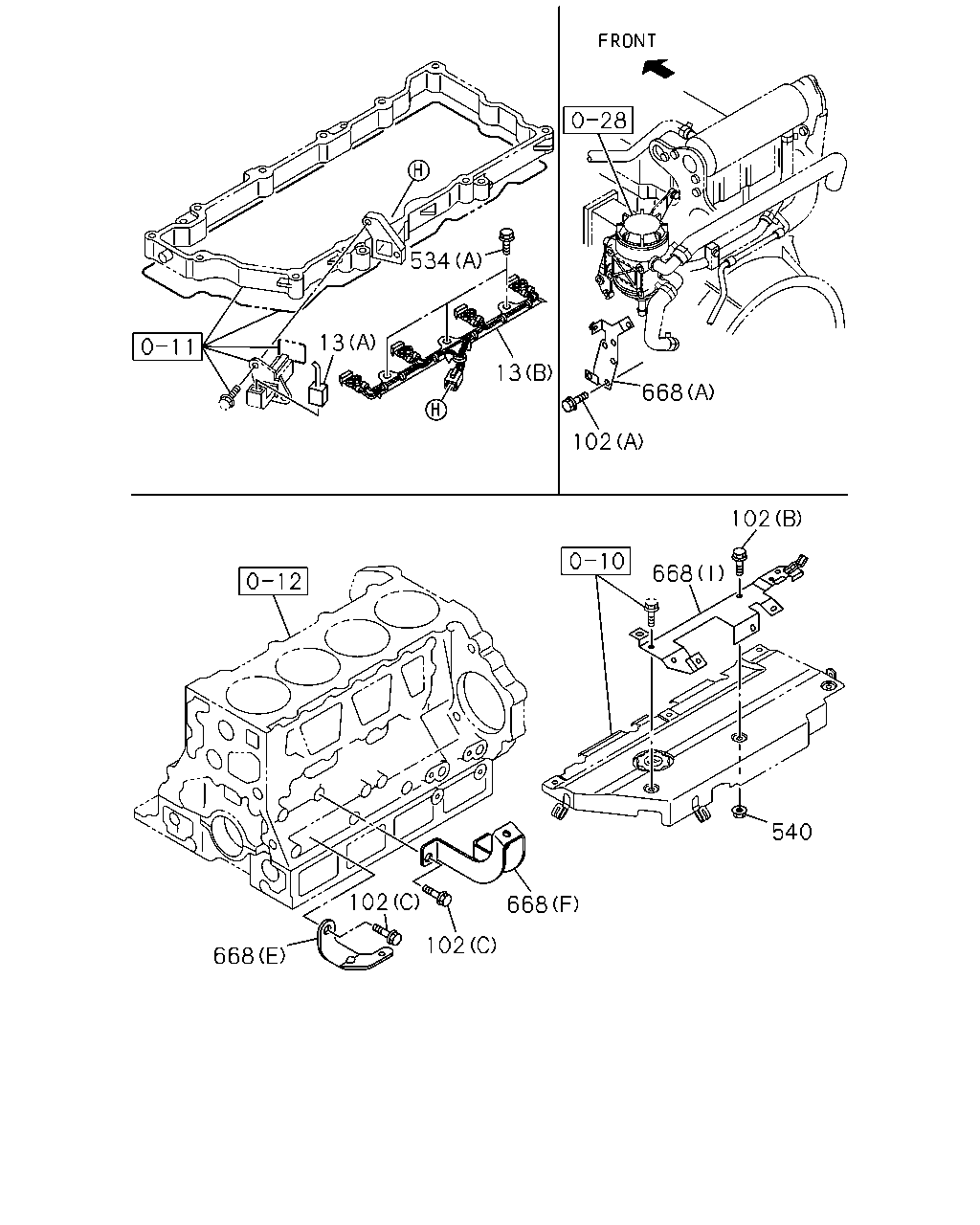

çizim 455871
102 668 540 668 102 102 668 13 668 102 13 534
BalonParca AdiParca NoAdetTipApplied Date
13 HARNESS; ENG
(B) 		8-98203-297-0 01 1 1411-
13 HARNESS; ENG
(A) 		8-98274-085-0 01 1 1411-1501
13 HARNESS; ENG
(A) 		8-98308-974-0 01 1 1502-
102 BOLT; BRKT,HARNESS CONNECTOR
(A) M8X16 FLANGE 		0-28050-816-0 03 1 1411-
102 BOLT; BRKT,HARNESS CONNECTOR
(C) M10X16 FLANGE 		0-28151-016-0 03 1 1411-
102 BOLT; BRKT,HARNESS CONNECTOR
(B) M8X20 FLANGE 		0-28650-820-0 01 1 1411-
534 BOLT
(B) M8X35 W/LK&PL WASHER 		1-09030-073-0 03 1 1411-
534 BOLT
(A) M10X55 FLANGE 		8-97365-449-0 03 1 1411-
540 NUT; BRKT FIX
M6 FLANGE 		0-91180-106-0 03 1 1411-
668 BRACKET; HARNESS
DIFF LOCK<C3N> (T) L=55 		1-47475-304-0 01 1 1512-
668 BRACKET; HARNESS
DIFF LOCK<C3N> (U) 		8-98216-631-0 01 1 1512-
668 BRACKET; HARNESS
DIFF LOCK<C3N> (V) 		8-98216-632-0 01 1 1512-
668 BRACKET; HARNESS
DIFF LOCK<C3N> (S) 		8-98216-633-0 01 1 1512-
668 BRACKET; HARNESS
(M) 		1-82698-569-0 01 1 1411-
668 BRACKET; HARNESS
(C) 		8-97616-305-0 01 1 1411-1502
668 BRACKET; HARNESS
(R) 		8-98254-592-0 01 1 1503-
668 BRACKET; HARNESS
(D) 		8-97619-097-1 01 1 1411-
668 BRACKET; HARNESS
(N) 		8-98047-276-1 01 1 1411-
668 BRACKET; HARNESS
(O) 		8-98168-184-0 01 1 1411-
668 BRACKET; HARNESS
(P) 		8-98171-607-0 02 1 1411-
668 BRACKET; HARNESS
(K) 		8-98207-041-0 01 1 1411-
668 BRACKET; HARNESS
(J) 		8-98207-042-0 01 1 1411-
668 BRACKET; HARNESS
(L) 		8-98235-073-0 01 1 1411-
668 BRACKET; HARNESS
(F) 		8-98011-484-0 01 1 1411-
668 BRACKET; HARNESS
(A) 		8-98024-765-0 01 1 1411-
668 BRACKET; HARNESS
(H) 		8-98061-780-0 01 1 1411-
668 BRACKET; HARNESS
(I) 		8-98200-797-3 01 1 1411-
668 BRACKET; HARNESS
(Q) 		8-98240-490-0 01 1 1411-
668 BRACKET; HARNESS
(G) 		8-98240-491-0 01 1 1411-
668 BRACKET; HARNESS
(E) 		8-98273-295-0 01 1 1411-
668 BRACKET; HARNESS
(B) 		8-98111-712-1 01 1 1411-
çizim 455872
533 479 201 6 570 1
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98269-238-5 01 1 1411-
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98269-236-5 01 1 1411-
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98269-239-5 01 1 1411-
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98269-237-5 01 1 1411-
6 HARNESS; FRAME
WHEEL BASE 3400MM(34W) DIFF LOCK<C3N> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98268-578-2 01 1 1512-
6 HARNESS; FRAME
WHEEL BASE 3400MM(34W) DIFF LOCK<C3N> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98268-576-2 01 1 1512-
6 HARNESS; FRAME
WHEEL BASE 3400MM(34W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. DIFF LOCK<C3N> 		8-98268-575-2 01 1 1512-
6 HARNESS; FRAME
WHEEL BASE 3400MM(34W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DIFF LOCK<C3N> 		8-98268-577-2 01 1 1512-
6 HARNESS; FRAME
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98268-579-2 01 1 1411-
6 HARNESS; FRAME
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98268-580-2 01 1 1411-
201 HARNESS; AIR TANK 8-98269-406-3 01 1 1411-
479 CAP; CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		1-82691-191-0 01 1 1411-
479 CAP; CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		1-82690-667-0 01 1 1411-
533 CLIP
DIFF LOCK<C3N> (A) ID=11 L=41 		1-09700-403-0 06 1 1512-
533 CLIP
DIFF LOCK<C3N> (N) ID=14.5 L=20 		1-09701-012-0 02 1 1512-
533 CLIP
DIFF LOCK<C3N> (O) ID=4.8 		1-09701-218-0 01 1 1512-
533 CLIP
DIFF LOCK<C3N> (P) OD=8.95 H=6.25 		8-97375-754-0 01 1 1512-
533 CLIP
DIFF LOCK<C3N> (Q) ID=21 L=24 		8-98019-191-0 02 1 1512-
533 CLIP
WHEEL BASE 3400MM(34W) (M) ID=14 L=44 		9-09917-427-0 08 1 1512-
533 CLIP
WHEEL BASE 4000MM(40W) (M) ID=14 L=44 		9-09917-427-0 11 1 1411-
533 CLIP
(A) ID=11 L=41 		1-09700-403-0 01 1 1411-
533 CLIP
(L) OD=9 H=9.5 		1-09709-179-0 01 1 1411-
533 CLIP
(M) ID=14 L=44 		9-09917-427-0 01 1 1411-1511
533 CLIP
DIFF LOCK<C3N> (M) ID=14 L=44 		9-09917-427-0 01 1 1512-
533 CLIP
(M) ID=14 L=44 		9-09917-427-0 01 1 1512-
533 CLIP
PTO CONTROL<SV6> (D) L=350 		1-09707-183-0 01 1 1411-
533 CLIP
TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=35 L=50 		1-09701-214-0 01 1 1411-
533 CLIP
(I) ID=16 H=60 L=32.5 		1-09700-214-0 01 1 1411-
533 CLIP
(J) L=250 		1-09707-126-0 02 1 1411-
533 CLIP
(E) OD=9 H=6 		1-09709-178-0 02 1 1411-
533 CLIP
(F) ID=10 & 10 		1-09709-277-1 01 1 1411-
533 CLIP
(H) ID=5-12 L=18 		1-09709-287-0 02 1 1411-
533 CLIP
(K) L=250 		5-09707-030-1 03 1 1411-
533 CLIP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (G) ID=32 L=50 		1-09701-055-1 01 1 1411-
533 CLIP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) OD=9 H=6 		1-09709-178-0 01 1 1411-
533 CLIP
WHEEL BASE 4600MM(46W) (M) ID=14 L=44 		9-09917-427-0 15 1 1411-
533 CLIP
WHEEL BASE 4900MM(49W) (M) ID=14 L=44 		9-09917-427-0 16 1 1411-
533 CLIP
WHEEL BASE 5300MM(53W) (M) ID=14 L=44 		9-09917-427-0 18 1 1411-
533 CLIP
(D) L=350 		1-09707-183-0 02 1 1411-
533 CLIP
(B) L=112 		8-94232-618-0 04 1 1411-
570 HARNESS; SPEED SENSOR 8-98058-327-1 01 1 1411-1511
570 HARNESS; SPEED SENSOR
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9>,TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98058-327-1 01 1 1512-
570 HARNESS; SPEED SENSOR
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9>,TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. KD PREPARATORY PACK<6HF> 		8-98058-327-1 01 1 1512-
570 HARNESS; SPEED SENSOR
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9>,TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98091-562-0 01 1 1512-

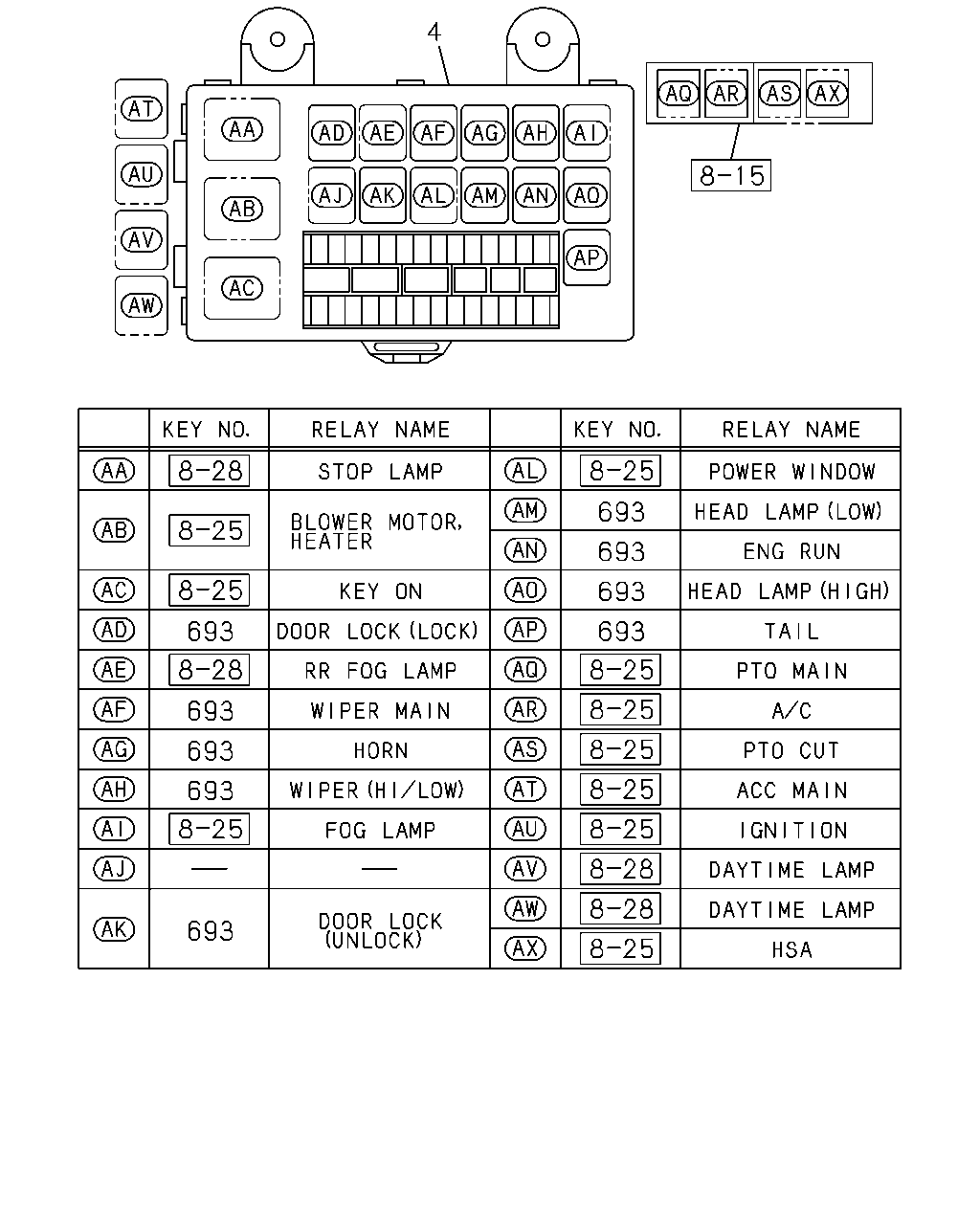

çizim 484449
4 693 693 693 693 693 693 693 693 693
BalonParca AdiParca NoAdetTipApplied Date
4 BOX ASM; FUSE,HARNESS 8-98065-666-0 01 1 1411-
693 RELAY; FUSE BOX
24V 10A PANASONIC 		8-97173-035-1 AR 1 1411-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
