Isuzu WW
▶
TRUCKS
▶
FRR
▶
11627 - FRR LHD EUROPE EURO6 SPACECAB EVSC
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-01 - LAMP; FRONT AND FRONT SIDE
▶
8-01 — LAMP; FRONT AND FRONT SIDE
(#152321) — 58 parça
◀

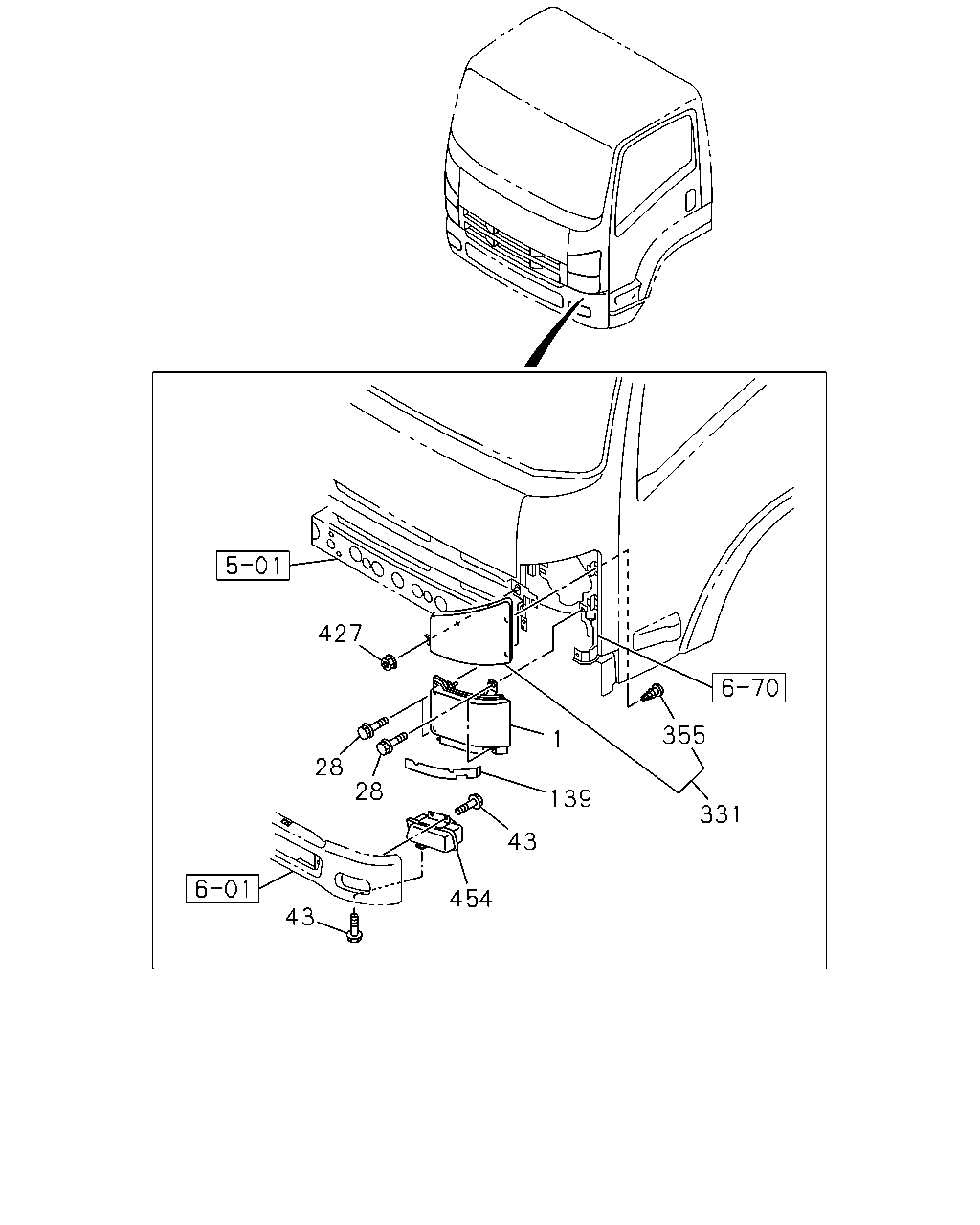

[801A] FRONT LAMP FIXING (11 parça)
[801A] COMPONENT;HEADLAMP (14 parça)
[801A] COMPONENT;TURN SIGNAL AND FOG LAMP (15 parça)

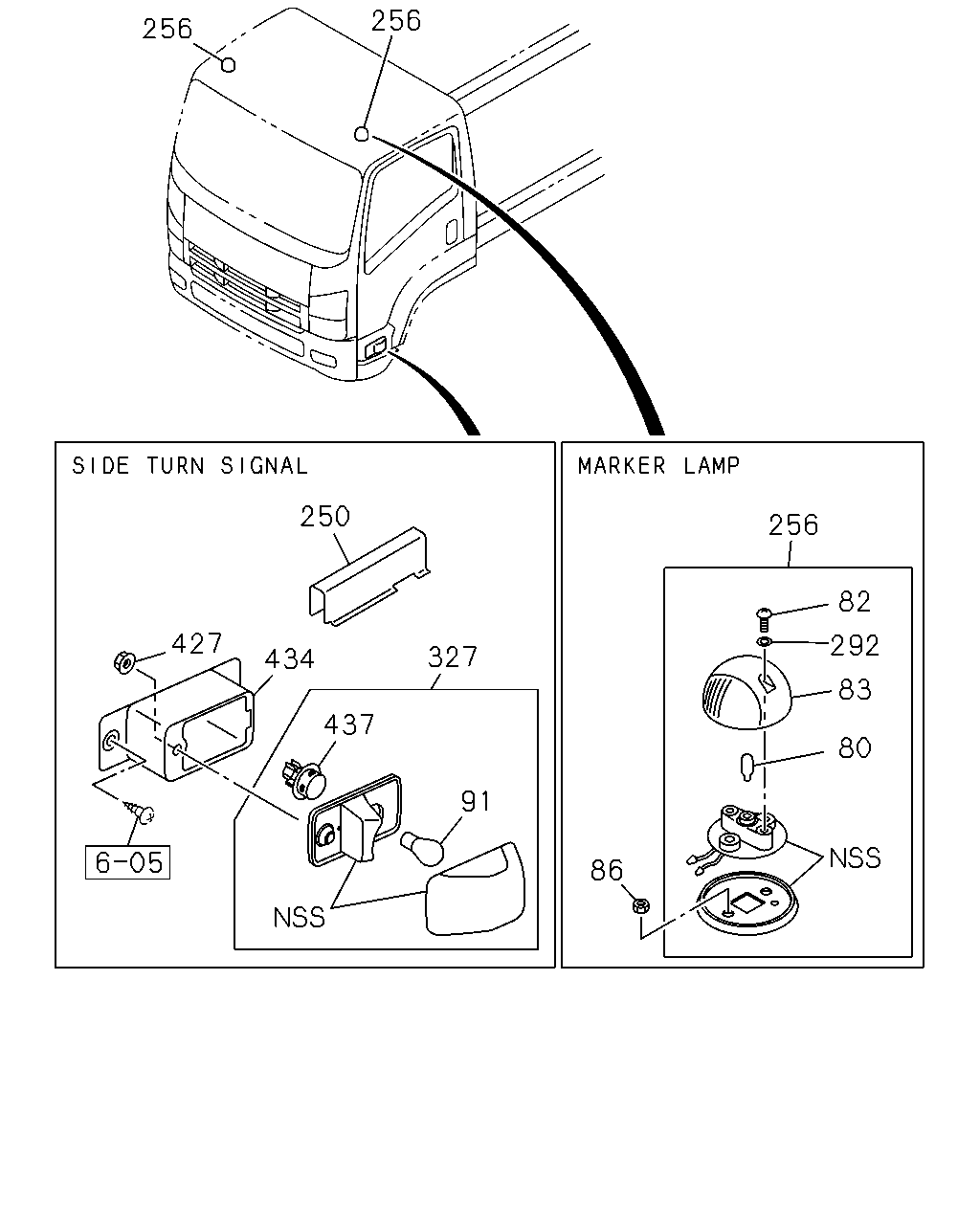

[801A] LAMP;SIDE TURN SIGNAL AND MARKER (18 parça)
▶
427
28
28
43
454
43
139
331
355
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LAMP ASM; HEAD
8-98241-323-0
01
1
1411-
1
LAMP ASM; HEAD
8-98241-324-0
01
1
1411-
28
BOLT; HEADLAMP
M6X23.5 W/LK&PL WASHER
8-98164-723-0
08
1
1411-
43
BOLT; FOG LAMP
M6X19.5 W/LK&PL WASHER
8-97360-226-0
06
1
1411-
139
COVER; HEADLAMP
8-98054-342-0
02
1
1411-
331
LAMP; TURN SIGNAL
8-98155-458-0
01
1
1411-
331
LAMP; TURN SIGNAL
8-98155-459-0
01
1
1411-
355
SCREW; TURN SIGNAL
8-98051-428-0
04
1
1411-
427
NUT; TURN SIGNAL LAMP
M6 FLANGE
0-91180-106-0
04
1
1411-
454
LAMP ASM; FOG & DRL
8-98218-598-1
01
1
1411-
454
LAMP ASM; FOG & DRL
8-98218-599-1
01
1
1411-
1
4
338
339
408
5
5
382
457
23
20
420
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LAMP ASM; HEAD
8-98241-323-0
01
1
1411-
1
LAMP ASM; HEAD
8-98241-324-0
01
1
1411-
4
HEADLAMP UNIT
8-98226-184-0
01
1
1411-
4
HEADLAMP UNIT
8-98226-185-0
01
1
1411-
5
BULB; HEADLAMP
(B) 24V 5W
1-82194-042-0
02
1
1411-
5
BULB; HEADLAMP
(A) 24V 75/70W
1-82194-063-0
02
1
1411-
20
SCREW; HEADLAMP
8-97378-871-0
06
1
1411-
23
COVER; BULB,HEADLAMP
8-97232-491-0
02
1
1411-
338
LEVELING; HEADLAMP
8-98010-256-0
02
1
1411-
339
GASKET; LEVELING
1-86830-158-0
02
1
1411-
382
PLUG; SOCKET,HEADLAMP
8-98225-685-0
02
1
1411-
408
CAP; BREATHER,HEADLAMP
8-97378-874-0
02
1
1411-
420
SPRING; BULB,HEADLAMP
8-98218-601-0
02
1
1411-
457
GRIP; HEADLAMP
8-98241-354-0
02
1
1411-
331
431
357
399
355
432
454
452
448
328
453
452
15
450
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
15
BULB; FOG LAMP
24V 70W
1-82194-106-0
02
1
1411-
328
COVER; LAMP
8-98240-559-0
02
1
1411-
331
LAMP; TURN SIGNAL
8-98155-458-0
01
1
1411-
331
LAMP; TURN SIGNAL
8-98155-459-0
01
1
1411-
355
SCREW; TURN SIGNAL
8-98051-428-0
04
1
1411-
357
BULB; TURN SIGNAL
24V 21W AMBER
8-97323-806-0
02
1
1411-
399
SOCKET; TURN SIGNAL
8-98051-387-0
02
1
1411-
431
CAP; TURN SIGNAL,LAMP
8-97378-874-0
02
1
1411-
432
FASTENER; TURN SIGNAL,LAMP
8-98051-431-0
04
1
1411-
448
CAP ASM; LAMP
8-97378-874-0
02
1
1411-
450
BULB; DRL LAMP
12V 13W
8-98285-107-0
02
1
1411-
452
SCREW; FOG & DRL
1-82119-086-1
10
1
1411-
453
SPRING; SET
8-98075-644-0
02
1
1411-
454
LAMP ASM; FOG & DRL
8-98218-598-1
01
1
1411-
454
LAMP ASM; FOG & DRL
8-98218-599-1
01
1
1411-
256
256
250
427
434
327
437
91
256
82
292
83
80
86
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
80
BULB; MARKER LAMP
24V 5W
8-94135-397-0
02
1
1411-
82
SCREW; MARKER LAMP
1-82219-011-0
04
1
1411-
83
LENS; MARKER LAMP
8-98057-958-0
02
1
1411-
86
NUT; MARKER LAMP
M6 FLANGE
0-91180-106-0
04
1
1411-
91
BULB; SIDE TURN SIGNAL
24V 21W
8-98051-495-0
02
1
1411-
250
BRACKET ASM
MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV>
8-98113-164-0
01
1
1411-
250
BRACKET ASM
MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV>
8-98113-165-0
01
1
1411-
256
LAMP; MARKER
8-98097-466-3
01
1
1411-
256
LAMP; MARKER
8-98097-467-3
01
1
1411-
292
WASHER; MARKER LAMP
1-82219-012-0
04
1
1411-
327
LAMP ASM; SIDE TURN SIGNAL
8-97410-180-4
01
1
1411-
327
LAMP ASM; SIDE TURN SIGNAL
8-97410-181-3
01
1
1411-
427
NUT; TURN SIGNAL LAMP
M6 FLANGE
0-91180-106-0
04
1
1411-
434
BASE; LAMP,SIDE TURN SIGNAL
MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV>
8-98112-354-0
01
1
1411-
434
BASE; LAMP,SIDE TURN SIGNAL
MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV>
8-98112-355-0
01
1
1411-
434
BASE; LAMP,SIDE TURN SIGNAL
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>
8-98063-726-1
01
1
1411-
434
BASE; LAMP,SIDE TURN SIGNAL
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>
8-98063-727-1
01
1
1411-
437
SOCKET; SIDE,TURN
8-98051-390-0
02
1
1411-
