Sayfa 7-50 - Isuzu EPC

7-50 — FRONT SEAT (#152318) — 400 parça

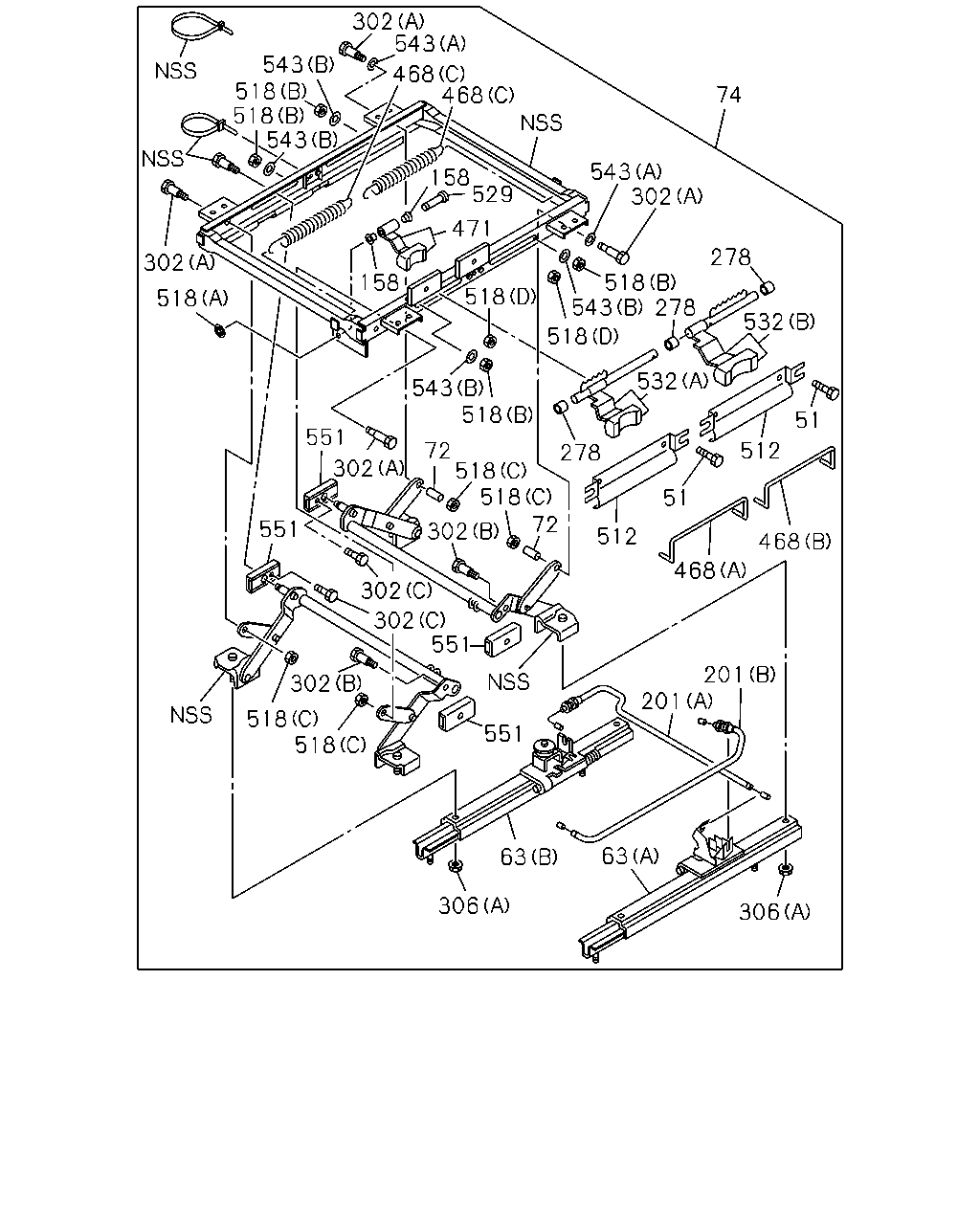

302 543 468 468 158 471 158 529 543 302 518 518 543 518 273 278 278 532 532 512 51 512 51 468 468 201 201 63 306 306 63 551 551 302 302 518 518 302 551 302 72 518 518 72 302 518 551 543 518 302 543 518 518 543 74

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
51	SCREW; COVER AIR SUSP DRIVER SEAT<A56>	1-75518-325-1	04	1	1411-1506
51	SCREW; COVER AIR SUSP DRIVER SEAT<A56>	1-75518-325-1	04	1	1510-
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> (B)	1-75518-227-1	01	1	1411-1506
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> (B)	1-75518-227-1	01	1	1510-
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> (A)	1-75518-324-0	01	1	1411-1506
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> (A)	1-75518-324-0	01	1	1510-
63	ADJUSTER; SEAT SLIDE DRIVER ISRINGHAUSEN SEAT<SJA> (C)	8-98098-005-0	01	1	1411-1511
63	ADJUSTER; SEAT SLIDE DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (C)	8-98098-005-0	01	1	1512-
72	SPACER; SEAT ADJ AIR SUSP DRIVER SEAT<A56>	1-75518-334-1	02	1	1411-1502
72	SPACER; SEAT ADJ AIR SUSP DRIVER SEAT<A56>	8-98291-668-0	02	1	1503-1506
72	SPACER; SEAT ADJ AIR SUSP DRIVER SEAT<A56>	8-98291-668-0	02	1	1510-
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56>	8-98093-429-0	01	1	1411-1502
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56>	8-98291-641-0	01	1	1503-1506
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56>	8-98291-641-0	01	1	1510-
158	BUSHING; LINK ARM AIR SUSP DRIVER SEAT<A56>	1-75518-209-0	02	1	1411-1506
158	BUSHING; LINK ARM AIR SUSP DRIVER SEAT<A56>	1-75518-209-0	02	1	1510-
201	CABLE; ADJ AIR SUSP DRIVER SEAT<A56> (A) L=667	1-75518-288-0	01	1	1411-1506
201	CABLE; ADJ AIR SUSP DRIVER SEAT<A56> (A) L=667	1-75518-288-0	01	1	1510-
201	CABLE; ADJ AIR SUSP DRIVER SEAT<A56> (B) L=605	1-75518-289-1	01	1	1411-1506
201	CABLE; ADJ AIR SUSP DRIVER SEAT<A56> (B) L=605	1-75518-289-1	01	1	1510-
278	COLLAR; FRT SEAT AIR SUSP DRIVER SEAT<A56>	1-75518-244-0	03	1	1411-1506
278	COLLAR; FRT SEAT AIR SUSP DRIVER SEAT<A56>	1-75518-244-0	03	1	1510-
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> (B)	1-75518-266-2	02	1	1411-1506
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> (B)	1-75518-266-2	02	1	1510-
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> (A)	1-75518-270-1	04	1	1411-1502
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> (A)	8-98291-667-0	04	1	1503-1506
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> (A)	8-98291-667-0	04	1	1510-
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> (C)	1-75518-336-1	02	1	1411-1506
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> (C)	1-75518-336-1	02	1	1510-
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE	1-75538-207-0	06	1	1411-1506
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE	1-75538-207-0	06	1	1510-
306	NUT; SEAT ADJ (B) M10 FLANGE	0-91180-110-0	02	1	1411-
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (A)	1-75518-206-0	01	1	1411-1506
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (A)	1-75518-206-0	01	1	1510-
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (B)	1-75518-207-0	01	1	1411-1506
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (B)	1-75518-207-0	01	1	1510-
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (C)	1-75518-208-0	02	1	1411-1506
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (C)	1-75518-208-0	02	1	1510-
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (D)	1-75538-132-0	01	1	1411-1506
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (D)	1-75538-132-0	01	1	1510-
471	LEVER; SEAT ADJ AIR SUSP DRIVER SEAT<A56>	8-98107-870-0	01	1	1411-1506
471	LEVER; SEAT ADJ AIR SUSP DRIVER SEAT<A56>	8-98107-870-0	01	1	1510-
512	COVER; LEVER AIR SUSP DRIVER SEAT<A56>	1-75518-245-1	02	1	1411-1506
512	COVER; LEVER AIR SUSP DRIVER SEAT<A56>	1-75518-245-1	02	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (A)	1-75518-263-0	01	1	1411-1506
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (A)	1-75518-263-0	01	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (C) M8	1-75518-264-0	04	1	1411-1506
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (C) M8	1-75518-264-0	04	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (E) M8 FLANGE	1-75538-207-0	04	1	1411-1506
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (E) M8 FLANGE	1-75538-207-0	04	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (D) M6 LOCK NUT	5-09984-020-0	02	1	1411-1506
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (D) M6 LOCK NUT	5-09984-020-0	02	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (B) M8 FLANGE	8-94152-886-0	04	1	1411-1506
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (B) M8 FLANGE	8-94152-886-0	04	1	1510-
529	PIN; LINK AIR SUSP DRIVER SEAT<A56>	1-75518-262-0	01	1	1411-1506
529	PIN; LINK AIR SUSP DRIVER SEAT<A56>	1-75518-262-0	01	1	1510-
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> (A)	1-75518-221-0	01	1	1411-1506
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> (A)	1-75518-221-0	01	1	1510-
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> (B)	1-75518-222-1	01	1	1411-1506
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> (B)	1-75518-222-1	01	1	1510-
532	LEVER ASM; TILT DRIVER ISRINGHAUSEN SEAT<SJA> (C)	8-98097-981-0	01	1	1411-1511
532	LEVER ASM; TILT DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (C)	8-98097-981-0	01	1	1512-
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT<A56> (A)	1-75518-335-0	02	1	1411-1502
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT<A56> (A) ID=13 OD=19	8-98291-669-0	02	1	1503-1506
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT<A56> (A) ID=13 OD=19	8-98291-669-0	02	1	1510-
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT<A56> (B) ID=8.4	9-09160-508-0	04	1	1411-1506
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT<A56> (B) ID=8.4	9-09160-508-0	04	1	1510-
551	SLIDER; HEIGHT ADJ AIR SUSP DRIVER SEAT<A56>	1-75518-265-0	04	1	1411-1506
551	SLIDER; HEIGHT ADJ AIR SUSP DRIVER SEAT<A56>	1-75518-265-0	04	1	1510-

41 1 12 13 2 411 650 651 336 365 651 651 17 661 336 642 648 642 602 336 642 532 587 509 638 336 637 310 17

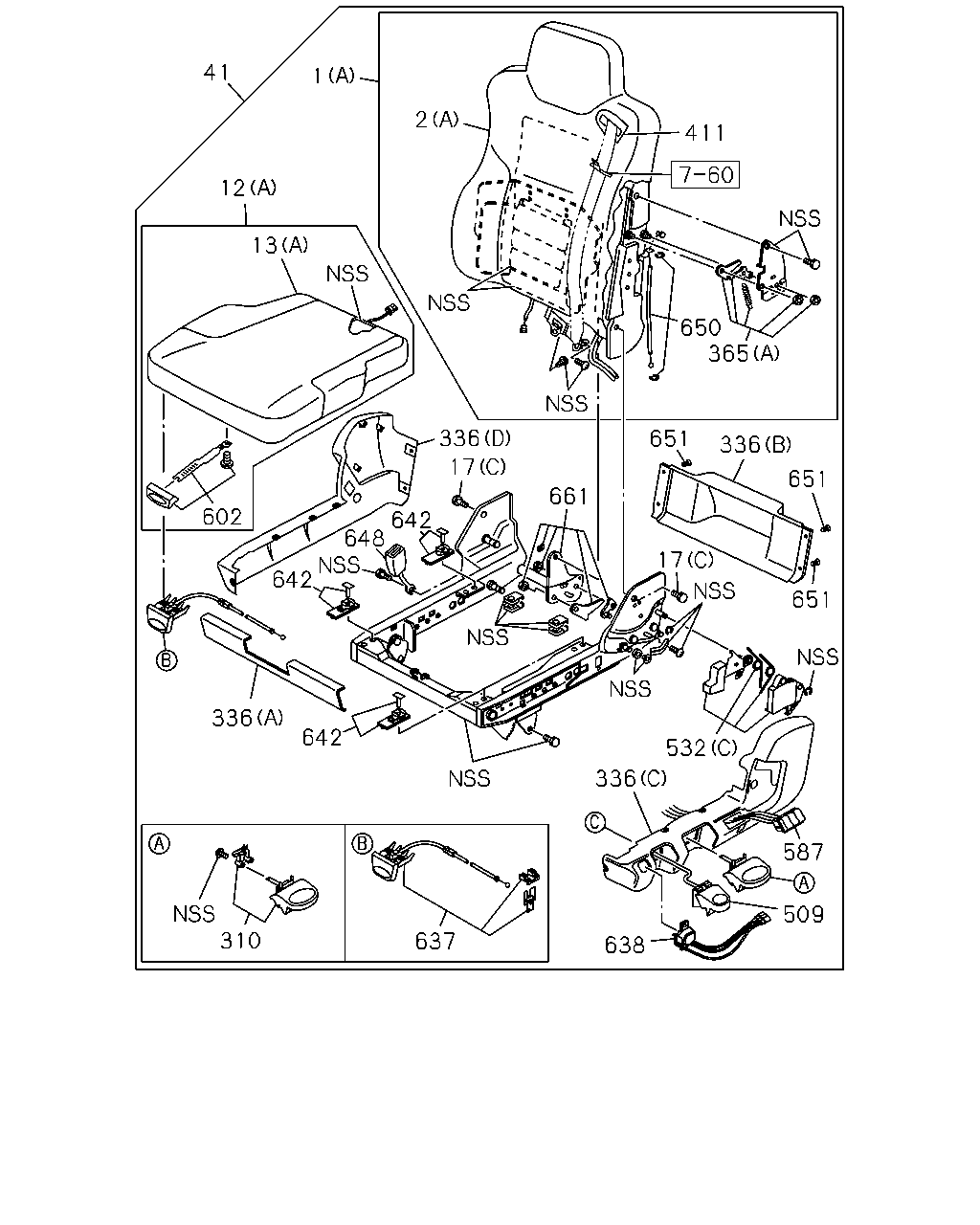

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BACK ASM; SEAT DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98097-962-0	01	1	1411-1511
1	BACK ASM; SEAT DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (A)	8-98097-962-0	01	1	1512-
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97421-408-1	01	1	1411-1506
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97421-408-1	01	1	1510-1512
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97466-623-0	01	1	1601-
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97421-413-0	01	1	1411-1506
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97421-413-0	01	1	1510-
2	COVER; TRIM,FRT SEAT,BACK DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98232-352-0	01	1	1411-1511
2	COVER; TRIM,FRT SEAT,BACK DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (A)	8-98232-352-0	01	1	1512-
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97421-400-1	01	1	1411-1506
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97421-400-2	01	1	1510-1512
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97466-613-0	01	1	1601-
12	CUSHION; SEAT,FRT DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98098-006-0	01	1	1411-1511
12	CUSHION; SEAT,FRT DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (A)	8-98098-006-0	01	1	1512-
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97421-404-1	01	1	1411-1506
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97421-404-2	01	1	1510-
13	COVER; TRIM,FRT SEAT,CUSHION DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98098-007-0	01	1	1411-1511
13	COVER; TRIM,FRT SEAT,CUSHION DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (A)	8-98098-007-0	01	1	1512-
17	BOLT; RECLINING AIR SUSP DRIVER SEAT<A56> (A) M10X20	8-98062-661-0	02	1	1411-1506
17	BOLT; RECLINING AIR SUSP DRIVER SEAT<A56> (A) M10X20	8-98062-661-0	02	1	1510-
17	BOLT; RECLINING DRIVER ISRINGHAUSEN SEAT<SJA> (C)	8-98097-974-0	02	1	1411-1511
17	BOLT; RECLINING DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (C)	8-98097-974-0	02	1	1512-
17	BOLT; RECLINING (B) M8X20	8-98092-334-0	02	1	1411-
41	SEAT ASM; DRIVER DRIVER ISRINGHAUSEN SEAT<SJA>	8-98195-065-1	01	1	1411-1511
41	SEAT ASM; DRIVER DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX>	8-98195-065-1	01	1	1512-
310	LEVER ASM; HEIGHT ADJ DRIVER SEAT DRIVER ISRINGHAUSEN SEAT<SJA>	8-98097-991-0	01	1	1411-1511
310	LEVER ASM; HEIGHT ADJ DRIVER SEAT DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX>	8-98097-991-0	01	1	1512-
336	COVER; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT<SJA> (D)	8-98097-977-0	01	1	1411-1508
336	COVER; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT<SJA> (D)	8-98333-916-0	01	1	1509-1511
336	COVER; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (D)	8-98333-916-0	01	1	1512-
336	COVER; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT<SJA> (C)	8-98097-983-0	01	1	1411-1511
336	COVER; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (C)	8-98097-983-0	01	1	1512-
336	COVER; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98097-995-0	01	1	1411-1511
336	COVER; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (A)	8-98097-995-0	01	1	1512-
336	COVER; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT<SJA> (B)	8-98097-996-0	01	1	1411-1511
336	COVER; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (B)	8-98097-996-0	01	1	1512-
365	LOCK ASM; SEAT DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98097-972-0	01	1	1411-1511
365	LOCK ASM; SEAT DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (A)	8-98097-972-0	01	1	1512-
365	LOCK ASM; SEAT SEAT ASM - WITH CENTER SEAT<7BC> (B)	1-72538-312-0	01	1	1411-
411	GUIDE; SEAT BELT DRIVER ISRINGHAUSEN SEAT<SJA>	8-98097-967-0	01	1	1411-1511
411	GUIDE; SEAT BELT DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX>	8-98097-967-0	01	1	1512-
509	LEVER; DAMPER DRIVER ISRINGHAUSEN SEAT<SJA>	8-98097-987-0	01	1	1411-1511
509	LEVER; DAMPER DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX>	8-98097-987-0	01	1	1512-
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> (A)	1-75518-221-0	01	1	1411-1506
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> (A)	1-75518-221-0	01	1	1510-
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> (B)	1-75518-222-1	01	1	1411-1506
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> (B)	1-75518-222-1	01	1	1510-
532	LEVER ASM; TILT DRIVER ISRINGHAUSEN SEAT<SJA> (C)	8-98097-981-0	01	1	1411-1511
532	LEVER ASM; TILT DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (C)	8-98097-981-0	01	1	1512-
587	VALVE; LUMBAR SUPPORT DRIVER ISRINGHAUSEN SEAT<SJA>	8-98097-985-0	01	1	1411-1511
587	VALVE; LUMBAR SUPPORT DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX>	8-98097-985-0	01	1	1512-
602	KNOB; ADJ,SEAT DRIVER ISRINGHAUSEN SEAT<SJA>	8-98098-008-0	01	1	1411-1511
602	KNOB; ADJ,SEAT DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX>	8-98098-008-0	01	1	1512-
637	LEVER; SLOPE ADJ DRIVER ISRINGHAUSEN SEAT<SJA>	8-98097-989-0	01	1	1411-1511
637	LEVER; SLOPE ADJ DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX>	8-98097-989-0	01	1	1512-
638	VALVE; LOWERING DRIVER ISRINGHAUSEN SEAT<SJA>	8-98097-993-0	01	1	1411-1511
638	VALVE; LOWERING DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX>	8-98097-993-0	01	1	1512-
642	SLIDER; CUSHION DRIVER ISRINGHAUSEN SEAT<SJA>	8-98192-932-0	04	1	1411-1511
642	SLIDER; CUSHION DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX>	8-98192-932-0	04	1	1512-
648	BUCKLE; SEAT BELT DRIVER ISRINGHAUSEN SEAT<SJA>	8-98097-976-0	01	1	1411-1511
648	BUCKLE; SEAT BELT DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX>	8-98097-976-0	01	1	1512-
650	CABLE DRIVER ISRINGHAUSEN SEAT<SJA>	8-98232-354-0	01	1	1411-1511
650	CABLE DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX>	8-98232-354-0	01	1	1512-
651	RIVET DRIVER ISRINGHAUSEN SEAT<SJA>	8-98194-075-0	04	1	1411-1511
651	RIVET DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX>	8-98194-075-0	04	1	1512-
661	LOCK ASM; RECLINING DRIVER ISRINGHAUSEN SEAT<SJA>	8-98097-979-0	01	1	1411-1511
661	LOCK ASM; RECLINING DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX>	8-98097-979-0	01	1	1512-

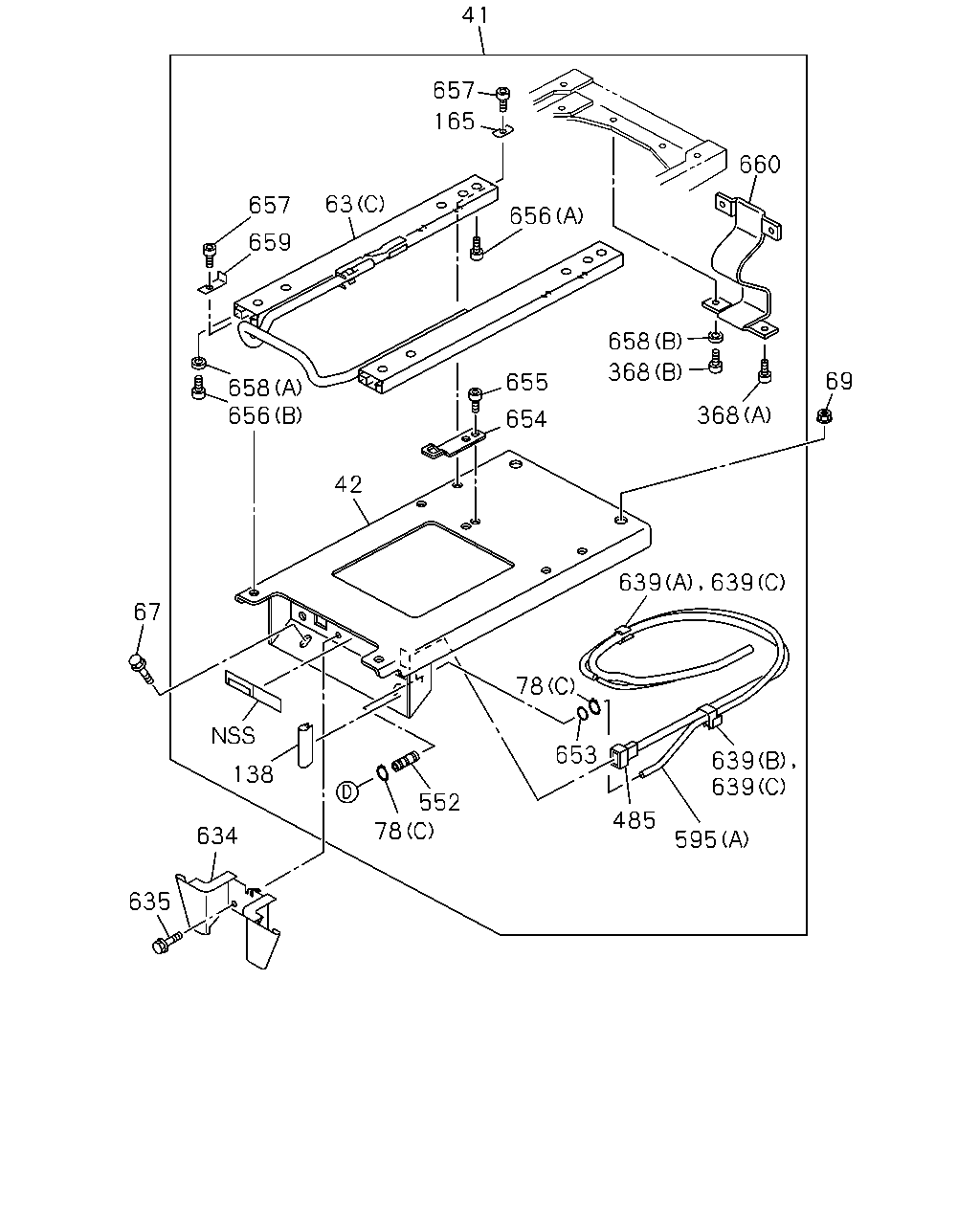

41 657 63 165 656 658 660 368 655 368 654 69 639 639 78 653 639 639 485 595 552 78 138 634 635 42 658 659 657 67 656

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
41	SEAT ASM; DRIVER DRIVER ISRINGHAUSEN SEAT<SJA>	8-98195-065-1	01	1	1411-1511
41	SEAT ASM; DRIVER DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX>	8-98195-065-1	01	1	1512-
42	STAND; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT<SJA>	8-98106-346-0	01	1	1411-1511
42	STAND; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX>	8-98106-346-0	01	1	1512-
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> (B)	1-75518-227-1	01	1	1411-1506
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> (B)	1-75518-227-1	01	1	1510-
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> (A)	1-75518-324-0	01	1	1411-1506
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> (A)	1-75518-324-0	01	1	1510-
63	ADJUSTER; SEAT SLIDE DRIVER ISRINGHAUSEN SEAT<SJA> (C)	8-98098-005-0	01	1	1411-1511
63	ADJUSTER; SEAT SLIDE DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (C)	8-98098-005-0	01	1	1512-
67	BOLT; FRT SEAT TO BODY M10X20 FLANGE	0-28451-020-0	02	1	1411-
69	NUT; FRT SEAT M10 FLANGE	0-91180-110-0	02	1	1411-
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (A) ID=8	9-09185-408-0	01	1	1411-1506
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (A) ID=8	9-09185-408-0	01	1	1510-
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (B) ID=15	9-09185-415-0	01	1	1411-1506
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (B) ID=15	9-09185-415-0	01	1	1510-
78	RING; SNAP DRIVER ISRINGHAUSEN SEAT<SJA> (C)	8-98101-900-0	02	1	1411-1511
78	RING; SNAP DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (C)	8-98101-900-0	02	1	1512-
138	PROTECTOR; SEAT STAND DRIVER ISRINGHAUSEN SEAT<SJA>	8-98106-351-0	01	1	1411-1511
138	PROTECTOR; SEAT STAND DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX>	8-98106-351-0	01	1	1512-
165	WASHER; PL DRIVER ISRINGHAUSEN SEAT<SJA>	1-75590-086-0	04	1	1411-1511
165	WASHER; PL DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX>	1-75590-086-0	04	1	1512-
368	BOLT; SEAT DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98106-353-0	03	1	1411-1511
368	BOLT; SEAT DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (A)	8-98106-353-0	03	1	1512-
368	BOLT; SEAT DRIVER ISRINGHAUSEN SEAT<SJA> (B)	8-98106-358-0	01	1	1411-1511
368	BOLT; SEAT DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (B)	8-98106-358-0	01	1	1512-
485	HARNESS; FRT SEAT DRIVER ISRINGHAUSEN SEAT<SJA>	8-98106-360-0	01	1	1411-1511
485	HARNESS; FRT SEAT DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX>	8-98106-360-0	01	1	1512-
552	CONNECTOR DRIVER ISRINGHAUSEN SEAT<SJA>	8-98101-902-0	01	1	1411-1508
552	CONNECTOR DRIVER ISRINGHAUSEN SEAT<SJA>	8-98308-101-0	01	1	1509-1511
552	CONNECTOR DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX>	8-98308-101-0	01	1	1512-
595	TUBE; NYLON (B)	8-98067-762-0	01	1	1411-
595	TUBE; NYLON DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98106-348-0	01	1	1411-1511
595	TUBE; NYLON DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (A)	8-98106-348-0	01	1	1512-
634	COVER; CONNECTOR,SEAT DRIVER ISRINGHAUSEN SEAT<SJA>	8-98088-279-0	01	1	1411-
635	BOLT; COVER DRIVER ISRINGHAUSEN SEAT<SJA> M6X16	0-52000-616-0	02	1	1411-
639	CLIP; SEAT DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98106-349-0	01	1	1411-1508
639	CLIP; SEAT DRIVER ISRINGHAUSEN SEAT<SJA> (C)	8-98308-100-0	02	1	1509-1511
639	CLIP; SEAT DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (C)	8-98308-100-0	02	1	1512-
639	CLIP; SEAT DRIVER ISRINGHAUSEN SEAT<SJA> (B)	8-98106-350-0	01	1	1411-1508
653	GASKET DRIVER ISRINGHAUSEN SEAT<SJA>	8-98101-901-0	01	1	1411-1511
653	GASKET DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX>	8-98101-901-0	01	1	1512-
654	HOOK; STOPPER DRIVER ISRINGHAUSEN SEAT<SJA>	8-98106-352-0	01	1	1411-1511
654	HOOK; STOPPER DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX>	8-98106-352-0	01	1	1512-
655	BOLT; HOOK DRIVER ISRINGHAUSEN SEAT<SJA>	8-98106-353-0	02	1	1411-1511
655	BOLT; HOOK DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX>	8-98106-353-0	02	1	1512-
656	BOLT; SLIDER TO SEAT DRIVER ISRINGHAUSEN SEAT<SJA> (A)	1-75590-085-0	04	1	1411-1511
656	BOLT; SLIDER TO SEAT DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (A)	1-75590-085-0	04	1	1512-
656	BOLT; SLIDER TO SEAT DRIVER ISRINGHAUSEN SEAT<SJA> (B)	8-98106-354-0	02	1	1411-1511
656	BOLT; SLIDER TO SEAT DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (B)	8-98106-354-0	02	1	1512-
657	BOLT; SLIDER TO STAND DRIVER ISRINGHAUSEN SEAT<SJA>	1-75590-085-0	06	1	1411-1511
657	BOLT; SLIDER TO STAND DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX>	1-75590-085-0	06	1	1512-
658	SPACER; BOLT DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98106-355-0	02	1	1411-1511
658	SPACER; BOLT DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (A)	8-98106-355-0	02	1	1512-
658	SPACER; BOLT DRIVER ISRINGHAUSEN SEAT<SJA> (B)	8-98106-359-0	01	1	1411-1511
658	SPACER; BOLT DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (B)	8-98106-359-0	01	1	1512-
659	STOPPER DRIVER ISRINGHAUSEN SEAT<SJA>	8-98106-356-0	02	1	1411-1511
659	STOPPER DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX>	8-98106-356-0	02	1	1512-
660	BELT; TETHER DRIVER ISRINGHAUSEN SEAT<SJA>	8-98106-357-0	01	1	1411-1511
660	BELT; TETHER DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX>	8-98106-357-0	01	1	1512-

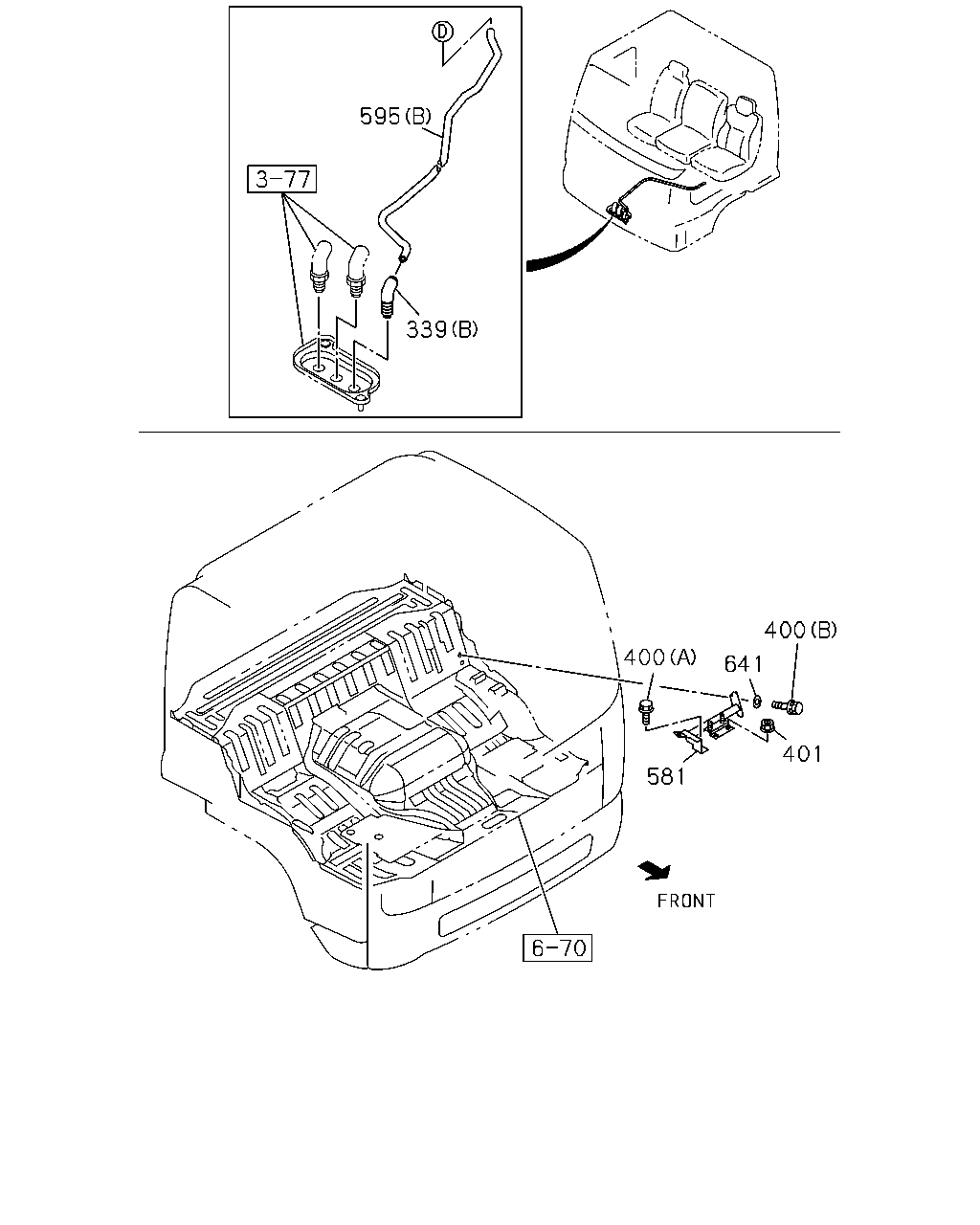

595 339 400 641 400 401 581

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> (A)	1-75538-131-3	01	1	1411-1506
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> (A)	1-75538-131-3	01	1	1510-
339	UNION; DRIVER SEAT (B)	8-98014-971-0	01	1	1411-
400	BOLT; SUPPORT DRIVER ISRINGHAUSEN SEAT<SJA> (A) M8X20 FLANGE	0-28650-820-0	01	1	1411-
400	BOLT; SUPPORT DRIVER ISRINGHAUSEN SEAT<SJA> (B)	8-98098-996-0	02	1	1411-
401	NUT; SUPPORT DRIVER ISRINGHAUSEN SEAT<SJA> M10 FLANGE	0-91180-110-0	02	1	1411-
581	PIPE; SEAT DRIVER ISRINGHAUSEN SEAT<SJA>	8-98049-531-3	01	1	1411-
595	TUBE; NYLON (B)	8-98067-762-0	01	1	1411-
595	TUBE; NYLON DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98106-348-0	01	1	1411-1511
595	TUBE; NYLON DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (A)	8-98106-348-0	01	1	1512-
641	WASHER; SUPPORT DRIVER ISRINGHAUSEN SEAT<SJA>	8-98099-007-0	02	1	1411-

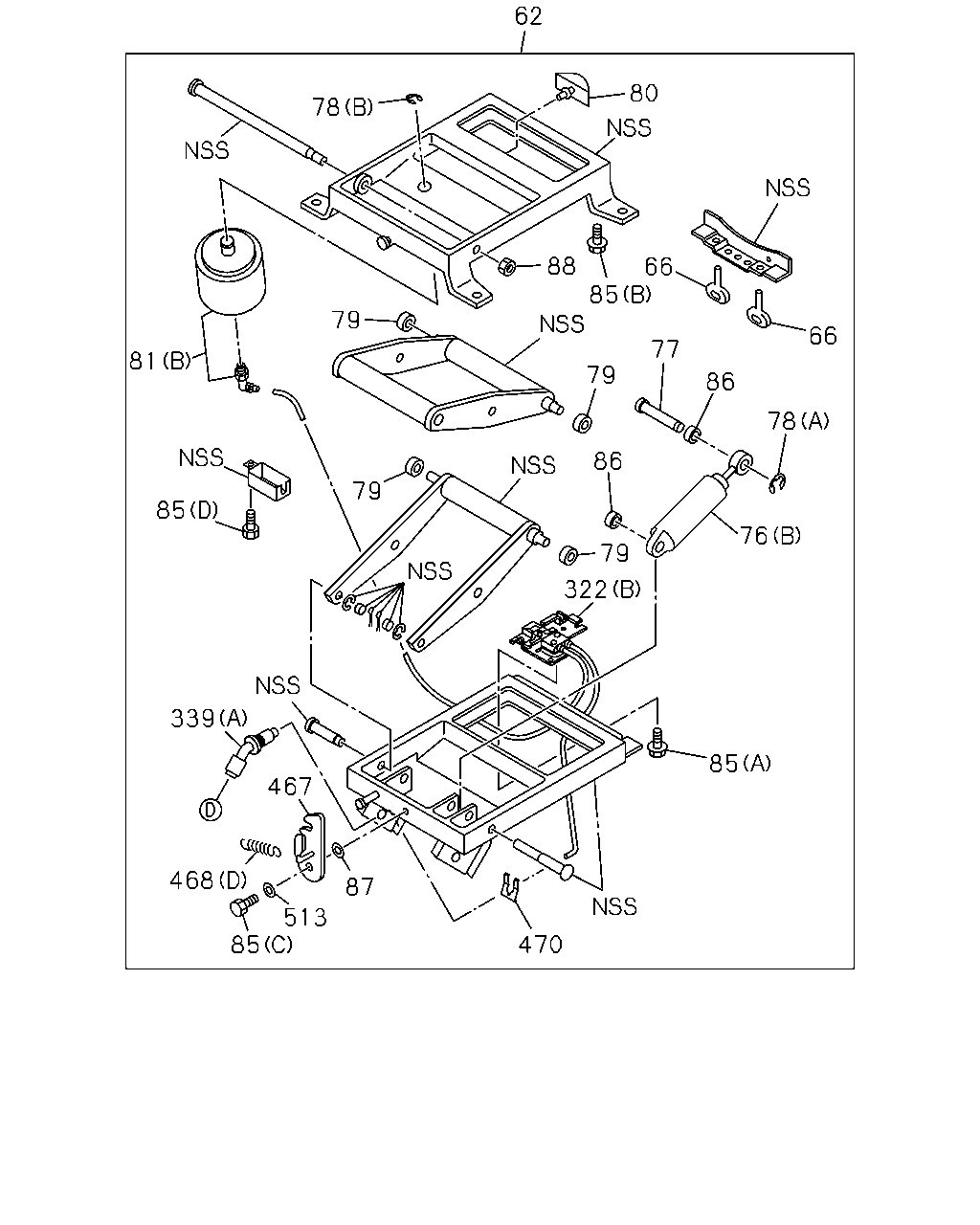

78 79 81 85 79 339 467 468 513 85 87 470 85 322 79 86 79 77 85 88 66 80 62 86 66 78 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	8-98261-451-0	01	1	1411-1506
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	8-98261-451-0	01	1	1510-
66	RUBBER; LWR STOPPER AIR SUSP DRIVER SEAT<A56>	1-75538-145-0	02	1	1411-1506
66	RUBBER; LWR STOPPER AIR SUSP DRIVER SEAT<A56>	1-75538-145-0	02	1	1510-
76	DAMPER; AIR SUSP AIR SUSP DRIVER SEAT<A56> (B)	1-75538-139-0	01	1	1411-1506
76	DAMPER; AIR SUSP AIR SUSP DRIVER SEAT<A56> (B)	1-75538-139-0	01	1	1510-
76	DAMPER; AIR SUSP DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98097-999-0	01	1	1411-1511
76	DAMPER; AIR SUSP DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (A)	8-98097-999-0	01	1	1512-
77	PIN; DAMPER AIR SUSP DRIVER SEAT<A56>	1-75538-138-2	01	1	1411-1506
77	PIN; DAMPER AIR SUSP DRIVER SEAT<A56>	1-75538-138-2	01	1	1510-
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (A) ID=8	9-09185-408-0	01	1	1411-1506
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (A) ID=8	9-09185-408-0	01	1	1510-
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (B) ID=15	9-09185-415-0	01	1	1411-1506
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (B) ID=15	9-09185-415-0	01	1	1510-
78	RING; SNAP DRIVER ISRINGHAUSEN SEAT<SJA> (C)	8-98101-900-0	02	1	1411-1511
78	RING; SNAP DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (C)	8-98101-900-0	02	1	1512-
79	ROLLER ASM; AIR SUSP AIR SUSP DRIVER SEAT<A56>	8-98261-489-0	04	1	1411-1506
79	ROLLER ASM; AIR SUSP AIR SUSP DRIVER SEAT<A56>	8-98261-489-0	04	1	1510-
80	RUBBER; STOPPER AIR SUSP DRIVER SEAT<A56>	1-09987-123-0	01	1	1411-1506
80	RUBBER; STOPPER AIR SUSP DRIVER SEAT<A56>	1-09987-123-0	01	1	1510-
81	SPRING; AIR AIR SUSP DRIVER SEAT<A56> (B)	8-98242-816-0	01	1	1411-1506
81	SPRING; AIR AIR SUSP DRIVER SEAT<A56> (B)	8-98242-816-0	01	1	1510-
81	SPRING; AIR DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98098-000-0	01	1	1411-1511
81	SPRING; AIR DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (A)	8-98098-000-0	01	1	1512-
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (C)	1-09980-577-1	01	1	1411-1506
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (C)	1-09980-577-1	01	1	1510-
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (A) M6X12	1-75538-208-1	02	1	1411-1506
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (A) M6X12	1-75538-208-1	02	1	1510-
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (B) M8X22 W/LK&PL WASHER	1-75538-209-0	02	1	1411-1506
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (B) M8X22 W/LK&PL WASHER	1-75538-209-0	02	1	1510-
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (D) M8X25 W/LK&PL WASHER	8-98243-394-0	01	1	1411-1506
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (D) M8X25 W/LK&PL WASHER	8-98243-394-0	01	1	1510-
86	BUSHING; GUIDE AIR SUSP DRIVER SEAT<A56> OD=6.2 LIGHT GRAY	1-09983-173-1	02	1	1411-1506
86	BUSHING; GUIDE AIR SUSP DRIVER SEAT<A56> OD=6.2 LIGHT GRAY	1-09983-173-1	02	1	1510-
87	WASHER; AIR SUSP AIR SUSP DRIVER SEAT<A56> ID=8.2	0-91510-508-0	01	1	1411-1506
87	WASHER; AIR SUSP AIR SUSP DRIVER SEAT<A56> ID=8.2	0-91510-508-0	01	1	1510-
88	NUT; AIR SUSP AIR SUSP DRIVER SEAT<A56> M10	1-75537-273-1	01	1	1411-1506
88	NUT; AIR SUSP AIR SUSP DRIVER SEAT<A56> M10	1-75537-273-1	01	1	1510-
322	VALVE; AIR SPRING AIR SUSP DRIVER SEAT<A56> (B)	1-75538-187-3	01	1	1411-1506
322	VALVE; AIR SPRING AIR SUSP DRIVER SEAT<A56> (B)	1-75538-187-3	01	1	1510-
322	VALVE; AIR SPRING DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98098-001-0	01	1	1411-1508
322	VALVE; AIR SPRING DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98331-314-0	01	1	1509-1511
322	VALVE; AIR SPRING DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (A)	8-98331-314-0	01	1	1512-
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> (A)	1-75538-131-3	01	1	1411-1506
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> (A)	1-75538-131-3	01	1	1510-
339	UNION; DRIVER SEAT (B)	8-98014-971-0	01	1	1411-
467	LEVER; LOCK AIR SUSP DRIVER SEAT<A56>	1-75538-134-0	01	1	1411-1506
467	LEVER; LOCK AIR SUSP DRIVER SEAT<A56>	1-75538-134-0	01	1	1510-
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (A)	1-75518-206-0	01	1	1411-1506
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (A)	1-75518-206-0	01	1	1510-
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (B)	1-75518-207-0	01	1	1411-1506
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (B)	1-75518-207-0	01	1	1510-
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (C)	1-75518-208-0	02	1	1411-1506
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (C)	1-75518-208-0	02	1	1510-
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (D)	1-75538-132-0	01	1	1411-1506
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (D)	1-75538-132-0	01	1	1510-
470	CLIP; HOSE AIR SUSP DRIVER SEAT<A56>	1-75538-137-0	01	1	1411-1506
470	CLIP; HOSE AIR SUSP DRIVER SEAT<A56>	1-75538-137-0	01	1	1510-
513	SPACER; LEVER AIR SUSP DRIVER SEAT<A56>	1-75538-133-0	01	1	1411-1506
513	SPACER; LEVER AIR SUSP DRIVER SEAT<A56>	1-75538-133-0	01	1	1510-

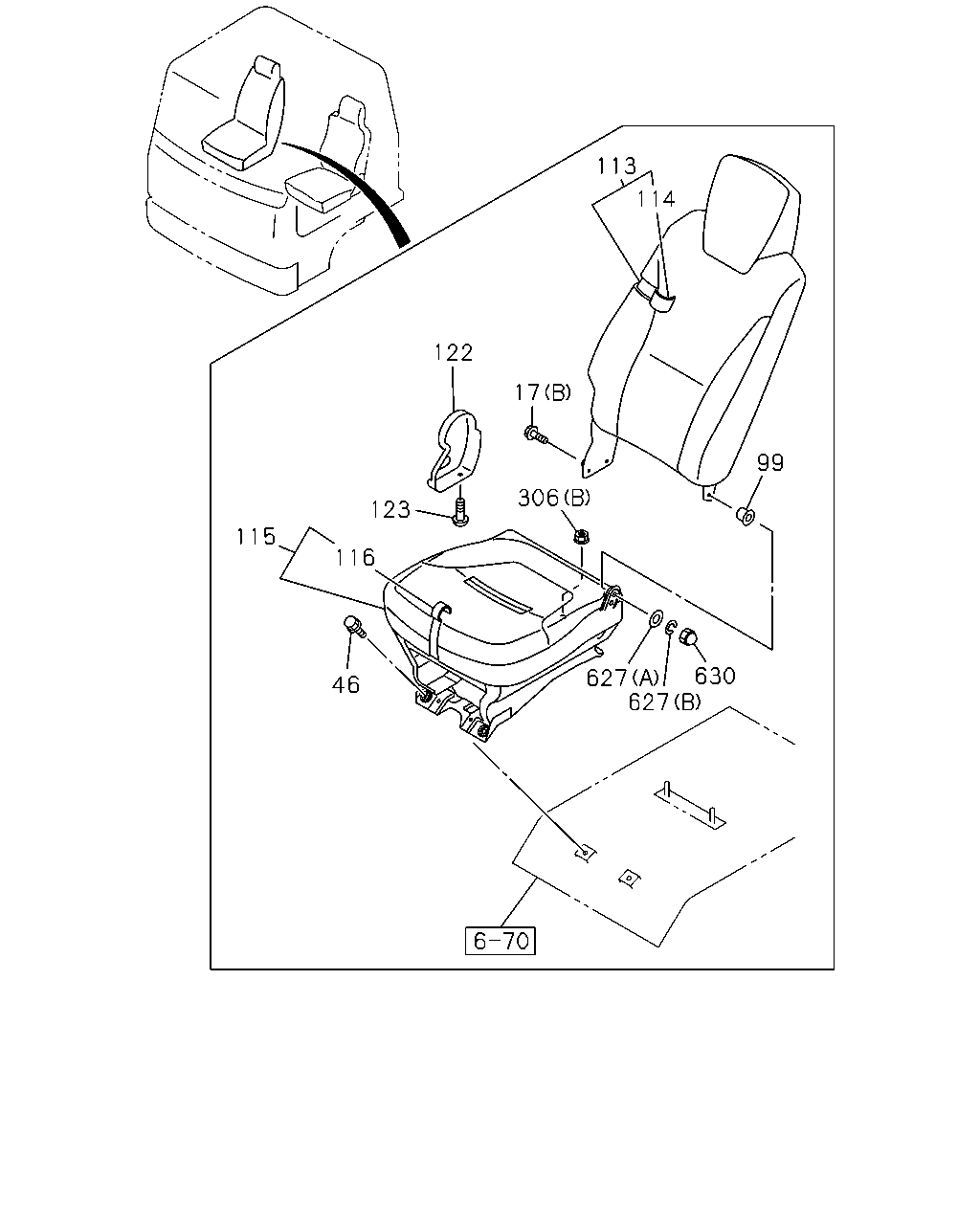

113 122 306 123 116 115 46 627 627 99 17 630 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
17	BOLT; RECLINING AIR SUSP DRIVER SEAT<A56> (A) M10X20	8-98062-661-0	02	1	1411-1506
17	BOLT; RECLINING AIR SUSP DRIVER SEAT<A56> (A) M10X20	8-98062-661-0	02	1	1510-
17	BOLT; RECLINING DRIVER ISRINGHAUSEN SEAT<SJA> (C)	8-98097-974-0	02	1	1411-1511
17	BOLT; RECLINING DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (C)	8-98097-974-0	02	1	1512-
17	BOLT; RECLINING (B) M8X20	8-98092-334-0	02	1	1411-
46	BOLT; STAND TO FLOOR M10X20 FLANGE	0-28451-020-0	02	1	1411-
99	BUSHING; SEAT BACK	8-98112-751-0	01	1	1411-
113	BACK ASM; SEAT DARK GRAY	8-97421-423-0	01	1	1411-
114	COVER; TRIM,PASSENGER SEAT,BACK DARK GRAY	8-97421-425-0	01	1	1411-
115	CUSHION ASM; PASSENGER SEAT DARK GRAY	8-97421-419-1	01	1	1411-
116	COVER; TRIM,PASSENGER SEAT,CUSHION DARK GRAY	8-97421-421-0	01	1	1411-
122	COVER; ADJ,RECLINING GRAY	8-97414-043-0	01	1	1411-
123	SCREW; COVER,RECLINING M5	8-98070-026-0	01	1	1411-
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE	1-75538-207-0	06	1	1411-1506
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE	1-75538-207-0	06	1	1510-
306	NUT; SEAT ADJ (B) M10 FLANGE	0-91180-110-0	02	1	1411-
627	WASHER; FRT SEAT (A)	8-98063-223-0	01	1	1411-
627	WASHER; FRT SEAT (B)	8-98063-224-0	01	1	1411-
630	NUT; CAP M8	8-98063-225-0	01	1	1411-

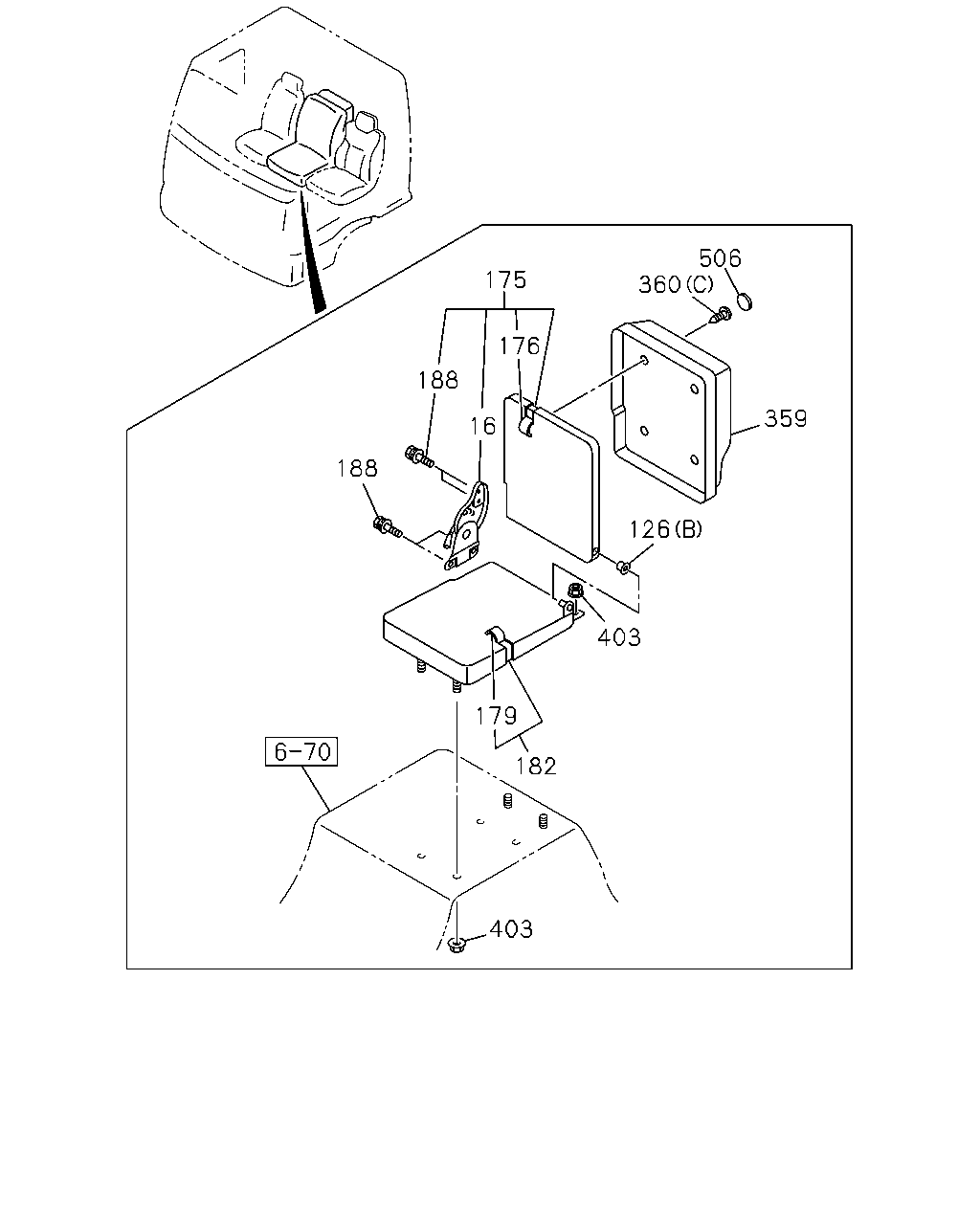

175 176 188 16 188 179 182 403 403 126 359 360 506

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	ADJUSTER ASM; RECLINING SEAT ASM - WITH CENTER SEAT<7BC>	1-75418-062-1	01	1	1411-
126	BUSHING; HINGE,RECLINING AIR SUSP DRIVER SEAT<A56> (A)	8-98063-218-0	01	1	1411-1506
126	BUSHING; HINGE,RECLINING AIR SUSP DRIVER SEAT<A56> (A)	8-98063-218-0	01	1	1510-1512
126	BUSHING; HINGE,RECLINING AIR SUSP DRIVER SEAT<A56> (A)	8-98286-007-0	01	1	1601-
126	BUSHING; HINGE,RECLINING SEAT ASM - WITH CENTER SEAT<7BC> (B)	8-97854-900-0	01	1	1411-
175	BACK ASM; PASSENGER CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97421-434-1	01	1	1411-
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97421-435-1	01	1	1411-
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97421-433-1	01	1	1411-
182	CUSHION ASM; CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97421-431-3	01	1	1411-
188	BOLT; BACK TO CUSHION SEAT ASM - WITH CENTER SEAT<7BC> M10X16 FLANGE	1-75198-053-0	04	1	1411-
359	BOX; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97417-261-0	01	1	1411-
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16	0-70040-416-0	06	1	1411-
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (A) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1411-
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (C) M5	8-98062-663-0	04	1	1411-
403	NUT; CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> M8 FLANGE	0-91180-108-0	04	1	1411-
506	CAP; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97409-980-1	02	1	1411-

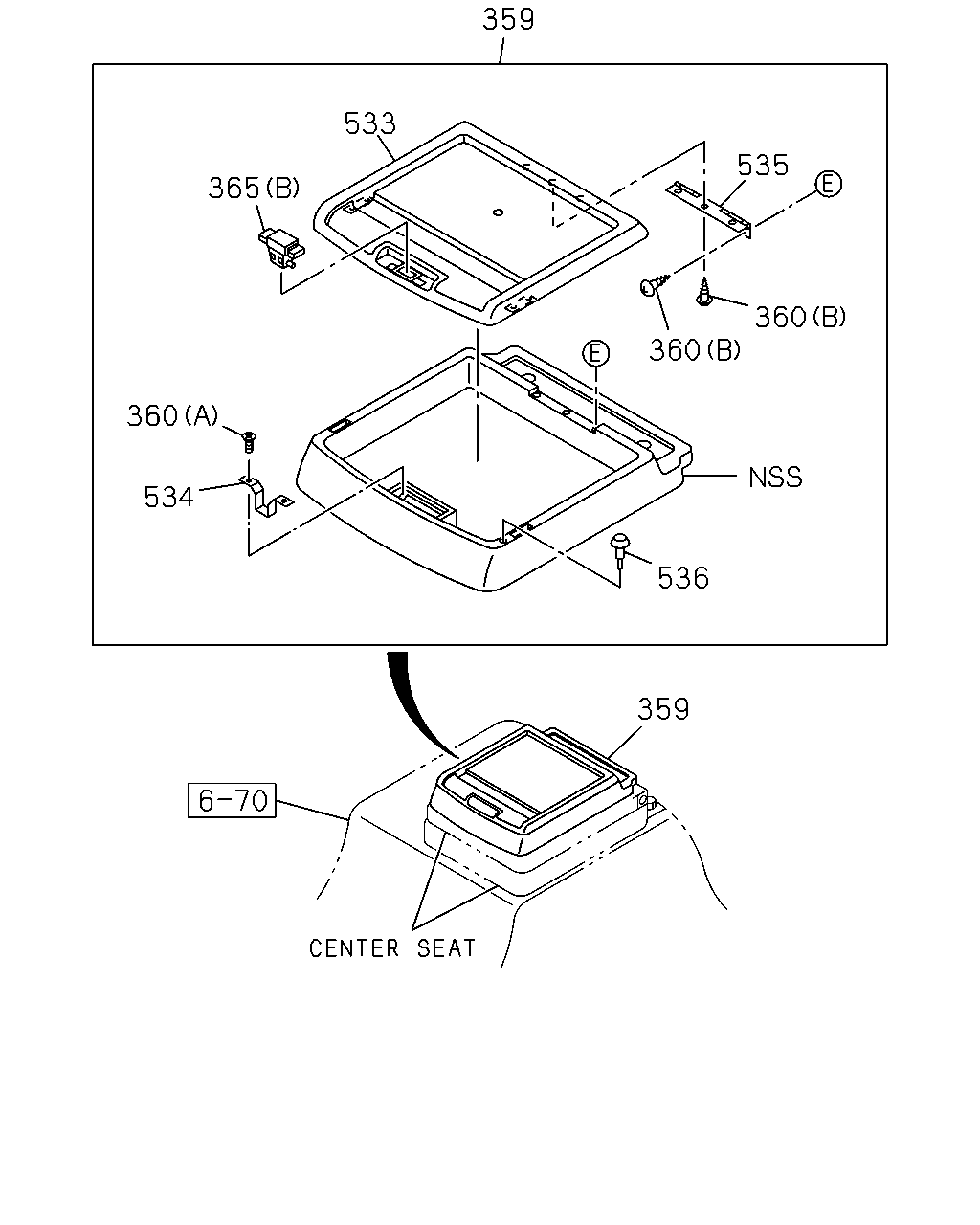

359 533 365 360 534 360 535 360 536 359

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
359	BOX; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97417-261-0	01	1	1411-
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16	0-70040-416-0	06	1	1411-
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (A) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1411-
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (C) M5	8-98062-663-0	04	1	1411-
365	LOCK ASM; SEAT DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98097-972-0	01	1	1411-1511
365	LOCK ASM; SEAT DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (A)	8-98097-972-0	01	1	1512-
365	LOCK ASM; SEAT SEAT ASM - WITH CENTER SEAT<7BC> (B)	1-72538-312-0	01	1	1411-
533	LID; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97417-263-0	01	1	1411-
534	STRIKER; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC>	1-72538-190-0	01	1	1411-
535	HINGE; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC>	1-72447-391-1	01	1	1411-
536	RUBBER; CUSHION SEAT ASM - WITH CENTER SEAT<7BC>	1-72538-187-0	02	1	1411-

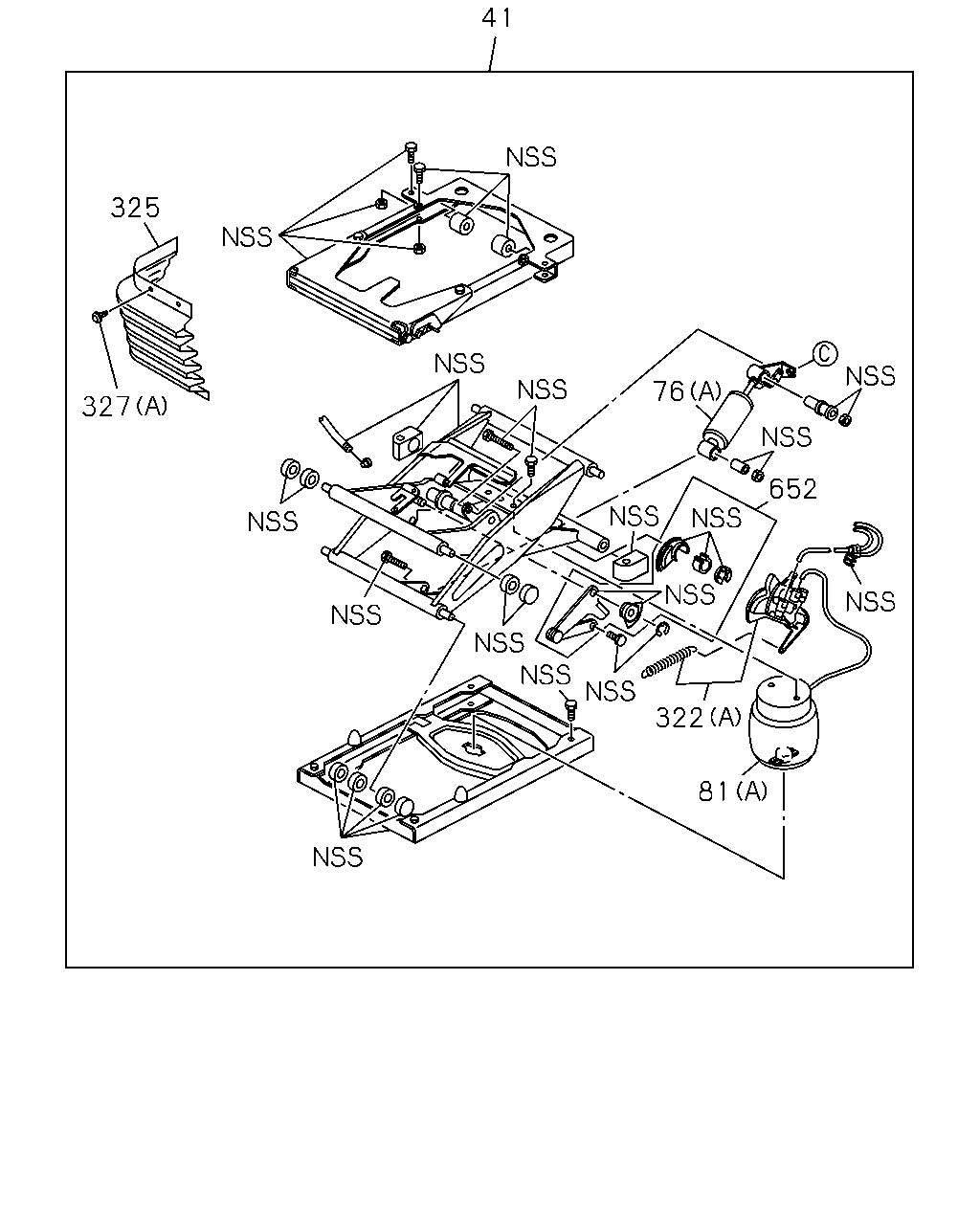

41 325 327 322 81 652 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
41	SEAT ASM; DRIVER DRIVER ISRINGHAUSEN SEAT<SJA>	8-98195-065-1	01	1	1411-1511
41	SEAT ASM; DRIVER DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX>	8-98195-065-1	01	1	1512-
76	DAMPER; AIR SUSP AIR SUSP DRIVER SEAT<A56> (B)	1-75538-139-0	01	1	1411-1506
76	DAMPER; AIR SUSP AIR SUSP DRIVER SEAT<A56> (B)	1-75538-139-0	01	1	1510-
76	DAMPER; AIR SUSP DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98097-999-0	01	1	1411-1511
76	DAMPER; AIR SUSP DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (A)	8-98097-999-0	01	1	1512-
81	SPRING; AIR AIR SUSP DRIVER SEAT<A56> (B)	8-98242-816-0	01	1	1411-1506
81	SPRING; AIR AIR SUSP DRIVER SEAT<A56> (B)	8-98242-816-0	01	1	1510-
81	SPRING; AIR DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98098-000-0	01	1	1411-1511
81	SPRING; AIR DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (A)	8-98098-000-0	01	1	1512-
322	VALVE; AIR SPRING AIR SUSP DRIVER SEAT<A56> (B)	1-75538-187-3	01	1	1411-1506
322	VALVE; AIR SPRING AIR SUSP DRIVER SEAT<A56> (B)	1-75538-187-3	01	1	1510-
322	VALVE; AIR SPRING DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98098-001-0	01	1	1411-1508
322	VALVE; AIR SPRING DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98331-314-0	01	1	1509-1511
322	VALVE; AIR SPRING DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (A)	8-98331-314-0	01	1	1512-
325	COVER; SUSPENSION DEVICE DRIVER ISRINGHAUSEN SEAT<SJA>	8-98098-003-0	01	1	1411-1511
325	COVER; SUSPENSION DEVICE DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX>	8-98098-003-0	01	1	1512-
327	CLIP; COVER DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98098-004-0	01	1	1411-1511
327	CLIP; COVER DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (A)	8-98098-004-0	01	1	1512-
327	CLIP; COVER AIR SUSP DRIVER SEAT<A56> (B)	1-09987-273-0	01	1	1411-
652	LOCK ASM; HEIGHT DRIVER ISRINGHAUSEN SEAT<SJA>	8-98098-002-0	01	1	1411-1511
652	LOCK ASM; HEIGHT DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX>	8-98098-002-0	01	1	1512-

1 2 126 100 348 13 12 74 327 67 69 62 633 518 290 228 24 17 18 19 107

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BACK ASM; SEAT DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98097-962-0	01	1	1411-1511
1	BACK ASM; SEAT DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (A)	8-98097-962-0	01	1	1512-
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97421-408-1	01	1	1411-1506
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97421-408-1	01	1	1510-1512
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97466-623-0	01	1	1601-
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97421-413-0	01	1	1411-1506
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97421-413-0	01	1	1510-
2	COVER; TRIM,FRT SEAT,BACK DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98232-352-0	01	1	1411-1511
2	COVER; TRIM,FRT SEAT,BACK DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (A)	8-98232-352-0	01	1	1512-
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97421-400-1	01	1	1411-1506
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97421-400-2	01	1	1510-1512
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97466-613-0	01	1	1601-
12	CUSHION; SEAT,FRT DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98098-006-0	01	1	1411-1511
12	CUSHION; SEAT,FRT DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (A)	8-98098-006-0	01	1	1512-
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97421-404-1	01	1	1411-1506
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97421-404-2	01	1	1510-
13	COVER; TRIM,FRT SEAT,CUSHION DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98098-007-0	01	1	1411-1511
13	COVER; TRIM,FRT SEAT,CUSHION DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (A)	8-98098-007-0	01	1	1512-
17	BOLT; RECLINING AIR SUSP DRIVER SEAT<A56> (A) M10X20	8-98062-661-0	02	1	1411-1506
17	BOLT; RECLINING AIR SUSP DRIVER SEAT<A56> (A) M10X20	8-98062-661-0	02	1	1510-
17	BOLT; RECLINING DRIVER ISRINGHAUSEN SEAT<SJA> (C)	8-98097-974-0	02	1	1411-1511
17	BOLT; RECLINING DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (C)	8-98097-974-0	02	1	1512-
17	BOLT; RECLINING (B) M8X20	8-98092-334-0	02	1	1411-
18	COVER; RECLINING AIR SUSP DRIVER SEAT<A56> GRAY	8-97409-361-0	01	1	1411-1506
18	COVER; RECLINING AIR SUSP DRIVER SEAT<A56> GRAY	8-97409-361-0	01	1	1510-
19	SCREW; COVER AIR SUSP DRIVER SEAT<A56> M5	8-98062-663-0	01	1	1411-1506
19	SCREW; COVER AIR SUSP DRIVER SEAT<A56> M5	8-98062-663-0	01	1	1510-
24	KNOB; RECLINING,FRT,SEAT AIR SUSP DRIVER SEAT<A56> GRAY	8-97409-362-0	01	1	1411-1506
24	KNOB; RECLINING,FRT,SEAT AIR SUSP DRIVER SEAT<A56> GRAY	8-97409-362-0	01	1	1510-
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	8-98261-451-0	01	1	1411-1506
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	8-98261-451-0	01	1	1510-
67	BOLT; FRT SEAT TO BODY M10X20 FLANGE	0-28451-020-0	02	1	1411-
69	NUT; FRT SEAT M10 FLANGE	0-91180-110-0	02	1	1411-
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56>	8-98093-429-0	01	1	1411-1502
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56>	8-98291-641-0	01	1	1503-1506
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56>	8-98291-641-0	01	1	1510-
100	COVER; HINGE AIR SUSP DRIVER SEAT<A56>	8-98203-070-0	01	1	1411-1506
100	COVER; HINGE AIR SUSP DRIVER SEAT<A56>	8-98203-070-0	01	1	1510-1512
100	COVER; HINGE AIR SUSP DRIVER SEAT<A56>	8-98286-009-0	01	1	1601-
107	DIAL; SEAT RECLINING AIR SUSP DRIVER SEAT<A56>	8-98063-174-0	01	1	1411-1506
107	DIAL; SEAT RECLINING AIR SUSP DRIVER SEAT<A56>	8-98063-174-0	01	1	1510-
126	BUSHING; HINGE,RECLINING AIR SUSP DRIVER SEAT<A56> (A)	8-98063-218-0	01	1	1411-1506
126	BUSHING; HINGE,RECLINING AIR SUSP DRIVER SEAT<A56> (A)	8-98063-218-0	01	1	1510-1512
126	BUSHING; HINGE,RECLINING AIR SUSP DRIVER SEAT<A56> (A)	8-98286-007-0	01	1	1601-
126	BUSHING; HINGE,RECLINING SEAT ASM - WITH CENTER SEAT<7BC> (B)	8-97854-900-0	01	1	1411-
228	SCREW; KNOB AIR SUSP DRIVER SEAT<A56> M4	8-98062-662-0	01	1	1411-1506
228	SCREW; KNOB AIR SUSP DRIVER SEAT<A56> M4	8-98062-662-0	01	1	1510-
290	NUT; ADJ TO SUSP AIR SUSP DRIVER SEAT<A56> M8 FLANGE	1-75538-207-0	04	1	1411-1506
290	NUT; ADJ TO SUSP AIR SUSP DRIVER SEAT<A56> M8 FLANGE	1-75538-207-0	04	1	1510-
327	CLIP; COVER DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98098-004-0	01	1	1411-1511
327	CLIP; COVER DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (A)	8-98098-004-0	01	1	1512-
327	CLIP; COVER AIR SUSP DRIVER SEAT<A56> (B)	1-09987-273-0	01	1	1411-
348	BOLT; HINGE,SEAT AIR SUSP DRIVER SEAT<A56>	8-98286-008-0	01	1	1601-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (A)	1-75518-263-0	01	1	1411-1506
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (A)	1-75518-263-0	01	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (C) M8	1-75518-264-0	04	1	1411-1506
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (C) M8	1-75518-264-0	04	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (E) M8 FLANGE	1-75538-207-0	04	1	1411-1506
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (E) M8 FLANGE	1-75538-207-0	04	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (D) M6 LOCK NUT	5-09984-020-0	02	1	1411-1506
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (D) M6 LOCK NUT	5-09984-020-0	02	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (B) M8 FLANGE	8-94152-886-0	04	1	1411-1506
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (B) M8 FLANGE	8-94152-886-0	04	1	1510-
633	COVER; ADJ,TILT AIR SUSP DRIVER SEAT<A56> GRAY	8-97414-118-0	01	1	1411-1506
633	COVER; ADJ,TILT AIR SUSP DRIVER SEAT<A56> GRAY	8-97414-118-0	01	1	1510-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
