◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11627 - FRR LHD EUROPE EURO6 SPACECAB EVSC ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#152314) — 122 parça

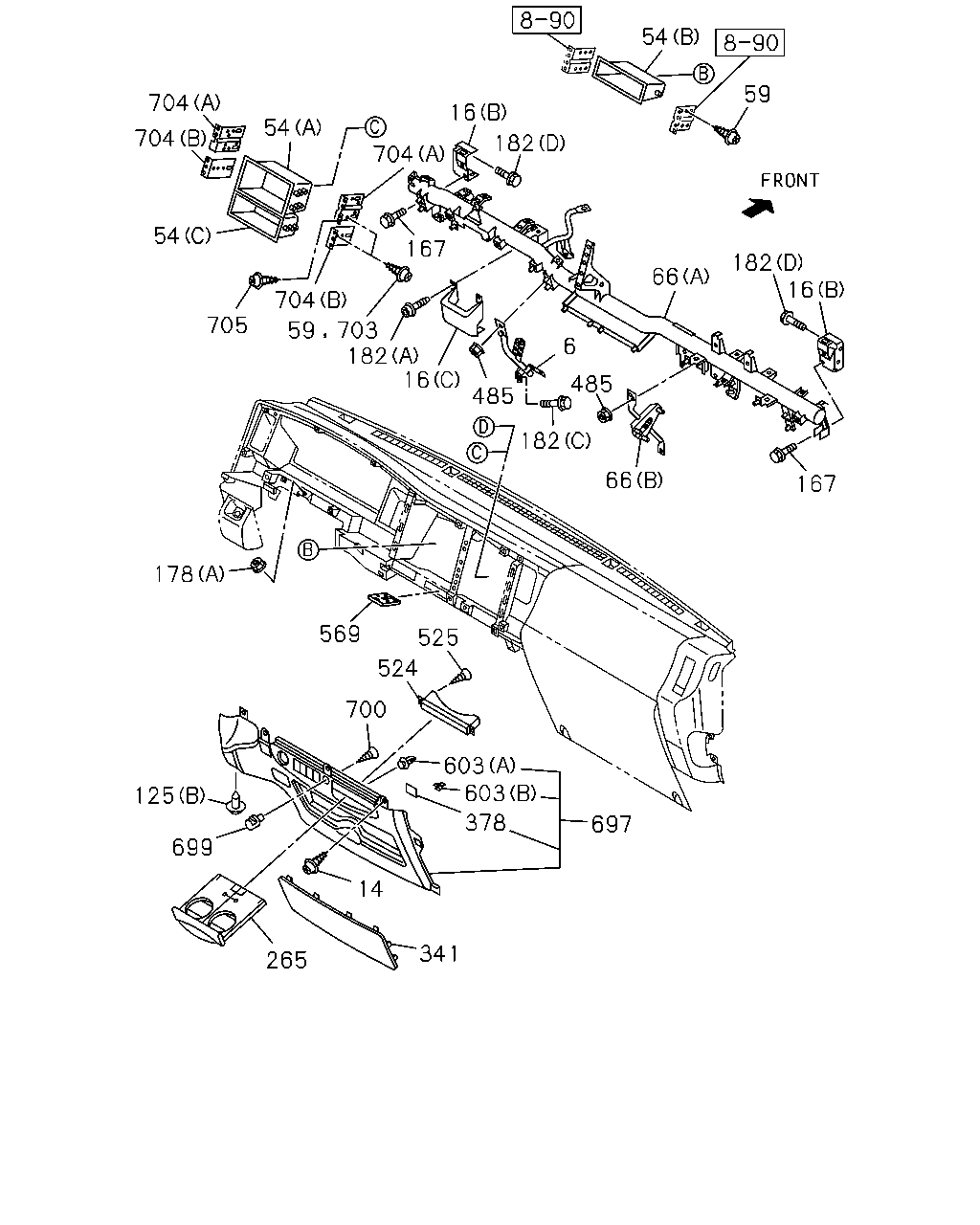

çizim 455638
704 704 54 705 704 59 703 182 16 485 182 66 485 6 167 704 54 16 182 54 59 182 66 16 167 525 524 700 569 178 125 699 14 341 265 603 603 378 697
BalonParca AdiParca NoAdetTipApplied Date
6 SUPPORT; INST PANEL 8-98064-936-1 01 1 1411-
14 SCREW; INST PNL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1411-
16 BRACKET; INST PNL
(A) 		8-97585-612-2 01 1 1411-
16 BRACKET; INST PNL
(D) 		8-98017-527-0 01 1 1411-
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 1411-
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 1411-
16 BRACKET; INST PNL
(C) 		8-98063-326-0 01 1 1411-
53 STRIKER; GLOVE BOX
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98270-765-0 01 1 1411-
54 POCKET; CENTER CLUSTER
(A) H=108.4 BLACK 		8-97407-129-3 01 1 1411-
54 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-3 01 1 1411-
54 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-3 01 1 1411-
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1411-
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1411-
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER(AJ3) (A) 		8-98248-349-0 01 1 1411-
66 REINFORCEMENT; INST PANEL
(B) 		8-98082-466-1 01 1 1411-
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98253-177-0 01 1 1411-
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 1411-
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1411-
125 CLIP; INST PANEL
(C) 		8-98021-271-0 02 1 1411-
167 BOLT; REINF TO INST
M8X23 FLANGE 		8-97264-766-0 04 1 1411-
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 1411-
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 1411-
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1411-
182 BOLT; BRKT,INST PANEL
(B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1411-
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 1411-
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1411-
265 HOLDER; CUP
GRAY 		8-97418-528-0 01 1 1411-
341 LID; FUSE BOX
GRAY 		8-97422-209-0 01 1 1411-
378 SEAL; INST PANEL
5X30 		8-98176-199-0 01 1 1411-
485 NUT; SUPPORT CLIP,HARNESS
M6 FLANGE 		0-91180-106-0 04 1 1411-
524 STAND ASM; CUP,INST 8-98054-414-0 01 1 1411-
525 SCREW; CUP STAND
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1411-
569 HOLDER; CARD 8-97410-276-1 01 1 1411-
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 1411-
603 CLIP; COVER
(B) 		8-98021-271-0 01 1 1411-
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 1411-
603 CLIP; COVER
(C) 		8-98162-058-1 02 1 1411-
603 CLIP; COVER
(D) 		8-98167-222-0 02 1 1411-
697 PANEL; INST CENTER
GRAY 		8-97422-208-1 01 1 1411-
699 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 1411-
700 BOLT; HOOK
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1411-
703 SCREW; CENTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1411-
704 BRACKET; CENTER POCKET
(B) 		8-97585-616-2 02 1 1411-
704 BRACKET; CENTER POCKET
(A) 		8-97585-618-2 02 1 1411-
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 08 1 1411-

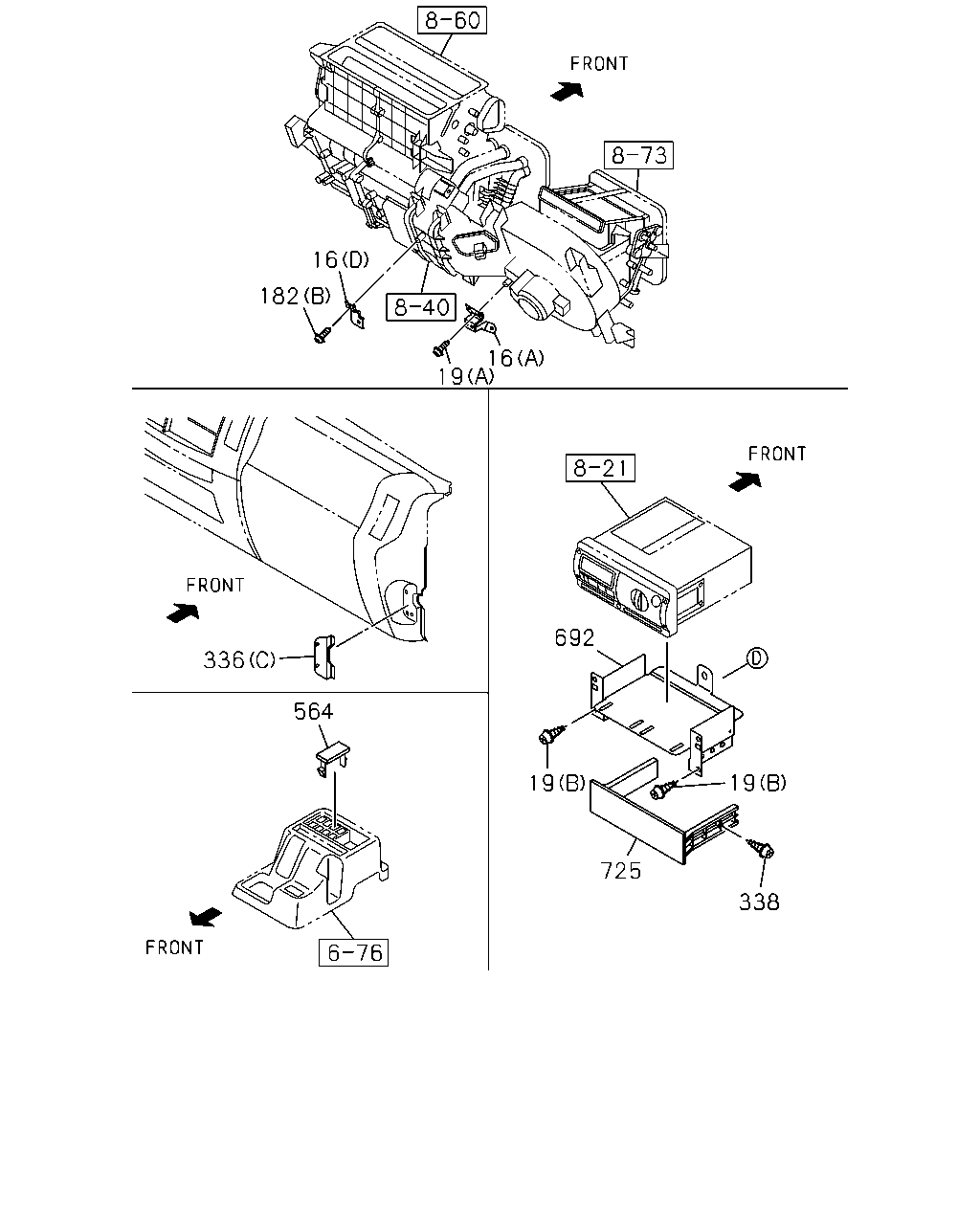

çizim 455745
16 182 16 19 336 564 692 19 19 725 338
BalonParca AdiParca NoAdetTipApplied Date
16 BRACKET; INST PNL
(A) 		8-97585-612-2 01 1 1411-
16 BRACKET; INST PNL
(D) 		8-98017-527-0 01 1 1411-
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 1411-
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 1411-
16 BRACKET; INST PNL
(C) 		8-98063-326-0 01 1 1411-
19 SCREW; BRKT
(A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1411-
19 SCREW; BRKT
(B) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1411-1511
19 SCREW; BRKT
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. KD PREPARATORY PACK<6HF> (B) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1512-
19 SCREW; BRKT
KD PREPARATORY PACK<6HF> TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> (B) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1512-
53 STRIKER; GLOVE BOX
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98270-765-0 01 1 1411-
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1411-
182 BOLT; BRKT,INST PANEL
(B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1411-
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 1411-
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1411-
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97409-779-0 01 1 1411-
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97409-780-3 01 1 1411-
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97411-635-2 01 1 1411-
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97424-712-0 01 1 1411-
338 SCREW; COVER
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1411-1511
338 SCREW; COVER
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. KD PREPARATORY PACK<6HF> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1512-
338 SCREW; COVER
KD PREPARATORY PACK<6HF> TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1512-
564 COVER; SW 8-97043-732-1 06 1 1411-
692 BRACKET; TACHOGRAPH 8-98094-272-0 01 1 1411-1511
692 BRACKET; TACHOGRAPH
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. KD PREPARATORY PACK<6HF> 		8-98094-272-0 01 1 1512-
692 BRACKET; TACHOGRAPH
KD PREPARATORY PACK<6HF> TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> 		8-98094-272-0 01 1 1512-
725 COVER; TACHOGRAPH
BLACK 		8-97407-896-2 01 1 1411-1511
725 COVER; TACHOGRAPH
KD PREPARATORY PACK<6HF> TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> BLACK 		8-97407-896-2 01 1 1512-
725 COVER; TACHOGRAPH
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. KD PREPARATORY PACK<6HF> BLACK 		8-97407-896-2 01 1 1512-

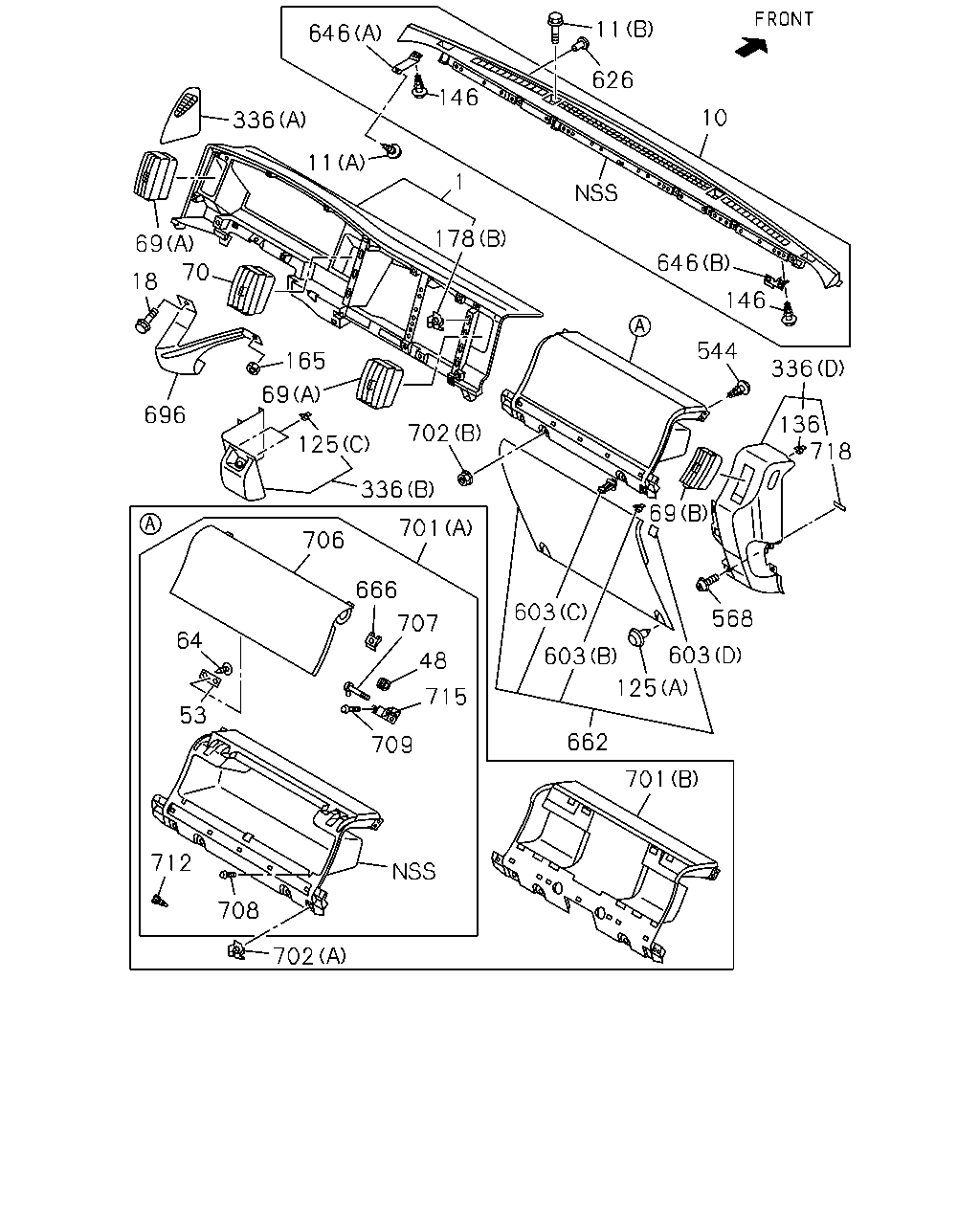

çizim 455882
336 11 1 178 646 146 626 11 10 646 146 544 136 718 336 69 18 70 696 165 69 125 336 701 702 706 666 707 48 715 709 64 63 712 708 702 662 701 125 603 568 69 603 603
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; INST
GRAY 		8-97409-777-3 01 1 1411-
10 PANEL ASM; GARNISH
GRAY 		8-97422-096-1 01 1 1411-
11 BOLT; INST PNL
(A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 1411-
11 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 1411-
18 BOLT; BRKT
M6X12 W/LK&PL WASHER 		0-52000-612-0 01 1 1411-
48 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98270-763-0 01 1 1411-
48 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98270-764-0 01 1 1411-
53 STRIKER; GLOVE BOX
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98270-765-0 01 1 1411-
64 SCREW; STRIKER
EXC. AIR BAG DRIVER & PASSENGER(AK5) M4X85 		8-97926-404-0 02 1 1411-
69 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 1411-
69 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-563-2 02 1 1411-
70 GRILLE; CENTER,AIR OUTLET 8-98028-561-2 01 1 1411-
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 1411-
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1411-
125 CLIP; INST PANEL
(C) 		8-98021-271-0 02 1 1411-
136 CLIP; INST COVER 8-98076-254-0 02 1 1411-
146 SCREW; TAP
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1411-
165 NUT; BRKT KNEE PAD
M6 FLANGE 		0-91180-106-0 01 1 1411-
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 1411-
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 1411-
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97409-779-0 01 1 1411-
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97409-780-3 01 1 1411-
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97411-635-2 01 1 1411-
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97424-712-0 01 1 1411-
544 SCREW; TRAY
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1411-
568 BOLT; COVER
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1411-
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 1411-
603 CLIP; COVER
(B) 		8-98021-271-0 01 1 1411-
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 1411-
603 CLIP; COVER
(C) 		8-98162-058-1 02 1 1411-
603 CLIP; COVER
(D) 		8-98167-222-0 02 1 1411-
626 RETAINER
OD=15 BLACK 		8-94279-804-0 02 1 1411-
646 BRACKET; GARNISH PANEL
(A) 		8-98066-952-1 01 1 1411-
646 BRACKET; GARNISH PANEL
(B) 		8-98066-953-1 01 1 1411-
662 COVER; LWR,INST PANEL
GRAY 		8-97419-960-2 01 1 1411-
666 INSERT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER(AK5) M5 		8-97926-400-0 04 1 1411-
696 BRACKET; KNEE 8-98098-126-1 01 1 1411-
701 TRAY; INST
AIR BAG DRIVER & PASSENGER(AK5) (B) GRAY 		8-97417-196-2 01 1 1411-
701 TRAY; INST
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) GRAY 		8-97429-703-1 01 1 1411-
702 NUT; TRAY
(B) M6 FLANGE 		0-91180-106-0 02 1 1411-
702 NUT; TRAY
(A) 		8-98037-629-0 01 1 1411-
706 LID; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97429-992-0 01 1 1411-
707 SHAFT; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-393-0 02 1 1411-
708 STOPPER; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98010-867-1 02 1 1411-
709 SCREW; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER(AK5) M5X16 TAPPING 		0-71040-516-0 04 1 1411-
712 LOCK; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98031-846-0 01 1 1411-
715 SUPPORT; TRAY,HINGE
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-396-0 01 1 1411-
715 SUPPORT; TRAY,HINGE
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-397-0 01 1 1411-
718 SEAL; COVER
4X35 		8-98185-153-0 01 1 1411-
