◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11627 - FRR LHD EUROPE EURO6 SPACECAB EVSC ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#152311) — 12 parça
çizim 455428
35 49 9 6
BalonParca AdiParca NoAdetTipApplied Date
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10> 		8-98082-437-0 01 1 1411-
9 PLATE; NAME,SPD RANGE
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98269-247-0 01 1 1411-
9 PLATE; NAME,SPD RANGE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98269-246-0 01 1 1411-
35 PLATE; CAUTION,CAB 8-98065-363-0 01 1 1411-
49 PLATE; CAUTION,FUSE BOX 8-98223-112-0 01 1 1411-

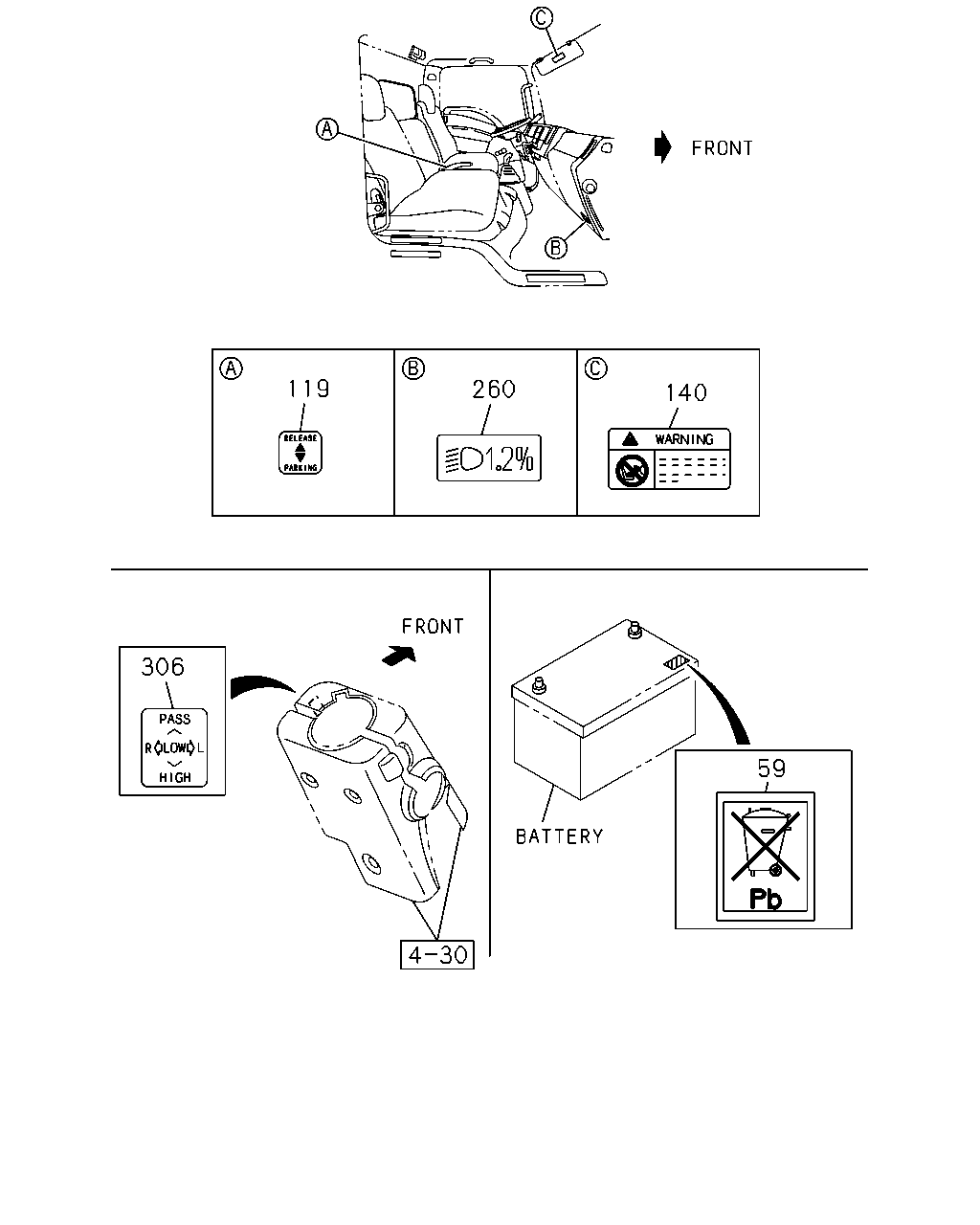

çizim 455508
119 260 140 306 59
BalonParca AdiParca NoAdetTipApplied Date
59 PLATE; CAUTION,BATTERY
10 PER 1 SHEET 		8-97116-760-0 02 1 1411-1511
59 PLATE; CAUTION,BATTERY
EXC. KD PREPARATORY PACK<6HF> 10 PER 1 SHEET 		8-97116-760-0 02 1 1512-
119 PLATE; CAUTION,HAND BRK LEVER 1-85881-759-0 01 1 1411-
140 PLATE; CAUTION,SRS
AIR BAG DRIVER & PASSENGER(AK5) 		8-98080-839-0 02 1 1411-
260 PLATE; CAUTION,HEAD LAMP LEVELING 1-85878-416-1 01 1 1411-
306 LABEL; BEAM & PASS 8-98070-239-0 01 1 1411-

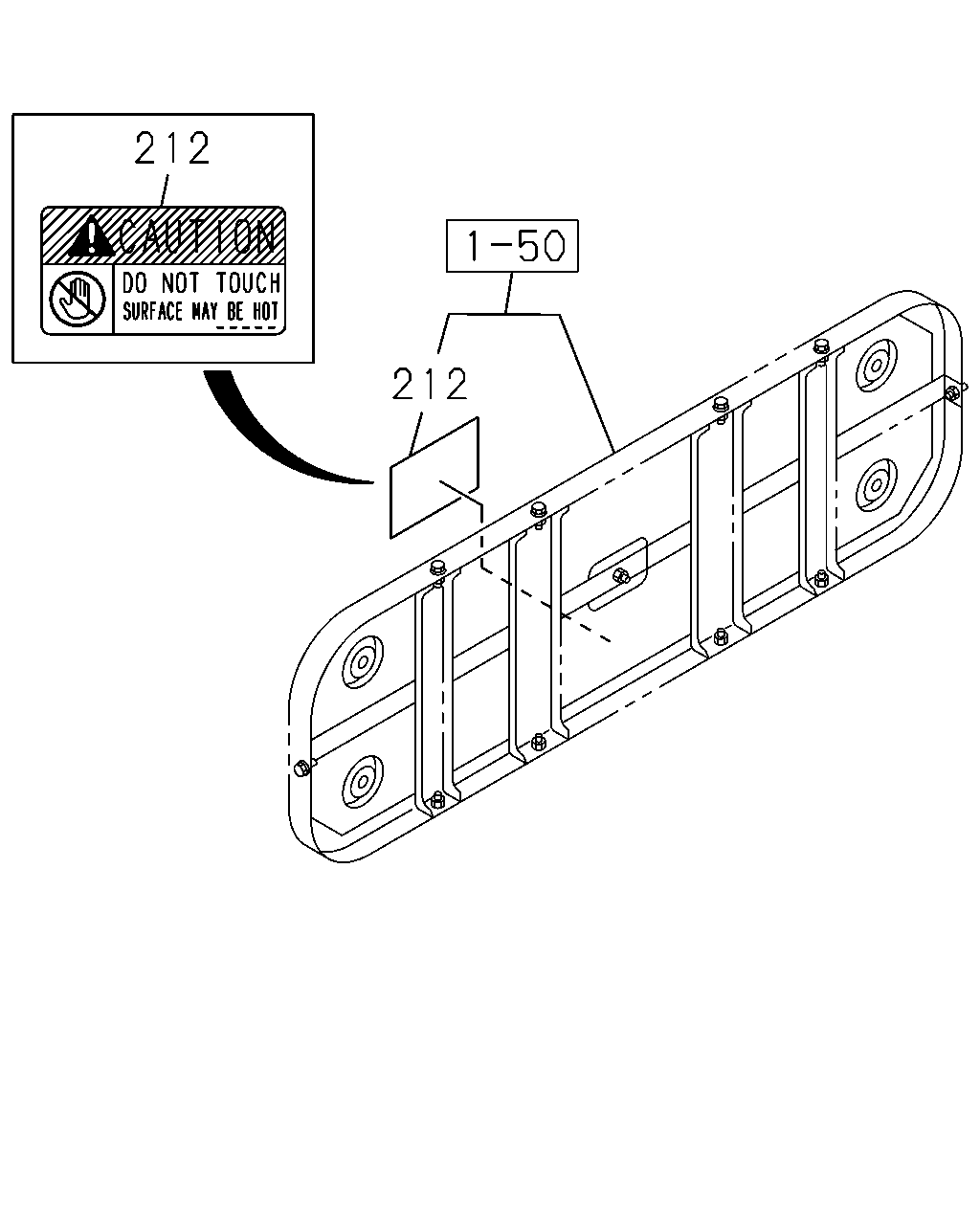

çizim 498416
212 212
BalonParca AdiParca NoAdetTipApplied Date
212 LABEL; SAFETY 8-98236-285-0 01 1 1411-
