◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11627 - FRR LHD EUROPE EURO6 SPACECAB EVSC ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#152302) — 58 parça

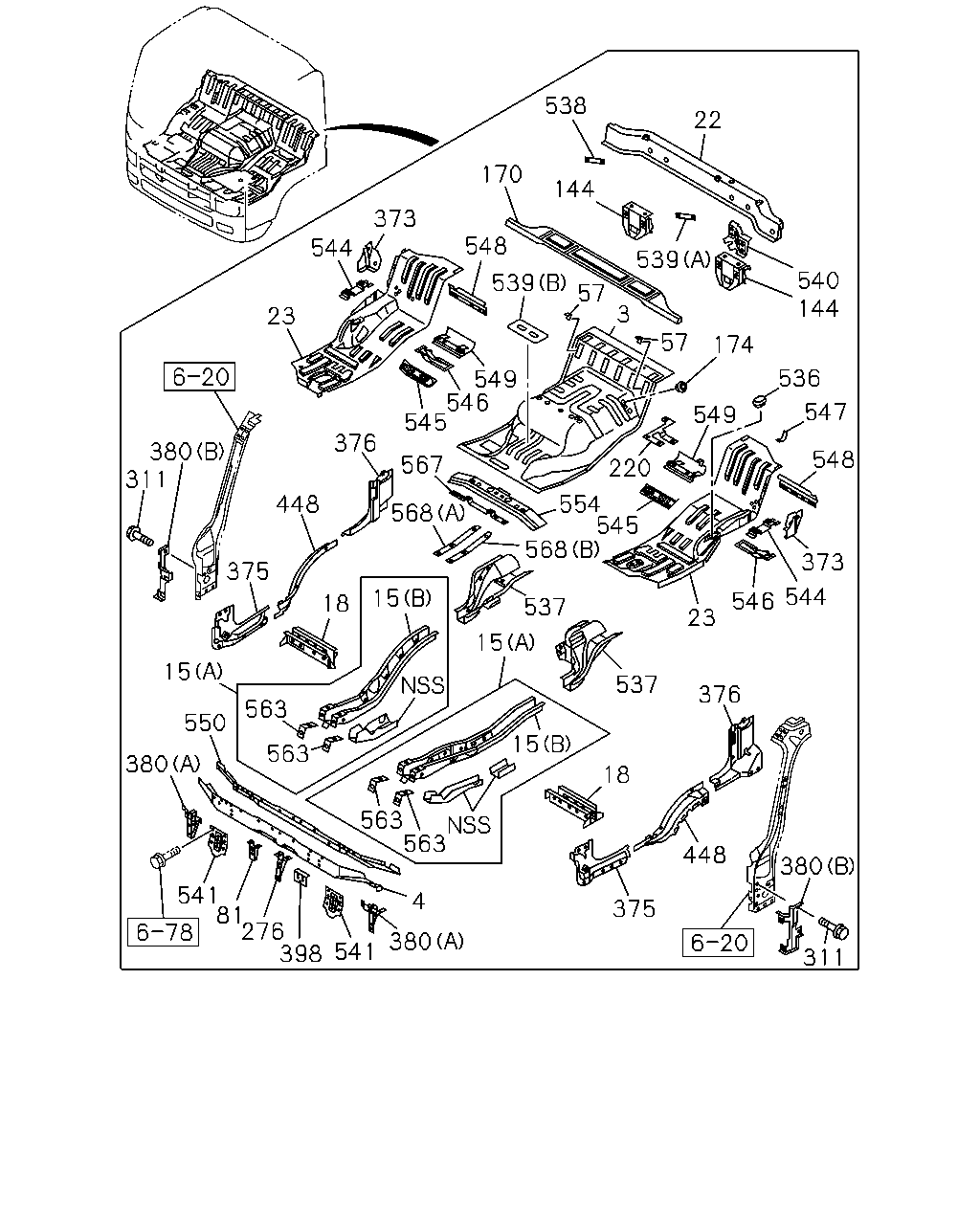

çizim 455534
538 22 539 174 144 540 536 547 548 373 544 546 23 376 537 18 448 380 311 375 15 15 537 568 554 545 220 549 57 3 57 539 548 170 144 373 544 23 376 545 546 549 448 380 311 375 18 563 563 563 563 550 15 380 541 81 276 398 541 380 4 15 568 567
BalonParca AdiParca NoAdetTipApplied Date
3 HOOD ASM; ENG
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98066-819-4 01 1 1411-
3 HOOD ASM; ENG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98269-600-0 01 1 1411-
4 FRAME; FLOOR,FRT 8-98077-806-1 01 1 1411-
15 FRAME; UNDER
(A) 		8-97584-387-9 01 1 1411-
15 FRAME; UNDER
(B) 		8-97584-388-9 01 1 1411-
15 FRAME; UNDER
(A) 		8-97584-411-9 01 1 1411-
15 FRAME; UNDER
(B) 		8-97584-412-7 01 1 1411-
18 FRAME; FLOOR,CENTER SIDE 8-97584-420-4 01 1 1411-
18 FRAME; FLOOR,CENTER SIDE 8-98017-380-2 01 1 1411-
22 FRAME; FLOOR REAR 8-97584-430-5 01 1 1411-
23 PANEL; FLOOR,SIDE 8-98017-358-5 01 1 1411-
23 PANEL; FLOOR,SIDE 8-98080-738-0 01 1 1411-
57 BRACKET; SPARE TIRE 8-98038-970-1 02 1 1411-
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 1411-
144 BRACKET; MTG,RR 8-97584-432-6 01 1 1411-
144 BRACKET; MTG,RR 8-97589-666-6 01 1 1411-
170 EXTENSION; RR FLOOR 8-97589-204-3 01 1 1411-
174 GROMMET; AIR PIPE
OD=35 		8-94122-971-0 01 1 1411-
220 PATCH 8-97589-704-0 01 1 1411-
276 BRACKET; RAD GRILLE 8-98253-712-0 01 1 1411-
311 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 04 1 1411-
373 REINFORCEMENT; SEAT BELT 8-97584-367-2 01 1 1411-
373 REINFORCEMENT; SEAT BELT 8-97584-375-2 01 1 1411-
375 CLOSING; PILLAR 8-98044-897-3 01 1 1411-
375 CLOSING; PILLAR 8-98044-898-3 01 1 1411-
376 CLOSING; PILLAR,LWR 8-97589-553-1 01 1 1411-
376 CLOSING; PILLAR,LWR 8-97589-555-1 01 1 1411-
380 BRACKET; HEAD LAMP
(A) 		8-97589-707-1 01 1 1411-
380 BRACKET; HEAD LAMP
(A) 		8-97589-708-1 01 1 1411-
380 BRACKET; HEAD LAMP
(B) 		8-98032-614-1 01 1 1411-
380 BRACKET; HEAD LAMP
(B) 		8-98032-615-1 01 1 1411-
398 BRACKET; PIPE SUPPORT 8-97589-681-3 01 1 1411-
448 CLOSING; ROCKER 8-97589-551-2 01 1 1411-
448 CLOSING; ROCKER 8-97589-552-2 01 1 1411-
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 1411-
537 SUPPORT ASM; MTG RR 8-97584-390-4 01 1 1411-
537 SUPPORT ASM; MTG RR 8-97584-416-4 01 1 1411-
538 REINFORCEMENT ASM; AIR INT DUCT 8-97610-207-2 01 1 1411-
539 PATCH ASM; SAFTY HOOK
KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98131-661-0 01 1 1512-
539 PATCH ASM; SAFTY HOOK
(A) 		8-97584-440-2 01 1 1411-
540 BRACKET ASM; CAB LOCK LEVER 8-97584-438-1 01 1 1411-
541 REINFORCEMENT; MTG,FRT 8-98067-903-0 02 1 1411-
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 1411-
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 1411-
545 BRACKET; SEAT FRT 8-97589-705-0 01 1 1411-
545 BRACKET; SEAT FRT 8-98050-188-0 01 1 1411-
546 REINFORCEMENT; FLOOR SIDE 8-97584-426-0 02 1 1411-
547 BRACKET; JACK HANDLE 8-97588-843-1 01 1 1411-
548 BRACKET; MUD GUARD 8-97588-964-1 01 1 1411-
548 BRACKET; MUD GUARD 8-97588-965-1 01 1 1411-
549 BRACKET; SEAT RR 8-98017-363-1 01 1 1411-
549 BRACKET; SEAT RR 8-98050-189-1 01 1 1411-
550 CLOSING ASM; MTG,FRT 8-97589-709-3 01 1 1411-
554 REINFORCEMENT; FLOOR CENTER 8-98017-330-1 01 1 1411-
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 1411-
567 REINFORCEMENT; CONT LEVER 8-98046-522-3 01 1 1411-
568 BRACKET; ACCEL STOPPER
(A) 		8-98089-177-0 01 1 1411-
568 BRACKET; ACCEL STOPPER
(B) 		8-98089-178-0 01 1 1411-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
