Isuzu WW
▶
TRUCKS
▶
FRR
▶
11627 - FRR LHD EUROPE EURO6 SPACECAB EVSC
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-66 - HEAD LINING AND TRIM
▶

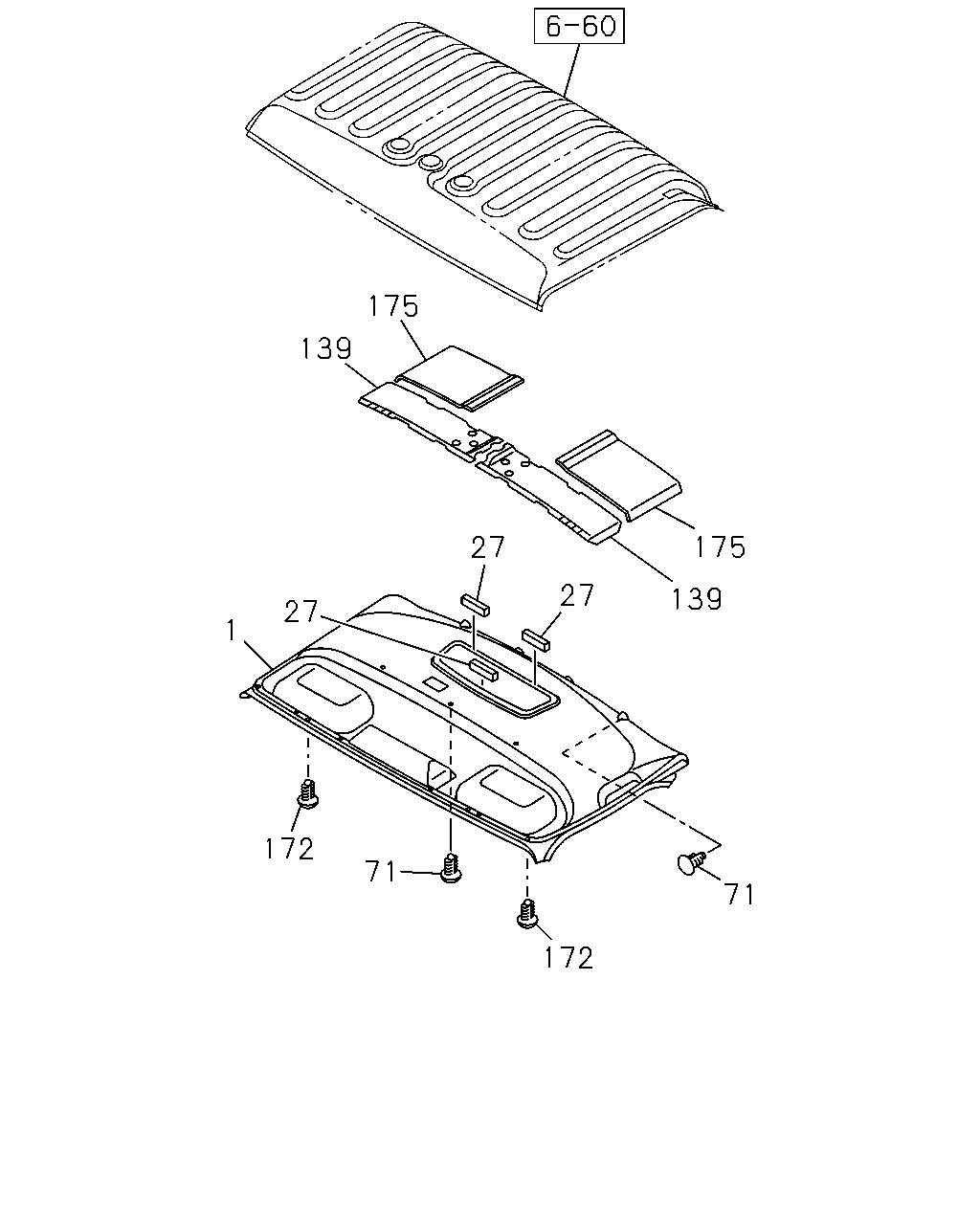

6-66 — HEAD LINING AND TRIM
(#152301) — 9 parça
175
139
27
27
139
175
27
1
172
71
172
71
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LINING; HD
RR VIEW MIRROR<D31> FLUORESCENT LAMP<6UC> DARK GRAY
8-97426-667-0
01
1
1411-
1
LINING; HD
RR VIEW MIRROR<D31> EXC. FLUORESCENT LAMP<6UC> DARK GRAY
8-97426-666-0
01
1
1411-
1
LINING; HD
FLUORESCENT LAMP<6UC> EXC. RR VIEW MIRROR<D31> DARK GRAY
8-97426-661-0
01
1
1411-
1
LINING; HD
EXC. RR VIEW MIRROR<D31>,FLUORESCENT LAMP<6UC> DARK GRAY
8-97426-660-0
01
1
1411-
27
INSULATION; ROOF
FLUORESCENT LAMP<6UC>
8-98046-638-2
03
1
1411-
71
FASTENER; HD LINING
DARK GRAY
8-97405-282-0
07
1
1411-
139
SEAL; ROOF
8-98169-116-0
02
1
1411-
172
RETAINER; HEAD LINING
DARK GRAY
8-97411-875-0
14
1
1411-
175
CUSHION; HEAD LINING
8-98030-965-2
02
1
1411-
