◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11139 - FSR-R(EU)EU4 EXC.SPA ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-05 - FRONT PANEL ▶
6-05 — FRONT PANEL (#15230) — 276 parça

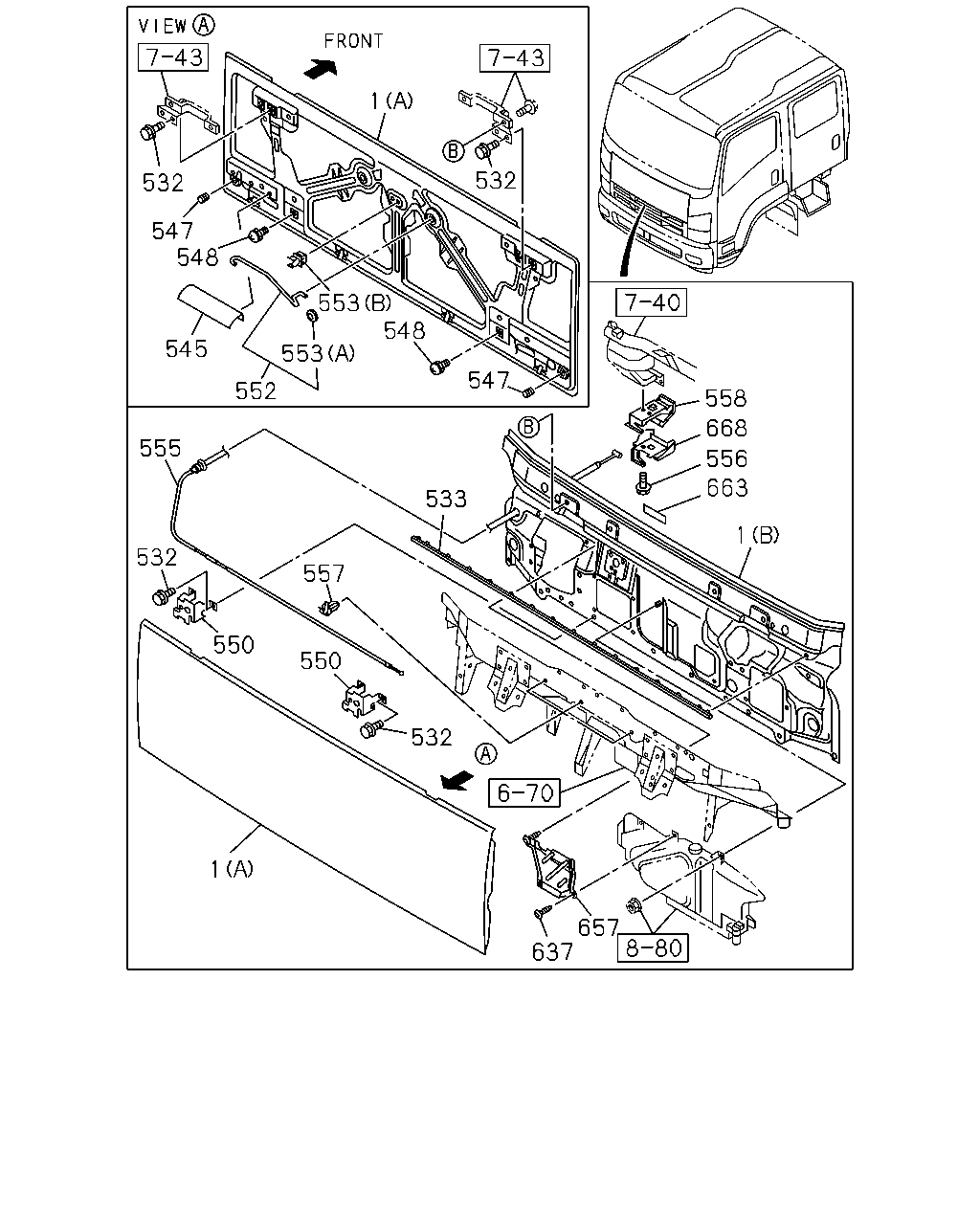

çizim 107403
1 532 532 547 548 553 548 545 553 547 552 558 668 555 556 663 533 1 532 557 550 550 532 1 657 637
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL ASM; FRT
(B) 		8-97585-958-9 01 1 0803-
1 PANEL ASM; FRT
(A) 		8-98030-230-3 01 1 0803-
532 BOLT; FRT PANEL
M8X20 FLANGE 		0-28650-820-0 08 1 0803-
533 SEAL; FRT PANEL 8-98096-288-0 01 1 0803-
545 SEAL; FRT LID 8-98036-583-0 01 1 0803-0910
545 SEAL; FRT LID 8-98123-264-0 01 1 0911-
547 RUBBER; CUSHION
OD=22 L=29 		8-94324-556-2 02 1 0803-
548 STRIKER; FRT LID PANEL 8-98068-145-1 02 1 0803-
550 LOCK ASM; FRT LID 8-98036-569-2 02 1 0803-
552 STAY; FRT LID 8-98089-836-0 01 1 0803-
553 CLIP; STAY
(B) 		8-97031-428-0 01 1 0803-
553 CLIP; STAY
(A) 		8-98059-320-0 01 1 0803-
555 CABLE; FRT LID 8-98036-573-1 01 1 0803-
556 BOLT; CABLE
M6X16 FLANGE 		0-28650-616-0 01 1 0803-
557 CLIP; CABLE
ID=4.8 		8-94128-483-0 03 1 0803-
558 LEVER; FRT LID 1-79338-007-0 01 1 0803-
637 CLIP; COVER
OD=16 L=11 		1-76378-155-0 02 1 0803-
657 COVER; WIPER IDLER 8-98060-908-0 01 1 0803-
663 TAPE; PROTECT
275X11 		8-98070-053-1 01 1 0803-0910
668 COVER; LEVER,FRT LID 8-98076-339-0 01 1 0803-

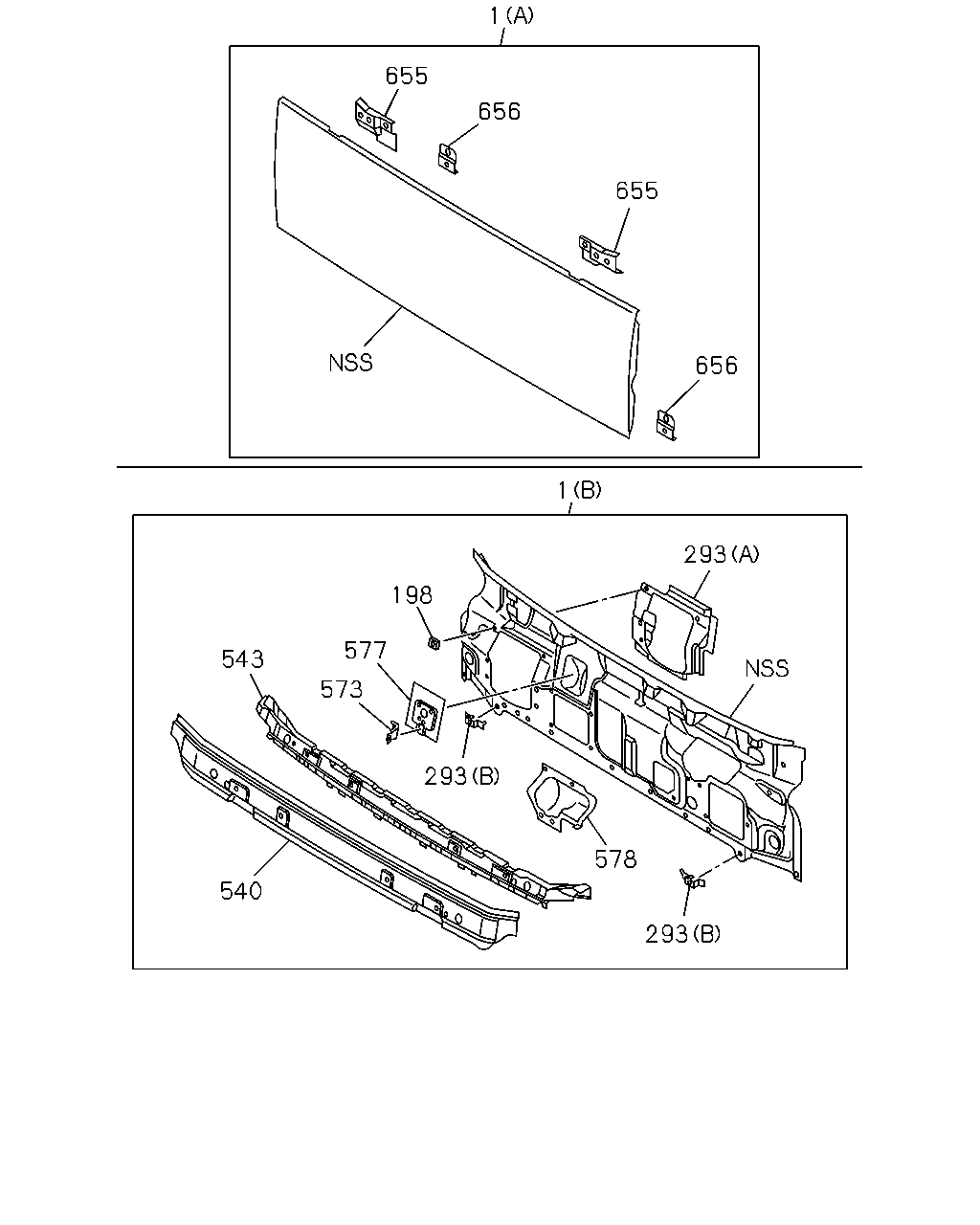

çizim 107750
1 655 656 655 656 1 293 198 577 543 573 293 578 540 293
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL ASM; FRT
(B) 		8-97585-958-9 01 1 0803-
1 PANEL ASM; FRT
(A) 		8-98030-230-3 01 1 0803-
198 NUT; PANEL
M6 		9-09114-086-0 02 1 0803-
293 BRACKET; PANEL
(A) 		8-97586-007-3 01 1 0803-
293 BRACKET; PANEL
(B) 		8-98008-124-1 01 1 0803-
293 BRACKET; PANEL
(B) 		8-98008-126-1 01 1 0803-
540 PANEL; FRONT,OUTER 8-97585-965-2 01 1 0803-
543 CLOSING; FRT MTG RAIL 8-97585-989-4 01 1 0803-
573 BRACKET; SUPPORT 8-98008-127-2 01 1 0803-
577 BRACKET; IDLER 8-97586-019-1 01 1 0803-
578 COVER; WIPER MOTOR 8-97586-018-3 01 1 0803-
655 PATCH; HINGE 8-98031-263-0 01 1 0803-
655 PATCH; HINGE 8-98031-264-0 01 1 0803-
656 PATCH; STRIKER 8-98031-265-0 02 1 0803-

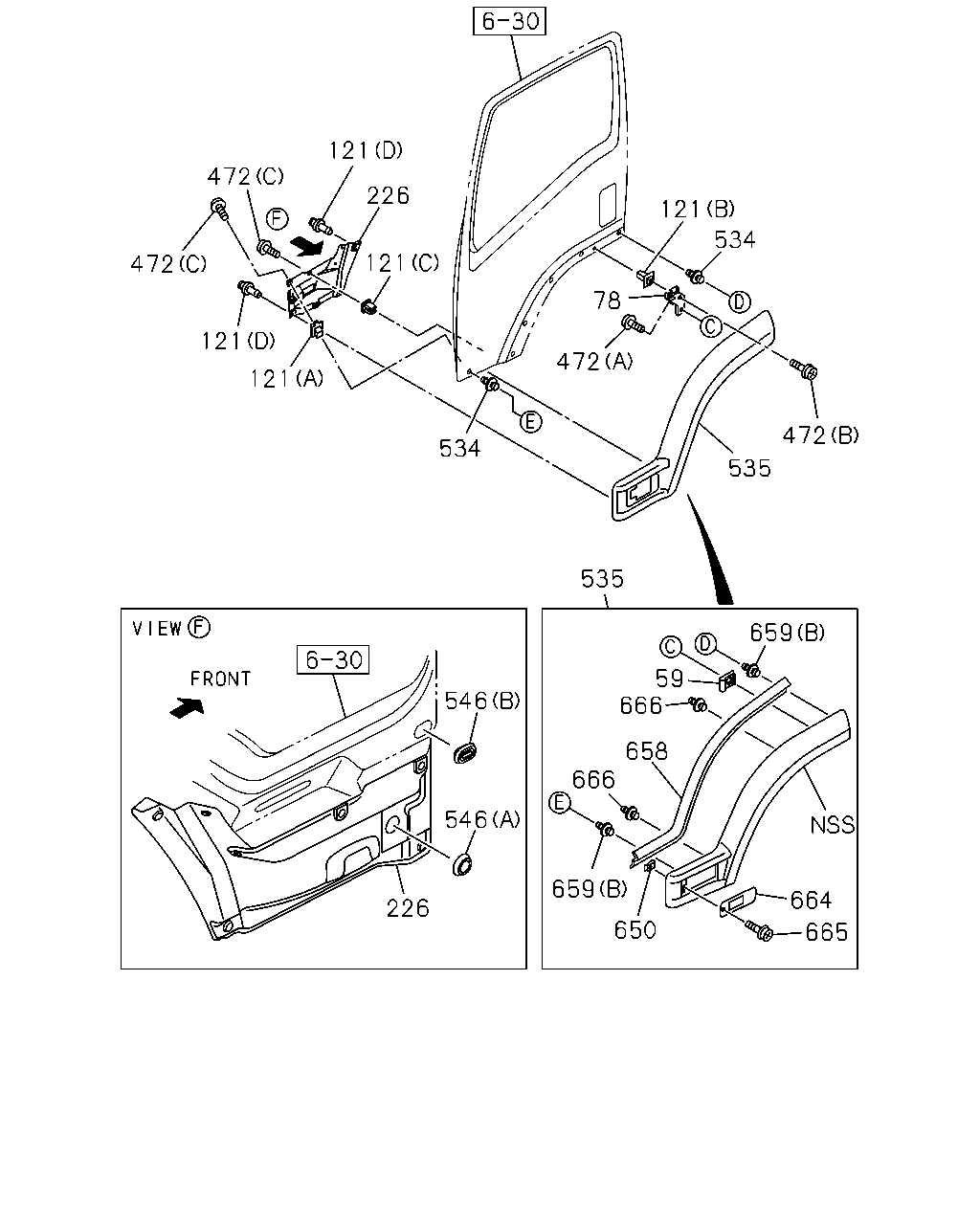

çizim 107752
121 472 226 121 534 121 472 78 121 472 121 472 534 535 535 659 59 666 546 658 666 546 659 664 226 650 665
BalonParca AdiParca NoAdetTipApplied Date
59 GROMMET; SCREW 8-94279-723-0 02 1 0803-
59 GROMMET; SCREW
CAB ALL PAINTING<TFD> 		8-94279-723-0 02 1 0803-
59 GROMMET; SCREW 8-94279-723-0 08 1 0803-
78 BRACKET; FENDER 8-98041-165-1 01 1 0803-
78 BRACKET; FENDER 8-98041-166-1 01 1 0803-
121 GROMMET; FENDER
(C) D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 0803-
121 GROMMET; FENDER
(D) OD=8.3 		8-94279-989-0 10 1 0803-
121 GROMMET; FENDER
(B) H=15 		8-94463-268-1 04 1 0803-
121 GROMMET; FENDER
(A) 		8-98073-420-0 01 1 0803-
121 GROMMET; FENDER
(A) 		8-98073-421-0 01 1 0803-
226 PROTECTOR; FRT 8-98080-912-1 01 1 0803-
226 PROTECTOR; FRT 8-98080-913-1 01 1 0803-
472 SCREW; FENDER TO CAB
(A) M6X18 TAPPING 		8-98059-505-0 02 1 0803-
472 SCREW; FENDER TO CAB
(C) M5X16 		8-98090-737-0 08 1 0803-
472 SCREW; FENDER TO CAB
(B) M5X12 		8-98093-669-0 04 1 0803-
534 FASTENER
ID=5.4 OD=6.8 		1-09989-021-0 12 1 0803-1302
534 FASTENER
ID=5.4 OD=6.8 		8-98241-984-0 12 1 1303-
535 FENDER; BLISTER
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> GRAY 		8-97417-698-3 01 1 0906-
535 FENDER; BLISTER
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> GRAY 		8-97417-708-3 01 1 0906-
535 FENDER; BLISTER
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> BLUE 		8-97417-699-3 01 1 0906-
535 FENDER; BLISTER
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> BLUE 		8-97417-709-3 01 1 0906-
535 FENDER; BLISTER
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> RED 		8-97417-700-3 01 1 0906-
535 FENDER; BLISTER
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> RED 		8-97417-710-3 01 1 0906-
535 FENDER; BLISTER
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> BLUE 		8-97417-701-3 01 1 0906-
535 FENDER; BLISTER
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> BLUE 		8-97417-711-3 01 1 0906-
535 FENDER; BLISTER
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> DARK GREEN 		8-97417-702-3 01 1 0906-
535 FENDER; BLISTER
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> DARK GREEN 		8-97417-712-3 01 1 0906-
535 FENDER; BLISTER
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> YELLOW 		8-97417-703-3 01 1 0906-
535 FENDER; BLISTER
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> YELLOW 		8-97417-713-3 01 1 0906-
535 FENDER; BLISTER
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97417-704-3 01 1 0906-
535 FENDER; BLISTER
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97417-714-3 01 1 0906-
535 FENDER; BLISTER
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> ORANGE 		8-97417-705-3 01 1 0906-
535 FENDER; BLISTER
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> ORANGE 		8-97417-715-3 01 1 0906-
535 FENDER; BLISTER
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> WHITE 		8-97417-706-3 01 1 0906-
535 FENDER; BLISTER
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> WHITE 		8-97417-716-3 01 1 0906-
535 FENDER; BLISTER
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> GREEN 		8-97417-707-3 01 1 0906-
535 FENDER; BLISTER
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> GREEN 		8-97417-717-3 01 1 0906-
535 FENDER; BLISTER
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97412-862-3 01 1 0803-
535 FENDER; BLISTER
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97412-869-3 01 1 0803-
535 FENDER; BLISTER
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97412-863-3 01 1 0803-
535 FENDER; BLISTER
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97412-870-3 01 1 0803-
535 FENDER; BLISTER
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97412-864-3 01 1 0803-
535 FENDER; BLISTER
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97412-871-3 01 1 0803-
535 FENDER; BLISTER
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97412-866-3 01 1 0803-
535 FENDER; BLISTER
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97412-873-3 01 1 0803-
535 FENDER; BLISTER
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97412-865-3 01 1 0803-
535 FENDER; BLISTER
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97412-872-3 01 1 0803-
535 FENDER; BLISTER
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE 		8-97412-867-3 01 1 0803-
535 FENDER; BLISTER
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE 		8-97412-874-3 01 1 0803-
546 PLUG; DUMMY HOLE
(A) OD=38 		8-94159-507-0 02 1 0803-
546 PLUG; DUMMY HOLE
(B) 		8-94430-184-1 02 1 0803-
650 NUT; SPIRE
CAB ALL PAINTING<TFD> 		8-94279-501-0 02 1 0803-0905
650 NUT; SPIRE
CAB ALL PAINTING<TFD> 		8-94279-501-0 02 1 0906-
658 FINISHER; BLISTER FENDER
CAB ALL PAINTING<TFD> 		8-98041-168-3 01 1 0803-0905
658 FINISHER; BLISTER FENDER
CAB ALL PAINTING<TFD> 		8-98041-168-3 01 1 0906-
658 FINISHER; BLISTER FENDER
CAB ALL PAINTING<TFD> 		8-98041-169-3 01 1 0803-0905
658 FINISHER; BLISTER FENDER
CAB ALL PAINTING<TFD> 		8-98041-169-3 01 1 0906-
659 CLIP; FENDER
CAB ALL PAINTING<TFD> (B) D5.4X8 		1-09983-154-0 08 1 0803-0905
659 CLIP; FENDER
CAB ALL PAINTING<TFD> (B) D5.4X8 		1-09983-154-0 08 1 0906-
659 CLIP; FENDER
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) (A) OD=8.5 GRAY 		8-97893-482-0 04 1 0803-0905
659 CLIP; FENDER
(A) OD=8.5 GRAY 		8-97893-482-0 04 1 0906-
664 BASE; DOOR,SIDE TURN
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> GRAY 		8-97413-878-1 01 1 0906-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> GRAY 		8-97421-521-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> GRAY 		8-97413-898-1 01 1 0906-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> GRAY 		8-97421-549-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> BLUE 		8-97413-879-1 01 1 0906-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> BLUE 		8-97421-509-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> BLUE 		8-97413-899-1 01 1 0906-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> BLUE 		8-97421-537-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> RED 		8-97413-880-1 01 1 0906-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> RED 		8-97421-523-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> RED 		8-97413-900-1 01 1 0906-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> RED 		8-97421-551-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> BLUE 		8-97413-881-1 01 1 0906-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> BLUE 		8-97421-511-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> BLUE 		8-97413-901-1 01 1 0906-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> BLUE 		8-97421-539-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> DARK GREEN 		8-97413-882-1 01 1 0906-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> DARK GREEN 		8-97421-519-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> DARK GREEN 		8-97413-902-1 01 1 0906-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> DARK GREEN 		8-97421-547-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> YELLOW 		8-97413-883-1 01 1 0906-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> YELLOW 		8-97421-533-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> YELLOW 		8-97413-903-1 01 1 0906-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> YELLOW 		8-97421-596-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97413-884-1 01 1 0906-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97421-535-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97413-904-1 01 1 0906-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97421-563-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> ORANGE 		8-97413-885-1 01 1 0906-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> ORANGE 		8-97421-531-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> ORANGE 		8-97413-905-1 01 1 0906-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> ORANGE 		8-97421-559-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> WHITE 		8-97417-936-1 01 1 0906-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> WHITE 		8-97421-607-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> WHITE 		8-97417-943-1 01 1 0906-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> WHITE 		8-97421-605-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> GREEN 		8-97413-887-1 01 1 0906-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> GREEN 		8-97421-515-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> GREEN 		8-97413-907-1 01 1 0906-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> GREEN 		8-97421-543-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97409-218-1 01 1 0803-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97421-485-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97409-219-1 01 1 0803-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97421-497-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97411-448-1 01 1 0803-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97421-487-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97411-454-1 01 1 0803-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97421-499-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97411-449-1 01 1 0803-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97421-489-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97411-455-1 01 1 0803-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97421-501-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97411-452-1 01 1 0803-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97421-493-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97411-458-1 01 1 0803-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97421-505-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97411-451-1 01 1 0803-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97421-491-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97411-457-1 01 1 0803-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97421-503-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE 		8-97411-453-1 01 1 0803-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE 		8-97421-495-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE 		8-97411-459-1 01 1 0803-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE 		8-97421-507-0 01 1 1008-
665 SCREW; FENDER
CAB ALL PAINTING<TFD> M6X20 W/PL WASHER 		0-36210-620-0 02 1 0803-0905
665 SCREW; FENDER
CAB ALL PAINTING<TFD> M6X20 W/PL WASHER 		0-36210-620-0 02 1 0906-
666 CLIP; BLISTER FENDER
CAB ALL PAINTING<TFD> 		8-98071-178-0 04 1 0803-0905
666 CLIP; BLISTER FENDER
CAB ALL PAINTING<TFD> 		8-98071-178-0 04 1 0906-

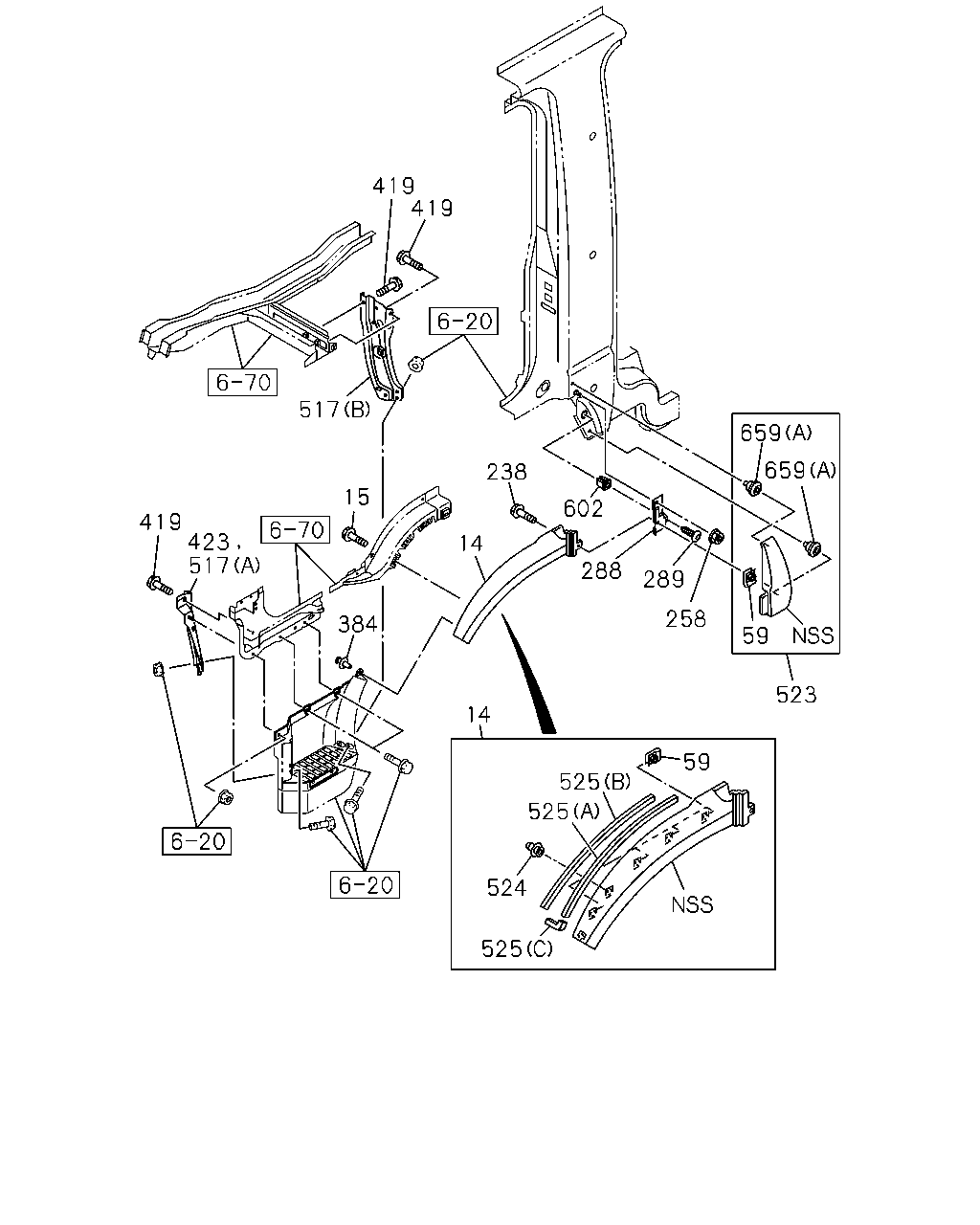

çizim 108058
602 238 288 289 258 59 523 59 525 525 524 525 14 14 15 384 517 419 423 517 419 419 659 659
BalonParca AdiParca NoAdetTipApplied Date
14 FENDER; FRT
CAB ALL PAINTING<TFD> BLACK 		8-98041-398-3 01 1 0803-
14 FENDER; FRT
CAB ALL PAINTING<TFD> BLACK 		8-98041-399-3 01 1 0803-
14 FENDER; FRT
EXC. CAB ALL PAINTING<TFD> BLACK 		8-98041-398-3 01 1 0803-
14 FENDER; FRT
EXC. CAB ALL PAINTING<TFD> BLACK 		8-98041-399-3 01 1 0803-
15 BOLT; FENDER
M6X20 W/PL WASHER 		8-98059-504-0 06 1 0803-
59 GROMMET; SCREW 8-94279-723-0 02 1 0803-
59 GROMMET; SCREW
CAB ALL PAINTING<TFD> 		8-94279-723-0 02 1 0803-
59 GROMMET; SCREW 8-94279-723-0 08 1 0803-
238 SCREW
M6X20 W/PL WASHER 		8-98059-504-0 02 1 0803-
258 NUT; BRKT
M6 FLANGE 		0-91180-106-0 02 1 0803-
288 BRACKET; FENDER SKIRT 8-98019-870-3 01 1 0803-
288 BRACKET; FENDER SKIRT 8-98019-871-3 01 1 0803-
289 BOLT; FENDER SKIRT BRKT
M6X20 W/PL WASHER 		8-98059-504-0 02 1 0803-
384 CLIP; FENDER LWR
D8X13.5 		1-09987-248-1 02 1 0803-
419 BOLT; STEP
M8X20 FLANGE 		0-28650-820-0 08 1 0803-
423 SUPPORT ASM; STEP 8-98037-335-1 01 1 1310-
423 SUPPORT ASM; STEP 8-98037-336-1 01 1 1310-
517 SUPPORT; STEP PANEL
(A) 		8-98037-335-1 01 1 0803-1309
517 SUPPORT; STEP PANEL
(A) 		8-98037-336-1 01 1 0803-1309
517 SUPPORT; STEP PANEL
(B) 		8-98037-338-2 01 1 0803-
517 SUPPORT; STEP PANEL
(B) 		8-98037-339-2 01 1 0803-
523 COVER; FENDER RR
BODY COLOR AL GRAY(517) GRAY 		8-97413-447-1 01 1 0906-
523 COVER; FENDER RR
BODY COLOR AL GRAY(517) GRAY 		8-97413-679-1 01 1 0906-
523 COVER; FENDER RR
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97413-448-1 01 1 0906-
523 COVER; FENDER RR
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97413-680-1 01 1 0906-
523 COVER; FENDER RR
BODY COLOR GERANIUM RED(681) RED 		8-97413-449-1 01 1 0906-
523 COVER; FENDER RR
BODY COLOR GERANIUM RED(681) RED 		8-97413-681-1 01 1 0906-
523 COVER; FENDER RR
BODY COLOR DARK BLUE(695) BLUE 		8-97413-450-1 01 1 0906-
523 COVER; FENDER RR
BODY COLOR DARK BLUE(695) BLUE 		8-97413-682-1 01 1 0906-
523 COVER; FENDER RR
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97413-451-1 01 1 0906-
523 COVER; FENDER RR
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97413-683-1 01 1 0906-
523 COVER; FENDER RR
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97413-452-1 01 1 0906-
523 COVER; FENDER RR
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97413-684-1 01 1 0906-
523 COVER; FENDER RR
BODY COLOR MARINE BLUE(890) BLUE 		8-97413-453-1 01 1 0906-
523 COVER; FENDER RR
BODY COLOR MARINE BLUE(890) BLUE 		8-97413-685-1 01 1 0906-
523 COVER; FENDER RR
BODY COLOR HIGHWAY ORANGE(944) ORANGE 		8-97413-454-1 01 1 0906-
523 COVER; FENDER RR
BODY COLOR HIGHWAY ORANGE(944) ORANGE 		8-97413-686-1 01 1 0906-
523 COVER; FENDER RR
BODY COLOR POLAR WHITE(982) WHITE 		8-97417-738-1 01 1 0906-
523 COVER; FENDER RR
BODY COLOR POLAR WHITE(982) WHITE 		8-97417-739-1 01 1 0906-
523 COVER; FENDER RR
BODY COLOR GREEN(989) GREEN 		8-97413-456-1 01 1 0906-
523 COVER; FENDER RR
BODY COLOR GREEN(989) GREEN 		8-97413-688-1 01 1 0906-
523 COVER; FENDER RR
BODY COLOR ARC WHITE(729) WHITE 		8-97413-117-1 01 1 0803-
523 COVER; FENDER RR
BODY COLOR ARC WHITE(729) WHITE 		8-97413-124-1 01 1 0803-
523 COVER; FENDER RR
BODY COLOR CARDINAL RED(736) RED 		8-97413-114-1 01 1 0803-
523 COVER; FENDER RR
BODY COLOR CARDINAL RED(736) RED 		8-97413-121-1 01 1 0803-
523 COVER; FENDER RR
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97413-119-1 01 1 0803-
523 COVER; FENDER RR
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97413-126-1 01 1 0803-
523 COVER; FENDER RR
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97413-118-1 01 1 0803-
523 COVER; FENDER RR
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97413-125-1 01 1 0803-
523 COVER; FENDER RR
BODY COLOR FIRE RED(915) RED 		8-97413-115-1 01 1 0803-
523 COVER; FENDER RR
BODY COLOR FIRE RED(915) RED 		8-97413-122-1 01 1 0803-
523 COVER; FENDER RR
BODY COLOR TRANS BLUE(999) BLUE 		8-97413-113-1 01 1 0803-
523 COVER; FENDER RR
BODY COLOR TRANS BLUE(999) BLUE 		8-97413-120-1 01 1 0803-
524 CLIP; FENDER COVER
OD=7.9 BLACK 		8-94279-974-1 02 1 0803-
525 SEAL; FENDER
(A) 		8-98061-760-0 02 1 0803-
525 SEAL; FENDER
(B) 		8-98061-761-0 02 1 0803-
525 SEAL; FENDER
(C) 		8-98061-762-0 02 1 0803-
602 RETAINER; COVER
D=10X10 L=8 M6 		1-09983-119-0 02 1 0803-
659 CLIP; FENDER
CAB ALL PAINTING<TFD> (B) D5.4X8 		1-09983-154-0 08 1 0803-0905
659 CLIP; FENDER
CAB ALL PAINTING<TFD> (B) D5.4X8 		1-09983-154-0 08 1 0906-
659 CLIP; FENDER
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) (A) OD=8.5 GRAY 		8-97893-482-0 04 1 0803-0905
659 CLIP; FENDER
(A) OD=8.5 GRAY 		8-97893-482-0 04 1 0906-

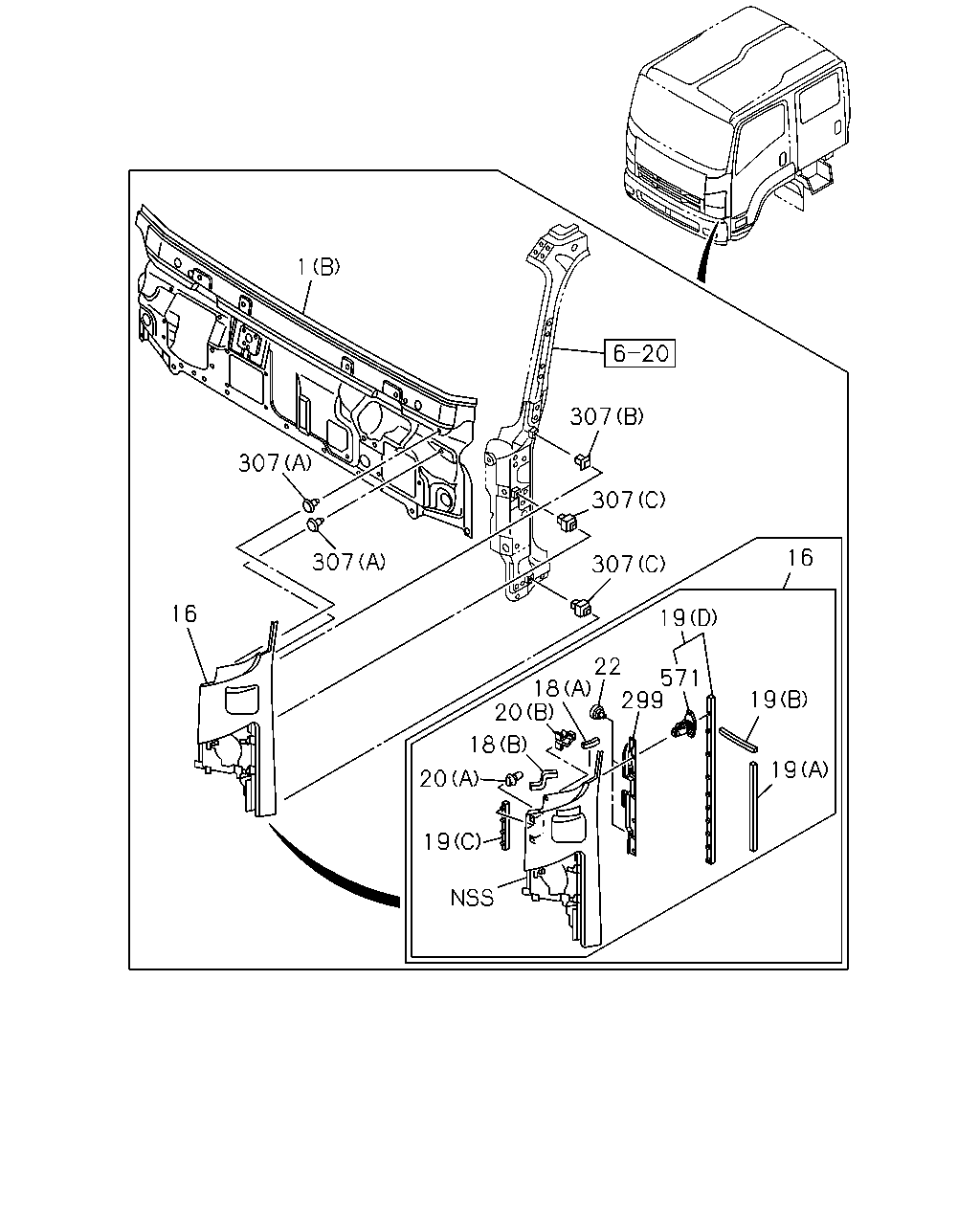

çizim 108114
1 307 307 307 16 307 307 16 19 22 571 299 18 20 19 18 19 20 19
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL ASM; FRT
(B) 		8-97585-958-9 01 1 0803-
1 PANEL ASM; FRT
(A) 		8-98030-230-3 01 1 0803-
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) GRAY 		8-97413-576-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) GRAY 		8-97417-654-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97413-577-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97417-655-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) RED 		8-97413-578-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) RED 		8-97417-656-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) BLUE 		8-97413-579-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) BLUE 		8-97415-030-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97413-580-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97415-031-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97413-581-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97415-032-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97413-582-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97417-657-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) ORANGE 		8-97413-583-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) ORANGE 		8-97417-658-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) WHITE 		8-97417-653-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) WHITE 		8-97417-659-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) GREEN 		8-97413-585-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) GREEN 		8-97417-660-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97407-509-4 01 1 0803-
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97409-901-4 01 1 0803-
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) RED 		8-97411-292-4 01 1 0803-
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) RED 		8-97411-298-4 01 1 0803-
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97411-293-4 01 1 0803-
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97411-299-4 01 1 0803-
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97411-296-4 01 1 0803-
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97411-302-4 01 1 0803-
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) RED 		8-97411-295-4 01 1 0803-
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) RED 		8-97411-301-4 01 1 0803-
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) BLUE 		8-97411-297-4 01 1 0803-
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) BLUE 		8-97411-303-4 01 1 0803-
18 SEAL; A-POST UPR,FRT SIDE PANEL
(A) 		8-98038-608-0 02 1 0803-
18 SEAL; A-POST UPR,FRT SIDE PANEL
(B) 		8-98043-511-1 02 1 0803-
19 SEAL; FRT SIDE PANEL
(B) 		8-98035-268-0 02 1 0803-
19 SEAL; FRT SIDE PANEL
(C) 		8-98036-580-0 01 1 0803-
19 SEAL; FRT SIDE PANEL
(C) 		8-98036-581-0 01 1 0803-
19 SEAL; FRT SIDE PANEL
(D) 		8-98041-358-2 01 1 0803-
19 SEAL; FRT SIDE PANEL
(D) 		8-98041-359-2 01 1 0803-
19 SEAL; FRT SIDE PANEL
(A) 		8-98062-215-0 02 1 0803-
20 CLIP; FRT PANEL SIDE
(A) 		8-97410-739-0 04 1 0803-
20 CLIP; FRT PANEL SIDE
(B) 		8-97410-740-2 02 1 0803-
22 SCREW; FRT PANEL SIDE
M4X10 TAPPING W/PL WASHER 		0-74360-410-0 06 1 0803-
299 COVER; FRT PANEL SIDE 8-98034-813-1 01 1 0803-
299 COVER; FRT PANEL SIDE 8-98034-814-1 01 1 0803-
307 GROMMET; FRT PANEL
(B) 		8-97410-738-0 02 1 0803-
307 GROMMET; FRT PANEL
(C) 		8-98021-300-1 04 1 0803-
307 GROMMET; FRT PANEL
(A) OD=20 		8-98034-363-1 04 1 0803-
571 CLIP; SEAL
NATURAL 		8-98027-457-0 20 1 0803-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
