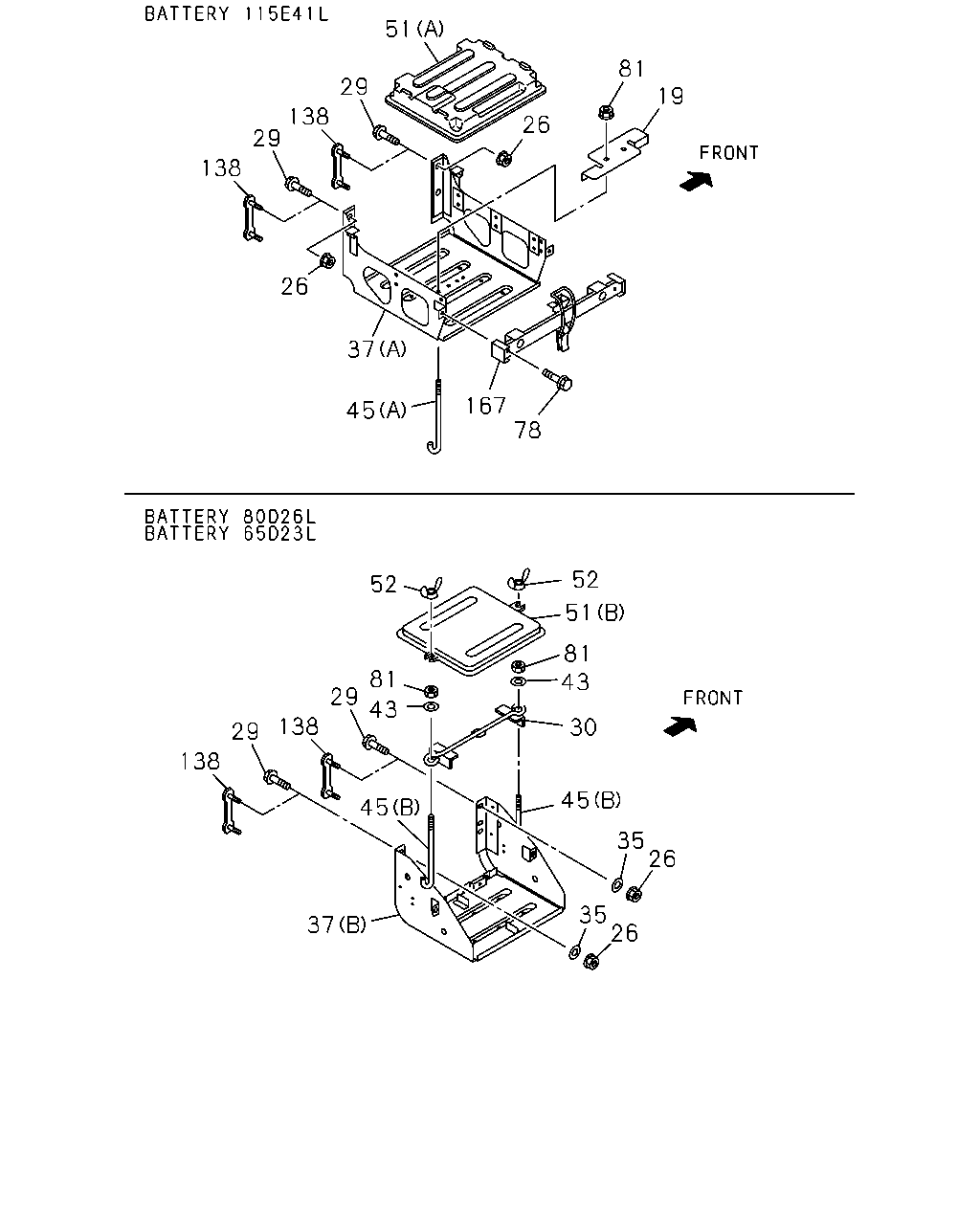

19 |
STAY; BATTERY
BATTERY 115E41L<8MA>
|
8-98120-443-0 |
01 |
1 |
1411- |
| |
26 |
NUT; BRKT
M10 FLANGE
|
0-91180-210-0 |
04 |
1 |
1411- |
| |
29 |
BOLT; BRKT TO FRAME
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W),
WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W)
M10X35 FLANGE
|
0-28651-035-0 |
02 |
1 |
1411- |
| |
30 |
PLATE; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>
|
5-53615-004-1 |
01 |
1 |
1411- |
| |
35 |
WASHER; PL,BATTERY CARRIER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>
ID=10.5 OD=22
|
0-91614-610-0 |
04 |
1 |
1411- |
| |
37 |
BRACKET; BATTERY
KD PREPARATORY PACK<6HF>
BATTERY 115E41L<8MA>
(A)
|
8-98204-178-2 |
01 |
1 |
1512- |
| |
37 |
BRACKET; BATTERY
BATTERY 80D26L<TM1>
(B)
|
8-97384-067-2 |
01 |
1 |
1411- |
| |
37 |
BRACKET; BATTERY
BATTERY 65D23L<8EJ>
(B)
|
8-97384-068-2 |
01 |
1 |
1411- |
| |
37 |
BRACKET; BATTERY
BATTERY 115E41L<8MA>
(A)
|
8-98204-177-2 |
01 |
1 |
1411-1511 |
| |
37 |
BRACKET; BATTERY
BATTERY 115E41L<8MA>
EXC. KD PREPARATORY PACK<6HF>
(A)
|
8-98204-177-2 |
01 |
1 |
1512- |
| |
43 |
WASHER; PL,CLAMP
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>
ID=8.4 OD=22
|
0-91614-708-0 |
02 |
1 |
1411- |
| |
45 |
ROD; TENSION,BATTERY
KD PREPARATORY PACK<6HF>
BATTERY 115E41L<8MA>
(A)
L=235
|
8-98120-478-0 |
02 |
1 |
1512- |
| |
45 |
ROD; TENSION,BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>
(B)
L=120
|
9-53616-615-0 |
02 |
1 |
1411- |
| |
45 |
ROD; TENSION,BATTERY
BATTERY 115E41L<8MA>
(A)
L=250
|
1-53616-108-0 |
02 |
1 |
1411-1511 |
| |
45 |
ROD; TENSION,BATTERY
BATTERY 115E41L<8MA>
EXC. KD PREPARATORY PACK<6HF>
(A)
L=250
|
1-53616-108-0 |
02 |
1 |
1512- |
| |
51 |
COVER; BATTERY
KD PREPARATORY PACK<6HF>
BATTERY 115E41L<8MA>
(A)
|
8-98124-443-0 |
01 |
1 |
1512- |
| |
51 |
COVER; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>
(B)
|
8-97120-747-0 |
01 |
1 |
1411- |
| |
51 |
COVER; BATTERY
BATTERY 115E41L<8MA>
(A)
|
1-53612-037-2 |
01 |
1 |
1411-1511 |
| |
51 |
COVER; BATTERY
BATTERY 115E41L<8MA>
EXC. KD PREPARATORY PACK<6HF>
(A)
|
1-53612-037-2 |
01 |
1 |
1512- |
| |
52 |
NUT; WING,COVER FIX
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>
M8 WING NUT
|
0-91118-408-0 |
02 |
1 |
1411- |
| |
78 |
BOLT; COVER
BATTERY 115E41L<8MA>
M8X20 FLANGE
|
0-28650-820-0 |
02 |
1 |
1411- |
| |
81 |
NUT; BATTERY
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
1411- |
| |
138 |
STUD
WHEEL BASE 3400MM(34W)
|
8-98255-710-0 |
02 |
1 |
1512- |
| |
138 |
STUD
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W),
WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W)
|
8-98255-710-0 |
01 |
1 |
1411- |
| |
167 |
BRACKET; STOPPER
BATTERY 115E41L<8MA>
|
8-98204-179-2 |
01 |
1 |
1411- |
