Isuzu WW
▶
TRUCKS
▶
FRR
▶
11627 - FRR LHD EUROPE EURO6 SPACECAB EVSC
▶
5 - Frame, Cab Mounting
▶
5-10 - CAB MOUNTING; FRAME SIDE
▶
5-10 — CAB MOUNTING; FRAME SIDE
(#152284) — 47 parça
◀

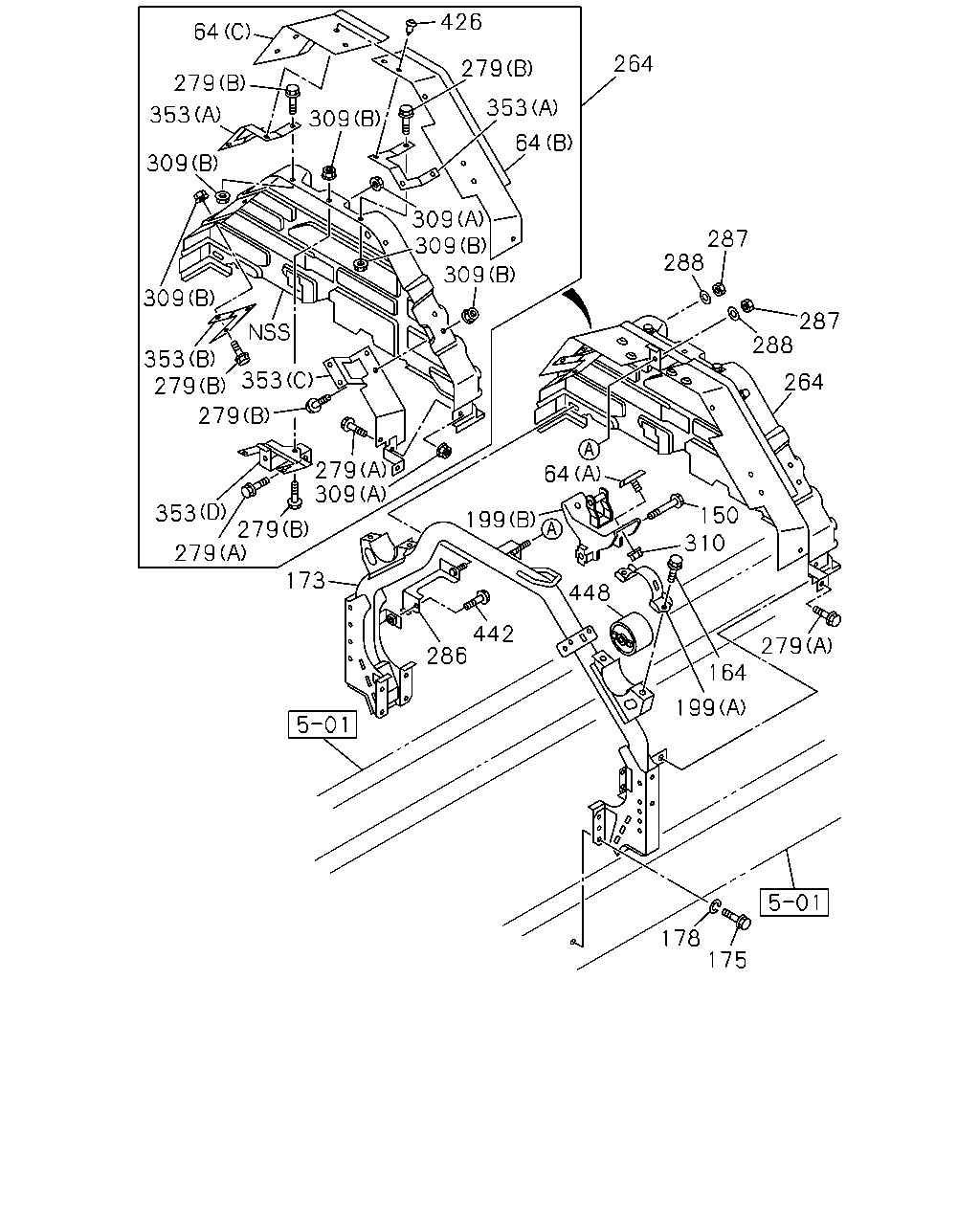

[510A] REAR (33 parça)
[510A] FRONT (14 parça)
▶
175
175
199
279
164
310
448
150
64
199
442
286
173
264
287
288
287
288
309
309
309
64
353
264
279
426
309
64
279
353
309
309
353
279
353
279
279
353
309
279
279
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
64
RUBBER; CUSHION
FRIGID ZONE KIT<YL3> (C)
8-98254-251-0
01
1
1512-
64
RUBBER; CUSHION
FRIGID ZONE KIT<YL3> (B)
8-98254-252-0
01
1
1512-
64
RUBBER; CUSHION
(A)
8-97113-340-0
04
1
1411-
150
BOLT; CAB MTG RR
M14X100
0-10956-400-0
02
1
1411-
164
BOLT; CUSHION RUBBER,CAB MTG
M12X25 FLANGE
0-28651-225-0
04
1
1411-
173
MEMBER; CAB MTG RR
FRIGID ZONE KIT<YL3>
8-98253-147-0
01
1
1512-
173
MEMBER; CAB MTG RR
8-98010-756-5
01
1
1411-1511
173
MEMBER; CAB MTG RR
EXC. FRIGID ZONE KIT<YL3>
8-98010-756-5
01
1
1512-
175
BOLT; MEMBER TO FRAME
M12X35
0-20951-235-0
08
1
1411-
178
WASHER; LK,MEMBER
ID=12.2
0-91510-612-0
08
1
1411-
199
BRACKET; CAB RR MTG
KD PREPARATORY PACK<6HF> (B)
8-98099-068-0
02
1
1512-
199
BRACKET; CAB RR MTG
(B)
8-98297-105-0
01
1
1503-1511
199
BRACKET; CAB RR MTG
EXC. KD PREPARATORY PACK<6HF> (B)
8-98297-105-0
01
1
1512-
199
BRACKET; CAB RR MTG
(B)
8-98099-068-0
02
1
1411-1502
199
BRACKET; CAB RR MTG
(B)
8-98099-068-0
01
1
1503-1511
199
BRACKET; CAB RR MTG
EXC. KD PREPARATORY PACK<6HF> (B)
8-98099-068-0
01
1
1512-
199
BRACKET; CAB RR MTG
(A)
8-98158-426-0
02
1
1411-
264
PANEL; BACK
FRIGID ZONE KIT<YL3>
8-98250-055-0
01
1
1512-
279
BOLT
FRIGID ZONE KIT<YL3> (B) M6X16 FLANGE
0-28650-616-0
09
1
1512-
279
BOLT
FRIGID ZONE KIT<YL3> (A) M8X25 FLANGE
0-28650-825-0
03
1
1512-
286
BRACKET; LOW
FRIGID ZONE KIT<YL3>
8-98250-056-0
01
1
1512-
287
NUT
FRIGID ZONE KIT<YL3> M8 FLANGE
0-91180-108-0
02
1
1512-
288
WASHER; PL
FRIGID ZONE KIT<YL3> ID=8.4 OD=26
0-91614-808-0
02
1
1512-
309
NUT
FRIGID ZONE KIT<YL3> (A) M8 W/DISHED WASHER
8-97329-625-0
02
1
1512-
309
NUT
FRIGID ZONE KIT<YL3> (B) M6 W/DISHED WASHER
8-98029-921-0
09
1
1512-
310
NUT; CUSHION
M8 FLANGE
0-91180-108-0
04
1
1411-
353
BRACKET
FRIGID ZONE KIT<YL3> (A)
8-98254-245-0
02
1
1512-
353
BRACKET
FRIGID ZONE KIT<YL3> (B)
8-98254-250-0
01
1
1512-
353
BRACKET
FRIGID ZONE KIT<YL3> (D)
8-98254-309-0
01
1
1512-
353
BRACKET
FRIGID ZONE KIT<YL3> (C)
8-98254-310-0
01
1
1512-
426
CLIP
FRIGID ZONE KIT<YL3>
8-98258-483-0
10
1
1512-
442
BOLT; BRKT
FRIGID ZONE KIT<YL3> M8X20 FLANGE
0-28650-820-0
01
1
1512-
448
BUSHING; CAB MTG
8-98010-759-2
02
1
1411-
99
96
30
30
33
1
103
336
335
1
104
72
105
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BRACKET; CAB MTG
8-98051-001-1
01
1
1411-
1
BRACKET; CAB MTG
8-98051-002-1
01
1
1411-
30
BOLT; CAB FRT FOOT
M14X45 FLANGE
0-28861-445-0
10
1
1411-
33
BUSHING; RUBBER,CAB MTG BRKT,FRT
8-98013-932-2
02
1
1411-
72
WASHER; PL,BRKT TO FRAME
ID=15 OD=36
0-91614-714-0
01
1
1411-
96
BRACKET; CAB STAY
1-62500-628-0
01
1
1411-
99
BOLT; BRKT
M10X30 FLANGE
0-28661-030-0
02
1
1411-
103
PIN; SPLIT,CAB STAY
L=32.6
8-98062-280-0
01
1
1411-
104
BRACKET; CAB FRAME,CAB FRT MTG
8-98017-610-3
01
1
1411-1510
104
BRACKET; CAB FRAME,CAB FRT MTG
8-98330-669-0
01
1
1511-
105
BOLT; BRKT TO CAB FRAME
M14X35 FLANGE
0-28661-435-0
01
1
1411-
178
WASHER; LK,MEMBER
ID=12.2
0-91510-612-0
08
1
1411-
335
PIN; ADJ,STAY LOCK
OD=10 L=48
1-09744-107-0
01
1
1411-
336
WASHER; PL,STAY LOCK
ID=10.5 T=2.0
1-09985-183-0
01
1
1411-
