5-01 — FRAME AND OTHER PARTS (#152283) — 93 parça

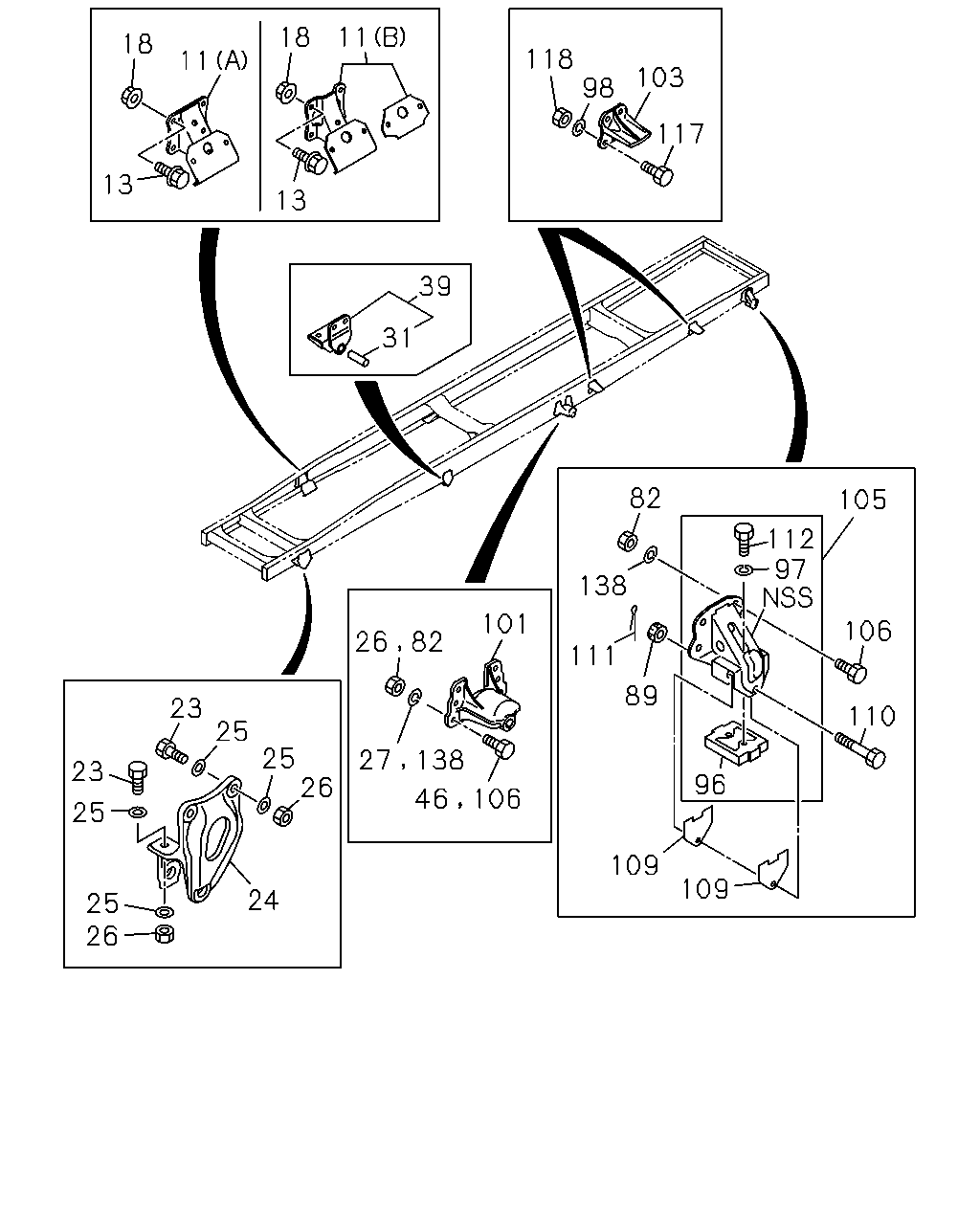

çizim 455486
18 11 13 18 11 13 118 98 103 117 39 31 23 25 25 26 24 26 25 25 23 26 82 101 138 106 46 27 82 138 111 89 109 109 96 110 106 97 112 105
BalonParca AdiParca NoAdetTipApplied Date A B C D E
11 BRACKET; ENG MTG 8-97639-363-0 02 1 1411-1511 ● ● ● ●
11 BRACKET; ENG MTG 8-97639-363-0 02 1 1512- ● ● ● ● ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 1411-1511 ● ● ● ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 1512- ● ● ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 1411-1511 ● ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 1512- ● ● ● ● ●
23 BOLT; BRKT,SPR
M14X50 		0-20951-450-0 08 1 1411-1511 ● ● ● ●
23 BOLT; BRKT,SPR
M14X50 		0-20951-450-0 08 1 1512- ● ● ● ● ●
24 BRACKET; FRT SPR,FRT 8-98254-442-0 01 1 1411-1511 ● ● ● ●
24 BRACKET; FRT SPR,FRT 8-98254-442-0 01 1 1512- ● ● ● ● ●
24 BRACKET; FRT SPR,FRT 8-98254-443-0 01 1 1411-1511 ● ● ● ●
24 BRACKET; FRT SPR,FRT 8-98254-443-0 01 1 1512- ● ● ● ● ●
25 WASHER; PL,BRKT
ID=15 		8-98010-627-1 16 1 1411-1511 ● ● ● ●
25 WASHER; PL,BRKT
ID=15 		8-98010-627-1 16 1 1512- ● ● ● ● ●
26 NUT; BRKT,SPR
M14 		0-91110-514-0 12 1 1411-1511 ● ● ●
26 NUT; BRKT,SPR
M14 		0-91110-514-0 12 1 1512- ● ● ● ●
26 NUT; BRKT,SPR
M14 		0-91110-514-0 08 1 1411- ●
27 WASHER; LK,BRKT,FRT SPR
ID=14.2 		0-91510-614-0 04 1 1411-1511 ● ● ●
27 WASHER; LK,BRKT,FRT SPR
ID=14.2 		0-91510-614-0 04 1 1512- ● ● ● ●
31 BUSHING; FRT SPR,RR
ID=25 		8-98082-176-0 02 1 1411-1511 ● ● ● ●
31 BUSHING; FRT SPR,RR
ID=25 		8-98082-176-0 02 1 1512- ● ● ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-154-2 02 1 1411-1511 ● ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-154-2 02 1 1512- ● ● ● ● ●
46 BOLT; BRKT FIX
M14X50 		0-20951-450-0 04 1 1411-1511 ● ● ●
46 BOLT; BRKT FIX
M14X50 		0-20951-450-0 04 1 1512- ● ● ● ●
82 NUT; BRKT
M14 		0-91110-514-0 02 1 1411-1511 ● ● ●
82 NUT; BRKT
M14 		0-91110-514-0 02 1 1512- ● ● ● ●
82 NUT; BRKT
M14 		0-91110-514-0 06 1 1411- ●
89 NUT; LEAF SPR STOPPER
M12 		0-91116-512-0 02 1 1411- ● ● ● ● ●
96 PAD; RR SPR 1-53359-051-2 02 1 1411- ●
97 WASHER; LK,PAD
ID=14.2 		0-91510-514-0 04 1 1411- ●
98 WASHER; LK,STOPPER
ID=14.2 		0-91510-614-0 16 1 1411-1511 ● ● ● ●
98 WASHER; LK,STOPPER
ID=14.2 		0-91510-614-0 16 1 1512- ● ● ● ● ●
101 BRACKET; RR SPR,FRT 1-53353-090-4 02 1 1411-1511 ● ● ● ●
101 BRACKET; RR SPR,FRT 1-53353-090-4 02 1 1512- ● ● ● ● ●
103 STOPPER; SUB SPR 1-53356-059-1 04 1 1411-1511 ● ● ● ●
103 STOPPER; SUB SPR 1-53356-059-1 04 1 1512- ● ● ● ● ●
105 BRACKET; RR SPR,RR 1-53354-072-0 02 1 1411-1511 ● ● ● ●
105 BRACKET; RR SPR,RR 1-53354-072-0 02 1 1512- ● ● ● ● ●
106 BOLT; BRKT
M14X50 		0-20951-450-0 02 1 1411-1511 ● ● ●
106 BOLT; BRKT
M14X50 		0-20951-450-0 02 1 1512- ● ● ● ●
106 BOLT; BRKT
M14X50 		0-20951-450-0 06 1 1411- ●
109 SHIM; RR SPR 1-53359-043-1 04 1 1411- ● ● ● ● ●
110 BOLT; LEAF SPR STOPPER
M12X121 		8-98010-414-0 02 1 1411- ● ● ● ● ●
111 PIN; SPLIT,LEAF SPR STOPPER
OD=2.8 L=28 		0-81123-028-0 02 1 1411- ● ● ● ● ●
112 BOLT; PAD
M14X25 		0-20851-425-0 04 1 1411- ●
117 BOLT; STOPPER
M14X50 		0-20951-450-0 16 1 1411-1511 ● ● ● ●
117 BOLT; STOPPER
M14X50 		0-20951-450-0 16 1 1512- ● ● ● ● ●
118 NUT; STOPPER
M14 		0-91110-514-0 16 1 1411-1511 ● ● ● ●
118 NUT; STOPPER
M14 		0-91110-514-0 16 1 1512- ● ● ● ● ●
138 WASHER; LK,BRKT
ID=14.2 		0-91510-614-0 02 1 1411-1511 ● ● ●
138 WASHER; LK,BRKT
ID=14.2 		0-91510-614-0 02 1 1512- ● ● ● ●
138 WASHER; LK,BRKT
ID=14.2 		0-91510-614-0 06 1 1411- ●

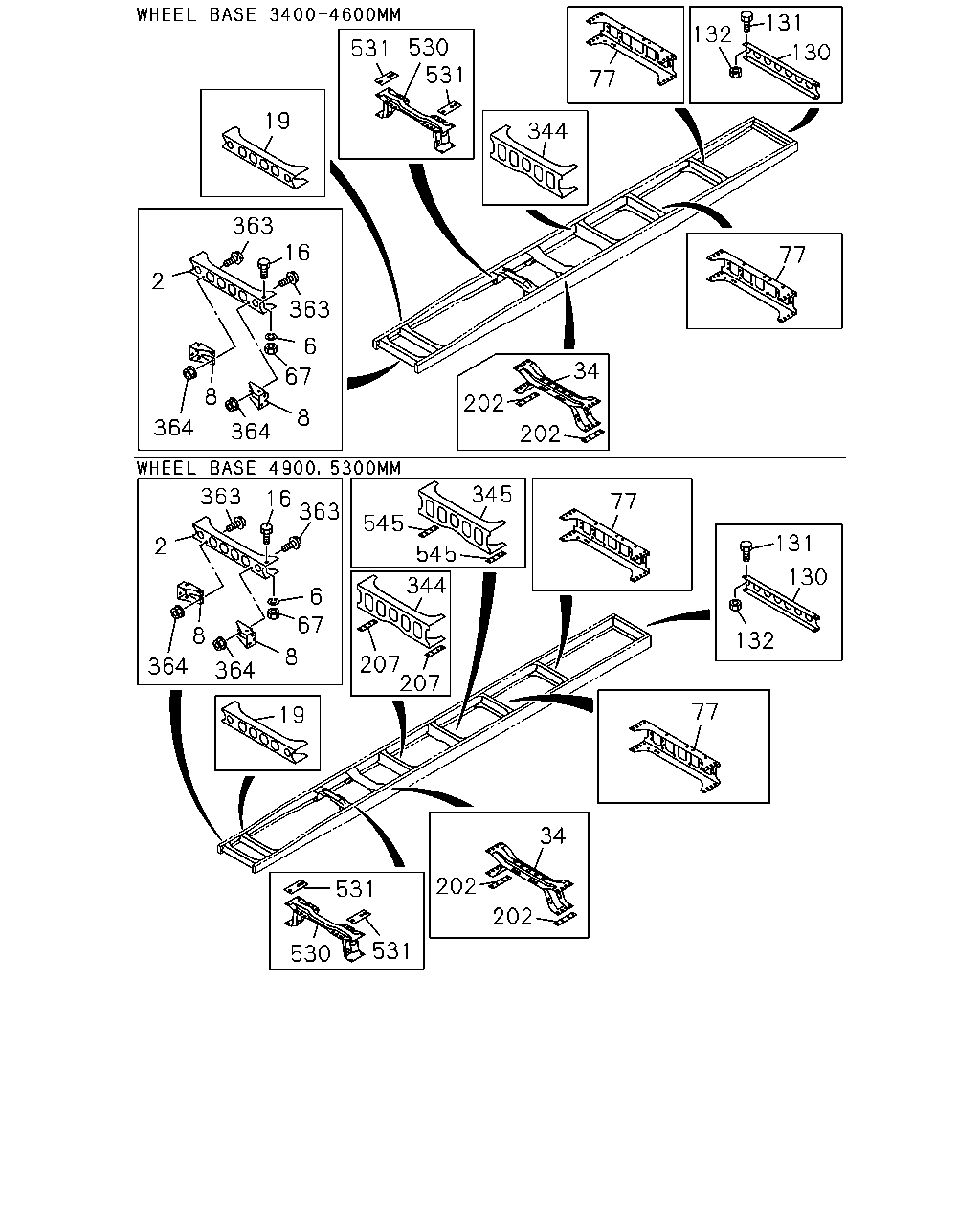

çizim 455512
131 132 77 344 531 530 531 19 363 2 16 363 6 67 8 364 364 202 34 202 77 363 2 364 364 8 67 6 363 16 345 545 545 344 207 207 19 531 531 530 34 202 202 77 131 130 132 77 130 8 8
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 MEMBER; CROSS,1ST 8-97609-462-9 01 1 1411-1511 ● ● ● ●
2 MEMBER; CROSS,1ST 8-97609-462-9 01 1 1512- ● ● ● ● ●
6 WASHER; LK,1ST C/MBR
ID=12.2 		0-91510-512-0 02 1 1411-1511 ● ● ● ●
6 WASHER; LK,1ST C/MBR
ID=12.2 		0-91510-512-0 02 1 1512- ● ● ● ● ●
8 GUSSET; 1ST C/MBR 8-97617-910-2 01 1 1411-1511 ● ● ● ●
8 GUSSET; 1ST C/MBR 8-97617-910-2 01 1 1512- ● ● ● ● ●
8 GUSSET; 1ST C/MBR 8-97617-911-3 01 1 1411-1511 ● ● ● ●
8 GUSSET; 1ST C/MBR 8-97617-911-3 01 1 1512- ● ● ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
M12X30 		0-20851-230-0 02 1 1411-1511 ● ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
M12X30 		0-20851-230-0 02 1 1512- ● ● ● ● ●
19 MEMBER; CROSS,2ND 8-97629-428-5 01 1 1411-1511 ● ● ● ●
19 MEMBER; CROSS,2ND 8-97629-428-5 01 1 1512- ● ● ● ● ●
34 MEMBER; CROSS,3RD 8-97609-501-2 01 1 1411-1511 ● ● ● ●
34 MEMBER; CROSS,3RD 8-97609-501-2 01 1 1512- ● ● ● ● ●
67 NUT; C/MBR
M12 		0-91110-512-0 02 1 1411-1511 ● ● ● ●
67 NUT; C/MBR
M12 		0-91110-512-0 02 1 1512- ● ● ● ● ●
77 MEMBER; CROSS,TRUNNION RR
REAR 		8-97609-475-2 01 1 1512- ●
77 MEMBER; CROSS,TRUNNION RR
FRONT 		8-97609-478-4 01 1 1512- ●
77 MEMBER; CROSS,TRUNNION RR 8-97610-935-1 02 1 1411- ● ● ● ●
130 MEMBER; CROSS,END 8-97609-471-0 01 1 1512- ●
130 MEMBER; CROSS,END 8-97609-470-0 01 1 1411- ● ● ● ●
131 BOLT; END C/MBR
M10X25 W/LK WASHER 		0-50541-025-0 04 1 1411-1511 ● ● ● ●
131 BOLT; END C/MBR
M10X25 W/LK WASHER 		0-50541-025-0 04 1 1512- ● ● ● ● ●
132 NUT; END C/MBR
M10 		0-91110-510-0 04 1 1411-1511 ● ● ● ●
132 NUT; END C/MBR
M10 		0-91110-510-0 04 1 1512- ● ● ● ● ●
202 SPACER; 3RD C/MBR 8-97609-756-1 02 1 1411-1511 ● ● ● ●
202 SPACER; 3RD C/MBR 8-97609-756-1 02 1 1512- ● ● ● ● ●
207 SPACER; 4TH C/MBR 8-97609-758-0 02 1 1411- ●
344 MEMBER; CROSS,4TH 8-97609-472-2 01 1 1411- ● ●
344 MEMBER; CROSS,4TH 8-97609-473-2 01 1 1411- ● ●
345 MEMBER; CROSS,5TH 8-97609-473-2 01 1 1411- ● ●
363 BOLT; GUSSET
M12X25 FLANGE 		0-28661-225-0 04 1 1411-1511 ● ● ● ●
363 BOLT; GUSSET
M12X25 FLANGE 		0-28661-225-0 04 1 1512- ● ● ● ● ●
364 NUT; GUSSET
M12 FLANGE 		0-91180-212-0 04 1 1411-1511 ● ● ● ●
364 NUT; GUSSET
M12 FLANGE 		0-91180-212-0 04 1 1512- ● ● ● ● ●
530 MEMBER; CROSS,T/M 8-97609-809-3 01 1 1411-1511 ● ● ● ●
530 MEMBER; CROSS,T/M 8-97609-809-3 01 1 1512- ● ● ● ● ●
531 SPACER; C/MBR,T/M 8-97616-461-1 02 1 1411-1511 ● ● ● ●
531 SPACER; C/MBR,T/M 8-97616-461-1 02 1 1512- ● ● ● ● ●
545 SPACER; 5TH C/MBR 8-97609-758-0 02 1 1411- ●
