Sayfa 4-25 - Isuzu EPC

4-25 — REAR FINAL DRIVE (#152270) — 210 parça

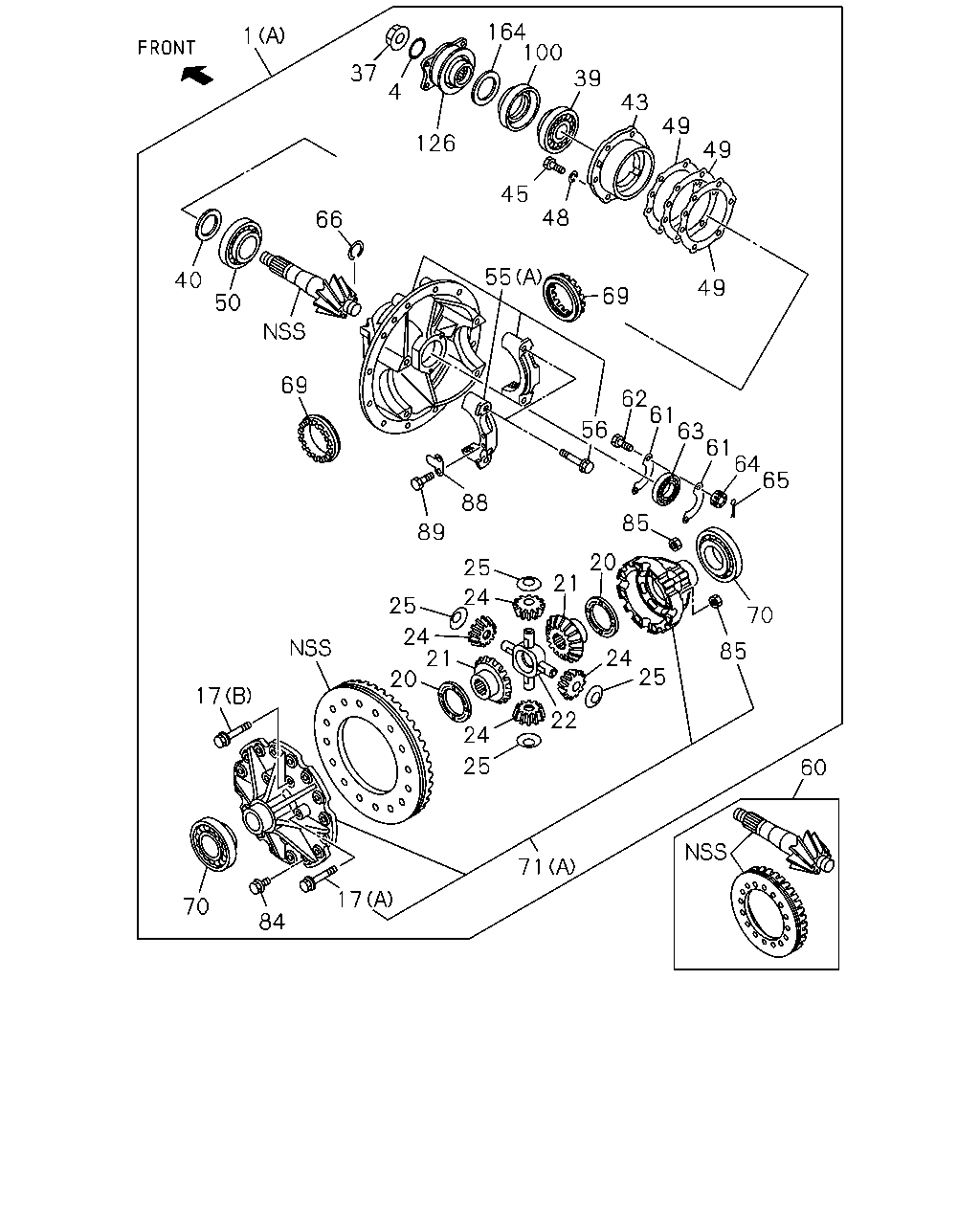

164 39 100 43 49 9 49 48 45 126 4 37 55 69 66 88 56 62 61 63 61 65 64 70 85 60 71 17 84 70 17 20 24 25 22 24 25 85 20 21 25 24 24 21 25 89 69 50 40 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRIVE ASM; FINAL,RR DIFF LOCK<C3N> (B) 39/9	1-41003-550-0	01	1	1512-	●
1	DRIVE ASM; FINAL,RR DIFF LOCK<C3N> (B) 41/9	1-41003-549-0	01	1	1512-		●
1	DRIVE ASM; FINAL,RR (A) 39/9	1-41003-250-0	01	1	1411-1511	●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK<C3N> (A) 39/9	1-41003-250-0	01	1	1512-	●
1	DRIVE ASM; FINAL,RR (A) 41/9	1-41003-343-0	01	1	1411-1511		●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK<C3N> (A) 41/9	1-41003-343-0	01	1	1512-		●
4	GASKET; FLANGE,FINAL PINION ID=37.5 T=4	1-09623-582-0	01	1	1411-	●	●
17	BOLT; DIFF CAGE SETTING DIFF LOCK<C3N> (C) M14X112 FLANGE	1-09070-057-1	04	1	1512-	●	●
17	BOLT; DIFF CAGE SETTING (A) M14X121 FLANGE	1-09044-006-0	04	1	1411-1511	●	●
17	BOLT; DIFF CAGE SETTING EXC. DIFF LOCK<C3N> (A) M14X121 FLANGE	1-09044-006-0	04	1	1512-	●	●
17	BOLT; DIFF CAGE SETTING (B) M14X95 FLANGE	1-09044-007-0	04	1	1411-	●	●
20	WASHER; THRUST,SIDE GEAR T=2.80	1-41562-061-0	AR	1	1411-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.00	1-41562-062-0	AR	1	1411-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.20	1-41562-063-0	AR	1	1411-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.40	1-41562-064-0	AR	1	1411-	●	●
20	WASHER; THRUST,SIDE GEAR T=2.90	1-41562-080-0	AR	1	1411-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.10	1-41562-081-0	AR	1	1411-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.30	1-41562-082-0	AR	1	1411-	●	●
21	GEAR; SIDE,DIFF Z=16	1-41561-149-0	02	1	1411-	●	●
22	SPIDER; DIFF PINION	1-41521-050-2	01	1	1411-	●	●
24	GEAR; PINION,DIFF Z=10	1-41551-049-0	04	1	1411-	●	●
25	WASHER; THRUST,PINION ID=29 OD=60	1-41562-119-0	04	1	1411-	●	●
37	NUT; DRIVING PINION M36 FLANGE	1-09449-083-0	01	1	1411-	●	●
39	BEARING; FINAL PINION JTEKT	5-09812-062-1	01	1	1411-	●	●
39	BEARING; FINAL PINION NSK	5-09812-063-0	01	1	1411-	●	●
40	SHIM; FINAL PINION T=1.60	1-41229-179-0	AR	1	1411-	●	●
40	SHIM; FINAL PINION T=1.61	1-41229-180-0	AR	1	1411-	●	●
40	SHIM; FINAL PINION T=1.62	1-41229-181-0	AR	1	1411-	●	●
40	SHIM; FINAL PINION T=1.63	1-41229-182-0	AR	1	1411-	●	●
40	SHIM; FINAL PINION T=1.64	1-41229-183-0	AR	1	1411-	●	●
40	SHIM; FINAL PINION T=1.65	1-41229-184-0	AR	1	1411-	●	●
40	SHIM; FINAL PINION T=1.66	1-41229-185-0	AR	1	1411-	●	●
40	SHIM; FINAL PINION T=1.67	1-41229-186-0	AR	1	1411-	●	●
40	SHIM; FINAL PINION T=1.68	1-41229-187-0	AR	1	1411-	●	●
40	SHIM; FINAL PINION T=1.69	1-41229-188-0	AR	1	1411-	●	●
40	SHIM; FINAL PINION T=1.70	1-41229-189-0	AR	1	1411-	●	●
43	CAGE; FINAL PINION	1-41151-027-0	01	1	1411-	●	●
45	BOLT; FINAL PINION CAGE M12X40	9-02361-240-0	06	1	1411-	●	●
48	WASHER; LK,FINAL PINION ID=12.2	0-91510-812-0	06	1	1411-	●	●
49	SHIM; FINAL PINION CAGE T=0.50	1-41154-021-1	AR	1	1411-	●	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-051-1	AR	1	1411-	●	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-052-1	AR	1	1411-	●	●
49	SHIM; FINAL PINION CAGE T=1.00	1-41154-053-1	AR	1	1411-	●	●
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	1411-	●	●
50	BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	1411-	●	●
55	CARRIER; DIFF DIFF LOCK<C3N> (B)	1-41110-122-0	01	1	1512-	●	●
55	CARRIER; DIFF (A)	1-41110-129-0	01	1	1411-1511	●	●
55	CARRIER; DIFF EXC. DIFF LOCK<C3N> (A)	1-41110-129-0	01	1	1512-	●	●
56	BOLT; BRG CAP M16X100 FLANGE	1-09070-047-0	04	1	1411-	●	●
60	GEAR SET; FINAL DRIVE,RR 39/9	1-41210-455-0	01	1	1411-	●
60	GEAR SET; FINAL DRIVE,RR 41/9	1-41210-729-0	01	1	1411-		●
61	RETAINER; PILOT BRG,PINION T=2.3	1-41227-006-0	02	1	1411-	●	●
62	BOLT; RET M8X35 W/PIN HOLE	1-09042-046-0	02	1	1411-	●	●
63	BEARING; PINION PILOT NSK	1-09810-073-2	01	1	1411-	●	●
63	BEARING; PINION PILOT JTEKT	1-09810-074-1	01	1	1411-	●	●
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	1411-	●	●
65	PIN; SPLIT,RET	0-81122-012-0	02	1	1411-	●	●
66	RING; SNAP,PILOT BRG OD=34.2	1-09588-214-0	01	1	1411-	●	●
69	NUT; ADJ,DIFF CAGE DIFF LOCK<C3N> M138 H=30	1-41121-054-0	01	1	1512-	●	●
69	NUT; ADJ,DIFF CAGE M128 H=22	1-41121-013-0	01	1	1411-1511	●	●
69	NUT; ADJ,DIFF CAGE EXC. DIFF LOCK<C3N> M128 H=22	1-41121-013-0	01	1	1512-	●	●
69	NUT; ADJ,DIFF CAGE M128 H=30	1-41121-015-0	01	1	1411-1511	●	●
69	NUT; ADJ,DIFF CAGE EXC. DIFF LOCK<C3N> M128 H=30	1-41121-015-0	01	1	1512-	●	●
69	NUT; ADJ,DIFF CAGE DIFF LOCK<C3N> M128 H=30	1-41121-015-0	01	1	1512-	●	●
70	BEARING; DIFF CAGE DIFF LOCK<C3N> NSK ID=85 OD=130 T=29	1-09812-088-0	01	1	1512-	●	●
70	BEARING; DIFF CAGE DIFF LOCK<C3N> JTEKT ID=85 OD=130 T=29	1-09812-089-0	01	1	1512-	●	●
70	BEARING; DIFF CAGE NSK ID=70 OD=125 T=33.3	1-09812-056-1	01	1	1411-1511	●	●
70	BEARING; DIFF CAGE EXC. DIFF LOCK<C3N> NSK ID=70 OD=125 T=33.3	1-09812-056-1	01	1	1512-	●	●
70	BEARING; DIFF CAGE NSK ID=70 OD=125 T=26.3	1-09812-058-1	01	1	1411-1511	●	●
70	BEARING; DIFF CAGE EXC. DIFF LOCK<C3N> NSK ID=70 OD=125 T=26.3	1-09812-058-1	01	1	1512-	●	●
70	BEARING; DIFF CAGE DIFF LOCK<C3N> NSK ID=70 OD=125 T=26.3	1-09812-058-1	01	1	1512-	●	●
70	BEARING; DIFF CAGE JTEKT ID=70 OD=125 T=33.3	1-09812-062-2	01	1	1411-1511	●	●
70	BEARING; DIFF CAGE EXC. DIFF LOCK<C3N> JTEKT ID=70 OD=125 T=33.3	1-09812-062-2	01	1	1512-	●	●
70	BEARING; DIFF CAGE JTEKT ID=70 OD=125 T=26.3	1-09812-249-0	01	1	1411-1511	●	●
70	BEARING; DIFF CAGE EXC. DIFF LOCK<C3N> JTEKT ID=70 OD=125 T=26.3	1-09812-249-0	01	1	1512-	●	●
70	BEARING; DIFF CAGE DIFF LOCK<C3N> JTEKT ID=70 OD=125 T=26.3	1-09812-249-0	01	1	1512-	●	●
71	CAGE ASM; DIFF,FINAL DRIVE DIFF LOCK<C3N> (B)	1-41510-334-0	01	1	1512-	●	●
71	CAGE ASM; DIFF,FINAL DRIVE (A)	1-41510-343-0	01	1	1411-1511	●	●
71	CAGE ASM; DIFF,FINAL DRIVE EXC. DIFF LOCK<C3N> (A)	1-41510-343-0	01	1	1512-	●	●
84	BOLT; FINAL DRIVE GEAR M16X34.5 FLANGE	9-09802-575-1	16	1	1411-	●	●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	08	1	1411-	●	●
88	PLATE; LK,ADJ NUT T=2.3	9-41124-015-0	02	1	1411-	●	●
89	BOLT; LK PLATE M8X12 FLANGE	8-94479-696-1	04	1	1411-	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-484-1	01	1	1411-	●	●
100	SEAL; OIL,FINAL PINION TKK	1-09625-637-0	01	1	1411-	●	●
126	COUPLING; DRIVING PINION	1-37245-414-0	01	1	1411-	●	●
164	COLLAR; DIST,PINION T=10.70	1-36355-031-0	01	1	1411-	●	●
164	COLLAR; DIST,PINION T=10.90	1-36355-033-0	01	1	1411-	●	●
164	COLLAR; DIST,PINION T=11.10	1-36355-035-0	01	1	1411-	●	●
164	COLLAR; DIST,PINION T=11.30	1-36355-037-0	01	1	1411-	●	●
164	COLLAR; DIST,PINION T=11.50	1-36355-039-0	01	1	1411-	●	●
164	COLLAR; DIST,PINION T=11.70	1-36355-041-0	01	1	1411-	●	●
164	COLLAR; DIST,PINION T=11.90	1-36355-043-0	01	1	1411-	●	●
164	COLLAR; DIST,PINION T=12.10	1-36355-045-0	01	1	1411-	●	●
164	COLLAR; DIST,PINION T=12.30	1-36355-047-0	01	1	1411-	●	●

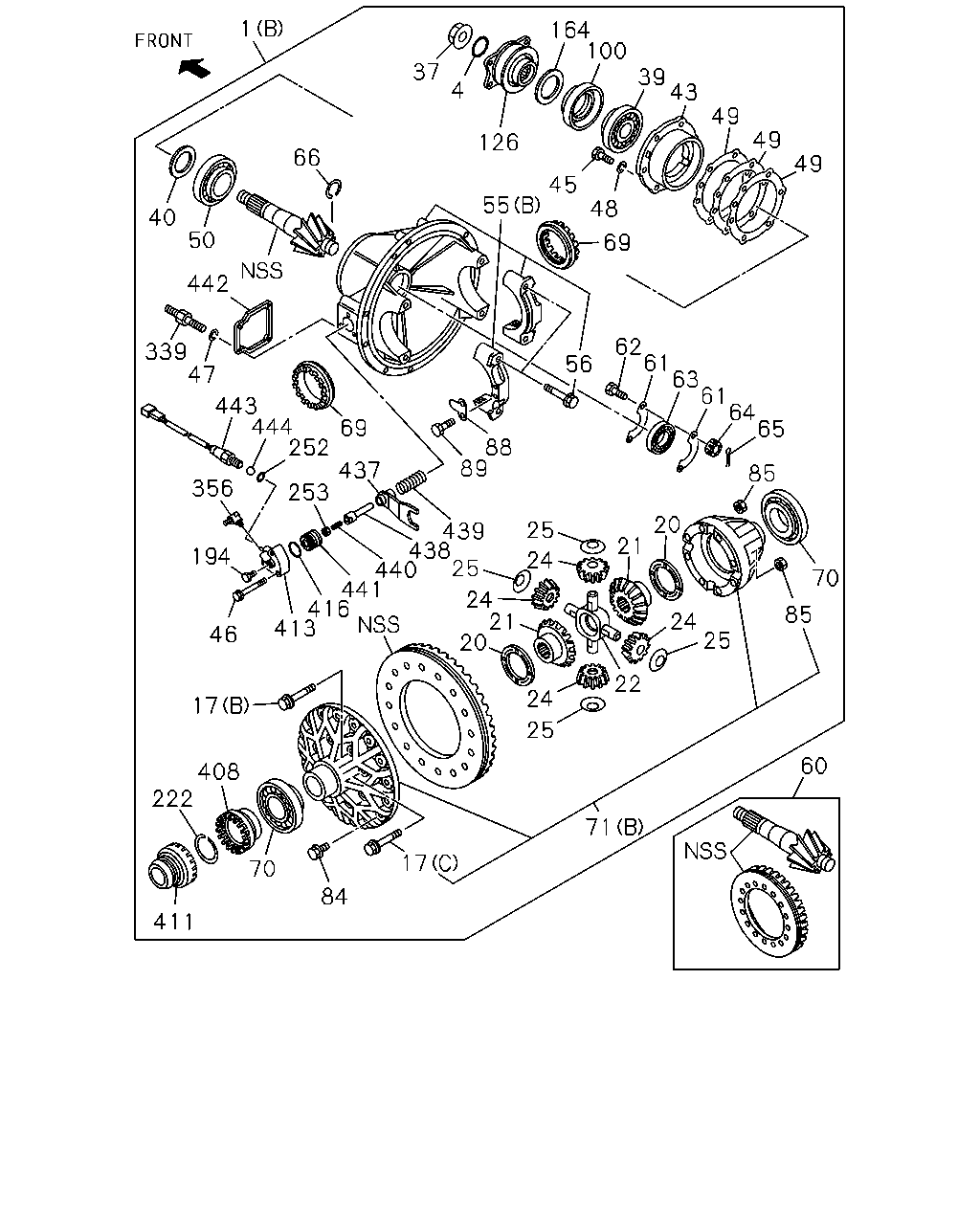

164 39 100 49 43 49 49 37 126 4 45 69 48 55 56 62 61 63 61 64 85 65 70 85 20 24 25 21 22 25 20 24 24 24 21 25 5 439 89 88 438 440 441 416 413 46 17 408 17 71 84 70 411 222 194 356 253 437 69 252 444 443 47 339 442 50 66 1 40 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRIVE ASM; FINAL,RR DIFF LOCK<C3N> (B) 39/9	1-41003-550-0	01	1	1512-	●
1	DRIVE ASM; FINAL,RR DIFF LOCK<C3N> (B) 41/9	1-41003-549-0	01	1	1512-		●
1	DRIVE ASM; FINAL,RR (A) 39/9	1-41003-250-0	01	1	1411-1511	●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK<C3N> (A) 39/9	1-41003-250-0	01	1	1512-	●
1	DRIVE ASM; FINAL,RR (A) 41/9	1-41003-343-0	01	1	1411-1511		●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK<C3N> (A) 41/9	1-41003-343-0	01	1	1512-		●
4	GASKET; FLANGE,FINAL PINION ID=37.5 T=4	1-09623-582-0	01	1	1411-	●	●
17	BOLT; DIFF CAGE SETTING DIFF LOCK<C3N> (C) M14X112 FLANGE	1-09070-057-1	04	1	1512-	●	●
17	BOLT; DIFF CAGE SETTING (A) M14X121 FLANGE	1-09044-006-0	04	1	1411-1511	●	●
17	BOLT; DIFF CAGE SETTING EXC. DIFF LOCK<C3N> (A) M14X121 FLANGE	1-09044-006-0	04	1	1512-	●	●
17	BOLT; DIFF CAGE SETTING (B) M14X95 FLANGE	1-09044-007-0	04	1	1411-	●	●
20	WASHER; THRUST,SIDE GEAR T=2.80	1-41562-061-0	AR	1	1411-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.00	1-41562-062-0	AR	1	1411-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.20	1-41562-063-0	AR	1	1411-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.40	1-41562-064-0	AR	1	1411-	●	●
20	WASHER; THRUST,SIDE GEAR T=2.90	1-41562-080-0	AR	1	1411-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.10	1-41562-081-0	AR	1	1411-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.30	1-41562-082-0	AR	1	1411-	●	●
21	GEAR; SIDE,DIFF Z=16	1-41561-149-0	02	1	1411-	●	●
22	SPIDER; DIFF PINION	1-41521-050-2	01	1	1411-	●	●
24	GEAR; PINION,DIFF Z=10	1-41551-049-0	04	1	1411-	●	●
25	WASHER; THRUST,PINION ID=29 OD=60	1-41562-119-0	04	1	1411-	●	●
37	NUT; DRIVING PINION M36 FLANGE	1-09449-083-0	01	1	1411-	●	●
39	BEARING; FINAL PINION JTEKT	5-09812-062-1	01	1	1411-	●	●
39	BEARING; FINAL PINION NSK	5-09812-063-0	01	1	1411-	●	●
40	SHIM; FINAL PINION T=1.60	1-41229-179-0	AR	1	1411-	●	●
40	SHIM; FINAL PINION T=1.61	1-41229-180-0	AR	1	1411-	●	●
40	SHIM; FINAL PINION T=1.62	1-41229-181-0	AR	1	1411-	●	●
40	SHIM; FINAL PINION T=1.63	1-41229-182-0	AR	1	1411-	●	●
40	SHIM; FINAL PINION T=1.64	1-41229-183-0	AR	1	1411-	●	●
40	SHIM; FINAL PINION T=1.65	1-41229-184-0	AR	1	1411-	●	●
40	SHIM; FINAL PINION T=1.66	1-41229-185-0	AR	1	1411-	●	●
40	SHIM; FINAL PINION T=1.67	1-41229-186-0	AR	1	1411-	●	●
40	SHIM; FINAL PINION T=1.68	1-41229-187-0	AR	1	1411-	●	●
40	SHIM; FINAL PINION T=1.69	1-41229-188-0	AR	1	1411-	●	●
40	SHIM; FINAL PINION T=1.70	1-41229-189-0	AR	1	1411-	●	●
43	CAGE; FINAL PINION	1-41151-027-0	01	1	1411-	●	●
45	BOLT; FINAL PINION CAGE M12X40	9-02361-240-0	06	1	1411-	●	●
46	BOLT DIFF LOCK<C3N> M8X60 FLANGE	0-28050-860-0	03	1	1512-	●	●
47	WASHER; LK DIFF LOCK<C3N> ID=8.2	1-09985-177-0	04	1	1512-	●	●
48	WASHER; LK,FINAL PINION ID=12.2	0-91510-812-0	06	1	1411-	●	●
49	SHIM; FINAL PINION CAGE T=0.50	1-41154-021-1	AR	1	1411-	●	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-051-1	AR	1	1411-	●	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-052-1	AR	1	1411-	●	●
49	SHIM; FINAL PINION CAGE T=1.00	1-41154-053-1	AR	1	1411-	●	●
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	1411-	●	●
50	BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	1411-	●	●
55	CARRIER; DIFF DIFF LOCK<C3N> (B)	1-41110-122-0	01	1	1512-	●	●
55	CARRIER; DIFF (A)	1-41110-129-0	01	1	1411-1511	●	●
55	CARRIER; DIFF EXC. DIFF LOCK<C3N> (A)	1-41110-129-0	01	1	1512-	●	●
56	BOLT; BRG CAP M16X100 FLANGE	1-09070-047-0	04	1	1411-	●	●
60	GEAR SET; FINAL DRIVE,RR 39/9	1-41210-455-0	01	1	1411-	●
60	GEAR SET; FINAL DRIVE,RR 41/9	1-41210-729-0	01	1	1411-		●
61	RETAINER; PILOT BRG,PINION T=2.3	1-41227-006-0	02	1	1411-	●	●
62	BOLT; RET M8X35 W/PIN HOLE	1-09042-046-0	02	1	1411-	●	●
63	BEARING; PINION PILOT NSK	1-09810-073-2	01	1	1411-	●	●
63	BEARING; PINION PILOT JTEKT	1-09810-074-1	01	1	1411-	●	●
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	1411-	●	●
65	PIN; SPLIT,RET	0-81122-012-0	02	1	1411-	●	●
66	RING; SNAP,PILOT BRG OD=34.2	1-09588-214-0	01	1	1411-	●	●
69	NUT; ADJ,DIFF CAGE DIFF LOCK<C3N> M138 H=30	1-41121-054-0	01	1	1512-	●	●
69	NUT; ADJ,DIFF CAGE M128 H=22	1-41121-013-0	01	1	1411-1511	●	●
69	NUT; ADJ,DIFF CAGE EXC. DIFF LOCK<C3N> M128 H=22	1-41121-013-0	01	1	1512-	●	●
69	NUT; ADJ,DIFF CAGE M128 H=30	1-41121-015-0	01	1	1411-1511	●	●
69	NUT; ADJ,DIFF CAGE EXC. DIFF LOCK<C3N> M128 H=30	1-41121-015-0	01	1	1512-	●	●
69	NUT; ADJ,DIFF CAGE DIFF LOCK<C3N> M128 H=30	1-41121-015-0	01	1	1512-	●	●
70	BEARING; DIFF CAGE DIFF LOCK<C3N> NSK ID=85 OD=130 T=29	1-09812-088-0	01	1	1512-	●	●
70	BEARING; DIFF CAGE DIFF LOCK<C3N> JTEKT ID=85 OD=130 T=29	1-09812-089-0	01	1	1512-	●	●
70	BEARING; DIFF CAGE NSK ID=70 OD=125 T=33.3	1-09812-056-1	01	1	1411-1511	●	●
70	BEARING; DIFF CAGE EXC. DIFF LOCK<C3N> NSK ID=70 OD=125 T=33.3	1-09812-056-1	01	1	1512-	●	●
70	BEARING; DIFF CAGE NSK ID=70 OD=125 T=26.3	1-09812-058-1	01	1	1411-1511	●	●
70	BEARING; DIFF CAGE EXC. DIFF LOCK<C3N> NSK ID=70 OD=125 T=26.3	1-09812-058-1	01	1	1512-	●	●
70	BEARING; DIFF CAGE DIFF LOCK<C3N> NSK ID=70 OD=125 T=26.3	1-09812-058-1	01	1	1512-	●	●
70	BEARING; DIFF CAGE JTEKT ID=70 OD=125 T=33.3	1-09812-062-2	01	1	1411-1511	●	●
70	BEARING; DIFF CAGE EXC. DIFF LOCK<C3N> JTEKT ID=70 OD=125 T=33.3	1-09812-062-2	01	1	1512-	●	●
70	BEARING; DIFF CAGE JTEKT ID=70 OD=125 T=26.3	1-09812-249-0	01	1	1411-1511	●	●
70	BEARING; DIFF CAGE EXC. DIFF LOCK<C3N> JTEKT ID=70 OD=125 T=26.3	1-09812-249-0	01	1	1512-	●	●
70	BEARING; DIFF CAGE DIFF LOCK<C3N> JTEKT ID=70 OD=125 T=26.3	1-09812-249-0	01	1	1512-	●	●
71	CAGE ASM; DIFF,FINAL DRIVE DIFF LOCK<C3N> (B)	1-41510-334-0	01	1	1512-	●	●
71	CAGE ASM; DIFF,FINAL DRIVE (A)	1-41510-343-0	01	1	1411-1511	●	●
71	CAGE ASM; DIFF,FINAL DRIVE EXC. DIFF LOCK<C3N> (A)	1-41510-343-0	01	1	1512-	●	●
84	BOLT; FINAL DRIVE GEAR M16X34.5 FLANGE	9-09802-575-1	16	1	1411-	●	●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	08	1	1411-	●	●
88	PLATE; LK,ADJ NUT T=2.3	9-41124-015-0	02	1	1411-	●	●
89	BOLT; LK PLATE M8X12 FLANGE	8-94479-696-1	04	1	1411-	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-484-1	01	1	1411-	●	●
100	SEAL; OIL,FINAL PINION TKK	1-09625-637-0	01	1	1411-	●	●
126	COUPLING; DRIVING PINION	1-37245-414-0	01	1	1411-	●	●
164	COLLAR; DIST,PINION T=10.70	1-36355-031-0	01	1	1411-	●	●
164	COLLAR; DIST,PINION T=10.90	1-36355-033-0	01	1	1411-	●	●
164	COLLAR; DIST,PINION T=11.10	1-36355-035-0	01	1	1411-	●	●
164	COLLAR; DIST,PINION T=11.30	1-36355-037-0	01	1	1411-	●	●
164	COLLAR; DIST,PINION T=11.50	1-36355-039-0	01	1	1411-	●	●
164	COLLAR; DIST,PINION T=11.70	1-36355-041-0	01	1	1411-	●	●
164	COLLAR; DIST,PINION T=11.90	1-36355-043-0	01	1	1411-	●	●
164	COLLAR; DIST,PINION T=12.10	1-36355-045-0	01	1	1411-	●	●
164	COLLAR; DIST,PINION T=12.30	1-36355-047-0	01	1	1411-	●	●
194	PLUG DIFF LOCK<C3N> M12X9	0-92002-412-0	01	1	1512-	●	●
222	RING; SNAP DIFF LOCK<C3N>	1-09588-186-0	01	1	1512-	●	●
252	GASKET; CARRIER DIFF LOCK<C3N> ID=14.2	8-94462-114-0	01	1	1512-	●	●
253	NUT DIFF LOCK<C3N> M12	0-91111-512-0	01	1	1512-	●	●
339	BOLT; COVER DIFF LOCK<C3N> M6X14,M8X17 L=42	5-09309-006-1	04	1	1512-	●	●
356	NIPPLE; SHIFT UNIT DIFF LOCK<C3N> M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1512-	●	●
408	CLAW; CLU,DIFF LK DIFF LOCK<C3N>	1-41266-025-0	01	1	1512-	●	●
411	SLEEVE; CLU DIFF LOCK<C3N>	1-41266-027-0	01	1	1512-	●	●
413	CYLINDER; DIFF LK DIFF LOCK<C3N>	1-41279-021-0	01	1	1512-	●	●
416	GASKET DIFF LOCK<C3N> ID=43.7	9-09561-344-0	01	1	1512-	●	●
437	FORK ASM; SHIFT,DIFF LK DIFF LOCK<C3N>	1-41271-015-0	01	1	1512-	●	●
438	ROD; SHIFTER,DIFF LK DIFF LOCK<C3N>	1-41271-014-0	01	1	1512-	●	●
439	SPRING; RETUN,DIFF LK DIFF LOCK<C3N>	1-09580-507-0	01	1	1512-	●	●
440	SCREW SET; DIFF LK DIFF LOCK<C3N> M12X31	1-09120-021-0	01	1	1512-	●	●
441	PISTON; CHAMBER,DIFF LK DIFF LOCK<C3N>	1-41279-020-0	01	1	1512-	●	●
442	COVER; CARRIER,DIFF LK DIFF LOCK<C3N>	1-41117-005-0	01	1	1512-	●	●
443	SWITCH; STROKE DIFF LOCK<C3N>	1-82340-534-0	01	1	1512-	●	●
444	BALL DIFF LOCK<C3N>	9-00097-010-0	01	1	1512-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
