◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11627 - FRR LHD EUROPE EURO6 SPACECAB EVSC ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-10 - FRONT AXLE ▶
4-10 — FRONT AXLE (#152267) — 101 parça

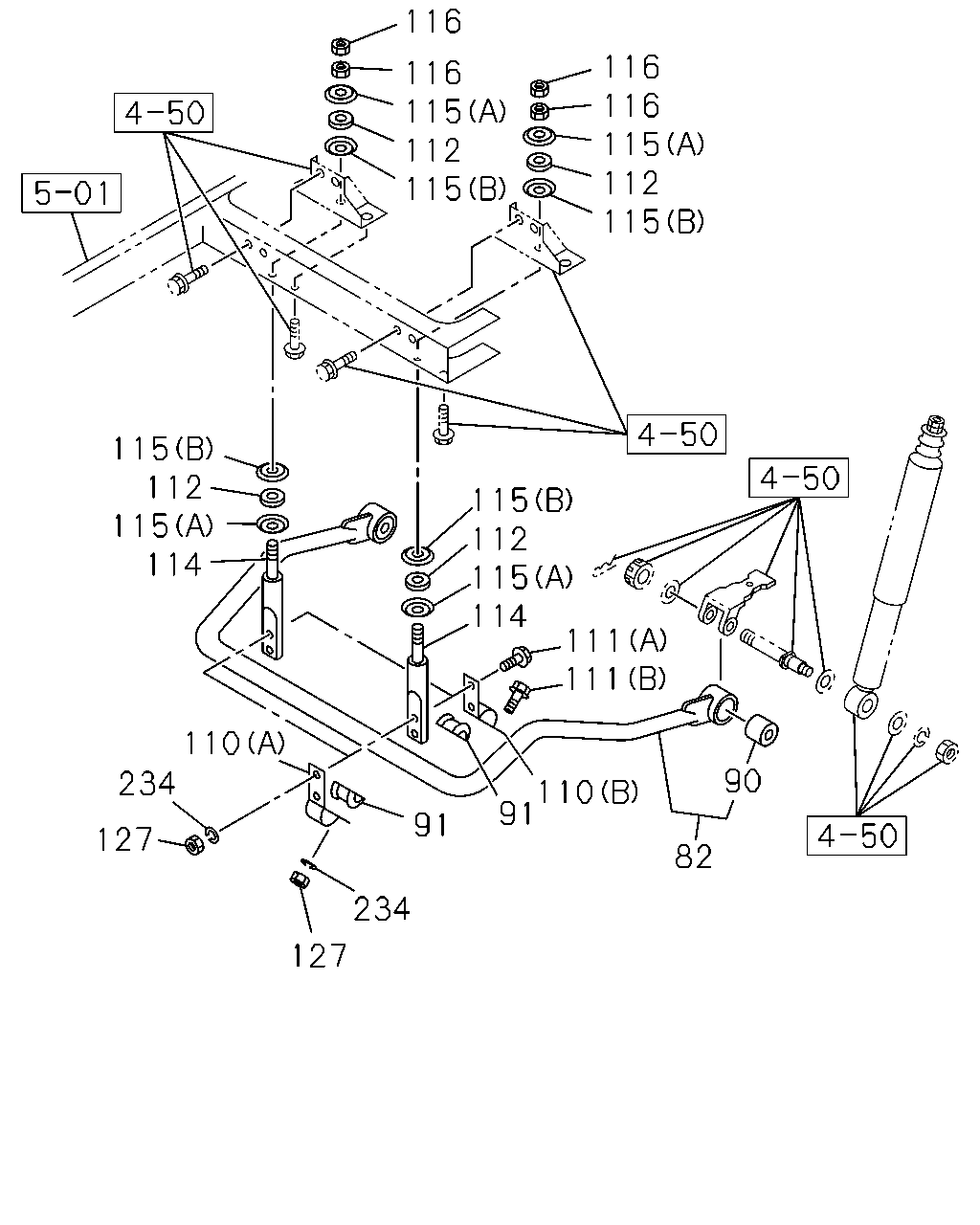

çizim 455353
116 116 112 115 115 116 115 116 112 115 115 115 112 115 115 112 114 111 111 110 91 110 234 127 127 91 82 114 234 90
BalonParca AdiParca NoAdetTipApplied Date
82 BAR; STAB,FRT SUSP 1-51770-114-0 01 1 1411-
90 BUSHING; RUBBER,STAB BAR 1-51779-066-0 02 1 1411-
91 BUSHING; RUBBER,STAB BAR 1-51779-079-1 04 1 1411-
110 CLAMP; STAB TO ROD
(A) 		1-51789-027-2 02 1 1411-
110 CLAMP; STAB TO ROD
(B) 		1-51789-028-1 02 1 1411-
111 BOLT; CLAMP TO ROD
(B) M12X30 FLANGE 		0-28051-230-0 02 1 1411-
111 BOLT; CLAMP TO ROD
(A) M12X50 FLANGE 		0-28051-250-0 04 1 1411-
112 BUSHING; ROD 9-51631-050-0 04 1 1411-
114 ROD; STAB BAR 1-51773-082-0 02 1 1411-1505
114 ROD; STAB BAR 8-98312-727-0 02 1 1506-
115 WASHER; CENTER,STAB TO FRAME
(B) ID=16.8 		1-51631-022-0 04 1 1411-
115 WASHER; CENTER,STAB TO FRAME
(A) ID=14.5 		9-51631-051-0 04 1 1411-
116 NUT; LK,STAB TO FRAME
M14 		0-91111-514-0 04 1 1411-
127 NUT; CLAMP
M12 		0-91110-512-0 06 1 1411-
234 WASHER; STAB
ID=12.2 		0-91510-812-0 06 1 1411-
274 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 02 1 1411-

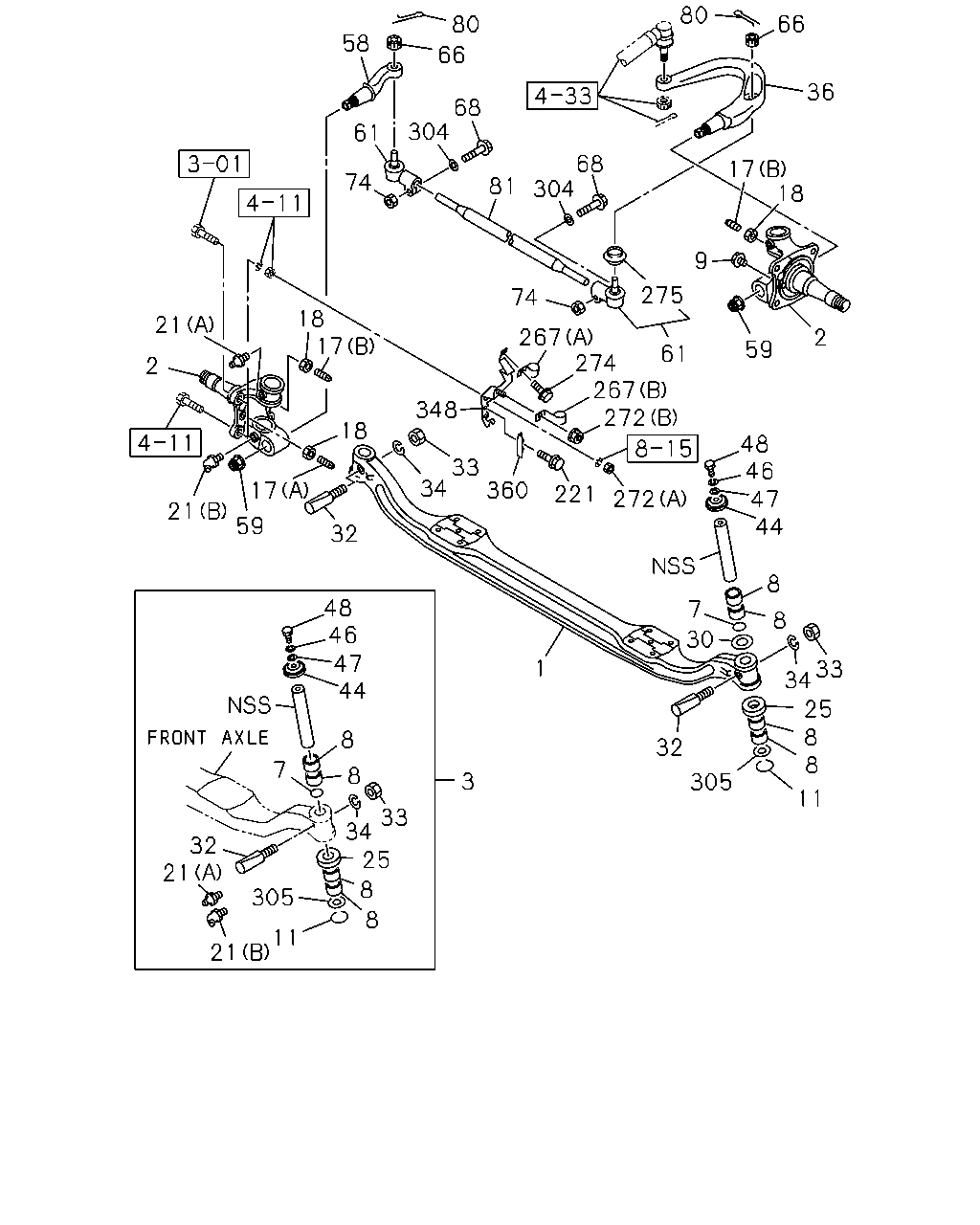

çizim 455396
80 66 68 304 61 74 58 81 304 68 66 36 17 18 2 59 9 80 275 61 48 46 47 44 8 8 33 34 25 8 8 11 305 32 1 360 221 272 7 30 3 48 46 47 44 8 8 33 34 25 8 8 305 11 21 21 32 7 21 59 32 17 18 17 18 21 2 348 33 34 74 267 267 174 272
BalonParca AdiParca NoAdetTipApplied Date
1 AXLE; FRT 8-98057-479-2 01 1 1411-
2 KNUCKLE; FRT AXLE 1-43131-127-1 01 1 1411-
2 KNUCKLE; FRT AXLE 1-43132-127-1 01 1 1411-
3 KING PIN SET 1-87831-295-2 01 1 1411-
3 KING PIN SET 1-87831-296-2 01 1 1411-
7 SEAL; OIL,KING PIN 1-09625-005-1 02 1 1411-
8 BEARING; NEEDLE,KING PIN
NSK 		1-09811-339-0 08 1 1411-
9 PLUG; KNUCKLE
M14X14 		8-97329-621-0 01 1 1411-
11 RING; SNAP,KNUCKLE PLUG 1-09589-017-1 02 1 1411-
17 BOLT; STOPPER KNUCKLE
(A) M14X47 		1-09009-191-0 01 1 1411-
17 BOLT; STOPPER KNUCKLE
(B) M14X53 		8-98065-261-0 02 1 1411-
18 NUT; STOPPER BOLT,KNUCKLE
M14 		0-91112-814-0 03 1 1411-
21 NIPPLE; GREASE,KING PIN
(A) PT1/8 STRAIGHT 		0-90301-410-0 02 1 1411-
21 NIPPLE; GREASE,KING PIN
(B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1411-
25 BEARING; THRUST,KING PIN
NSK 		1-09829-031-0 01 1 1411-
25 BEARING; THRUST,KING PIN
NSK 		1-09829-033-1 01 1 1411-
30 WASHER; THRUST,KING PIN
T=3.900 		1-43171-261-1 AR 1 1411-
30 WASHER; THRUST,KING PIN
T=3.912 		1-43171-262-1 AR 1 1411-
30 WASHER; THRUST,KING PIN
T=3.925 		1-43171-263-1 AR 1 1411-
30 WASHER; THRUST,KING PIN
T=3.937 		1-43171-264-1 AR 1 1411-
30 WASHER; THRUST,KING PIN
T=3.950 		1-43171-265-1 AR 1 1411-
30 WASHER; THRUST,KING PIN
T=3.962 		1-43171-266-1 AR 1 1411-
30 WASHER; THRUST,KING PIN
T=3.975 		1-43171-267-1 AR 1 1411-
30 WASHER; THRUST,KING PIN
T=3.987 		1-43171-268-1 AR 1 1411-
30 WASHER; THRUST,KING PIN
T=4.000 		1-43171-269-1 AR 1 1411-
30 WASHER; THRUST,KING PIN
T=4.012 		1-43171-270-1 AR 1 1411-
30 WASHER; THRUST,KING PIN
T=4.025 		1-43171-271-1 AR 1 1411-
30 WASHER; THRUST,KING PIN
T=4.037 		1-43171-272-1 AR 1 1411-
30 WASHER; THRUST,KING PIN
T=4.050 		1-43171-273-1 AR 1 1411-
30 WASHER; THRUST,KING PIN
T=4.062 		1-43171-274-1 AR 1 1411-
30 WASHER; THRUST,KING PIN
T=4.075 		1-43171-275-1 AR 1 1411-
30 WASHER; THRUST,KING PIN
T=4.087 		1-43171-276-1 AR 1 1411-
30 WASHER; THRUST,KING PIN
T=4.100 		1-43171-277-1 AR 1 1411-
30 WASHER; THRUST,KING PIN
T=4.112 		1-43171-278-1 AR 1 1411-
30 WASHER; THRUST,KING PIN
T=4.125 		1-43171-279-1 AR 1 1411-
30 WASHER; THRUST,KING PIN
T=4.137 		1-43171-280-1 AR 1 1411-
30 WASHER; THRUST,KING PIN
T=4.150 		1-43171-281-1 AR 1 1411-
30 WASHER; THRUST,KING PIN
T=4.162 		1-43171-311-0 AR 1 1411-
30 WASHER; THRUST,KING PIN
T=4.175 		1-43171-312-0 AR 1 1411-
30 WASHER; THRUST,KING PIN
T=4.187 		1-43171-313-0 AR 1 1411-
30 WASHER; THRUST,KING PIN
T=4.200 		1-43171-314-0 AR 1 1411-
30 WASHER; THRUST,KING PIN
T=4.212 		1-43171-315-0 AR 1 1411-
30 WASHER; THRUST,KING PIN
T=4.225 		1-43171-316-0 AR 1 1411-
30 WASHER; THRUST,KING PIN
T=4.237 		1-43171-317-0 AR 1 1411-
30 WASHER; THRUST,KING PIN
T=4.250 		1-43171-318-0 AR 1 1411-
30 WASHER; THRUST,KING PIN
T=4.262 		1-43171-319-0 AR 1 1411-
30 WASHER; THRUST,KING PIN
T=4.275 		1-43171-320-0 AR 1 1411-
30 WASHER; THRUST,KING PIN
T=4.287 		1-43171-321-0 AR 1 1411-
30 WASHER; THRUST,KING PIN
T=4.300 		1-43171-322-0 AR 1 1411-
30 WASHER; THRUST,KING PIN
T=4.312 		1-43171-323-0 AR 1 1411-
30 WASHER; THRUST,KING PIN
T=4.325 		1-43171-324-0 AR 1 1411-
30 WASHER; THRUST,KING PIN
T=4.337 		1-43171-325-0 AR 1 1411-
30 WASHER; THRUST,KING PIN
T=4.350 		1-43171-326-0 AR 1 1411-
32 BOLT; KEY,KING PIN 1-43116-013-1 02 1 1411-
33 NUT; KEY BOLT
M10 		0-91110-510-0 02 1 1411-
34 WASHER; LK,KEY BOLT
ID=10.2 		0-91510-510-0 02 1 1411-
36 ARM; KNUCKLE 8-98057-563-0 01 1 1411-
44 COVER; KING PIN 1-43175-031-0 02 1 1411-
46 WASHER; LK,COVER
ID=12.2 		0-91510-812-0 02 1 1411-
47 WASHER; PL,COVER,KING PIN
ID=12.5 OD=32 		0-91614-712-0 02 1 1411-
48 BOLT; COVER
M12X25 		1-09009-081-0 02 1 1411-
58 ARM; TIE ROD 8-98057-564-2 01 1 1411-
59 NUT; TIE ROD ARM
M27 FLANGE 		1-09449-082-0 02 1 1411-
61 ROD END; TIE ROD 1-43150-748-1 01 1 1411-
61 ROD END; TIE ROD 1-43150-749-1 01 1 1411-
66 NUT; TIE ROD END
M16 SLOTTED 		1-09442-031-0 02 1 1411-
68 BOLT; TIE ROD END
M12X45 FLANGE 		0-28061-245-0 02 1 1411-
74 NUT; TIE ROD END
M12 		0-91110-512-0 02 1 1411-
80 PIN; SPLIT,ROD END
OD=3.7 L=22 		0-81124-022-0 02 1 1411-
81 ROD; TIE 8-98038-703-1 01 1 1411-
221 BOLT; BRKT,SENSOR
M8X16 FLANGE 		0-28050-816-0 04 1 1411-
267 CLIP; HARNESS
(A) ID=11 L=16 		0-95235-025-0 02 1 1411-
267 CLIP; HARNESS
(B) ID=11 H=20 L=20 		8-98033-780-0 02 1 1411-
272 NUT; CLIP
(A) M14 		0-91110-514-0 02 1 1411-
272 NUT; CLIP
(B) M8 FLANGE 		0-91180-108-0 02 1 1411-
274 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 02 1 1411-
275 BOOT; ROD END,TIE 1-85574-046-0 02 1 1411-
304 WASHER; PL
ID=12.5 		0-91614-512-0 02 1 1411-
305 COVER; KNUCKLE 1-43175-030-0 02 1 1411-
348 BRACKET; CLIP 8-98055-137-1 01 1 1411-
348 BRACKET; CLIP 8-98055-138-1 01 1 1411-
360 COVER; SENSOR 8-98018-400-0 01 1 1411-
360 COVER; SENSOR 8-98018-401-0 01 1 1411-
çizim 455412
105
BalonParca AdiParca NoAdetTipApplied Date
105 BOLT; BRKT FIX
M8X12 FLANGE 		0-28050-812-0 04 1 1411-
274 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 02 1 1411-
