3-77 — BRAKE PIPING; AIR,REAR (#152264) — 88 parça

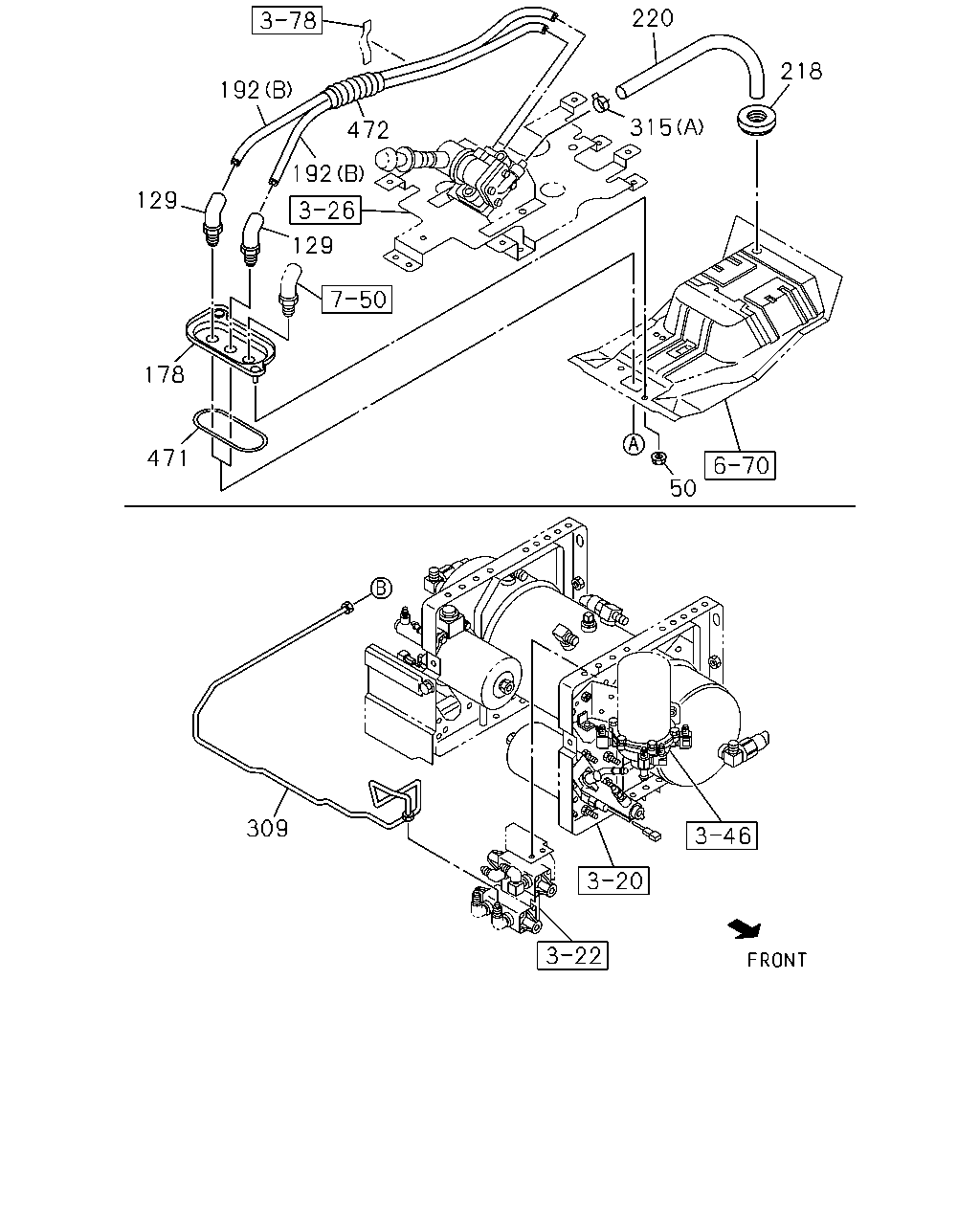

çizim 455269
315 218 220 50 129 192 472 192 129 178 471 309
BalonParca AdiParca NoAdetTipApplied Date
50 NUT; UNION BRKT
M8 FLANGE 		0-91180-108-0 02 1 1411-
129 CONNECTOR; NYLON TUBE
DIN13 & M18 ELBOW 		8-97611-963-1 02 1 1411-
178 BRACKET; UNION 8-98017-054-1 01 1 1411-
192 TUBE; NYLON
(A) 		8-98061-971-0 02 1 1411-
192 TUBE; NYLON
(B) SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1411-
192 TUBE; NYLON
(B) SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1411-
192 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1411-
192 TUBE; NYLON
(B) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1411-
192 TUBE; NYLON
(B) SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 1411-
192 TUBE; NYLON
(B) SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 1411-
192 TUBE; NYLON
(B) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1411-
192 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1411-
218 GROMMET; VINYL HOSE
OD=24 		9-61166-007-0 01 1 1411-
220 HOSE; VINYL,EXH,PARKING BRK VLV
L=260 ID=9.5 SERVICED BY L=10000 		9-09914-701-0 01 1 1411-
309 PIPE; AIR,MPV TO UNION
L=1354 SERVICED BY L=1400 		1-47428-878-0 01 1 1411-
315 CLIP
(B) L=250 		1-09707-126-0 05 1 1411-
315 CLIP
(A) ID=14 		8-94238-572-0 01 1 1411-
471 SEAL; BRKT 1-79738-832-0 01 1 1411-
472 TUBE; SPUTTER 8-98067-708-0 01 1 1411-
çizim 455270
192 192 223 192 223 97 91 97
BalonParca AdiParca NoAdetTipApplied Date
91 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 1411-
91 NUT; PIPE UNION
M16 		0-91111-516-0 02 1 1411-
97 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 01 1 1411-
97 UNION; AIR PIPE
(A) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 1411-
192 TUBE; NYLON
(A) 		8-98061-971-0 02 1 1411-
192 TUBE; NYLON
(B) SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1411-
192 TUBE; NYLON
(B) SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1411-
192 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1411-
192 TUBE; NYLON
(B) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1411-
192 TUBE; NYLON
(B) SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 1411-
192 TUBE; NYLON
(B) SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 1411-
192 TUBE; NYLON
(B) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1411-
192 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1411-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1411-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 1411-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=15 		1-87411-025-0 AR 1 1411-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87411-027-0 AR 1 1411-
223 TUBE; CORRUGATE
SERVICED BY L=4000 ID=19 		1-87411-028-0 AR 1 1411-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 1411-
223 TUBE; CORRUGATE
SERVICED BY L=4000 ID=10 		1-87411-020-0 AR 1 1411-

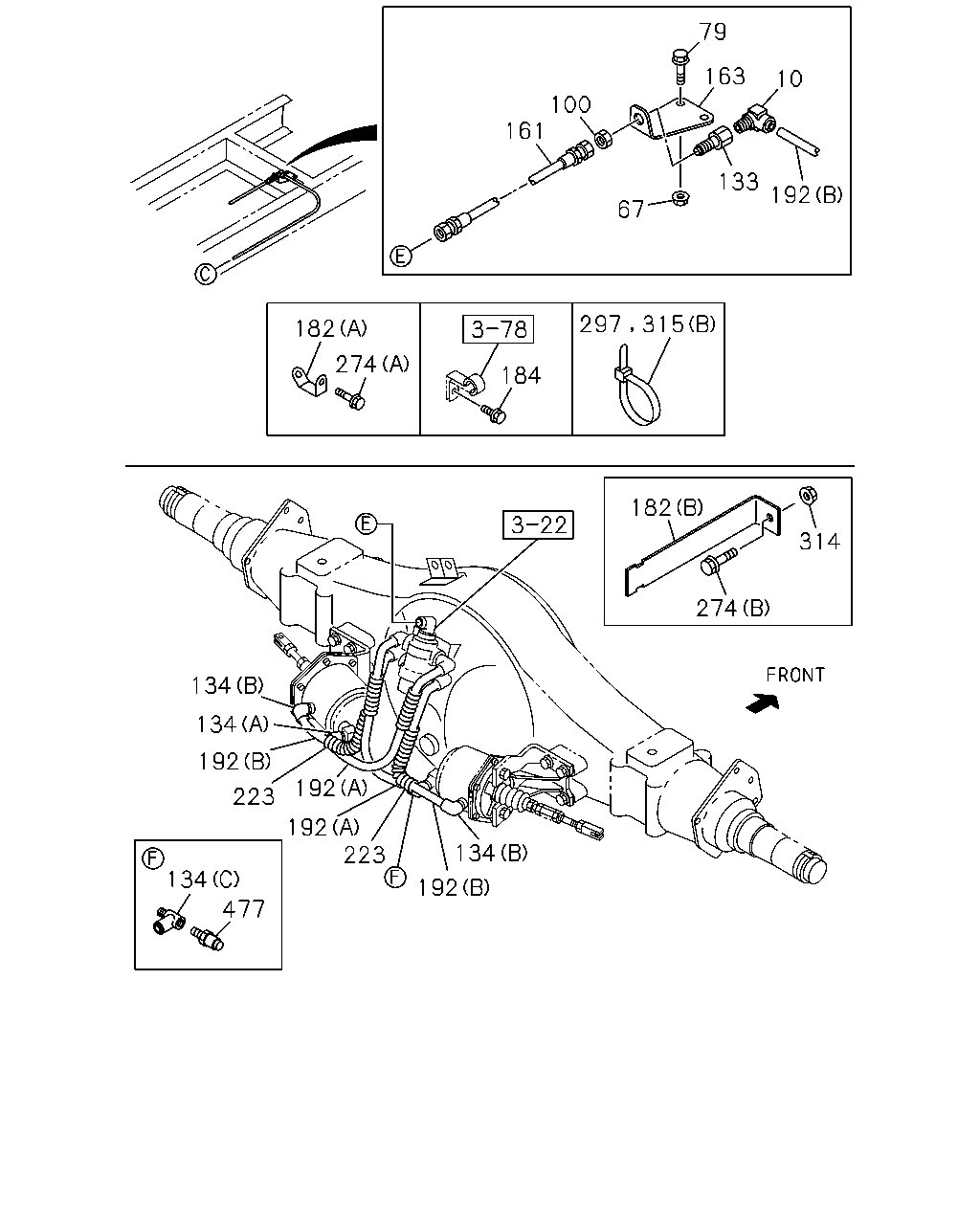

çizim 455326
100 161 67 133 10 192 163 79 315 297 184 274 182 134 134 192 223 192 223 192 134 192 477 134 274 182 314
BalonParca AdiParca NoAdetTipApplied Date
10 CONNECTOR; FLEX HOSE
DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1411-
67 NUT; HOSE BRKT
M8 FLANGE 		0-91180-108-0 02 1 1411-
79 BOLT; HOSE BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1411-
100 NUT; UNION
M16 		0-91111-516-0 01 1 1411-
133 UNION; NIPPLE
PT3/8 & M16 STRAIGHT 		8-98202-001-0 01 1 1411-
134 CONNECTOR
(C) DIN12 & R3/8 & RC1/4 3WAY 		1-09660-845-0 01 1 1411-
134 CONNECTOR
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1411-
134 CONNECTOR
(B) DIN6 & R3/8 ELBOW 		1-09661-234-0 02 1 1411-
161 HOSE; FLEX,QUICK RELEASE VLV
L=460 		1-09363-963-0 01 1 1411-
163 BRACKET; FLEX HOSE 8-98044-842-0 01 1 1411-
182 BRACKET; TUBE CLIP
WHEEL BASE 3400MM(34W) (B) 		8-98206-908-0 01 1 1512-
182 BRACKET; TUBE CLIP
(A) 		8-98117-686-0 01 1 1411-
184 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1411-
192 TUBE; NYLON
(A) 		8-98061-971-0 02 1 1411-
192 TUBE; NYLON
(B) SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1411-
192 TUBE; NYLON
(B) SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1411-
192 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1411-
192 TUBE; NYLON
(B) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1411-
192 TUBE; NYLON
(B) SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 1411-
192 TUBE; NYLON
(B) SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 1411-
192 TUBE; NYLON
(B) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1411-
192 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1411-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1411-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 1411-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=15 		1-87411-025-0 AR 1 1411-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87411-027-0 AR 1 1411-
223 TUBE; CORRUGATE
SERVICED BY L=4000 ID=19 		1-87411-028-0 AR 1 1411-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 1411-
223 TUBE; CORRUGATE
SERVICED BY L=4000 ID=10 		1-87411-020-0 AR 1 1411-
274 BOLT; BRKT
WHEEL BASE 3400MM(34W) (B) M8X30 FLANGE 		0-28650-830-0 01 1 1512-
274 BOLT; BRKT
(A) M10X30 FLANGE 		0-28651-030-0 01 1 1411-
297 CLIP; BAND
WHEEL BASE 3400MM(34W) L=350 		1-09707-183-0 10 1 1512-
297 CLIP; BAND
WHEEL BASE 4000MM(40W) L=350 		1-09707-183-0 12 1 1411-
297 CLIP; BAND
L=350 		1-09707-183-0 05 1 1411-
297 CLIP; BAND
WHEEL BASE 4600MM(46W) L=350 		1-09707-183-0 17 1 1411-
297 CLIP; BAND
WHEEL BASE 4900MM(49W) L=350 		1-09707-183-0 19 1 1411-
297 CLIP; BAND
WHEEL BASE 5300MM(53W) L=350 		1-09707-183-0 21 1 1411-
314 NUT; CLIP
WHEEL BASE 3400MM(34W) M8 FLANGE 		0-91180-108-0 01 1 1512-
315 CLIP
(B) L=250 		1-09707-126-0 05 1 1411-
315 CLIP
(A) ID=14 		8-94238-572-0 01 1 1411-
477 CONNECTOR; TEST
R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 1411-

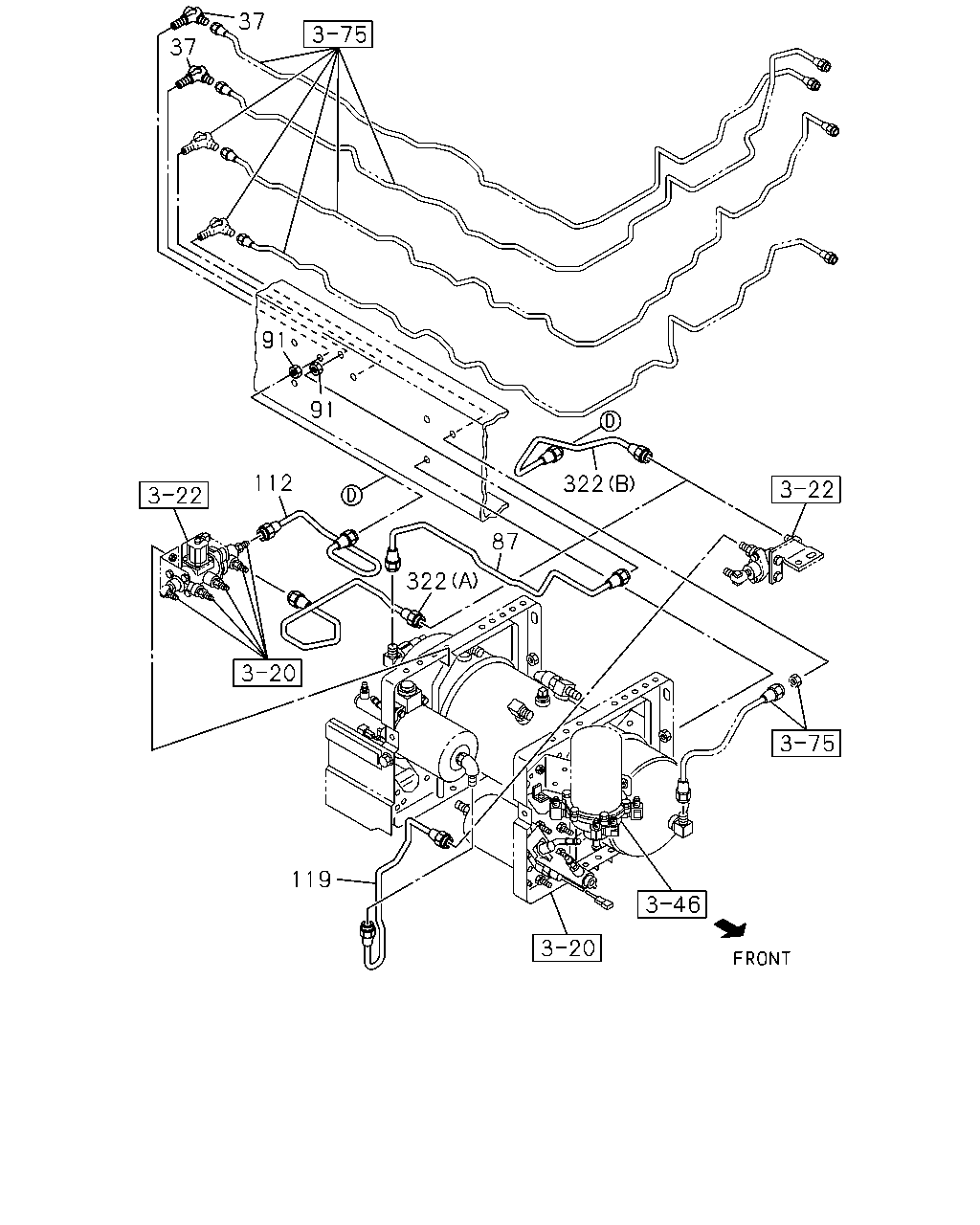

çizim 455337
112 91 91 37 37 322 87 322 119
BalonParca AdiParca NoAdetTipApplied Date
37 UNION; AIR PIPE
M16 ELBOW 		0-92135-210-0 02 1 1411-
87 PIPE; AIR,AIR TANK TO UNION
L=709 SERVICED BY L=730 		1-47428-871-0 01 1 1411-
91 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 1411-
91 NUT; PIPE UNION
M16 		0-91111-516-0 02 1 1411-
112 PIPE; AIR,UNION TO VLV
H.S.A SYSTEM<6EP> L=473 		8-98067-756-0 01 1 1411-
119 PIPE; AIR,VLV TO AIR MASTER
L=640 SERVICED BY L=660 		1-47428-869-0 01 1 1411-
322 PIPE; AIR,HSA VLV TO DBL CHK VLV
H.S.A SYSTEM<6EP> (A) L=673 SERVICED BY L=700 		1-47428-870-0 01 1 1411-
322 PIPE; AIR,HSA VLV TO DBL CHK VLV
EXC. H.S.A SYSTEM<6EP> (B) L=246 		8-98245-172-0 01 1 1411-
