Isuzu WW
▶
TRUCKS
▶
FRR
▶
11627 - FRR LHD EUROPE EURO6 SPACECAB EVSC
▶
3 - Brakes, Brake System
▶
3-75 - BRAKE PIPING; AIR,FRONT
▶
3-75 — BRAKE PIPING; AIR,FRONT
(#152263) — 35 parça
◀
[375A] CAB UNDER (20 parça)
[375A] FRAME SIDE (15 parça)
▶

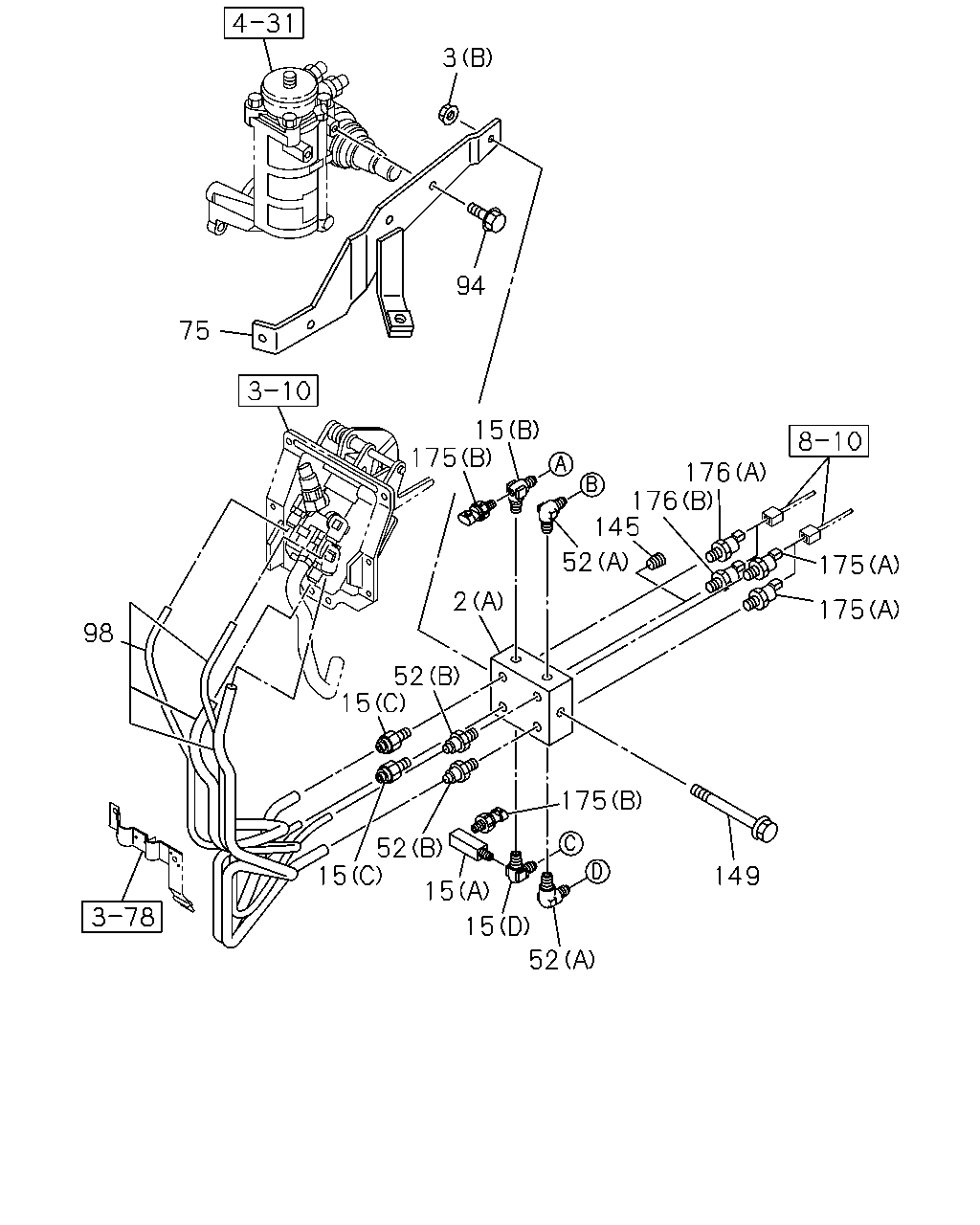

3
94
75
98
15
15
52
15
52
149
175
175
175
176
176
145
52
2
52
15
175
15
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
UNION; AIR PIPE
(A)
8-98057-394-1
01
1
1411-
2
UNION; AIR PIPE
(B) M16 ELBOW
0-92135-210-0
02
1
1411-
3
NUT; PIPE UNION
(B) M8 FLANGE
0-91180-108-0
01
1
1411-
3
NUT; PIPE UNION
(A) M16
0-91111-516-0
01
1
1411-
15
CONNECTOR; AIR PIPE
(C) DIN12 & R1/4 STRAIGHT
1-09660-967-0
02
1
1411-
15
CONNECTOR; AIR PIPE
(B) DIN8 & R1/4 & RC1/8 3WAY
8-98245-261-0
01
1
1411-
15
CONNECTOR; AIR PIPE
(D) DIN8 & R1/4 & RC1/8 3WAY
8-98245-262-0
01
1
1411-
15
CONNECTOR; AIR PIPE
(A) R1/8 & RC1/8 ELBOW
8-98245-264-0
01
1
1411-
52
CONNECTOR; NYLON TUBE
(A) M16 & PT1/4 ELBOW
0-92134-310-0
02
1
1411-
52
CONNECTOR; NYLON TUBE
(B) DIN12 & R1/4 STRAIGHT
1-09660-967-0
02
1
1411-
75
BRACKET; UNION
8-98281-610-0
01
1
1411-
94
BOLT; BRKT
M10X20 FLANGE
0-28151-020-0
02
1
1411-
98
TUBE; NYLON
8-98124-954-1
01
1
1411-
145
PLUG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PT1/4
9-99204-513-0
01
1
1411-
149
BOLT; UNION
M8X100 FLANGE
0-28050-800-0
01
1
1411-
175
SENSOR; AIR PRESS
(A) THREAD R1/4
1-80220-023-1
02
1
1411-
175
SENSOR; AIR PRESS
(B) THREAD R1/8
1-80220-025-0
02
1
1411-
176
SWITCH; AIR PRESS
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) STAMP 0.7
8-97622-710-0
01
1
1411-
176
SWITCH; AIR PRESS
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) STAMP 2.2
8-98010-858-0
01
1
1411-
176
SWITCH; AIR PRESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) STAMP 0.3
8-98010-857-0
01
1
1411-

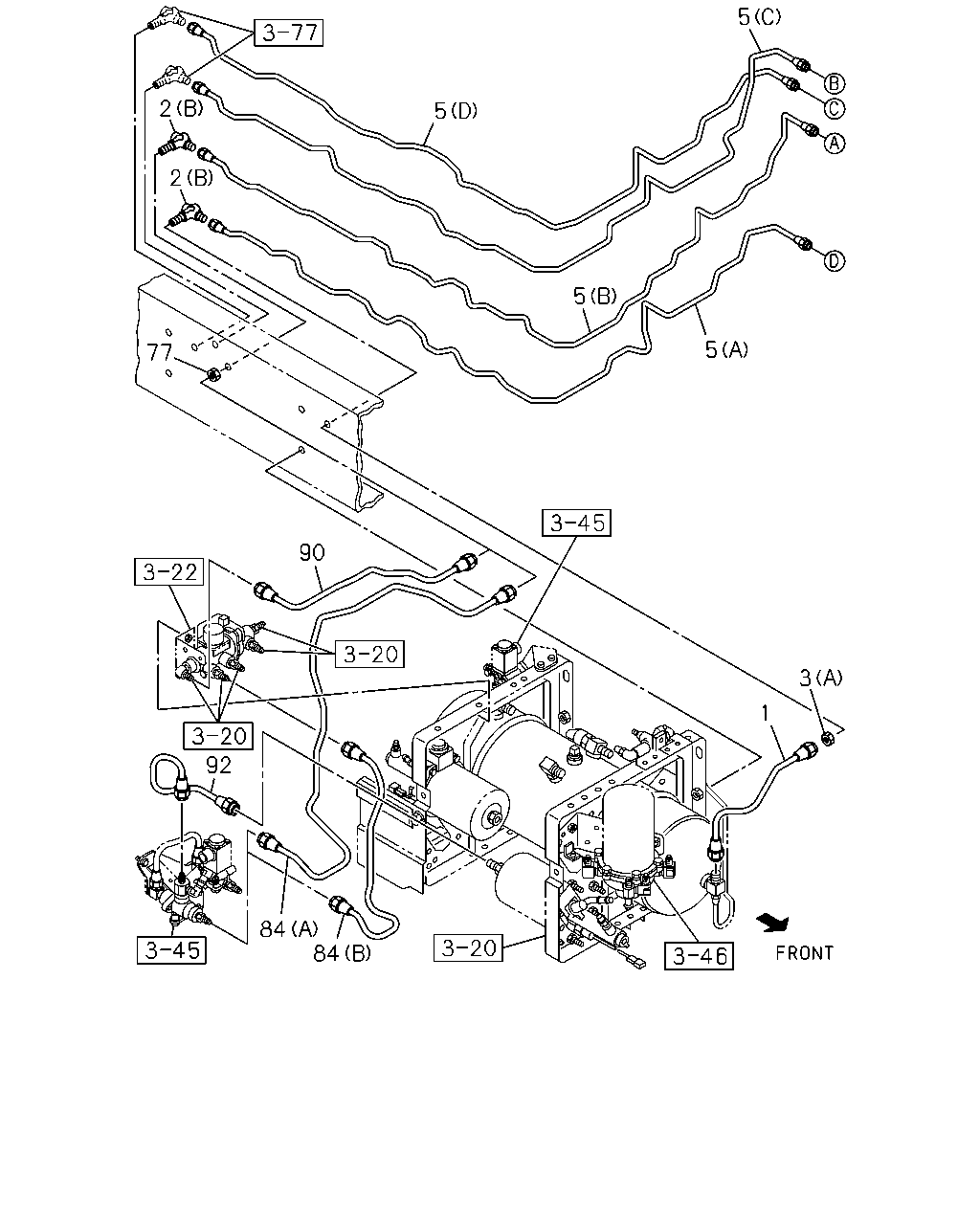

5
5
5
77
90
92
84
1
84
3
2
2
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PIPE; AIR,AIR TANK TO UNION
L=312
8-98287-784-0
01
1
1411-
2
UNION; AIR PIPE
(A)
8-98057-394-1
01
1
1411-
2
UNION; AIR PIPE
(B) M16 ELBOW
0-92135-210-0
02
1
1411-
3
NUT; PIPE UNION
(B) M8 FLANGE
0-91180-108-0
01
1
1411-
3
NUT; PIPE UNION
(A) M16
0-91111-516-0
01
1
1411-
5
PIPE; AIR,UNION TO UNION
(A) L=2826 SERVICED BY L=2900
1-47428-885-0
01
1
1411-
5
PIPE; AIR,UNION TO UNION
(B) L=3122
8-98235-086-0
01
1
1411-
5
PIPE; AIR,UNION TO UNION
(C) L=3230
8-98235-088-0
01
1
1411-
5
PIPE; AIR,UNION TO UNION
(D) L=3227 SERVICED BY L=3300
1-47428-886-0
01
1
1411-
77
NUT; PIPE UNION
M16
0-91111-516-0
01
1
1411-
84
PIPE; AIR,UNION TO DBL CHECK VLV
H.S.A SYSTEM<6EP> (B) L=619 SERVICED BY L=660
1-47428-869-0
01
1
1411-
84
PIPE; AIR,UNION TO DBL CHECK VLV
EXC. H.S.A SYSTEM<6EP> (A) L=920 SERVICED BY L=1000
1-47428-874-0
01
1
1411-1504
84
PIPE; AIR,UNION TO DBL CHECK VLV
EXC. H.S.A SYSTEM<6EP> (A) L=927 SERVICED BY L=1000
1-47428-874-0
01
1
1505-
90
PIPE; AIR,UNION TO HSA VLV
H.S.A SYSTEM<6EP> L=493
8-98077-878-0
01
1
1411-
92
PIPE; AIR,HSA VLV TO AIR MASTER
L=340
8-98260-997-0
01
1
1411-
