3-52 — BRAKE PIPING; OIL,FRONT (#152259) — 21 parça

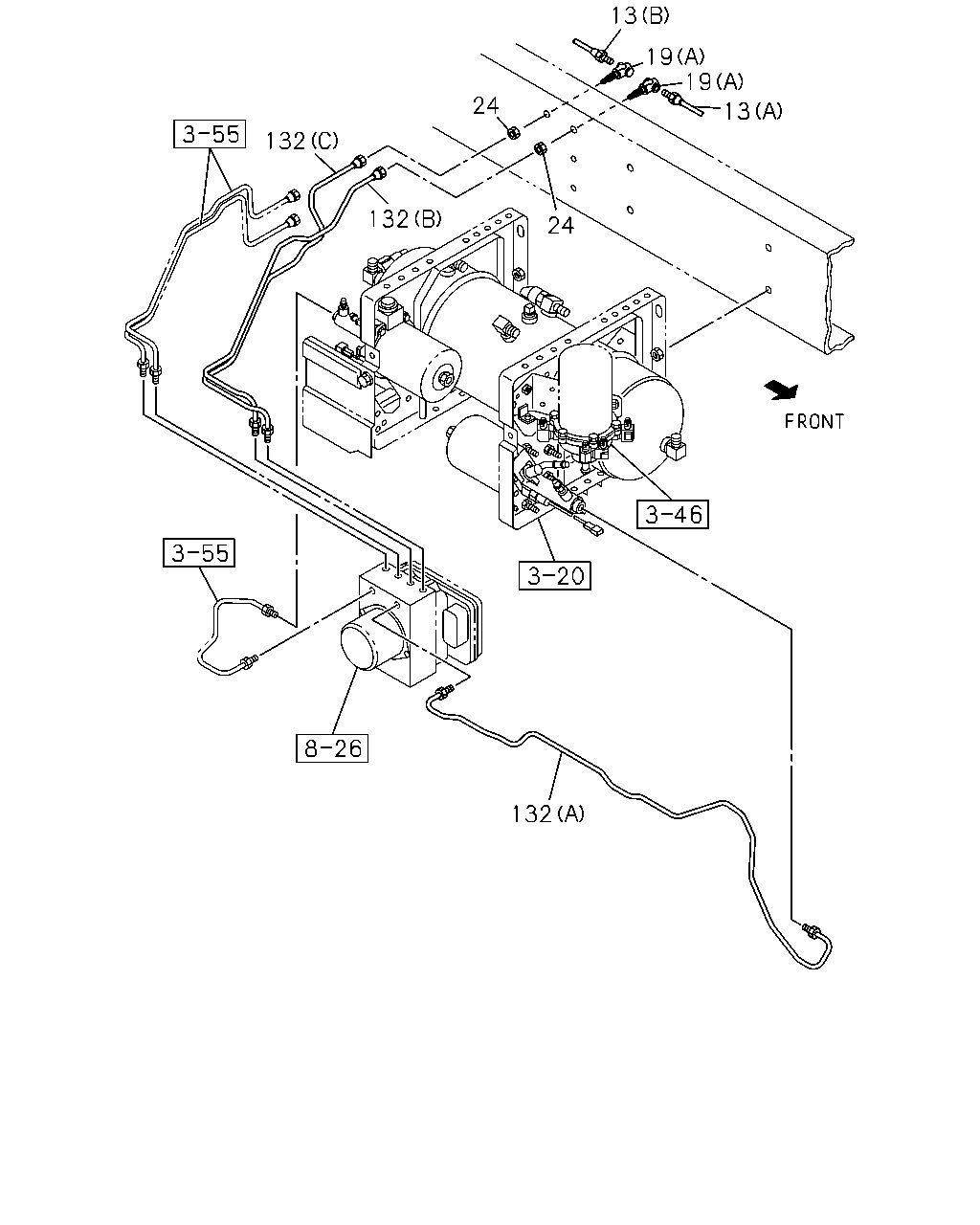

çizim 455264
13 19 19 13 24 24 132 132 132
BalonParca AdiParca NoAdetTipApplied Date
13 PIPE; OIL,UNION TO UNION
WHEEL BASE 3400MM(34W) (B) LH LIN L=2036 		8-98222-477-0 01 1 1512-
13 PIPE; OIL,UNION TO UNION
(A) RH LINE L=975 		8-98204-971-0 01 1 1411-
13 PIPE; OIL,UNION TO UNION
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B) LH LINE L=2192 		8-98222-476-0 01 1 1411-
19 UNION; OIL PIPE
(B) M10 STRAIGHT 		0-92107-005-0 02 1 1411-
19 UNION; OIL PIPE
(A) M10X2 ELBOW 		8-98018-438-0 02 1 1411-
24 NUT; UNION,OIL PIPE
M10 H=8 		1-09400-029-0 02 1 1411-
132 PIPE; OIL,BRK,HYD UNIT
(A) L=966 		8-98276-129-0 01 1 1411-
132 PIPE; OIL,BRK,HYD UNIT
(B) RH LINE L=565 		8-98287-319-0 01 1 1411-
132 PIPE; OIL,BRK,HYD UNIT
(C) LH LINE L=582 		8-98287-320-0 01 1 1411-

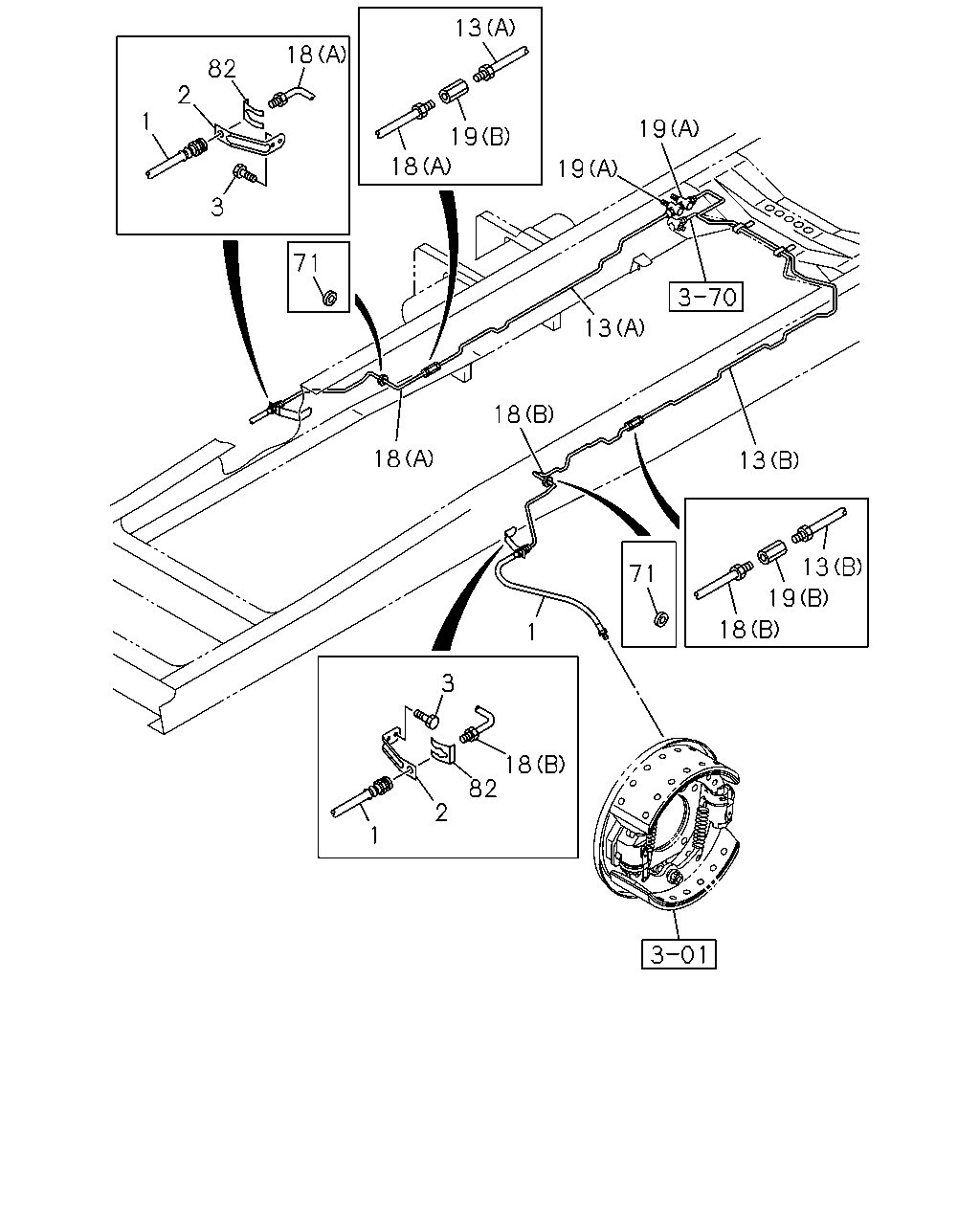

çizim 455316
1 3 2 82 18 13 19 18 71 18 18 13 19 19 13 71 18 19 13 18 82 2 1 3 1
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,FRT BRK
L=450 		8-98242-141-0 02 1 1411-
2 BRACKET; FLEX HOSE,FRT BRK 8-98011-946-1 02 1 1411-
3 BOLT; BRKT,FLEX HOSE,FRT BRK
M8X25 FLANGE 		0-28650-825-0 04 1 1411-
13 PIPE; OIL,UNION TO UNION
WHEEL BASE 3400MM(34W) (B) LH LIN L=2036 		8-98222-477-0 01 1 1512-
13 PIPE; OIL,UNION TO UNION
(A) RH LINE L=975 		8-98204-971-0 01 1 1411-
13 PIPE; OIL,UNION TO UNION
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B) LH LINE L=2192 		8-98222-476-0 01 1 1411-
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(A) RH LINE L=567 		8-98067-426-0 01 1 1411-
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(B) LH LINE L=559 		8-98208-697-0 01 1 1411-
19 UNION; OIL PIPE
(B) M10 STRAIGHT 		0-92107-005-0 02 1 1411-
19 UNION; OIL PIPE
(A) M10X2 ELBOW 		8-98018-438-0 02 1 1411-
71 GROMMET; OIL PIPE
ID=24 OD=30 T=17 		9-09956-092-1 02 1 1411-
82 PLATE; FLEX HOSE 8-97360-054-0 02 1 1411-
