3-10 — BRAKE PEDAL AND CONTROL
(#152248) — 30 parça
◀

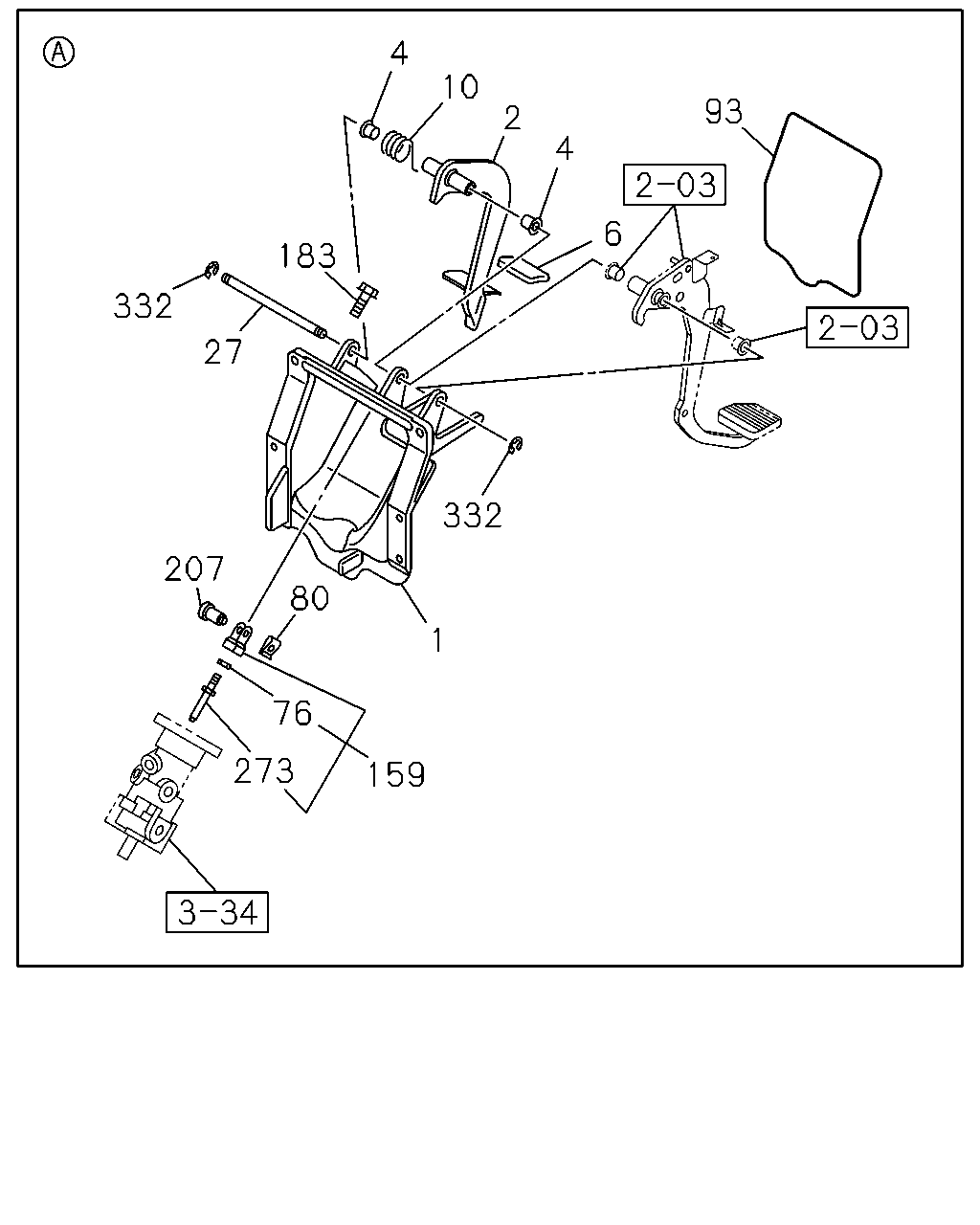

[310A] COMPONENT (15 parça)
[310A] FIXING (15 parça)
▶
4
183
332
27
207
76
273
159
80
1
332
2
10
4
93
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BRACKET ASM; PEDAL
TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98071-973-1
01
1
1411-
1
BRACKET ASM; PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-98220-575-0
01
1
1411-
2
PEDAL; BRK
8-98064-200-0
01
1
1411-
4
BUSHING; BRK PEDAL
8-94238-596-0
02
1
1411-
6
COVER; BRK PEDAL
8-98056-865-0
01
1
1411-
10
SPRING; RETURN,BRK PEDAL
8-98057-232-1
01
1
1411-
27
SHAFT; BRK PEDAL
8-98057-231-0
01
1
1411-
76
NUT; PUSH ROD
M8 FLANGE
0-91180-108-0
01
1
1411-
80
PIN; SNAP,BRK PEDAL
8-98007-161-0
01
1
1411-
93
SEAL; BRK PEDAL
1-48199-534-0
01
1
1411-
159
ROD ASM; PUSH,BRK
8-98057-234-0
01
1
1411-
183
BOLT; BRK VLV
M8X30 FLANGE
0-28660-830-0
04
1
1411-
207
PIN; JOINT,BRK PEDAL LINK
8-98147-657-0
01
1
1411-
273
ROD; PULL
8-98057-233-0
01
1
1411-
332
RING; SNAP
ID=12
0-91805-512-0
02
1
1411-
185
7
7
187
187
7
185
335
334
7
7
16
98
7
337
331
331
336
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
7
CONNECTOR; BRK VALVE
(A) PT3/8 ELBOW
1-09660-696-0
01
1
1411-
7
CONNECTOR; BRK VALVE
(B) DIN12 & R3/8 ELBOW
1-09660-959-0
02
1
1411-
7
CONNECTOR; BRK VALVE
(C) DIN12 & R3/8 STRAIGHT
1-09660-965-0
02
1
1411-
7
CONNECTOR; BRK VALVE
(D)
8-98098-087-0
01
1
1411-
16
SWITCH; STOP LAMP
STAMP 0.3
8-98010-857-0
01
1
1411-
98
NUT; BRKT
M8 FLANGE
0-91180-208-0
01
1
1411-
185
BOLT; BRKT
M8X25 FLANGE
8-98057-109-0
07
1
1411-1506
185
BOLT; BRKT
M8X25 HEXALOBULAR
8-98316-699-0
07
1
1507-
187
WASHER; PL,BRKT
ID=8.4 OD=26
0-91614-808-0
04
1
1411-1506
187
WASHER; PL,BRKT
ID=8.4 OD=26
8-98316-762-0
04
1
1507-
331
CLIP; BAND
L=197
1-83574-032-0
02
1
1411-
334
HOSE; AIR,BRK
8-98017-119-3
01
1
1411-
335
CLAMP; HOSE
ID=24
8-98025-921-0
01
1
1411-
336
SILENCER; AIR
1-48199-544-0
01
1
1411-
337
PROTECTOR; AIR BRK
L=30,SERVICED BY L=50
8-94270-377-1
01
1
1411-
