Sayfa 2-30 - Isuzu EPC

2-30 — GEAR SHIFTER AND QUADRANT BOX (#152237) — 186 parça

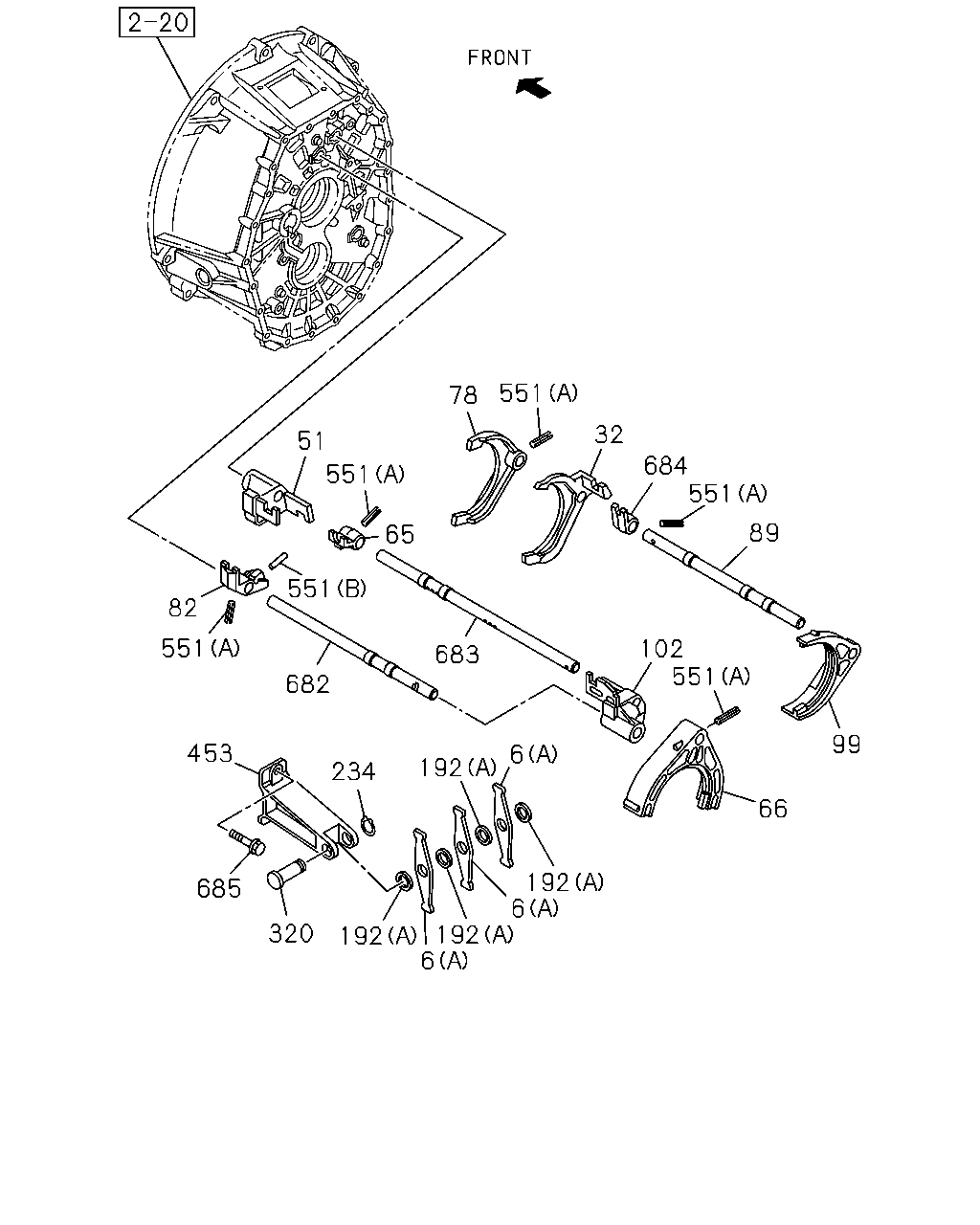

66 99 551 102 89 551 684 32 551 78 551 51 65 551 82 551 682 683 234 453 192 192 6 6 192 6 192 320 685

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1411-
6	LEVER; RELAY TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98014-157-1	01	1	1411-
6	LEVER; RELAY TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-995-0	01	1	1411-
32	ARM; SHIFT,1ST & 2ND	8-98236-424-1	01	1	1411-
51	BLOCK; SHIFT,1ST & 2ND	8-98074-457-1	01	1	1411-
65	BLOCK ASM; SHIFT,5TH & 6TH	8-97388-980-1	01	1	1411-
66	ARM; SHIFT,5TH & 6TH	8-97388-981-0	01	1	1411-
78	ARM; SHIFT,REV	8-97388-975-1	01	1	1411-
82	BLOCK; SHIFT,REV	8-97388-969-0	01	1	1411-
89	ROD; SHIFT,REV	8-98062-172-0	01	1	1411-
99	ARM; SHIFT,4TH & 3RD	8-98062-170-0	01	1	1411-1506
99	ARM; SHIFT,4TH & 3RD	8-98309-861-0	01	1	1507-
102	BLOCK; SHIFT,3RD & 4TH	8-97388-978-2	01	1	1411-
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1411-
192	WASHER; PL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-97305-661-0	02	1	1411-
192	WASHER; PL TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	1-09503-280-0	01	1	1411-
234	RING; SNAP ID=16.5	0-91800-618-0	01	1	1411-
320	SHAFT; LEVER	8-97377-928-0	01	1	1411-
453	BLOCK; RELAY LEVER	8-97377-927-1	01	1	1411-
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1411-
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1411-
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1411-
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) (D) L=30 OD=4	1-09748-031-0	02	1	1411-
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) (E) OD=5	8-97184-905-0	03	1	1411-
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) (F)	8-97379-991-0	01	1	1411-
632	SENSOR; TRANS,REV TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97315-604-1	01	1	1411-
682	ROD; SHIFT,REV,SUB	8-97388-974-0	01	1	1411-
683	ROD; SHIFT,5TH & 6TH	8-98062-173-1	01	1	1411-
684	BLOCK; SHIFT,REV,SUB	8-97388-970-0	01	1	1411-
685	BOLT; BLOCK M8X30 FLANGE	8-98034-764-0	02	1	1411-

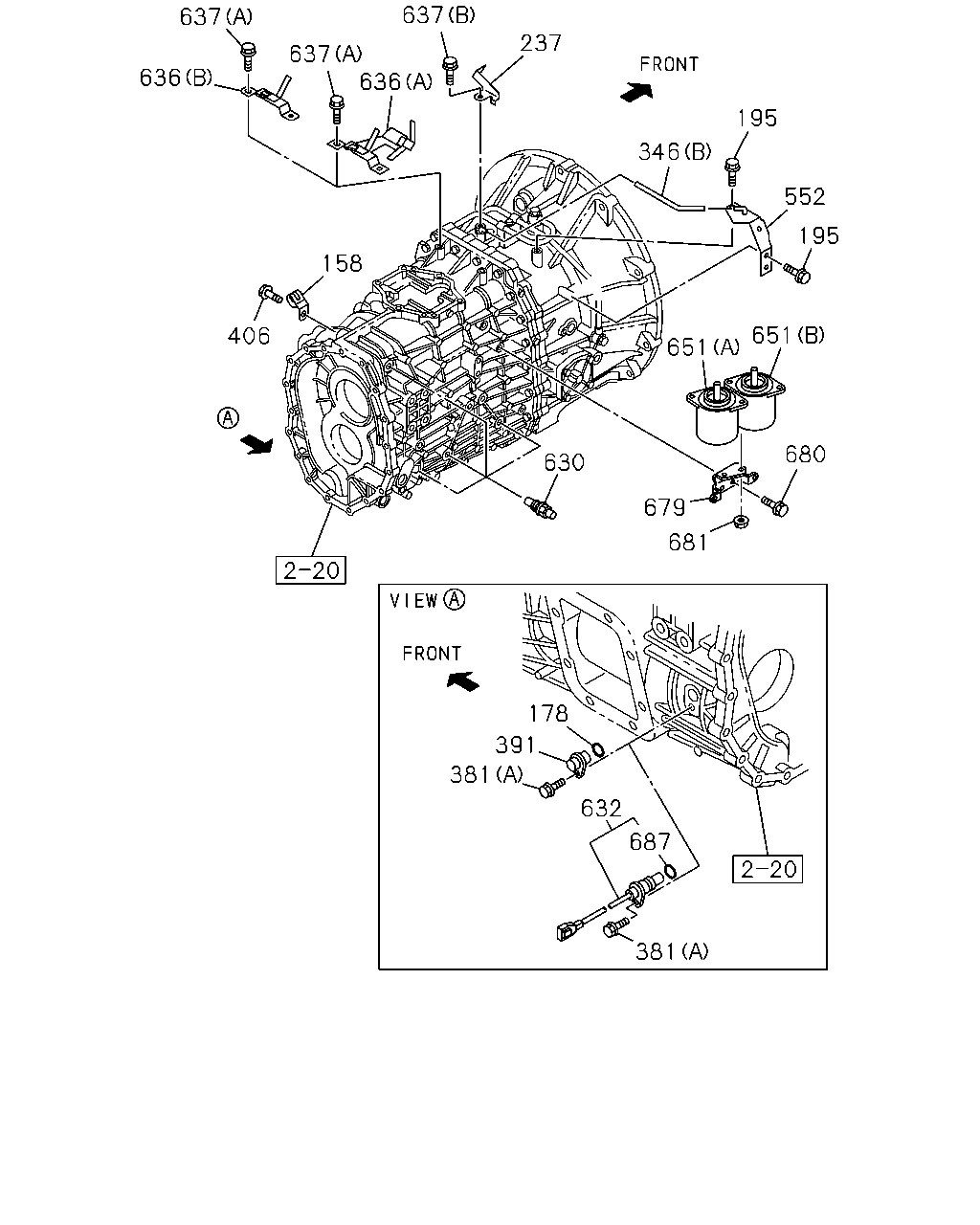

637 636 637 363 637 237 346 195 552 195 651 651 680 679 681 630 406 158 178 391 381 631 687 381

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
158	CLIP; HARNESS ID=12 VINYL CHLORIDE	8-97367-984-1	02	1	1411-
178	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	9-09567-113-0	01	1	1411-
195	BOLT TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	02	1	1411-
237	BRACKET; CABLE,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98009-307-1	01	1	1411-
346	HOSE; AIR (A)	8-97309-855-0	01	1	1411-
346	HOSE; AIR TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97373-381-0	01	1	1411-
381	BOLT (A) M6X16 FLANGE	0-28650-616-0	01	1	1411-
381	BOLT TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M6X12 FLANGE	1-33739-842-0	04	1	1411-
391	PLUG; SW HOLE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97300-273-1	01	1	1411-
406	BOLT; HARNESS CLIP M8X16 FLANGE	0-28050-816-0	02	1	1411-
552	BRACKET TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98005-329-1	01	1	1411-
630	DETENT ASM	8-98019-536-0	04	1	1411-
631	STOPPER; SPRING TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98014-158-0	01	1	1411-
631	STOPPER; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-984-0	01	1	1411-
632	SENSOR; TRANS,REV TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97315-604-1	01	1	1411-
636	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-97610-092-1	01	1	1411-1502
636	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97610-093-1	01	1	1411-
637	BOLT; BRACKET (A) M8X16 FLANGE	0-28050-816-0	02	1	1411-1502
637	BOLT; BRACKET TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X16 FLANGE	0-28050-816-0	02	1	1503-
637	BOLT; BRACKET TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X20 FLANGE	0-28650-820-0	01	1	1411-
651	SOLENOID ASM; SHIFT TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98048-497-1	01	1	1411-
651	SOLENOID ASM; SHIFT TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98048-498-1	01	1	1411-
679	BRACKET; HEAT PROTECTOR TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98005-332-0	01	1	1411-
680	BOLT; FLANGE TRANSMISSION CONTROL-SMOOTHER(8GF) M10X20 FLANGE	0-28761-020-0	02	1	1411-
681	NUT; FLANGE TRANSMISSION CONTROL-SMOOTHER(8GF) M10 FLANGE	0-91180-210-0	02	1	1411-
687	GASKET; SENSOR TRANSMISSION CONTROL-SMOOTHER(8GF)	9-09567-113-0	01	1	1411-

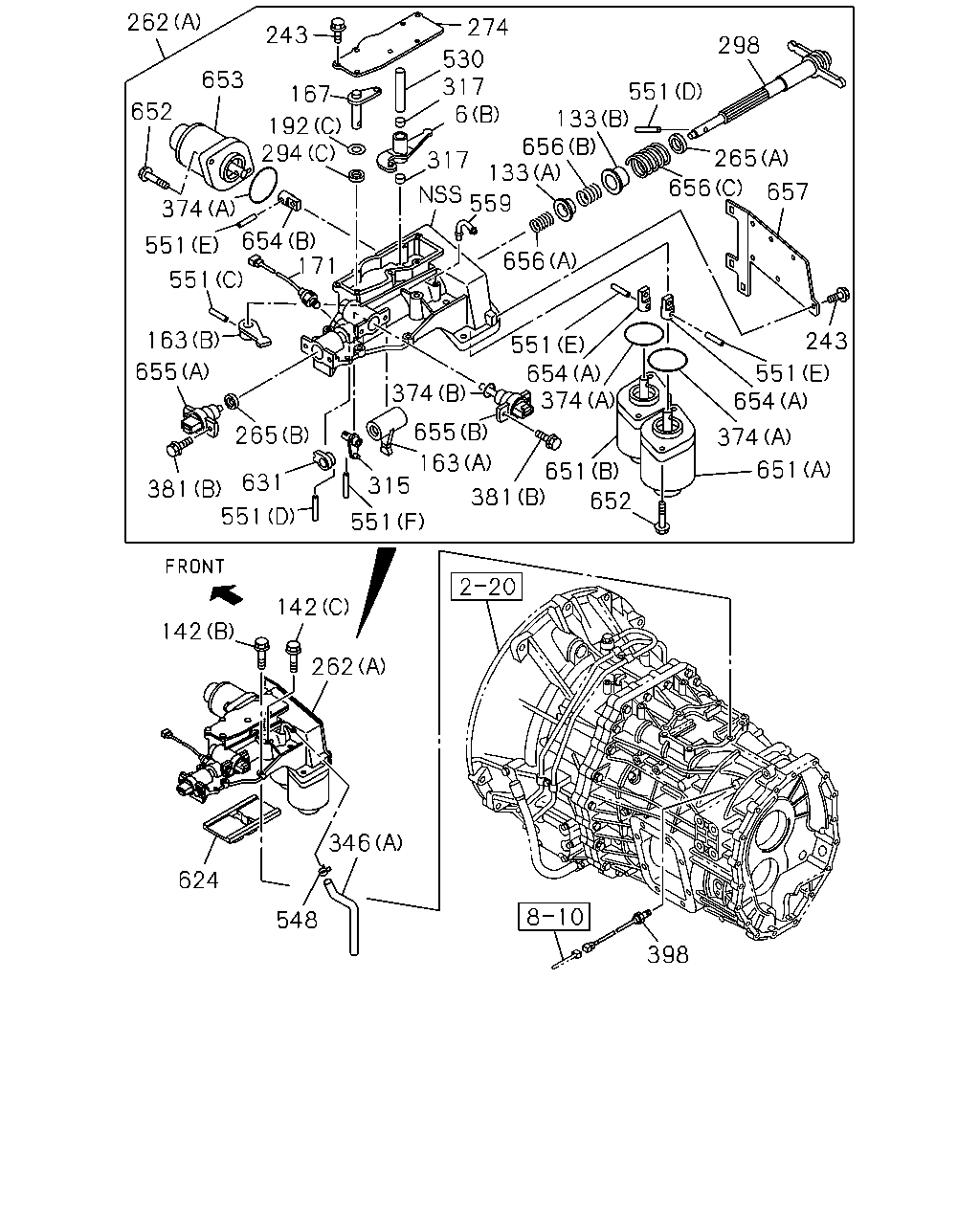

262 243 653 652 374 551 551 163 655 654 294 192 167 171 265 631 551 381 551 315 163 655 374 381 651 652 374 654 551 656 559 133 317 317 530 274 133 656 551 298 265 657 656 243 551 654 651 374 6 142 262 142 346 548 624 398

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1411-
6	LEVER; RELAY TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98014-157-1	01	1	1411-
6	LEVER; RELAY TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-995-0	01	1	1411-
133	SEAT; SPR TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97379-988-0	01	1	1411-
133	SEAT; SPR TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-989-0	01	1	1411-
142	BOLT; QUAD BOX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X22 FLANGE	8-97365-376-0	04	1	1411-
142	BOLT; QUAD BOX TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X35 FLANGE	8-98020-384-0	03	1	1411-
142	BOLT; QUAD BOX TRANSMISSION CONTROL-SMOOTHER(8GF) (C) M8X75 FLANGE	8-98020-385-0	03	1	1411-
163	LEVER; SELECT,INTERNAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-97305-663-0	01	1	1411-
163	LEVER; SELECT,INTERNAL TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97379-979-0	01	1	1411-
163	LEVER; SELECT,INTERNAL TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-990-0	01	1	1411-
167	LEVER; SELECT,EXTERNAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98021-489-0	01	1	1411-
167	LEVER; SELECT,EXTERNAL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-994-0	01	1	1411-
171	SWITCH; NEUTRAL	8-98242-172-1	01	1	1411-1509
171	SWITCH; NEUTRAL	8-98324-878-0	01	1	1510-
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1411-
192	WASHER; PL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-97305-661-0	02	1	1411-
192	WASHER; PL TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	1-09503-280-0	01	1	1411-
243	BOLT; COVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M6X12 FLANGE	1-33739-842-0	01	1	1411-
243	BOLT; COVER TRANSMISSION CONTROL-SMOOTHER(8GF) M6X12 FLANGE	1-33739-842-0	11	1	1411-
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98276-159-1	01	1	1411-1507
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98305-334-1	01	1	1508-
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98241-122-1	01	1	1411-1411
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98296-530-0	01	1	1412-1509
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98331-686-0	01	1	1510-
265	SEAL; OIL,SHIFT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97363-225-0	01	1	1411-
265	SEAL; OIL,SHIFT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-981-0	01	1	1411-
274	COVER; SHAFT,QUAD BOX TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98020-711-0	01	1	1411-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-97305-662-0	01	1	1411-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-97363-225-0	01	1	1411-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	1-09625-600-0	01	1	1411-
298	SHAFT; SHIFT LEVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98097-117-0	01	1	1411-1507
298	SHAFT; SHIFT LEVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98305-343-0	01	1	1508-
298	SHAFT; SHIFT LEVER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-978-0	01	1	1411-
315	LEVER; SELECT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-998-0	01	1	1411-1411
315	LEVER; SELECT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98296-526-0	01	1	1412-
317	BUSHING; LEVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-09330-119-0	02	1	1411-
317	BUSHING; LEVER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-997-0	02	1	1411-
346	HOSE; AIR (A)	8-97309-855-0	01	1	1411-
346	HOSE; AIR TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97373-381-0	01	1	1411-
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97349-571-0	03	1	1411-
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97349-573-0	01	1	1411-
381	BOLT (A) M6X16 FLANGE	0-28650-616-0	01	1	1411-
381	BOLT TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M6X12 FLANGE	1-33739-842-0	04	1	1411-
398	SWITCH; REV LAMP	8-98242-173-1	01	1	1411-
530	SHAFT; SELECT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-996-0	01	1	1411-
548	CLIP; HOSE	8-97031-674-0	01	1	1411-
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1411-
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1411-
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1411-
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) (D) L=30 OD=4	1-09748-031-0	02	1	1411-
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) (E) OD=5	8-97184-905-0	03	1	1411-
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) (F)	8-97379-991-0	01	1	1411-
559	PIPE; BREATHER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97358-318-0	01	1	1411-
559	PIPE; BREATHER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98020-710-0	01	1	1411-
624	PLATE; INTER LOCK	8-97241-317-3	01	1	1411-
631	STOPPER; SPRING TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98014-158-0	01	1	1411-
631	STOPPER; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-984-0	01	1	1411-
632	SENSOR; TRANS,REV TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97315-604-1	01	1	1411-
651	SOLENOID ASM; SHIFT TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98048-497-1	01	1	1411-
651	SOLENOID ASM; SHIFT TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98048-498-1	01	1	1411-
652	BOLT; SORENOID TRANSMISSION CONTROL-SMOOTHER(8GF) M10X25 FLANGE	0-28151-025-0	06	1	1411-
653	SOLENOID ASM; SELECT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98002-761-0	01	1	1411-
654	JOINT; SOLENOID,CASE TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97349-473-0	02	1	1411-
654	JOINT; SOLENOID,CASE TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97380-419-0	01	1	1411-
655	SENSOR; STROKE TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98107-823-0	01	1	1411-
655	SENSOR; STROKE TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98107-824-0	01	1	1411-
656	SPRING; SHAFT TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97379-985-0	01	1	1411-
656	SPRING; SHAFT TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-986-0	01	1	1411-
656	SPRING; SHAFT TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-97379-987-0	01	1	1411-
657	PLATE; SIDE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98020-712-0	01	1	1411-

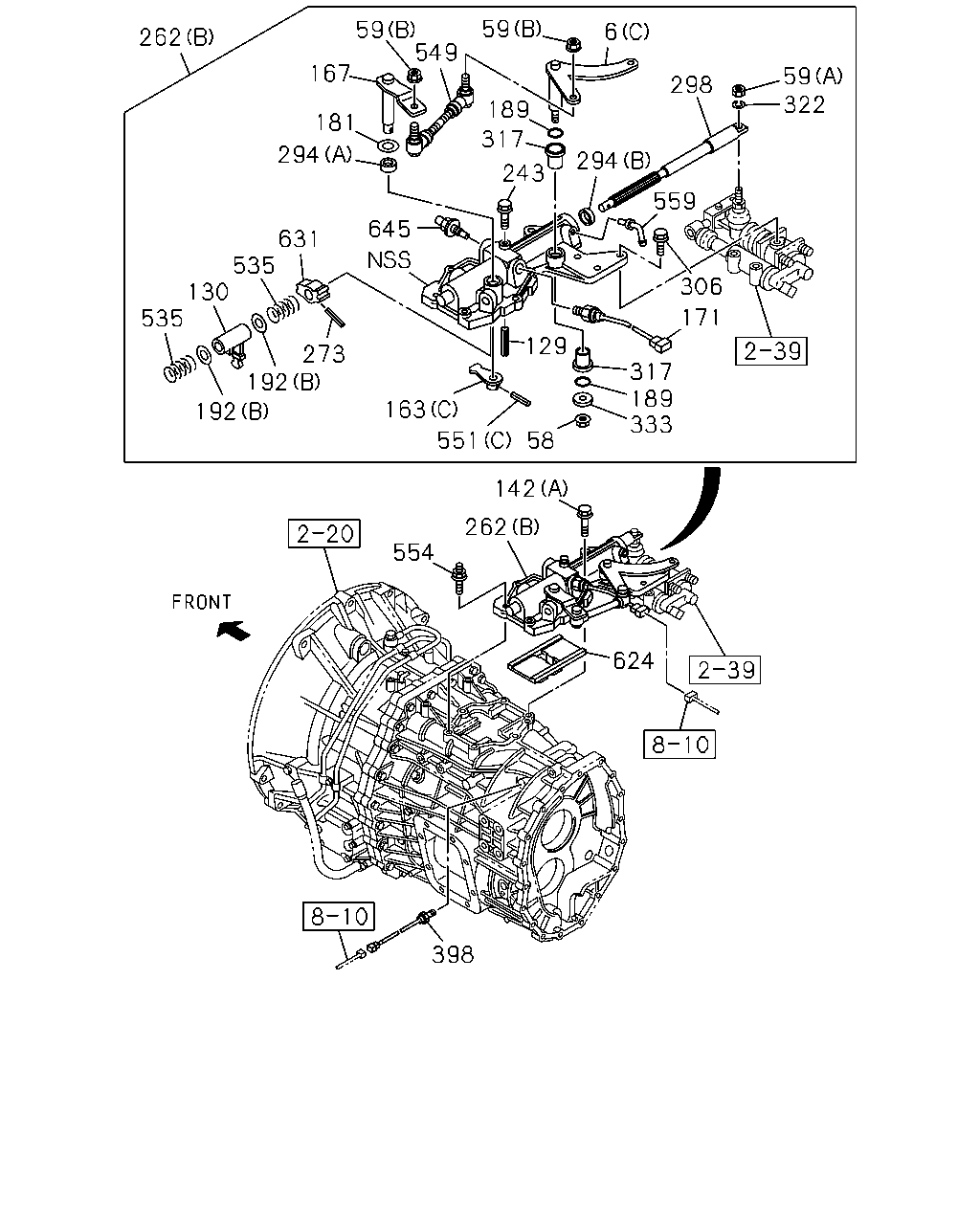

262 167 59 59 549 181 294 631 535 130 535 192 273 192 645 189 317 243 294 298 6 59 322 306 317 171 189 333 559 129 551 163 142 262 554 624 398 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1411-
6	LEVER; RELAY TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98014-157-1	01	1	1411-
6	LEVER; RELAY TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-995-0	01	1	1411-
58	NUT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10 FLANGE	0-91180-110-0	01	1	1411-
59	NUT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M12	0-91110-512-0	01	1	1411-
59	NUT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M8 FLANGE	0-91180-108-0	02	1	1411-
129	PIN; SPR,SHIFT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=30 OD=4	1-09748-031-0	01	1	1411-
130	LEVER; SHIFT,INTERNAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97306-647-0	01	1	1411-
142	BOLT; QUAD BOX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X22 FLANGE	8-97365-376-0	04	1	1411-
142	BOLT; QUAD BOX TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X35 FLANGE	8-98020-384-0	03	1	1411-
142	BOLT; QUAD BOX TRANSMISSION CONTROL-SMOOTHER(8GF) (C) M8X75 FLANGE	8-98020-385-0	03	1	1411-
163	LEVER; SELECT,INTERNAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-97305-663-0	01	1	1411-
163	LEVER; SELECT,INTERNAL TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97379-979-0	01	1	1411-
163	LEVER; SELECT,INTERNAL TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-990-0	01	1	1411-
167	LEVER; SELECT,EXTERNAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98021-489-0	01	1	1411-
167	LEVER; SELECT,EXTERNAL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-994-0	01	1	1411-
171	SWITCH; NEUTRAL	8-98242-172-1	01	1	1411-1509
171	SWITCH; NEUTRAL	8-98324-878-0	01	1	1510-
181	WASHER; PL,SELECT LEVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97367-327-0	01	1	1411-
189	GASKET; SELECT LEVER,CONT BOX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-09623-594-0	02	1	1411-
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1411-
192	WASHER; PL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-97305-661-0	02	1	1411-
192	WASHER; PL TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	1-09503-280-0	01	1	1411-
243	BOLT; COVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M6X12 FLANGE	1-33739-842-0	01	1	1411-
243	BOLT; COVER TRANSMISSION CONTROL-SMOOTHER(8GF) M6X12 FLANGE	1-33739-842-0	11	1	1411-
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98276-159-1	01	1	1411-1507
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98305-334-1	01	1	1508-
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98241-122-1	01	1	1411-1411
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98296-530-0	01	1	1412-1509
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98331-686-0	01	1	1510-
273	PIN; SPR,STOPPER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) D=4.2 L=25	8-97103-142-0	01	1	1411-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-97305-662-0	01	1	1411-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-97363-225-0	01	1	1411-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	1-09625-600-0	01	1	1411-
298	SHAFT; SHIFT LEVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98097-117-0	01	1	1411-1507
298	SHAFT; SHIFT LEVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98305-343-0	01	1	1508-
298	SHAFT; SHIFT LEVER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-978-0	01	1	1411-
306	BOLT; SHIFT ASSISTOR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10X50 FLANGE	0-28051-050-0	03	1	1411-
317	BUSHING; LEVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-09330-119-0	02	1	1411-
317	BUSHING; LEVER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-997-0	02	1	1411-
322	WASHER; LK TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98031-750-0	01	1	1411-
333	WASHER; PL,LEVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=10.5	0-91610-710-0	01	1	1411-
398	SWITCH; REV LAMP	8-98242-173-1	01	1	1411-
535	SPRING; LEVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97385-713-0	02	1	1411-
549	ROD; LINK TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98023-095-0	01	1	1411-
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1411-
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1411-
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1411-
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) (D) L=30 OD=4	1-09748-031-0	02	1	1411-
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) (E) OD=5	8-97184-905-0	03	1	1411-
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) (F)	8-97379-991-0	01	1	1411-
554	STUD; CONT BOX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X15,M8X25 L=49	8-97365-378-0	02	1	1411-
559	PIPE; BREATHER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97358-318-0	01	1	1411-
559	PIPE; BREATHER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98020-710-0	01	1	1411-
624	PLATE; INTER LOCK	8-97241-317-3	01	1	1411-
631	STOPPER; SPRING TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98014-158-0	01	1	1411-
631	STOPPER; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-984-0	01	1	1411-
632	SENSOR; TRANS,REV TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97315-604-1	01	1	1411-
645	DETENT ASM TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98019-536-0	01	1	1411-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
