Isuzu WW
▶
TRUCKS
▶
FRR
▶
11627 - FRR LHD EUROPE EURO6 SPACECAB EVSC
▶
2 - Clutch, Transmission, Trans Axle
▶
2-03 - CLUTCH PEDAL AND CONTROL
▶

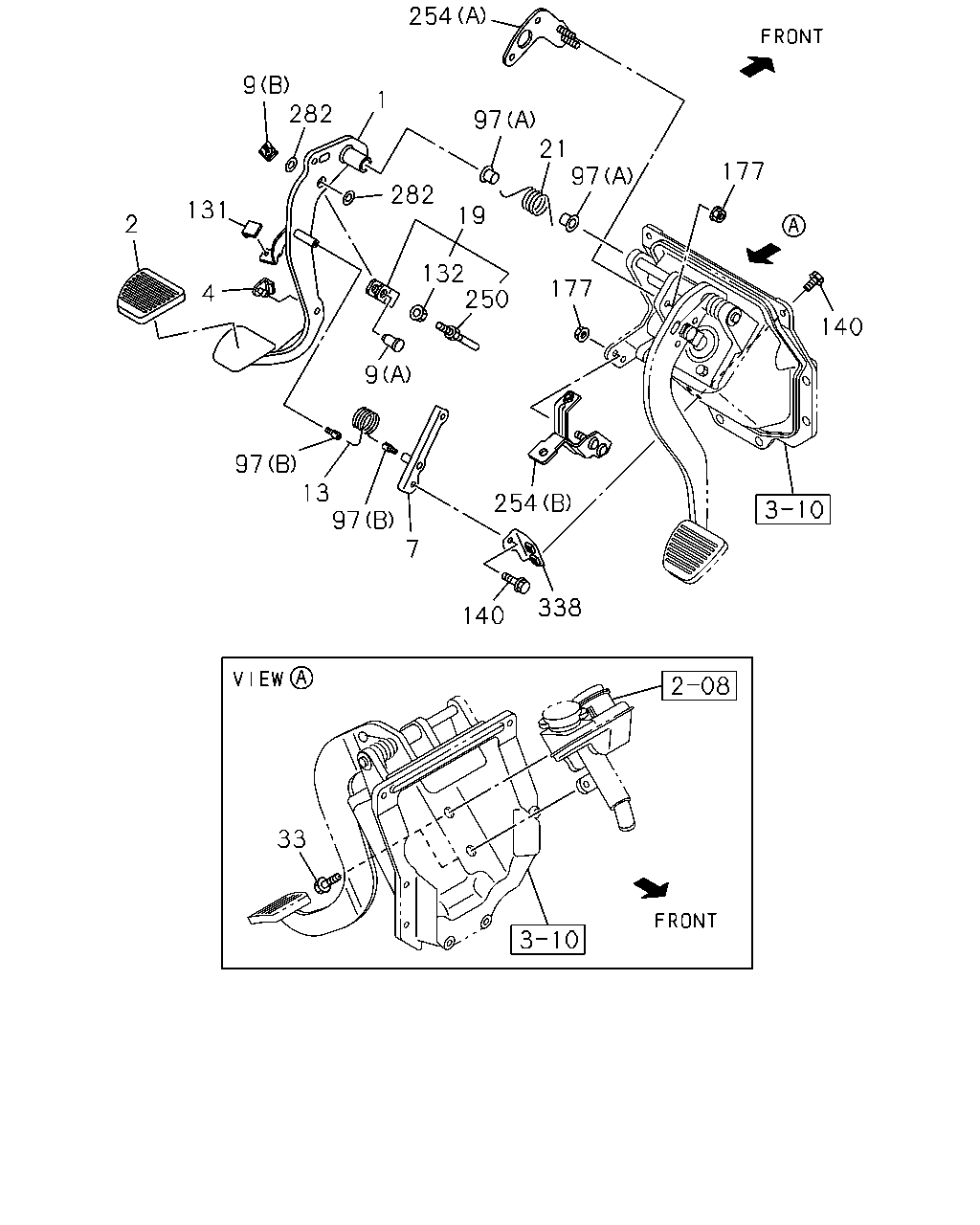

2-03 — CLUTCH PEDAL AND CONTROL
(#152229) — 21 parça
254
97
97
21
1
282
9
131
4
2
97
97
13
9
132
19
250
177
282
7
254
140
33
338
177
140
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PEDAL; CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-98222-863-0
01
1
1411-
2
COVER; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-98056-865-0
01
1
1411-
4
STOPPER; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-98079-251-0
01
1
1411-
7
BRACKET; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-98222-860-0
01
1
1411-
9
PIN; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)
8-98007-161-0
01
1
1411-
9
PIN; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)
8-98147-657-0
01
1
1411-
13
SPRING; ASSIST,CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-98222-844-0
01
1
1411-
19
ROD ASM; PUSH,CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-98021-406-1
01
1
1411-
21
SPRING; RETURN,CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-98021-560-0
01
1
1411-
33
BOLT; CLU M/CYL TO BRKT
14" CLUTCH(WF6) M12X20 FLANGE
0-28051-220-0
02
1
1411-
97
BUSHING; CLU PEDAL SHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)
8-94238-596-0
02
1
1411-
97
BUSHING; CLU PEDAL SHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)
8-98222-859-0
02
1
1411-
131
STOPPER; CLU SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-97302-305-0
01
1
1411-
132
NUT; LK,PUSH ROD
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE
0-91180-108-0
01
1
1411-
140
BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X16 FLANGE
0-28050-816-0
03
1
1411-
177
NUT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE
0-91180-108-0
04
1
1411-
250
ROD; PUSH,CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-97615-589-0
01
1
1411-
254
BRACKET; CLU SENSOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)
8-98021-376-1
01
1
1411-
254
BRACKET; CLU SENSOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)
8-98021-377-1
01
1
1411-
282
SPACER; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-98070-329-0
02
1
1411-
338
SUPPORT; CLUTCH
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-98222-861-0
01
1
1411-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
