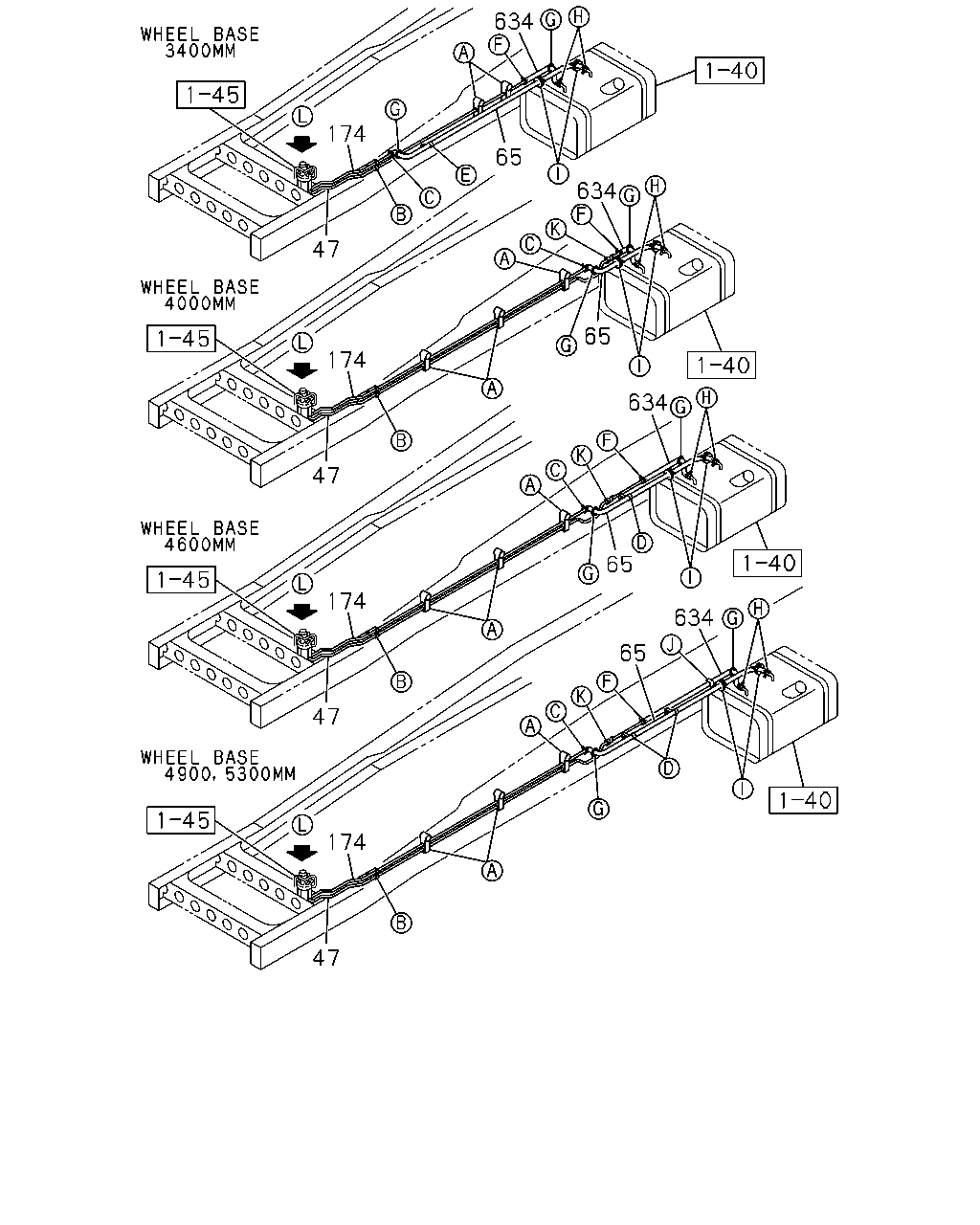

1-41 — FUEL PIPING; CHASSIS (#152222) — 128 parça

65 634 47 174 47 174 174 47 174 634 634 65 634 47 65 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
47	PIPE; FUEL,RETURN WHEEL BASE 3400MM(34W) L=2106	8-98245-729-0	01	1	1512-
47	PIPE; FUEL,RETURN WHEEL BASE 4000MM(40W) L=2512	8-98245-730-0	01	1	1411-
47	PIPE; FUEL,RETURN WHEEL BASE 4600MM(46W) L=3106	8-98239-745-0	01	1	1411-
47	PIPE; FUEL,RETURN WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) L=3008	8-98245-731-0	01	1	1411-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3400MM(34W) L=600	8-98234-314-0	01	1	1512-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4000MM(40W) L=850	8-98183-311-0	01	1	1411-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4600MM(46W) L=1200	8-98183-312-0	01	1	1411-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) L=1550	8-98183-313-0	01	1	1411-
174	PIPE; FUEL,FEED,FRT WHEEL BASE 3400MM(34W)	8-98245-725-0	01	1	1512-
174	PIPE; FUEL,FEED,FRT WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W)	8-98245-726-0	01	1	1411-
634	HOSE; RUBBER RETURN WHEEL BASE 3400MM(34W)	8-98245-300-0	01	1	1512-
634	HOSE; RUBBER RETURN WHEEL BASE 4000MM(40W)	8-98245-302-0	01	1	1411-
634	HOSE; RUBBER RETURN WHEEL BASE 4600MM(46W)	8-98245-303-0	01	1	1411-
634	HOSE; RUBBER RETURN WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W)	8-98245-304-0	01	1	1411-

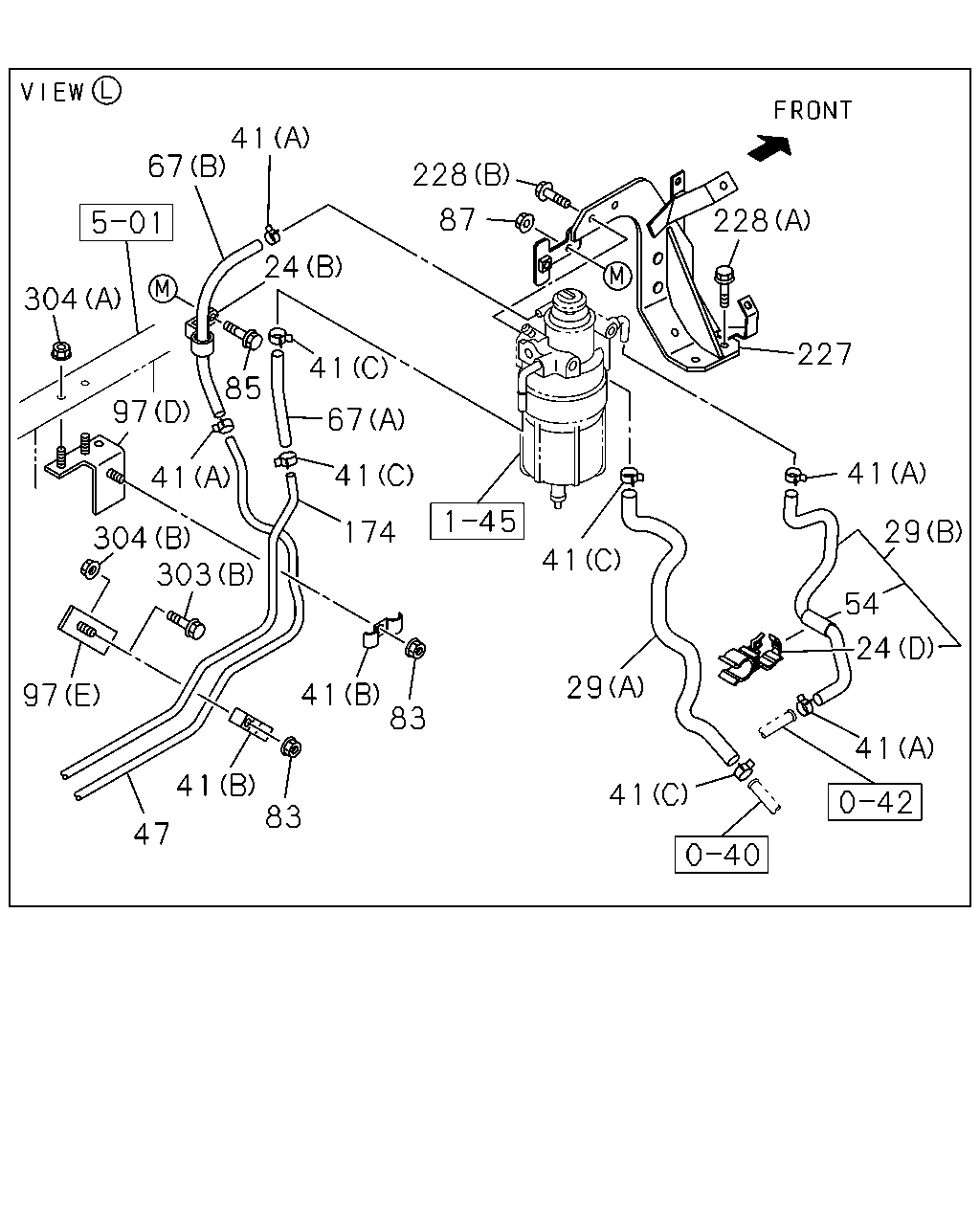

67 41 24 41 41 67 174 83 41 83 41 47 97 303 304 41 97 304 85 87 228 228 227 41 41 29 54 24 41 41 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	CLIP; FUEL HOSE WHEEL BASE 3400MM(34W) (E) ID=15 H=30 L=30	1-09700-832-0	01	1	1512-
24	CLIP; FUEL HOSE WHEEL BASE 4600MM(46W) (C) ID=21 L=24	8-98019-191-0	01	1	1411-
24	CLIP; FUEL HOSE WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) ID=14.5 & 14.5	1-09701-246-1	01	1	1411-
24	CLIP; FUEL HOSE WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (C) ID=21 L=24	8-98019-191-0	02	1	1411-
24	CLIP; FUEL HOSE (B) ID=15 H=24 L=20	1-09700-606-0	01	1	1411-
24	CLIP; FUEL HOSE (D) ID=16.5 & 10.5-14	8-98147-093-0	01	1	1411-
29	HOSE; FUEL (B)	8-98147-183-0	01	1	1411-
29	HOSE; FUEL (A)	8-98156-676-0	01	1	1411-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3400MM(34W) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	1512-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4000MM(40W) (D) ID=8 H=20 L=20	1-09700-604-0	01	1	1411-
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	02	1	1411-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=16	8-94238-568-0	02	1	1411-
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	02	1	1411-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W) (D) ID=8 H=20 L=20	1-09700-604-0	02	1	1411-
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1411-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=16	8-94238-568-0	04	1	1411-
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	04	1	1411-
47	PIPE; FUEL,RETURN WHEEL BASE 3400MM(34W) L=2106	8-98245-729-0	01	1	1512-
47	PIPE; FUEL,RETURN WHEEL BASE 4000MM(40W) L=2512	8-98245-730-0	01	1	1411-
47	PIPE; FUEL,RETURN WHEEL BASE 4600MM(46W) L=3106	8-98239-745-0	01	1	1411-
47	PIPE; FUEL,RETURN WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) L=3008	8-98245-731-0	01	1	1411-
54	SPACER; CLIP,FUEL PIPE	8-98148-172-0	01	1	1411-
67	HOSE; FUEL,DELIVERY (B) L=210 SERVICED BY L=3000	0-01558-300-0	01	1	1411-
67	HOSE; FUEL,DELIVERY (A) L=140 SERVICED BY L=3000	0-01859-300-0	01	1	1411-
83	NUT; CLIP,FUEL TANK WHEEL BASE 3400MM(34W) M8 FLANGE	0-91180-108-0	03	1	1512-
83	NUT; CLIP,FUEL TANK WHEEL BASE 4000MM(40W) M8 FLANGE	0-91180-108-0	04	1	1411-
83	NUT; CLIP,FUEL TANK WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W) M8 FLANGE	0-91180-108-0	05	1	1411-
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	02	1	1411-
85	BOLT; CLIP,FUEL HOSE M8X20 FLANGE	0-28650-820-0	01	1	1411-
87	NUT; CLIP,FUEL HOSE M8 FLANGE	0-91180-108-0	01	1	1411-
97	BRACKET; CLIP WHEEL BASE 3400MM(34W) (E)	1-47477-669-1	01	1	1512-
97	BRACKET; CLIP WHEEL BASE 4600MM(46W) (A) L=55	1-47476-177-0	01	1	1411-
97	BRACKET; CLIP WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) L=55	1-47476-177-0	02	1	1411-
97	BRACKET; CLIP WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B)	8-98109-768-0	01	1	1411-
97	BRACKET; CLIP (D)	8-98209-221-0	01	1	1411-
97	BRACKET; CLIP (C)	8-98245-737-0	01	1	1411-
174	PIPE; FUEL,FEED,FRT WHEEL BASE 3400MM(34W)	8-98245-725-0	01	1	1512-
174	PIPE; FUEL,FEED,FRT WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W)	8-98245-726-0	01	1	1411-
227	BRACKET; FUEL SEDIMENTER	8-98133-172-0	01	1	1411-
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	1411-
228	BOLT; BRKT,SEDIMENTER (B) M8X20 FLANGE	0-28650-820-0	02	1	1411-
303	BOLT; BRKT WHEEL BASE 4600MM(46W) (A) M10X30 FLANGE	0-28651-030-0	01	1	1411-
303	BOLT; BRKT WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) M10X30 FLANGE	0-28651-030-0	03	1	1411-
303	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	1411-1511
303	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	1512-
303	BOLT; BRKT WHEEL BASE 3400MM(34W) (B) M8X30 FLANGE	0-28650-830-0	01	1	1512-
304	NUT; BRKT WHEEL BASE 3400MM(34W) (B) M8 FLANGE	0-91180-108-0	01	1	1512-
304	NUT; BRKT WHEEL BASE 4600MM(46W) (A) M10 FLANGE	0-91180-210-0	01	1	1411-
304	NUT; BRKT WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) M10 FLANGE	0-91180-210-0	03	1	1411-

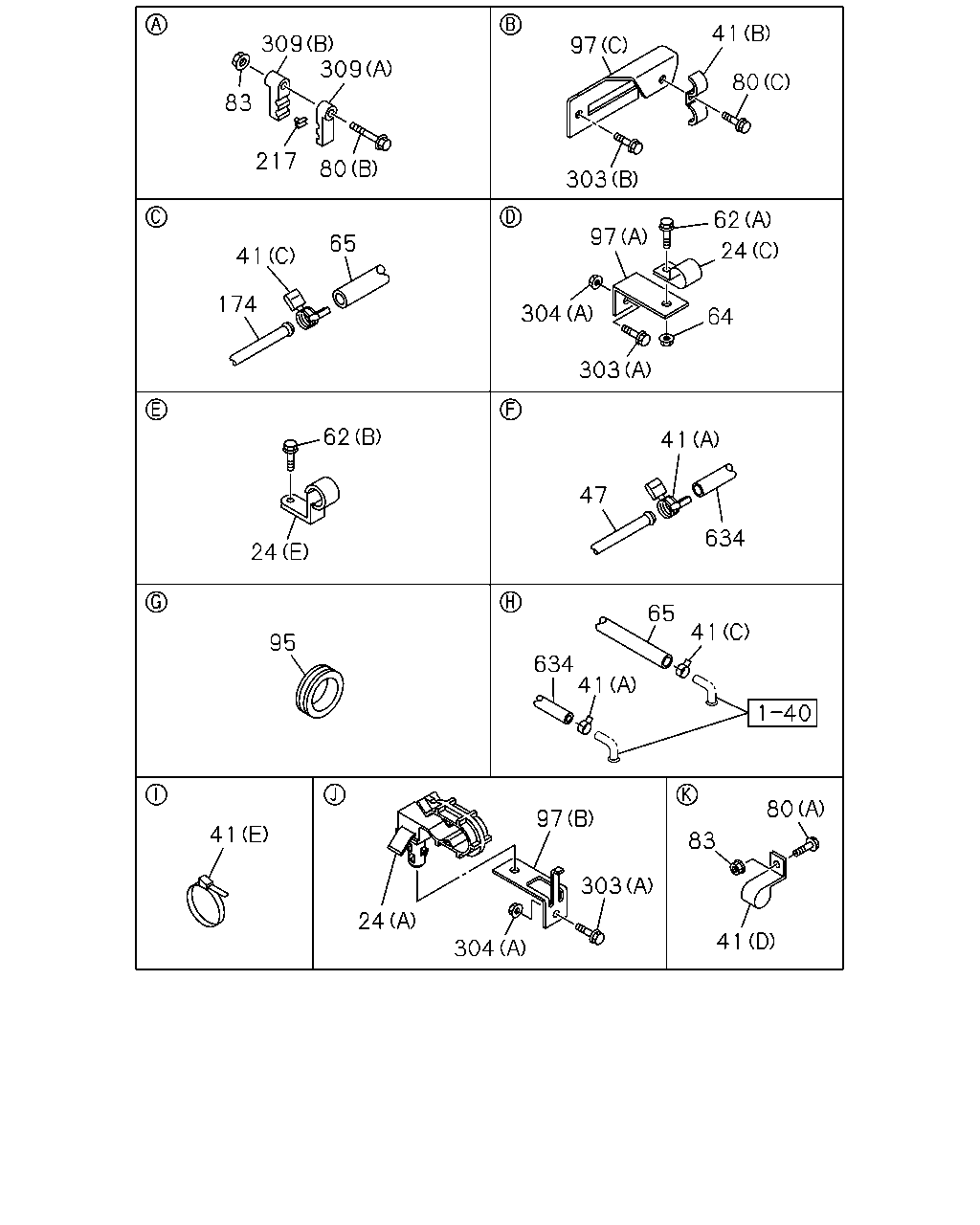

309 217 83 309 80 65 41 174 62 24 95 41 24 304 97 303 41 83 80 41 65 41 634 47 41 634 303 304 97 64 24 62 80 41 97 303

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	CLIP; FUEL HOSE WHEEL BASE 3400MM(34W) (E) ID=15 H=30 L=30	1-09700-832-0	01	1	1512-
24	CLIP; FUEL HOSE WHEEL BASE 4600MM(46W) (C) ID=21 L=24	8-98019-191-0	01	1	1411-
24	CLIP; FUEL HOSE WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) ID=14.5 & 14.5	1-09701-246-1	01	1	1411-
24	CLIP; FUEL HOSE WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (C) ID=21 L=24	8-98019-191-0	02	1	1411-
24	CLIP; FUEL HOSE (B) ID=15 H=24 L=20	1-09700-606-0	01	1	1411-
24	CLIP; FUEL HOSE (D) ID=16.5 & 10.5-14	8-98147-093-0	01	1	1411-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3400MM(34W) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	1512-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4000MM(40W) (D) ID=8 H=20 L=20	1-09700-604-0	01	1	1411-
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	02	1	1411-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=16	8-94238-568-0	02	1	1411-
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	02	1	1411-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W) (D) ID=8 H=20 L=20	1-09700-604-0	02	1	1411-
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1411-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=16	8-94238-568-0	04	1	1411-
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	04	1	1411-
47	PIPE; FUEL,RETURN WHEEL BASE 3400MM(34W) L=2106	8-98245-729-0	01	1	1512-
47	PIPE; FUEL,RETURN WHEEL BASE 4000MM(40W) L=2512	8-98245-730-0	01	1	1411-
47	PIPE; FUEL,RETURN WHEEL BASE 4600MM(46W) L=3106	8-98239-745-0	01	1	1411-
47	PIPE; FUEL,RETURN WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) L=3008	8-98245-731-0	01	1	1411-
62	BOLT; CLIP FIX WHEEL BASE 3400MM(34W) (B) M8X30 FLANGE	0-28650-830-0	01	1	1512-
62	BOLT; CLIP FIX WHEEL BASE 4600MM(46W) (A) M8X20 FLANGE	0-28650-820-0	01	1	1411-
62	BOLT; CLIP FIX WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) M8X20 FLANGE	0-28650-820-0	02	1	1411-
64	NUT; CLIP WHEEL BASE 4600MM(46W) M8 FLANGE	0-91180-108-0	01	1	1411-1511
64	NUT; CLIP WHEEL BASE 3400MM(34W),WHEEL BASE 4600MM(46W) M8 FLANGE	0-91180-108-0	01	1	1512-
64	NUT; CLIP WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) M8 FLANGE	0-91180-108-0	02	1	1411-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3400MM(34W) L=600	8-98234-314-0	01	1	1512-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4000MM(40W) L=850	8-98183-311-0	01	1	1411-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4600MM(46W) L=1200	8-98183-312-0	01	1	1411-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) L=1550	8-98183-313-0	01	1	1411-
80	BOLT; CLIP,FUEL TANK WHEEL BASE 3400MM(34W) (B) M8X50 FLANGE	0-28050-850-0	02	1	1512-
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4000MM(40W) (A) M8X25 FLANGE	0-28650-825-0	01	1	1411-
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B) M8X50 FLANGE	0-28050-850-0	03	1	1411-
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W) (A) M8X25 FLANGE	0-28650-825-0	02	1	1411-
80	BOLT; CLIP,FUEL TANK (C) M8X20 FLANGE	0-28650-820-0	01	1	1411-
83	NUT; CLIP,FUEL TANK WHEEL BASE 3400MM(34W) M8 FLANGE	0-91180-108-0	03	1	1512-
83	NUT; CLIP,FUEL TANK WHEEL BASE 4000MM(40W) M8 FLANGE	0-91180-108-0	04	1	1411-
83	NUT; CLIP,FUEL TANK WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W) M8 FLANGE	0-91180-108-0	05	1	1411-
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	02	1	1411-
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=17	9-09956-256-2	02	1	1411-
97	BRACKET; CLIP WHEEL BASE 3400MM(34W) (E)	1-47477-669-1	01	1	1512-
97	BRACKET; CLIP WHEEL BASE 4600MM(46W) (A) L=55	1-47476-177-0	01	1	1411-
97	BRACKET; CLIP WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) L=55	1-47476-177-0	02	1	1411-
97	BRACKET; CLIP WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B)	8-98109-768-0	01	1	1411-
97	BRACKET; CLIP (D)	8-98209-221-0	01	1	1411-
97	BRACKET; CLIP (C)	8-98245-737-0	01	1	1411-
174	PIPE; FUEL,FEED,FRT WHEEL BASE 3400MM(34W)	8-98245-725-0	01	1	1512-
174	PIPE; FUEL,FEED,FRT WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W)	8-98245-726-0	01	1	1411-
217	COLLAR; FUEL PIPE FIX WHEEL BASE 3400MM(34W) ID=8	1-47459-011-0	02	1	1512-
217	COLLAR; FUEL PIPE FIX WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) ID=8	1-47459-011-0	03	1	1411-
303	BOLT; BRKT WHEEL BASE 4600MM(46W) (A) M10X30 FLANGE	0-28651-030-0	01	1	1411-
303	BOLT; BRKT WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) M10X30 FLANGE	0-28651-030-0	03	1	1411-
303	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	1411-1511
303	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	1512-
303	BOLT; BRKT WHEEL BASE 3400MM(34W) (B) M8X30 FLANGE	0-28650-830-0	01	1	1512-
304	NUT; BRKT WHEEL BASE 3400MM(34W) (B) M8 FLANGE	0-91180-108-0	01	1	1512-
304	NUT; BRKT WHEEL BASE 4600MM(46W) (A) M10 FLANGE	0-91180-210-0	01	1	1411-
304	NUT; BRKT WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) M10 FLANGE	0-91180-210-0	03	1	1411-
309	CLIP; PIPE WHEEL BASE 3400MM(34W) (A) ID=10 & 10	1-09709-241-0	02	1	1512-
309	CLIP; PIPE WHEEL BASE 3400MM(34W) (B) ID=10 & 10	1-09709-243-0	02	1	1512-
309	CLIP; PIPE WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) ID=10 & 10	1-09709-241-0	03	1	1411-
309	CLIP; PIPE WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B) ID=10 & 10	1-09709-243-0	03	1	1411-
634	HOSE; RUBBER RETURN WHEEL BASE 3400MM(34W)	8-98245-300-0	01	1	1512-
634	HOSE; RUBBER RETURN WHEEL BASE 4000MM(40W)	8-98245-302-0	01	1	1411-
634	HOSE; RUBBER RETURN WHEEL BASE 4600MM(46W)	8-98245-303-0	01	1	1411-
634	HOSE; RUBBER RETURN WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W)	8-98245-304-0	01	1	1411-
