1-31 — AIR DUCT (#152219) — 78 parça

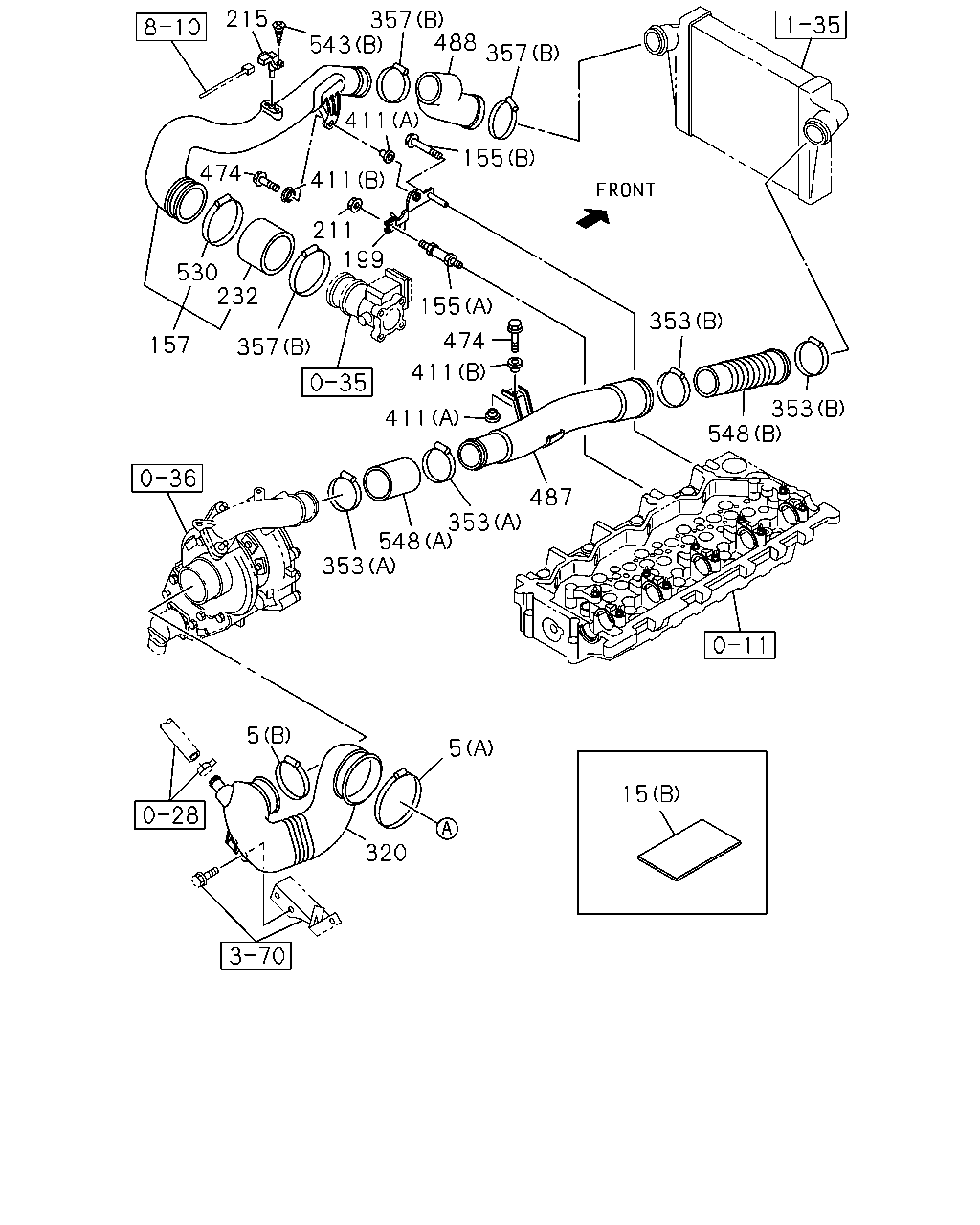

çizim 455133
215 543 357 357 488 155 411 411 211 199 155 474 411 411 357 232 530 157 353 548 353 487 548 353 353 5 15 320 5 474
BalonParca AdiParca NoAdetTipApplied Date
5 CLIP; AIR DUCT
KD PREPARATORY PACK<6HF> (B) ID=75-95 		8-98133-357-0 01 1 1512-
5 CLIP; AIR DUCT
KD PREPARATORY PACK<6HF> (A) ID=110-130 		8-98133-359-0 01 1 1512-
5 CLIP; AIR DUCT
(A) ID=104-142 		1-09707-139-0 01 1 1411-1511
5 CLIP; AIR DUCT
EXC. KD PREPARATORY PACK<6HF> (A) ID=104-142 		1-09707-139-0 01 1 1512-
5 CLIP; AIR DUCT
(B) ID=77-99 		1-09707-141-0 01 1 1411-1511
5 CLIP; AIR DUCT
EXC. KD PREPARATORY PACK<6HF> (B) ID=77-99 		1-09707-141-0 01 1 1512-
15 INSULATOR
FRIGID ZONE KIT<YL3> (A) ID=18 L=40 		8-98070-445-0 01 1 1512-
15 INSULATOR
FRIGID ZONE KIT<YL3> (B) 265X79 		8-98270-803-0 01 1 1512-
155 BOLT; BRKT
(B) M10X110 FLANGE 		0-28156-011-0 01 1 1411-
155 BOLT; BRKT
(A) M10X17,M10X30 L=105 		8-97233-428-0 01 1 1411-
157 PIPE; AIR 8-98166-967-0 01 1 1411-
199 BRACKET; PIPE 8-98252-223-0 01 1 1411-
211 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1411-
215 SENSOR; MAP 8-98009-418-0 01 1 1411-
232 HOSE; CONN 8-98128-293-0 01 1 1411-
320 HOSE; CONN,ACL 8-98010-643-3 01 1 1411-
353 CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> (A) ID=45-65 		8-98133-348-0 02 1 1512-
353 CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> (B) ID=65-85 		8-98133-350-0 02 1 1512-
353 CLIP; RUBBER HOSE
(A) ID=60-65 		8-98096-418-0 02 1 1411-1511
353 CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> (A) ID=60-65 		8-98096-418-0 02 1 1512-
353 CLIP; RUBBER HOSE
(B) ID=68-85 		8-98096-592-0 02 1 1411-1511
353 CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> (B) ID=68-85 		8-98096-592-0 02 1 1512-
357 CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> (B) ID=65-85 		8-98133-350-0 03 1 1512-
357 CLIP; RUBBER HOSE
(A) ID=24 		8-98025-921-0 02 1 1411-
357 CLIP; RUBBER HOSE
(B) ID=68-85 		8-98096-592-0 03 1 1411-1511
357 CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> (B) ID=68-85 		8-98096-592-0 03 1 1512-
411 RUBBER; CUSHION
(A) OD=32 		8-94395-766-0 02 1 1411-
411 RUBBER; CUSHION
(B) OD=23 		8-97105-689-6 02 1 1411-
474 BOLT; PIPE
M8X40 FLANGE 		0-28650-840-0 02 1 1411-
487 PIPE; TURBO TO CHARGE AIR COOLER 8-98250-695-0 01 1 1411-
488 HOSE; RUBBER,PIPE 8-98204-041-0 01 1 1411-
530 CLAMP; AIR DUCT
ID=65-85 		8-98133-350-0 01 1 1411-
543 SCREW; SENSOR
(A) M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 1411-
543 SCREW; SENSOR
(B) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1411-
548 HOSE; RUBBER,TURBO TO INL PIPE
(A) 		8-98204-039-0 01 1 1411-1511
548 HOSE; RUBBER,TURBO TO INL PIPE
(A) 		8-98317-803-0 01 1 1512-
548 HOSE; RUBBER,TURBO TO INL PIPE
(B) 		8-98204-040-0 01 1 1411-1511
548 HOSE; RUBBER,TURBO TO INL PIPE
(B) 		8-98317-804-0 01 1 1512-

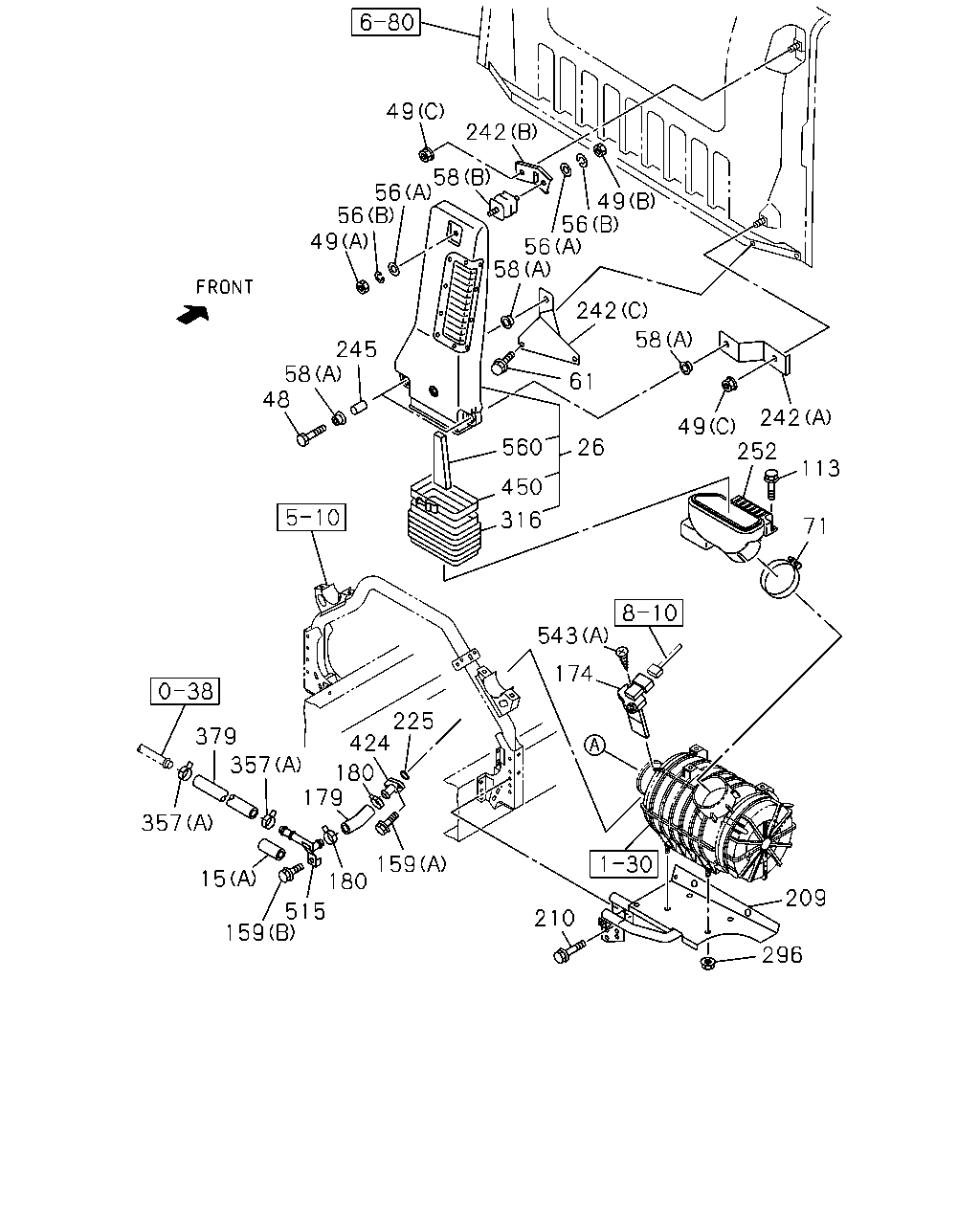

çizim 455683
49 56 56 49 245 58 48 58 242 49 56 56 58 242 49 242 252 71 113 543 174 316 560 450 209 296 210 159 180 515 159 15 357 379 357 424 180 179 61 26 58 225
BalonParca AdiParca NoAdetTipApplied Date
15 INSULATOR
FRIGID ZONE KIT<YL3> (A) ID=18 L=40 		8-98070-445-0 01 1 1512-
15 INSULATOR
FRIGID ZONE KIT<YL3> (B) 265X79 		8-98270-803-0 01 1 1512-
26 DUCT; AIR INT 8-98010-361-2 01 1 1411-
48 BOLT; AIR DUCT
M10X60 		1-09030-044-1 02 1 1411-
49 NUT; AIR DUCT
(B) M8 FLANGE 		1-09984-122-0 01 1 1411-
49 NUT; AIR DUCT
(A) M8 FLANGE 		1-09984-126-0 01 1 1411-
49 NUT; AIR DUCT
(C) M8 FLANGE 		8-94279-517-0 02 1 1411-
56 WASHER; LK,AIR INT DUCT
(A) ID=8.2 		1-09985-177-0 02 1 1411-
56 WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22 		1-09985-188-0 02 1 1411-
58 SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5 		1-14119-267-0 04 1 1411-
58 SUPPORT; AIR INL DUCT
(B) 		8-98125-944-1 01 1 1411-
61 BOLT; BRKT,AIR DUCT
M8X25 FLANGE 		8-98074-570-0 02 1 1411-
71 CLIP; AIR DUCT
ID=120-140 		8-98133-367-0 01 1 1411-
113 BOLT; RESONATOR
M6X16 W/PL WASHER 		8-98094-071-0 03 1 1411-
159 BOLT; AIR PIPE
(A) M6X16 FLANGE 		0-28050-616-0 02 1 1411-
159 BOLT; AIR PIPE
(B) M8X25 FLANGE 		0-28650-825-0 01 1 1411-
174 SENSOR; AIR FLOW CONT 8-98113-202-1 01 1 1411-
179 HOSE; AIR INT 8-98063-233-0 01 1 1411-
180 CLIP; AIR INT HOSE
ID=24 		8-98025-921-0 02 1 1411-
209 BRACKET; ACL 8-98010-343-4 01 1 1411-
210 BOLT; ACL BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 1411-
225 GASKET; AIR PIPE
ID=24.4 		1-09623-057-0 01 1 1411-
242 BRACKET; AIR DUCT
(B) 		8-98019-301-3 01 1 1411-
242 BRACKET; AIR DUCT
(C) 		8-98019-302-1 01 1 1411-
242 BRACKET; AIR DUCT
(A) 		8-98238-917-0 01 1 1411-
245 PIECE; DIST,AIR DUCT 1-79998-228-0 02 1 1411-
252 DUCT; AIR INT 8-98095-778-0 01 1 1411-
296 NUT; ACL
M8 FLANGE 		0-91180-108-0 04 1 1411-
316 RUBBER; CUSHION,DUCT 8-98152-269-0 01 1 1411-
357 CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> (B) ID=65-85 		8-98133-350-0 03 1 1512-
357 CLIP; RUBBER HOSE
(A) ID=24 		8-98025-921-0 02 1 1411-
357 CLIP; RUBBER HOSE
(B) ID=68-85 		8-98096-592-0 03 1 1411-1511
357 CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> (B) ID=68-85 		8-98096-592-0 03 1 1512-
379 HOSE; RUBBER
(B) 		8-98062-621-1 01 1 1411-
424 PIPE; AIR,INL 8-98081-835-0 01 1 1411-
450 CLAMP; HOSE 9-09915-504-1 01 1 1411-
515 PIPE; AIR,SUCTION 8-98061-569-1 01 1 1411-
543 SCREW; SENSOR
(A) M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 1411-
543 SCREW; SENSOR
(B) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1411-
560 FILTER; VERTICAL DUCT 8-98061-675-0 01 1 1411-
