0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#152210) — 43 parça
çizim 455078
112 8 11 2 10 107 13 1
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; BATTERY
L=280 		8-98025-412-3 01 1 1411-
2 CABLE; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=240 		8-98232-608-0 01 1 1411-
2 CABLE; BATTERY
BATTERY 115E41L<8MA> L=400 		8-97619-733-1 01 1 1411-
8 CABLE; BATTERY,STARTER
WHEEL BASE 3400MM(34W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98292-659-0 01 1 1512-
8 CABLE; BATTERY,STARTER
WHEEL BASE 3400MM(34W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98292-657-0 01 1 1512-
8 CABLE; BATTERY,STARTER
WHEEL BASE 3400MM(34W) TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA> 		8-98292-660-0 01 1 1512-
8 CABLE; BATTERY,STARTER
WHEEL BASE 3400MM(34W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> 		8-98292-658-0 01 1 1512-
8 CABLE; BATTERY,STARTER
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98292-663-0 01 1 1411-
8 CABLE; BATTERY,STARTER
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98292-661-0 01 1 1411-
8 CABLE; BATTERY,STARTER
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA> 		8-98292-664-0 01 1 1411-
8 CABLE; BATTERY,STARTER
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> 		8-98292-662-0 01 1 1411-
10 BOLT; BATTERY CABLE CLIP
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 1411-
11 WASHER; BATTERY CABLE EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 1411-
13 GROMMET; BATTERY CABLE
ID=28 OD=35 T=17 		9-09956-256-2 01 1 1411-
107 CLIP; BAND
BATTERY 115E41L<8MA> L=140 		5-09707-031-1 01 1 1411-
112 TERMINAL; BATTERY
<+> 		8-98290-356-0 01 1 1411-

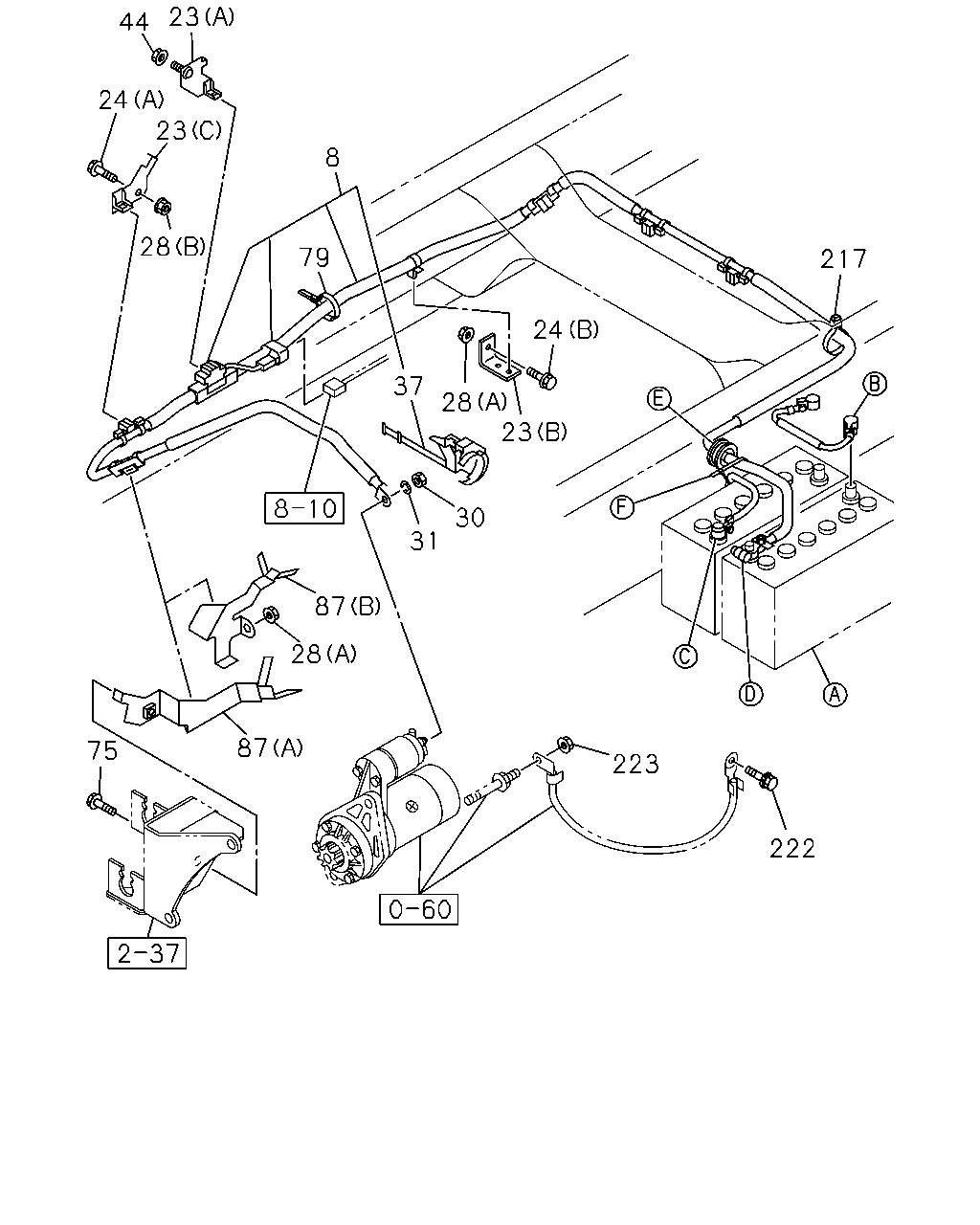

çizim 455082
222 223 217 24 28 37 23 30 31 87 28 87 75 79 8 23 44 24 28 23
BalonParca AdiParca NoAdetTipApplied Date
8 CABLE; BATTERY,STARTER
WHEEL BASE 3400MM(34W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98292-659-0 01 1 1512-
8 CABLE; BATTERY,STARTER
WHEEL BASE 3400MM(34W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98292-657-0 01 1 1512-
8 CABLE; BATTERY,STARTER
WHEEL BASE 3400MM(34W) TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA> 		8-98292-660-0 01 1 1512-
8 CABLE; BATTERY,STARTER
WHEEL BASE 3400MM(34W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> 		8-98292-658-0 01 1 1512-
8 CABLE; BATTERY,STARTER
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98292-663-0 01 1 1411-
8 CABLE; BATTERY,STARTER
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98292-661-0 01 1 1411-
8 CABLE; BATTERY,STARTER
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA> 		8-98292-664-0 01 1 1411-
8 CABLE; BATTERY,STARTER
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> 		8-98292-662-0 01 1 1411-
23 BRACKET; CABLE CLIP TO FRAME
(B) L=62 		1-21464-170-2 01 1 1411-
23 BRACKET; CABLE CLIP TO FRAME
(C) 		8-98047-277-1 01 1 1411-
23 BRACKET; CABLE CLIP TO FRAME
(A) 		8-98268-893-0 01 1 1411-
24 BOLT; BRKT TO FRAME
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1411-
24 BOLT; BRKT TO FRAME
(B) M10X30 FLANGE 		0-28651-030-0 01 1 1411-
28 NUT; BRKT TO FRAME
(A) M10 FLANGE 		0-91180-210-0 01 1 1411-
28 NUT; BRKT TO FRAME
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M10 FLANGE 		0-91180-210-0 01 1 1411-
28 NUT; BRKT TO FRAME
(B) M8 FLANGE 		0-91180-108-0 01 1 1411-
30 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 1411-
31 WASHER; LK,CABLE,STARTER TO BATTERY
ID=8.2 		0-91510-508-0 01 1 1411-
37 CAP; TERMINAL,BATTERY CABLE 8-98042-507-0 01 1 1411-
44 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1411-
75 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X20 FLANGE 		0-28650-820-0 01 1 1411-
79 CLIP; BATTERY CABLE
ID=20 L=50 		9-09917-430-0 01 1 1411-
87 BRACKET; HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98045-617-1 01 1 1411-
87 BRACKET; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98053-927-1 01 1 1411-
217 CLIP; BAND,CABLE
L=250 		1-09707-126-0 01 1 1411-
222 BOLT; EARTH CABLE
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 1411-
223 NUT; EARTH CABLE
M10 FLANGE 		0-91180-210-0 01 1 1411-
