Isuzu WW
▶
TRUCKS
▶
FSR
▶
11139 - FSR-R(EU)EU4 EXC.SPA
▶
5 - Frame, Cab Mounting
▶
5-10 - CAB MOUNTING; FRAME SIDE
▶
5-10 — CAB MOUNTING; FRAME SIDE
(#15221) — 60 parça
◀

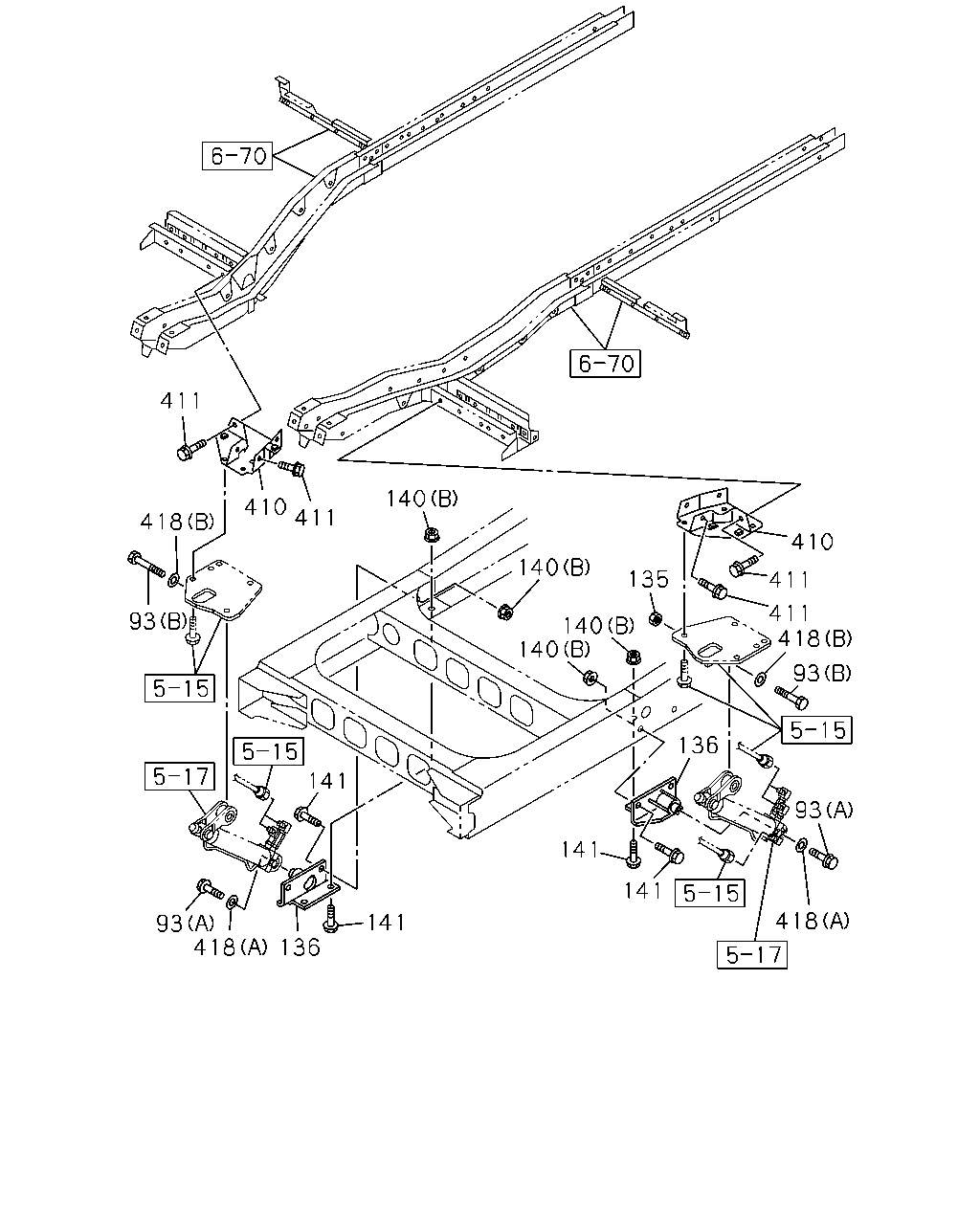

[510A] TILT CYLINDER FIXING (13 parça)

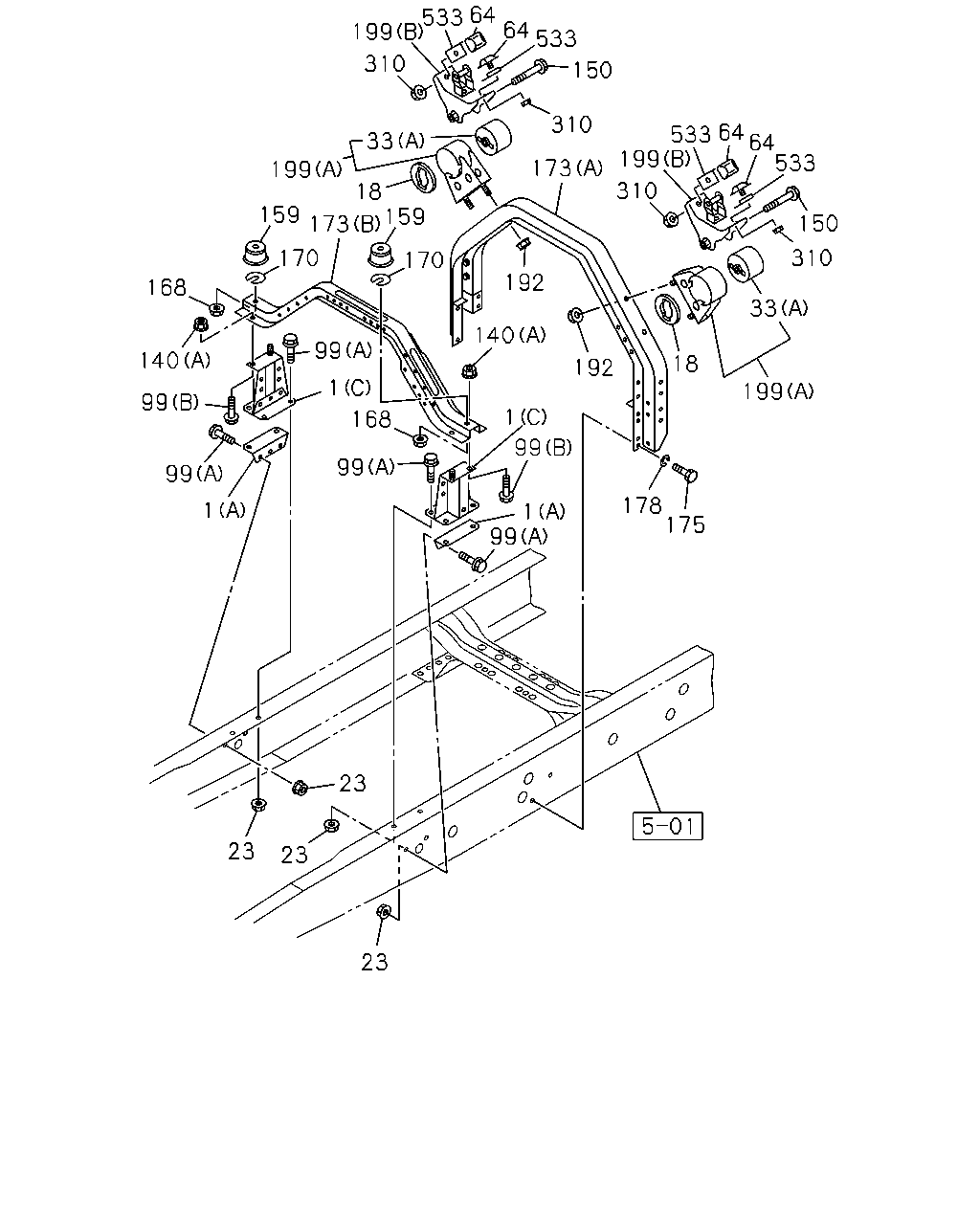

[510A] CAB MOUNTING REAR (27 parça)

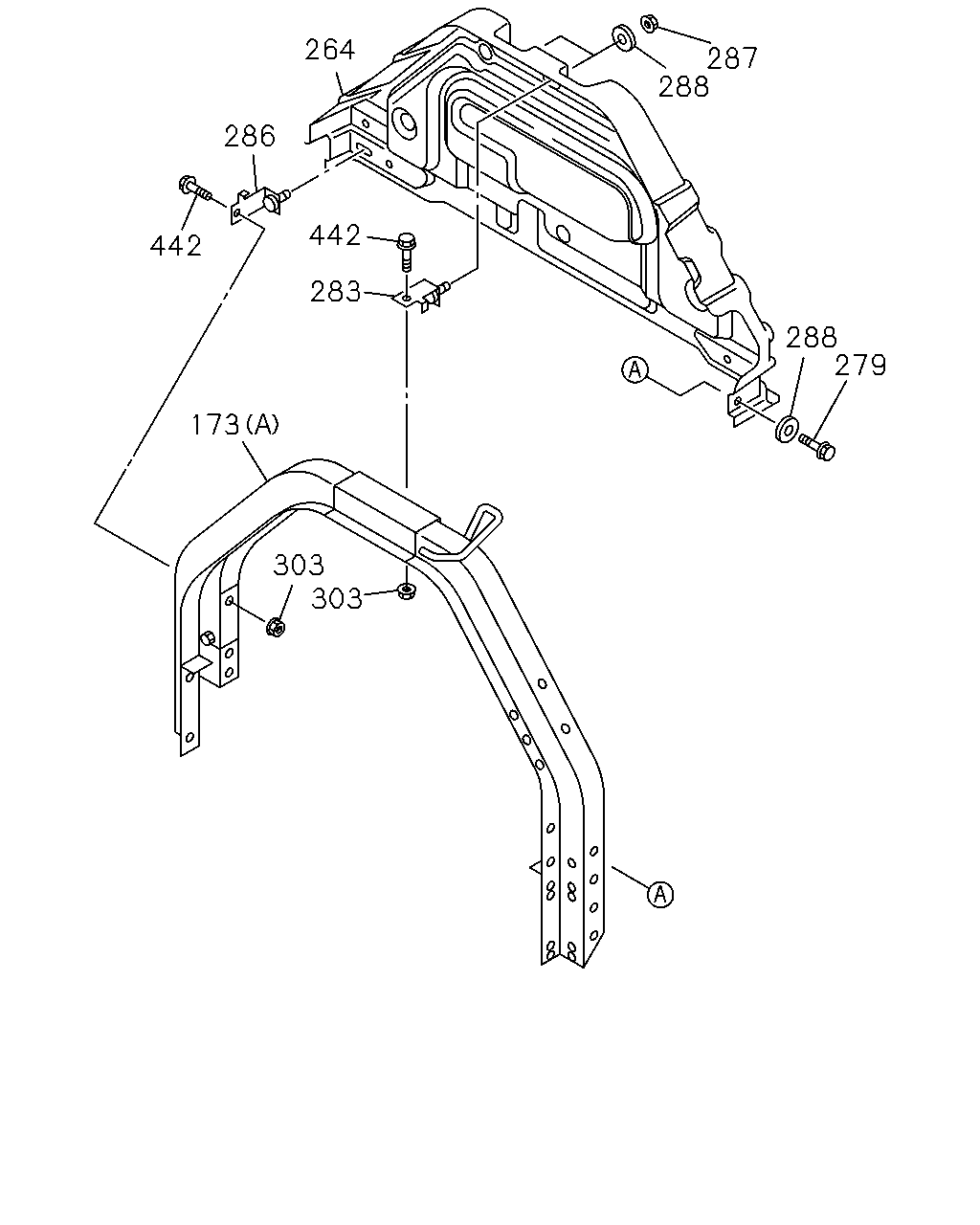

[510A] BACK PANEL (11 parça)

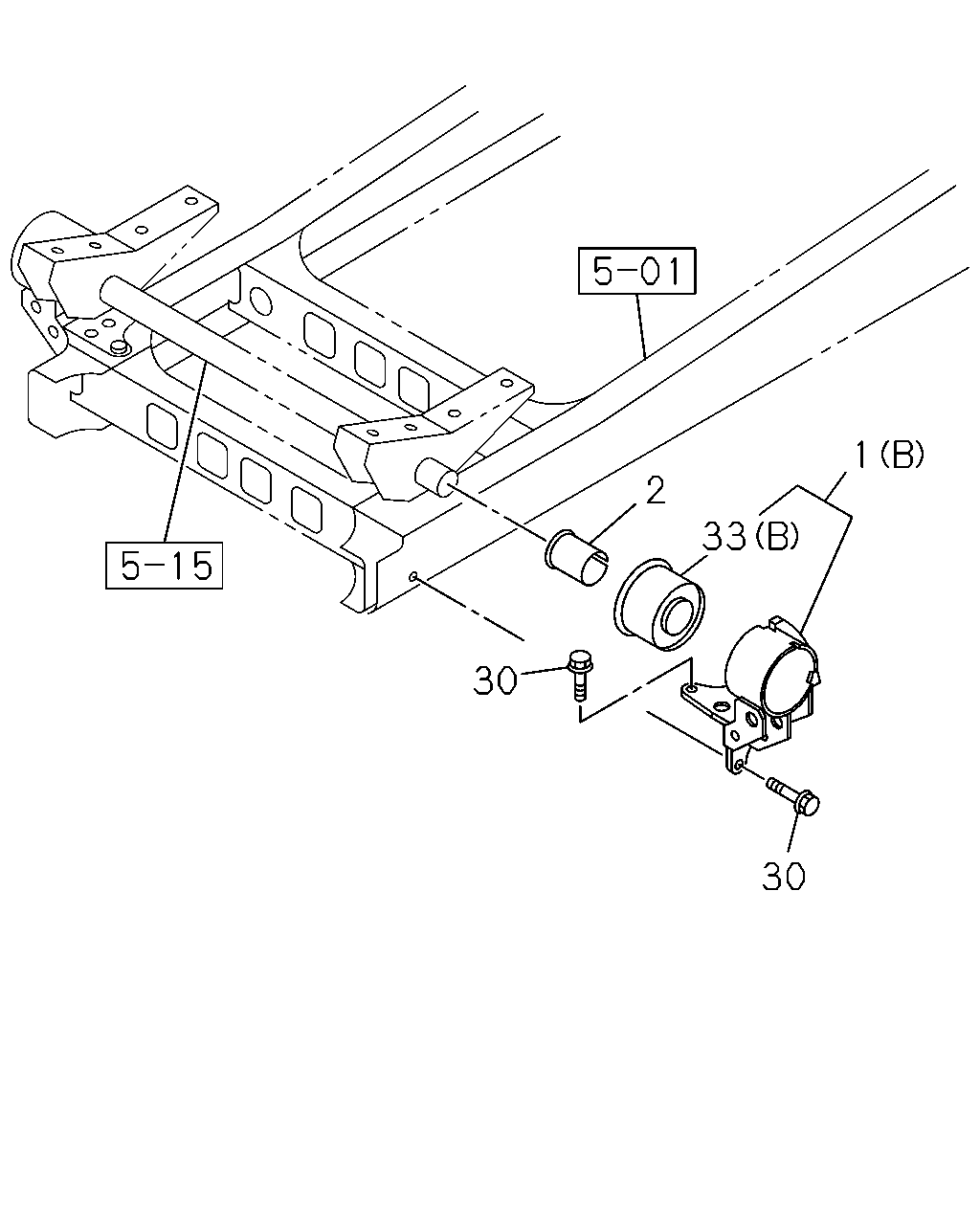

[510A] CAB MOUNTING FRONT (9 parça)
▶
411
140
410
411
418
410
140
135
411
411
418
93
140
140
93
136
141
93
141
141
418
141
93
418
136
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
93
BOLT; PIN
(A) M10X20 FLANGE
0-28651-020-0
02
1
0803-
93
BOLT; PIN
(B) M14X70 FLANGE
0-29261-470-0
02
1
0803-
135
NUT; PIN
M14
0-91110-514-0
01
1
0803-
136
BRACKET; OIL CYL
8-98096-333-1
01
1
0803-
136
BRACKET; OIL CYL
8-98096-334-1
01
1
0803-
140
NUT; BRKT
(A) M12 FLANGE
0-91180-212-0
04
1
0803-
140
NUT; BRKT
(B) M14 FLANGE
0-91180-214-0
08
1
0803-
141
BOLT; BRKT
M14X40 FLANGE
0-28661-440-0
08
1
0803-
410
REINFORCEMENT; CAB TILT
8-97588-837-5
01
1
0803-
410
REINFORCEMENT; CAB TILT
8-97614-237-4
01
1
0803-
411
BOLT; REINFORCEMENT
M8X20 FLANGE
0-28650-820-0
08
1
0803-
418
WASHER; PL,PIN
(B) ID=15
0-91610-514-0
02
1
0803-
418
WASHER; PL,PIN
(A) ID=10.5 OD=32
0-91614-810-0
02
1
0803-
533
64
199
64
533
310
150
310
533
64
64
199
533
33
173
199
310
18
159
173
159
150
310
170
170
192
168
33
140
99
140
18
192
1
199
99
1
168
99
99
99
178
175
1
1
99
23
23
23
23
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BRACKET; CAB MTG
(B)
8-98017-665-2
01
1
0803-
1
BRACKET; CAB MTG
(B)
8-98017-666-2
01
1
0803-
1
BRACKET; CAB MTG
(C)
8-98065-059-0
02
1
0803-
1
BRACKET; CAB MTG
(A)
8-98094-593-0
02
1
0803-
18
PLATE; MTG BRKT FIX
8-98096-159-0
02
1
0803-
23
NUT; MTG BRKT
M12 FLANGE
0-91180-212-0
12
1
0803-
33
BUSHING; RUBBER,CAB MTG BRKT,FRT
(A)
8-98013-934-1
02
1
0803-
33
BUSHING; RUBBER,CAB MTG BRKT,FRT
(B)
8-98013-933-1
01
1
0803-
33
BUSHING; RUBBER,CAB MTG BRKT,FRT
(B)
8-98013-933-1
01
1
0803-
64
RUBBER; CUSHION
8-97113-340-0
04
1
0803-
99
BOLT; BRKT
(B) M12X25 FLANGE
0-28051-225-0
02
1
0803-
99
BOLT; BRKT
(A) M12X35 FLANGE
0-28061-235-0
12
1
0803-
140
NUT; BRKT
(A) M12 FLANGE
0-91180-212-0
04
1
0803-
140
NUT; BRKT
(B) M14 FLANGE
0-91180-214-0
08
1
0803-
150
BOLT; CAB MTG RR
M14X100
0-10956-400-0
02
1
0803-
159
RUBBER; CUSHION,CAB MTG
9-54347-160-1
02
1
0803-
168
NUT; CUSHION RUBBER,BODY MTG
M12 FLANGE
0-91180-212-0
06
1
0803-
170
SHIM; CUSHION RUBBER
T=1.6
9-54347-136-1
AR
1
0803-
173
MEMBER; CAB MTG RR
(B)
1-53454-568-1
01
1
0803-
173
MEMBER; CAB MTG RR
(A)
8-98065-092-4
01
1
0803-
175
BOLT; MEMBER TO FRAME
M12X35
0-20951-235-0
08
1
0803-
178
WASHER; LK,MEMBER
ID=12.2
0-91510-612-0
08
1
0803-
192
NUT; BRKT FIX
M12 FLANGE
0-91180-212-0
04
1
0803-
199
BRACKET; CAB RR MTG
(A)
8-98044-033-1
02
1
0803-
199
BRACKET; CAB RR MTG
(B)
8-98095-166-0
02
1
0803-
310
NUT; CUSHION
M8 FLANGE
0-91180-108-0
04
1
0803-
533
SPACER; MTG RUBBER
8-98077-323-0
04
1
0803-
264
287
288
286
442
442
283
288
279
173
303
303
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
173
MEMBER; CAB MTG RR
(B)
1-53454-568-1
01
1
0803-
173
MEMBER; CAB MTG RR
(A)
8-98065-092-4
01
1
0803-
264
PANEL; BACK
MZX6P M/T(RSW),MLD6W M/T(Y2C)
8-98055-597-1
01
1
0803-
279
BOLT
M8X25 FLANGE
0-28650-825-0
01
1
0803-
283
BRACKET; UPR
1-53457-187-0
01
1
0803-0808
286
BRACKET; LOW
1-53457-187-0
01
1
0803-0808
286
BRACKET; LOW
1-53457-187-0
02
1
0809-
287
NUT
M8 FLANGE
0-91180-108-0
02
1
0803-
288
WASHER; PL
ID=8.4 OD=26
0-91614-808-0
03
1
0803-
303
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
0803-
442
BOLT; BRKT
M8X20 FLANGE
0-28650-820-0
02
1
0803-
1
2
33
30
30
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BRACKET; CAB MTG
(B)
8-98017-665-2
01
1
0803-
1
BRACKET; CAB MTG
(B)
8-98017-666-2
01
1
0803-
1
BRACKET; CAB MTG
(C)
8-98065-059-0
02
1
0803-
1
BRACKET; CAB MTG
(A)
8-98094-593-0
02
1
0803-
2
BUSHING; TORSION BAR
8-98010-767-0
02
1
0803-
30
BOLT; CAB FRT FOOT
M14X45 FLANGE
0-28861-445-0
10
1
0803-
33
BUSHING; RUBBER,CAB MTG BRKT,FRT
(A)
8-98013-934-1
02
1
0803-
33
BUSHING; RUBBER,CAB MTG BRKT,FRT
(B)
8-98013-933-1
01
1
0803-
33
BUSHING; RUBBER,CAB MTG BRKT,FRT
(B)
8-98013-933-1
01
1
0803-
