Isuzu WW
▶
TRUCKS
▶
FRR
▶
11627 - FRR LHD EUROPE EURO6 SPACECAB EVSC
▶
0 - Engine, Emission, Engine Electrical
▶
0-57 - EMISSION PIPING
▶

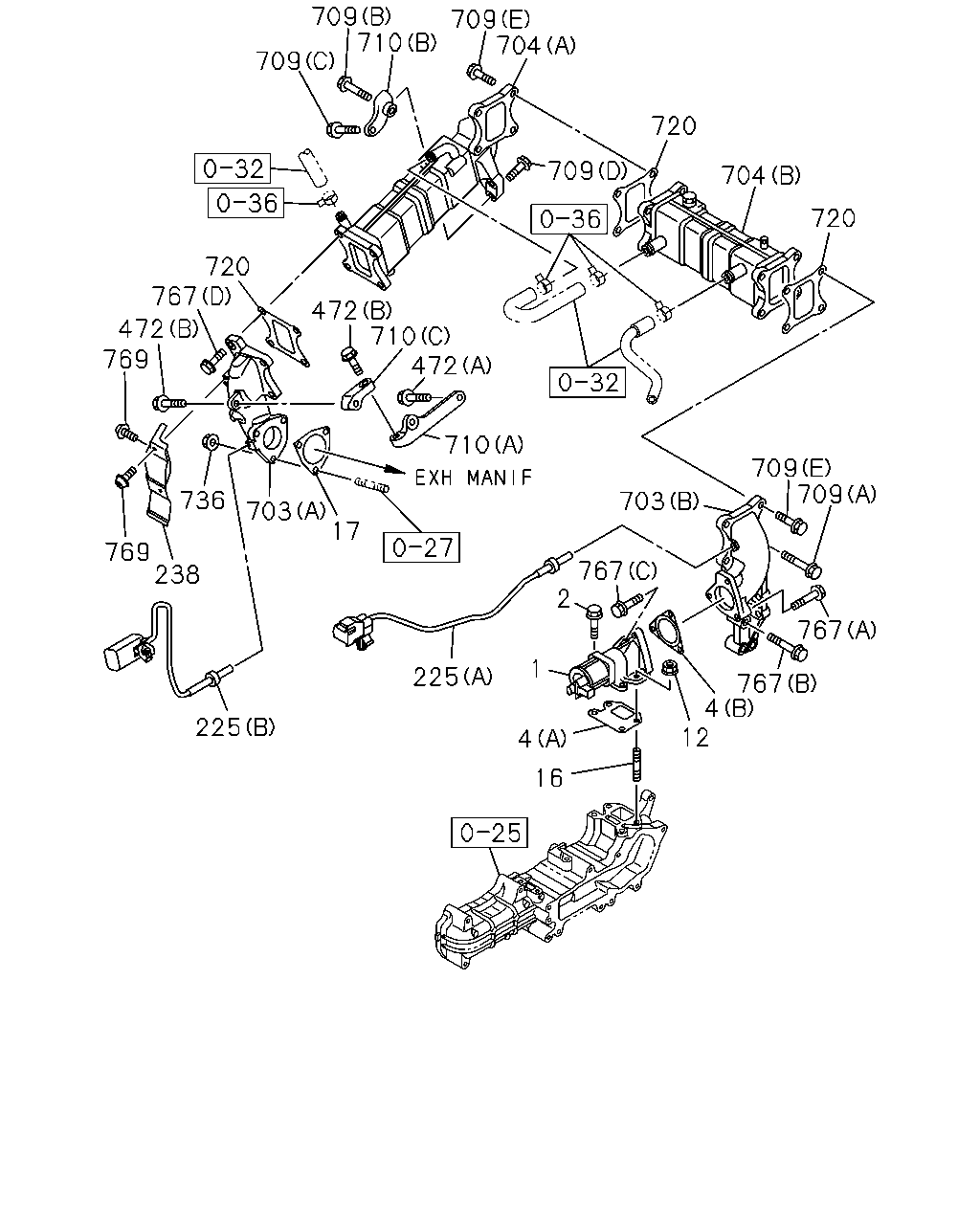

0-57 — EMISSION PIPING
(#152208) — 31 parça
710
709
709
720
767
472
769
769
238
225
16
12
767
767
709
709
720
704
720
704
709
709
472
736
703
710
472
710
17
225
4
1
2
703
767
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
VALVE; EGR
8-98098-257-5
01
1
1411-
2
BOLT; EGR VLV
M8X25 FLANGE
0-28650-825-0
02
1
1411-
4
GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). (A)
8-97306-040-0
01
1
1411-
4
GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). (B)
8-98036-507-0
01
1
1411-
12
NUT; EGR VLV
M8 FLANGE
0-91180-108-0
02
1
1411-
16
STUD; EGR VLV
M8X20 L=32
0-41010-820-0
02
1
1411-
17
GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=51.5
8-98046-192-1
01
1
1411-
225
SENSOR; THERMO,EGR
(A)
8-98028-398-0
01
1
1411-
225
SENSOR; THERMO,EGR
(B)
8-98160-440-0
01
1
1411-
238
PROTECTOR; HEAT,EGR
8-98056-572-0
01
1
1411-
472
BOLT; BRKT
(A) M8X25 FLANGE
0-28660-825-0
02
1
1411-
472
BOLT; BRKT
(B) M10X40 FLANGE
0-28751-040-0
02
1
1411-
703
DUCT; EGR
(B)
8-98233-076-0
01
1
1411-
703
DUCT; EGR
(A)
8-98237-781-0
01
1
1411-
704
COOLER ASM; EGR
(A)
8-98025-248-5
01
1
1411-
704
COOLER ASM; EGR
(B)
8-98212-718-0
01
1
1411-
709
BOLT; EGR COOLER
(A) M8X45 FLANGE
0-28060-845-0
01
1
1411-
709
BOLT; EGR COOLER
(B) M12X60 FLANGE
0-28151-260-0
01
1
1411-
709
BOLT; EGR COOLER
(C) M8X25 FLANGE
0-28660-825-0
01
1
1411-
709
BOLT; EGR COOLER
(E) M8X30 FLANGE
0-28660-830-0
07
1
1411-
709
BOLT; EGR COOLER
(D) M10X40 FLANGE
0-28751-040-0
02
1
1411-
710
BRACKET; EGR COOLER
(A)
8-98025-253-2
01
1
1411-
710
BRACKET; EGR COOLER
(B)
8-98025-254-1
01
1
1411-
710
BRACKET; EGR COOLER
(C)
8-98055-940-1
01
1
1411-
720
GASKET; COOLER
ALSO INCLUDED IN GASKET SET(ENGINE).
8-98200-753-0
03
1
1411-
736
NUT; DUCT,EGR VLV
M8 FLANGE
8-97061-401-1
03
1
1411-
767
BOLT; DUCT,EGR
(A) M8X45 FLANGE
0-28050-845-0
02
1
1411-
767
BOLT; DUCT,EGR
(B) M12X50 FLANGE
0-28151-250-0
02
1
1411-
767
BOLT; DUCT,EGR
(C) M8X30 FLANGE
0-28650-830-0
01
1
1411-
767
BOLT; DUCT,EGR
(D) M8X28 FLANGE
8-98043-528-0
04
1
1411-
769
BOLT; HEAT PROTECTOR
M6X12 W/PL WASHER
8-98054-289-0
04
1
1411-
