0-22 — ENGINE MOUNTING (#152191) — 24 parça

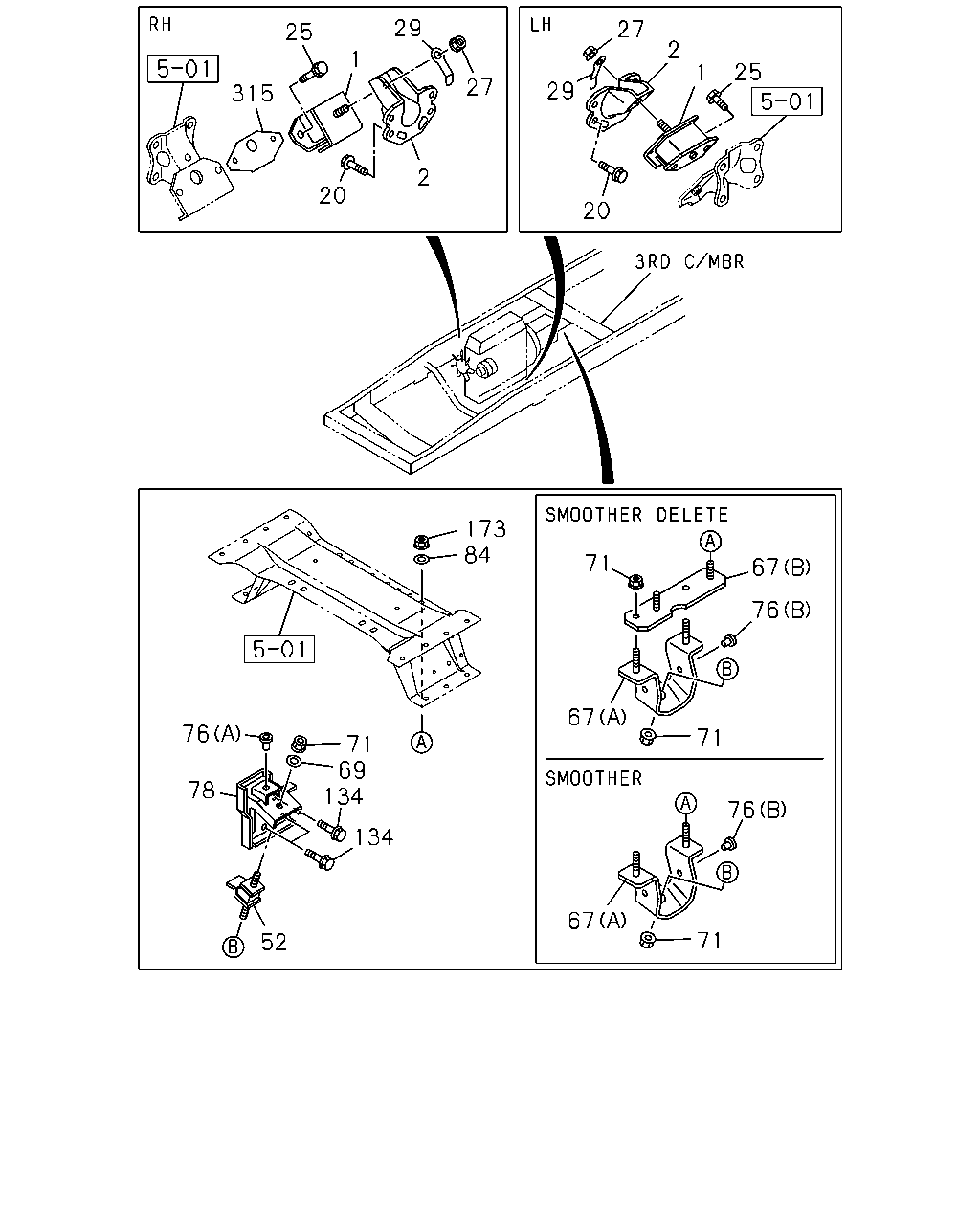

çizim 455041
25 315 1 29 27 2 20 20 29 27 2 1 25 173 84 71 69 134 134 78 76 52 71 71 67 76 67 76 71 67
BalonParca AdiParca NoAdetTipApplied Date
1 RUBBER; ENG FOOT,FRT 8-98231-322-0 02 1 1411-
2 FOOT; ENG 8-97376-076-1 02 1 1411-
20 BOLT; ENG FOOT
M10X30 FLANGE 		0-28161-030-0 08 1 1411-
25 BOLT; CUSHION RUBBER TO BRKT
M12X35 FLANGE 		0-28651-235-0 04 1 1411-
27 NUT; CUSHION RUBBER TO ENG FOOT
M12 FLANGE 		0-91180-212-0 02 1 1411-
29 PLATE; LK,CUSHION RUBBER,FRT 8-98010-312-0 02 1 1411-
52 RUBBER; CUSHION,ENG MTG,RR 8-97039-277-0 02 1 1411-
67 BRACKET; SUPPORT,ENG MTG,RR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98013-942-0 02 1 1411-
67 BRACKET; SUPPORT,ENG MTG,RR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98051-917-0 01 1 1411-
67 BRACKET; SUPPORT,ENG MTG,RR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98051-918-0 01 1 1411-
67 BRACKET; SUPPORT,ENG MTG,RR
TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98055-142-0 02 1 1411-
69 WASHER; PL,SUPPORT RUBBER TO BRKT
ID=10.5 OD=22 T=4 		1-09503-045-0 02 1 1411-
71 NUT; SUPPORT RUBBER TO BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10 FLANGE 		0-91180-110-0 08 1 1411-
71 NUT; SUPPORT RUBBER TO BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) M10 FLANGE 		0-91180-110-0 04 1 1411-
76 STOPPER; ENG MTG RUBBER
(A) 		8-94111-904-0 02 1 1411-
76 STOPPER; ENG MTG RUBBER
(B) 		8-97039-947-1 04 1 1411-
78 BRACKET; ENG MTG,RR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98204-027-1 01 1 1411-
78 BRACKET; ENG MTG,RR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98229-175-0 01 1 1411-
78 BRACKET; ENG MTG,RR
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98127-070-0 01 1 1411-
78 BRACKET; ENG MTG,RR
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98127-071-1 01 1 1411-
84 WASHER; PL,ENG MTG RR TO FRAME
ID=10.5 OD=32 		0-91614-810-0 04 1 1411-
134 BOLT; SUPPORT BRKT
M14X35 FLANGE 		0-28751-435-0 08 1 1411-
173 NUT; ENG MTG RR TO FRAME
M10 FLANGE 		0-91180-210-0 04 1 1411-
315 SPACER; ENG MTG 8-98300-346-0 01 1 1411-
