Isuzu WW
▶
TRUCKS
▶
FRR
▶
11627 - FRR LHD EUROPE EURO6 SPACECAB EVSC
▶
0 - Engine, Emission, Engine Electrical
▶
0-15 - CRANKSHAFT,PISTON AND FLYWHEEL
▶

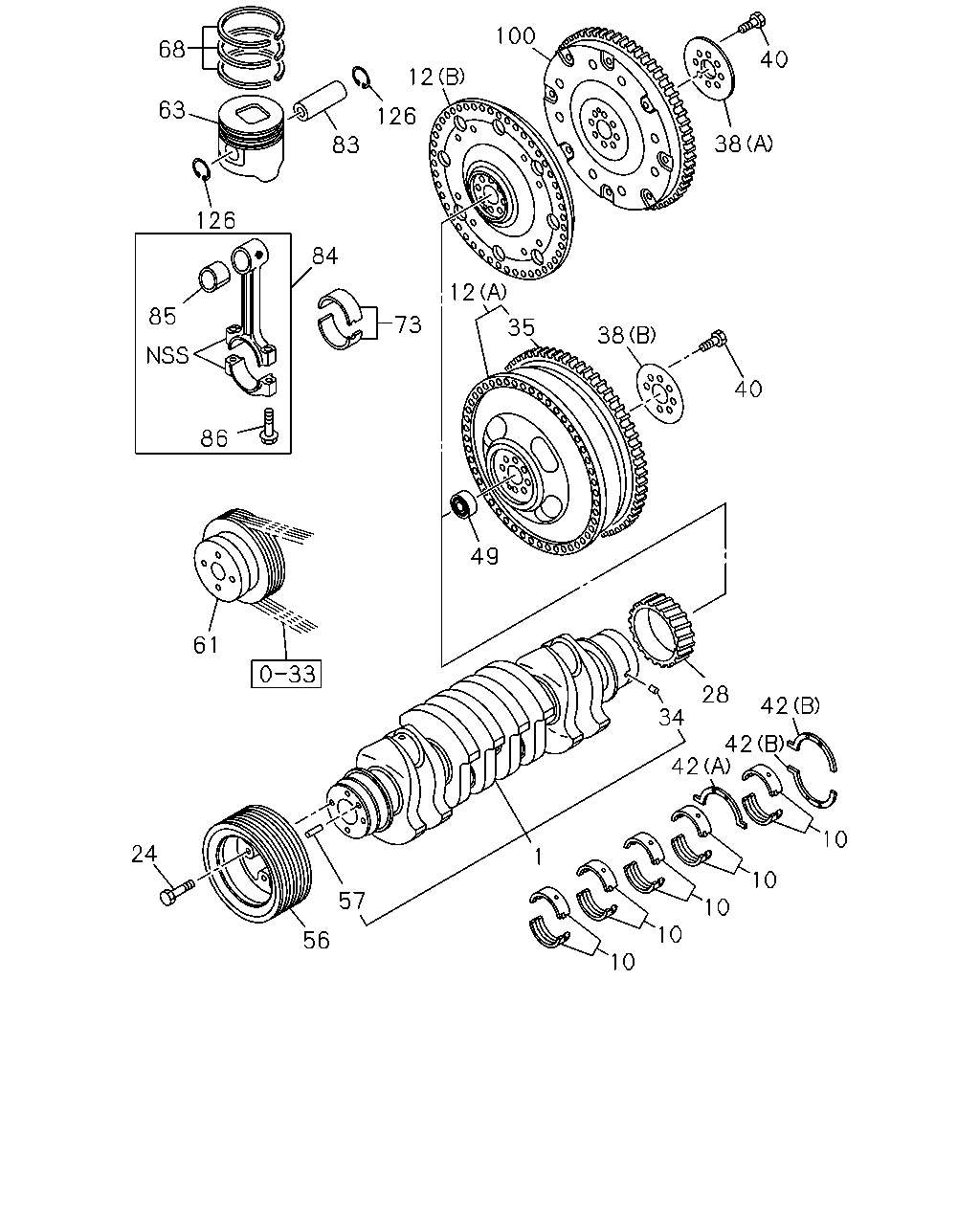

0-15 — CRANKSHAFT,PISTON AND FLYWHEEL
(#152189) — 30 parça
40
38
35
12
12
100
40
38
126
83
68
63
126
73
84
85
86
61
57
56
24
1
10
10
10
10
42
10
42
28
34
42
49
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CRANKSHAFT
8-98029-270-0
01
1
1411-
10
METAL SET; CRANKSHAFT,STANDARD
BLUE
8-97372-076-1
05
1
1411-
10
METAL SET; CRANKSHAFT,STANDARD
BLACK
8-97372-077-1
05
1
1411-
10
METAL SET; CRANKSHAFT,STANDARD
BROWN
8-97372-078-1
05
1
1411-
12
FLYWHEEL
TRANSMISSION CONTROL-SMOOTHER(8GF) (B)
8-98020-543-1
01
1
1411-
12
FLYWHEEL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)
8-98056-355-2
01
1
1411-
24
BOLT; DAMPER
M16X42
8-97028-733-0
04
1
1411-
28
GEAR; CR/SHF
Z=42
8-94394-342-4
01
1
1411-
34
PIN; GEAR SETTING
OD=5 L=6
9-09878-626-0
01
1
1411-
35
GEAR; RING
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=143
8-97375-675-1
01
1
1411-
38
WASHER; FLYWHEEL
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=50 OD=120
8-98176-500-0
01
1
1411-
38
WASHER; FLYWHEEL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=55 OD=110
8-94397-496-1
01
1
1411-
40
BOLT; FLYWHEEL
M16X51
8-94334-870-1
08
1
1411-
42
WASHER; THRUST,CR/SHF
(A)
8-97386-548-0
01
1
1411-
42
WASHER; THRUST,CR/SHF
(B)
8-97386-549-0
02
1
1411-
49
BEARING; PILOT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-97258-239-0
01
1
1411-
49
BEARING; PILOT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BEST VALUE PARTS
5-87610-164-0
01
1
1411-
56
PULLEY; CR/SHF DAMPER
3-GROOVE
8-98004-024-3
01
1
1411-
57
PIN; PULLEY
OD=8 L=20
9-08150-820-0
02
1
1411-
61
PULLEY; FAN DRIVE
1-GROOVE
8-98164-798-0
01
1
1411-
63
PISTON
ALSO INCLUDED IN LINER SET. NON GRADE
8-98215-307-0
04
1
1411-
68
RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET.
8-98040-125-0
04
1
1411-
73
METAL SET; CONN ROD,STANDARD
YELLOW
8-98055-479-0
04
1
1411-
73
METAL SET; CONN ROD,STANDARD
GREEN
8-98055-480-0
04
1
1411-
83
PIN; PISTON
ALSO INCLUDED IN LINER SET.
8-98018-863-1
04
1
1411-
84
ROD ASM; CONN
8-98018-425-3
04
1
1411-
85
BUSHING; CONNROD
ALSO INCLUDED IN LINER SET.
8-94391-794-1
04
1
1411-
86
BOLT; CONNROD
M13X57 FLANGE
8-98091-141-0
08
1
1411-
100
PLATE; FLEX
TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98020-542-2
01
1
1411-
126
RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. OD=43.7
8-98006-828-0
08
1
1411-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
