Isuzu WW
▶
TRUCKS
▶
FVR
▶
11591 - FVR LHD EURO5
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-75 - CONDENSER
▶
8-75 — CONDENSER
(#152178) — 22 parça
◀

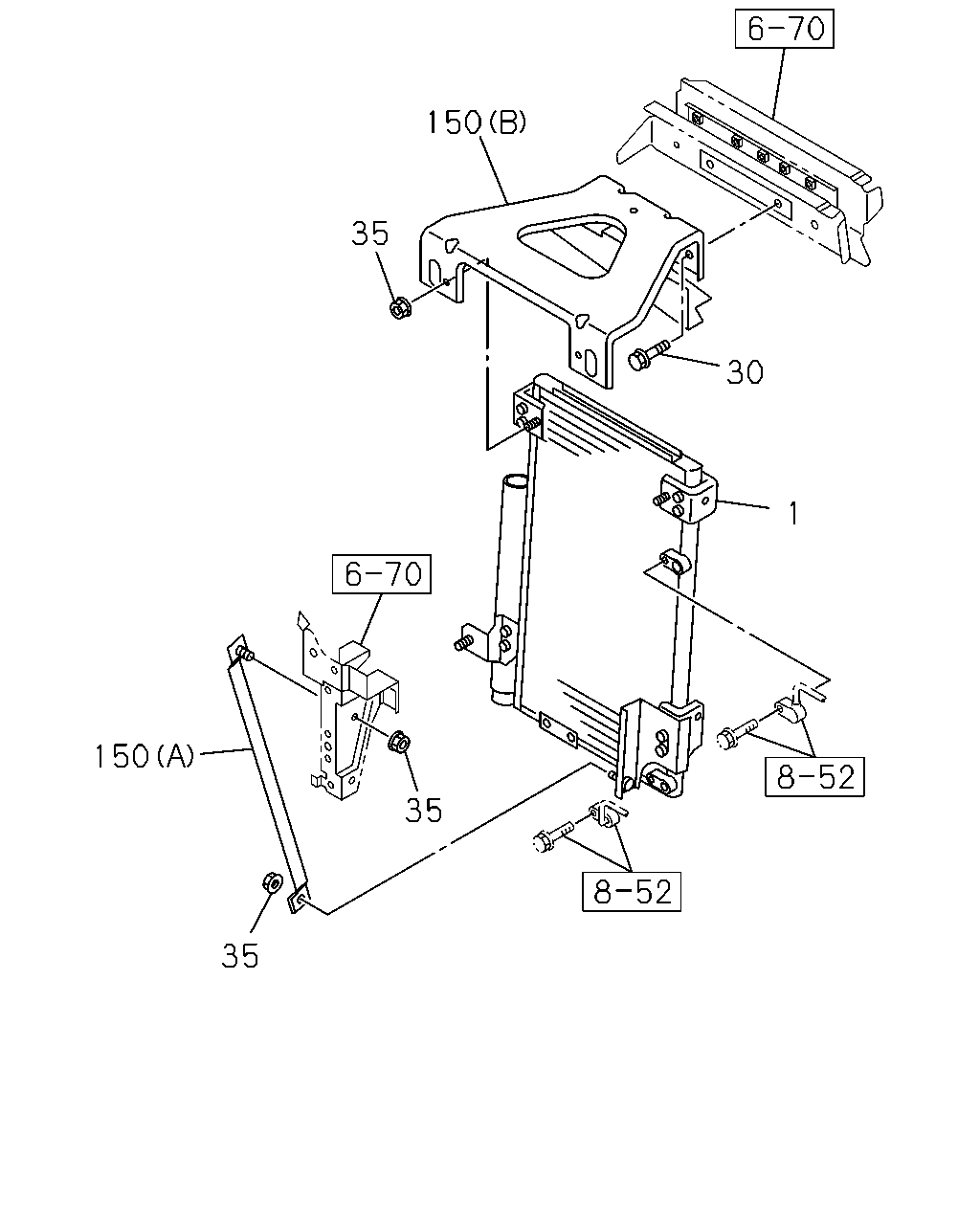

[875A] FIXING (5 parça)

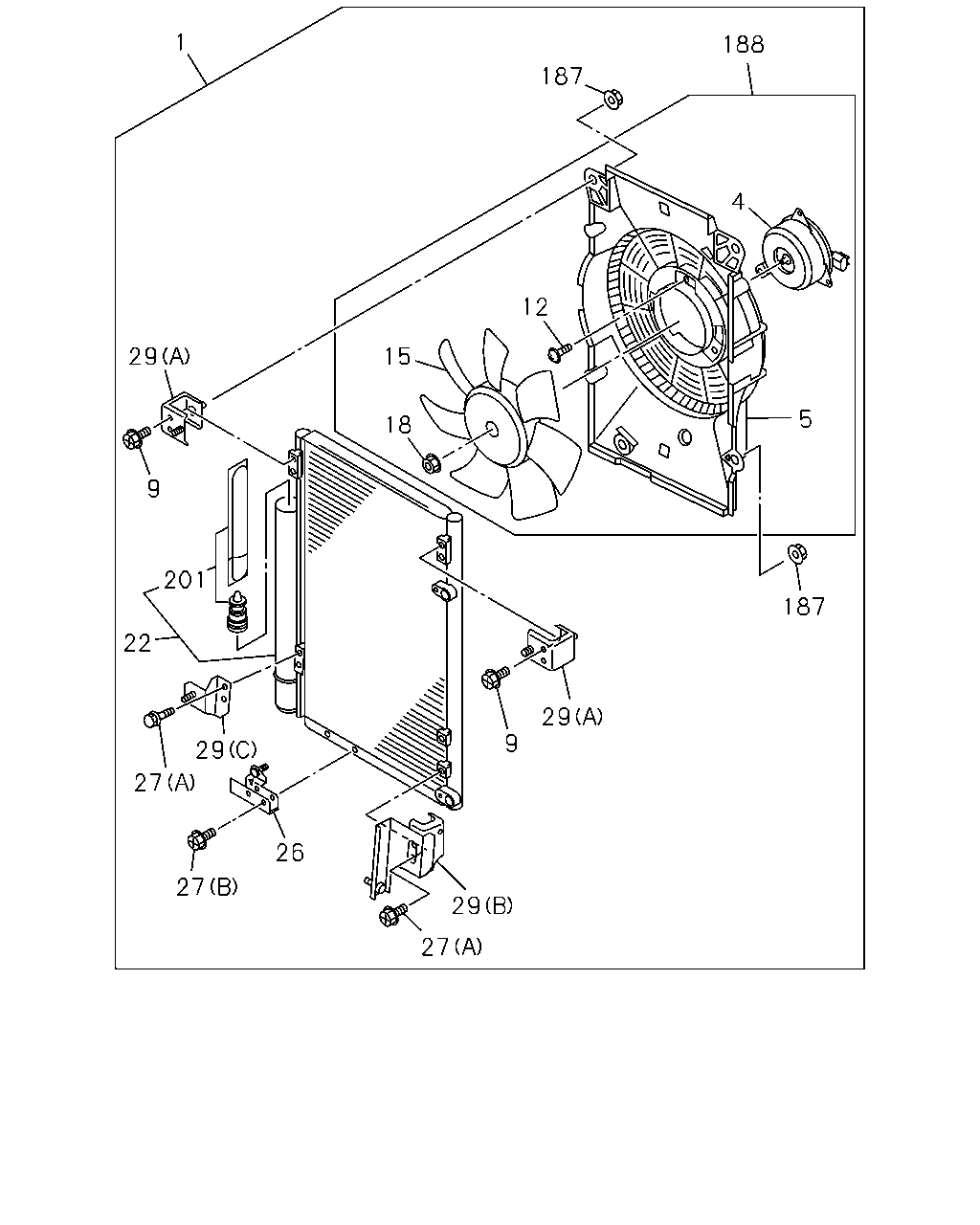

[875A] COMPONENT (17 parça)
▶
150
35
30
1
35
150
35
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CONDENSER; A/C
AIR CONDITIONER MANUAL CONTROL(C60)
8-98115-513-2
01
1
1411-
30
BOLT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE
0-28650-820-0
02
1
1411-
35
NUT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE
0-91180-108-0
05
1
1411-
150
BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60) (B)
8-98242-413-0
01
1
1411-
150
BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60) (A)
8-98270-947-0
01
1
1411-
187
188
1
29
9
201
15
12
18
29
9
29
27
26
29
22
27
27
5
187
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CONDENSER; A/C
AIR CONDITIONER MANUAL CONTROL(C60)
8-98115-513-2
01
1
1411-
4
MOTOR ASM; FAN
AIR CONDITIONER MANUAL CONTROL(C60)
8-98116-586-0
01
1
1411-
5
SHROUD; FAN MOTOR
AIR CONDITIONER MANUAL CONTROL(C60)
8-98076-093-0
01
1
1411-
9
BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M6X14
1-83539-382-0
04
1
1411-
12
BOLT; FAN MOTOR
AIR CONDITIONER MANUAL CONTROL(C60)
8-97180-269-0
03
1
1411-
15
FAN; MOTOR
AIR CONDITIONER MANUAL CONTROL(C60)
8-98152-860-0
01
1
1411-
18
NUT; FAN,CENTER
AIR CONDITIONER MANUAL CONTROL(C60) M5 FLANGE
8-94157-075-0
01
1
1411-
22
CONDENSER ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60)
8-98092-767-1
01
1
1411-
26
BRACKET; LOW
AIR CONDITIONER MANUAL CONTROL(C60)
8-98091-901-0
01
1
1411-
27
BOLT; BRKT,LOW SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (A) M6X14
1-83539-382-0
04
1
1411-
27
BOLT; BRKT,LOW SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (B) M5X25
8-97178-770-0
02
1
1411-
29
BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (A)
8-98065-914-0
02
1
1411-
29
BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (C)
8-98091-900-0
01
1
1411-
29
BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (B)
8-98092-769-0
01
1
1411-
187
NUT; SHROUD
AIR CONDITIONER MANUAL CONTROL(C60) M6
1-83539-354-0
04
1
1411-
188
BLOWER ASM; SHROUD
AIR CONDITIONER MANUAL CONTROL(C60)
8-98116-590-1
01
1
1411-
201
DRYER ASM; CONDENSER
AIR CONDITIONER MANUAL CONTROL(C60)
8-98282-482-0
01
1
1411-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
