8-15 — FIXING PARTS; WIRING HARNESS (#152164) — 173 parça

139 127 524 219 294 525 47 184

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
47	NUT; GEN TERMINAL M8 W/LK WASHER	8-94279-050-0	01	1	1411-
127	SCREW; FACIA HARNESS CLIP M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	1411-
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	1411-
139	BOLT; BRKT MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) (A) M8X25 FLANGE	0-28650-825-0	01	1	1411-
139	BOLT; BRKT (E) M8X12 FLANGE	0-28050-812-0	01	1	1411-
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	1411-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	1411-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	1411-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	04	1	1411-
139	BOLT; BRKT (C) M8X35 FLANGE	0-28650-835-0	01	1	1411-
139	BOLT; BRKT (F) M10X35 FLANGE	0-28651-035-0	01	1	1411-
139	BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (D) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1411-
184	WASHER; PL,STARTER EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	1411-
219	NUT M8 FLANGE	0-91180-108-0	01	1	1411-
219	NUT M8 FLANGE	0-91180-108-0	01	1	1411-
219	NUT M8 FLANGE	0-91180-108-0	02	1	1411-
219	NUT M8 FLANGE	0-91180-108-0	02	1	1411-
294	NUT M8 FLANGE	0-91180-108-0	01	1	1411-
294	NUT M8 FLANGE	0-91180-108-0	02	1	1411-
294	NUT M8 FLANGE	0-91180-108-0	04	1	1411-
524	NUT; HARNESS M6 FLANGE	0-91180-106-0	04	1	1411-
525	NUT; CLIP T=8.5 M8 FLANGE	5-09440-010-0	01	1	1411-
525	NUT; CLIP T=8.0 M8 FLANGE	0-91180-108-0	02	1	1411-

16 48 491 81 14 14 102 1 1 1 178 503 538 14 530

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SLEEVE; RUBBER EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (A) ID=10 OD=14 L=30	9-09956-682-0	03	1	1411-
1	SLEEVE; RUBBER (C) ID=23 OD=27 L=80	8-97608-976-0	06	1	1411-
1	SLEEVE; RUBBER MZW6P M/T(RSZ) ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. KD PREPARATORY PACK<6HF> (A) ID=10 OD=14 L=30	9-09956-682-0	04	1	1411-
1	SLEEVE; RUBBER ENGINE OIL TEMPERATURE GAUGE<UG3> (B) ID=15 OD=19 L=50	1-09337-014-0	02	1	1411-
14	CLIP; BAND,HARNESS EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B) L=250	8-98216-430-0	14	1	1411-
14	CLIP; BAND,HARNESS MZW6P M/T(RSZ) ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. KD PREPARATORY PACK<6HF> (B) L=250	8-98216-430-0	16	1	1411-
14	CLIP; BAND,HARNESS (A) L=250	1-09707-126-0	02	1	1411-
14	CLIP; BAND,HARNESS (C) L=350	1-09707-183-0	01	1	1411-
16	CLIP; HARNESS FULLER FSO5206B OD M/T(Y4V) (D) ID=16 L=40	0-95235-576-0	03	1	1411-
16	CLIP; HARNESS FULLER FSO5206B OD M/T(Y4V) (F) OD=9 H=6	1-09709-178-0	01	1	1411-
16	CLIP; HARNESS ZF9S1110 M/T(Y5E) (G) ID=16X2 L=50	0-95325-586-0	01	1	1411-
16	CLIP; HARNESS ZF9S1110 M/T(Y5E) (H) ID=14.5 L=40	1-09701-014-0	01	1	1411-
16	CLIP; HARNESS (I) ID=11 L=16	0-95235-025-0	02	1	1411-
16	CLIP; HARNESS (J) ID=11X2 L=16	0-95325-025-0	02	1	1411-
16	CLIP; HARNESS (M) ID=15 H=30 L=30	1-09700-832-0	02	1	1411-
16	CLIP; HARNESS (N) ID=14.5 H=23 L=30	1-09700-859-0	01	1	1411-
16	CLIP; HARNESS (L) ID=5-12 L=14.5	1-09987-221-0	02	1	1411-
16	CLIP; HARNESS (K) L=140	5-09707-031-1	01	1	1411-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1411-
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1411-
16	CLIP; HARNESS (E) L=40.6	8-97229-357-0	02	1	1411-
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1411-

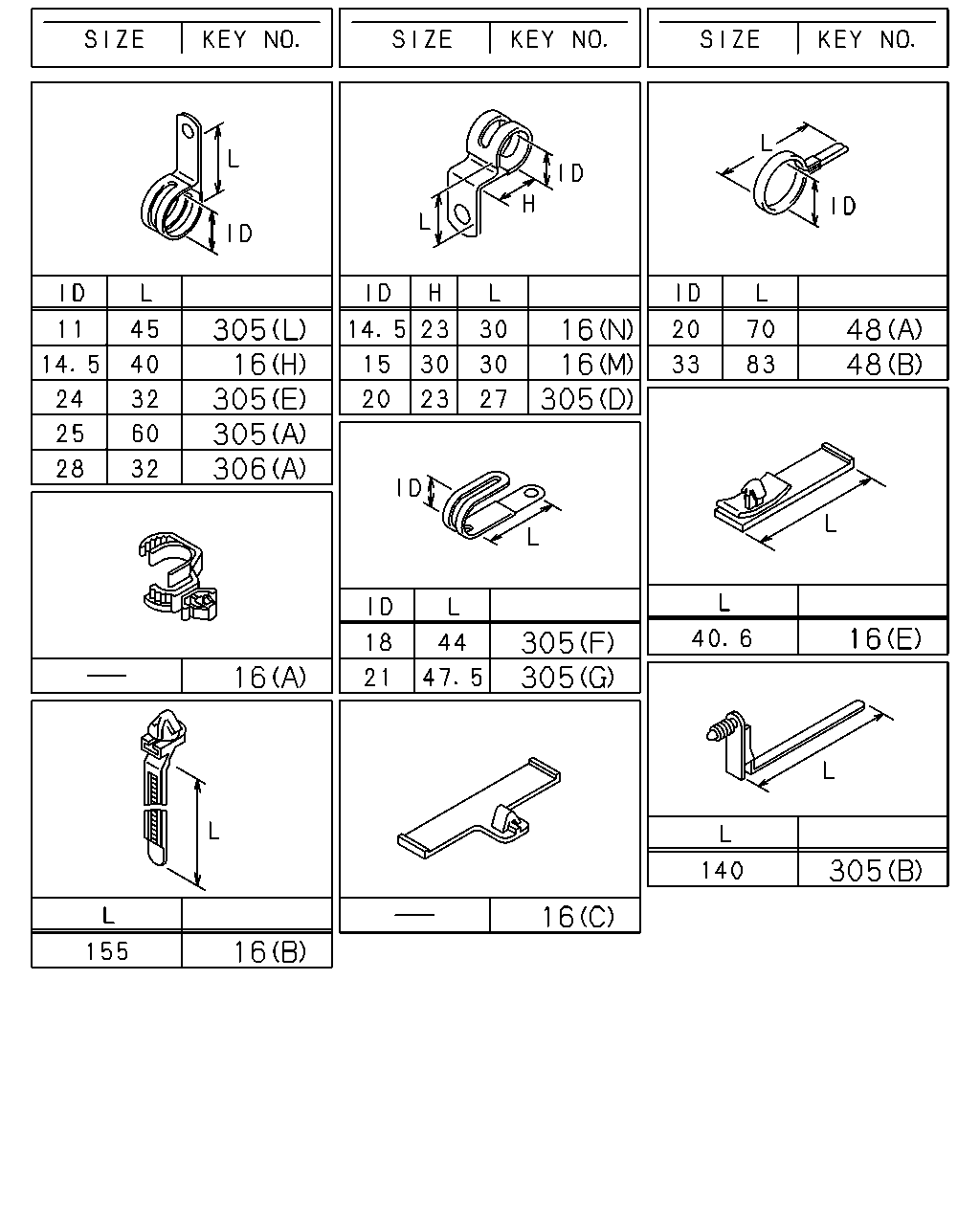

48	CLIP; FRAME HARNESS (A) ID=20 L=70	1-09700-485-0	01	1	1411-
48	CLIP; FRAME HARNESS (B) ID=33 L=83	1-09701-291-0	01	1	1411-
48	CLIP; FRAME HARNESS (C) L=140	5-09707-031-1	02	1	1411-
81	CLIP; HARNESS MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) (A) OD=9 H=6	1-09709-178-0	01	1	1411-
81	CLIP; HARNESS ZF9S1110 M/T(Y5E) (B) OD=9 H=13.5	1-09709-180-0	01	1	1411-
81	CLIP; HARNESS H.S.A SYSTEM<6EP> (C) L=250	5-09707-030-1	01	1	1411-
81	CLIP; HARNESS ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> (C) L=250	5-09707-030-1	01	1	1411-
102	CLIP; BAND ENGINE OIL TEMPERATURE GAUGE<UG3> L=350	1-09707-183-0	03	1	1411-
178	GROMMET; HARNESS ID=28 OD=35 T=25	1-09332-011-1	01	1	1411-
178	GROMMET; HARNESS ID=28 OD=35 T=25	1-09332-011-1	01	1	1411-
491	CLIP; BAND,HTR HOSE & HARNESS FIRE TRUCK CHASSIS(V4F) L=250	5-09707-030-1	06	1	1411-
503	CONNECTOR	1-82690-668-0	01	1	1411-
503	CONNECTOR EXC. AIR CONDITIONER MANUAL CONTROL(C60)	1-82690-668-0	01	1	1411-
530	SEAL; HARNESS 180X40	1-72498-019-1	16	1	1411-
538	SEAL; HOLE OD=25 BLACK	1-76798-019-0	01	1	1411-

304 304 139 38 304 304 38 139 38 150 139 38 139 139 38 386 516 377

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	BOLT; CLIP,HARNESS FULLER FSO5206B OD M/T(Y4V) (E) M8X16 FLANGE	0-28050-816-0	03	1	1411-
38	BOLT; CLIP,HARNESS ZF9S1110 M/T(Y5E) (E) M8X16 FLANGE	0-28050-816-0	02	1	1411-
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	03	1	1411-
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28650-830-0	01	1	1411-
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28650-830-0	02	1	1411-
38	BOLT; CLIP,HARNESS (C) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1411-
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	02	1	1411-
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	02	1	1411-
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	1411-
139	BOLT; BRKT MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) (A) M8X25 FLANGE	0-28650-825-0	01	1	1411-
139	BOLT; BRKT (E) M8X12 FLANGE	0-28050-812-0	01	1	1411-
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	1411-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	1411-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	1411-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	04	1	1411-
139	BOLT; BRKT (C) M8X35 FLANGE	0-28650-835-0	01	1	1411-
139	BOLT; BRKT (F) M10X35 FLANGE	0-28651-035-0	01	1	1411-
139	BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (D) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1411-
150	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	02	1	1411-
304	BOLT; ENG HARNESS CLIP EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (C) M8X16 FLANGE	0-28050-816-0	03	1	1411-
304	BOLT; ENG HARNESS CLIP (D) M6X12 FLANGE	0-28050-612-0	01	1	1411-
304	BOLT; ENG HARNESS CLIP (B) M8X12 FLANGE	0-28050-812-0	02	1	1411-
304	BOLT; ENG HARNESS CLIP (A) M8X20 FLANGE	0-28050-820-0	01	1	1411-
304	BOLT; ENG HARNESS CLIP MZW6P M/T(RSZ) ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. KD PREPARATORY PACK<6HF> (C) M8X16 FLANGE	0-28050-816-0	01	1	1411-
377	BOLT; CAB EARTH M6X16 W/LK&PL WASHER	8-97086-823-0	02	1	1411-
386	BOLT; GRAND HARNESS M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1411-
516	BOLT; HARNESS M4X10 W/LK&PL WASHER	0-36230-410-0	01	1	1411-

305 305 16 305 306 16 16 16 305 16 305 305 16 48 48 16 305

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

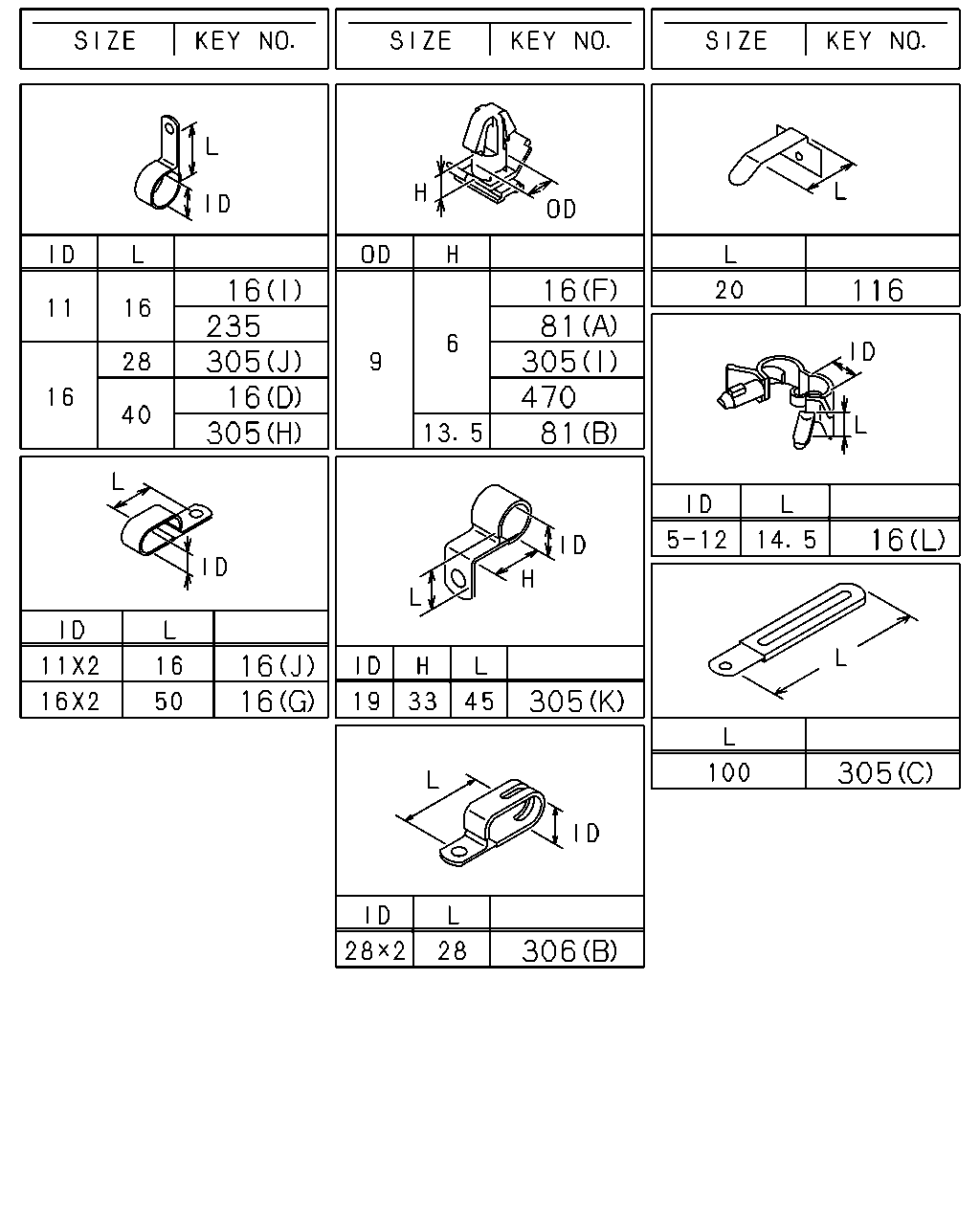

16	CLIP; HARNESS FULLER FSO5206B OD M/T(Y4V) (D) ID=16 L=40	0-95235-576-0	03	1	1411-
16	CLIP; HARNESS FULLER FSO5206B OD M/T(Y4V) (F) OD=9 H=6	1-09709-178-0	01	1	1411-
16	CLIP; HARNESS ZF9S1110 M/T(Y5E) (G) ID=16X2 L=50	0-95325-586-0	01	1	1411-
16	CLIP; HARNESS ZF9S1110 M/T(Y5E) (H) ID=14.5 L=40	1-09701-014-0	01	1	1411-
16	CLIP; HARNESS (I) ID=11 L=16	0-95235-025-0	02	1	1411-
16	CLIP; HARNESS (J) ID=11X2 L=16	0-95325-025-0	02	1	1411-
16	CLIP; HARNESS (M) ID=15 H=30 L=30	1-09700-832-0	02	1	1411-
16	CLIP; HARNESS (N) ID=14.5 H=23 L=30	1-09700-859-0	01	1	1411-
16	CLIP; HARNESS (L) ID=5-12 L=14.5	1-09987-221-0	02	1	1411-
16	CLIP; HARNESS (K) L=140	5-09707-031-1	01	1	1411-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1411-
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1411-
16	CLIP; HARNESS (E) L=40.6	8-97229-357-0	02	1	1411-
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1411-
48	CLIP; FRAME HARNESS (A) ID=20 L=70	1-09700-485-0	01	1	1411-
48	CLIP; FRAME HARNESS (B) ID=33 L=83	1-09701-291-0	01	1	1411-
48	CLIP; FRAME HARNESS (C) L=140	5-09707-031-1	02	1	1411-
305	CLIP; ENG HARNESS ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (C) L=100	8-94443-021-1	01	1	1411-
305	CLIP; ENG HARNESS (C) L=100	8-94443-021-1	01	1	1411-
305	CLIP; ENG HARNESS EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (J) ID=16 L=28	0-95235-556-0	02	1	1411-
305	CLIP; ENG HARNESS EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (F) ID=18 L=44	8-97367-985-1	01	1	1411-
305	CLIP; ENG HARNESS (H) ID=16 L=40	0-95235-576-0	01	1	1411-
305	CLIP; ENG HARNESS (E) ID=24 L=32	1-09700-766-1	01	1	1411-
305	CLIP; ENG HARNESS (D) ID=20 H=23 L=27	1-09700-861-0	01	1	1411-
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	1411-
305	CLIP; ENG HARNESS (K) ID=19 H=33 L=45	1-09701-045-0	01	1	1411-
305	CLIP; ENG HARNESS (I) OD=9 H=6	1-09709-178-0	01	1	1411-
305	CLIP; ENG HARNESS (L) ID=11 L=45	8-94296-897-1	01	1	1411-
305	CLIP; ENG HARNESS (B) L=140	8-97122-360-0	01	1	1411-
305	CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONTROL(C60) (G) ID=21 L=47.5	8-94178-108-0	01	1	1411-
305	CLIP; ENG HARNESS MZW6P M/T(RSZ) ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. KD PREPARATORY PACK<6HF> (J) ID=16 L=28	0-95235-556-0	01	1	1411-
306	CLIP; HARNESS,ELEC GOV (A) ID=28 L=32	1-09701-107-1	01	1	1411-
306	CLIP; HARNESS,ELEC GOV (B) ID=28X2 L=28	1-09701-302-0	02	1	1411-

7 53 53 69 59 59 137 137 137 308 308 137 308 308 324

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

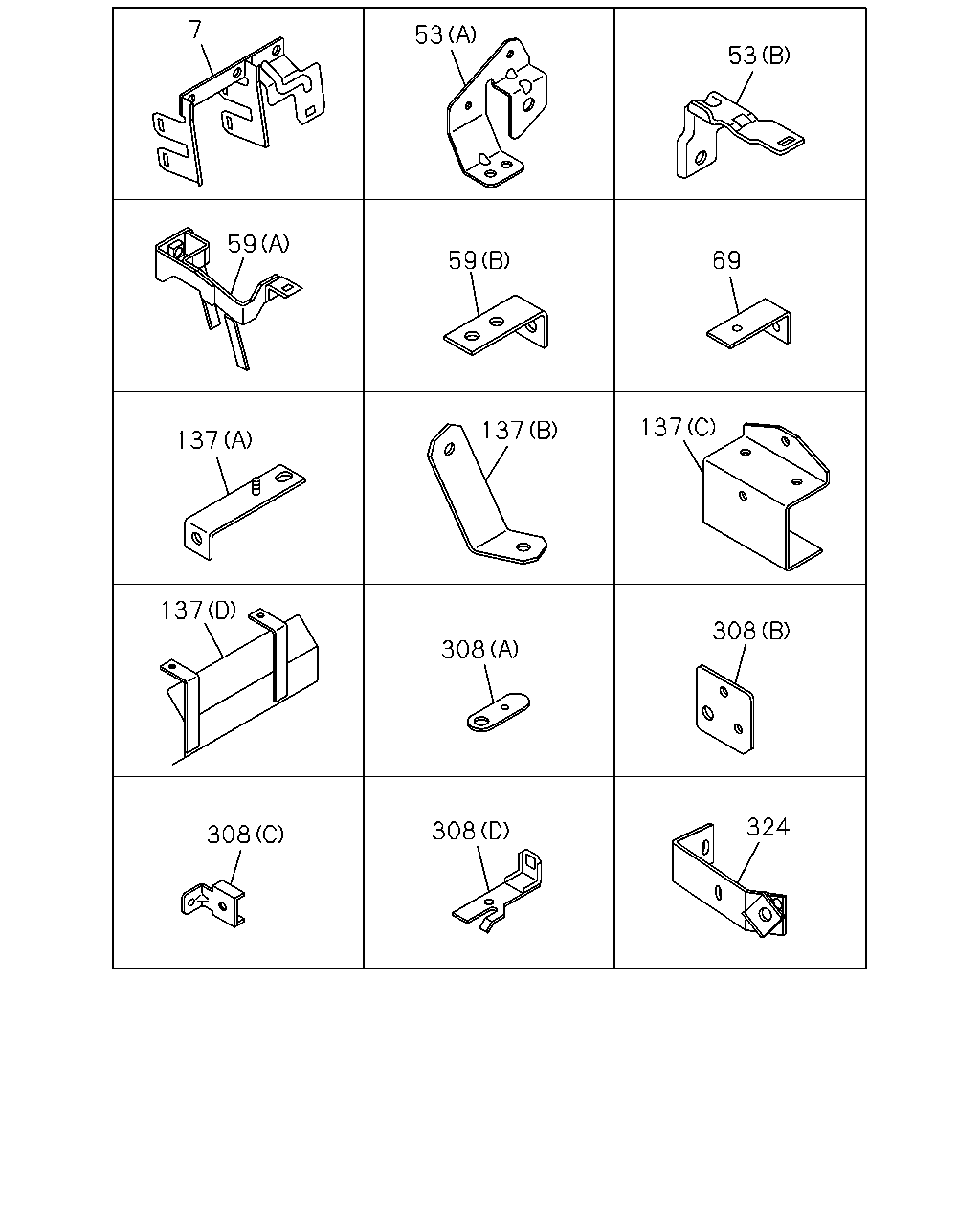

7	BRACKET; CONNECTOR	8-98090-846-0	01	1	1411-
53	BRACKET; HARNESS (B)	8-98052-458-0	01	1	1411-
53	BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (A)	8-98084-699-0	01	1	1411-
59	BRACKET; FRAME HARNESS (B) L=62	1-21464-170-2	01	1	1411-
59	BRACKET; FRAME HARNESS (A)	8-97609-264-2	01	1	1411-
69	BRACKET; CLIP MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) L=55	1-47475-304-0	01	1	1411-
137	BRACKET; HARNESS CLAMP (C)	8-97609-797-1	02	1	1411-
137	BRACKET; HARNESS CLAMP (B)	8-97614-728-1	01	1	1411-
137	BRACKET; HARNESS CLAMP (A)	8-97624-013-0	01	1	1411-
137	BRACKET; HARNESS CLAMP (D)	8-98255-001-0	01	1	1411-
308	BRACKET; CLIP,ENG HARNESS EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B)	8-98021-692-1	01	1	1411-
308	BRACKET; CLIP,ENG HARNESS (A)	8-97601-310-0	02	1	1411-
308	BRACKET; CLIP,ENG HARNESS (C)	8-97614-078-0	01	1	1411-
308	BRACKET; CLIP,ENG HARNESS (D)	8-98021-291-2	01	1	1411-
324	BRACKET; CLIP	8-98210-921-1	01	1	1411-
324	BRACKET; CLIP	8-98210-922-1	01	1	1411-

16 305 235 16 305 16 16 16 81 470 305 81 305 306 116 16 305

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS FULLER FSO5206B OD M/T(Y4V) (D) ID=16 L=40	0-95235-576-0	03	1	1411-
16	CLIP; HARNESS FULLER FSO5206B OD M/T(Y4V) (F) OD=9 H=6	1-09709-178-0	01	1	1411-
16	CLIP; HARNESS ZF9S1110 M/T(Y5E) (G) ID=16X2 L=50	0-95325-586-0	01	1	1411-
16	CLIP; HARNESS ZF9S1110 M/T(Y5E) (H) ID=14.5 L=40	1-09701-014-0	01	1	1411-
16	CLIP; HARNESS (I) ID=11 L=16	0-95235-025-0	02	1	1411-
16	CLIP; HARNESS (J) ID=11X2 L=16	0-95325-025-0	02	1	1411-
16	CLIP; HARNESS (M) ID=15 H=30 L=30	1-09700-832-0	02	1	1411-
16	CLIP; HARNESS (N) ID=14.5 H=23 L=30	1-09700-859-0	01	1	1411-
16	CLIP; HARNESS (L) ID=5-12 L=14.5	1-09987-221-0	02	1	1411-
16	CLIP; HARNESS (K) L=140	5-09707-031-1	01	1	1411-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1411-
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1411-
16	CLIP; HARNESS (E) L=40.6	8-97229-357-0	02	1	1411-
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1411-
81	CLIP; HARNESS MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) (A) OD=9 H=6	1-09709-178-0	01	1	1411-
81	CLIP; HARNESS ZF9S1110 M/T(Y5E) (B) OD=9 H=13.5	1-09709-180-0	01	1	1411-
81	CLIP; HARNESS H.S.A SYSTEM<6EP> (C) L=250	5-09707-030-1	01	1	1411-
81	CLIP; HARNESS ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> (C) L=250	5-09707-030-1	01	1	1411-
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	04	1	1411-
235	CLIP; HARNESS,SPD SENSOR,SSPS ID=11 L=16	0-95235-025-0	02	1	1411-
305	CLIP; ENG HARNESS ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (C) L=100	8-94443-021-1	01	1	1411-
305	CLIP; ENG HARNESS (C) L=100	8-94443-021-1	01	1	1411-
305	CLIP; ENG HARNESS EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (J) ID=16 L=28	0-95235-556-0	02	1	1411-
305	CLIP; ENG HARNESS EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (F) ID=18 L=44	8-97367-985-1	01	1	1411-
305	CLIP; ENG HARNESS (H) ID=16 L=40	0-95235-576-0	01	1	1411-
305	CLIP; ENG HARNESS (E) ID=24 L=32	1-09700-766-1	01	1	1411-
305	CLIP; ENG HARNESS (D) ID=20 H=23 L=27	1-09700-861-0	01	1	1411-
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	1411-
305	CLIP; ENG HARNESS (K) ID=19 H=33 L=45	1-09701-045-0	01	1	1411-
305	CLIP; ENG HARNESS (I) OD=9 H=6	1-09709-178-0	01	1	1411-
305	CLIP; ENG HARNESS (L) ID=11 L=45	8-94296-897-1	01	1	1411-
305	CLIP; ENG HARNESS (B) L=140	8-97122-360-0	01	1	1411-
305	CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONTROL(C60) (G) ID=21 L=47.5	8-94178-108-0	01	1	1411-
305	CLIP; ENG HARNESS MZW6P M/T(RSZ) ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. KD PREPARATORY PACK<6HF> (J) ID=16 L=28	0-95235-556-0	01	1	1411-
306	CLIP; HARNESS,ELEC GOV (A) ID=28 L=32	1-09701-107-1	01	1	1411-
306	CLIP; HARNESS,ELEC GOV (B) ID=28X2 L=28	1-09701-302-0	02	1	1411-
470	CLIP; HARNESS,LICENSE LAMP OD=9 H=6	1-09709-178-0	01	1	1411-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
