◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11591 - FVR LHD EURO5 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#152158) — 15 parça
çizim 455605
163 170 160 2 3 4 169
BalonParca AdiParca NoAdetTipApplied Date
2 BELT; SEAT,TONGUE SIDE
GRAY 		8-97428-089-0 01 1 1411-
3 BELT; SEAT,BUCKLE SIDE
GRAY 		8-97411-565-3 01 1 1411-
4 BELT; PASSENGER SEAT,BUCKLE SIDE
EXC. SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97409-769-1 01 1 1411-
160 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 01 1 1411-
163 COVER; ADJUSTER
GRAY 		8-97405-991-0 01 1 1411-
169 SEAL
EXC. SEAT ASM - WITH CENTER SEAT<7BC> OD=25 BLACK 		1-76798-019-0 01 1 1411-
170 BELT; PASSENGER SEAT,TONGUE SIDE
GRAY 		8-97428-089-0 01 1 1411-

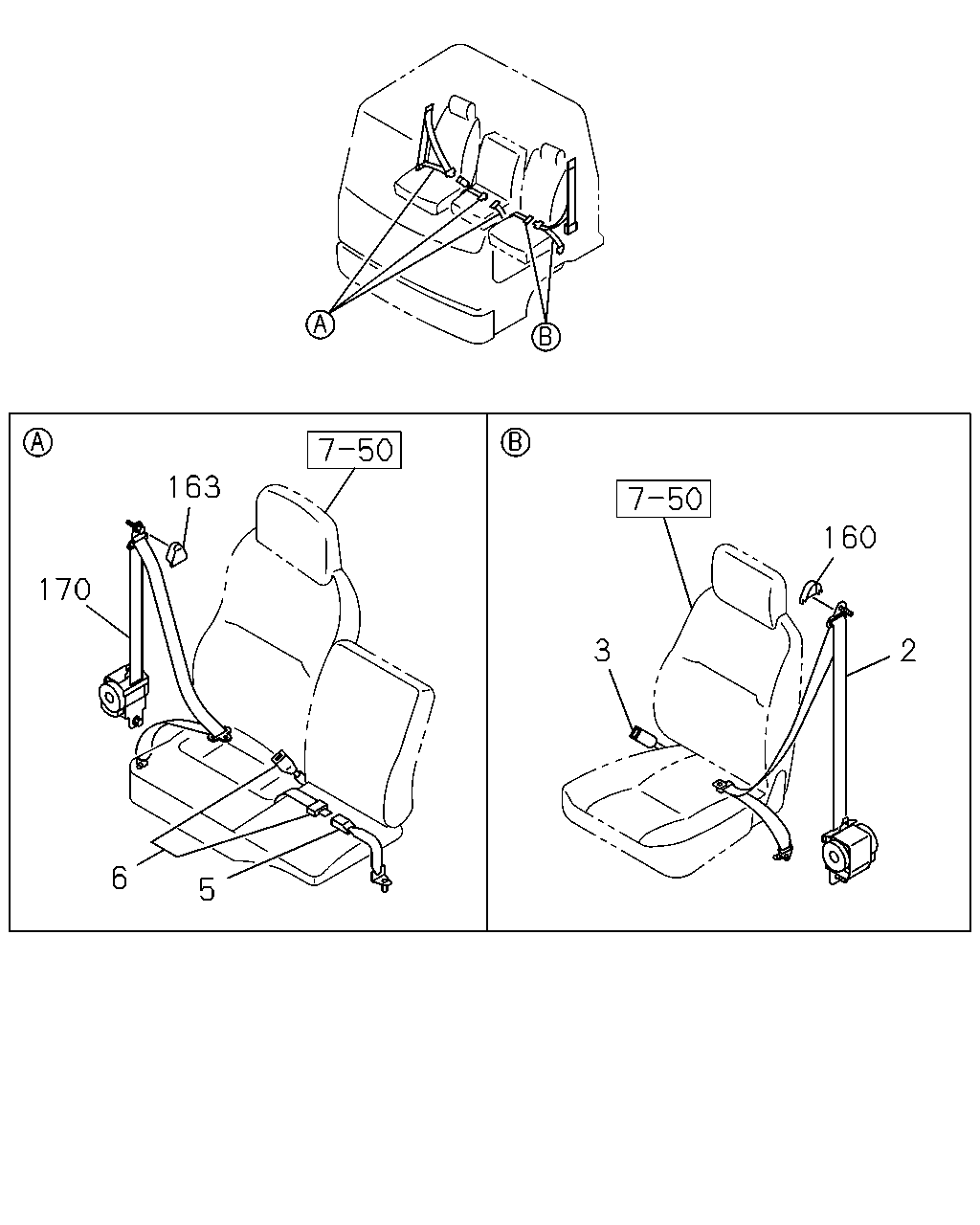

çizim 455741
163 170 6 5 160 2 3
BalonParca AdiParca NoAdetTipApplied Date
2 BELT; SEAT,TONGUE SIDE
GRAY 		8-97428-089-0 01 1 1411-
3 BELT; SEAT,BUCKLE SIDE
GRAY 		8-97411-565-3 01 1 1411-
5 BELT; CENTER SEAT,BUCKLE SIDE
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97407-377-1 01 1 1411-
6 BELT; CENTER SEAT,TONGUE SIDE
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97428-090-0 01 1 1411-
6 BELT; CENTER SEAT,TONGUE SIDE
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97428-090-0 01 1 1411-
160 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 01 1 1411-
163 COVER; ADJUSTER
GRAY 		8-97405-991-0 01 1 1411-
170 BELT; PASSENGER SEAT,TONGUE SIDE
GRAY 		8-97428-089-0 01 1 1411-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
