Sayfa 7-50 - Isuzu EPC

7-50 — FRONT SEAT (#152157) — 382 parça

595 339 632

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A)	1-75538-131-3	01	1	1510-
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> (B)	8-98014-971-0	01	1	1411-
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A)	1-75538-131-3	01	1	1411-1506
595	TUBE; NYLON AIR SUSP DRIVER SEAT<A56>	8-98041-300-0	01	1	1411-
632	GROMMET RIGID SEAT WO/ARM REST<TAZ> OD=24	8-94119-796-0	01	1	1411-

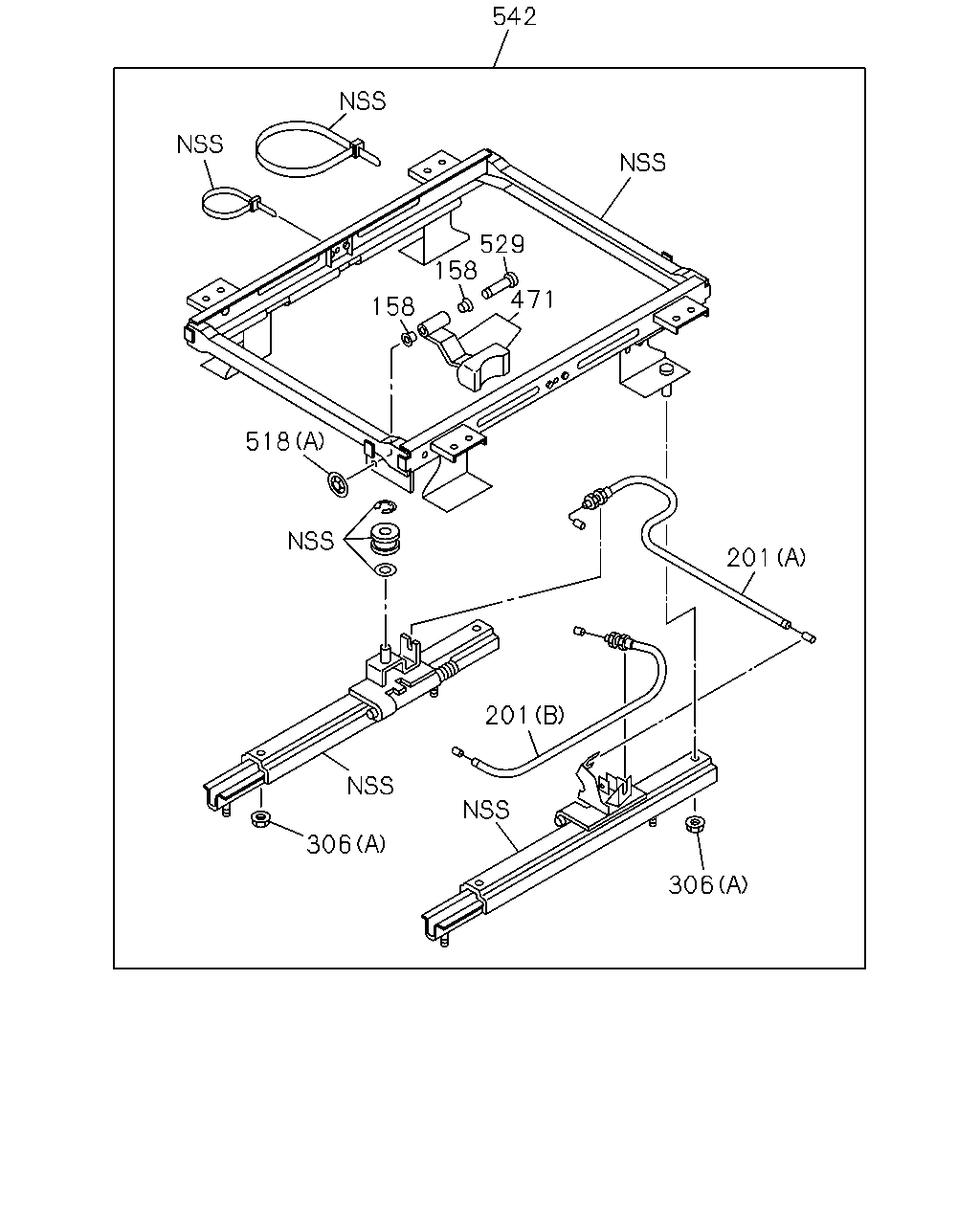

542 529 158 158 471 518 306 201 306 201

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
158	BUSHING; LINK ARM AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-75518-209-0	02	1	1411-1506
158	BUSHING; LINK ARM RIGID SEAT WO/ARM REST<TAZ>	1-75518-209-0	02	1	1411-1506
158	BUSHING; LINK ARM RIGID SEAT WO/ARM REST<TAZ>	1-75518-209-0	02	1	1507-1509
158	BUSHING; LINK ARM AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-75518-209-0	02	1	1510-
158	BUSHING; LINK ARM RIGID SEAT WO/ARM REST<TAZ>	1-75518-209-0	02	1	1510-
201	CABLE; ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) L=667	1-75518-288-0	01	1	1411-1506
201	CABLE; ADJ RIGID SEAT WO/ARM REST<TAZ> (A) L=667	1-75518-288-0	01	1	1411-1506
201	CABLE; ADJ RIGID SEAT WO/ARM REST<TAZ> (A) L=667	1-75518-288-0	01	1	1507-1509
201	CABLE; ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) L=667	1-75518-288-0	01	1	1510-
201	CABLE; ADJ RIGID SEAT WO/ARM REST<TAZ> (A) L=667	1-75518-288-0	01	1	1510-
201	CABLE; ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) L=605	1-75518-289-1	01	1	1411-1506
201	CABLE; ADJ RIGID SEAT WO/ARM REST<TAZ> (B) L=605	1-75518-289-1	01	1	1411-1506
201	CABLE; ADJ RIGID SEAT WO/ARM REST<TAZ> (B) L=605	1-75518-289-1	01	1	1507-1509
201	CABLE; ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) L=605	1-75518-289-1	01	1	1510-
201	CABLE; ADJ RIGID SEAT WO/ARM REST<TAZ> (B) L=605	1-75518-289-1	01	1	1510-
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M8 FLANGE	1-75538-207-0	06	1	1510-
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M8 FLANGE	1-75538-207-0	06	1	1411-1506
306	NUT; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE	1-75538-207-0	08	1	1411-
306	NUT; SEAT ADJ (B) M10 FLANGE	0-91180-110-0	02	1	1411-
471	LEVER; SEAT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	8-98107-870-0	01	1	1411-1506
471	LEVER; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ>	8-98107-870-0	01	1	1411-1506
471	LEVER; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ>	8-98107-870-0	01	1	1507-1509
471	LEVER; SEAT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	8-98107-870-0	01	1	1510-
471	LEVER; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ>	8-98107-870-0	01	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C) M8	1-75518-264-0	04	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (E) M8 FLANGE	1-75538-207-0	04	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D) M6 LOCK NUT	5-09984-020-0	02	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M8 FLANGE	8-94152-886-0	04	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C) M8	1-75518-264-0	04	1	1411-1506
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (E) M8 FLANGE	1-75538-207-0	04	1	1411-1506
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D) M6 LOCK NUT	5-09984-020-0	02	1	1411-1506
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M8 FLANGE	8-94152-886-0	04	1	1411-1506
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A)	1-75518-263-0	01	1	1411-1506
518	NUT; TILT ADJ RIGID SEAT WO/ARM REST<TAZ> (A)	1-75518-263-0	01	1	1411-1506
518	NUT; TILT ADJ RIGID SEAT WO/ARM REST<TAZ> (A)	1-75518-263-0	01	1	1507-1509
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A)	1-75518-263-0	01	1	1510-
518	NUT; TILT ADJ RIGID SEAT WO/ARM REST<TAZ> (A)	1-75518-263-0	01	1	1510-
529	PIN; LINK AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-75518-262-0	01	1	1411-1506
529	PIN; LINK RIGID SEAT WO/ARM REST<TAZ>	1-75518-262-0	01	1	1411-1506
529	PIN; LINK RIGID SEAT WO/ARM REST<TAZ>	1-75518-262-0	01	1	1507-1509
529	PIN; LINK AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-75518-262-0	01	1	1510-
529	PIN; LINK RIGID SEAT WO/ARM REST<TAZ>	1-75518-262-0	01	1	1510-
542	ADJUSTER ASM; SEAT SLIDE RIGID SEAT WO/ARM REST<TAZ>	8-98092-333-0	01	1	1411-1502
542	ADJUSTER ASM; SEAT SLIDE RIGID SEAT WO/ARM REST<TAZ>	8-98291-654-0	01	1	1503-

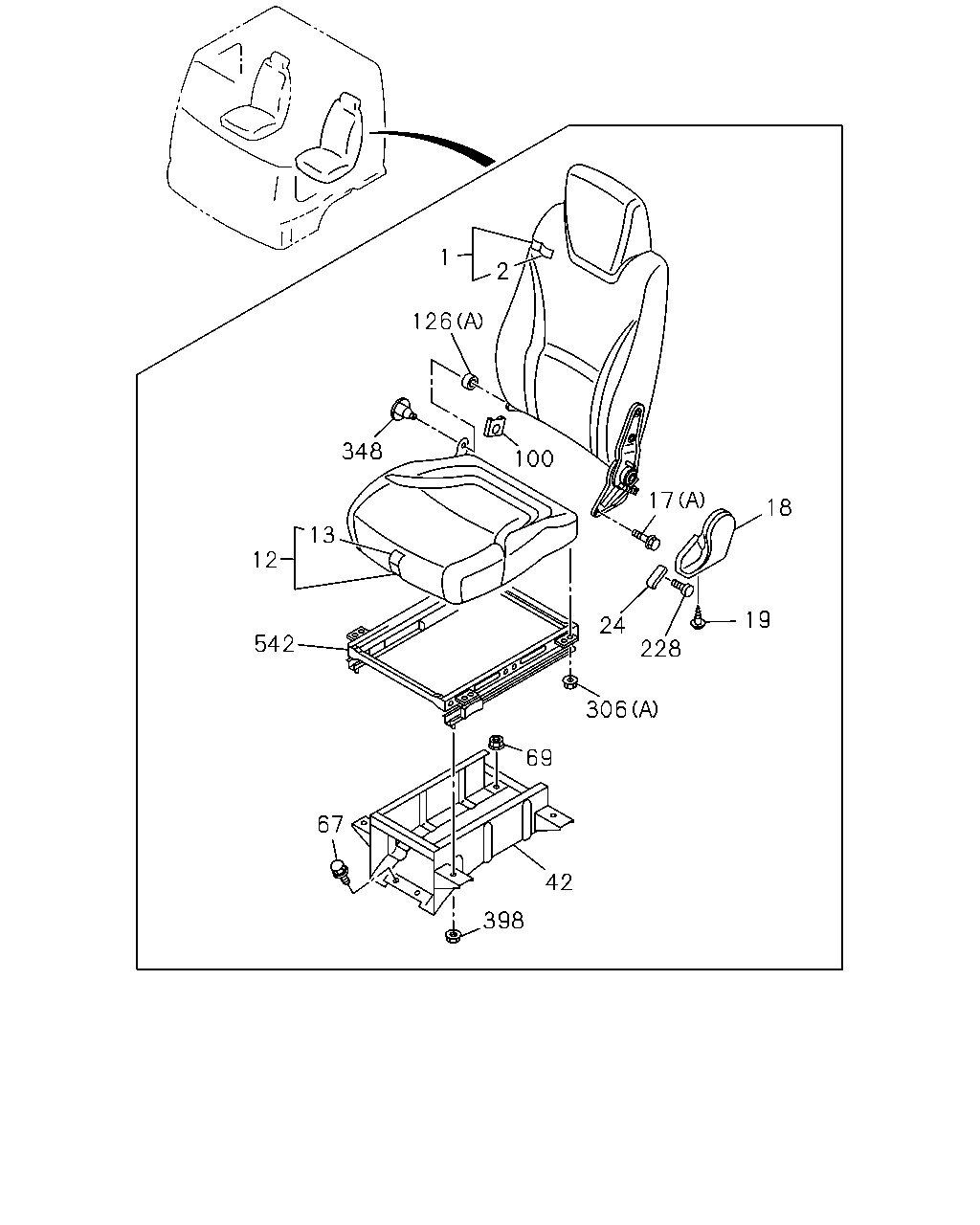

1 126 348 100 17 18 19 306 24 228 2 13 12 542 67 69 42 398

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DARK GRAY	8-97421-408-1	01	1	1411-1512
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DARK GRAY	8-97466-623-0	01	1	1601-
1	BACK ASM; SEAT VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY	8-97414-037-5	01	1	1411-1512
1	BACK ASM; SEAT VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY	8-97466-619-0	01	1	1601-
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY	8-97421-409-1	01	1	1411-1512
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY	8-97466-621-0	01	1	1601-
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DARK GRAY	8-97421-413-0	01	1	1411-
2	COVER; TRIM,FRT SEAT,BACK VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY	8-97414-038-2	01	1	1411-
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY	8-97421-414-0	01	1	1411-
12	CUSHION; SEAT,FRT SEAT CLOTH<7FL> DARK GRAY	8-97421-399-2	01	1	1411-1512
12	CUSHION; SEAT,FRT SEAT CLOTH<7FL> DARK GRAY	8-97466-612-0	01	1	1601-
12	CUSHION; SEAT,FRT VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY	8-97414-035-2	01	1	1411-1512
12	CUSHION; SEAT,FRT VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY	8-97466-609-0	01	1	1601-
13	COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> DARK GRAY	8-97421-403-2	01	1	1411-
13	COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY	8-97414-036-1	01	1	1411-
17	BOLT; RECLINING AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M10X20	8-98062-661-0	02	1	1411-1506
17	BOLT; RECLINING RIGID SEAT WO/ARM REST<TAZ> (A) M10X20	8-98062-661-0	02	1	1411-1506
17	BOLT; RECLINING RIGID SEAT WO/ARM REST<TAZ> (A) M10X20	8-98062-661-0	02	1	1507-1509
17	BOLT; RECLINING AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M10X20	8-98062-661-0	02	1	1510-
17	BOLT; RECLINING RIGID SEAT WO/ARM REST<TAZ> (A) M10X20	8-98062-661-0	02	1	1510-
17	BOLT; RECLINING (B) M8X20	8-98092-334-0	02	1	1411-
18	COVER; RECLINING AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> GRAY	8-97409-361-0	01	1	1411-
18	COVER; RECLINING RIGID SEAT WO/ARM REST<TAZ> GRAY	8-97409-361-0	01	1	1411-
19	SCREW; COVER AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M5	8-98062-663-0	01	1	1411-1506
19	SCREW; COVER RIGID SEAT WO/ARM REST<TAZ> M5	8-98062-663-0	01	1	1411-1506
19	SCREW; COVER RIGID SEAT WO/ARM REST<TAZ> M5	8-98062-663-0	01	1	1507-1509
19	SCREW; COVER AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M5	8-98062-663-0	01	1	1510-
19	SCREW; COVER RIGID SEAT WO/ARM REST<TAZ> M5	8-98062-663-0	01	1	1510-
24	KNOB; RECLINING,FRT,SEAT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> GRAY	8-97409-362-0	01	1	1411-
24	KNOB; RECLINING,FRT,SEAT RIGID SEAT WO/ARM REST<TAZ> GRAY	8-97409-362-0	01	1	1411-
42	STAND; DRIVER SEAT RIGID SEAT WO/ARM REST<TAZ>	1-75558-604-2	01	1	1411-
67	BOLT; FRT SEAT TO BODY M10X20 FLANGE	0-28451-020-0	02	1	1411-
69	NUT; FRT SEAT M10 FLANGE	0-91180-110-0	02	1	1411-
100	COVER; HINGE AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	8-98203-070-0	01	1	1411-1506
100	COVER; HINGE RIGID SEAT WO/ARM REST<TAZ>	8-98203-070-0	01	1	1411-1506
100	COVER; HINGE RIGID SEAT WO/ARM REST<TAZ>	8-98203-070-0	01	1	1507-1509
100	COVER; HINGE AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	8-98203-070-0	01	1	1510-1512
100	COVER; HINGE RIGID SEAT WO/ARM REST<TAZ>	8-98203-070-0	01	1	1510-1512
100	COVER; HINGE AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	8-98286-009-0	01	1	1601-
100	COVER; HINGE RIGID SEAT WO/ARM REST<TAZ>	8-98286-009-0	01	1	1601-
126	BUSHING; HINGE,RECLINING AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A)	8-98063-218-0	01	1	1411-1506
126	BUSHING; HINGE,RECLINING RIGID SEAT WO/ARM REST<TAZ> (A)	8-98063-218-0	01	1	1411-1506
126	BUSHING; HINGE,RECLINING RIGID SEAT WO/ARM REST<TAZ> (A)	8-98063-218-0	01	1	1507-1509
126	BUSHING; HINGE,RECLINING AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A)	8-98063-218-0	01	1	1510-1512
126	BUSHING; HINGE,RECLINING RIGID SEAT WO/ARM REST<TAZ> (A)	8-98063-218-0	01	1	1510-1512
126	BUSHING; HINGE,RECLINING AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A)	8-98286-007-0	01	1	1601-
126	BUSHING; HINGE,RECLINING RIGID SEAT WO/ARM REST<TAZ> (A)	8-98286-007-0	01	1	1601-
126	BUSHING; HINGE,RECLINING SEAT ASM - WITH CENTER SEAT<7BC> (B)	8-97854-900-0	01	1	1411-
228	SCREW; KNOB AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M4	8-98062-662-0	01	1	1411-1506
228	SCREW; KNOB RIGID SEAT WO/ARM REST<TAZ> M4	8-98062-662-0	01	1	1411-1506
228	SCREW; KNOB RIGID SEAT WO/ARM REST<TAZ> M4	8-98062-662-0	01	1	1507-1509
228	SCREW; KNOB AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M4	8-98062-662-0	01	1	1510-
228	SCREW; KNOB RIGID SEAT WO/ARM REST<TAZ> M4	8-98062-662-0	01	1	1510-
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M8 FLANGE	1-75538-207-0	06	1	1510-
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M8 FLANGE	1-75538-207-0	06	1	1411-1506
306	NUT; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE	1-75538-207-0	08	1	1411-
306	NUT; SEAT ADJ (B) M10 FLANGE	0-91180-110-0	02	1	1411-
348	BOLT; HINGE,SEAT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	8-98286-008-0	01	1	1601-
348	BOLT; HINGE,SEAT RIGID SEAT WO/ARM REST<TAZ>	8-98286-008-0	01	1	1601-
398	NUT; STAND RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	1-75538-207-0	04	1	1411-
542	ADJUSTER ASM; SEAT SLIDE RIGID SEAT WO/ARM REST<TAZ>	8-98092-333-0	01	1	1411-1502
542	ADJUSTER ASM; SEAT SLIDE RIGID SEAT WO/ARM REST<TAZ>	8-98291-654-0	01	1	1503-

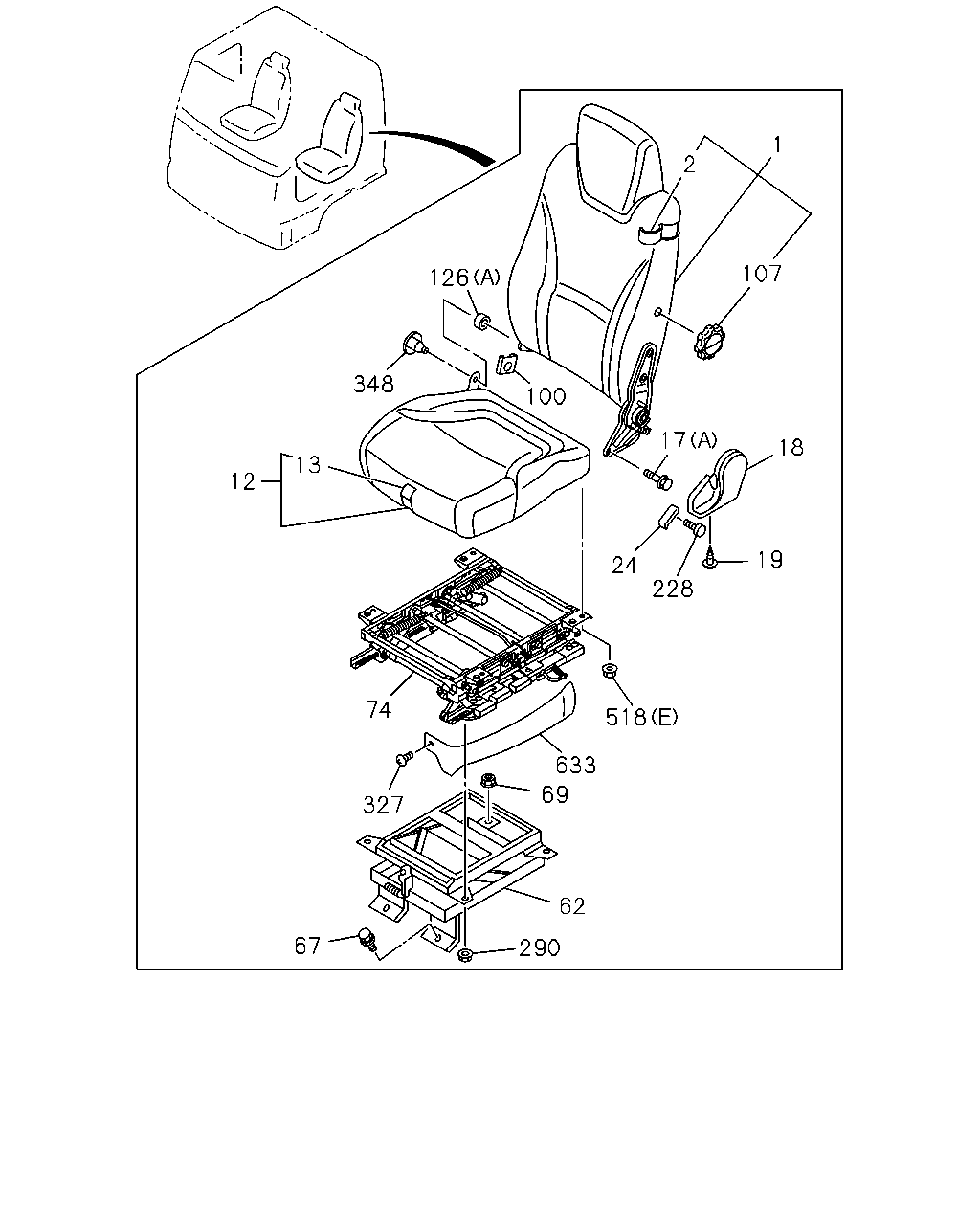

126 348 13 12 74 327 69 518 633 62 290 228 19 24 17 18 107 1 2 100 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DARK GRAY	8-97421-408-1	01	1	1411-1512
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DARK GRAY	8-97466-623-0	01	1	1601-
1	BACK ASM; SEAT VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY	8-97414-037-5	01	1	1411-1512
1	BACK ASM; SEAT VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY	8-97466-619-0	01	1	1601-
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY	8-97421-409-1	01	1	1411-1512
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY	8-97466-621-0	01	1	1601-
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DARK GRAY	8-97421-413-0	01	1	1411-
2	COVER; TRIM,FRT SEAT,BACK VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY	8-97414-038-2	01	1	1411-
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY	8-97421-414-0	01	1	1411-
12	CUSHION; SEAT,FRT SEAT CLOTH<7FL> DARK GRAY	8-97421-399-2	01	1	1411-1512
12	CUSHION; SEAT,FRT SEAT CLOTH<7FL> DARK GRAY	8-97466-612-0	01	1	1601-
12	CUSHION; SEAT,FRT VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY	8-97414-035-2	01	1	1411-1512
12	CUSHION; SEAT,FRT VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY	8-97466-609-0	01	1	1601-
13	COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> DARK GRAY	8-97421-403-2	01	1	1411-
13	COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY	8-97414-036-1	01	1	1411-
17	BOLT; RECLINING AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M10X20	8-98062-661-0	02	1	1411-1506
17	BOLT; RECLINING RIGID SEAT WO/ARM REST<TAZ> (A) M10X20	8-98062-661-0	02	1	1411-1506
17	BOLT; RECLINING RIGID SEAT WO/ARM REST<TAZ> (A) M10X20	8-98062-661-0	02	1	1507-1509
17	BOLT; RECLINING AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M10X20	8-98062-661-0	02	1	1510-
17	BOLT; RECLINING RIGID SEAT WO/ARM REST<TAZ> (A) M10X20	8-98062-661-0	02	1	1510-
17	BOLT; RECLINING (B) M8X20	8-98092-334-0	02	1	1411-
18	COVER; RECLINING AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> GRAY	8-97409-361-0	01	1	1411-
18	COVER; RECLINING RIGID SEAT WO/ARM REST<TAZ> GRAY	8-97409-361-0	01	1	1411-
19	SCREW; COVER AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M5	8-98062-663-0	01	1	1411-1506
19	SCREW; COVER RIGID SEAT WO/ARM REST<TAZ> M5	8-98062-663-0	01	1	1411-1506
19	SCREW; COVER RIGID SEAT WO/ARM REST<TAZ> M5	8-98062-663-0	01	1	1507-1509
19	SCREW; COVER AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M5	8-98062-663-0	01	1	1510-
19	SCREW; COVER RIGID SEAT WO/ARM REST<TAZ> M5	8-98062-663-0	01	1	1510-
24	KNOB; RECLINING,FRT,SEAT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> GRAY	8-97409-362-0	01	1	1411-
24	KNOB; RECLINING,FRT,SEAT RIGID SEAT WO/ARM REST<TAZ> GRAY	8-97409-362-0	01	1	1411-

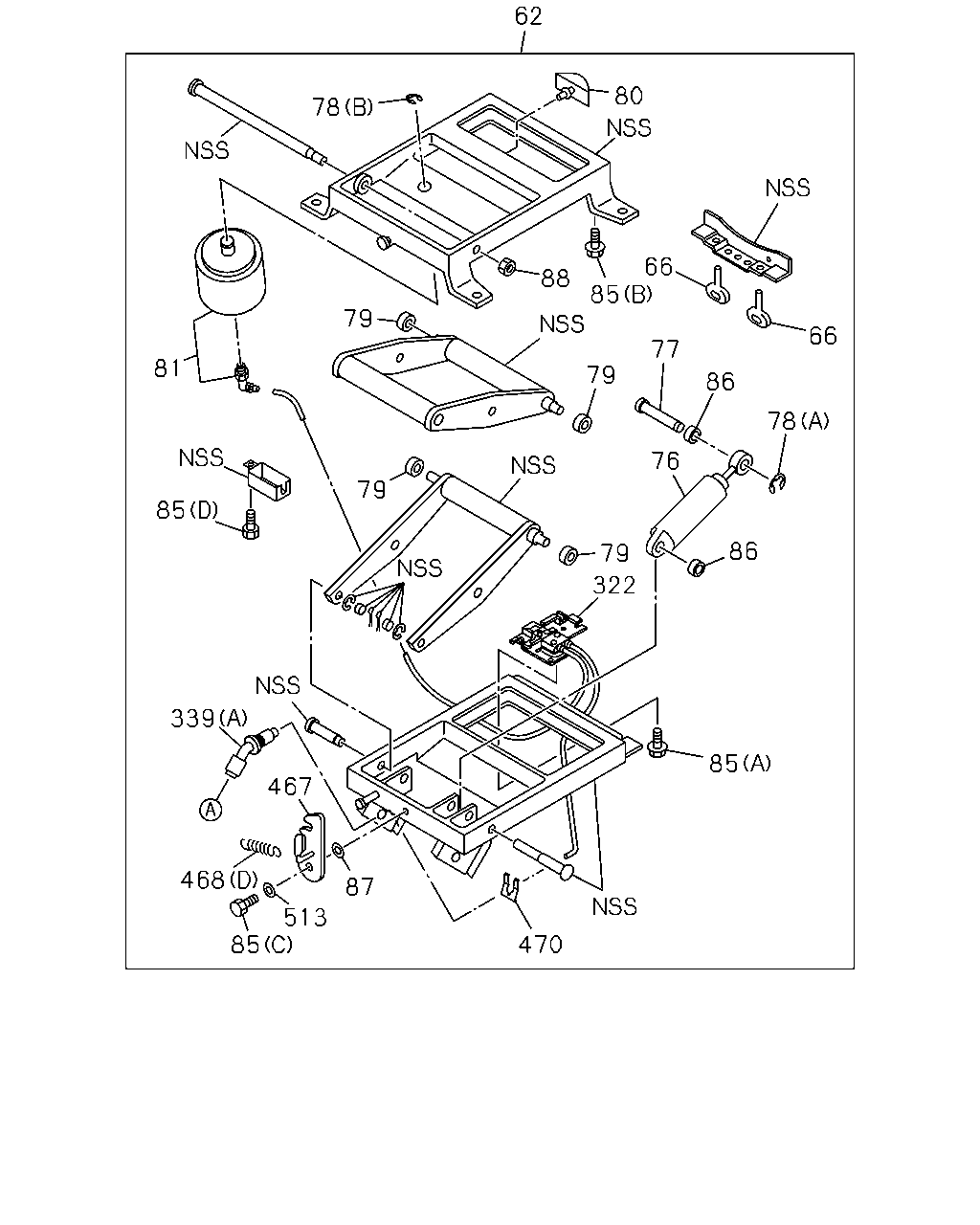

62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	8-98261-451-0	01	1	1510-
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	8-98261-451-0	01	1	1411-1506
67	BOLT; FRT SEAT TO BODY M10X20 FLANGE	0-28451-020-0	02	1	1411-
69	NUT; FRT SEAT M10 FLANGE	0-91180-110-0	02	1	1411-

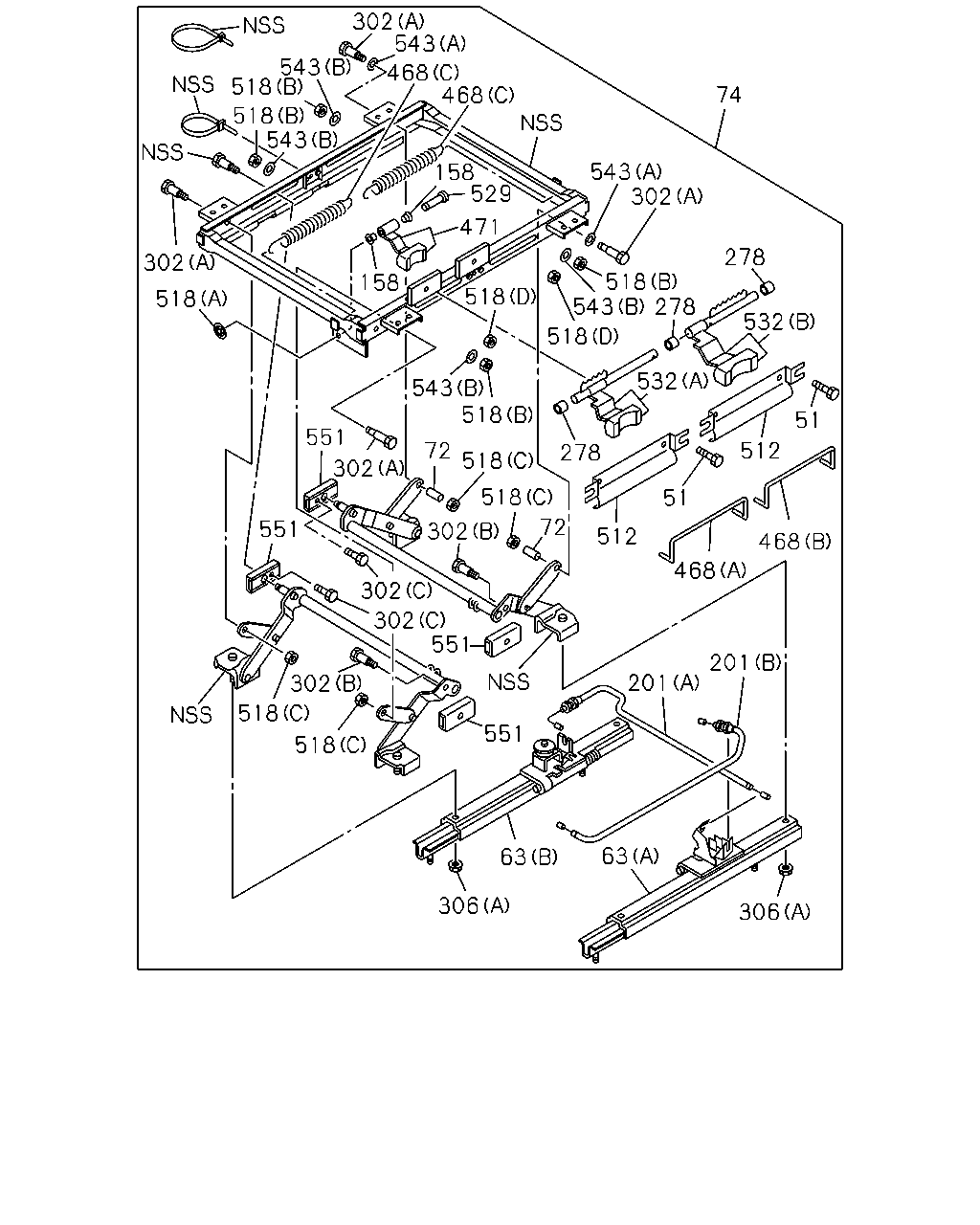

74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	8-98291-641-0	01	1	1510-
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	8-98093-429-0	01	1	1411-1502
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	8-98291-641-0	01	1	1503-1506
100	COVER; HINGE AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	8-98203-070-0	01	1	1411-1506
100	COVER; HINGE RIGID SEAT WO/ARM REST<TAZ>	8-98203-070-0	01	1	1411-1506
100	COVER; HINGE RIGID SEAT WO/ARM REST<TAZ>	8-98203-070-0	01	1	1507-1509
100	COVER; HINGE AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	8-98203-070-0	01	1	1510-1512
100	COVER; HINGE RIGID SEAT WO/ARM REST<TAZ>	8-98203-070-0	01	1	1510-1512
100	COVER; HINGE AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	8-98286-009-0	01	1	1601-
100	COVER; HINGE RIGID SEAT WO/ARM REST<TAZ>	8-98286-009-0	01	1	1601-
107	DIAL; SEAT RECLINING AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	8-98063-174-0	01	1	1510-
107	DIAL; SEAT RECLINING AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	8-98063-174-0	01	1	1411-1506
126	BUSHING; HINGE,RECLINING AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A)	8-98063-218-0	01	1	1411-1506
126	BUSHING; HINGE,RECLINING RIGID SEAT WO/ARM REST<TAZ> (A)	8-98063-218-0	01	1	1411-1506
126	BUSHING; HINGE,RECLINING RIGID SEAT WO/ARM REST<TAZ> (A)	8-98063-218-0	01	1	1507-1509
126	BUSHING; HINGE,RECLINING AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A)	8-98063-218-0	01	1	1510-1512
126	BUSHING; HINGE,RECLINING RIGID SEAT WO/ARM REST<TAZ> (A)	8-98063-218-0	01	1	1510-1512
126	BUSHING; HINGE,RECLINING AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A)	8-98286-007-0	01	1	1601-
126	BUSHING; HINGE,RECLINING RIGID SEAT WO/ARM REST<TAZ> (A)	8-98286-007-0	01	1	1601-
126	BUSHING; HINGE,RECLINING SEAT ASM - WITH CENTER SEAT<7BC> (B)	8-97854-900-0	01	1	1411-
228	SCREW; KNOB AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M4	8-98062-662-0	01	1	1411-1506
228	SCREW; KNOB RIGID SEAT WO/ARM REST<TAZ> M4	8-98062-662-0	01	1	1411-1506
228	SCREW; KNOB RIGID SEAT WO/ARM REST<TAZ> M4	8-98062-662-0	01	1	1507-1509
228	SCREW; KNOB AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M4	8-98062-662-0	01	1	1510-
228	SCREW; KNOB RIGID SEAT WO/ARM REST<TAZ> M4	8-98062-662-0	01	1	1510-
290	NUT; ADJ TO SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M8 FLANGE	1-75538-207-0	04	1	1510-
290	NUT; ADJ TO SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M8 FLANGE	1-75538-207-0	04	1	1411-1506
327	CLIP; COVER AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-09987-273-0	01	1	1411-
348	BOLT; HINGE,SEAT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	8-98286-008-0	01	1	1601-
348	BOLT; HINGE,SEAT RIGID SEAT WO/ARM REST<TAZ>	8-98286-008-0	01	1	1601-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C) M8	1-75518-264-0	04	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (E) M8 FLANGE	1-75538-207-0	04	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D) M6 LOCK NUT	5-09984-020-0	02	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M8 FLANGE	8-94152-886-0	04	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C) M8	1-75518-264-0	04	1	1411-1506
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (E) M8 FLANGE	1-75538-207-0	04	1	1411-1506
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D) M6 LOCK NUT	5-09984-020-0	02	1	1411-1506
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M8 FLANGE	8-94152-886-0	04	1	1411-1506
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A)	1-75518-263-0	01	1	1411-1506
518	NUT; TILT ADJ RIGID SEAT WO/ARM REST<TAZ> (A)	1-75518-263-0	01	1	1411-1506
518	NUT; TILT ADJ RIGID SEAT WO/ARM REST<TAZ> (A)	1-75518-263-0	01	1	1507-1509
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A)	1-75518-263-0	01	1	1510-
518	NUT; TILT ADJ RIGID SEAT WO/ARM REST<TAZ> (A)	1-75518-263-0	01	1	1510-
633	COVER; ADJ,TILT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> GRAY	8-97414-118-0	01	1	1411-

62 78 80 88 79 85 66 66 86 77 78 76 79 86 79 322 79 85 470 87 513 85 468 467 339 85 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	8-98261-451-0	01	1	1510-
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	8-98261-451-0	01	1	1411-1506
66	RUBBER; LWR STOPPER AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-75538-145-0	02	1	1510-
66	RUBBER; LWR STOPPER AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-75538-145-0	02	1	1411-1506
76	DAMPER; AIR SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-75538-139-0	01	1	1510-
76	DAMPER; AIR SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-75538-139-0	01	1	1411-1506
77	PIN; DAMPER AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-75538-138-2	01	1	1510-
77	PIN; DAMPER AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-75538-138-2	01	1	1411-1506
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) ID=8	9-09185-408-0	01	1	1510-
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) ID=15	9-09185-415-0	01	1	1510-
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) ID=8	9-09185-408-0	01	1	1411-1506
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) ID=15	9-09185-415-0	01	1	1411-1506
79	ROLLER ASM; AIR SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	8-98261-489-0	04	1	1510-
79	ROLLER ASM; AIR SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	8-98261-489-0	04	1	1411-1506
80	RUBBER; STOPPER AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-09987-123-0	01	1	1510-
80	RUBBER; STOPPER AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-09987-123-0	01	1	1411-1506
81	SPRING; AIR AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	8-98242-816-0	01	1	1510-
81	SPRING; AIR AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	8-98242-816-0	01	1	1411-1506
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C)	1-09980-577-1	01	1	1510-
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M6X12	1-75538-208-1	02	1	1510-
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M8X22 W/LK&PL WASHER	1-75538-209-0	02	1	1510-
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D) M8X25 W/LK&PL WASHER	8-98243-394-0	01	1	1510-
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C)	1-09980-577-1	01	1	1411-1506
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M6X12	1-75538-208-1	02	1	1411-1506
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M8X22 W/LK&PL WASHER	1-75538-209-0	02	1	1411-1506
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D) M8X25 W/LK&PL WASHER	8-98243-394-0	01	1	1411-1506
86	BUSHING; GUIDE AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> OD=6.2 LIGHT GRAY	1-09983-173-1	02	1	1510-
86	BUSHING; GUIDE AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> OD=6.2 LIGHT GRAY	1-09983-173-1	02	1	1411-1506
87	WASHER; AIR SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> ID=8.2	0-91510-508-0	01	1	1510-
87	WASHER; AIR SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> ID=8.2	0-91510-508-0	01	1	1411-1506
88	NUT; AIR SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M10	1-75537-273-1	01	1	1510-
88	NUT; AIR SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M10	1-75537-273-1	01	1	1411-1506
322	VALVE; AIR SPRING AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-75538-187-3	01	1	1510-
322	VALVE; AIR SPRING AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-75538-187-3	01	1	1411-1506
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A)	1-75538-131-3	01	1	1510-
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> (B)	8-98014-971-0	01	1	1411-
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A)	1-75538-131-3	01	1	1411-1506
467	LEVER; LOCK AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-75538-134-0	01	1	1510-
467	LEVER; LOCK AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-75538-134-0	01	1	1411-1506
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A)	1-75518-206-0	01	1	1510-
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B)	1-75518-207-0	01	1	1510-
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C)	1-75518-208-0	02	1	1510-
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D)	1-75538-132-0	01	1	1510-
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A)	1-75518-206-0	01	1	1411-1506
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B)	1-75518-207-0	01	1	1411-1506
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C)	1-75518-208-0	02	1	1411-1506
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D)	1-75538-132-0	01	1	1411-1506
470	CLIP; HOSE AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-75538-137-0	01	1	1510-
470	CLIP; HOSE AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-75538-137-0	01	1	1411-1506
513	SPACER; LEVER AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-75538-133-0	01	1	1510-
513	SPACER; LEVER AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-75538-133-0	01	1	1411-1506

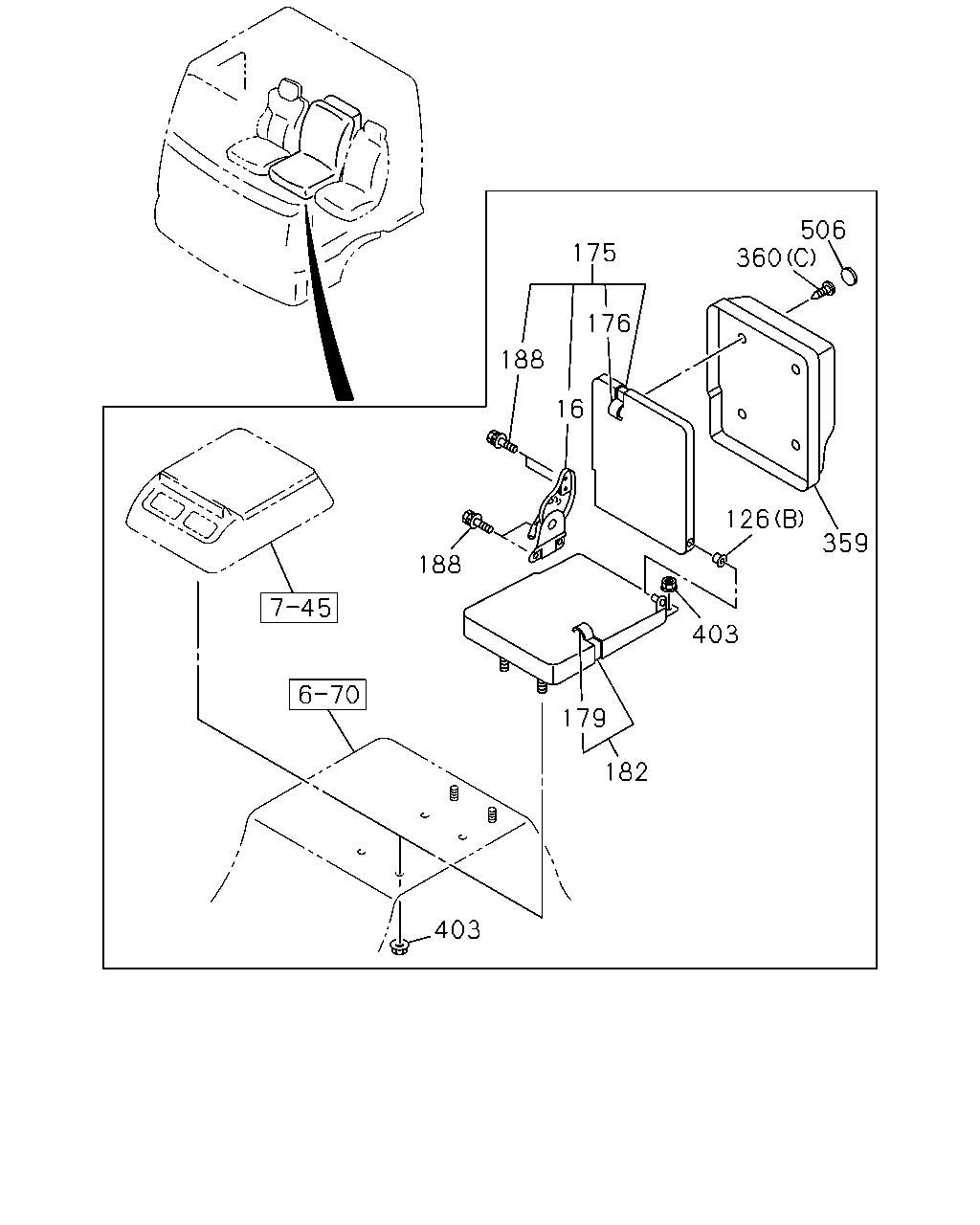

188 188 176 175 360 506 359 126 403 179 182 403 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	ADJUSTER ASM; RECLINING SEAT ASM - WITH CENTER SEAT<7BC>	1-75418-062-1	01	1	1411-
126	BUSHING; HINGE,RECLINING AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A)	8-98063-218-0	01	1	1411-1506
126	BUSHING; HINGE,RECLINING RIGID SEAT WO/ARM REST<TAZ> (A)	8-98063-218-0	01	1	1411-1506
126	BUSHING; HINGE,RECLINING RIGID SEAT WO/ARM REST<TAZ> (A)	8-98063-218-0	01	1	1507-1509
126	BUSHING; HINGE,RECLINING AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A)	8-98063-218-0	01	1	1510-1512
126	BUSHING; HINGE,RECLINING RIGID SEAT WO/ARM REST<TAZ> (A)	8-98063-218-0	01	1	1510-1512
126	BUSHING; HINGE,RECLINING AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A)	8-98286-007-0	01	1	1601-
126	BUSHING; HINGE,RECLINING RIGID SEAT WO/ARM REST<TAZ> (A)	8-98286-007-0	01	1	1601-
126	BUSHING; HINGE,RECLINING SEAT ASM - WITH CENTER SEAT<7BC> (B)	8-97854-900-0	01	1	1411-
175	BACK ASM; PASSENGER CENTER SEAT VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97409-975-1	01	1	1411-
175	BACK ASM; PASSENGER CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY	8-97421-434-1	01	1	1411-
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97409-976-1	01	1	1411-
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY	8-97421-435-1	01	1	1411-
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97414-690-1	01	1	1411-
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY	8-97421-433-1	01	1	1411-
182	CUSHION ASM; CENTER SEAT VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97414-129-3	01	1	1411-
182	CUSHION ASM; CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY	8-97421-431-3	01	1	1411-
188	BOLT; BACK TO CUSHION SEAT ASM - WITH CENTER SEAT<7BC> M10X16 FLANGE	1-75198-053-0	04	1	1411-

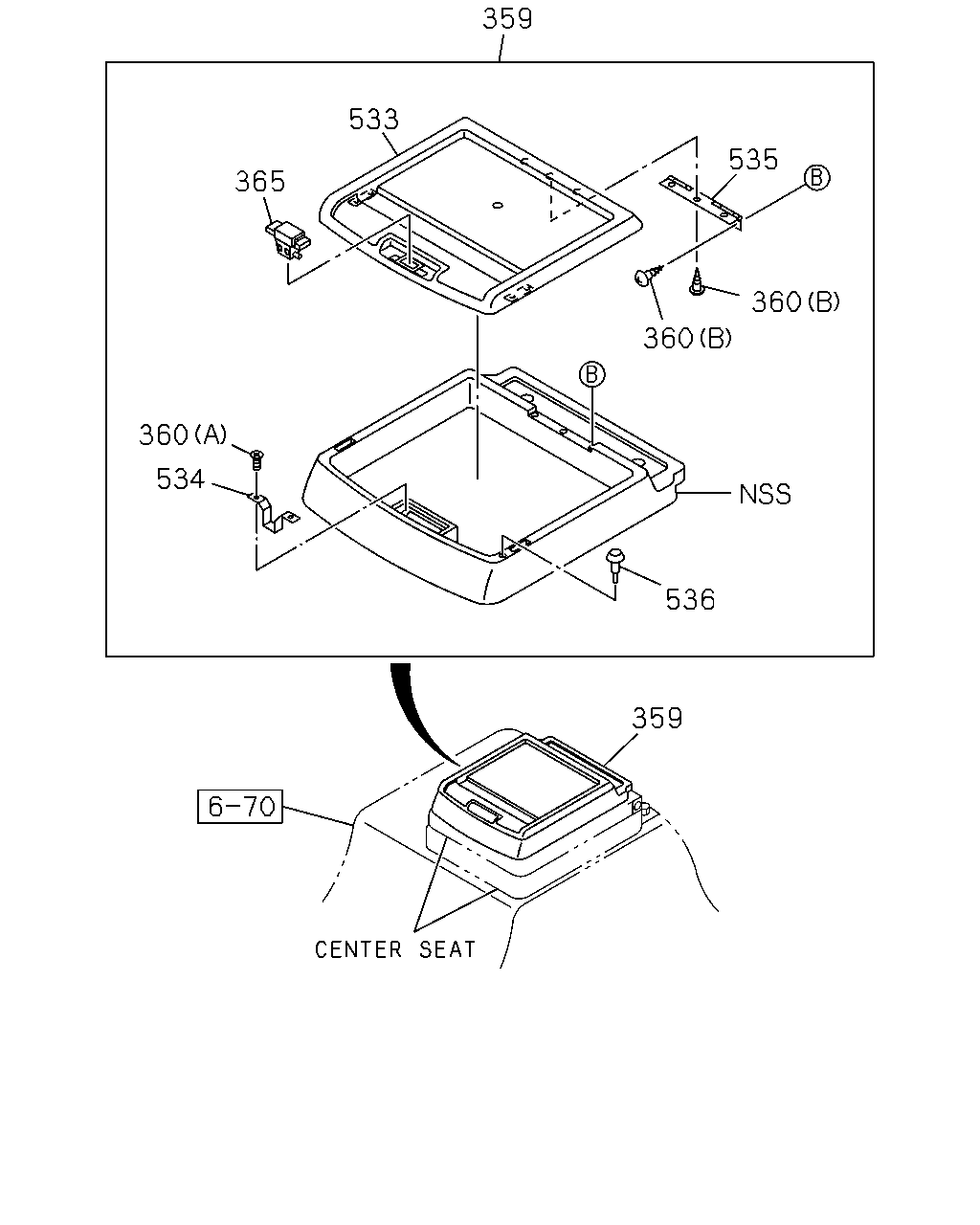

359	BOX; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97417-261-0	01	1	1411-
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16	0-70040-416-0	06	1	1411-
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (A) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1411-
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (C) M5	8-98062-663-0	04	1	1411-
403	NUT; CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> M8 FLANGE	0-91180-108-0	04	1	1411-
506	CAP; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97409-980-1	02	1	1411-

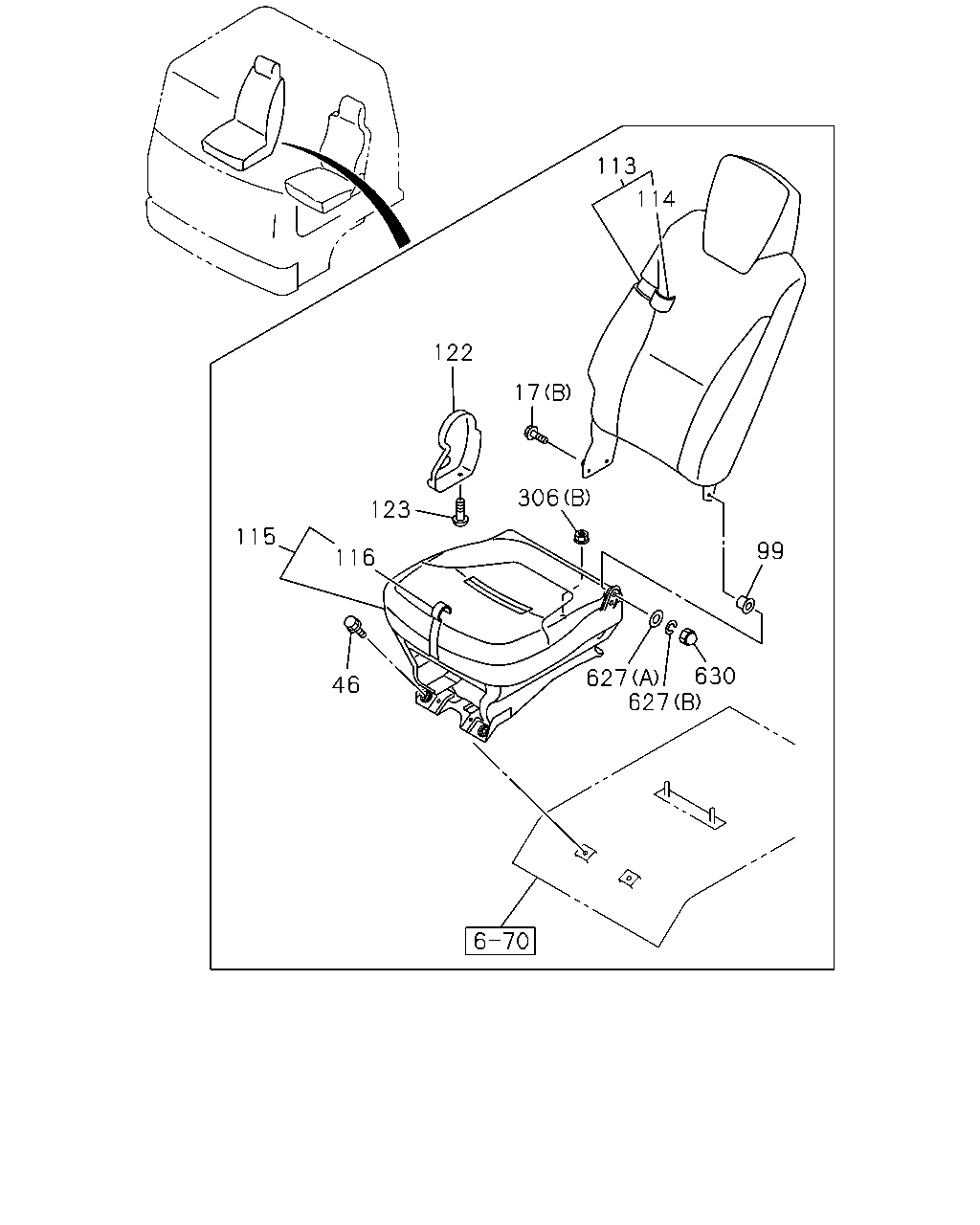

122 17 306 114 113 99 630 627 627 123 116 115 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
17	BOLT; RECLINING AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M10X20	8-98062-661-0	02	1	1411-1506
17	BOLT; RECLINING RIGID SEAT WO/ARM REST<TAZ> (A) M10X20	8-98062-661-0	02	1	1411-1506
17	BOLT; RECLINING RIGID SEAT WO/ARM REST<TAZ> (A) M10X20	8-98062-661-0	02	1	1507-1509
17	BOLT; RECLINING AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M10X20	8-98062-661-0	02	1	1510-
17	BOLT; RECLINING RIGID SEAT WO/ARM REST<TAZ> (A) M10X20	8-98062-661-0	02	1	1510-
17	BOLT; RECLINING (B) M8X20	8-98092-334-0	02	1	1411-
46	BOLT; STAND TO FLOOR M10X20 FLANGE	0-28451-020-0	02	1	1411-
99	BUSHING; SEAT BACK	8-98112-751-0	01	1	1411-
113	BACK ASM; SEAT VINYL SEAT<A83> DARK GRAY	8-97414-041-1	01	1	1411-
113	BACK ASM; SEAT SEAT CLOTH<7FL> DARK GRAY	8-97421-423-0	01	1	1411-
114	COVER; TRIM,PASSENGER SEAT,BACK VINYL SEAT<A83> DARK GRAY	8-97414-042-0	01	1	1411-
114	COVER; TRIM,PASSENGER SEAT,BACK SEAT CLOTH<7FL> DARK GRAY	8-97421-425-0	01	1	1411-
115	CUSHION ASM; PASSENGER SEAT VINYL SEAT<A83> DARK GRAY	8-97414-039-1	01	1	1411-
115	CUSHION ASM; PASSENGER SEAT SEAT CLOTH<7FL> DARK GRAY	8-97421-419-2	01	1	1411-
116	COVER; TRIM,PASSENGER SEAT,CUSHION VINYL SEAT<A83> DARK GRAY	8-97414-040-0	01	1	1411-
116	COVER; TRIM,PASSENGER SEAT,CUSHION SEAT CLOTH<7FL> DARK GRAY	8-97421-421-1	01	1	1411-
122	COVER; ADJ,RECLINING GRAY	8-97414-043-0	01	1	1411-
123	SCREW; COVER,RECLINING M5	8-98070-026-0	01	1	1411-
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M8 FLANGE	1-75538-207-0	06	1	1510-
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M8 FLANGE	1-75538-207-0	06	1	1411-1506
306	NUT; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE	1-75538-207-0	08	1	1411-
306	NUT; SEAT ADJ (B) M10 FLANGE	0-91180-110-0	02	1	1411-
627	WASHER; FRT SEAT (A)	8-98063-223-0	01	1	1411-
627	WASHER; FRT SEAT (B)	8-98063-224-0	01	1	1411-
630	NUT; CAP M8	8-98063-225-0	01	1	1411-

74 278 532 51 512 468 201 201 306 63 63 306 551 468 51 512 532 278 278 518 543 518 518 518 302 302 302 551 302 518 72 518 518 72 543 551 302 551 518 302 543 529 158 158 518 302 543 518 518 543 543 302 468 468 471

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
51	SCREW; COVER AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-75518-325-1	04	1	1510-
51	SCREW; COVER AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-75518-325-1	04	1	1411-1506
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B)	1-75518-227-1	01	1	1510-
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A)	1-75518-324-0	01	1	1510-
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B)	1-75518-227-1	01	1	1411-1506
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A)	1-75518-324-0	01	1	1411-1506
72	SPACER; SEAT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	8-98291-668-0	02	1	1510-
72	SPACER; SEAT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-75518-334-1	02	1	1411-1502
72	SPACER; SEAT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	8-98291-668-0	02	1	1503-1506
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	8-98291-641-0	01	1	1510-
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	8-98093-429-0	01	1	1411-1502
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	8-98291-641-0	01	1	1503-1506
158	BUSHING; LINK ARM AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-75518-209-0	02	1	1411-1506
158	BUSHING; LINK ARM RIGID SEAT WO/ARM REST<TAZ>	1-75518-209-0	02	1	1411-1506
158	BUSHING; LINK ARM RIGID SEAT WO/ARM REST<TAZ>	1-75518-209-0	02	1	1507-1509
158	BUSHING; LINK ARM AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-75518-209-0	02	1	1510-
158	BUSHING; LINK ARM RIGID SEAT WO/ARM REST<TAZ>	1-75518-209-0	02	1	1510-
201	CABLE; ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) L=667	1-75518-288-0	01	1	1411-1506
201	CABLE; ADJ RIGID SEAT WO/ARM REST<TAZ> (A) L=667	1-75518-288-0	01	1	1411-1506
201	CABLE; ADJ RIGID SEAT WO/ARM REST<TAZ> (A) L=667	1-75518-288-0	01	1	1507-1509
201	CABLE; ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) L=667	1-75518-288-0	01	1	1510-
201	CABLE; ADJ RIGID SEAT WO/ARM REST<TAZ> (A) L=667	1-75518-288-0	01	1	1510-
201	CABLE; ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) L=605	1-75518-289-1	01	1	1411-1506
201	CABLE; ADJ RIGID SEAT WO/ARM REST<TAZ> (B) L=605	1-75518-289-1	01	1	1411-1506
201	CABLE; ADJ RIGID SEAT WO/ARM REST<TAZ> (B) L=605	1-75518-289-1	01	1	1507-1509
201	CABLE; ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) L=605	1-75518-289-1	01	1	1510-
201	CABLE; ADJ RIGID SEAT WO/ARM REST<TAZ> (B) L=605	1-75518-289-1	01	1	1510-
278	COLLAR; FRT SEAT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-75518-244-0	03	1	1510-
278	COLLAR; FRT SEAT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-75518-244-0	03	1	1411-1506
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B)	1-75518-266-2	02	1	1510-
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C)	1-75518-336-1	02	1	1510-
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A)	8-98291-667-0	04	1	1510-
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B)	1-75518-266-2	02	1	1411-1506
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A)	1-75518-270-1	04	1	1411-1502
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A)	8-98291-667-0	04	1	1503-1506
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C)	1-75518-336-1	02	1	1411-1506
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M8 FLANGE	1-75538-207-0	06	1	1510-
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M8 FLANGE	1-75538-207-0	06	1	1411-1506
306	NUT; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE	1-75538-207-0	08	1	1411-
306	NUT; SEAT ADJ (B) M10 FLANGE	0-91180-110-0	02	1	1411-
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A)	1-75518-206-0	01	1	1510-
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B)	1-75518-207-0	01	1	1510-
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C)	1-75518-208-0	02	1	1510-
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D)	1-75538-132-0	01	1	1510-
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A)	1-75518-206-0	01	1	1411-1506
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B)	1-75518-207-0	01	1	1411-1506
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C)	1-75518-208-0	02	1	1411-1506
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D)	1-75538-132-0	01	1	1411-1506
471	LEVER; SEAT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	8-98107-870-0	01	1	1411-1506
471	LEVER; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ>	8-98107-870-0	01	1	1411-1506
471	LEVER; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ>	8-98107-870-0	01	1	1507-1509
471	LEVER; SEAT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	8-98107-870-0	01	1	1510-
471	LEVER; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ>	8-98107-870-0	01	1	1510-
512	COVER; LEVER AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-75518-245-1	02	1	1510-
512	COVER; LEVER AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-75518-245-1	02	1	1411-1506
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C) M8	1-75518-264-0	04	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (E) M8 FLANGE	1-75538-207-0	04	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D) M6 LOCK NUT	5-09984-020-0	02	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M8 FLANGE	8-94152-886-0	04	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C) M8	1-75518-264-0	04	1	1411-1506
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (E) M8 FLANGE	1-75538-207-0	04	1	1411-1506
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D) M6 LOCK NUT	5-09984-020-0	02	1	1411-1506
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M8 FLANGE	8-94152-886-0	04	1	1411-1506
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A)	1-75518-263-0	01	1	1411-1506
518	NUT; TILT ADJ RIGID SEAT WO/ARM REST<TAZ> (A)	1-75518-263-0	01	1	1411-1506
518	NUT; TILT ADJ RIGID SEAT WO/ARM REST<TAZ> (A)	1-75518-263-0	01	1	1507-1509
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A)	1-75518-263-0	01	1	1510-
518	NUT; TILT ADJ RIGID SEAT WO/ARM REST<TAZ> (A)	1-75518-263-0	01	1	1510-
529	PIN; LINK AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-75518-262-0	01	1	1411-1506
529	PIN; LINK RIGID SEAT WO/ARM REST<TAZ>	1-75518-262-0	01	1	1411-1506
529	PIN; LINK RIGID SEAT WO/ARM REST<TAZ>	1-75518-262-0	01	1	1507-1509
529	PIN; LINK AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-75518-262-0	01	1	1510-
529	PIN; LINK RIGID SEAT WO/ARM REST<TAZ>	1-75518-262-0	01	1	1510-
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A)	1-75518-221-0	01	1	1510-
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B)	1-75518-222-1	01	1	1510-
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A)	1-75518-221-0	01	1	1411-1506
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B)	1-75518-222-1	01	1	1411-1506
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) ID=13 OD=19	8-98291-669-0	02	1	1510-
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) ID=8.4	9-09160-508-0	04	1	1510-
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A)	1-75518-335-0	02	1	1411-1502
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) ID=13 OD=19	8-98291-669-0	02	1	1503-1506
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) ID=8.4	9-09160-508-0	04	1	1411-1506
551	SLIDER; HEIGHT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-75518-265-0	04	1	1510-
551	SLIDER; HEIGHT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-75518-265-0	04	1	1411-1506

359 533 365 360 534 536 360 360 535 359

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
359	BOX; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97417-261-0	01	1	1411-
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16	0-70040-416-0	06	1	1411-
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (A) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1411-
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (C) M5	8-98062-663-0	04	1	1411-
365	LOCK ASM; SEAT SEAT ASM - WITH CENTER SEAT<7BC>	1-72538-312-0	01	1	1411-
533	LID; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97417-263-0	01	1	1411-
534	STRIKER; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC>	1-72538-190-0	01	1	1411-
535	HINGE; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC>	1-72447-391-1	01	1	1411-
536	RUBBER; CUSHION SEAT ASM - WITH CENTER SEAT<7BC>	1-72538-187-0	02	1	1411-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
