7-40 — INSTRUMENT PANEL AND BOX (#152153) — 118 parça

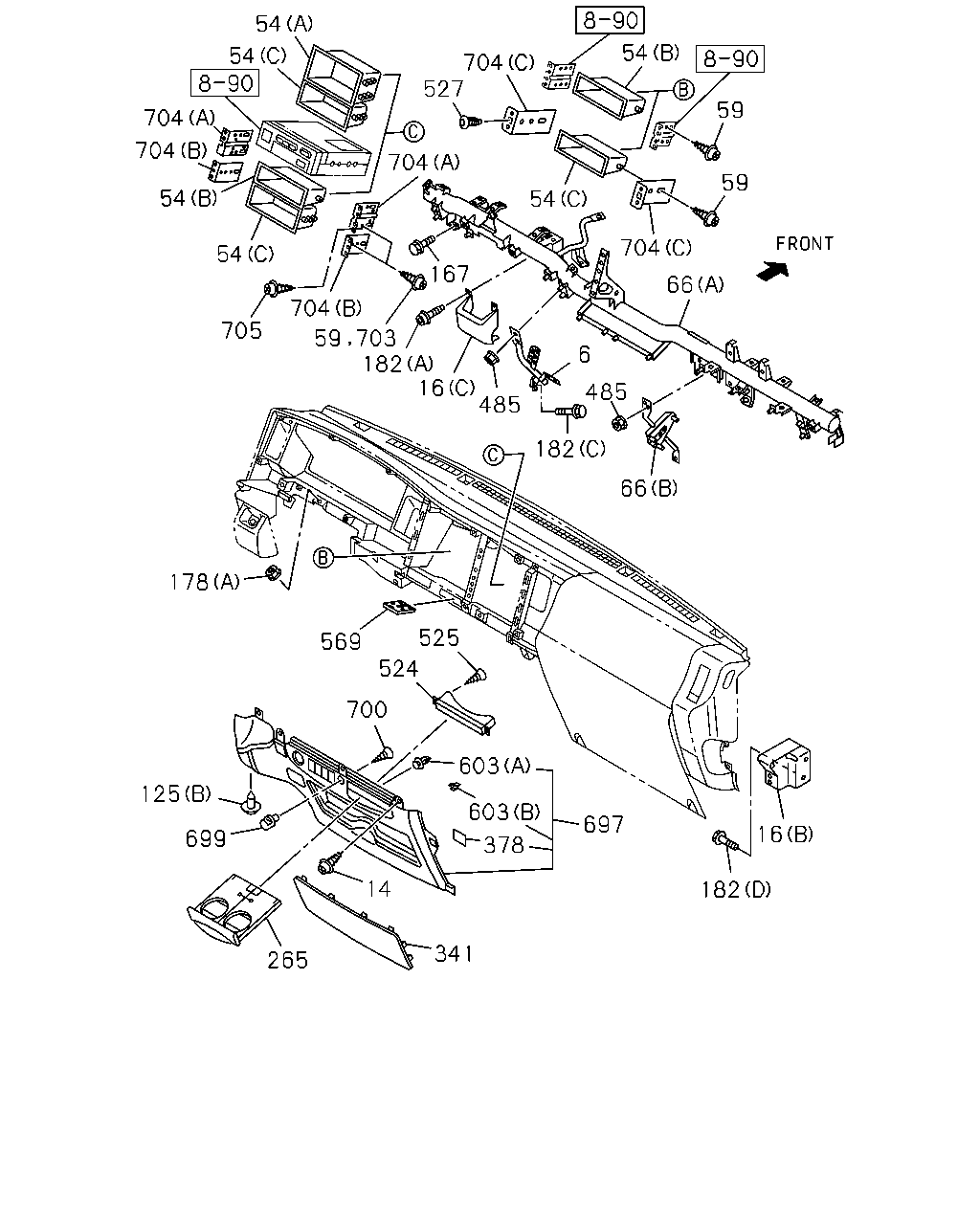

çizim 455461
54 54 704 704 54 54 705 704 59 703 182 16 485 182 485 6 66 66 704 59 59 54 54 704 527 704 167 697 16 182 603 603 378 341 14 265 699 125 700 524 525 569 178
BalonParca AdiParca NoAdetTipApplied Date
6 SUPPORT; INST PANEL 8-98064-936-1 01 1 1411-
14 SCREW; INST PNL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1411-
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-97585-612-2 01 1 1411-
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (D) 		8-98017-529-1 01 1 1411-
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 1411-
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 1411-
16 BRACKET; INST PNL
(C) 		8-98063-326-0 01 1 1411-
54 POCKET; CENTER CLUSTER
TACHOGRAPH 140KM/H<WC7> (B) H=58.4 BLACK 		8-97408-864-3 01 1 1411-
54 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-3 01 1 1411-
54 POCKET; CENTER CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (C) H=69.8 BLACK 		8-97408-865-3 01 1 1411-
54 POCKET; CENTER CLUSTER
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> (C) H=69.8 BLACK 		8-97408-865-3 01 1 1411-
54 POCKET; CENTER CLUSTER
EXC. TACHOGRAPH 140KM/H<WC7> (A) H=108.4 BLACK 		8-97407-129-3 01 1 1411-
59 SCREW; CLUSTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1411-
59 SCREW; CLUSTER POCKET
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1411-
59 SCREW; CLUSTER POCKET
TACHOGRAPH 140KM/H<WC7> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1411-
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1411-
66 REINFORCEMENT; INST PANEL
(B) 		8-97585-581-1 01 1 1411-
66 REINFORCEMENT; INST PANEL
(A) 		8-98240-611-0 01 1 1411-
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 1411-
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1411-
125 CLIP; INST PANEL
(C) 		8-98021-271-0 02 1 1411-
167 BOLT; REINF TO INST
M8X23 FLANGE 		8-97264-766-0 04 1 1411-
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 1411-
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 1411-
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1411-
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 1411-
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1411-
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1411-
265 HOLDER; CUP
GRAY 		8-97418-528-0 01 1 1411-
341 LID; FUSE BOX
GRAY 		8-97422-209-0 01 1 1411-
378 SEAL; INST PANEL
5X30 		8-98176-199-0 01 1 1411-
485 NUT; SUPPORT CLIP,HARNESS
M6 FLANGE 		0-91180-106-0 04 1 1411-
524 STAND ASM; CUP,INST 8-98054-414-0 01 1 1411-
525 SCREW; CUP STAND
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1411-
527 CLIP; INST CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) DARK GRAY 		8-97098-326-0 01 1 1411-
569 HOLDER; CARD 8-97410-276-1 01 1 1411-
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 1411-
603 CLIP; COVER
(B) 		8-98021-271-0 01 1 1411-
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 1411-
666 INSERT; INST PANEL
M5 		8-97926-400-0 04 1 1411-
697 PANEL; INST CENTER
GRAY 		8-97422-208-1 01 1 1411-
699 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 1411-
700 BOLT; HOOK
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1411-
703 SCREW; CENTER POCKET
EXC. TACHOGRAPH 140KM/H<WC7> T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1411-
704 BRACKET; CENTER POCKET
(A) 		8-97585-618-2 02 1 1411-
704 BRACKET; CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (C) 		8-98107-549-0 02 1 1411-
704 BRACKET; CENTER POCKET
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> (B) 		8-97585-616-2 02 1 1411-
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1411-
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1411-
705 SCREW; BRACKET CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 1411-

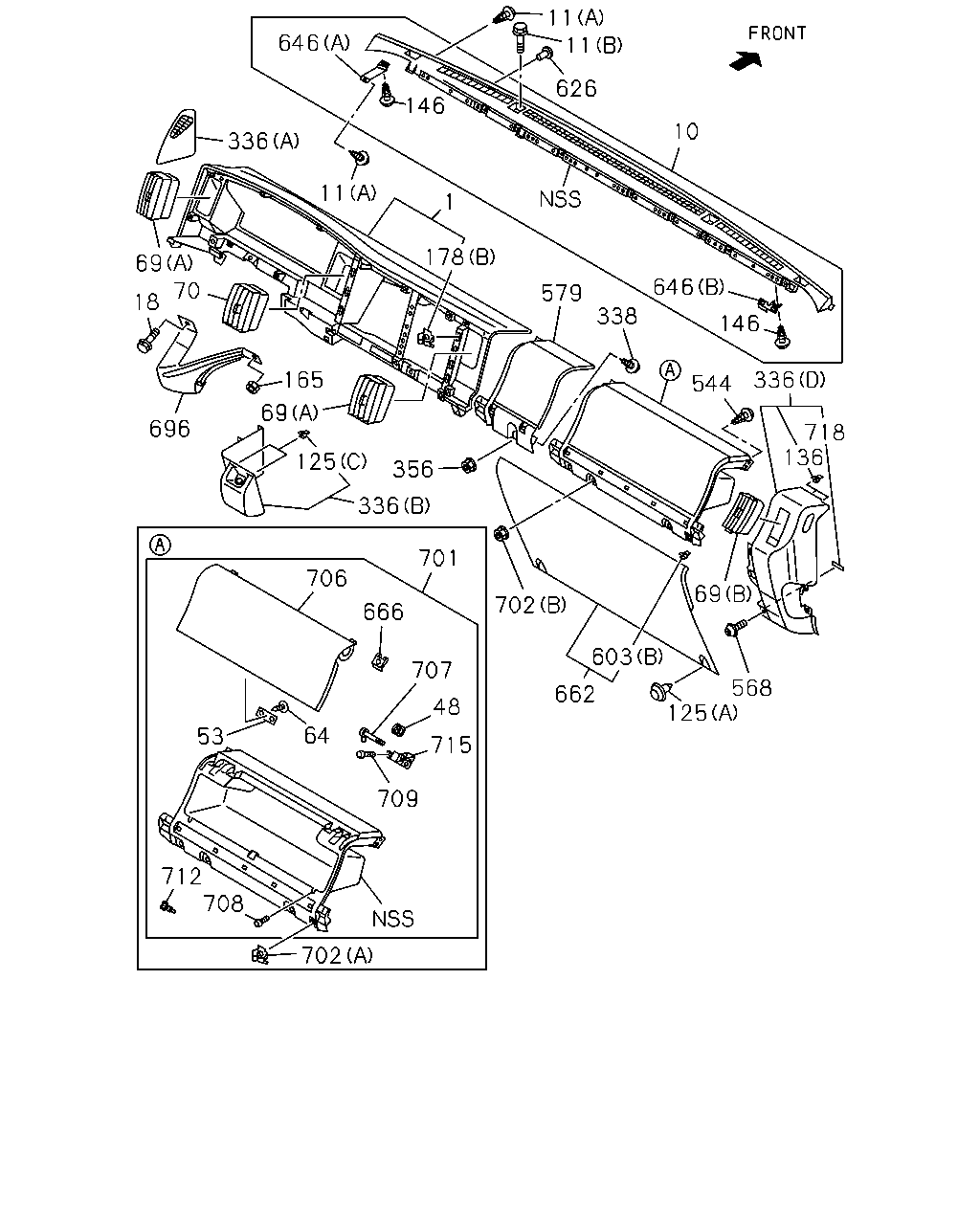

çizim 455672
646 146 11 11 626 10 579 178 1 11 336 69 18 70 696 165 69 125 356 336 701 702 662 603 125 568 69 336 718 136 544 146 646 338 66 707 48 715 706 53 64 709 708 712 702
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; INST
GRAY 		8-97409-777-3 01 1 1411-
10 PANEL ASM; GARNISH
GRAY 		8-97422-098-1 01 1 1411-
11 BOLT; INST PNL
(A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 1411-
11 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 1411-
18 BOLT; BRKT
M6X12 W/LK&PL WASHER 		0-52000-612-0 01 1 1411-
48 SPRING; GLOVE BOX LID 8-98270-763-0 01 1 1411-
48 SPRING; GLOVE BOX LID 8-98270-764-0 01 1 1411-
53 STRIKER; GLOVE BOX 8-98270-765-0 01 1 1411-
64 SCREW; STRIKER
M4X85 		8-97926-404-0 02 1 1411-
66 REINFORCEMENT; INST PANEL
(B) 		8-97585-581-1 01 1 1411-
66 REINFORCEMENT; INST PANEL
(A) 		8-98240-611-0 01 1 1411-
69 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 1411-
69 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-563-2 02 1 1411-
70 GRILLE; CENTER,AIR OUTLET 8-98028-561-2 01 1 1411-
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 1411-
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1411-
125 CLIP; INST PANEL
(C) 		8-98021-271-0 02 1 1411-
136 CLIP; INST COVER 8-98076-254-0 02 1 1411-
146 SCREW; TAP
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1411-
165 NUT; BRKT KNEE PAD
M6 FLANGE 		0-91180-106-0 01 1 1411-
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 1411-
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 1411-
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97409-779-0 01 1 1411-
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97409-780-3 01 1 1411-
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97411-635-2 01 1 1411-
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97424-712-0 01 1 1411-
338 SCREW; COVER
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1411-
356 NUT; COVER
M6 FLANGE 		0-91180-106-0 01 1 1411-
544 SCREW; TRAY
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1411-
568 BOLT; COVER
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1411-
579 COVER; INST PNL
GRAY 		8-97411-560-2 01 1 1411-
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 1411-
603 CLIP; COVER
(B) 		8-98021-271-0 01 1 1411-
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 1411-
626 RETAINER
OD=15 BLACK 		8-94279-804-0 02 1 1411-
646 BRACKET; GARNISH PANEL
(A) 		8-98066-952-1 01 1 1411-
646 BRACKET; GARNISH PANEL
(B) 		8-98066-953-1 01 1 1411-
662 COVER; LWR,INST PANEL
GRAY 		8-97407-429-3 01 1 1411-
666 INSERT; INST PANEL
M5 		8-97926-400-0 04 1 1411-
696 BRACKET; KNEE 8-98098-126-1 01 1 1411-
701 TRAY; INST
GRAY 		8-97429-703-1 01 1 1411-
702 NUT; TRAY
(B) M6 FLANGE 		0-91180-106-0 02 1 1411-
702 NUT; TRAY
(A) 		8-98037-629-0 01 1 1411-
706 LID; TRAY INST
GRAY 		8-97429-992-0 01 1 1411-
707 SHAFT; TRAY INST LID 8-97926-393-0 02 1 1411-
708 STOPPER; TRAY INST LID 8-98010-867-1 02 1 1411-
709 SCREW; TRAY INST
M5X16 TAPPING 		0-71040-516-0 04 1 1411-
712 LOCK; TRAY INST LID 8-98031-846-0 01 1 1411-
715 SUPPORT; TRAY,HINGE 8-97926-396-0 01 1 1411-
715 SUPPORT; TRAY,HINGE 8-97926-397-0 01 1 1411-
718 SEAL; COVER
4X35 		8-98185-153-0 01 1 1411-

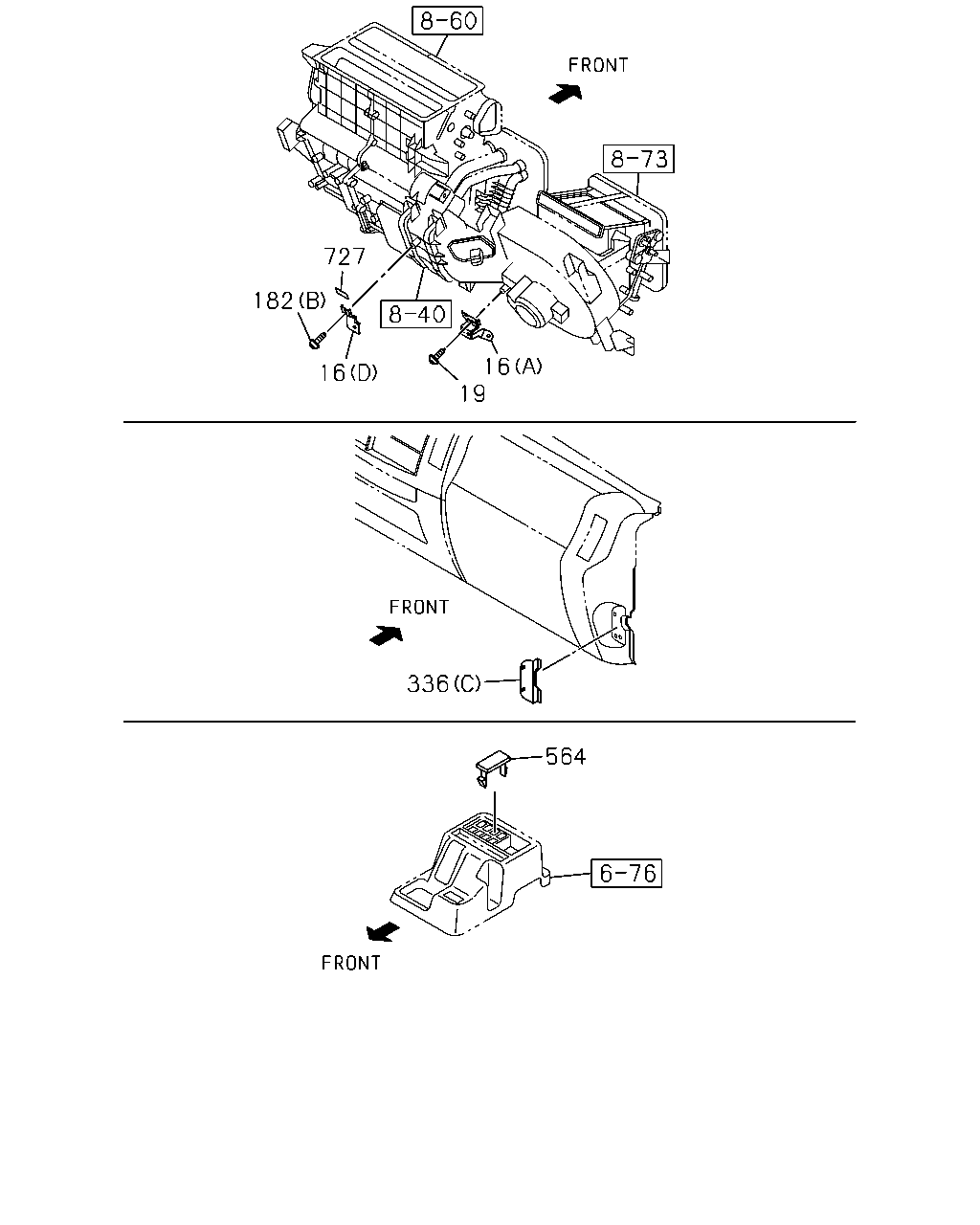

çizim 455744
727 182 16 16 19 336 564
BalonParca AdiParca NoAdetTipApplied Date
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-97585-612-2 01 1 1411-
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (D) 		8-98017-529-1 01 1 1411-
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 1411-
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 1411-
16 BRACKET; INST PNL
(C) 		8-98063-326-0 01 1 1411-
19 SCREW; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1411-
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1411-
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 1411-
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1411-
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1411-
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97409-779-0 01 1 1411-
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97409-780-3 01 1 1411-
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97411-635-2 01 1 1411-
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97424-712-0 01 1 1411-
564 COVER; SW 8-97043-732-1 06 1 1411-
666 INSERT; INST PANEL
M5 		8-97926-400-0 04 1 1411-
727 SEAL; BRACKET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98186-934-0 01 1 1411-
