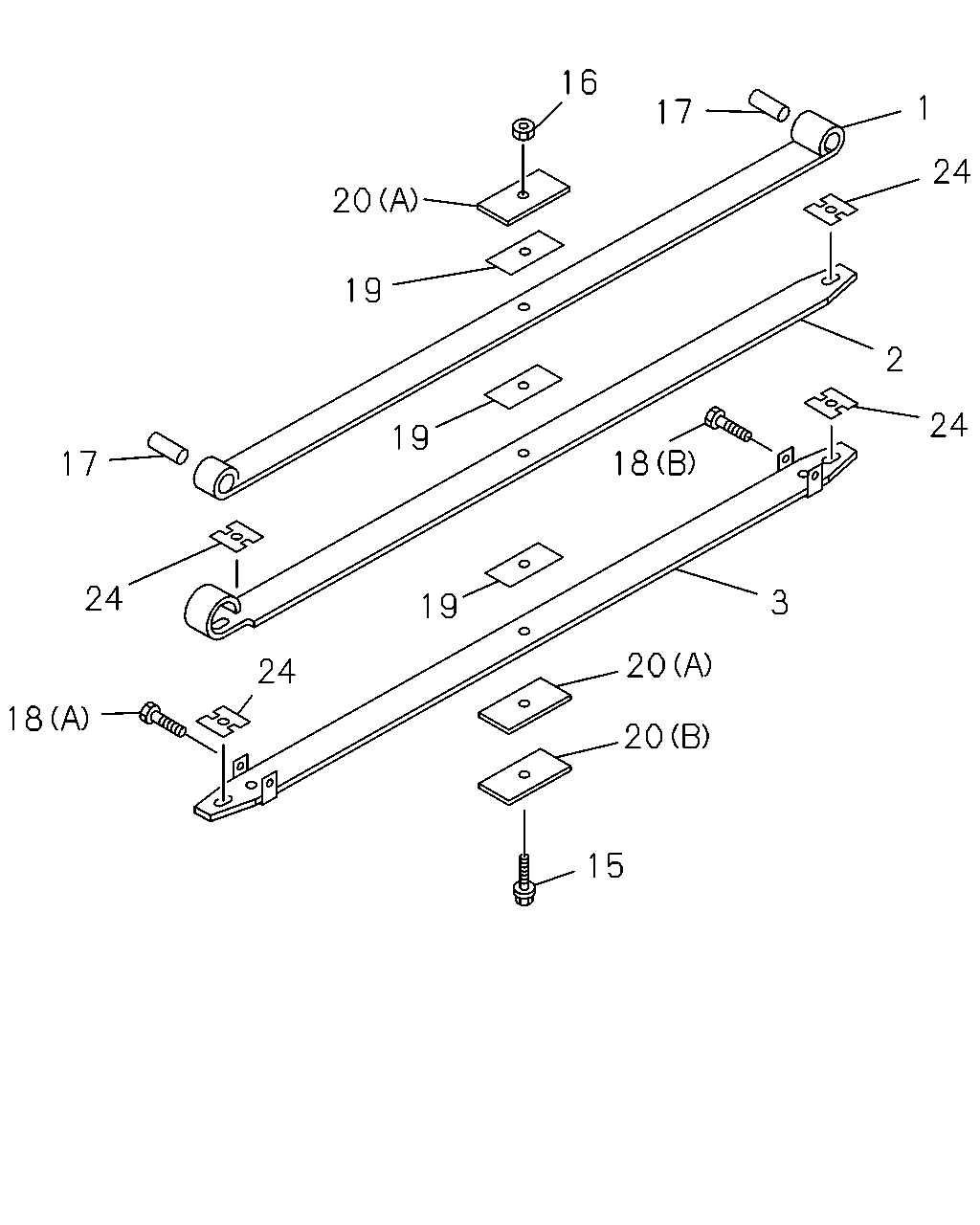

4-55 — FRONT LEAF SPRING (#15213) — 21 parça

16 1 17 24 20 19 2 24 19 18 17 24 3 19 20 24 18 20 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING; LEAF,NO 1,FRT ASM PART: A = 8-98063-483-0	8-98082-017-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: B = 8-98063-484-0	8-98082-018-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: C = 8-98229-528-0	8-98232-171-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: D = 8-98229-529-0	8-98232-174-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: A = 8-98063-483-0	8-98073-498-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: B = 8-98063-484-0	8-98073-501-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: C = 8-98229-528-0	8-98232-172-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: D = 8-98229-529-0	8-98232-175-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: A = 8-98063-483-0	8-98073-499-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: B = 8-98063-484-0	8-98073-502-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: C = 8-98229-528-0	8-98232-173-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: D = 8-98229-529-0	8-98232-176-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=100 ASM PART: A = 8-98063-483-0, B = 8-98063-484-0, C = 8-98229-528-0, D = 8-98229-529-0	1-51156-341-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M14 ASM PART: A = 8-98063-483-0, B = 8-98063-484-0, C = 8-98229-528-0, D = 8-98229-529-0	9-99110-514-0	01	1	-
17	BUSHING; LEAF SPR,FRT ID=25 ASM PART: A = 8-98063-483-0, B = 8-98063-484-0, C = 8-98229-528-0, D = 8-98229-529-0	9-51151-032-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (B), M8X97 ASM PART: A = 8-98063-483-0, B = 8-98063-484-0, C = 8-98229-528-0, D = 8-98229-529-0	1-09000-570-0	01	1	-
18	BOLT; CLIP,LEAF SPR,FRT (A), M8X89 ASM PART: A = 8-98063-483-0, B = 8-98063-484-0, C = 8-98229-528-0, D = 8-98229-529-0	8-97129-689-0	01	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: A = 8-98063-483-0, B = 8-98063-484-0, C = 8-98229-528-0, D = 8-98229-529-0	1-51177-263-0	03	1	-
20	SEAT; LEAF SPR,FRT (B), T=7 ASM PART: A = 8-98063-483-0, B = 8-98063-484-0, C = 8-98229-528-0, D = 8-98229-529-0	1-51172-270-0	01	1	-
20	SEAT; LEAF SPR,FRT (A), T=8 ASM PART: A = 8-98063-483-0, B = 8-98063-484-0, C = 8-98229-528-0, D = 8-98229-529-0	1-51177-331-0	02	1	-
24	LINER; LEAF SPR,FWD FRT ASM PART: A = 8-98063-483-0, B = 8-98063-484-0, C = 8-98229-528-0, D = 8-98229-529-0	1-51159-025-0	04	1	-
